9293649 ZX870-5G SWING REDUCER ZX870-5G SWING GEARBOX FOR EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	ZX870-5G swing gearbox
Equipment	Apply to HITACHI EXCAVATOR
Part no.	9293649
NO.1 sun gear spline teeth
Swing pinion shaft teeth
Item condition	New
Logo	LB
Gross weight	290KG
MOQ	1 pc

Product Descriptio

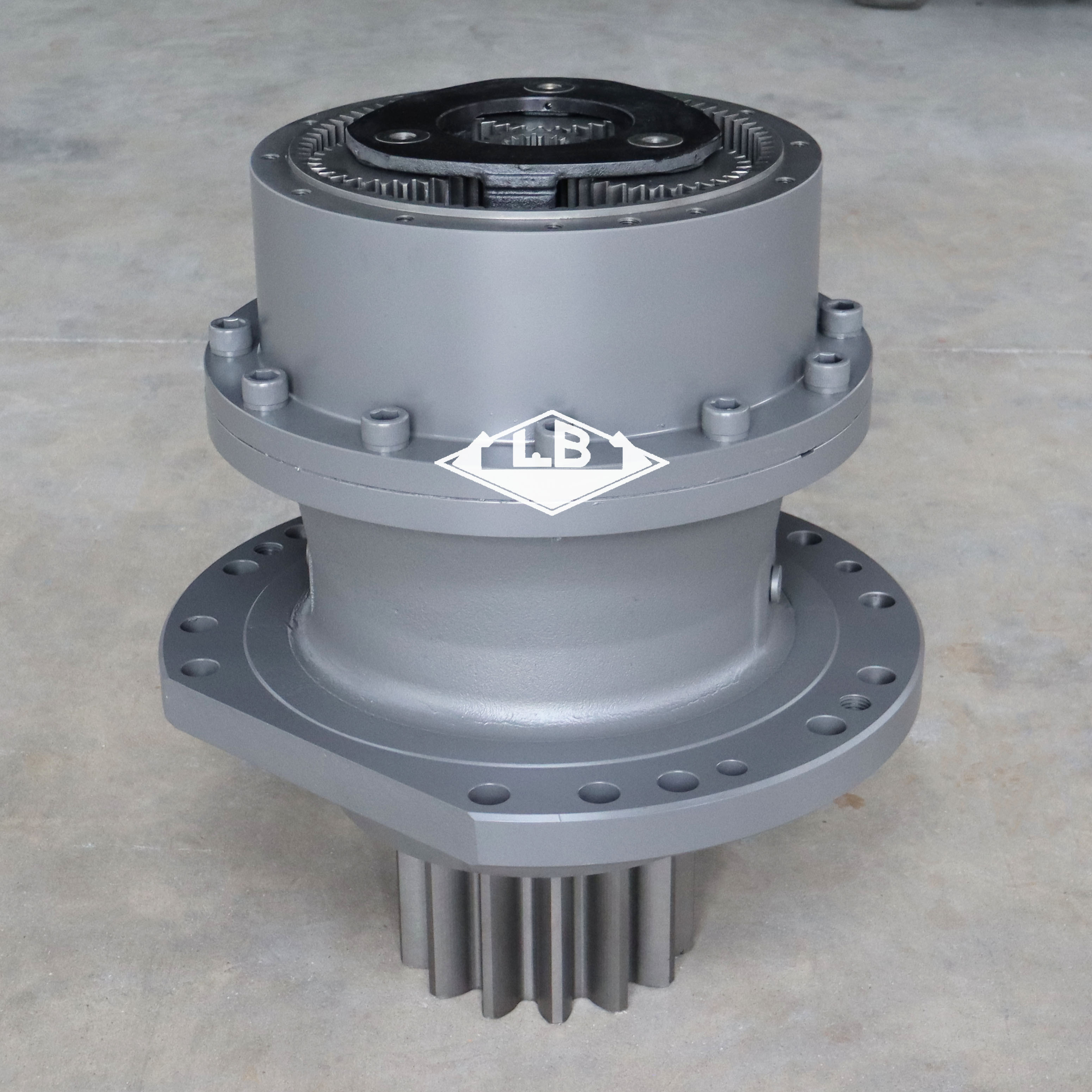

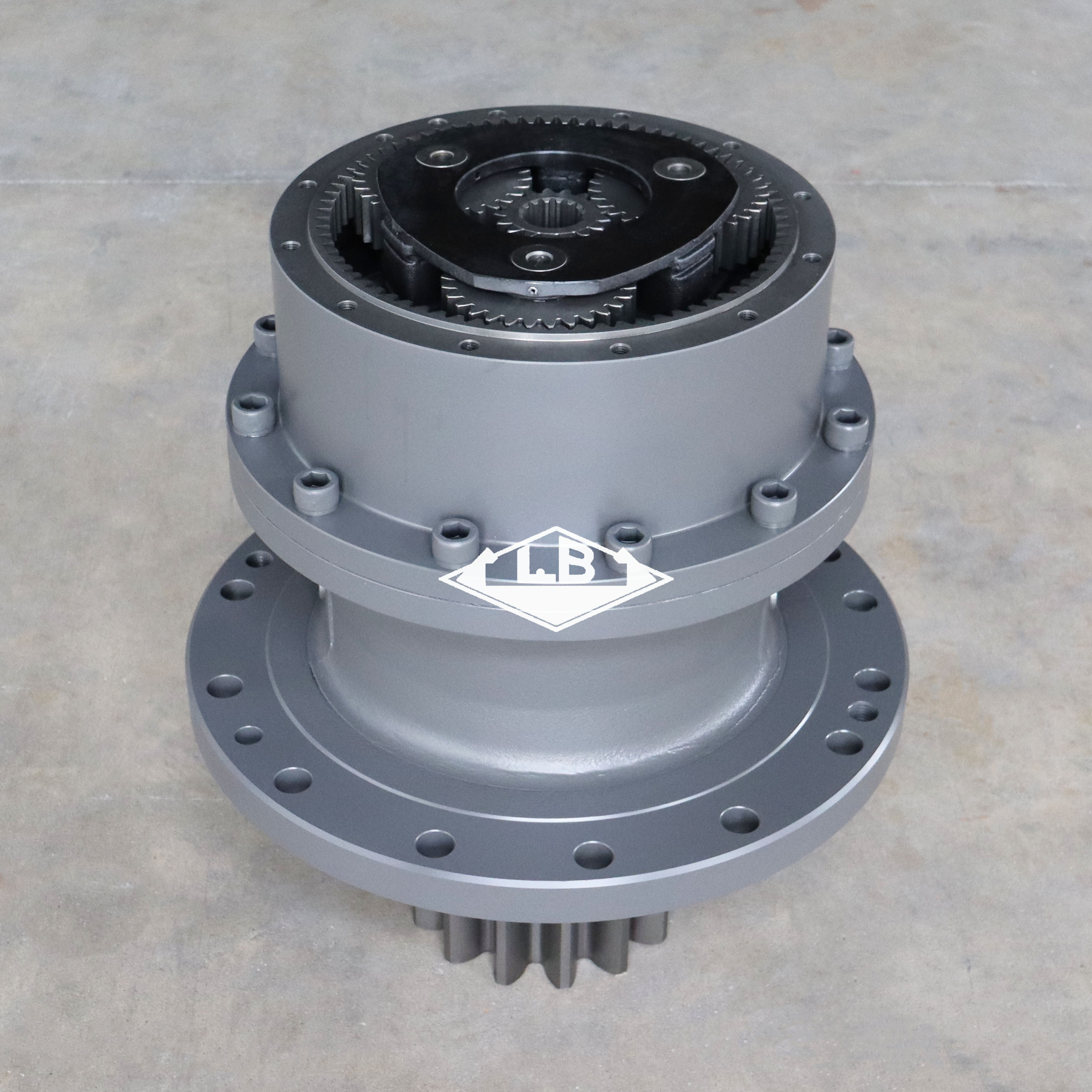

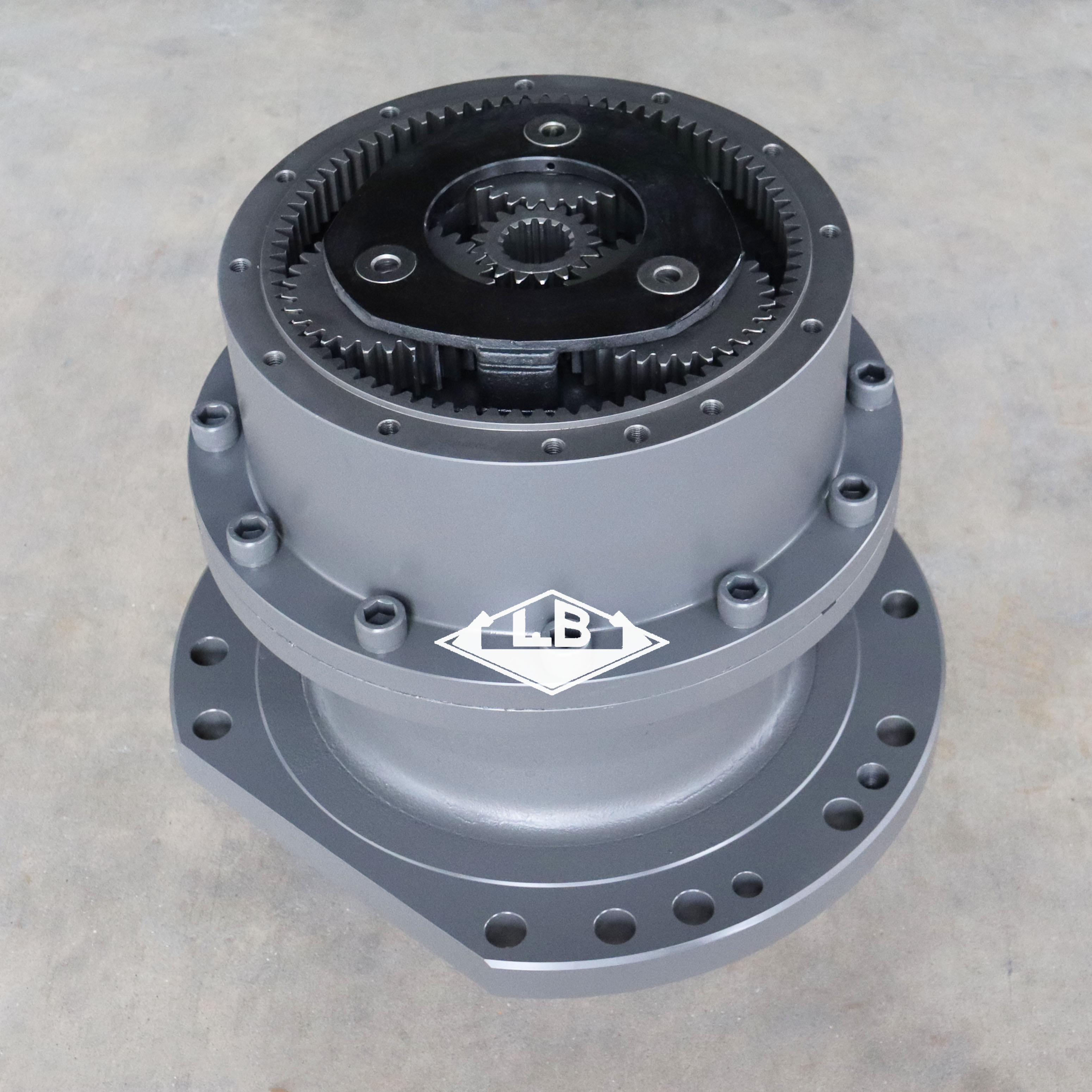

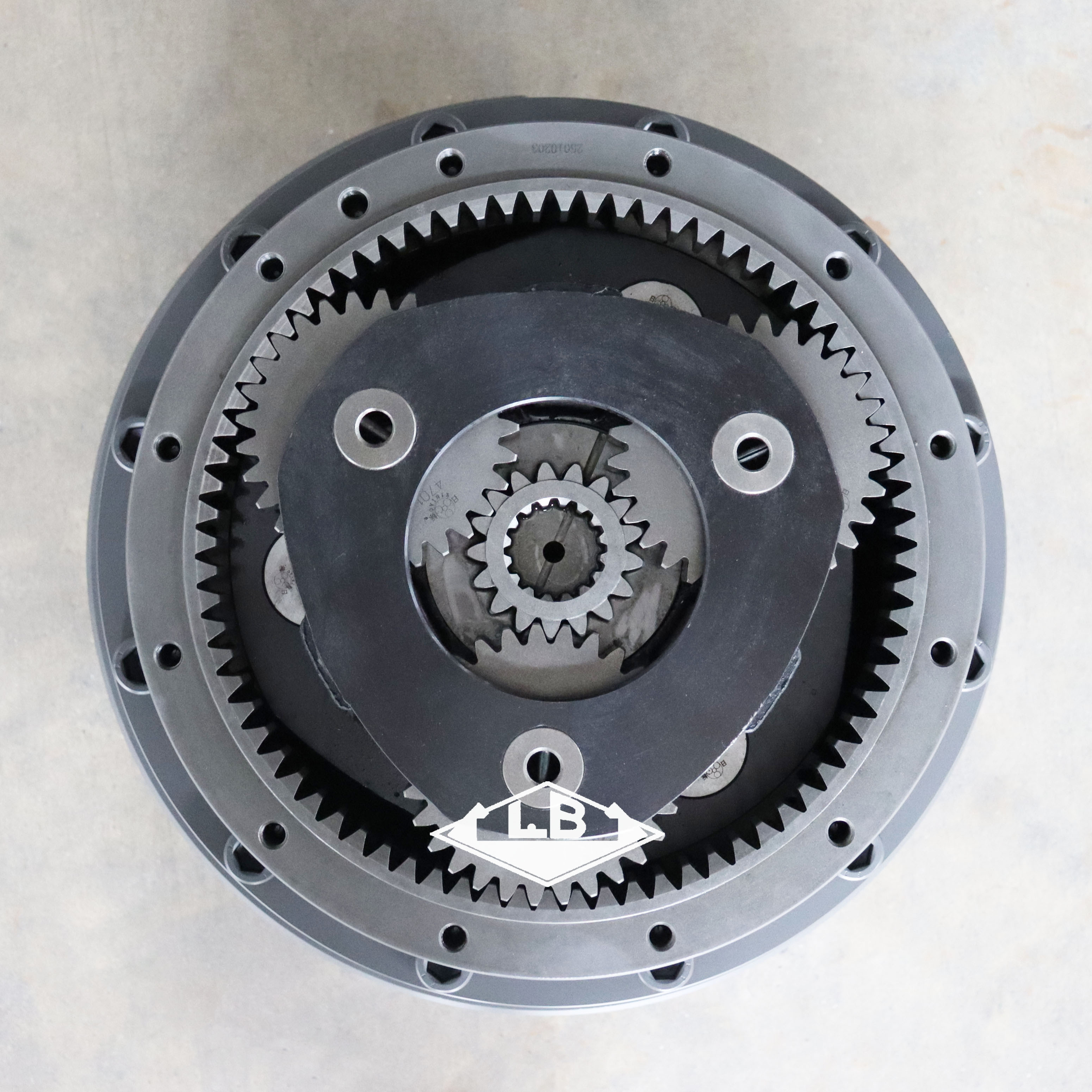

ZX870-5G回转牙箱(4) ZX870-5G回转牙箱(8) ZX870-5G回转牙箱(6) ZX870-5G回转牙箱(2)

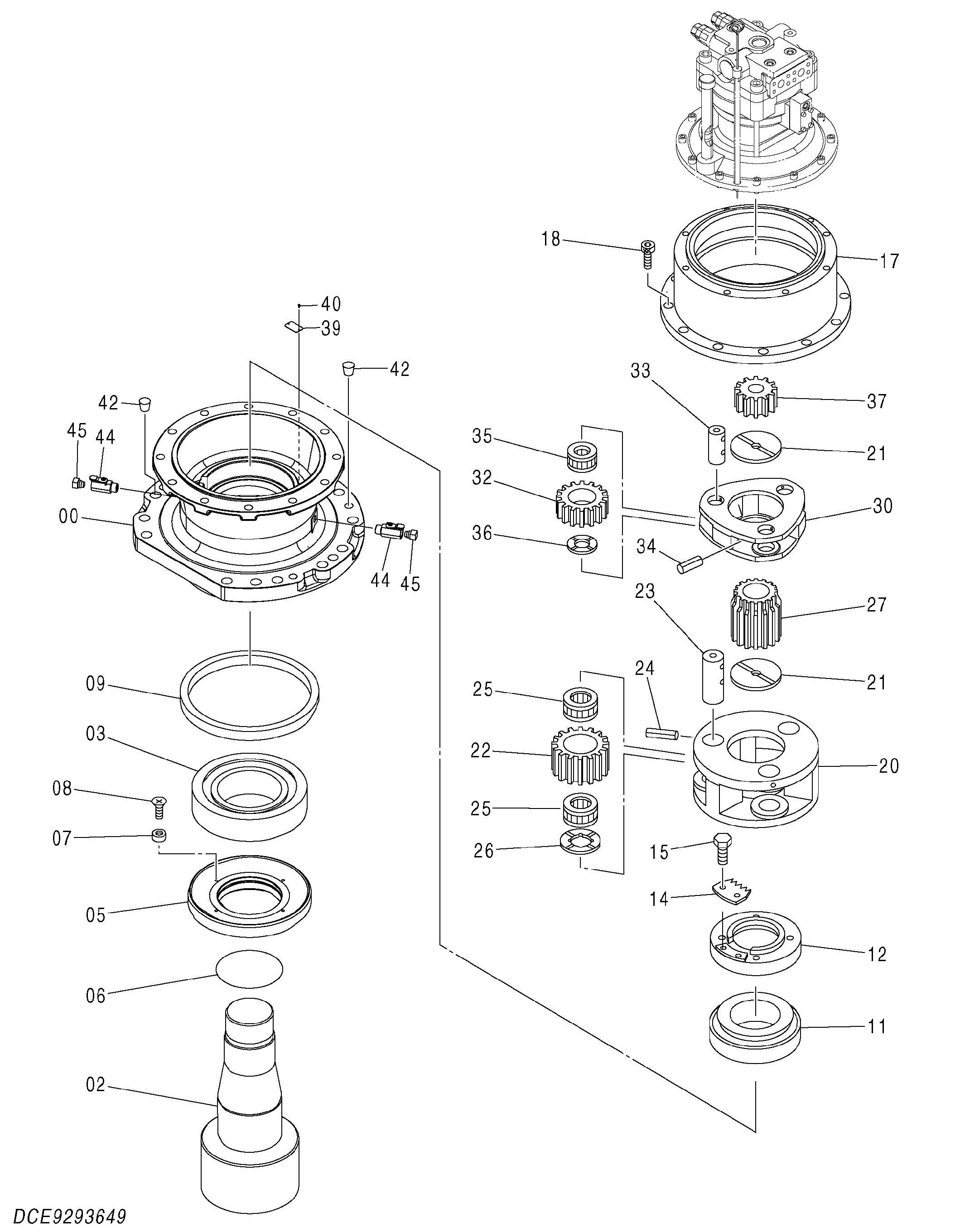

Parts on group SWING DEVICE:

Pos.	Part No	Qty	Parts name
	9293649	[1]	SWING-DEVICE
	9293649	[1]	SWING-DEVICE
00.	1034400	[1]	HOUSING
00.	1034400	[1]	HOUSING
02.	2054830	[1]	SHAFT;PROP.
02.	2054830	[1]	SHAFT;PROP.
03.	4430716	[1]	BRG.;ROL.
03.	4430716	[1]	BRG.;ROL.
05.	3111316	[1]	SLEEVE
05.	3111316	[1]	SLEEVE
06.	4412650	[1]	O-RING
06.	4412650	[1]	O-RING
07.	4422479	[4]	MAGNET
07.	4422479	[4]	MAGNET
08.	M470513	[4]	SCREW
08.	M470513	[4]	SCREW
09.	4723568	[1]	SEAL;OIL
09.	4723568	[1]	SEAL;OIL
11.	4402481	[1]	BRG.;ROL.
11.	4402481	[1]	BRG.;ROL.
12.	3101122	[1]	NUT
12.	3101122	[1]	NUT
14.	4430563	[1]	PLATE;LOCK
14.	4430563	[1]	PLATE;LOCK
15.	J901016	[2]	BOLT
15.	J901016	[2]	BOLT
17.	1035296	[1]	GEAR;RING
17.	1035296	[1]	GEAR;RING
18.	M342050	[12]	BOLT;SOCKET
18.	M342050	[12]	BOLT;SOCKET
20.	2054831	[1]	CARRIER
20.	2054831	[1]	CARRIER
21.	4194454	[2]	PLATE;THRUST
21.	4194454	[2]	PLATE;THRUST
22.	3088069	[3]	GEAR;PLANETARY
22.	3088069	[3]	GEAR;PLANETARY
23.	4430714	[3]	PIN
23.	4430714	[3]	PIN
24.	4404947	[3]	PIN;SPRING
24.	4404947	[3]	PIN;SPRING
25.	4445254	[6]	BRG.;NEEDLE
25.	4445254	[6]	BRG.;NEEDLE
26.	4644567	[3]	PLATE;THRUST
26.	4644567	[3]	PLATE;THRUST
27.	3111317	[1]	GEAR;SUN
27.	3111317	[1]	GEAR;SUN
30.	1034401	[1]	CARRIER
30.	1034401	[1]	CARRIER
32.	3098513	[3]	GEAR;PLANETARY
32.	3098513	[3]	GEAR;PLANETARY
33.	4144558	[3]	PIN
33.	4144558	[3]	PIN
34.	4144525	[3]	PIN;SPRING
34.	4144525	[3]	PIN;SPRING
35.	4685231	[3]	BRG.;NEEDLE
35.	4685231	[3]	BRG.;NEEDLE
36.	4430667	[3]	PLATE;THRUST
36.	4430667	[3]	PLATE;THRUST
37.	3101105	[1]	GEAR;SUN
37.	3101105	[1]	GEAR;SUN
39.	+++++++	[1]	NAME-PLATE
39.	+++++++	[1]	NAME-PLATE
40.	M492564	[2]	SCREW;DRIVE
40.	M492564	[2]	SCREW;DRIVE
42.	456336	[2]	CORK
42.	456336	[2]	CORK
44.	4194712	[2]	COCK
44.	4194712	[2]	COCK
45.	94-2024	[2]	PLUG
45.	94-2024	[2]	PLUG
