| Quantity: | |
|---|---|

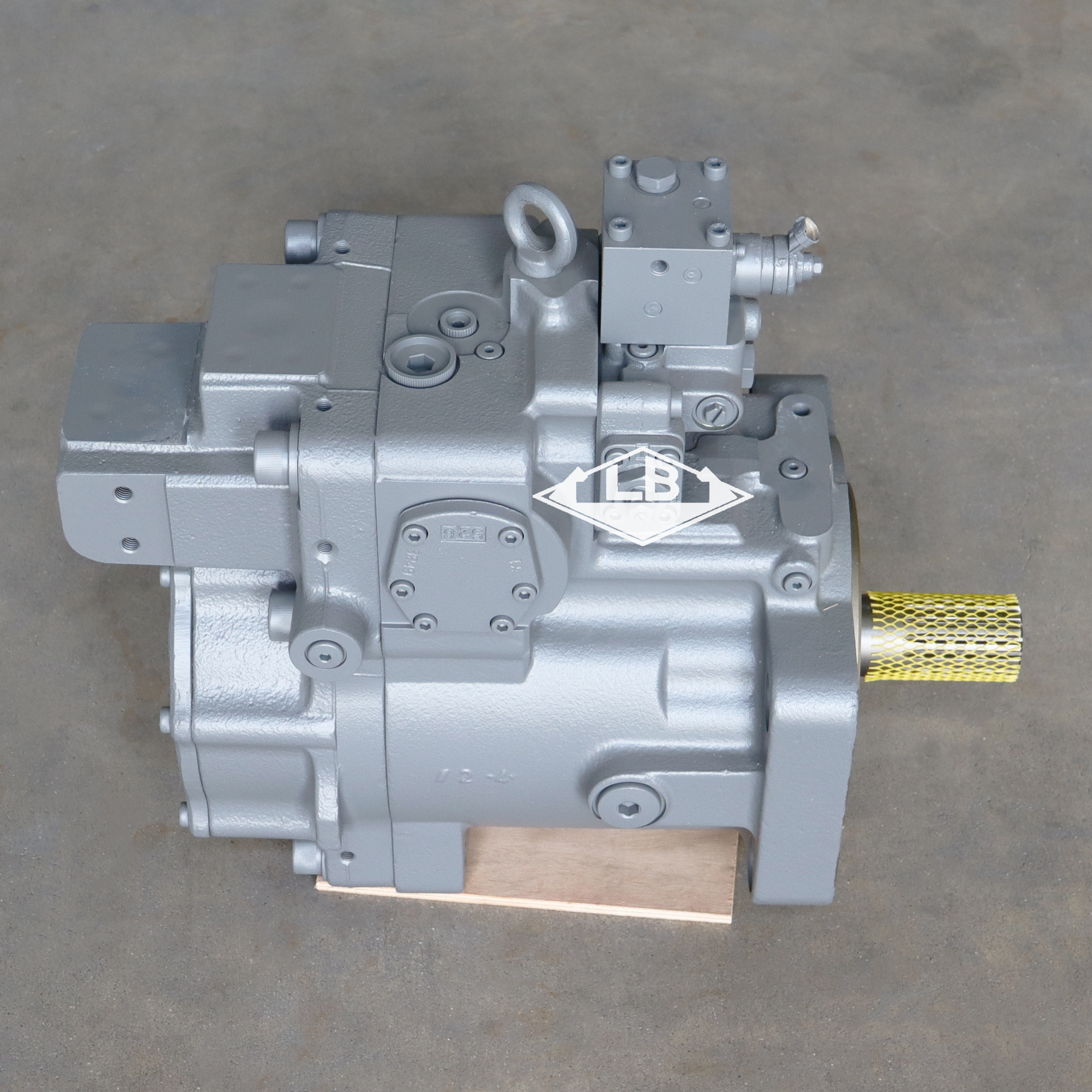

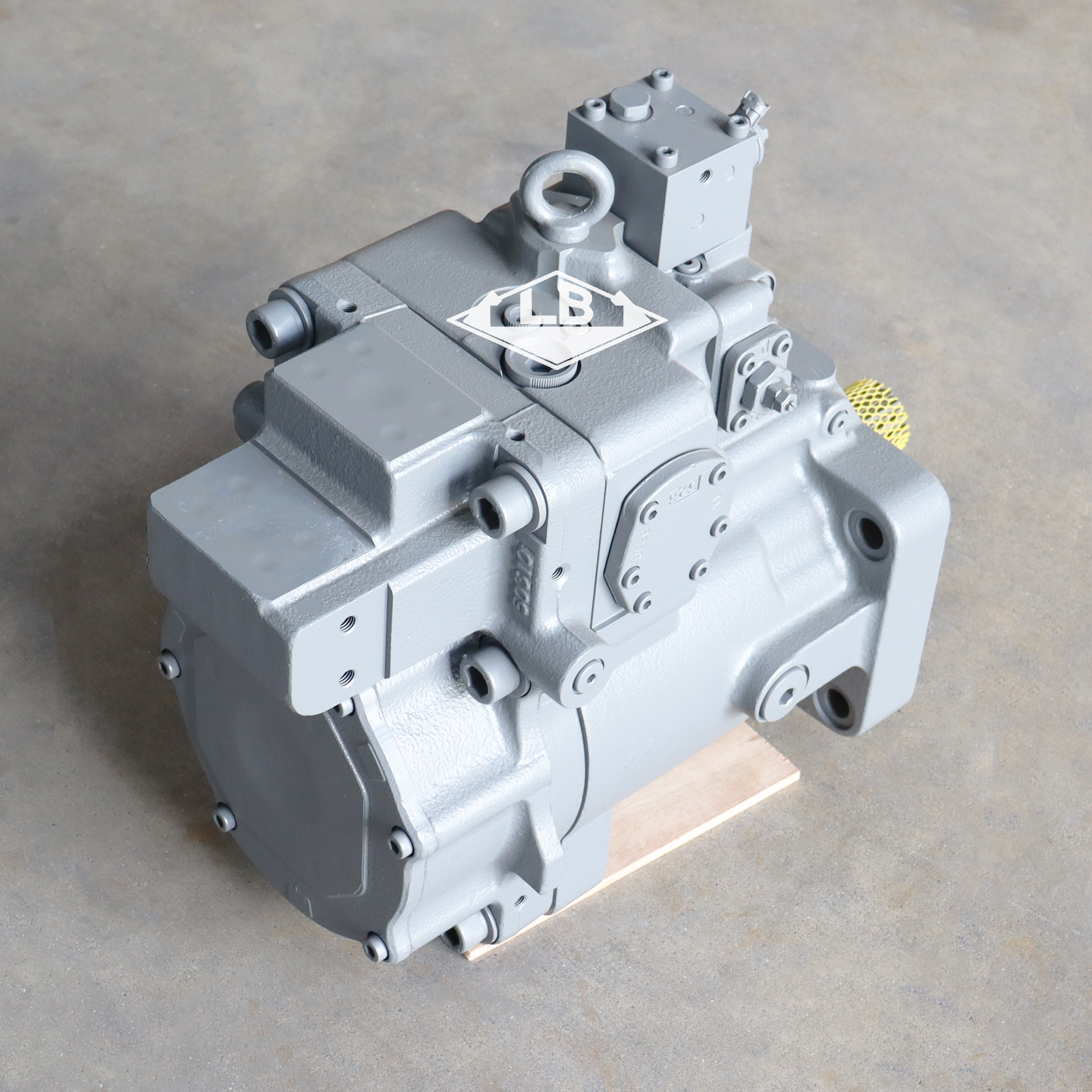

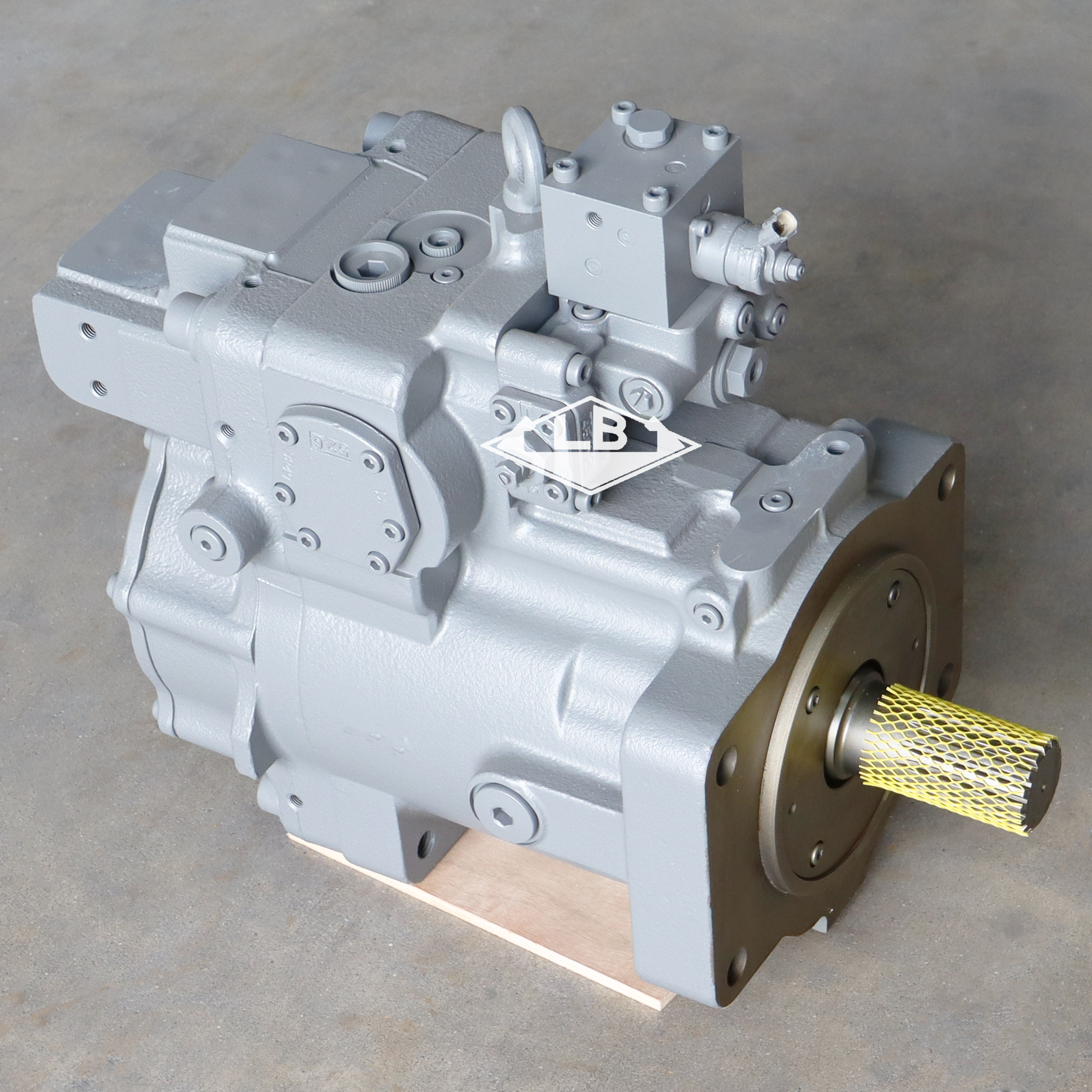

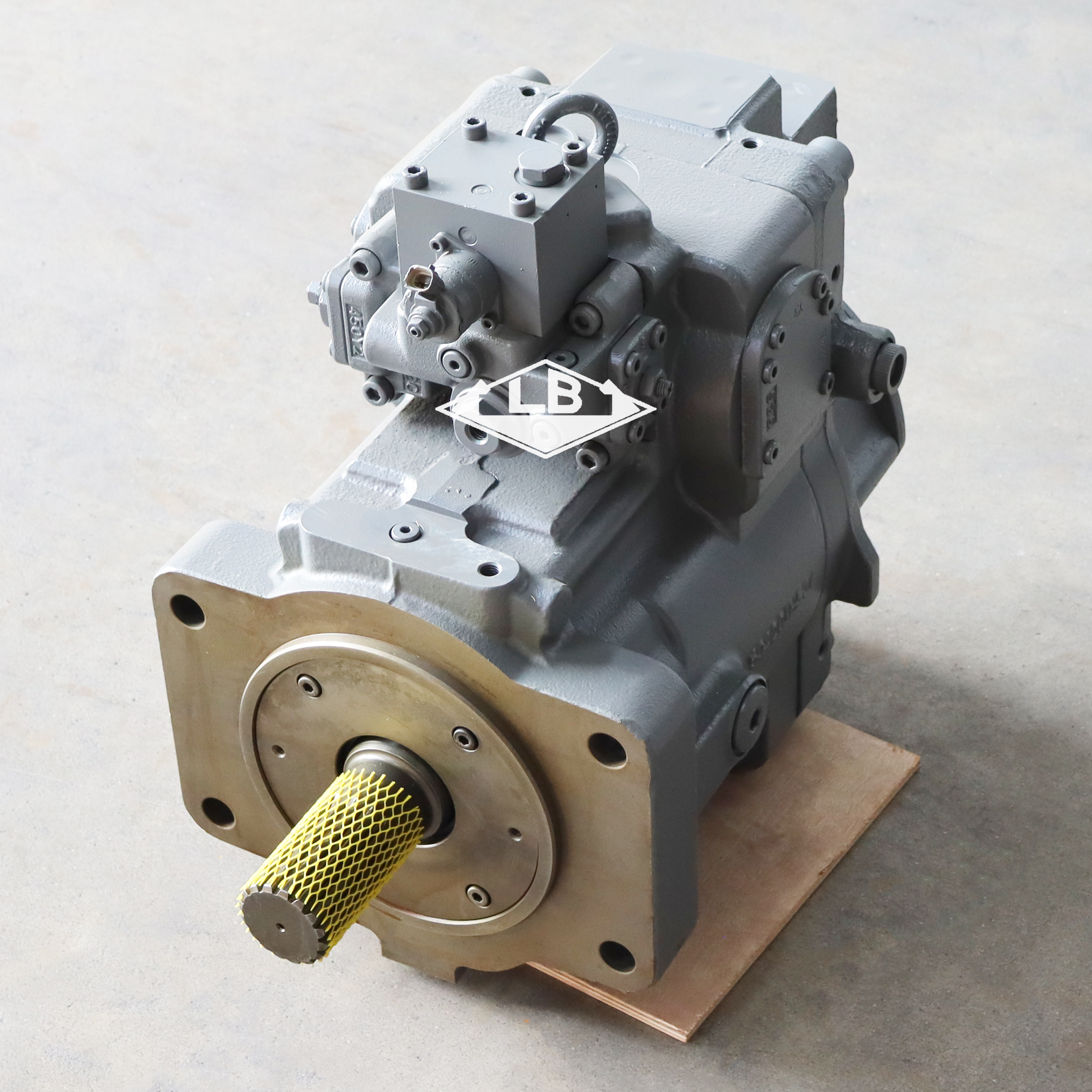

| Part name | ZX870-5G ZX890 ZX900 MAIN PUMP | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | YB60000246 YB60000244 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 460KG | |||||
| MOQ | 1 pc | |||||

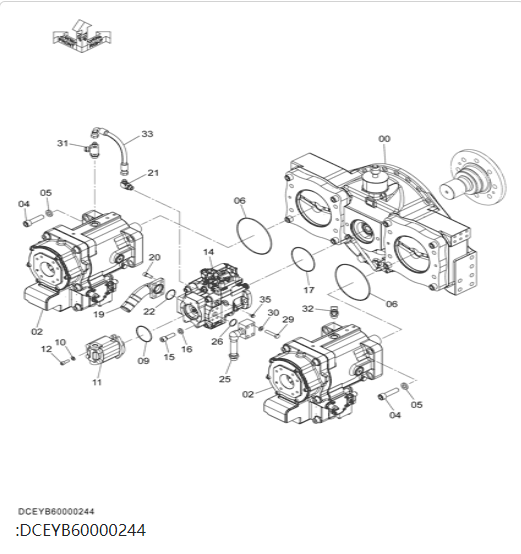

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| YB60000244 | [1] | PUMPDRIVE | ||
| 00. | 9313588 | [1] | PUMPMISSION | I YB60000412 (for assembly of machine) |
| 00. | YB60000412 | [1] | PUMPMISSION | (for transportation) |
| 02. | YB60000246 | [2] | PUMP;PISTON | |
| 04. | M342080 | [8] | BOLT;SOCKET | |
| 05. | A590920 | [8] | WASHER;SPRING | |
| 06. | 4445928 | [2] | O-RING | |
| 09. | 4153543 | [1] | O-RING | |
| 10. | J222010 | [2] | WASHER | |
| 11. | 4700708 | [1] | PUMP;GEAR | |
| 12. | M341030 | [2] | BOLT;SOCKET | |
| 14. | YA00006715 | [1] | PUMP;PISTON | |
| 15. | M341656 | [2] | BOLT;SOCKET | |
| 16. | A590916 | [2] | WASHER;SPRING | |
| 17. | 4153552 | [1] | O-RING | |
| 19. | 3118683 | [1] | MANIFOLD | |
| 20. | M341230 | [4] | BOLT;SOCKET | |
| 21. | A852344 | [1] | ELBOW;S | |
| 21A. | 4506418 | [1] | O-RING | |
| 22. | A810050 | [1] | O-RING | |
| 25. | 8121562 | [1] | PIPE | |
| 26. | A811035 | [1] | O-RING | |
| 29. | J901260 | [4] | BOLT | |
| 30. | A590112 | [4] | WASHER;PLANE | |
| 31. | 4466996 | [1] | TEE;S | |
| 31A. | 4506424 | [1] | O-RING | |
| 32. | A852366 | [1] | ELBOW;S | |
| 32A. | 4506424 | [1] | O-RING | |
| 33. | 4713090 | [1] | HOSE | |
| 35. | J260816 | [1] | BOLT;SEMS | |
| 35A. | J900816 | [1] | BOLT | |
| 35B. | A590108 | [1] | WASHER;PLANE |
