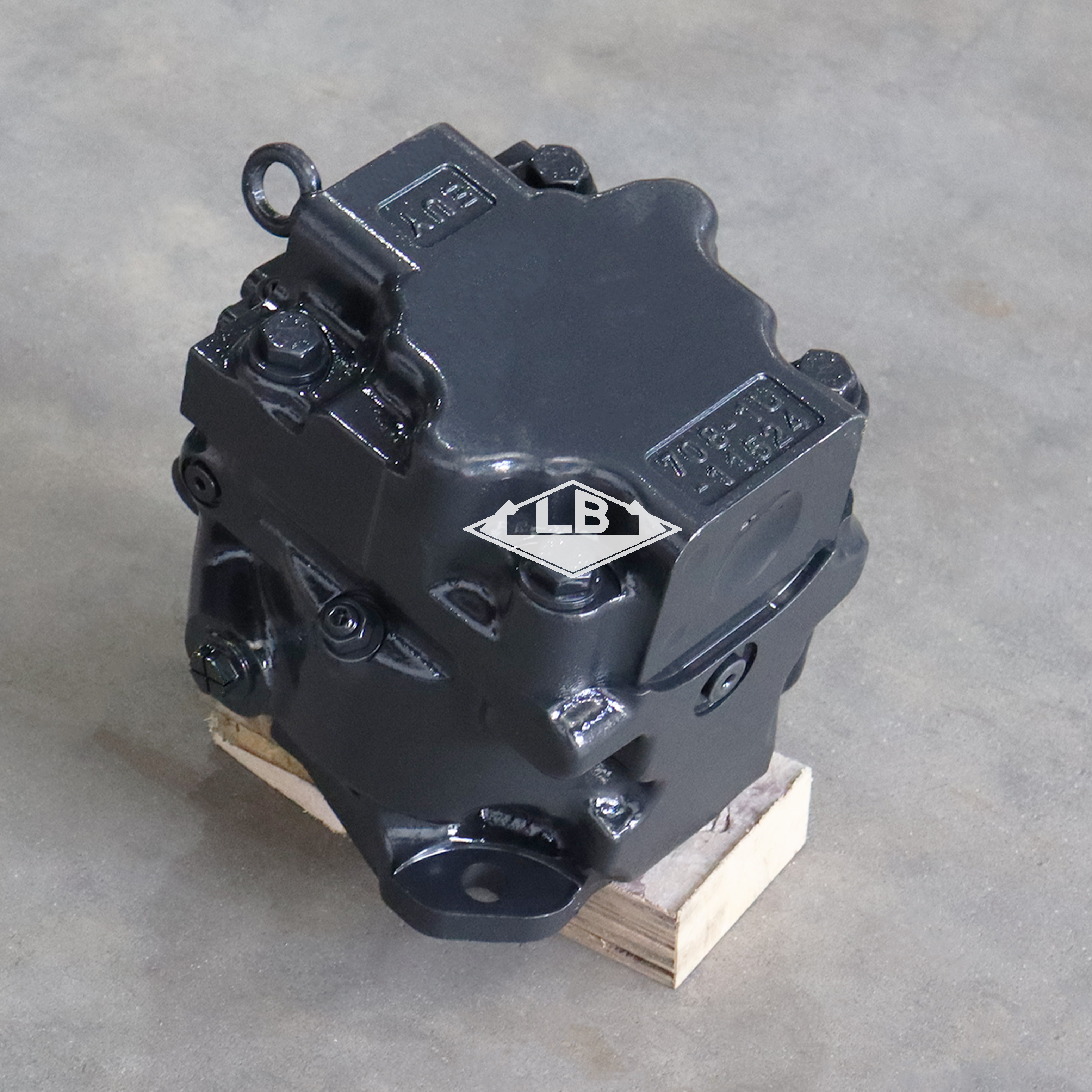

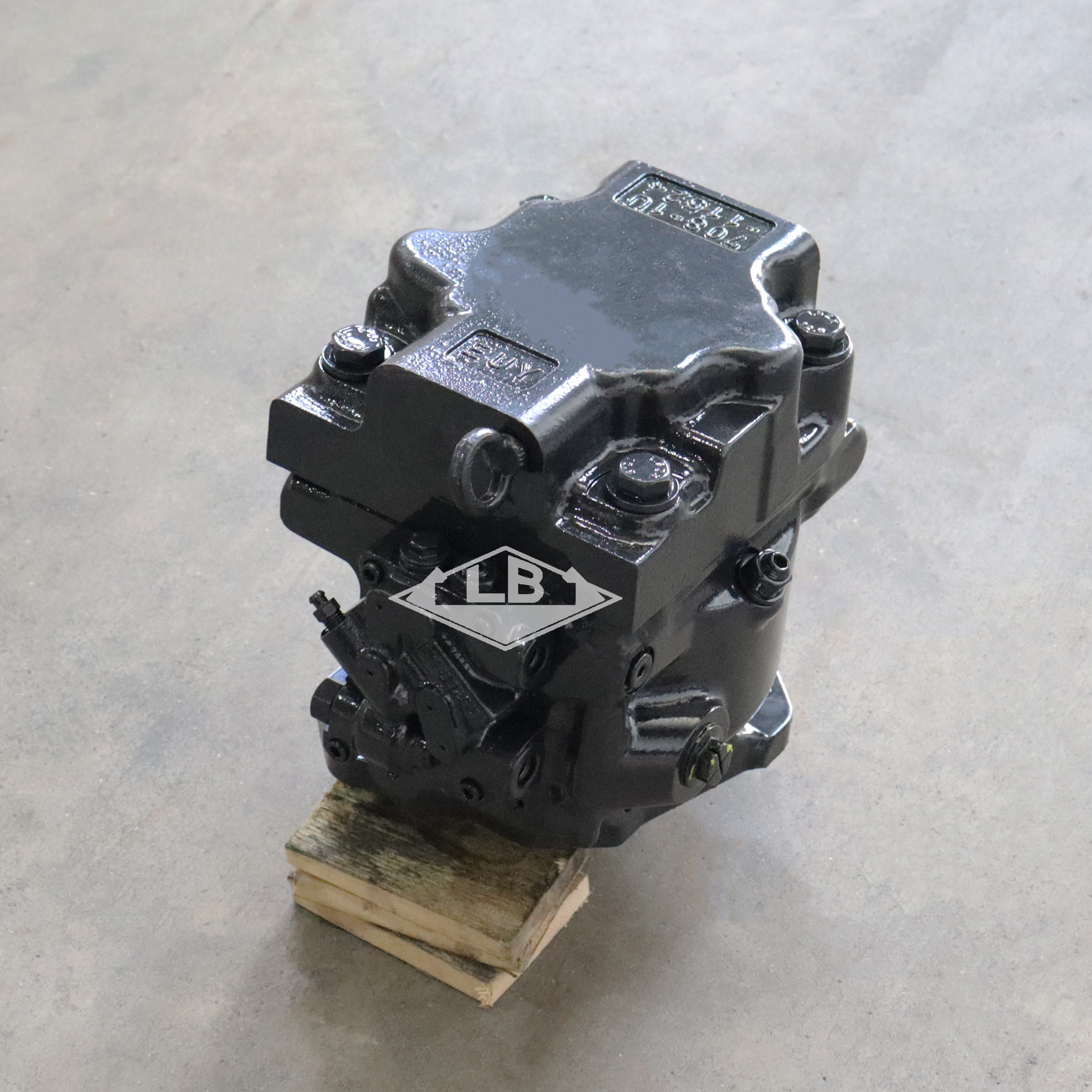

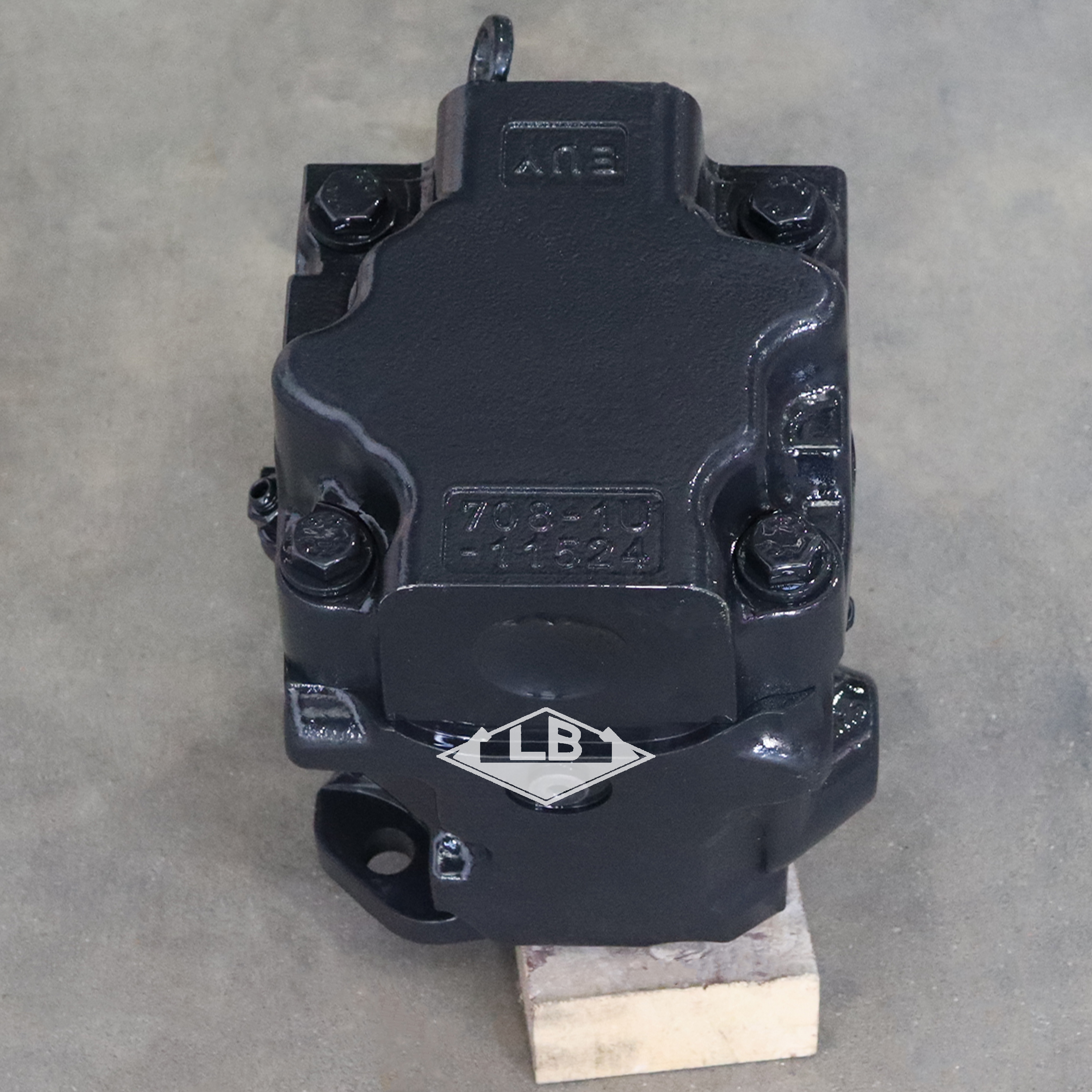

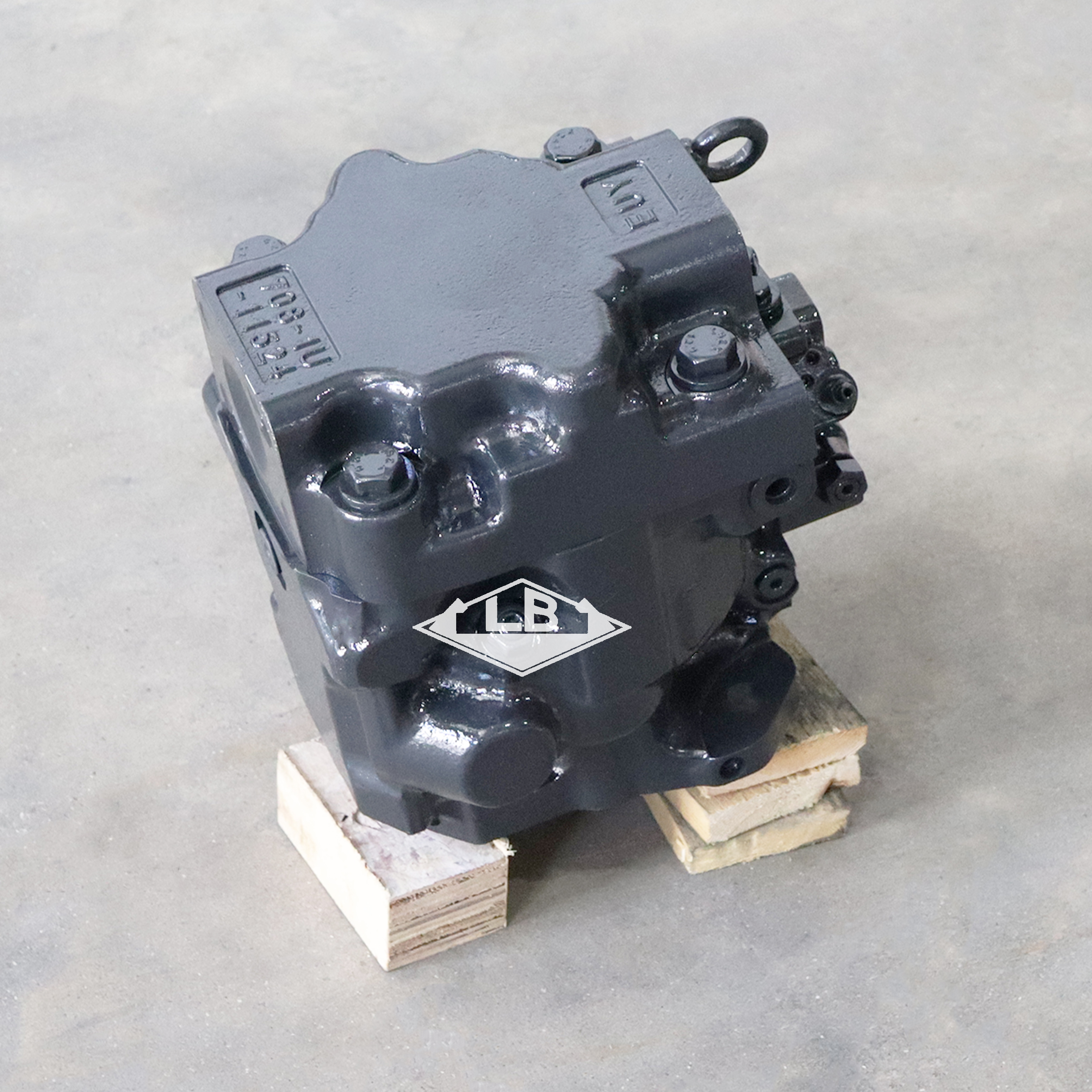

WB93 WB97 MAIN PUMP 708-1U-00161 708-1U-00162 708-1U-00163 708-1U-00111 HYDRAULIC PUMP

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	WB93 WB97 MAIN PUMP
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	708-1U-00161 708-1U-00162 708-1U-00163 708-1U-00111
Frame holes	/
Sprocket holes	/
Item condition	New
Logo	LB
Gross weight	/
MOQ	1 pc

Product Description

WB93,WB97液压泵(2) WB93,WB97液压泵（4） WB93,WB97液压泵(6) WB93,WB97液压泵（8）

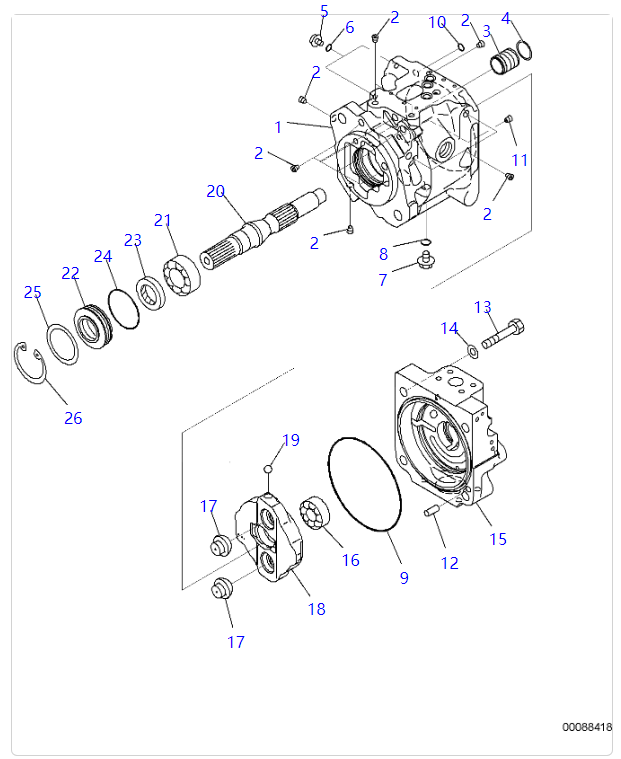

WB93,WB97液压泵

708-1U-00161	HYDRAULIC PUMP, ASSEMBLY	Inquire	1	SN: F80210-UP
					708-1U-01164	• HYDRAULIC PUMP, SUBASSEMBLY	Inquire	1	SN: F80210-UP
					708-1U-04160	•• CASE, ASSEMBLY	Inquire	1	SN: F80210-UP
				1		••• CASE PUMP	Inquire	1	SN: F80210-UP
				2		••• PLUG	Inquire	10	SN: F80210-UP
				3		••• SLEEVE	Inquire	1	SN: F80210-UP
				4		••• RING	Inquire	1	SN: F80210-UP
				5	708-8E-16160	•• PLUG	Inquire	2	SN: F80210-UP
				6	07002-11023	•• O-RING	Inquire	2	SN: F80210-UP
				7	07040-11409	•• PLUG	Inquire	1	SN: F80210-UP
				8	07002-11423	•• O-RING	Inquire	1	SN: F80210-UP
				9	706-73-42370	•• O-RING	Inquire	1	SN: F80210-UP

				10	07000-B1009	•• O-RING	Inquire	1	SN: F80210-UP
				11		•• ORIFICE	Inquire	1	SN: F80210-UP
				12	04020-01024	•• PIN, DOWEL	Inquire	1	SN: F80210-UP
				13	01010-61470	•• BOLT	Inquire	4	SN: F80210-UP
				14	01643-31445	•• WASHER	Inquire	4	SN: F80210-UP
				15		•• CAP, END	Inquire	1	SN: F80210-UP
				16	708-1W-42120	•• BEARING	Inquire	1	SN: F80210-UP
				17	708-1U-13461	•• BALL	Inquire	2	SN: F80210-UP
				18	708-1U-13450	•• CAM, ROCKER	Inquire	1	SN: F80210-UP
				19	04260-01270	•• BALL, STEEL	Inquire	1	SN: F80210-UP
				20	708-1U-12110	•• SHAFT	Inquire	1	SN: F80210-UP
				21	708-1W-42110	•• BEARING	Inquire	1	SN: F80210-UP
				22	708-1W-42140	•• SEAL	Inquire	1	SN: F80210-UP
				23	708-1W-42130	•• GASKET	Inquire	1	SN: F80210-UP
				24	07000-B2060	•• O-RING	Inquire	1	SN: F80210-UP
				25	708-1W-05821	•• SPACER KIT	Inquire	1	SN: F80210-UP
				25		••• SPACER, 2.5MM	Inquire	1	SN: F80210-UP	A
				25		••• SPACER, 2.55MM	Inquire	1	SN: F80210-UP	B
				25		••• SPACER, 2.6MM	Inquire	1	SN: F80210-UP	C
				25		••• SPACER, 2.65MM	Inquire	1	SN: F80210-UP	D
				25		••• SPACER, 2.7MM	Inquire	1	SN: F80210-UP	E
				25		••• SPACER, 2.75MM	Inquire	1	SN: F80210-UP	F
				25		••• SPACER, 2.8MM	Inquire	1	SN: F80210-UP	G
				25		••• SPACER, 2.85MM	Inquire	1	SN: F80210-UP	H
				25		••• SPACER, 2.9MM	Inquire	1	SN: F80210-UP	I
				26	04065-06825	•• RING	Inquire	1	SN: F80210-UP

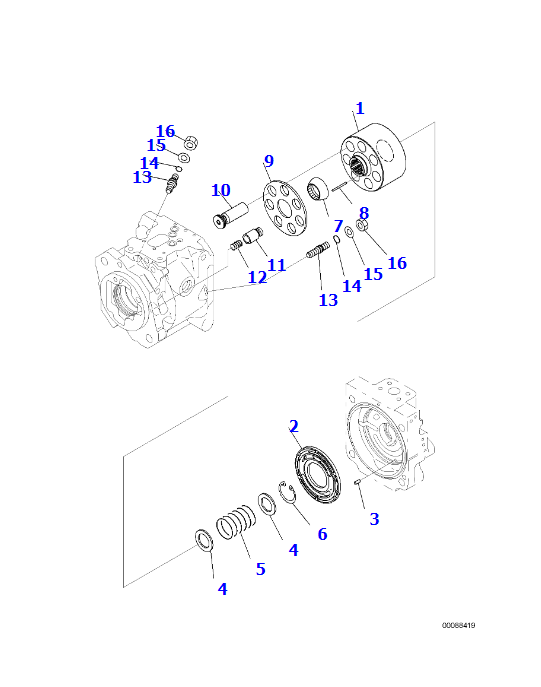

WB93,WB97液压泵（2）

708-1U-00161	HYDRAULIC PUMP, ASSEMBLY	Inquire	1	SN: F80210-UP	6125
					708-1U-01164	• HYDRAULIC PUMP, SUBASSEMBLY	Inquire	1	SN: F80210-UP	6125
				1	708-1U-13110	•• CYLINDER BLOCK	Inquire	1	SN: F80210-UP
				2	708-1U-13211	•• PLATE, VALVE	Inquire	1	SN: F80210-UP
				3	720-68-19610	•• PIN	Inquire	1	SN: F80210-UP
				4	708-1W-43130	•• SEAT, SPRING	Inquire	2	SN: F80210-UP
				5	708-1W-43140	•• SPRING	Inquire	1	SN: F80210-UP
				6	04065-04818	•• RING, SNAP	Inquire	1	SN: F80210-UP
				7	708-1W-43350	•• SLEEVE	Inquire	1	SN: F80210-UP
				8	708-3T-13360	•• PIN	Inquire	3	SN: F80210-UP
				9	708-1U-13341	•• RETAINER PLATE	Inquire	1	SN: F80210-UP
				10	708-1U-13310	•• PISTON, SUBASSEMBLY	Inquire	7	SN: F80210-UP

				11	708-1W-44130	•• PISTON, SUBASSEMBLY	Inquire	1	SN: F80210-UP
				12	708-3T-14120	•• SPRING	Inquire	1	SN: F80210-UP
				13	708-1U-14240	•• SCREW	Inquire	2	SN: F80210-UP
				14	07000-12011	•• O-RING	Inquire	2	SN: F80210-UP
				15	01643-31232	•• WASHER	Inquire	2	SN: F80210-UP
				16	01582-11210	•• NUT	Inquire	2	SN: F80210-UP

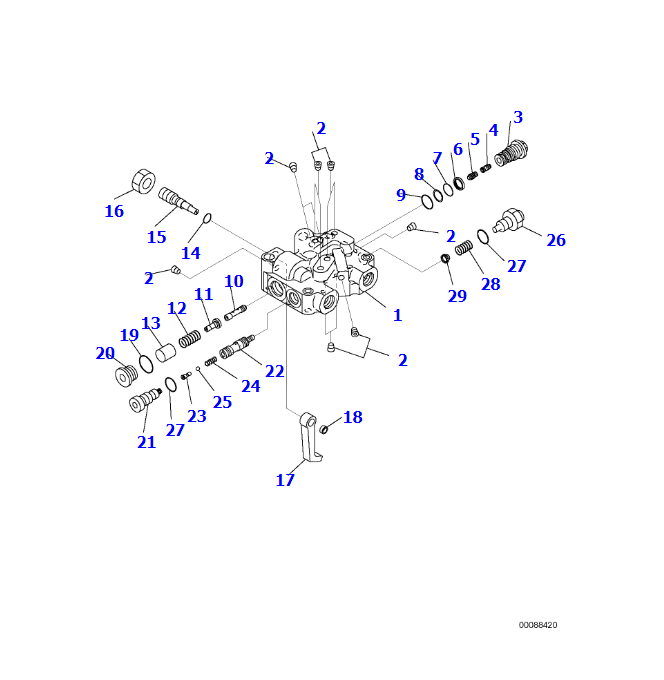

WB93,WB97液压泵（3）

708-1U-00161	HYDRAULIC PUMP, ASSEMBLY	Inquire	1	SN: F80210-UP	6125
					708-1U-03331	• VALVE ASSEMBLY	Inquire	1	SN: F80210-UP
						•• BODY, ASSEMBLY	Inquire	1	SN: F80210-UP
				1		••• BODY	Inquire	1	SN: F80210-UP
				2		••• PLUG	Inquire	11	SN: F80210-UP
					708-1U-04331	•• SLEEVE, SUBASSEMBLY	Inquire	1	SN: F80210-UP
				3		••• SLEEVE	Inquire	1	SN: F80210-UP
				4		••• PISTON	Inquire	1	SN: F80210-UP
				5		••• PISTON	Inquire	1	SN: F80210-UP
				6		••• SEAL	Inquire	1	SN: F80210-UP
				7		••• O-RING	Inquire	1	SN: F80210-UP
				8		••• RING, BACK-UP	Inquire	1	SN: F80210-UP

				9		••• O-RING	Inquire	1	SN: F80210-UP
				10		•• SPOOL	Inquire	1	SN: F80210-UP
				11		•• SEAT	Inquire	1	SN: F80210-UP
				12		•• SPRING	Inquire	1	SN: F80210-UP
				13		•• RETAINER	Inquire	1	SN: F80210-UP
				14		•• O-RING	Inquire	1	SN: F80210-UP
				15		•• PLUG	Inquire	1	SN: F80210-UP
				16		•• NUT	Inquire	1	SN: F80210-UP
				17		•• LEVER	Inquire	1	SN: F80210-UP
				18		•• SPACER	Inquire	1	SN: F80210-UP
				19		•• O-RING	Inquire	1	SN: F80210-UP
				20		•• PLUG	Inquire	1	SN: F80210-UP
				21		•• PLUG	Inquire	1	SN: F80210-UP
						•• SPOOL, SUBASSEMBLY	Inquire	1	SN: F80210-UP
				22		••• SPOOL	Inquire	1	SN: F80210-UP
				23		••• PLUG	Inquire	1	SN: F80210-UP
				24		••• SPRING	Inquire	1	SN: F80210-UP
				25		••• BALL	Inquire	1	SN: F80210-UP
				26		•• PLUG	Inquire	1	SN: F80210-UP
				27		•• O-RING	Inquire	1	SN: F80210-UP
				28		•• SPRING	Inquire	1	SN: F80210-UP
				29		•• SEAT	Inquire	1	SN: F80210-UP

WB93,WB97液压泵（4）

708-1U-00161	HYDRAULIC PUMP, ASSEMBLY	Inquire	1	SN: F80210-UP	6125
				1		• O-RING	Inquire	1	SN: F80210-UP
				2	07000-B2014	• O-RING	Inquire	2	SN: F80210-UP
				3	07000-B1009	• O-RING	Inquire	2	SN: F80210-UP
				4		• FILTER	Inquire	2	SN: F80210-UP
				5		• PIN, DOWEL	Inquire	2	SN: F80210-UP
				6		• BOLT	Inquire	3	SN: F80210-UP
				7		• BOLT, HEXAGON SOCKET HEAD	Inquire	1	SN: F80210-UP
				8	20B-27-11210	• BLEEDER	Inquire	2	SN: F80210-UP

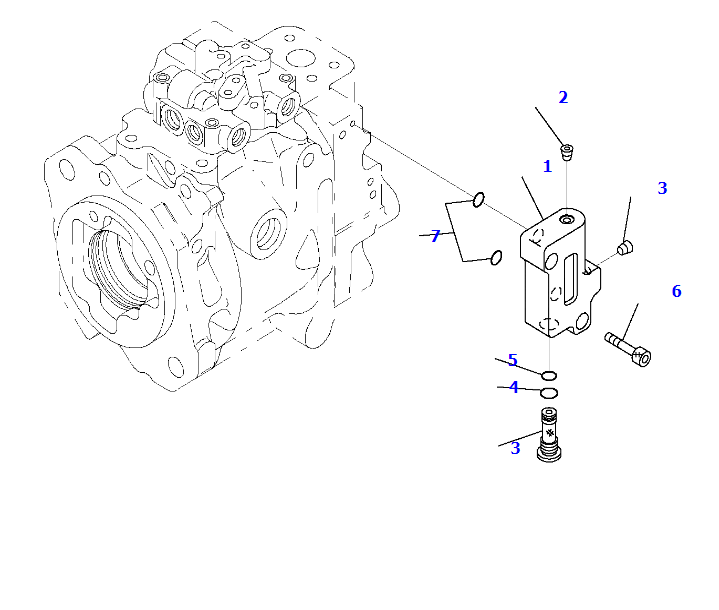

WB93,WB97液压泵（5）

708-1U-00161	HYDRAULIC PUMP, ASSEMBLY	Inquire	1	SN: F80210-UP	6125
					708-1U-03710	• BLOCK, ASSEMBLY	Inquire	1	SN: F80210-UP
					708-1U-04610	•• BLOCK, SUBASSEMBLY	Inquire	1	SN: F80210-UP
				1		••• BLOCK	Inquire	1	SN: F80210-UP
				2		••• PLUG	Inquire	2	SN: F80210-UP
				3	708-7R-18230	•• FILTER	Inquire	1	SN: F80210-UP
				4	07002-61423	•• O-RING	Inquire	1	SN: F80210-UP
				5	07000-B1009	•• O-RING	Inquire	1	SN: F80210-UP
				6	01252-60830	• BOLT	Inquire	2	SN: F80210-UP
				7	07000-B1009	• O-RING	Inquire	2	SN: F80210-UP
