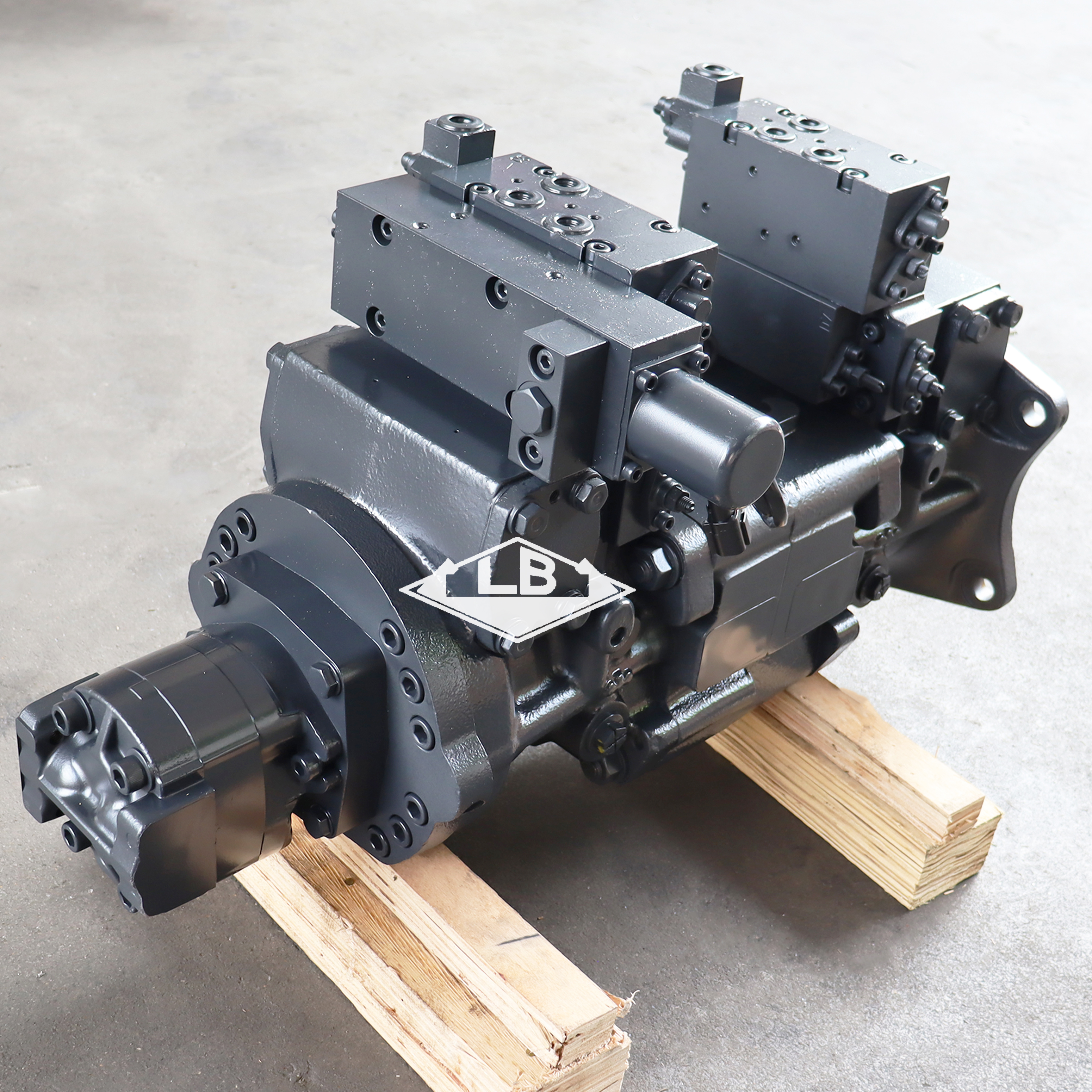

PC1250-8 MAIN PUMP 708-2L-00680 708-2L-00681 PC1250-8 Hydraulic Main Pump Apply for Komatsu Excavator

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

PC1250-8 MAIN PUMP
Equipment Apply to KOMATSU EXCAVATOR
Part no. 708-2L-00680 708-2L-00681
motor shaft teeth
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

PC1250-8(6)PC1250-8(8)PC1250-8(4)PC1250-8(2)PC1250-8(10)PC1250-8(1)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-2L-01680 [1] Pump Subassembly Komatsu China

["SN: 30158-UP", "SCC: C2"] |$2.

708-2L-04950 [1] Case Assembly,Front Komatsu 23.802 kg.

["SN: 30158-UP", "SCC: C2"] |$3.
3. 07044-12412 [1] Plug Komatsu 0.09 kg.

["SN: 30158-UP"] analogs:["0704402412", "R0704412412"]
4. 07002-62434 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP"] analogs:["7081W28910"]

708-2L-05970 [1] End Cap Subassembly Komatsu China

["SN: 30229-UP", "SCC: C2"] |$8.
7. 708-2L-32260 [1] Bearing Komatsu 0.2 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L22260"]
8. 07000-B2135 [1] O-ring Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"]
9. 6130-21-1910 [1] Pin, Dowel Komatsu China

["SN: 30158-UP", "SCC: C2"]
10. 07000-B2012 [1] O-ring Komatsu China 0.001 kg.

["SN: 30229-UP", "SCC: C2"]
11. 708-2L-41270 [1] Ring, Back-up Komatsu China

["SN: 30229-UP", "SCC: C2"]
12. 07000-B1009 [3] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L23910"]
13. 07000-B3032 [2] O-ring Komatsu 0.01 kg.

["SN: 30158-UP", "SCC: C2"]
14. 01252-61080 [2] Bolt, Hexagon Socket Head Komatsu China

["SN: 30158-UP", "SCC: C2"]
15. 01141-81620 [4] Stud Komatsu 0.232 kg.

["SN: 30158-UP", "SCC: C2"]
16. 01643-31645 [4] Washer Komatsu 0.072 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802170005", "0164301645"]
17. 01582-01613 [4] Nut Komatsu 0.029 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0150031613"]
18. 01140-81645 [4] Stud Komatsu China

["SN: 30158-UP", "SCC: C2"] analogs:["0114061645"]
21. 720-68-19610 [1] Pin Komatsu 0.002 kg.

["SN: 30158-UP", "SCC: C2"]
22. 04530-11018 [1] Bolt, Eye Komatsu 0.079 kg.

["SN: 30158-UP"]
23. 708-25-13630 [1] Ring Komatsu 0.13 kg.

["SN: 30158-UP", "SCC: C2"]

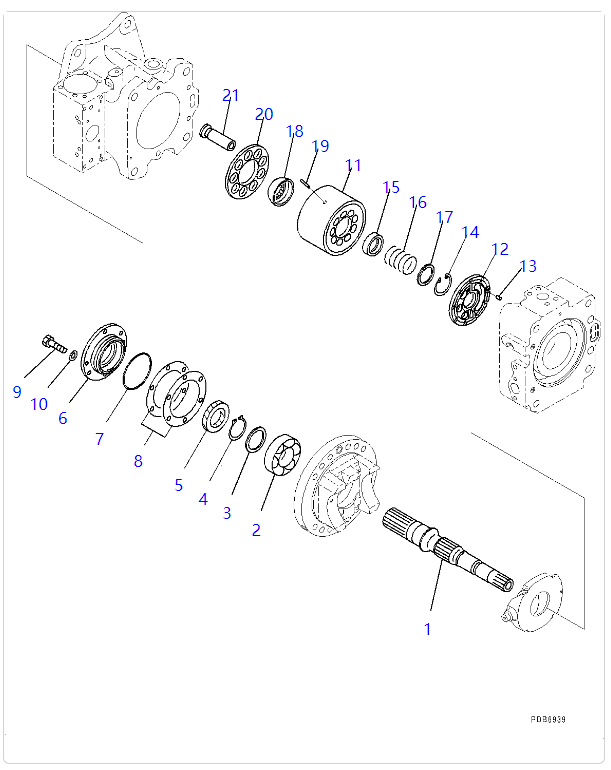

PC1250-8(2)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-2L-01680 [1] Pump Subassembly Komatsu China

["SN: 30158-UP", "SCC: C2"] |$2.
1. 708-2L-22430 [1] Shaft,Front Komatsu 3.111 kg.

["SN: 30158-UP", "SCC: C2"]
2. 708-2L-32150 [1] Bearing Komatsu 0.6 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082E12152", "7082L22150", "7082512731"]
3. 708-2E-05040 [1] Washer Kit Komatsu 0.101 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082E12190"]
4. 708-25-12790 [1] Ring, Snap Komatsu 0.006 kg.

["SN: 30158-UP", "SCC: C2"]
5. 708-25-52861 [1] Seal, Oil Komatsu China 0.078 kg.

["SN: 30158-UP"] analogs:["7082552860", "7067340920"]
6. 708-25-12812 [1] Housing Komatsu China

["SN: 30158-UP", "SCC: C2"]
7. 07000-A2080 [1] O-ring Komatsu 0.003 kg.

["SN: 30158-UP", "SCC: C2"]
8. 708-25-05130 [1] Shim Kit Komatsu 0.032 kg.

["SN: 30158-UP", "SCC: C2"]
9. 01010-80820 [4] Bolt Komatsu 0.013 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["801014067", "0101050820", "801015086"]
10. 01643-30823 [4] Washer Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]

708-2L-04151 [1] Block Assembly,Rear Komatsu OEM 5.26 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L04050", "7082L06370"] |$19.
13. 720-68-19610 [1] Pin Komatsu 0.002 kg.

["SN: 30158-UP", "SCC: C2"]
14. 04065-04818 [1] Ring, Snap Komatsu OEM 0.007 kg.

["SN: 30158-UP", "SCC: C2"]
15. 708-2L-23131 [1] Seat Komatsu 0.073 kg.

["SN: 30158-UP", "SCC: C2"]
16. 708-2L-33160 [1] Spring Komatsu 0.12 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L23151"]
17. 708-7L-13140 [1] Seat Komatsu 0.02 kg.

["SN: 30158-UP", "SCC: C2"]
18. 708-2L-23351 [1] Guide, Retainer, Retainer Komatsu OEM 0.14 kg.

["SN: 30158-UP", "SCC: C2"]
19. 708-2L-23360 [3] Pin Komatsu 0.003 kg.

["SN: 30158-UP", "SCC: C2"]
20. 708-2L-33340 [1] Retainer, Shoe Komatsu OEM 0.3 kg.

["SN: 30158-UP", "SCC: C2"]
21. 708-2L-33310 [9] Piston Subassembly Komatsu OEM 0.211 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L23313"]

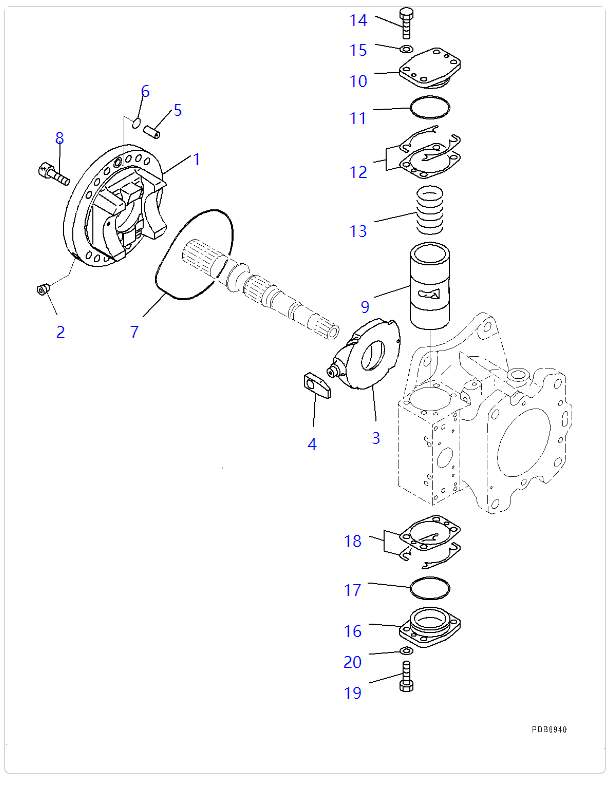

PC1250-8(3)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-2L-01680 [1] Pump Subassembly Komatsu China

["SN: 30158-UP", "SCC: C2"] |$2.

708-2L-04730 [1] Cradle Assembly,Front Komatsu 11.35 kg.

["SN: 30158-UP", "SCC: C2"] |$3.

708-2L-04840 [1] Cradle Subassembly,Front Komatsu 9.15 kg.

["SN: 30158-UP", "SCC: C2"] |$4.
4. 708-2L-23730 [1] Slider Komatsu 0.1 kg.

["SN: 30158-UP", "SCC: C2"]
5. 708-25-12330 [1] Joint Komatsu 0.025 kg.

["SN: 30158-UP", "SCC: C2"]
6. 07000-B2015 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
7. 708-25-62361 [1] O-ring Komatsu 0.01 kg.

["SN: 30158-UP", "SCC: C2"]
8. 01252-61230 [12] Bolt, Hexagon Socket Head Komatsu 0.044 kg.

["SN: 30158-UP", "SCC: C2"]
9. 708-25-14211 [1] Piston Komatsu 2.31 kg.

["SN: 30158-UP", "SCC: C2"]
10. 708-25-14140 [1] Cap Komatsu China

["SN: 30158-UP", "SCC: C2"]
11. 07000-B2065 [1] O-ring Komatsu 0.002 kg.

["SN: 30158-UP", "SCC: C2"]
12. 708-25-05050 [1] Shim Kit Komatsu 0.05 kg.

["SN: 30158-UP", "SCC: C2"]
13. 708-25-14130 [1] Spring Komatsu 0.25 kg.

["SN: 30158-UP", "SCC: C2"]
14. 01016-51035 [4] Bolt Komatsu 0.033 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["801015111", "0101631035"]
15. 01643-31032 [4] Washer Komatsu 0.054 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
16. 708-25-14150 [1] Cap Komatsu China

["SN: 30158-UP", "SCC: C2"]

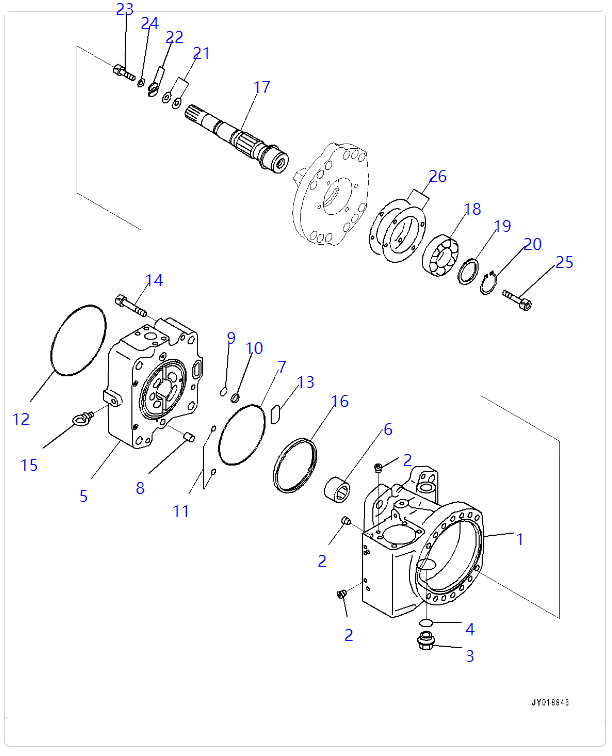

PC1250-8(4)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-01680 [1] Pump Subassembly Komatsu China

["SN: 30158-UP", "SCC: C2"] |$1.

708-2L-04960 [1] Case Assembly,Rear Komatsu 19.002 kg.

["SN: 30158-UP", "SCC: C2"] |$2.
3. 07044-12412 [1] Plug Komatsu 0.09 kg.

["SN: 30158-UP"] analogs:["0704402412", "R0704412412"]
4. 07002-62434 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP"] analogs:["7081W28910"]
5. 708-2L-21970 [1] Cap, End Komatsu China

["SN: 30229-UP", "SCC: C2"]
6. 708-2L-32260 [1] Bearing Komatsu 0.2 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L22260"]
7. 07000-B2135 [1] O-ring Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"]
8. 6130-21-1910 [1] Pin, Dowel Komatsu China

["SN: 30158-UP", "SCC: C2"]
9. 07000-B2012 [1] O-ring Komatsu China 0.001 kg.

["SN: 30229-UP", "SCC: C2"]
10. 708-2L-41270 [1] Ring, Back-up Komatsu China

["SN: 30229-UP", "SCC: C2"]
11. 07000-B1009 [2] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L23910"]
12. 07000-B5165 [1] O-ring Komatsu 0.02 kg.

["SN: 30158-UP", "SCC: C2"]
13. 07000-B3032 [1] O-ring Komatsu 0.01 kg.

["SN: 30158-UP", "SCC: C2"]
14. 01252-61080 [4] Bolt, Hexagon Socket Head Komatsu China

["SN: 30158-UP", "SCC: C2"]
15. 04530-11018 [1] Bolt, Eye Komatsu 0.079 kg.

["SN: 30158-UP"]
16. 708-25-13630 [1] Ring Komatsu 0.13 kg.

["SN: 30158-UP", "SCC: C2"]
17. 708-2L-22450 [1] Shaft,Rear Komatsu China

["SN: 30158-UP", "SCC: C2"]
18. 708-2L-32150 [1] Bearing Komatsu 0.6 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082E12152", "7082L22150", "7082512731"]
19. 708-2E-05040 [1] Washer Kit Komatsu 0.101 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082E12190"]
20. 708-25-12790 [1] Ring, Snap Komatsu 0.006 kg.

["SN: 30158-UP", "SCC: C2"]
21. 708-25-05021 [1] Shim Kit Komatsu 0.013 kg.

["SN: 30158-UP", "SCC: C2"]
22. 708-25-12950 [2] Plate Komatsu 0.006 kg.

["SN: 30158-UP", "SCC: C2"]
23. 01252-61040 [1] Bolt, Hexagon Socket Head Komatsu 0.037 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0125271040"]
24. 01643-31032 [1] Washer Komatsu 0.054 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
25. 01252-31016 [1] Bolt Komatsu China

["SN: 30158-UP", "SCC: C2"]
26. 708-25-05130 [1] Shim Kit Komatsu 0.032 kg.

["SN: 30158-UP", "SCC: C2"]

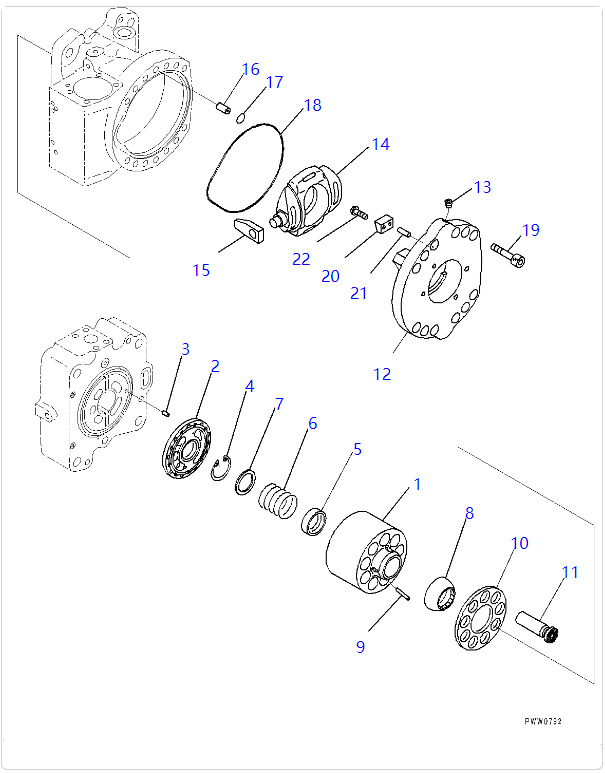

PC1250-8(5)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-2L-01680 [1] Pump Subassembly Komatsu China

["SN: 30158-UP", "SCC: C2"] |$2.

708-2L-04141 [1] Block Assembly,Front Komatsu 5.332 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L04040", "7082L06360"] |$3.
3. 720-68-19610 [1] Pin Komatsu 0.002 kg.

["SN: 30158-UP", "SCC: C2"]
4. 04065-04818 [1] Ring, Snap Komatsu OEM 0.007 kg.

["SN: 30158-UP", "SCC: C2"]
5. 708-2L-23131 [1] Seat Komatsu 0.073 kg.

["SN: 30158-UP", "SCC: C2"]
6. 708-2L-33160 [1] Spring Komatsu 0.12 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L23151"]
7. 708-7L-13140 [1] Seat Komatsu 0.02 kg.

["SN: 30158-UP", "SCC: C2"]
8. 708-2L-23351 [1] Guide, Retainer, Retainer Komatsu OEM 0.14 kg.

["SN: 30158-UP", "SCC: C2"]
9. 708-2L-23360 [3] Pin Komatsu 0.003 kg.

["SN: 30158-UP", "SCC: C2"]
10. 708-2L-33340 [1] Retainer, Shoe Komatsu OEM 0.3 kg.

["SN: 30158-UP", "SCC: C2"]
11. 708-2L-33310 [9] Piston Subassembly Komatsu OEM 0.211 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L23313"]

708-2L-04430 [1] Cradle Assembly,Rear Komatsu China

["SN: 30158-UP", "SCC: C2"] |$15.

708-2L-04650 [1] Cradle Subassembly,Rear Komatsu China

["SN: 30158-UP", "SCC: C2"] |$16.
15. 708-2L-23730 [1] Slider Komatsu 0.1 kg.

["SN: 30158-UP", "SCC: C2"]
16. 708-25-12330 [1] Joint Komatsu 0.025 kg.

["SN: 30158-UP", "SCC: C2"]
17. 07000-B2015 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
18. 708-25-62361 [1] O-ring Komatsu 0.01 kg.

["SN: 30158-UP", "SCC: C2"]
19. 01252-61230 [12] Bolt, Hexagon Socket Head Komatsu 0.044 kg.

["SN: 30158-UP", "SCC: C2"]
20. 708-2L-23790 [1] Stopper Komatsu 0.08 kg.

["SN: 30158-UP", "SCC: C2"]
21. 04020-00616 [1] Pin, Dowel Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"]
22. 706-75-42270 [1] Screw Komatsu 0.003 kg.

["SN: 30158-UP", "SCC: C2"]

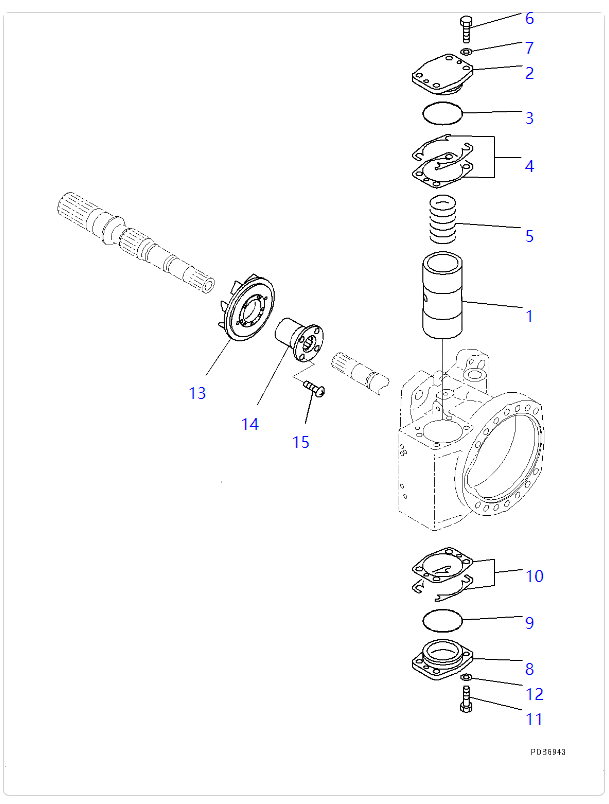

PC1250-8(6)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-2L-01680 [1] Pump Subassembly Komatsu China

["SN: 30158-UP", "SCC: C2"] |$2.
1. 708-25-14112 [1] Piston Komatsu 2.4 kg.

["SN: 30158-UP", "SCC: C2"]
2. 708-25-14140 [1] Cap Komatsu China

["SN: 30158-UP", "SCC: C2"]
3. 07000-B2065 [1] O-ring Komatsu 0.002 kg.

["SN: 30158-UP", "SCC: C2"]
4. 708-25-05050 [1] Shim Kit Komatsu 0.05 kg.

["SN: 30158-UP", "SCC: C2"]
5. 708-25-14130 [1] Spring Komatsu 0.25 kg.

["SN: 30158-UP", "SCC: C2"]
6. 01016-51035 [4] Bolt Komatsu 0.033 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["801015111", "0101631035"]
7. 01643-31032 [4] Washer Komatsu 0.054 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
8. 708-25-14150 [1] Cap Komatsu China

["SN: 30158-UP", "SCC: C2"]
13. 708-25-12542 [1] Impeller Komatsu 0.225 kg.

["SN: 30158-UP", "SCC: C2"]
14. 708-25-52550 [1] Coupling Komatsu 0.51 kg.

["SN: 30158-UP", "SCC: C2"]
15. 706-73-42270 [4] Screw Komatsu 0.003 kg.

["SN: 30158-UP", "SCC: C2"]

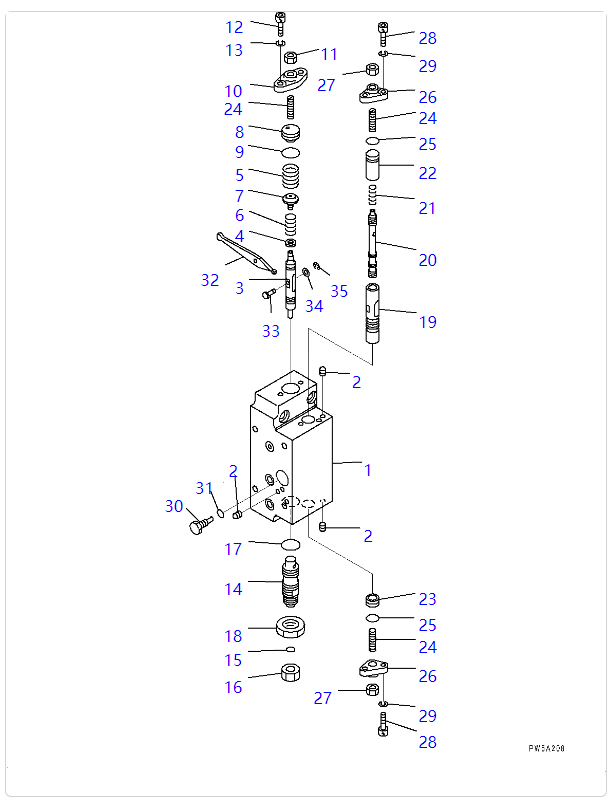

PC1250-8(7)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-25-85160 [1] Valve Assembly, Servo,Front Komatsu 13.401 kg.

["SN: 30158-UP"] |$2.

708-25-85360 [1] Valve Subassembly, Servo,Front Komatsu 6 kg.

["SN: 30158-UP"] |$3.

708-25-00830 [1] Body Assembly Komatsu China

["SN: 30158-UP", "SCC: C2"] |$4.
3. 708-25-15120 [1] Piston Komatsu 0.055 kg.

["SN: 30158-UP", "SCC: C2"]
4. 708-25-15130 [1] Seat Komatsu 0.002 kg.

["SN: 30158-UP", "SCC: C2"]
5. 708-25-25130 [1] Spring Komatsu China

["SN: 30158-UP", "SCC: C2"]
6. 708-25-55250 [1] Spring Komatsu China

["SN: 30158-UP", "SCC: C2"]
7. 708-23-15120 [1] Seat Komatsu China

["SN: 30158-UP", "SCC: C2"]
8. 708-23-15160 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
9. 07000-B2018 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
10. 708-25-15150 [1] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"]
11. 01580-10806 [1] Nut Komatsu 0.005 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["801920104"]
12. 01252-60616 [2] Bolt, Hexagon Socket Head Komatsu 0.007 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0125230616"]
13. 01602-20619 [2] Washer Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802150506"]
14. 708-25-55680 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
15. 02896-61009 [1] O-ring Komatsu 0.14 kg.

["SN: 30158-UP", "SCC: C2"]
16. 02789-00315 [1] Plug, Cap Komatsu 0.05 kg.

["SN: 30158-UP", "SCC: C2"]
17. 07002-62034 [1] O-ring Komatsu 0.94 kg.

["SN: 30158-UP", "SCC: C2"]
18. 07239-12009 [1] Nut Komatsu China

["SN: 30158-UP", "SCC: C2"] analogs:["0723902009", "0723922009"]
19. 708-25-15180 [1] Sleeve Komatsu 0.055 kg.

["SN: 30158-UP", "SCC: C2"]
20. 708-25-15280 [1] Spool Komatsu 0.03 kg.

["SN: 30158-UP", "SCC: C2"]
21. 708-25-15310 [1] Spring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
22. 708-25-15330 [1] Spacer Komatsu 0.052 kg.

["SN: 30158-UP", "SCC: C2"]
23. 708-25-15430 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
24. 708-25-15340 [3] Screw Komatsu China

["SN: 30158-UP", "SCC: C2"]
25. 07000-B2012 [2] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
26. 708-25-15250 [2] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"]
30. 708-25-15260 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
31. 07002-60823 [1] O-ring Komatsu 0.18 kg.

["SN: 30158-UP", "SCC: C2"]
32. 708-25-15270 [1] Arm Komatsu China

["SN: 30158-UP", "SCC: C2"]
33. 708-25-15360 [1] Pin Komatsu China

["SN: 30158-UP", "SCC: C2"]
34. 708-25-15370 [1] Washer Komatsu China

["SN: 30158-UP", "SCC: C2"]
35. 708-25-15380 [1] E-ring Komatsu China

["SN: 30158-UP", "SCC: C2"]

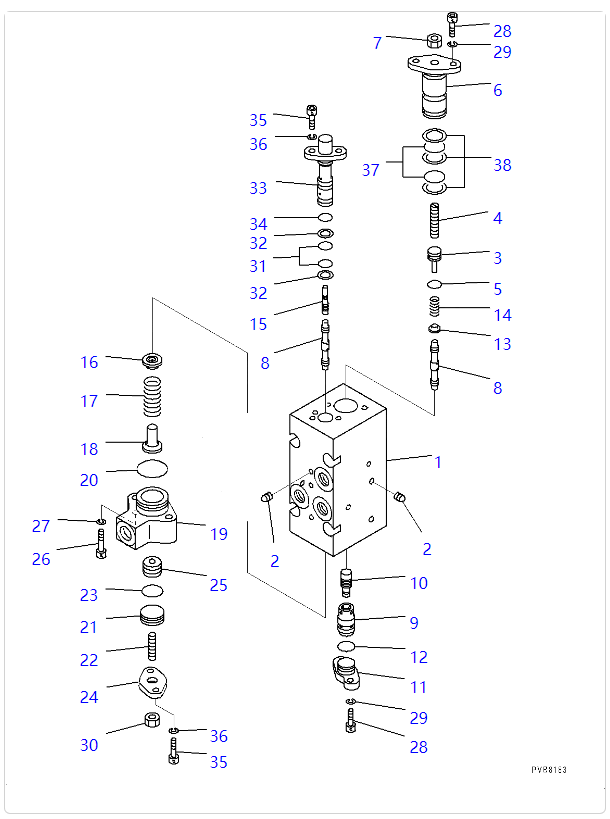

PC1250-8(8)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-25-85160 [1] Valve Assembly, Servo,Front Komatsu 13.401 kg.

["SN: 30158-UP"] |$2.

708-25-09581 [1] Valve Assembly, CO+NC Komatsu China

["SN: 30158-UP"] analogs:["7082509580"] |$3.

708-23-00430 [1] Body Assembly Komatsu 5.38 kg.

["SN: 30158-UP", "SCC: C2"] |$4.
3. 708-25-17460 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
4. 708-25-17430 [1] Screw Komatsu China

["SN: 30158-UP", "SCC: C2"]
5. 07000-B2010 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L25990"]
6. 708-25-17131 [1] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"] analogs:["7082517130"]
7. 01580-10806 [1] Nut Komatsu 0.005 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["801920104"]
8. 708-25-17141 [2] Spool Komatsu 0.02 kg.

["SN: 30158-UP", "SCC: C2"]
9. 708-25-17150 [1] Sleeve Komatsu 0.032 kg.

["SN: 30158-UP", "SCC: C2"]
10. 708-25-17160 [1] Piston Komatsu China

["SN: 30158-UP", "SCC: C2"]
11. 708-25-17170 [1] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"]
12. 07000-B2014 [1] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
13. 708-25-17180 [1] Seat Komatsu China

["SN: 30158-UP", "SCC: C2"]
14. 708-25-17690 [1] Spring Komatsu China

["SN: 30158-UP", "SCC: C2"]
15. 708-25-17220 [1] Piston Komatsu 0.009 kg.

["SN: 30158-UP", "SCC: C2"]
16. 708-25-17370 [1] Seat Komatsu China

["SN: 30158-UP", "SCC: C2"] analogs:["7082517240"]
17. 708-25-17250 [1] Spring Komatsu China

["SN: 30158-UP", "SCC: C2"]
18. 708-25-17470 [1] Seat Komatsu China

["SN: 30158-UP", "SCC: C2"]
19. 708-23-17290 [1] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"]
20. 07000-B3028 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
21. 708-25-17380 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
22. 708-25-15340 [1] Screw Komatsu China

["SN: 30158-UP", "SCC: C2"]
23. 07000-B2021 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
24. 708-23-17240 [1] Cover Komatsu 0.046 kg.

["SN: 30158-UP", "SCC: C2"]
25. 708-25-17480 [1] Piston Komatsu China

["SN: 30158-UP", "SCC: C2"]
26. 01252-60630 [2] Bolt, Hexagon Socket Head Komatsu 0.01 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0125240630"]
27. 01602-20619 [2] Washer Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802150506"]
28. 01252-60616 [4] Bolt, Hexagon Socket Head Komatsu 0.007 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0125230616"]
31. 07000-B2012 [2] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
32. 07001-02012 [2] Ring, Back-up Komatsu 0.002 kg.

["SN: 30158-UP", "SCC: C2"]
33. 708-25-17451 [1] Sleeve Komatsu China

["SN: 30158-UP", "SCC: C2"]
38. 07001-02021 [3] Ring, Back-up Komatsu 0.061 kg.

["SN: 30158-UP", "SCC: C2"]

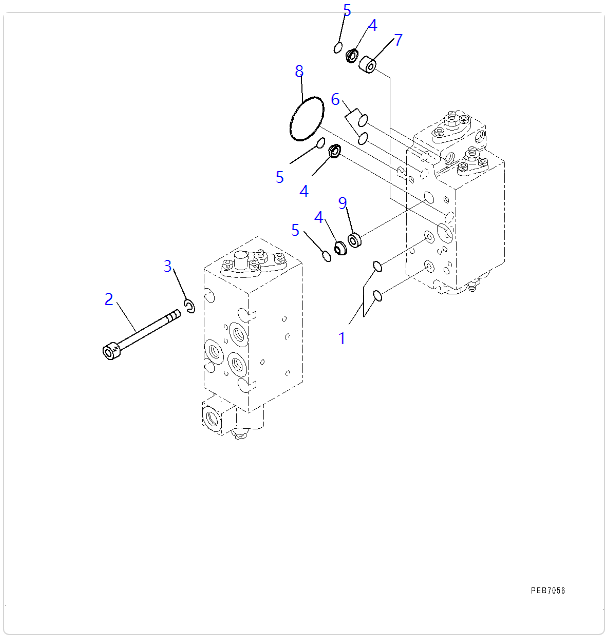

PC1250-8(9)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-25-85160 [1] Valve Assembly, Servo,Front Komatsu 13.401 kg.

["SN: 30158-UP"] |$2.
1. 07000-B2011 [2] O-ring Komatsu 0.001 kg.

["SN: 30158-UP"]
2. 708-25-19160 [4] Bolt, Hexagon Socket Head Komatsu China

["SN: 30158-UP"]
3. 01602-20825 [4] Washer Komatsu 0.004 kg.

["SN: 30158-UP"] analogs:["0160200825", "0231011020", "6124613790"]
4. 708-2L-25480 [4] Filter Komatsu OEM 0.5 kg.

["SN: 30158-UP"]
5. 708-2L-25490 [4] O-ring Komatsu 0.001 kg.

["SN: 30158-UP"]
6. 07000-B1009 [2] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP"] analogs:["7082L23910"]
7. 708-25-19230 [2] Orifice Komatsu China

["SN: 30158-UP"]
8. 07000-B3048 [1] O-ring Komatsu 0.002 kg.

["SN: 30158-UP"]
9. 708-25-19240 [1] Orifice Komatsu China

["SN: 30158-UP"]

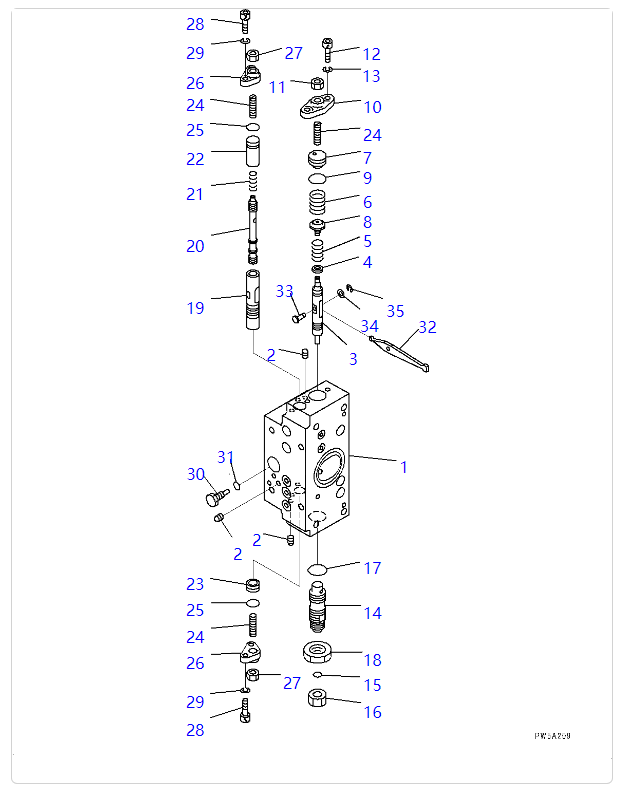

PC1250-8(10)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-25-85260 [1] Valve Assembly, Servo,Rear Komatsu 20.401 kg.

["SN: 30158-UP"] |$2.

708-25-85460 [1] Valve Subassembly, Servo,Rear Komatsu 6 kg.

["SN: 30158-UP"] |$3.

708-25-00840 [1] Body Assembly Komatsu China

["SN: 30158-UP", "SCC: C2"] |$4.
3. 708-25-15120 [1] Piston Komatsu 0.055 kg.

["SN: 30158-UP", "SCC: C2"]
4. 708-25-15130 [1] Seat Komatsu 0.002 kg.

["SN: 30158-UP", "SCC: C2"]
5. 708-25-55250 [1] Spring Komatsu China

["SN: 30158-UP", "SCC: C2"]
6. 708-25-25130 [1] Spring Komatsu China

["SN: 30158-UP", "SCC: C2"]
7. 708-23-15160 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
8. 708-23-15120 [1] Seat Komatsu China

["SN: 30158-UP", "SCC: C2"]
9. 07000-B2018 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
10. 708-25-15150 [1] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"]
11. 01580-10806 [1] Nut Komatsu 0.005 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["801920104"]
12. 01252-60616 [2] Bolt, Hexagon Socket Head Komatsu 0.007 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0125230616"]
13. 01602-20619 [2] Washer Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802150506"]
14. 708-25-55680 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
15. 02896-61009 [1] O-ring Komatsu 0.14 kg.

["SN: 30158-UP", "SCC: C2"]
16. 02789-00315 [1] Plug, Cap Komatsu 0.05 kg.

["SN: 30158-UP", "SCC: C2"]
17. 07002-62034 [1] O-ring Komatsu 0.94 kg.

["SN: 30158-UP", "SCC: C2"]
18. 07239-12009 [1] Nut Komatsu China

["SN: 30158-UP", "SCC: C2"] analogs:["0723902009", "0723922009"]
19. 708-25-15180 [1] Sleeve Komatsu 0.055 kg.

["SN: 30158-UP", "SCC: C2"]
20. 708-25-15280 [1] Spool Komatsu 0.03 kg.

["SN: 30158-UP", "SCC: C2"]
21. 708-25-15310 [1] Spring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
22. 708-25-15330 [1] Spacer Komatsu 0.052 kg.

["SN: 30158-UP", "SCC: C2"]
23. 708-25-15430 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
24. 708-25-15340 [3] Screw Komatsu China

["SN: 30158-UP", "SCC: C2"]
25. 07000-B2012 [2] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
26. 708-25-15250 [2] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"]
30. 708-25-15260 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
31. 07002-60823 [1] O-ring Komatsu 0.18 kg.

["SN: 30158-UP", "SCC: C2"]
32. 708-25-15270 [1] Arm Komatsu China

["SN: 30158-UP", "SCC: C2"]
33. 708-25-15360 [1] Pin Komatsu China

["SN: 30158-UP", "SCC: C2"]
34. 708-25-15370 [1] Washer Komatsu China

["SN: 30158-UP", "SCC: C2"]
35. 708-25-15380 [1] E-ring Komatsu China

["SN: 30158-UP", "SCC: C2"]

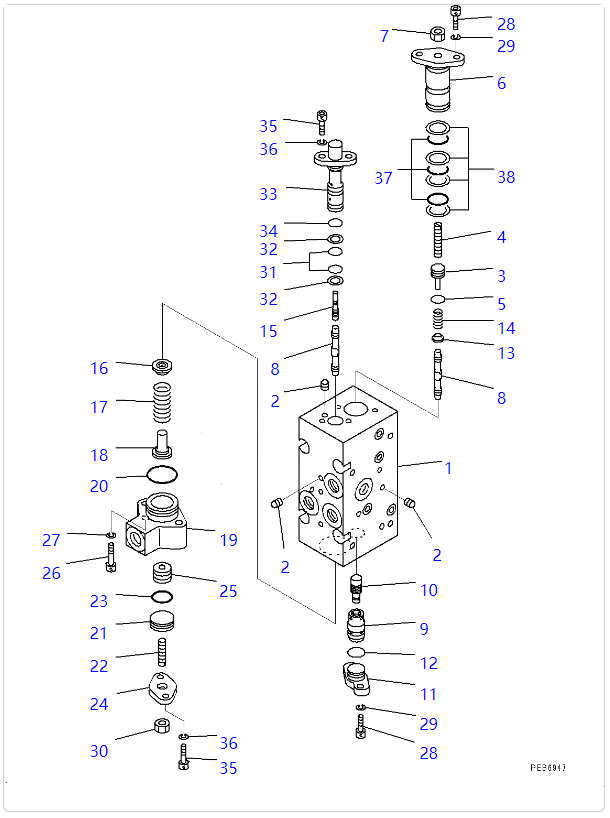

PC1250-8(11)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-25-85260 [1] Valve Assembly, Servo,Rear Komatsu 20.401 kg.

["SN: 30158-UP"] |$2.

708-25-09681 [1] Valve Assembly, CO+NC Komatsu China

["SN: 30158-UP"] analogs:["7082509680"] |$3.

708-23-00441 [1] Body Assembly Komatsu China

["SN: 30158-UP", "SCC: C2"] |$4.
3. 708-25-17460 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
4. 708-25-17430 [1] Screw Komatsu China

["SN: 30158-UP", "SCC: C2"]
5. 07000-B2010 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7082L25990"]
6. 708-25-17131 [1] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"] analogs:["7082517130"]
7. 01580-10806 [1] Nut Komatsu 0.005 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["801920104"]
8. 708-25-17141 [2] Spool Komatsu 0.02 kg.

["SN: 30158-UP", "SCC: C2"]
9. 708-25-17150 [1] Sleeve Komatsu 0.032 kg.

["SN: 30158-UP", "SCC: C2"]
10. 708-25-17160 [1] Piston Komatsu China

["SN: 30158-UP", "SCC: C2"]
11. 708-25-17170 [1] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"]
12. 07000-B2014 [1] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
13. 708-25-17180 [1] Seat Komatsu China

["SN: 30158-UP", "SCC: C2"]
14. 708-25-17690 [1] Spring Komatsu China

["SN: 30158-UP", "SCC: C2"]
15. 708-25-17220 [1] Piston Komatsu 0.009 kg.

["SN: 30158-UP", "SCC: C2"]
16. 708-25-17370 [1] Seat Komatsu China

["SN: 30158-UP", "SCC: C2"] analogs:["7082517240"]
17. 708-25-17250 [1] Spring Komatsu China

["SN: 30158-UP", "SCC: C2"]
18. 708-25-17470 [1] Seat Komatsu China

["SN: 30158-UP", "SCC: C2"]
19. 708-23-17290 [1] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"]
20. 07000-B3028 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
21. 708-25-17380 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
22. 708-25-15340 [1] Screw Komatsu China

["SN: 30158-UP", "SCC: C2"]
23. 07000-B2021 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
24. 708-23-17240 [1] Cover Komatsu 0.046 kg.

["SN: 30158-UP", "SCC: C2"]
25. 708-25-17480 [1] Piston Komatsu China

["SN: 30158-UP", "SCC: C2"]
26. 01252-60630 [2] Bolt, Hexagon Socket Head Komatsu 0.01 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0125240630"]
27. 01602-20619 [2] Washer Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802150506"]
28. 01252-60616 [4] Bolt, Hexagon Socket Head Komatsu 0.007 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0125230616"]
31. 07000-B2012 [2] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
32. 07001-02012 [2] Ring, Back-up Komatsu 0.002 kg.

["SN: 30158-UP", "SCC: C2"]
33. 708-25-17451 [1] Sleeve Komatsu China

["SN: 30158-UP", "SCC: C2"]
38. 07001-02021 [4] Ring, Back-up Komatsu 0.061 kg.

["SN: 30158-UP", "SCC: C2"]

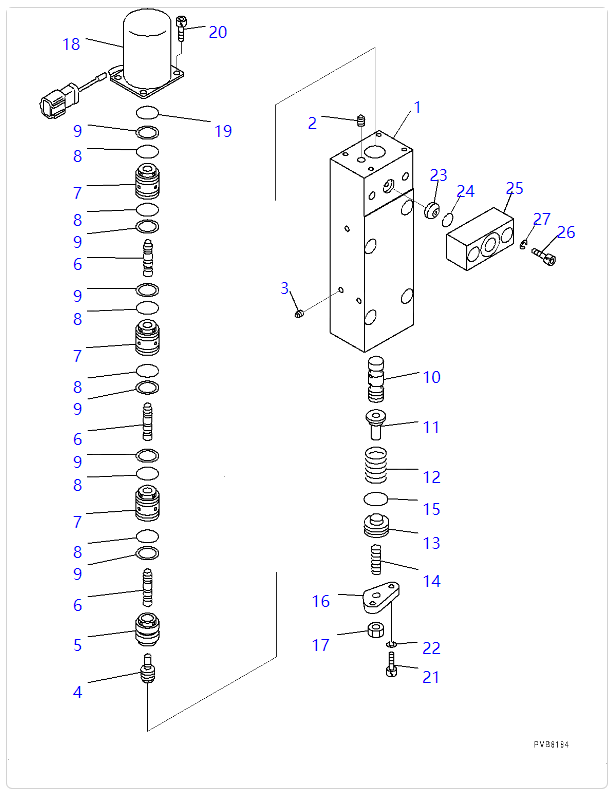

PC1250-8(12)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-25-85260 [1] Valve Assembly, Servo,Rear Komatsu 20.401 kg.

["SN: 30158-UP"] |$2.

708-25-85760 [1] Valve Assembly Komatsu China

["SN: 30158-UP"] |$3.

708-25-00850 [1] Body Assembly Komatsu 0.000 kg.

["SN: 30158-UP", "SCC: C2"] |$4.
4. 708-23-18120 [1] Piston Komatsu China

["SN: 30158-UP", "SCC: C2"]
5. 708-23-18130 [1] Sleeve Komatsu China

["SN: 30158-UP", "SCC: C2"]
6. 708-27-18240 [3] Piston Komatsu China

["SN: 30158-UP", "SCC: C2"]
7. 708-27-18250 [3] Sleeve Komatsu China

["SN: 30158-UP", "SCC: C2"]
8. 07000-B2016 [6] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
9. 07001-02016 [6] Ring, Back-up Komatsu 0.005 kg.

["SN: 30158-UP", "SCC: C2"]
10. 708-23-18161 [1] Spool Komatsu 0.045 kg.

["SN: 30158-UP", "SCC: C2"]
11. 708-23-18170 [1] Seat Komatsu China

["SN: 30158-UP", "SCC: C2"]
12. 708-23-18181 [1] Spring Komatsu China

["SN: 30158-UP", "SCC: C2"]
13. 708-23-15160 [1] Plug Komatsu China

["SN: 30158-UP", "SCC: C2"]
14. 708-25-15340 [1] Screw Komatsu China

["SN: 30158-UP", "SCC: C2"]
15. 07000-B2018 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
16. 708-23-18210 [1] Cover Komatsu China

["SN: 30158-UP", "SCC: C2"]
17. 01580-10806 [1] Nut Komatsu 0.005 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["801920104"]
18. 708-2L-25190 [1] Solenoid Assembly Komatsu 0.84 kg.

["SN: 30158-UP", "SCC: C2"]
20. 708-23-18250 [4] Bolt Komatsu 0.02 kg.

["SN: 30158-UP", "SCC: C2"]
21. 01252-60616 [2] Bolt, Hexagon Socket Head Komatsu 0.007 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0125230616"]
22. 01602-20619 [2] Washer Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["802150506"]
23. 708-2L-25480 [1] Filter Komatsu OEM 0.5 kg.

["SN: 30158-UP", "SCC: C2"]
24. 708-2L-25490 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP", "SCC: C2"]
25. 708-25-58310 [1] Flange Komatsu China

["SN: 30158-UP", "SCC: C2"]
26. 01252-60830 [2] Bolt, Hexagon Socket Head Komatsu 0.019 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0125230830"]
27. 01602-20825 [2] Washer Komatsu 0.004 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["0160200825", "0231011020", "6124613790"]

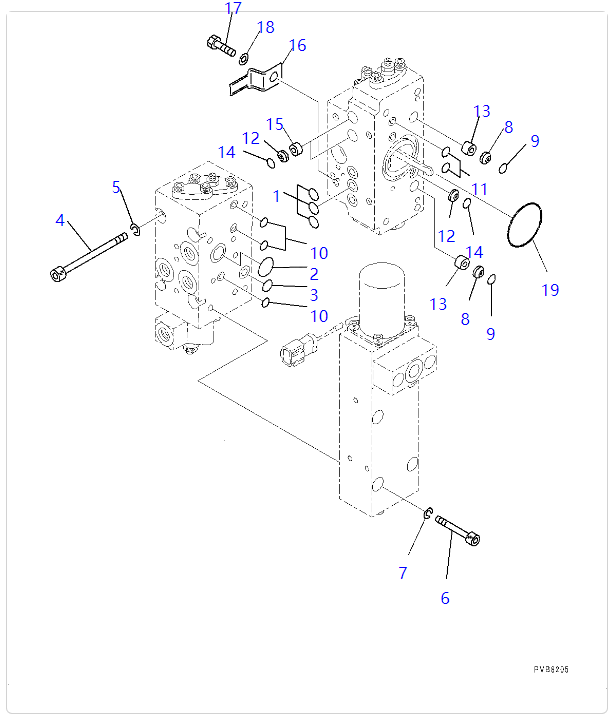

PC1250-8(13)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

708-25-85260 [1] Valve Assembly, Servo,Rear Komatsu 20.401 kg.

["SN: 30158-UP"] |$2.
1. 07000-B2011 [3] O-ring Komatsu 0.001 kg.

["SN: 30158-UP"]
2. 07000-B2018 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP"]
4. 708-25-19160 [4] Bolt, Hexagon Socket Head Komatsu China

["SN: 30158-UP"]
5. 01602-20825 [4] Washer Komatsu 0.004 kg.

["SN: 30158-UP"] analogs:["0160200825", "0231011020", "6124613790"]
6. 01252-60850 [4] Bolt, Hexagon Socket Head Komatsu China

["SN: 30158-UP"] analogs:["0125270850"]
8. 708-2L-25480 [2] Filter Komatsu OEM 0.5 kg.

["SN: 30158-UP"]
9. 708-2L-25490 [2] O-ring Komatsu 0.001 kg.

["SN: 30158-UP"]
10. 07000-B1009 [3] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP"] analogs:["7082L23910"]
13. 708-25-19230 [2] Orifice Komatsu China

["SN: 30158-UP"]
15. 708-25-19240 [2] Orifice Komatsu China

["SN: 30158-UP"]
16. 08193-21012 [1] Clip Komatsu 0.011 kg.

["SN: 30158-UP"]
17. 01010-80812 [1] Bolt Komatsu 0.01 kg.

["SN: 30158-UP"]
18. 01643-30823 [1] Washer Komatsu 0.004 kg.

["SN: 30158-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
19. 07000-B3048 [1] O-ring Komatsu 0.002 kg.

["SN: 30158-UP"]

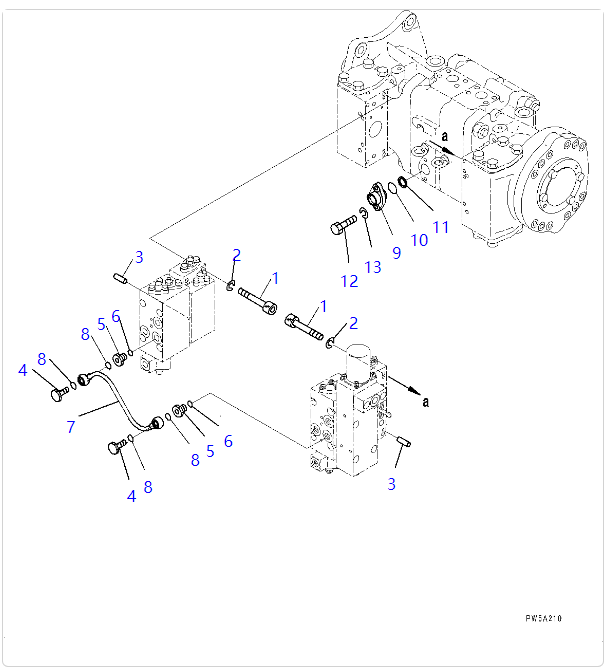

PC1250-8(14)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.
1. 01252-60850 [8] Bolt, Hexagon Socket Head Komatsu China

["SN: 30158-UP"] analogs:["0125270850"]
2. 01602-20825 [8] Washer Komatsu 0.004 kg.

["SN: 30158-UP"] analogs:["0160200825", "0231011020", "6124613790"]
3. 04020-00616 [4] Pin, Dowel Komatsu 0.004 kg.

["SN: 30158-UP"]
4. 706-46-53180 [2] Bolt Komatsu 0.028 kg.

["SN: 30158-UP"]
5. 706-46-53260 [2] Plug Komatsu 0.03 kg.

["SN: 30158-UP"]
6. 07002-61423 [2] O-ring Komatsu 0.001 kg.

["SN: 30158-UP"] analogs:["7082L23950"]
7. 708-25-19140 [1] Tube Komatsu 0.15 kg.

["SN: 30158-UP"]
8. 07000-B2012 [4] O-ring Komatsu China 0.001 kg.

["SN: 30158-UP"]
9. 708-25-19120 [1] Flange Komatsu China

["SN: 30158-UP"]
10. 07000-B2021 [1] O-ring Komatsu 0.001 kg.

["SN: 30158-UP"]
11. 720-68-15240 [1] Filter Komatsu 0.003 kg.

["SN: 30158-UP"]
12. 01010-80820 [2] Bolt Komatsu 0.013 kg.

["SN: 30158-UP"] analogs:["801014067", "0101050820", "801015086"]

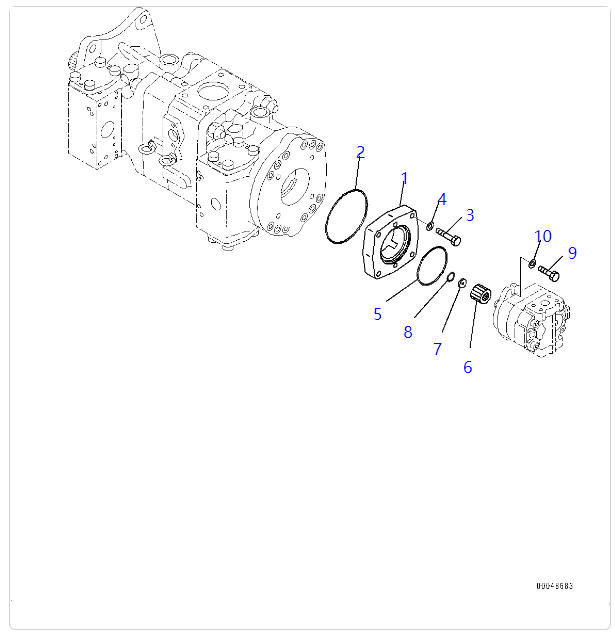

PC1250-8(15)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.
1. 708-45-12330 [1] Cover Komatsu 2.84 kg.

["SN: 30158-UP"]
2. 07000-B2120 [1] O-ring Komatsu 0.004 kg.

["SN: 30158-UP"]
3. 01010-81050 [4] Bolt Komatsu 0.038 kg.

["SN: 30158-UP"] analogs:["801015559", "0101051050"]
4. 01643-31032 [4] Washer Komatsu 0.054 kg.

["SN: 30158-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
5. 07000-B2085 [1] O-ring Komatsu 0.003 kg.

["SN: 30158-UP"]
6. 708-45-12810 [1] Boss Komatsu China

["SN: 30158-UP"]
7. 708-45-12820 [1] Collar Komatsu China

["SN: 30158-UP"]
8. 708-45-12830 [1] Ring Komatsu China

["SN: 30158-UP"]
9. 01010-81030 [2] Bolt Komatsu OEM 0.03 kg.

["SN: 30158-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]

PC1250-8(16)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00681 [1] Pump Assembly Komatsu 196 kg.

["SN: 30254-UP"] analogs:["7082L00680"] |$0.

708-2L-00680 [1] Pump Assembly Komatsu 196 kg.

["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] |$1.

705-11-23040 [1] Pump Assembly Komatsu China

["SN: 30158-UP"] |$2.
1. 705-17-01010 [1] Bracket Assembly Komatsu China

["SN: 30158-UP", "SCC: C2"]
2. 705-17-01350 [2] Bushing, Plane, Plane Komatsu 0.016 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7051701351"]
3. 705-17-01120 [1] Cover Assembly Komatsu 1.025 kg.

["SN: 30158-UP", "SCC: C2"] analogs:["7051701121"]
5. 705-17-01610 [2] Plate, Side Komatsu 0.16 kg.

["SN: 30158-UP"]
6. 705-67-01440 [2] Ring, Back-up Komatsu 0.004 kg.

["SN: 30158-UP"] analogs:["7051701440"]
7. 705-67-01470 [2] Ring, Seal Komatsu 0.024 kg.

["SN: 30158-UP"] analogs:["7051701470"]
8. 705-67-01380 [2] O-ring Komatsu 0.1 kg.

["SN: 30158-UP"]
9. 705-17-01870 [1] Plate Komatsu 0.01 kg.

["SN: 30158-UP"]
10. 07430-71360 [1] Seal, Oil Komatsu 0.033 kg.

["SN: 30158-UP"]
11. 04065-03515 [1] Ring, Snap Komatsu 0.003 kg.

["SN: 30158-UP"]
12. 705-17-23010 [1] Case, Gear Komatsu 0.67 kg.

["SN: 30158-UP", "SCC: C2"]
13. 705-17-23410 [1] Gear, Drive Komatsu 0.39 kg.

["SN: 30158-UP", "SCC: C2"]
14. 705-17-23510 [1] Gear, Driven Komatsu 0.29 kg.

["SN: 30158-UP", "SCC: C2"]
15. 04020-00820 [4] Pin, Dowel Komatsu 0.056 kg.

["SN: 30158-UP"] analogs:["802540092"]
16. 01252-61280 [4] Bolt, Hexagon Socket Head Komatsu 0.088 kg.

["SN: 30158-UP"] analogs:["7051702730"]
17. 01643-51232 [4] Washer Komatsu 0.024 kg.

["SN: 30158-UP"]


Company Informatio


1 (2)
Previous:
Next:
PC1250-8 MAIN PUMP 708-2L-00680 708-2L-00681 PC1250-8 Hydraulic Main Pump

Product Category

Related Products

JCB220 JS200 JS210 JS220 20/925309 HYDRAULIC PUMP JCB220 MAIN PUMP FOR JCB EXCAVATOR
JCB220 JS200 JS210 JS220 20/925309 HYDRAULIC PUMP JCB220 MAIN PUMP FOR JCB EXCAVATOR
ZX160 Hydraulic Pump Assy 4441981 A8V080 ZX160 MAIN PUMP FOR HITACHI EXCAVATOR
ZX160 Hydraulic Pump Assy 4441981 A8V080 ZX160 MAIN PUMP FOR HITACHI EXCAVATOR
PC220-8 Hydraulic Pump Assy 708-2L-00790 PC220-8 MAIN PUMP FOR KOMATSU EXCAVATOR
PC220-8 Hydraulic Pump Assy 708-2L-00790 PC220-8 MAIN PUMP FOR KOMATSU EXCAVATOR
E374F E390F MAIN PUMP 369-9655 576-3072 Hydraulic Main Pump FOR CAT EXCAVATOR
E374F E390F MAIN PUMP 369-9655 576-3072 Hydraulic Main Pump FOR CAT EXCAVATOR
E336D2 Main Pump 504-5477 K5V160DP E336D2 Hydraulic PUMP APPLY FOR CAT EXCAVATOR
E336D2 Main Pump 504-5477 K5V160DP E336D2 Hydraulic PUMP APPLY FOR CAT EXCAVATOR
E330D Hydraulic Main Pump 283-6116 K5v160dp E330 MAIN PUMP FOR CAT EXCAVATOR
E330D Hydraulic Main Pump 283-6116 K5v160dp E330 MAIN PUMP FOR CAT EXCAVATOR
E320C 320D MAIN PUMP 173-3381 272-6955 SBS120 320C Hydraulic Pump for CAT EXCAVATOR
E320C 320D MAIN PUMP 173-3381 272-6955 SBS120 320C Hydraulic Pump for CAT EXCAVATOR
DX420 Hydraulic Main Pump K1003280b K1000288B 401-00255 DX420 MAIN PUMP FOR Doosan EXCAVATOR
DX420 Hydraulic Main Pump K1003280b K1000288B 401-00255 DX420 MAIN PUMP FOR Doosan EXCAVATOR
PC300-8 PC350-8 MAIN PUMP 708-2G-00150 PC350-8 hydraulic pump for Komatsu excavator
PC300-8 PC350-8 MAIN PUMP 708-2G-00150 PC350-8 hydraulic pump for Komatsu excavator
R320-9 R380-9 MAIN PUMP K3V180DTP-9N-17Т 31Q9-10010 R330-9 MAIN PUMP
R320-9 R380-9 MAIN PUMP K3V180DTP-9N-17Т 31Q9-10010 R330-9 MAIN PUMP

Call Us Now

Landline: +86-750-6688281
Phone: +86 18127522581
Phone: +86-13302589039

Send a Message


Main Office

Specialized in product
7*24 hours at your service
LB is a leading manufacturer and supplier of earth-moving machinery components: travel reducers and swing reducers.

Useful Links

Subscribe Now

Incorrect Postcode Submit
Copyright © 2022 LB All rights reserved.   Sitemap   Support By Leadong                             粤ICP备2022033046号
