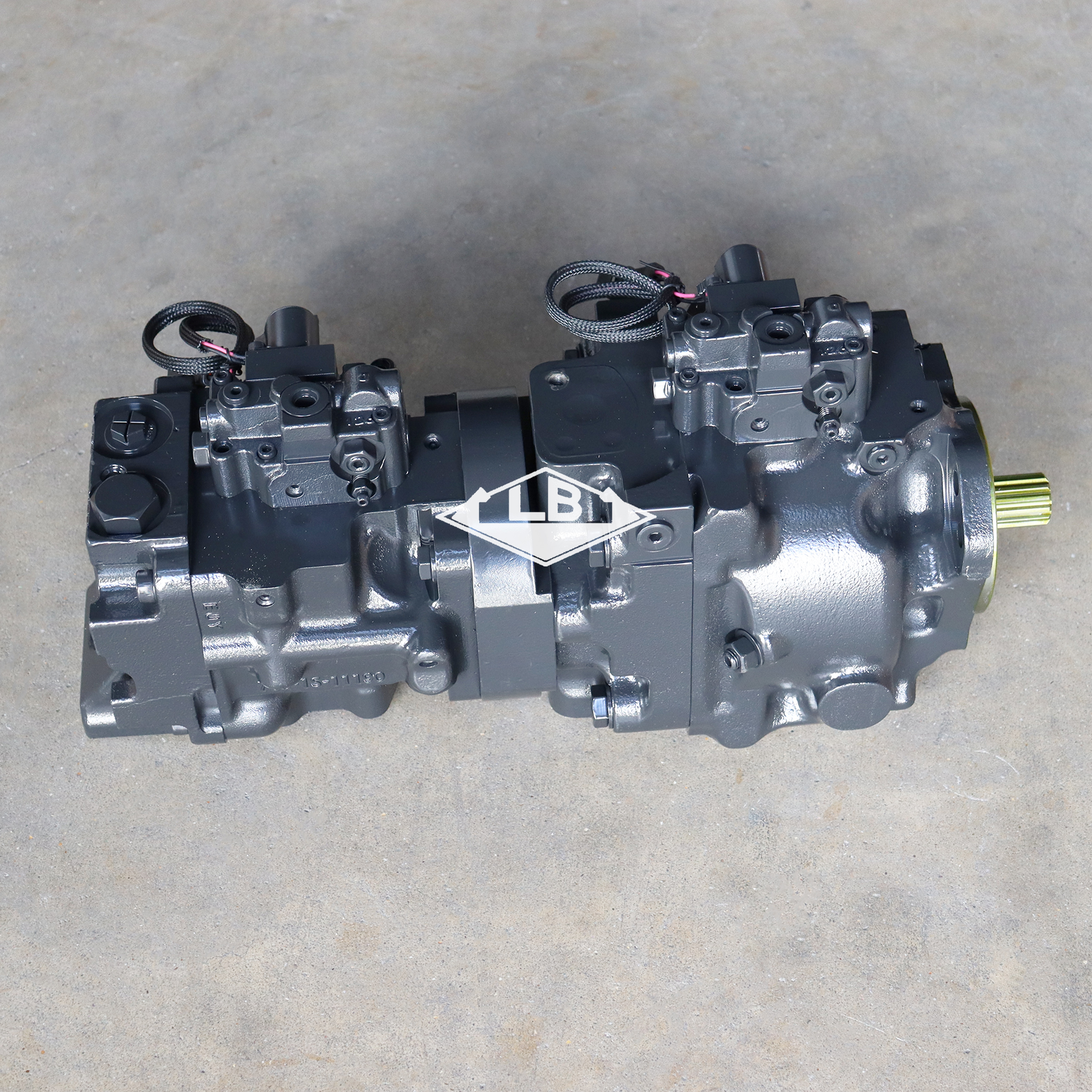

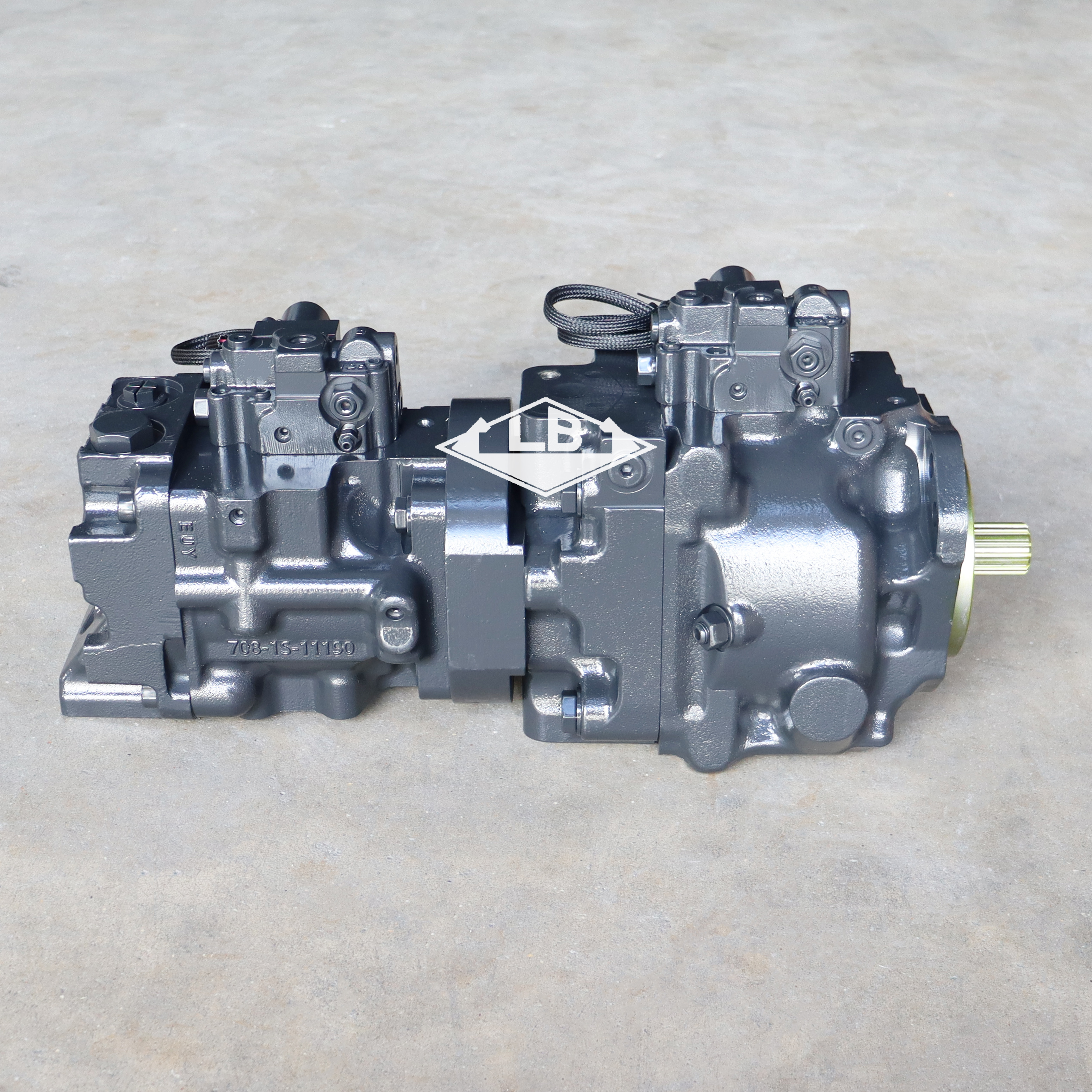

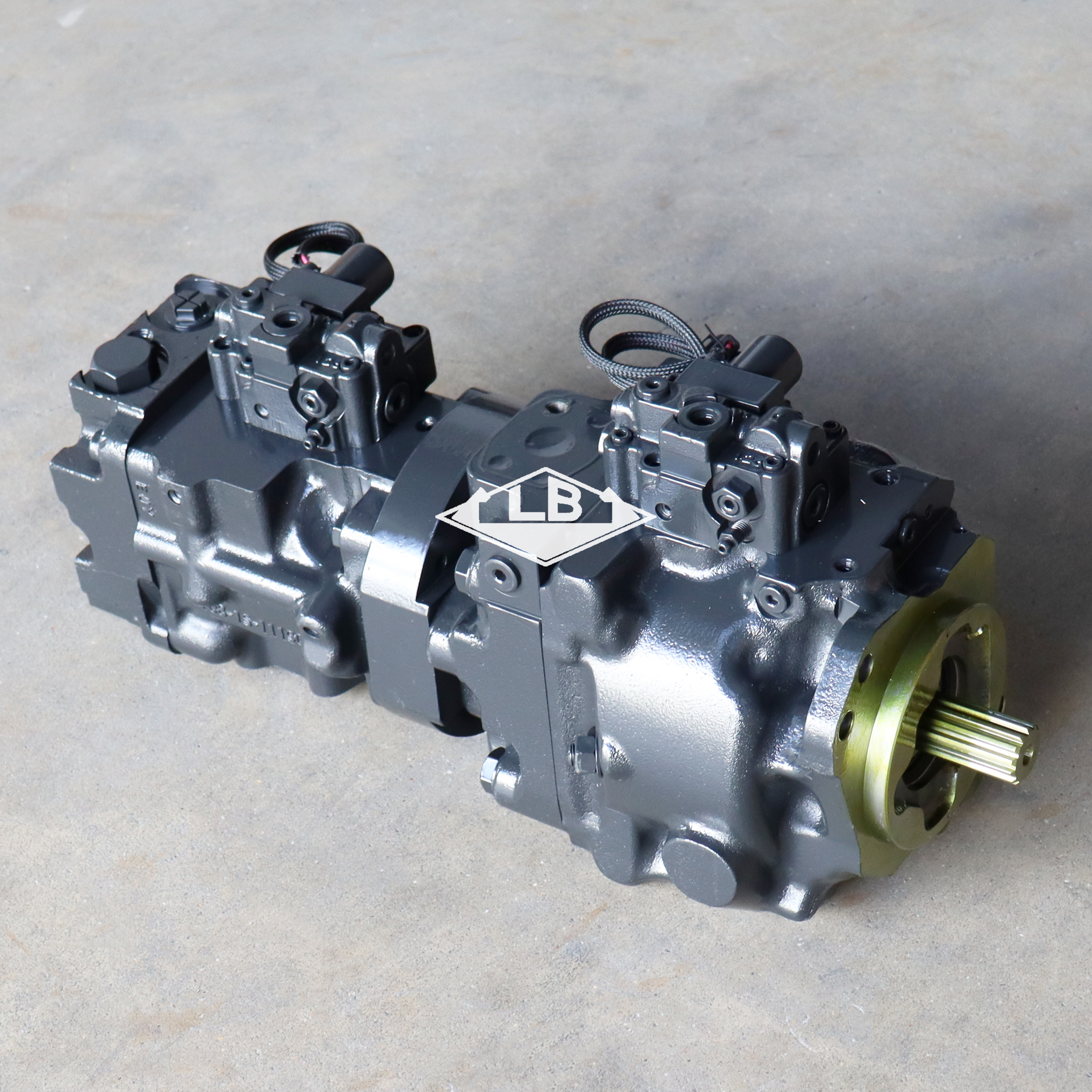

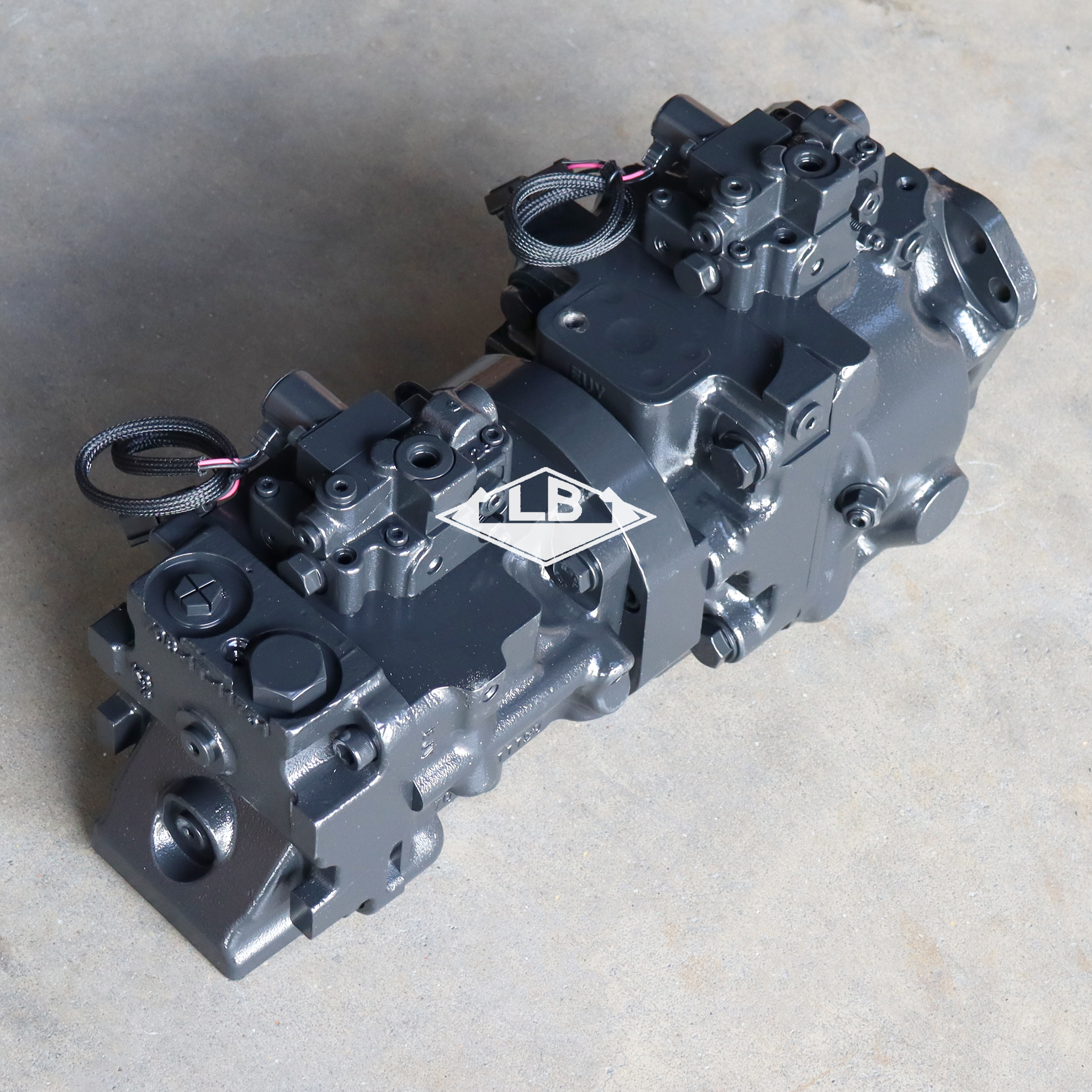

D375A-5 FAN PUMP 708-1W-00921 PUMP ASSY

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	D375A-5 FAN PUMP
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	708-1W-00921
NO.1 sun gear spline teeth	16 splines
Swing pinion shaft teeth	13T
Item condition	New
Logo	LB
Gross weight	105 KG
MOQ	1 pc

Product Descriptio

D375A-5 风扇泵 708-1W-00921(10) D375A-5 风扇泵 708-1W-00921(4) D375A-5 风扇泵 708-1W-00921(8) D375A-5 风扇泵 708-1W-00921(6) D375A-5 风扇泵 708-1W-00921(2)

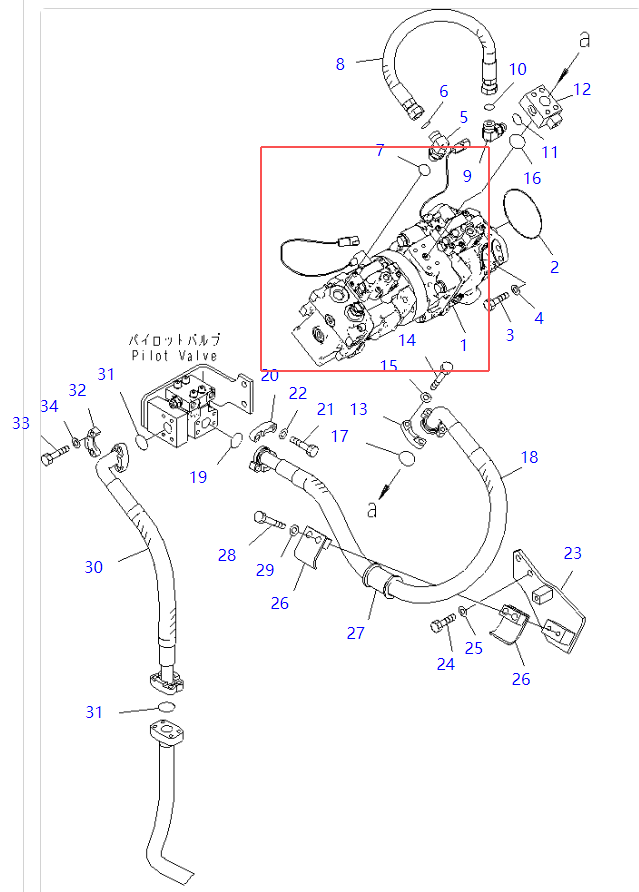

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
1.	708-1W-00921	[1]	PUMP ASS'Y Komatsu	82 kg.
			["SN: 55039-UP"] analogs:["7081W00920", "7081W00922"]
1.	708-1W-00920	[1]	PUMP ASS'Y Komatsu	82 kg.
			["SN: 55001-55038"] analogs:["7081W00922"]
2.	07000-12130	[1]	O-RING Komatsu OEM	0.004 kg.
			["SN: 55001-UP"] analogs:["0700002130E", "0700002130", "0700012030", "R0700012130"]
3.	01010-81235	[4]	BOLT Komatsu	0.048 kg.
			["SN: 55001-UP"] analogs:["0101051235", "01010E1235", "801015136"]
4.	01643-31232	[4]	WASHER Komatsu	0.027 kg.
			["SN: 55001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
5.	02782-10522	[1]	ELBOW Komatsu	0.4 kg.
			["SN: 55001-UP"]
6.	02896-11015	[1]	O-RING Komatsu	0.21 kg.
			["SN: 55001-UP"] analogs:["21D0969770", "855051016"]
7.	07002-12434	[1]	O-RING Komatsu China	0.01 kg.
			["SN: 55001-UP"] analogs:["0700202434", "0700213434"]
8.	02765-005A5	[1]	HOSE Komatsu	0.96 kg.
			["SN: 55001-UP"]
9.	02782-10516	[1]	ELBOW Komatsu	0.24 kg.
			["SN: 55001-UP"]
11.	07002-12034	[1]	O-RING Komatsu China	0.94 kg.
			["SN: 55001-UP"] analogs:["0700002034", "0700202034", "0700012034"]
12.	195-03-64651	[1]	BLOCK Komatsu China
			["SN: 55001-UP"]
13.	07371-31049	[2]	FLANGE Komatsu	0.12 kg.
			["SN: 55001-UP"] analogs:["0737121049"]
14.	195-78-63210	[4]	BOLT Komatsu	0.053 kg.
			["SN: 55001-UP"]
15.	01643-51032	[4]	WASHER Komatsu	0.17 kg.
			["SN: 55001-UP"] analogs:["R0164351032"]
16.	07000-13035	[1]	O-RING Komatsu China	0.03 kg.
			["SN: 55001-UP"] analogs:["0700003035"]
17.	07000-13032	[1]	O-RING Komatsu China	0.002 kg.
			["SN: 55001-UP"] analogs:["YM24321000350", "YM24311000320", "0700003032"]
18.	07088-01012	[1]	HOSE Komatsu	4.66 kg.
			["SN: 55001-UP"]
21.	07372-21035	[4]	BOLT Komatsu	0.033 kg.
			["SN: 55001-UP"]
23.	195-03-63542	[1]	BRACKET Komatsu China
			["SN: 55001-UP"]
24.	01010-81225	[2]	BOLT Komatsu	0.074 kg.
			["SN: 55001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
26.	07094-11024	[2]	CLAMP Komatsu	0.38 kg.
			["SN: 55001-UP"] analogs:["0709401024"]
27.	07095-01034	[1]	CUSHION Komatsu	0.114 kg.
			["SN: 55001-UP"]
28.	01010-81285	[2]	BOLT Komatsu	0.091 kg.
			["SN: 55001-UP"] analogs:["0101051285"]
30.	07088-01006	[1]	HOSE Komatsu China	3.13 kg.
			["SN: 55001-UP"]
