| Quantity: | |
|---|---|

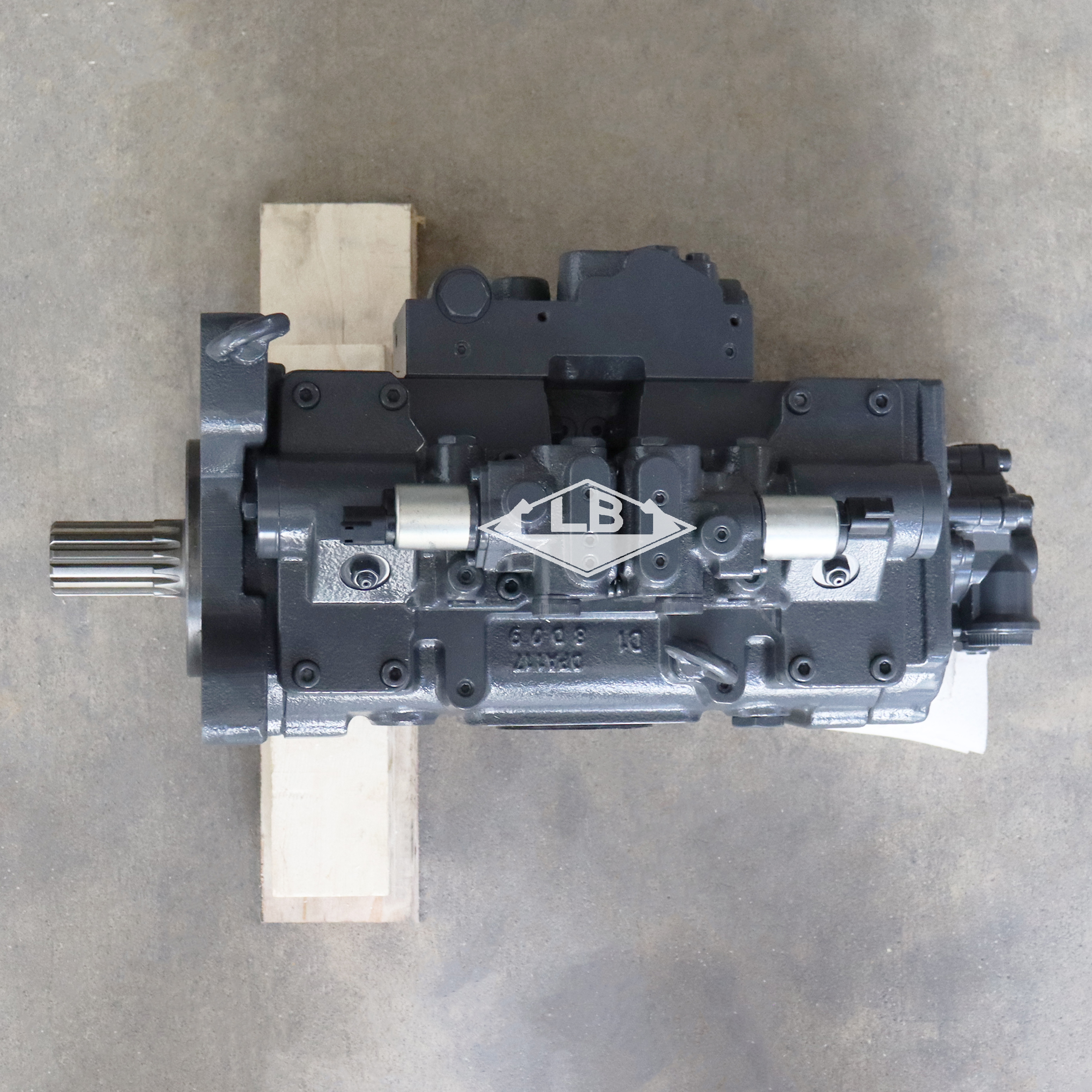

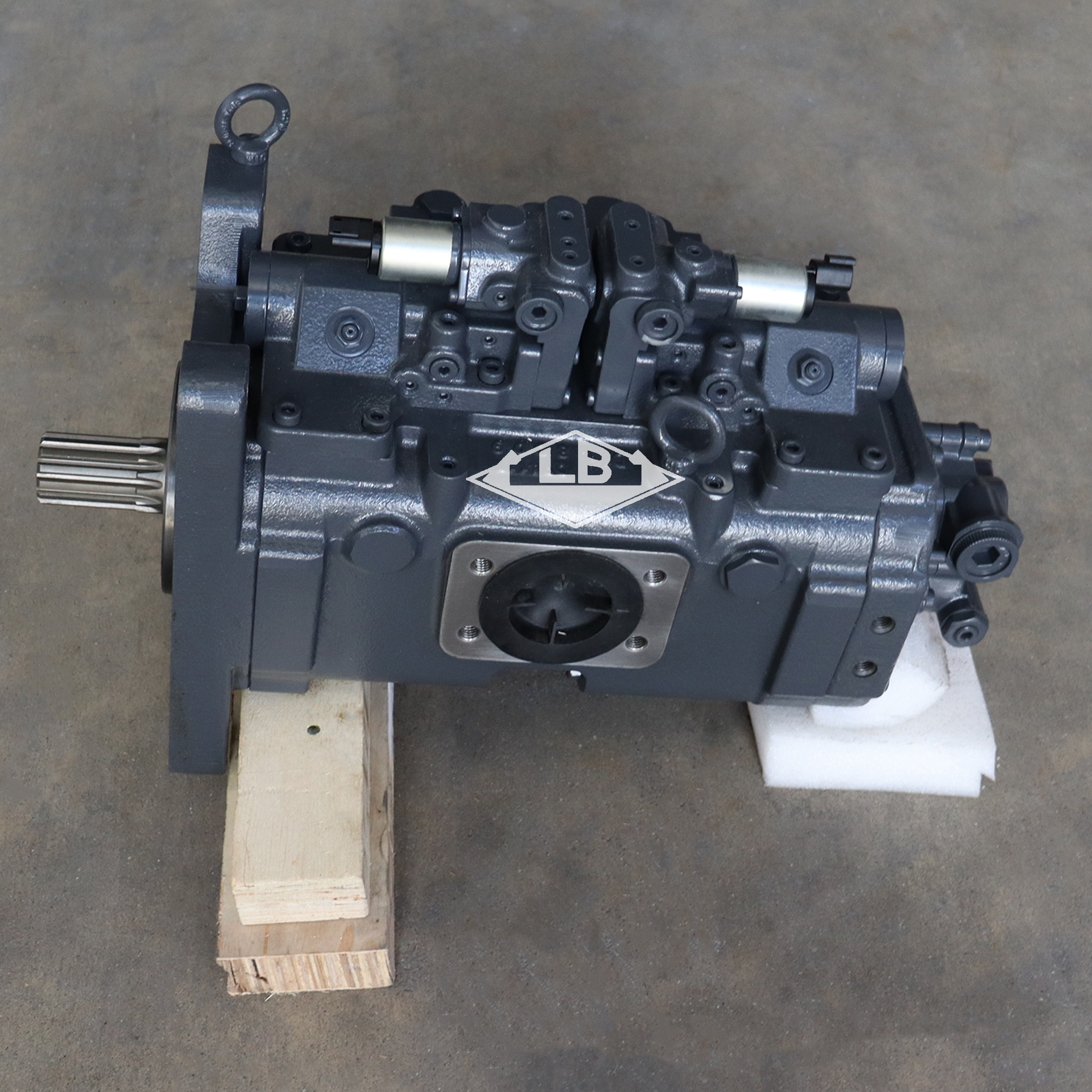

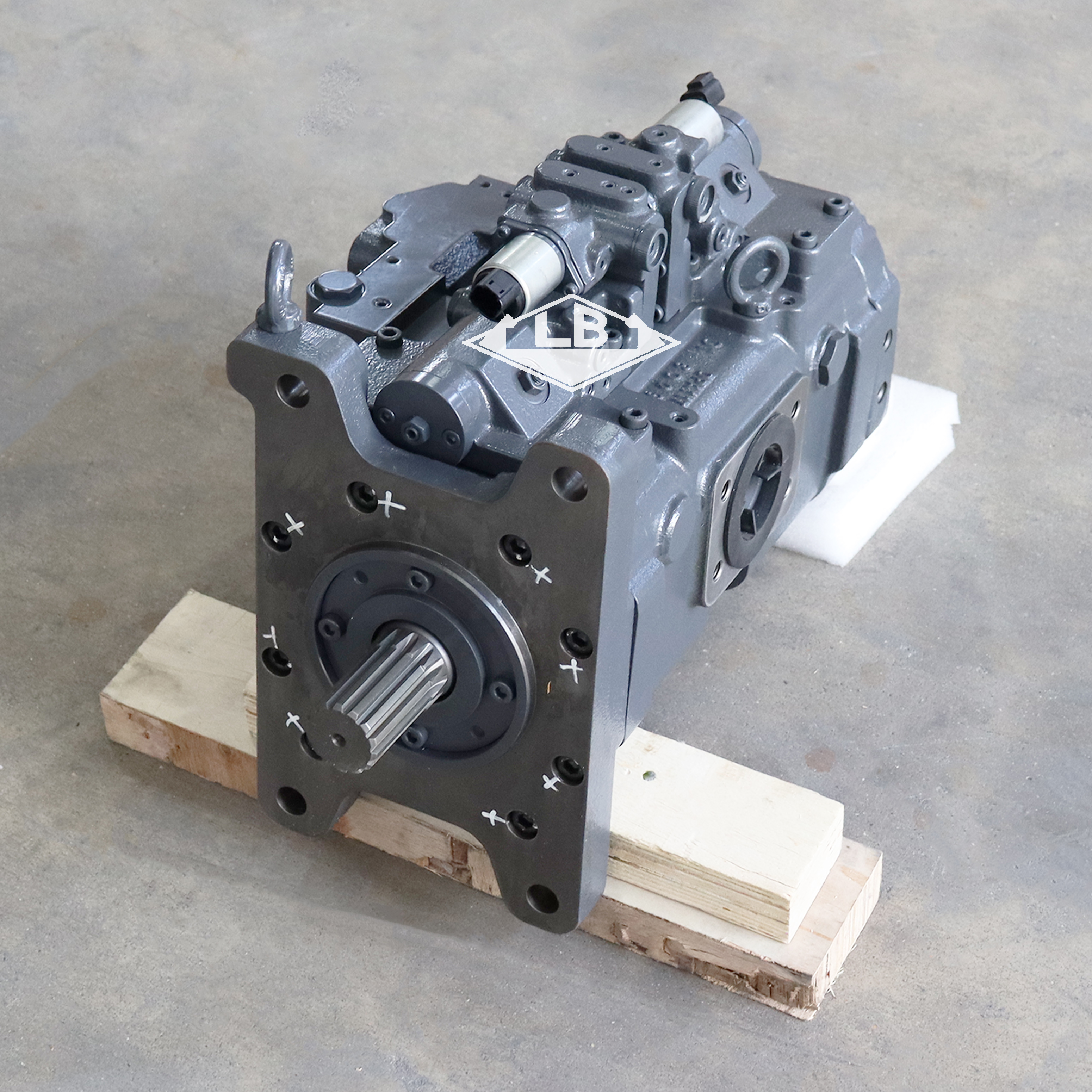

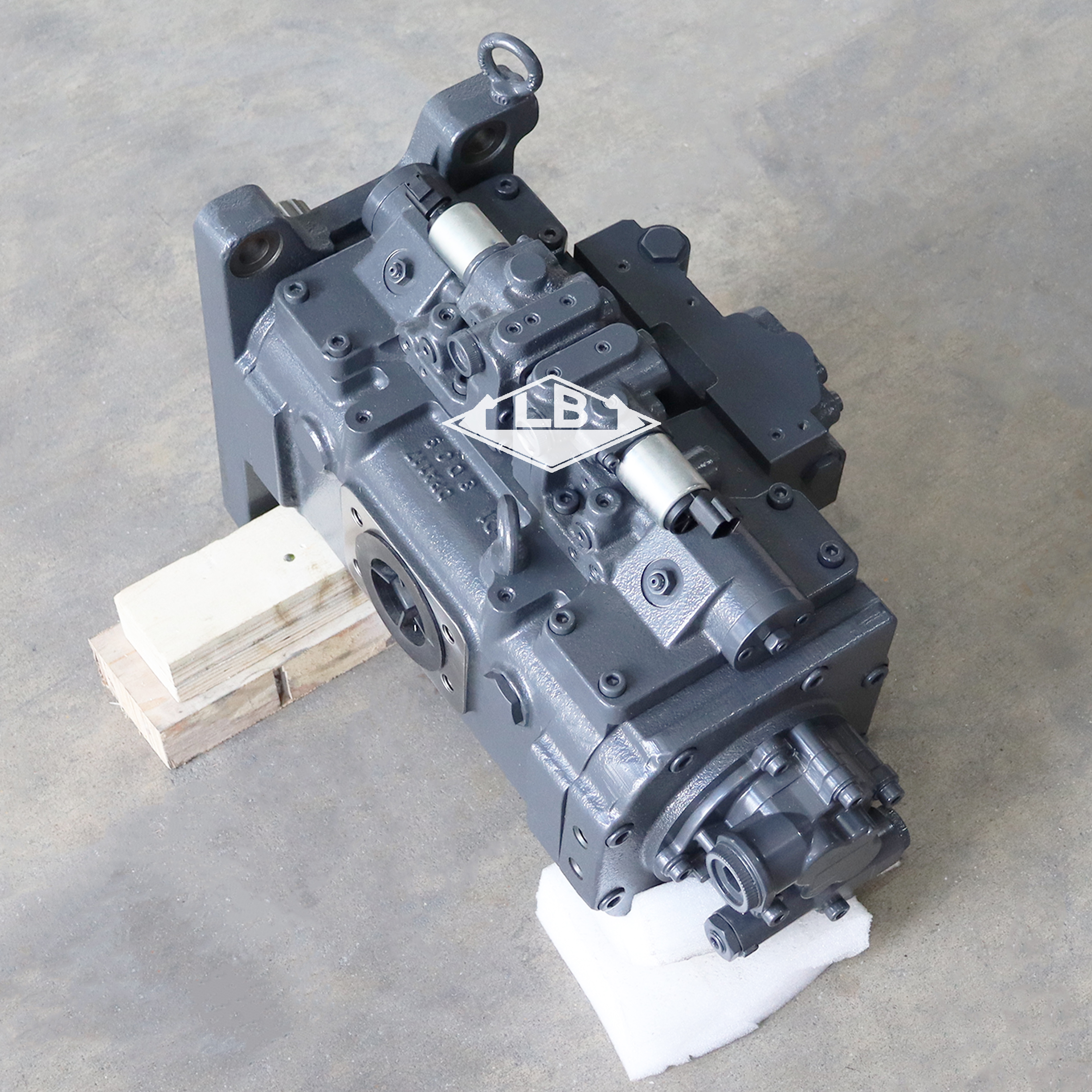

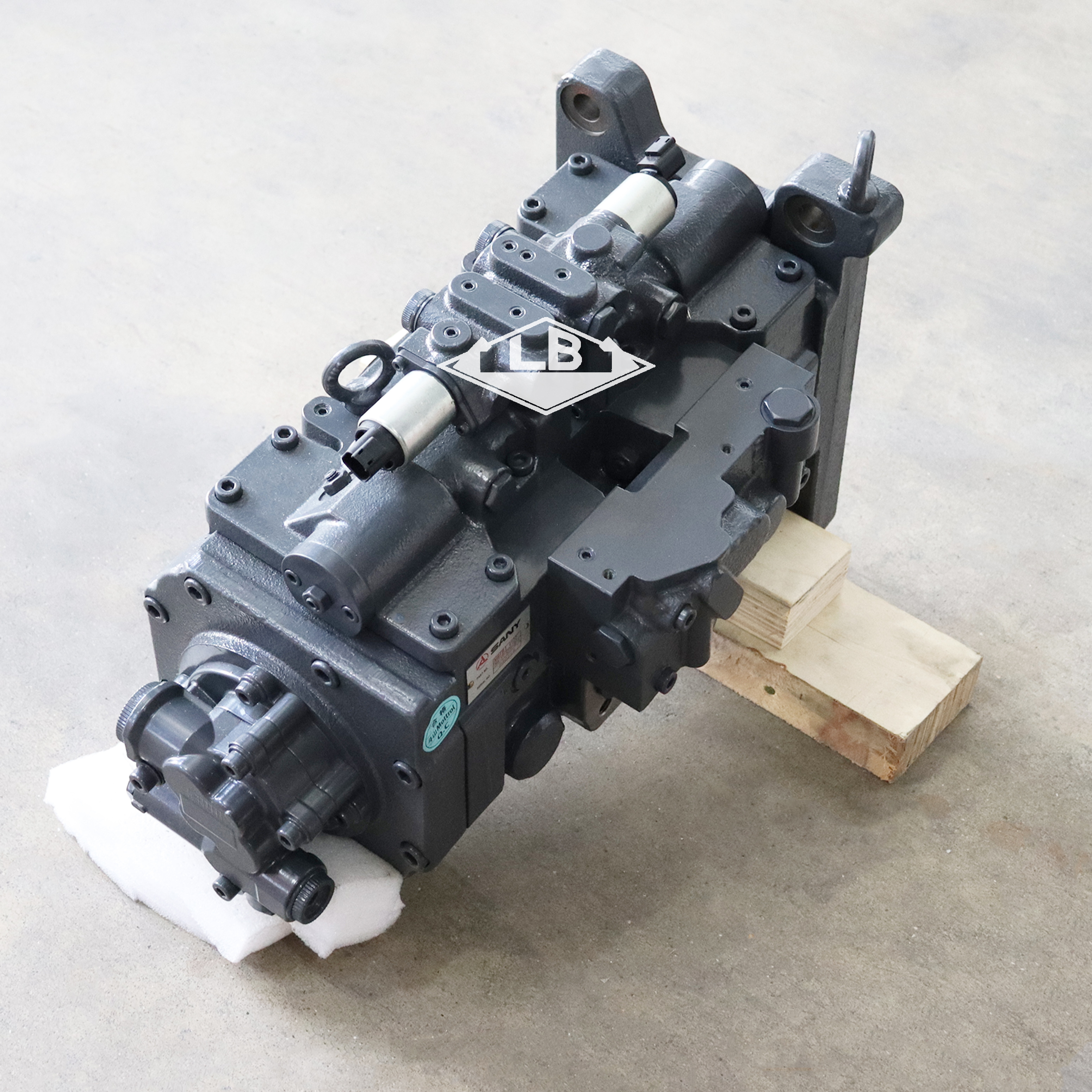

| Part name | EC200D Main Pump | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14715508 | |||||
| Frame holes | / | |||||
| Sprocket holes | / | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | / | |||||
| MOQ | 1 pc | |||||

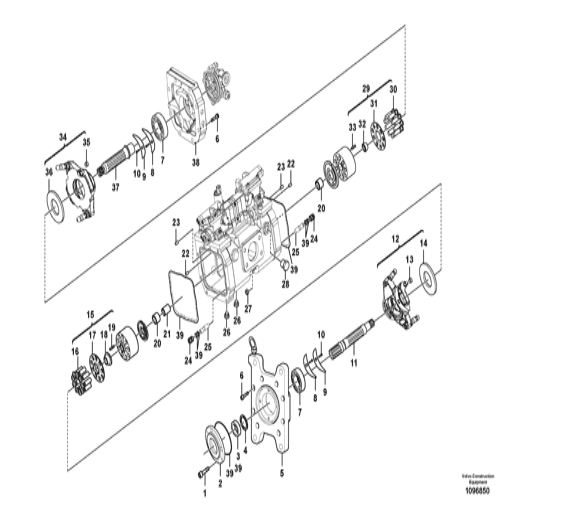

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14715508 | [1] | Pump | ||
| 1. | VOE14736197 | [4] | Bolt | |
| 2. | VOE14736195 | [1] | Sealing cover | |
| 3. | VOE14736196 | [1] | Seal | |
| 4. | VOE14736198 | [1] | Spacer | |
| 5. | VOE14736173 | [1] | Pump housing | |
| 6. | VOE14736175 | [16] | Bolt | |
| 7. | VOE14736172 | [2] | Needle bearing | |
| 8. | VOE14736177 | [2] | Bearing | |
| 9. | VOE14736178 | [2] | Bearing | |
| 10. | VOE14736176 | [4] | Bolt | |
| 11. | VOE14736141 | [1] | Shaft | |
| 12. | VOE14736179 | [1] | Plate | |
| 13. | VOE14736191 | [1] | Sleeve | |
| 14. | VOE14736192 | [1] | Spacer plate | |
| 15. | VOE14736193 | [1] | Cylinder | |
| 16. | VOE14736222 | [9] | Piston | |
| 17. | VOE14728416 | [1] | Retainer | |
| 18. | VOE14728268 | [1] | Bushing | |
| 19. | VOE14728269 | [9] | Spring | |
| 20. | VOE14736131 | [2] | Needle bearing | |
| 21. | VOE14736132 | [1] | Shaft coupling | |
| 22. | VOE14736133 | [2] | Stop pin | |
| 23. | VOE14736174 | [2] | Stop pin | |
| 24. | VOE14736135 | [2] | Valve piston | |
| 25. | VOE14736137 | [2] | Valve guide | |
| 26. | VOE14736140 | [2] | Plug | |
| 27. | VOE14736138 | [2] | Hexagon nut | |
| 28. | VOE14736139 | [1] | Plug | |
| 29. | VOE14736194 | [1] | Cylinder | |
| 30. | VOE14736222 | [9] | Piston | |
| 31. | VOE14728416 | [1] | Retainer | |
| 32. | VOE14728268 | [1] | Bushing | |
| 33. | VOE14728269 | [9] | Spring | |
| 34. | VOE14736190 | [1] | Plate | |
| 35. | VOE14736191 | [1] | Sleeve | |
| 36. | VOE14736192 | [1] | Spacer plate | |
| 37. | VOE14736200 | [1] | Shaft | |
| 38. | VOE14736199 | [1] | Pump housing | |
| 39. | VOE14736221 | [1] | Sealing kit |

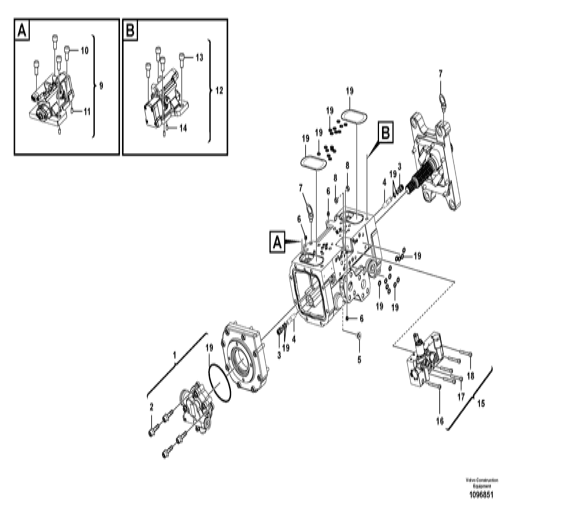

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14715508 | [1] | Pump | ||
| 1. | VOE14736220 | [1] | Gear pump | |
| 2. | VOE14736216 | [4] | Bolt | |
| 3. | VOE14736134 | [2] | Valve piston | |
| 4. | VOE14736136 | [2] | Valve guide | |
| 5. | VOE14736140 | [1] | Plug | |
| 6. | VOE14622061 | [4] | Plug | |
| 7. | VOE14623509 | [2] | Eye bolt | |
| 8. | VOE14736138 | [2] | Hexagon nut | |
| 9. | VOE14736218 | [1] | Pressure regulator | |
| 10. | VOE14736215 | [4] | Bolt | |
| 11. | VOE14736219 | [2] | Stop pin | |
| 12. | VOE14736217 | [1] | Pressure regulator | |
| 13. | VOE14736215 | [4] | Bolt | |
| 14. | VOE14736219 | [2] | Stop pin | |
| 15. | VOE14736201 | [1] | Control valve | |
| 16. | VOE14736213 | [1] | Bolt | |
| 17. | VOE14736212 | [1] | Bolt | |
| 18. | VOE14736214 | [4] | Bolt | |
| 19. | VOE14736221 | [1] | Sealing kit |

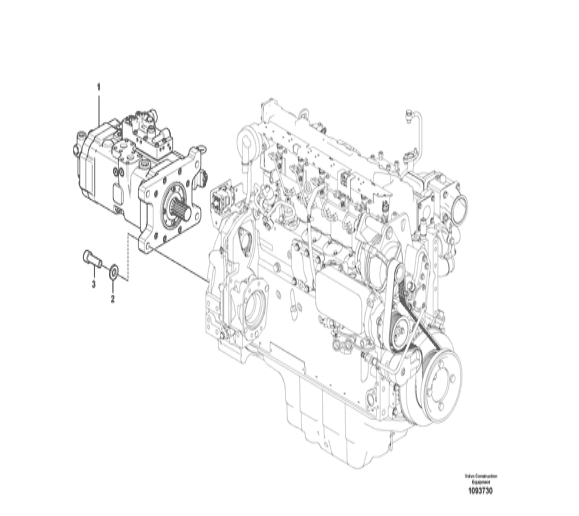

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE14715508 | [1] | Pump | |
| 2. | VOE60110299 | [4] | Washer | |
| 3. | VOE60113534 | [4] | Hex. Socket Screw |
| Part name | EC200D Main Pump | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14715508 | |||||
| Frame holes | / | |||||
| Sprocket holes | / | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | / | |||||
| MOQ | 1 pc | |||||
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14715508 | [1] | Pump | ||
| 1. | VOE14736197 | [4] | Bolt | |
| 2. | VOE14736195 | [1] | Sealing cover | |
| 3. | VOE14736196 | [1] | Seal | |
| 4. | VOE14736198 | [1] | Spacer | |
| 5. | VOE14736173 | [1] | Pump housing | |
| 6. | VOE14736175 | [16] | Bolt | |
| 7. | VOE14736172 | [2] | Needle bearing | |
| 8. | VOE14736177 | [2] | Bearing | |
| 9. | VOE14736178 | [2] | Bearing | |
| 10. | VOE14736176 | [4] | Bolt | |
| 11. | VOE14736141 | [1] | Shaft | |
| 12. | VOE14736179 | [1] | Plate | |
| 13. | VOE14736191 | [1] | Sleeve | |
| 14. | VOE14736192 | [1] | Spacer plate | |
| 15. | VOE14736193 | [1] | Cylinder | |
| 16. | VOE14736222 | [9] | Piston | |
| 17. | VOE14728416 | [1] | Retainer | |
| 18. | VOE14728268 | [1] | Bushing | |
| 19. | VOE14728269 | [9] | Spring | |
| 20. | VOE14736131 | [2] | Needle bearing | |
| 21. | VOE14736132 | [1] | Shaft coupling | |
| 22. | VOE14736133 | [2] | Stop pin | |
| 23. | VOE14736174 | [2] | Stop pin | |
| 24. | VOE14736135 | [2] | Valve piston | |
| 25. | VOE14736137 | [2] | Valve guide | |
| 26. | VOE14736140 | [2] | Plug | |
| 27. | VOE14736138 | [2] | Hexagon nut | |
| 28. | VOE14736139 | [1] | Plug | |
| 29. | VOE14736194 | [1] | Cylinder | |
| 30. | VOE14736222 | [9] | Piston | |
| 31. | VOE14728416 | [1] | Retainer | |
| 32. | VOE14728268 | [1] | Bushing | |
| 33. | VOE14728269 | [9] | Spring | |
| 34. | VOE14736190 | [1] | Plate | |
| 35. | VOE14736191 | [1] | Sleeve | |
| 36. | VOE14736192 | [1] | Spacer plate | |
| 37. | VOE14736200 | [1] | Shaft | |
| 38. | VOE14736199 | [1] | Pump housing | |
| 39. | VOE14736221 | [1] | Sealing kit |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14715508 | [1] | Pump | ||
| 1. | VOE14736220 | [1] | Gear pump | |
| 2. | VOE14736216 | [4] | Bolt | |
| 3. | VOE14736134 | [2] | Valve piston | |
| 4. | VOE14736136 | [2] | Valve guide | |
| 5. | VOE14736140 | [1] | Plug | |
| 6. | VOE14622061 | [4] | Plug | |
| 7. | VOE14623509 | [2] | Eye bolt | |
| 8. | VOE14736138 | [2] | Hexagon nut | |
| 9. | VOE14736218 | [1] | Pressure regulator | |
| 10. | VOE14736215 | [4] | Bolt | |
| 11. | VOE14736219 | [2] | Stop pin | |
| 12. | VOE14736217 | [1] | Pressure regulator | |
| 13. | VOE14736215 | [4] | Bolt | |
| 14. | VOE14736219 | [2] | Stop pin | |
| 15. | VOE14736201 | [1] | Control valve | |
| 16. | VOE14736213 | [1] | Bolt | |
| 17. | VOE14736212 | [1] | Bolt | |
| 18. | VOE14736214 | [4] | Bolt | |
| 19. | VOE14736221 | [1] | Sealing kit |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE14715508 | [1] | Pump | |
| 2. | VOE60110299 | [4] | Washer | |
| 3. | VOE60113534 | [4] | Hex. Socket Screw |
