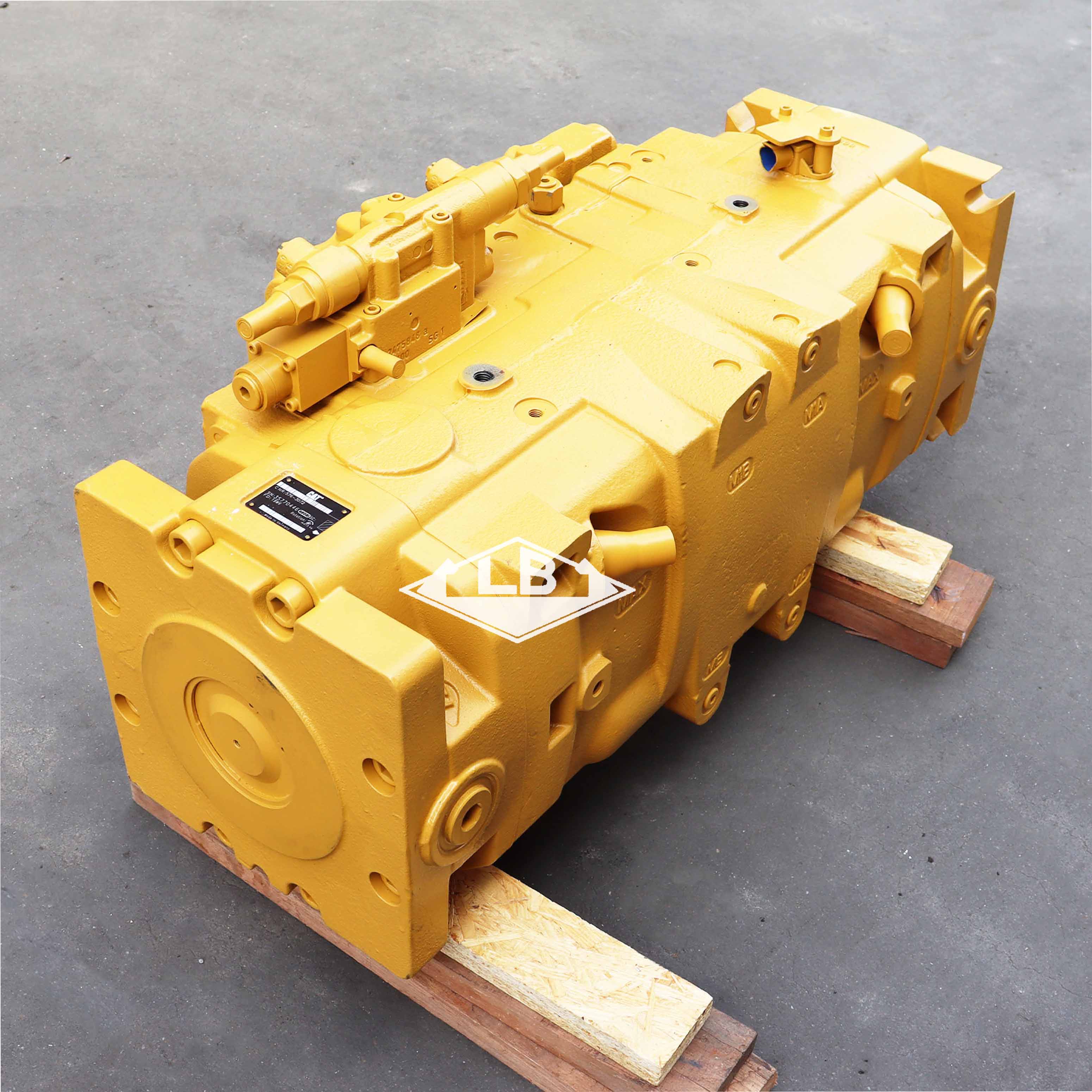

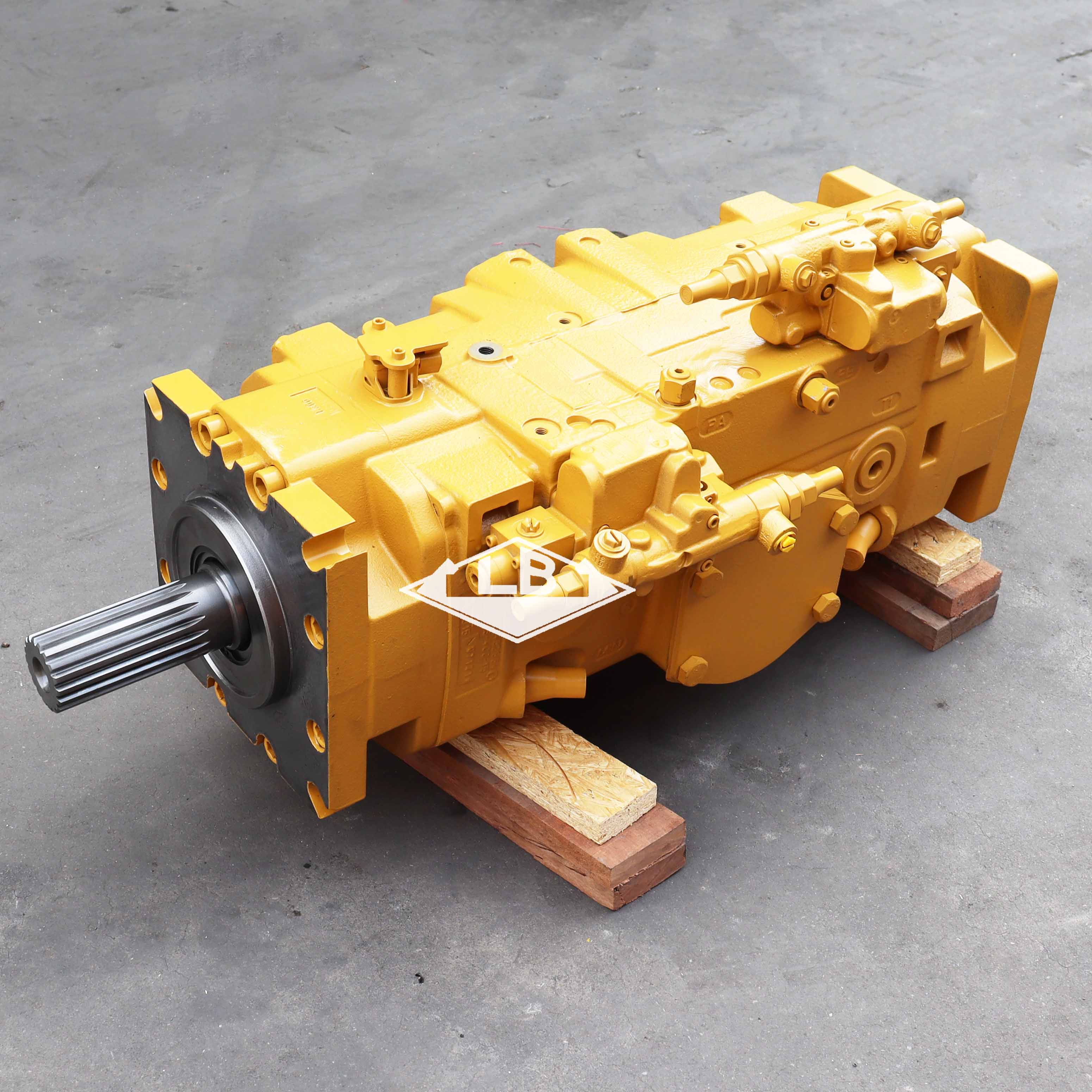

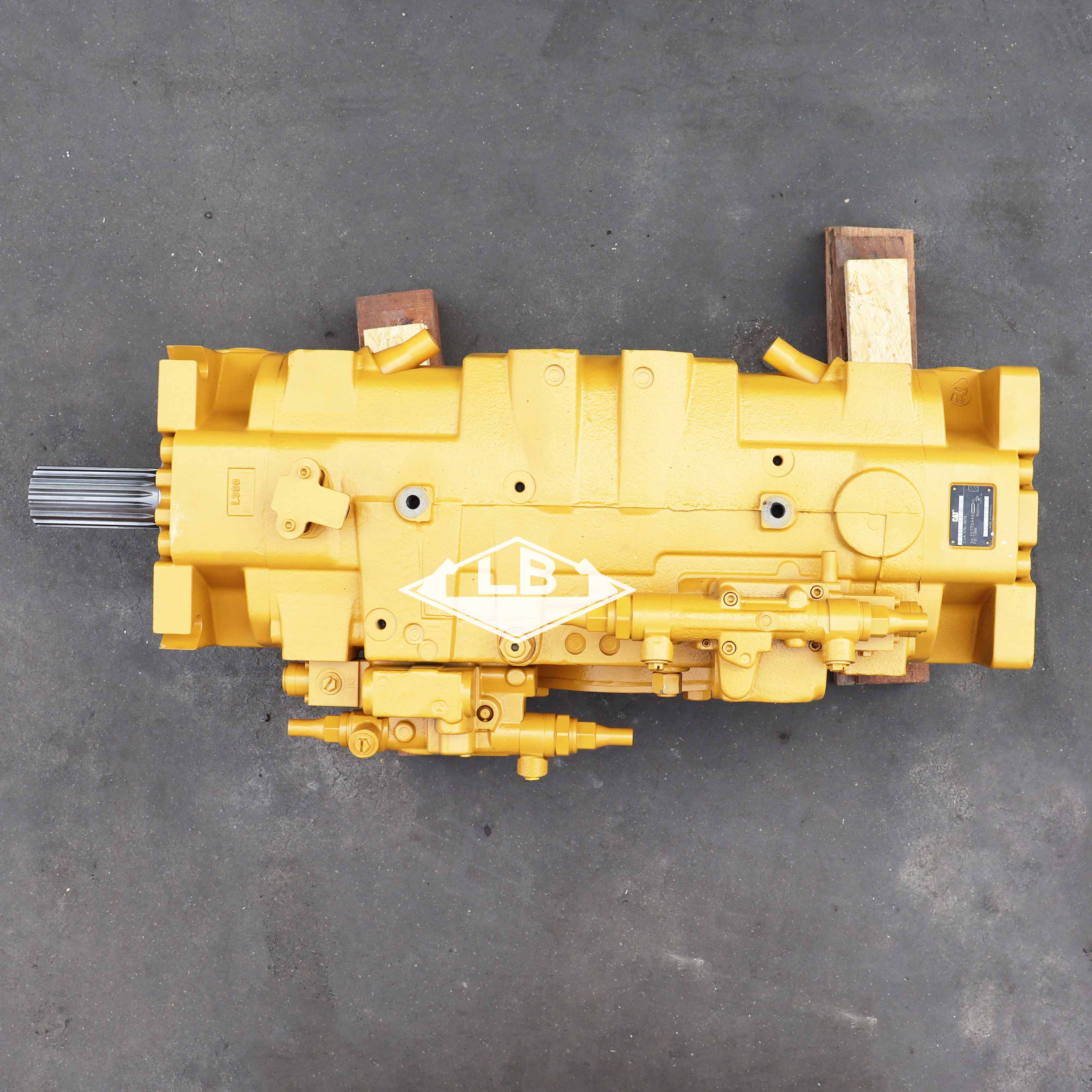

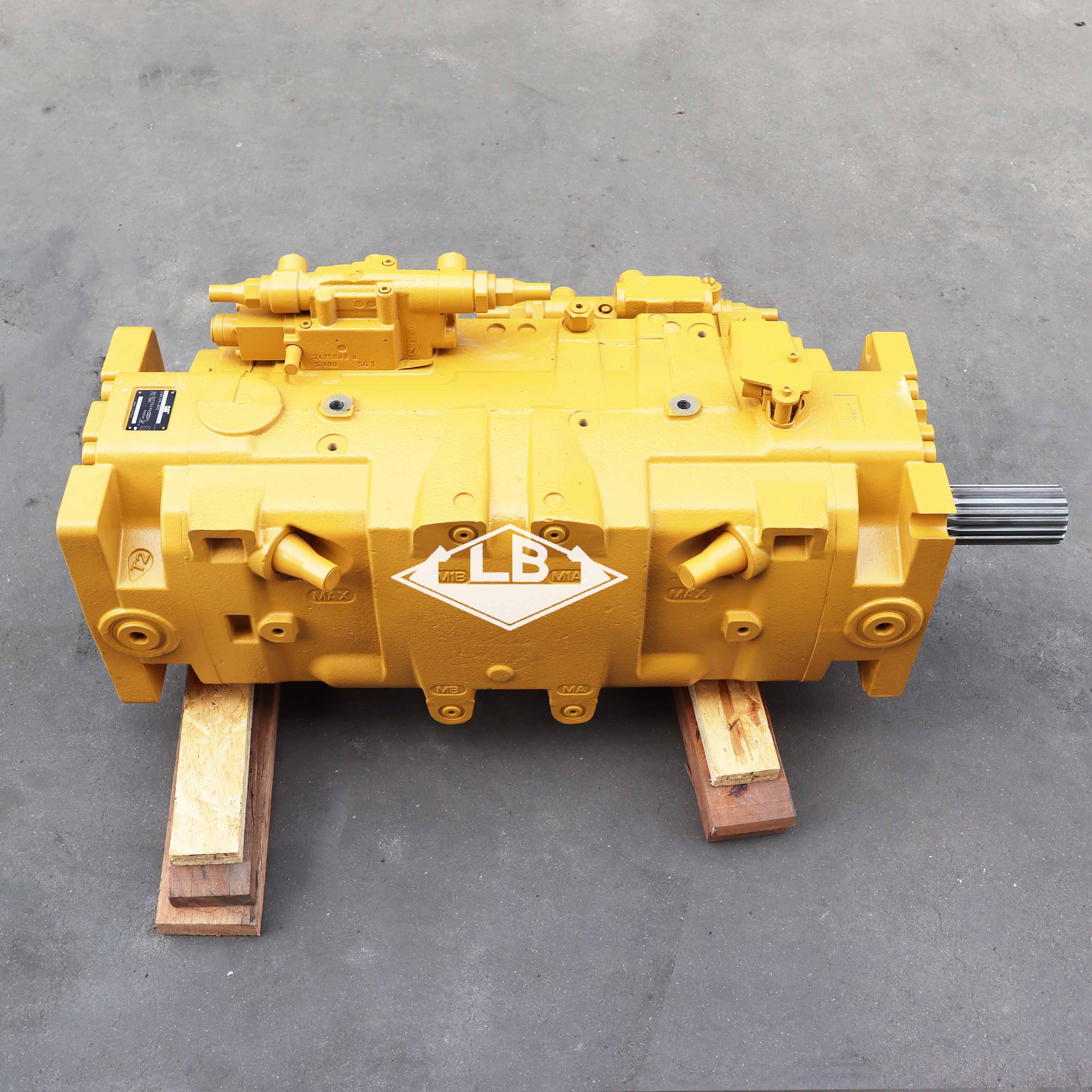

E374F E390F MAIN PUMP 369-9655 576-3072 Hydraulic Main Pump FOR CAT EXCAVATOR

PRODUCT PARAMETERS

Product Description

E374F(8) E374F(2) E374F(6) E374F(4) E374F(10) E374F(1) E374F(3)

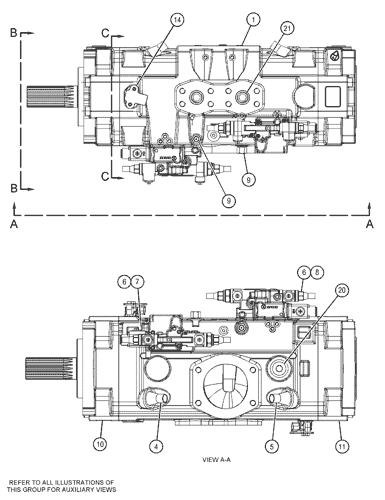

CATERPILLAR SIS

Pos.	Part No	Qty	Parts name
1.	241-4007	[4]	SCREW-LOCK
2.	326-4428	[1]	SEAL-SHAFT
3.	165-9353	[1]	BLOCK
4.	458-6021 Y	[1]	CONTROL AS-PISTON PUMP (FRONT)
5.	458-6022 Y	[1]	CONTROL AS-PISTON PUMP (REAR)
6.	458-6023 Y	[2]	VALVE GP-PUMP CONTROL
7.	514-1339	[1]	LEVER AS-CONTROL (FRONT)
8.	514-1340	[1]	LEVER AS-CONTROL (REAR)
9.	458-6026	[2]	VALVE GP-SHUTTLE
10.	458-6027 Y	[1]	HOUSING GP-PUMP (FRONT)
11.	458-6028 Y	[1]	HOUSING GP-PUMP (REAR)
12.	458-6029 Y	[1]	ROTATING GP-PUMP (FRONT)
13.	458-6030 Y	[1]	ROTATING GP-PUMP (REAR)
14.	458-6031	[2]	SENSOR GP-POSITION
			(EACH INCLUDES)
	6V-8653 M	[2]	BOLT-SOCKET HEAD (M6X1X40-MM)
	448-1451	[1]	SENSOR
	369-9618	[1]	SENSOR GP-POSITION
	107-3117	[1]	SEAL-O-RING
15.	458-6032	[1]	SHAFT-FRONT
16.	458-6033	[1]	SHAFT-REAR
17.	458-6034	[1]	RING
18.	458-6035	[1]	COUPLING
19.	123-2017	[6]	PLUG-BREAK OFF
20.	464-7720	[1]	PLUG
21.	9T-3871	[2]	SEAL-RECTANGULAR
22.	464-9280	[4]	PIN-CYLINDER
23.	464-9278	[2]	GASKET
24.	464-9286 M	[8]	SCREW-STOP (M8X1.25X15-MM)
25.	512-4657	[1]	BLOCK
26.	512-5286	[1]	BLOCK
27.	464-9279	[2]	BEARING
28.	512-5287	[2]	PIN-CYLINDER

			AVAILABLE REPAIR KIT(S):
	458-6037 Y	[1]	KIT-SEAL (MAIN HYDRAULIC PUMP)
	458-6038 Y	[2]	KIT-SEAL (MAIN HYDRAULIC PUMP)(HEAD)
	458-6036 Y	[2]	KIT-BEARING (SHAFT)
	458-6965 Y	[2]	KIT-BEARING (SWASHPLATE)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
