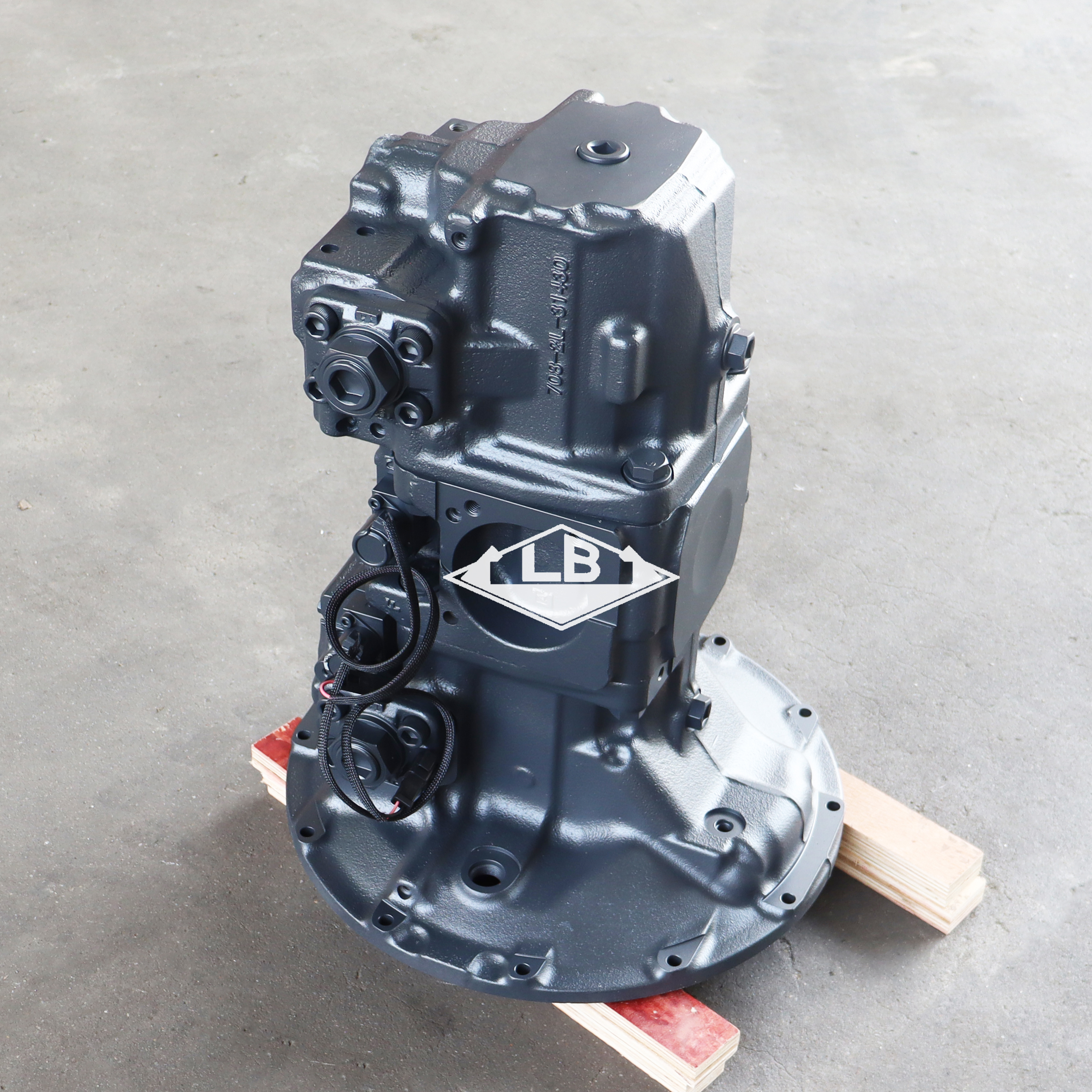

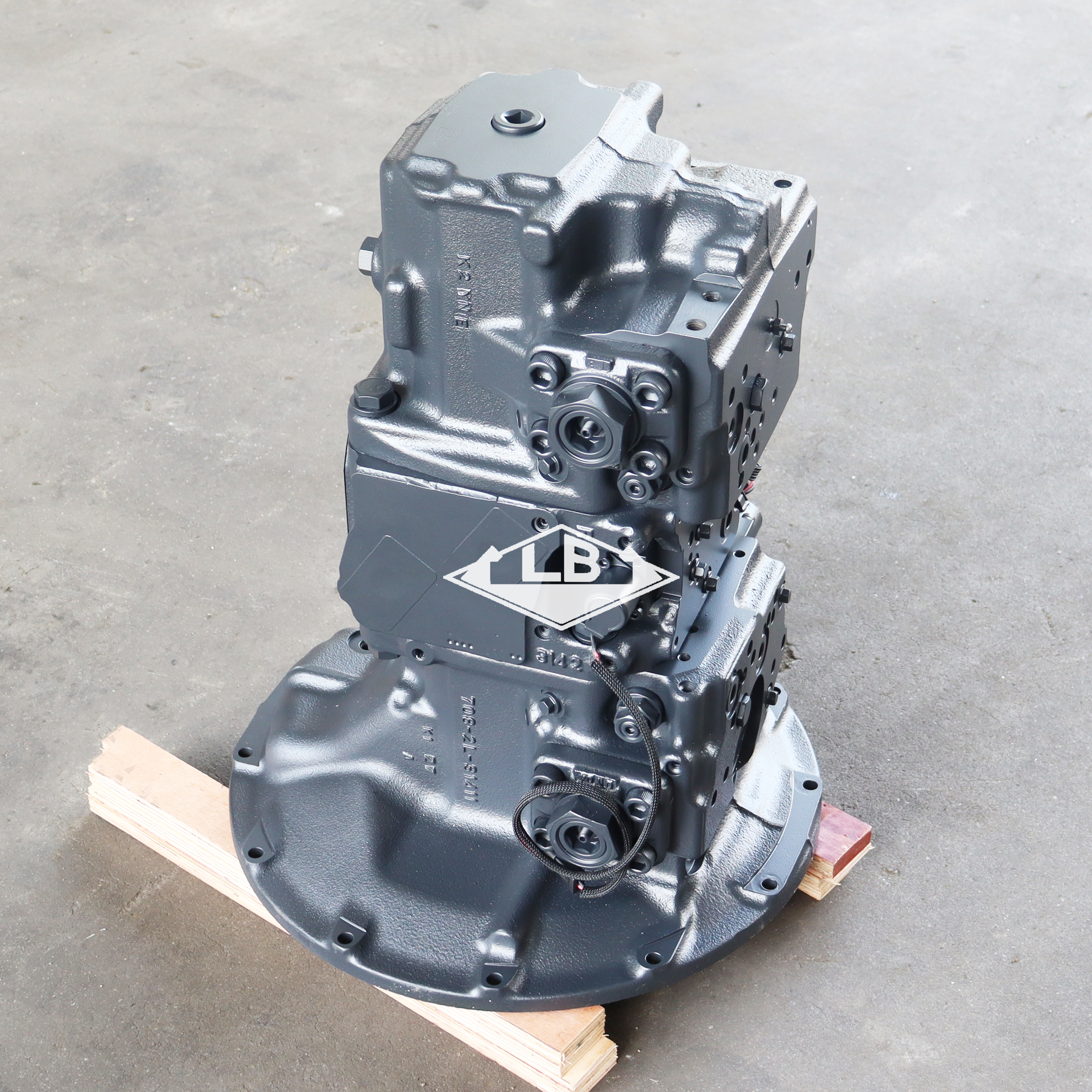

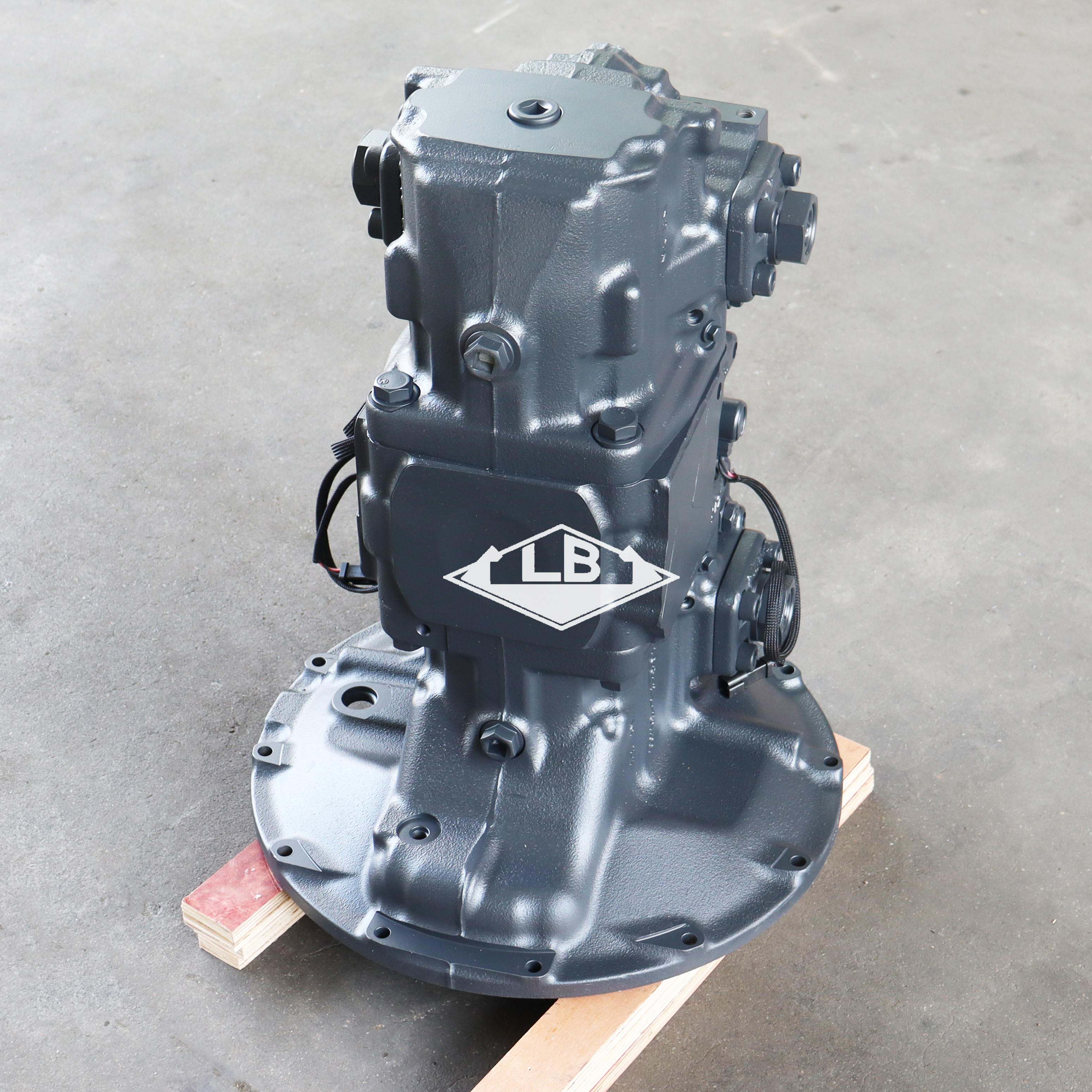

PC220-8 Hydraulic Pump Assy 708-2L-00790 PC220-8 MAIN PUMP FOR KOMATSU EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 PC220-8 Swing gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 708-2L-00790
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

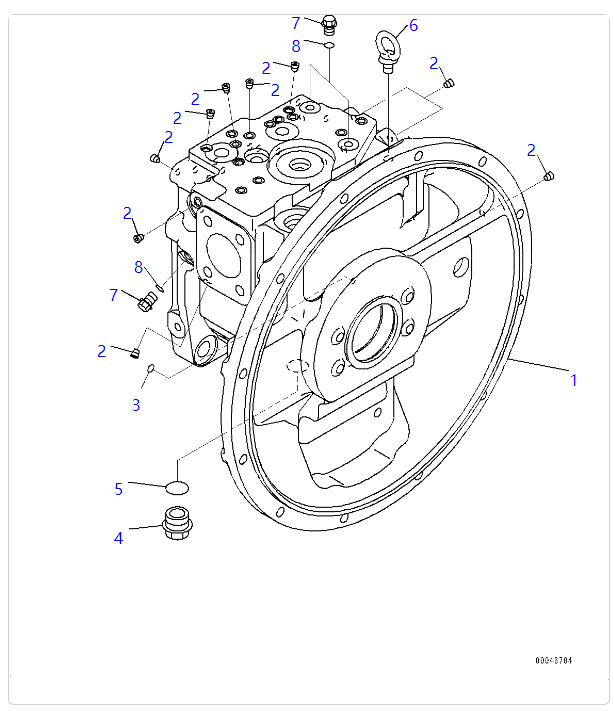

PC220-8(2)PC220-8(4)PC220-8(6)PC220-8(8)PC220-8(1)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-01600 [1] Pump Subassembly Komatsu 145 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L00600", "7082L00790"] |$1.

708-2L-06440 [1] Case Assembly,Front Komatsu 42.5 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L31411"] |$2.
3. 07000-B1009 [1] O-ring Komatsu China 0.001 kg.

["SN: 80455-UP"] analogs:["7082L23910"]
4. 07044-12412 [1] Plug Komatsu 0.09 kg.

["SN: 80455-UP"] analogs:["0704402412", "R0704412412"]
5. 07002-62434 [1] O-ring Komatsu 0.001 kg.

["SN: 80455-UP"] analogs:["7081W28910"]
6. 04530-11222 [1] Bolt, Eye Komatsu 0.122 kg.

["SN: 80455-UP"]
7. 708-8E-16150 [3] Plug Komatsu 0.02 kg.

["SN: 80455-UP"]
8. 07002-61023 [3] O-ring Komatsu 0.22 kg.

["SN: 80455-UP"] analogs:["7082L23920"]
PC220-8(2)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-01600 [1] Pump Subassembly Komatsu 145 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L00600", "7082L00790"] |$1.

708-2L-06450 [1] Cap Assembly, End Komatsu 32.2 kg.

["SN: 80455-UP", "SCC: C2"] |$2.
3. 708-2L-32260 [2] Bearing Komatsu 0.2 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L22260"]
4. 07000-A5165 [2] O-ring Komatsu 0.018 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["79398073"]
5. 04020-01228 [2] Pin, Dowel Komatsu 0.026 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["21T3016190"]
6. 07000-B2012 [11] O-ring Komatsu China 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
7. 708-2L-25480 [4] Filter Komatsu OEM 0.5 kg.

["SN: 80455-UP", "SCC: C2"]
8. 01010-61655 [8] Bolt Komatsu 0.119 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["801015613", "0101031655", "0101051655", "0101081655"]
9. 01643-31645 [8] Washer Komatsu 0.072 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["802170005", "0164301645"]
10. 708-8E-16150 [5] Plug Komatsu 0.02 kg.

["SN: 80455-UP"]
11. 07002-61023 [5] O-ring Komatsu 0.22 kg.

["SN: 80455-UP"] analogs:["7082L23920"]
12. 708-1L-29340 [2] Orifice Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]

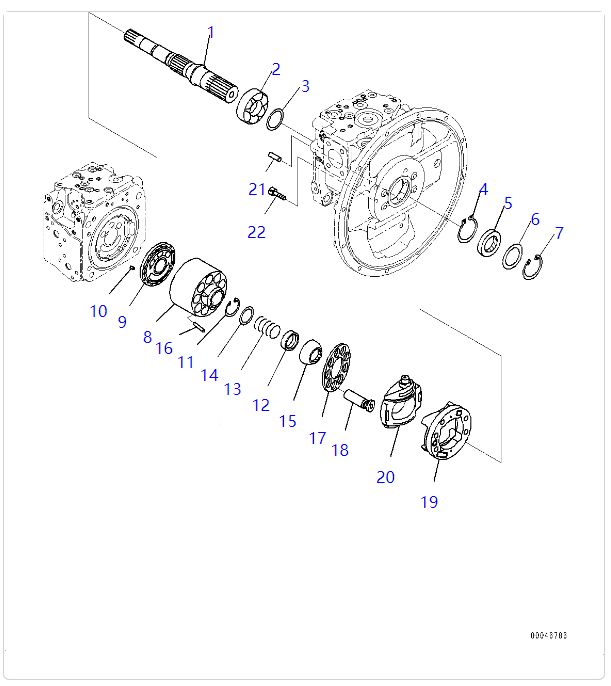

PC220-8(3)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-01600 [1] Pump Subassembly Komatsu 145 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L00600", "7082L00790"] |$1.
1. 708-2L-32160 [1] Shaft,Front Komatsu 3.1 kg.

["SN: 80455-UP", "SCC: C2"]
2. 708-2L-32150 [1] Bearing Komatsu 0.6 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082E12152", "7082L22150", "7082512731"]
3. 708-2E-05040 [1] Washer Kit Komatsu 0.101 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082E12190"]
4. 708-25-12790 [1] Ring, Snap Komatsu 0.006 kg.

["SN: 80455-UP", "SCC: C2"]
5. 708-25-52861 [1] Seal, Oil Komatsu China 0.078 kg.

["SN: 80455-UP"] analogs:["7082552860", "7067340920"]
6. 708-2L-22160 [1] Spacer Komatsu 0.047 kg.

["SN: 80455-UP"]
7. 04065-06825 [1] Ring, Snap Komatsu 0.018 kg.

["SN: 80455-UP"]

708-2L-06470 [1] Block Assembly,Front Komatsu 5.26 kg.

["SN: 80455-UP", "SCC: C2"] |$13.
10. 720-68-19610 [1] Pin Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
11. 04065-04818 [1] Ring, Snap Komatsu OEM 0.007 kg.

["SN: 80455-UP", "SCC: C2"]
12. 708-2L-23131 [1] Seat Komatsu 0.073 kg.

["SN: 80455-UP", "SCC: C2"]
13. 708-2L-33160 [1] Spring Komatsu 0.12 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L23151"]
14. 708-7L-13140 [1] Seat Komatsu 0.02 kg.

["SN: 80455-UP", "SCC: C2"]
15. 708-2L-23351 [1] Guide, Retainer Komatsu OEM 0.14 kg.

["SN: 80455-UP", "SCC: C2"]
16. 708-2L-23360 [3] Pin Komatsu 0.003 kg.

["SN: 80455-UP", "SCC: C2"]
17. 708-2L-33350 [1] Retainer, Shoe Komatsu 0.3 kg.

["SN: 80455-UP", "SCC: C2"]
18. 708-2L-33430 [9] Piston Subassembly Komatsu 0.209 kg.

["SN: 80455-UP", "SCC: C2"]

708-2L-06630 [1] Cradle Assembly Komatsu 4.3 kg.

["SN: 80455-UP", "SCC: C2"] |$25.
21. 04020-01228 [1] Pin, Dowel Komatsu 0.026 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["21T3016190"]
22. 01252-61230 [4] Bolt, Hexagon Socket Head Komatsu 0.044 kg.

["SN: 80455-UP", "SCC: C2"]

PC220-8(4)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790   [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-01600   [1] Pump Subassembly Komatsu 145 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L00600", "7082L00790"] |$1.
1. 708-2L-34180   [1] Slider Komatsu 0.23 kg.

["SN: 80455-UP", "SCC: C2"]
1. 708-2L-06680   [1] Valve Assembly Komatsu China

["SN: 80455-UP", "SCC: C2"]
1. 708-2L-06660   [1] Piston Assembly Komatsu 0.000 kg.

["SN: 80455-UP", "SCC: C2"]
6. 708-2L-35760   [1] Ball Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
7. 708-2L-35770   [1] Plug Komatsu 0.005 kg.

["SN: 80455-UP", "SCC: C2"]
9. 708-2L-35280   [1] Pin Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
10. 708-2L-35860   [1] Spool Komatsu 0.03 kg.

["SN: 80455-UP", "SCC: C2"]
11. 708-2L-35630   [1] Retainer Komatsu 0.22 kg.

["SN: 80455-UP", "SCC: C2"]
12. 708-2L-35641   [1] Seat Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
13. 708-2L-35240   [1] Spring Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
14. 708-2L-35730   [1] Spring Komatsu China

["SN: 80455-UP", "SCC: C2"]
15. 708-2L-35650   [1] Seat Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
16. 708-2L-35250   [1] Spring Komatsu China

["SN: 80455-UP", "SCC: C2"]
18. 07000-B3034   [1] O-ring Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
19. 708-2L-35210   [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
21. 708-2L-35270   [1] Plug Komatsu 0.04 kg.

["SN: 80455-UP", "SCC: C2"]
22. 07000-B2011   [1] O-ring Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
23. 07000-B3045   [1] O-ring Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
24. 708-2L-35750   [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
25. 708-2L-34310   [1] Cover Komatsu China

["SN: 80455-UP", "SCC: C2"]
26. 01580-10806   [1] Nut Komatsu 0.005 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["801920104"]
27. 708-2L-35290   [1] Nut Komatsu 0.12 kg.

["SN: 80455-UP", "SCC: C2"]
28. 708-2L-35670   [1] Ring, Wire Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
29. 01252-61440   [4] Bolt, Hexagon Socket Head Komatsu China

["SN: 80455-UP", "SCC: C2"] analogs:["0125231440"]

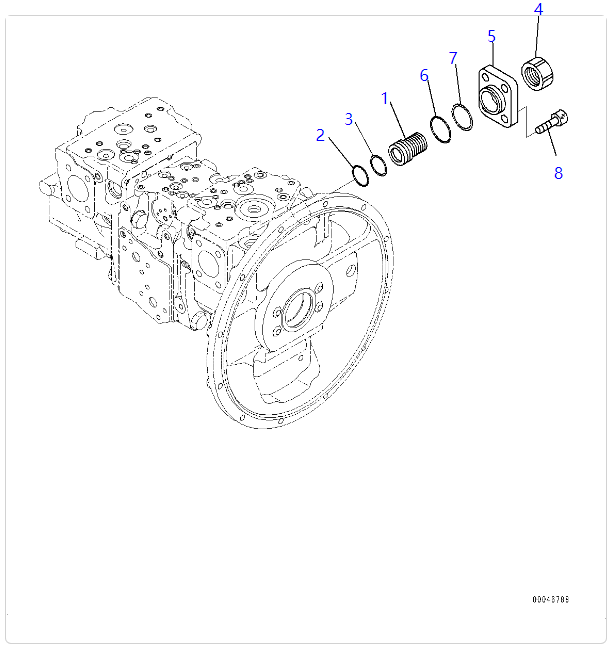

PC220-8(5)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-01600 [1] Pump Subassembly Komatsu 145 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L00600", "7082L00790"] |$1.

708-2L-06670 [1] Cover Assembly Komatsu China

["SN: 80455-UP", "SCC: C2"] |$2.
1. 708-2L-34340 [1] Screw Komatsu 0.000 kg.

["SN: 80455-UP", "SCC: C2"]
2. 07000-B3034 [1] O-ring Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
3. 708-2L-35210 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
4. 708-2L-35290 [1] Nut Komatsu 0.12 kg.

["SN: 80455-UP", "SCC: C2"]
5. 708-2L-34320 [1] Cover Komatsu 0.000 kg.

["SN: 80455-UP", "SCC: C2"]
6. 07000-B3045 [1] O-ring Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
7. 708-2L-35750 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
8. 01252-61440 [4] Bolt, Hexagon Socket Head Komatsu China

["SN: 80455-UP", "SCC: C2"] analogs:["0125231440"]

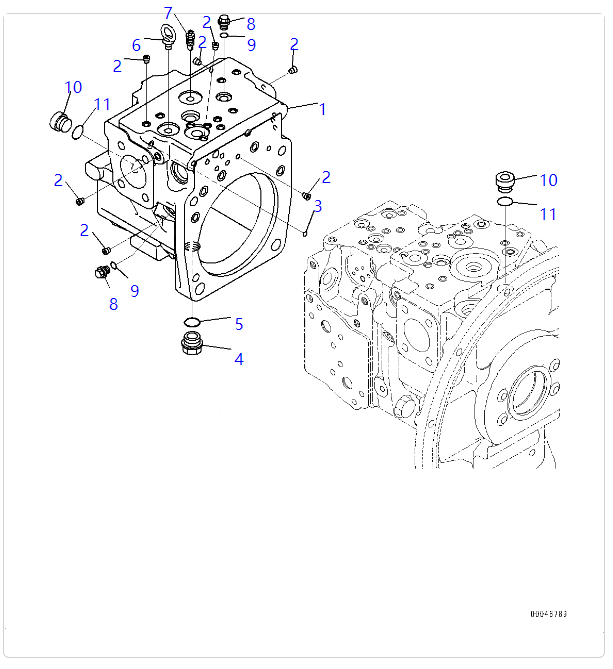

PC220-8(6)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-01600 [1] Pump Subassembly Komatsu 145 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L00600", "7082L00790"] |$1.

708-2L-06460 [1] Case Assembly,Rear Komatsu 0.000 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L31430"] |$2.
3. 07000-B1009 [1] O-ring Komatsu China 0.001 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L23910"]
4. 07044-12412 [1] Plug Komatsu 0.09 kg.

["SN: 80455-UP"] analogs:["0704402412", "R0704412412"]
5. 07002-62434 [1] O-ring Komatsu 0.001 kg.

["SN: 80455-UP"] analogs:["7081W28910"]
6. 04530-11222 [1] Bolt, Eye Komatsu 0.122 kg.

["SN: 80455-UP"]
7. 20B-27-11210 [1] Bleeder Komatsu 0.02 kg.

["SN: 80455-UP"]
8. 708-8E-16150 [2] Plug Komatsu 0.02 kg.

["SN: 80455-UP"]
9. 07002-61023 [2] O-ring Komatsu 0.22 kg.

["SN: 80455-UP"] analogs:["7082L23920"]
10. 07040-12414 [2] Plug Komatsu 0.092 kg.

["SN: 80455-UP"] analogs:["0704002412", "0704012412"]

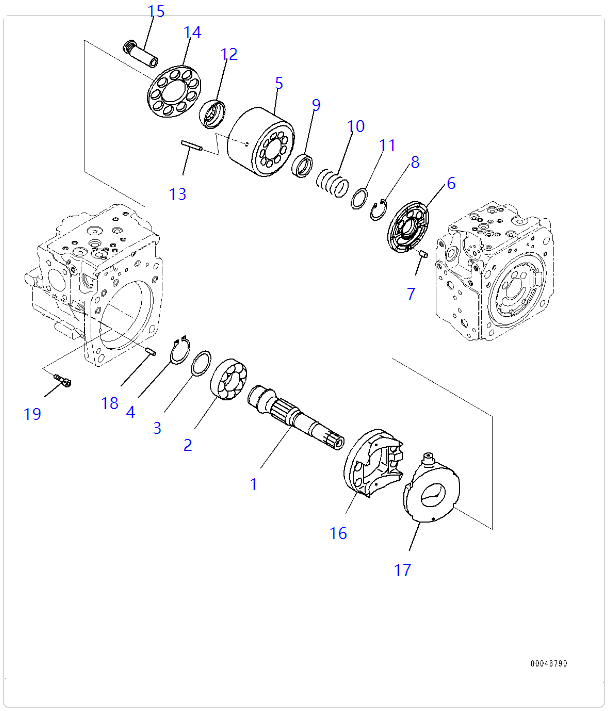

PC220-8(7)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-01600 [1] Pump Subassembly Komatsu 145 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L00600", "7082L00790"] |$1.
1. 708-2L-32170 [1] Shaft,Rear Komatsu 2.1 kg.

["SN: 80455-UP", "SCC: C2"]
2. 708-2L-32150 [1] Bearing Komatsu 0.6 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082E12152", "7082L22150", "7082512731"]
3. 708-2E-05040 [1] Washer Kit Komatsu 0.101 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082E12190"]
4. 708-25-12790 [1] Ring, Snap Komatsu 0.006 kg.

["SN: 80455-UP", "SCC: C2"]

708-2L-06480 [1] Block Assembly,Rear Komatsu 5.26 kg.

["SN: 80455-UP", "SCC: C2"] |$10.
7. 720-68-19610 [1] Pin Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
8. 04065-04818 [1] Ring, Snap Komatsu OEM 0.007 kg.

["SN: 80455-UP", "SCC: C2"]
9. 708-2L-23131 [1] Seat Komatsu 0.073 kg.

["SN: 80455-UP", "SCC: C2"]
10. 708-2L-33160 [1] Spring Komatsu 0.12 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L23151"]
11. 708-7L-13140 [1] Seat Komatsu 0.02 kg.

["SN: 80455-UP", "SCC: C2"]
12. 708-2L-23351 [1] Guide, Retainer Komatsu OEM 0.14 kg.

["SN: 80455-UP", "SCC: C2"]
13. 708-2L-23360 [3] Pin Komatsu 0.003 kg.

["SN: 80455-UP", "SCC: C2"]
14. 708-2L-33350 [1] Retainer, Shoe Komatsu 0.3 kg.

["SN: 80455-UP", "SCC: C2"]
15. 708-2L-33430 [9] Piston Subassembly Komatsu 0.209 kg.

["SN: 80455-UP", "SCC: C2"]

708-2L-06630 [1] Cradle Assembly Komatsu 4.3 kg.

["SN: 80455-UP", "SCC: C2"] |$22.
18. 04020-01228 [1] Pin, Dowel Komatsu 0.026 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["21T3016190"]
19. 01252-61230 [4] Bolt, Hexagon Socket Head Komatsu 0.044 kg.

["SN: 80455-UP", "SCC: C2"]

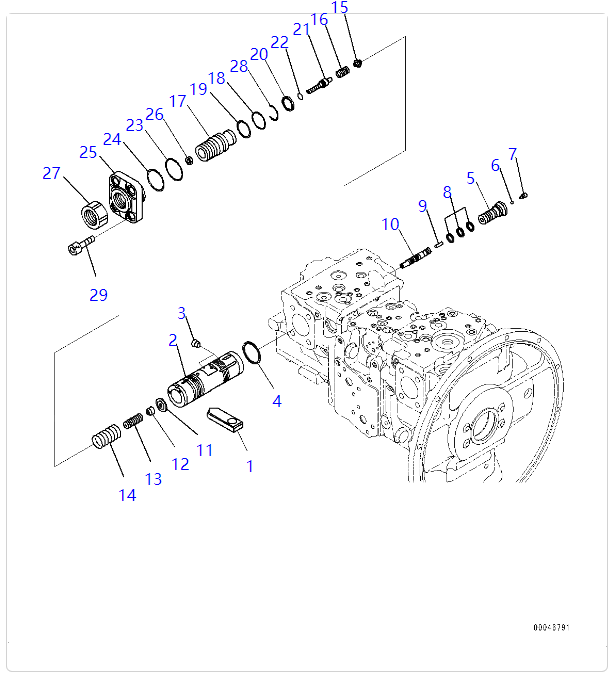

PC220-8(8)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-01600 [1] Pump Subassembly Komatsu 145 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L00600", "7082L00790"] |$1.
1. 708-2L-34180 [1] Slider Komatsu 0.23 kg.

["SN: 80455-UP", "SCC: C2"]
1. 708-2L-06680 [1] Valve Assembly Komatsu China

["SN: 80455-UP", "SCC: C2"]
1. 708-2L-06660 [1] Piston Assembly, Servo Komatsu 0.000 kg.

["SN: 80455-UP", "SCC: C2"]
6. 708-2L-35760 [1] Ball Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
7. 708-2L-35770 [1] Plug Komatsu 0.005 kg.

["SN: 80455-UP", "SCC: C2"]
9. 708-2L-35280 [1] Pin Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
10. 708-2L-35860 [1] Spool Komatsu 0.03 kg.

["SN: 80455-UP", "SCC: C2"]
11. 708-2L-35630 [1] Retainer Komatsu 0.22 kg.

["SN: 80455-UP", "SCC: C2"]
12. 708-2L-35641 [1] Seat Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
13. 708-2L-35240 [1] Spring Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
14. 708-2L-35730 [1] Spring Komatsu China

["SN: 80455-UP", "SCC: C2"]
15. 708-2L-35650 [1] Seat Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
16. 708-2L-35250 [1] Spring Komatsu China

["SN: 80455-UP", "SCC: C2"]
18. 07000-B3034 [1] O-ring Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
19. 708-2L-35210 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
21. 708-2L-35270 [1] Plug Komatsu 0.04 kg.

["SN: 80455-UP", "SCC: C2"]
22. 07000-B2011 [1] O-ring Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
23. 07000-B3045 [1] O-ring Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
24. 708-2L-35750 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
25. 708-2L-34310 [1] Cover Komatsu China

["SN: 80455-UP", "SCC: C2"]
26. 01580-10806 [1] Nut Komatsu 0.005 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["801920104"]
27. 708-2L-35290 [1] Nut Komatsu 0.12 kg.

["SN: 80455-UP", "SCC: C2"]
28. 708-2L-35670 [1] Ring, Wire Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
29. 01252-61440 [4] Bolt, Hexagon Socket Head Komatsu China

["SN: 80455-UP", "SCC: C2"] analogs:["0125231440"]
PC220-8(9)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-01600 [1] Pump Subassembly Komatsu 145 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L00600", "7082L00790"] |$1.

708-2L-06670 [1] Cover Assembly Komatsu China

["SN: 80455-UP", "SCC: C2"] |$2.
1. 708-2L-34340 [1] Screw Komatsu 0.000 kg.

["SN: 80455-UP", "SCC: C2"]
2. 07000-B3034 [1] O-ring Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
3. 708-2L-35210 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
4. 708-2L-35290 [1] Nut Komatsu 0.12 kg.

["SN: 80455-UP", "SCC: C2"]
5. 708-2L-34320 [1] Cover Komatsu 0.000 kg.

["SN: 80455-UP", "SCC: C2"]
6. 07000-B3045 [1] O-ring Komatsu 0.002 kg.

["SN: 80455-UP", "SCC: C2"]
7. 708-2L-35750 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
8. 01252-61440 [4] Bolt, Hexagon Socket Head Komatsu China

["SN: 80455-UP", "SCC: C2"] analogs:["0125231440"]
9. 708-2L-32180 [1] Coupling Komatsu 0.38 kg.

["SN: 80455-UP", "SCC: C2"]
10. 708-2L-32190 [1] Ring Komatsu China

["SN: 80455-UP", "SCC: C2"]

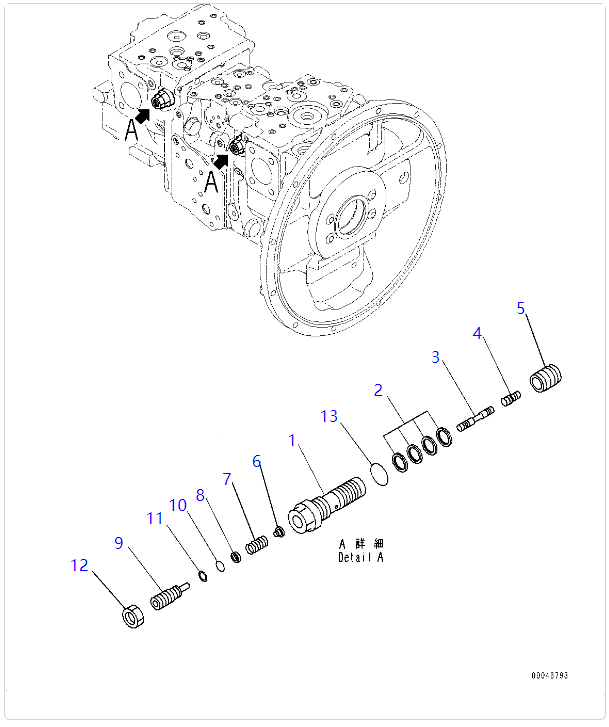

PC220-8(10)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.

708-2L-07710 [2] Valve Assembly Komatsu 0.000 kg.

["SN: 80455-UP"] |$1.
3. 708-2L-35430 [1] Spool Komatsu China

["SN: 80455-UP", "SCC: C2"]
4. 708-2L-28540 [1] Piston Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
5. 708-2L-35360 [1] Sleeve Komatsu 0.04 kg.

["SN: 80455-UP", "SCC: C2"]
6. 708-2L-35331 [1] Seat Komatsu 0.01 kg.

["SN: 80455-UP", "SCC: C2"]
7. 708-2L-35880 [1] Spring Komatsu China

["SN: 80455-UP", "SCC: C2"]
8. 708-2L-35341 [1] Seat Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
9. 708-2L-35351 [1] Plug Komatsu 0.04 kg.

["SN: 80455-UP", "SCC: C2"]
10. 07000-B1009 [1] O-ring Komatsu China 0.001 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7082L23910"]
11. 07001-01009 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"]
12. 01583-11408 [1] Nut Komatsu 0.4 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["801713411"]
13. 07002-62434 [1] O-ring Komatsu 0.001 kg.

["SN: 80455-UP", "SCC: C2"] analogs:["7081W28910"]

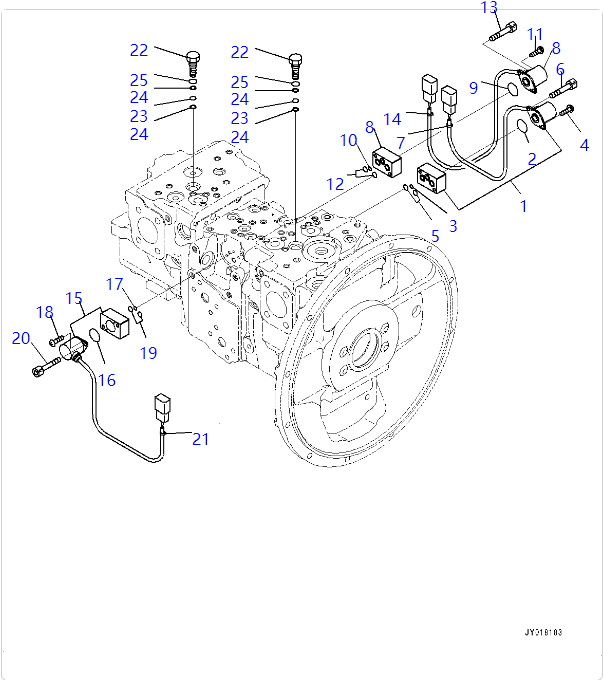

PC220-8(11)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2L-00790 [1] Pump Assembly, Piston Komatsu 145 kg.

["SN: 80455-UP"] analogs:["7082L00600", "7082L01600"] |$0.
1. 702-21-57400 [1] Valve, Pilot Komatsu OEM 0.442 kg.

["SN: 80455-UP"] analogs:["7022155901"]
2. 700-80-61260 [1] O-ring Komatsu 0.006 kg.

["SN: 80455-UP"]
3. 723-11-19960 [1] O-ring Komatsu 0.001 kg.

["SN: 80455-UP"]
4. 702-21-54180 [2] Screw Komatsu China

["SN: 80455-UP"]
5. 702-21-54910 [2] O-ring Komatsu 0.001 kg.

["SN: 80455-UP"]
6. 01252-60635 [2] Bolt, Hexagon Socket Head Komatsu 0.011 kg.

["SN: 80455-UP"]
7. 20Y-62-22790 [1] Band, Red Komatsu 0.001 kg.

["SN: 80455-UP"]
14. 20Y-62-22830 [1] Band, White Komatsu 0.001 kg.

["SN: 80455-UP"]
21. 20Y-62-22810 [1] Band, Yellow Komatsu 0.001 kg.

["SN: 80455-UP"]
22. 708-2L-35941 [2] Plug Komatsu 0.05 kg.

["SN: 80455-UP", "SCC: C2"]
23. 07000-B1008 [2] O-ring Komatsu 0.001 kg.

["SN: 80455-UP"]
24. 07001-01008 [4] Ring, Back-up Komatsu 0.001 kg.

["SN: 80455-UP"]
25. 07002-61423 [2] O-ring Komatsu 0.001 kg.

["SN: 80455-UP"] analogs:["7082L23950"]


Company Information


1 (2)
Previous:
Next:
PC220-8 Hydraulic Pump 708-2L-00790 PC220-8 MAIN PUMP

Product Category

Related Products

JCB220 JS200 JS210 JS220 20/925309 HYDRAULIC PUMP JCB220 MAIN PUMP FOR JCB EXCAVATOR
JCB220 JS200 JS210 JS220 20/925309 HYDRAULIC PUMP JCB220 MAIN PUMP FOR JCB EXCAVATOR
ZX160 Hydraulic Pump Assy 4441981 A8V080 ZX160 MAIN PUMP FOR HITACHI EXCAVATOR
ZX160 Hydraulic Pump Assy 4441981 A8V080 ZX160 MAIN PUMP FOR HITACHI EXCAVATOR
E374F E390F MAIN PUMP 369-9655 576-3072 Hydraulic Main Pump FOR CAT EXCAVATOR
E374F E390F MAIN PUMP 369-9655 576-3072 Hydraulic Main Pump FOR CAT EXCAVATOR
E336D2 Main Pump 504-5477 K5V160DP E336D2 Hydraulic PUMP APPLY FOR CAT EXCAVATOR
E336D2 Main Pump 504-5477 K5V160DP E336D2 Hydraulic PUMP APPLY FOR CAT EXCAVATOR
E330D Hydraulic Main Pump 283-6116 K5v160dp E330 MAIN PUMP FOR CAT EXCAVATOR
E330D Hydraulic Main Pump 283-6116 K5v160dp E330 MAIN PUMP FOR CAT EXCAVATOR
E320C 320D MAIN PUMP 173-3381 272-6955 SBS120 320C Hydraulic Pump for CAT EXCAVATOR
E320C 320D MAIN PUMP 173-3381 272-6955 SBS120 320C Hydraulic Pump for CAT EXCAVATOR
DX420 Hydraulic Main Pump K1003280b K1000288B 401-00255 DX420 MAIN PUMP FOR Doosan EXCAVATOR
DX420 Hydraulic Main Pump K1003280b K1000288B 401-00255 DX420 MAIN PUMP FOR Doosan EXCAVATOR
PC1250-8 MAIN PUMP 708-2L-00680 708-2L-00681 PC1250-8 Hydraulic Main Pump Apply for Komatsu Excavator
PC1250-8 MAIN PUMP 708-2L-00680 708-2L-00681 PC1250-8 Hydraulic Main Pump Apply for Komatsu Excavator
PC300-8 PC350-8 MAIN PUMP 708-2G-00150 PC350-8 hydraulic pump for Komatsu excavator
PC300-8 PC350-8 MAIN PUMP 708-2G-00150 PC350-8 hydraulic pump for Komatsu excavator
R320-9 R380-9 MAIN PUMP K3V180DTP-9N-17Т 31Q9-10010 R330-9 MAIN PUMP
R320-9 R380-9 MAIN PUMP K3V180DTP-9N-17Т 31Q9-10010 R330-9 MAIN PUMP

Call Us Now

Landline: +86-750-6688281
Phone: +86 18127522581
Phone: +86-13302589039

Send a Message


Main Office

Specialized in product
7*24 hours at your service
LB is a leading manufacturer and supplier of earth-moving machinery components: travel reducers and swing reducers.

Useful Links

Subscribe Now

Incorrect Postcode Submit
Copyright © 2022 LB All rights reserved.   Sitemap   Support By Leadong                             粤ICP备2022033046号
