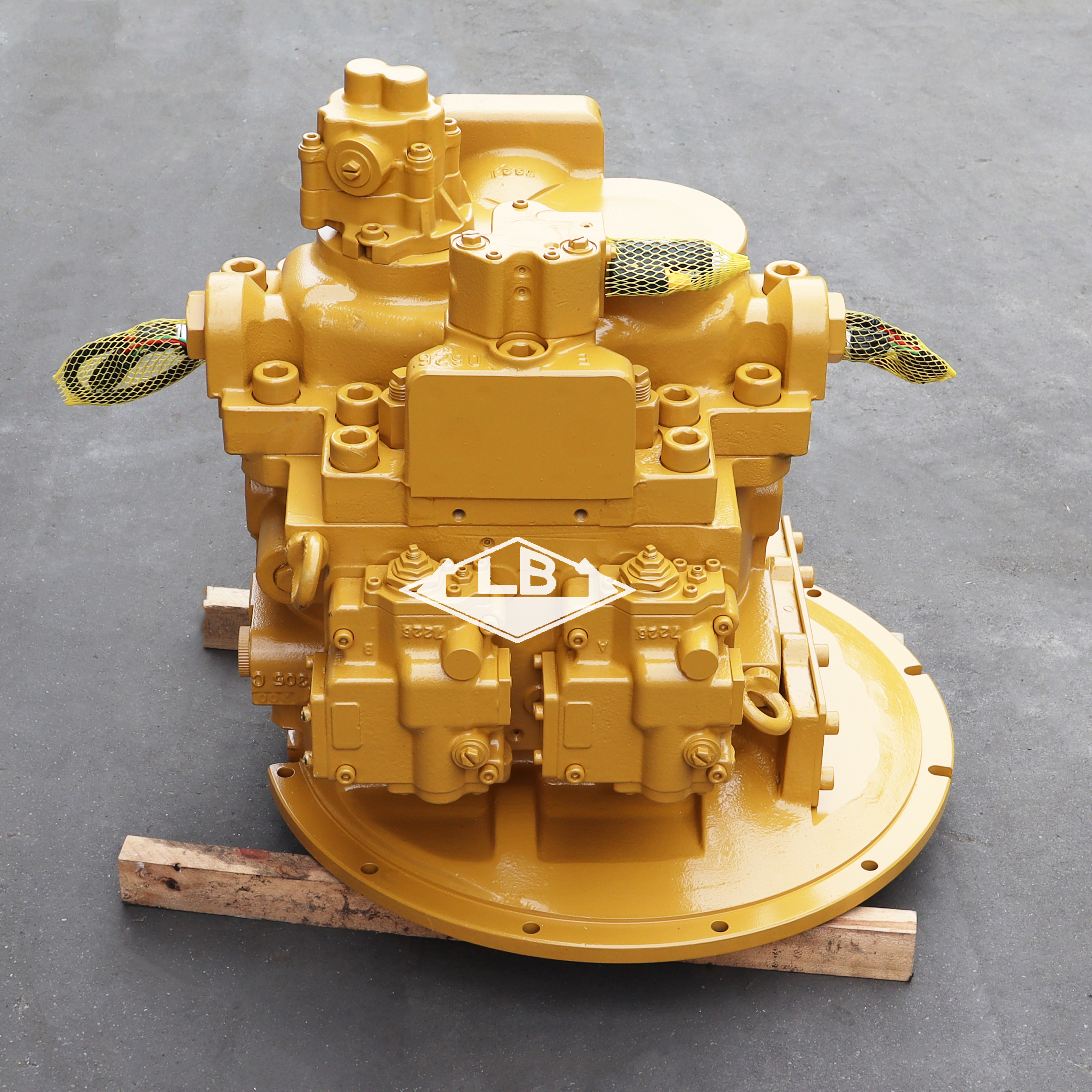

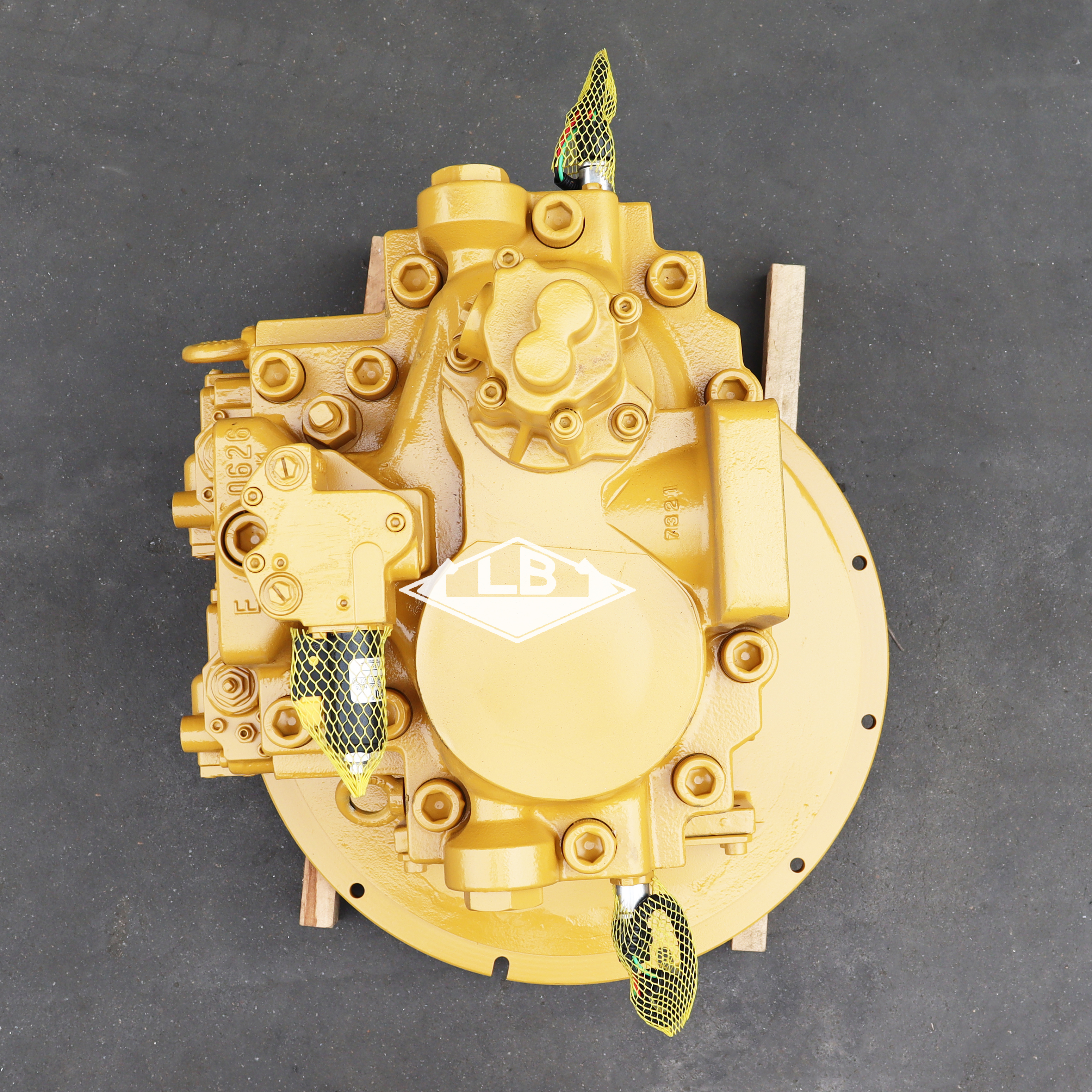

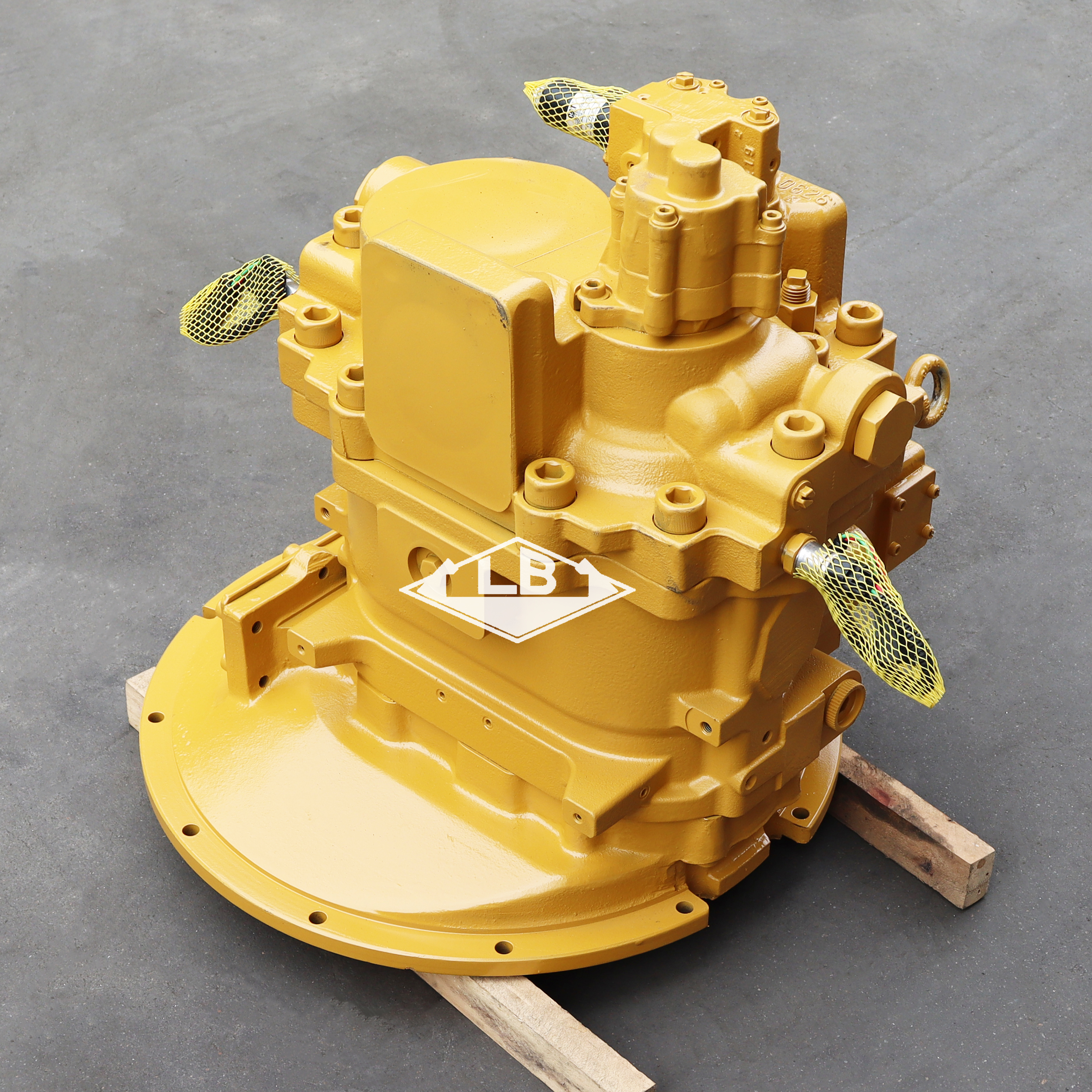

E330D Hydraulic Main Pump 283-6116 K5v160dp E330 MAIN PUMP FOR CAT EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	E330 MAIN PUMP
Equipment	Apply to CAT EXCAVATOR
Part no.	283-6116 K5v160dp
motor shaft teeth
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

E330(2) E330(8) E330(4) E330(6) E330(2) E330(3) E330(1)

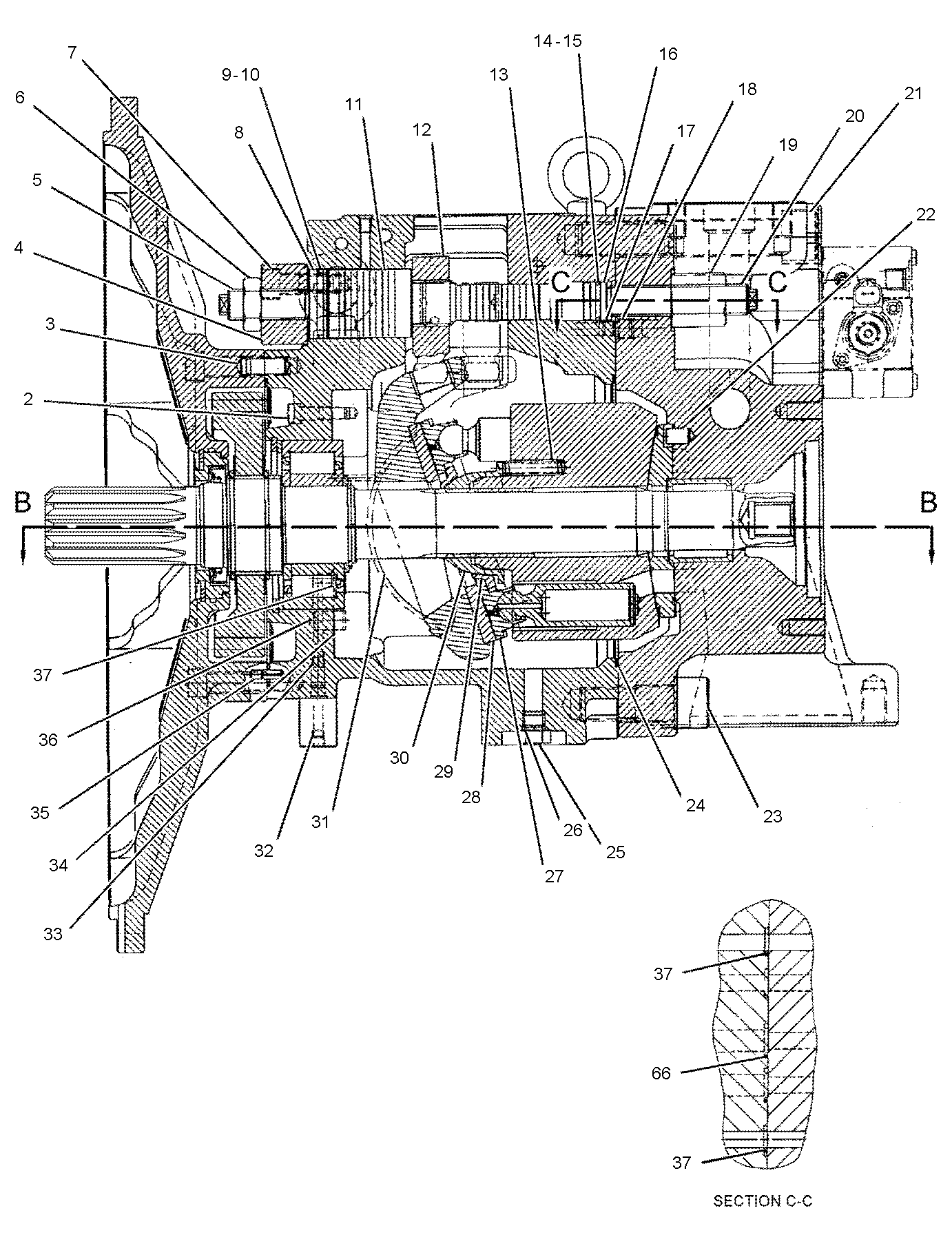

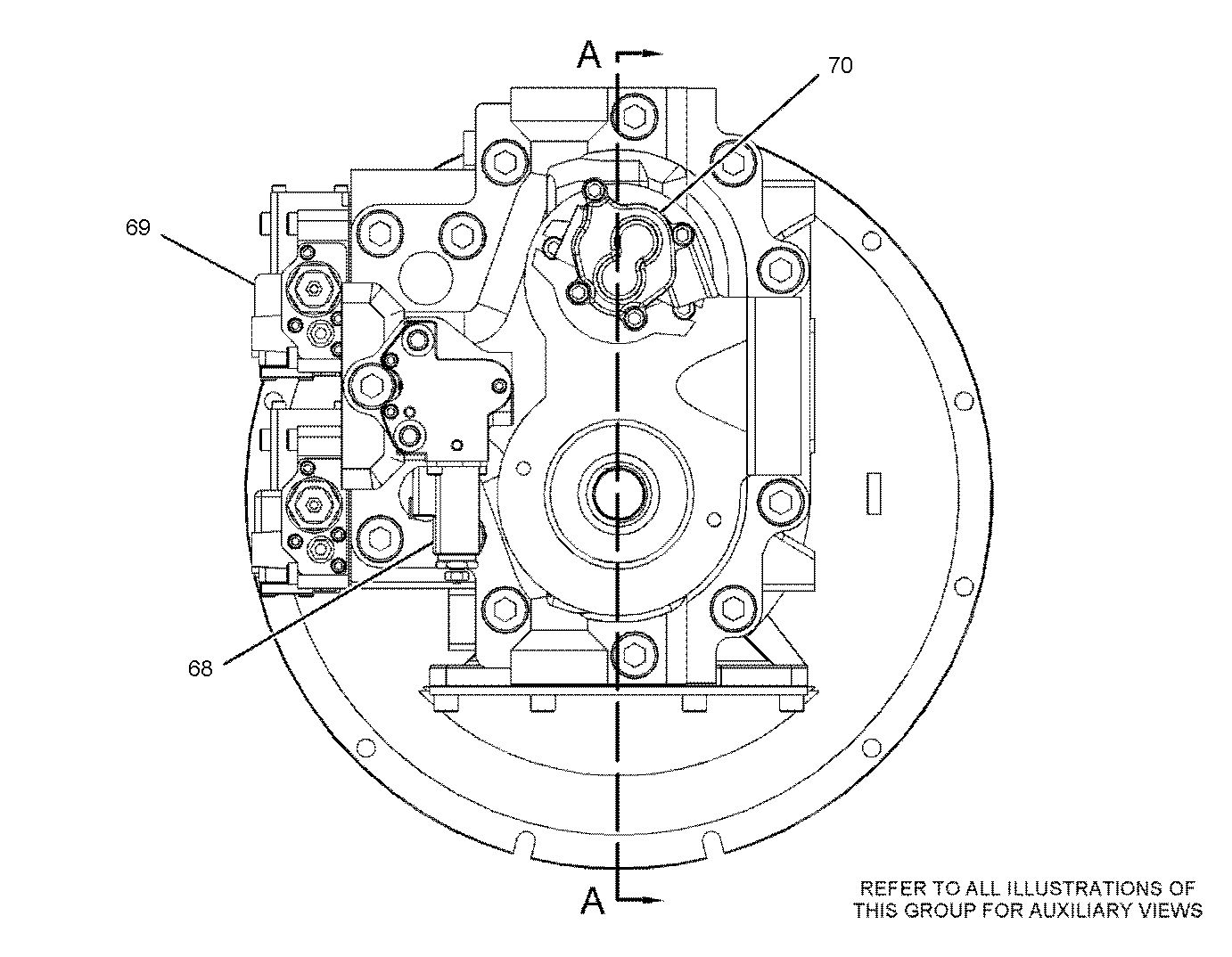

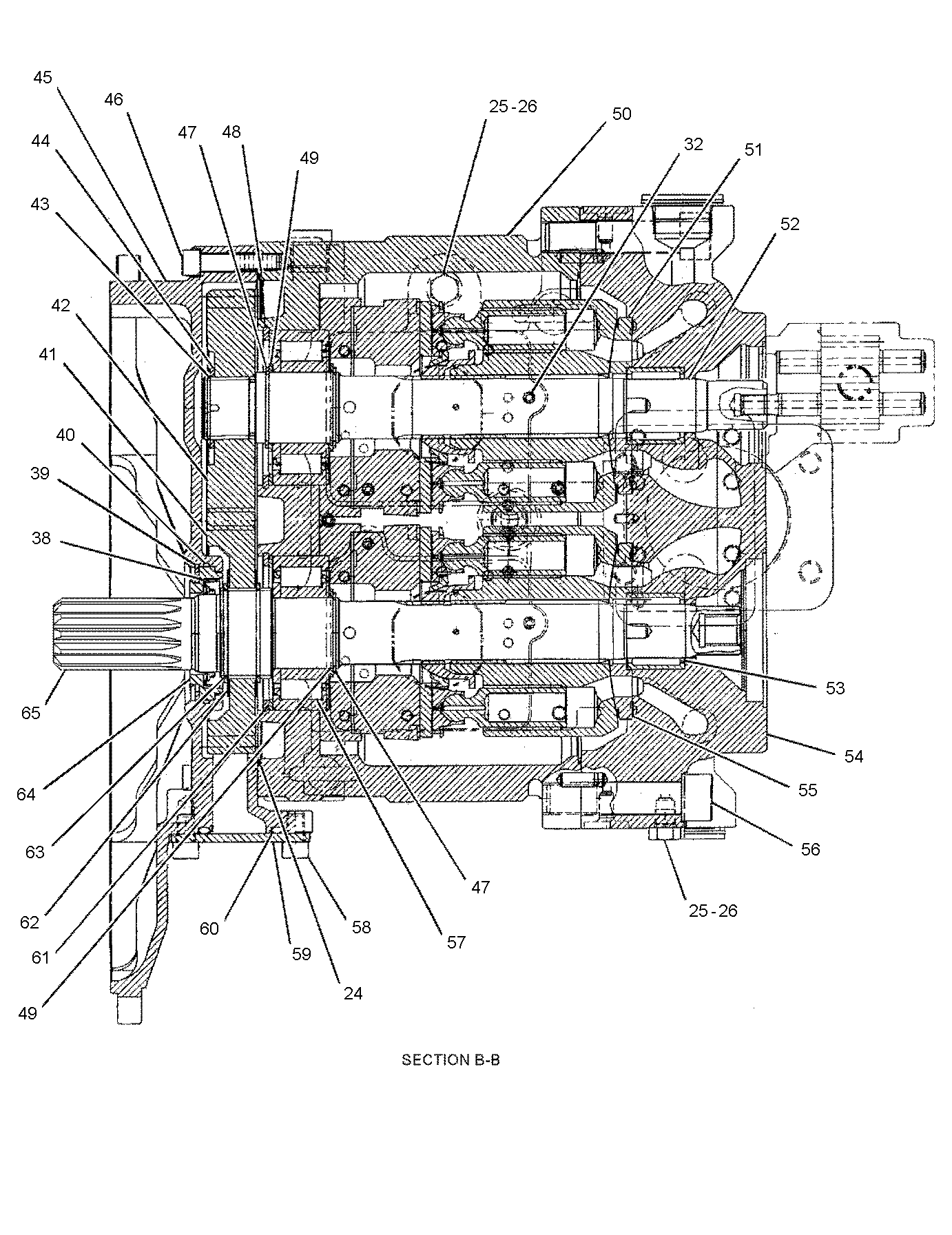

Parts for your 330D L EXCAVATOR:

CATERPILLAR SIS

Pos.	Part No	Qty	Parts name
2.	242-6920 M	[8]	BOLT (M8X30-MM)
3.	247-8985	[4]	DOWEL
4.	247-8729	[2]	COVER
5.	242-6919 M	[2]	SETSCREW (M20X2.5X56-MM)
6.	8T-4131 M	[2]	NUT (M20X2.5-THD)
7.	6V-8200 M	[8]	BOLT-SOCKET HEAD (M12X1.75X35-MM)
8.	7I-8166	[2]	STOPPER
9.	109-1296	[2]	SEAL-O-RING
10.	7I-8172	[2]	RING-BACKUP
11.	242-6914	[2]	PISTON-SERVO
12.	247-8712	[2]	PIN AS
13.	7I-8152	[18]	SPRING-CYLINDER
14.	109-1294	[2]	SEAL-O-RING
15.	7I-8171	[2]	RING-BACKUP
16.	242-6915	[2]	STOPPER
17.	095-0965	[11]	PLUG
18.	095-0966	[2]	PLUG
19.	242-6918 M	[2]	NUT (M20X2.5-THD)
20.	200-3292 M	[2]	SETSCREW (M20X2.5X90-MM)
21.	264-8266 M	[1]	BOLT-SOCKET HEAD (M22X2.5X130-MM)
22.	234-4539	[2]	DOWEL
23.	249-1306 M	[10]	BOLT-SOCKET HEAD (M22X2.5X60-MM)
24.	242-6916	[2]	GASKET
25.	110-5525	[4]	PLUG
26.	153-4906	[4]	SEAL-O-RING
27.	295-9691	[2]	PISTON AS
28.	7I-8154	[2]	PLATE
29.	242-6912	[2]	PLATE
30.	242-6913	[2]	RETAINER-BALL
31.	247-8927	[2]	SWASHPLATE AS
32.	7I-8084	[20]	PLUG
33.	7I-8164	[4]	ORIFICE (1/16-NPTF)
34.	247-8725	[2]	PLATE
35.	095-0882	[4]	PIN-SPRING
36.	247-8786	[2]	DOWEL
37.	206-9290	[9]	SEAL-O-RING
38.	295-9695	[1]	SEAL-LIP TYPE
39.	095-0944	[1]	RING-RETAINING
40.	249-6657	[1]	SEAL-O-RING
41.	259-0833	[1]	GEAR-DRIVE
42.	259-0834	[1]	GEAR-DRIVEN
43.	6V-5204	[1]	RING-RETAINING
44.	247-8718	[1]	SPACER (44.5X68X3-MM THK)
45.	247-8982	[1]	FLANGE
46.	8T-0343 M	[11]	BOLT-SOCKET HEAD (M12X1.75X55-MM)
47.	8T-4241	[3]	RING-RETAINING
48.	247-8787	[2]	RING-RETAINING
49.	247-8719	[3]	SPACER (50X64X3-MM THK)
50.	259-0835	[1]	BODY
51.	247-8710	[1]	BARREL AS
52.	259-0832	[1]	SHAFT-DRIVEN
53.	247-8715	[2]	BEARING-NEEDLE
54.	266-7955	[1]	BLOCK-PORT
55.	247-8709	[1]	BARREL AS
56.	249-1307 M	[2]	BOLT-SOCKET HEAD (M22X2.5X95-MM)
57.	247-8713	[2]	BEARING-ROLLER
58.	8T-9080 M	[8]	BOLT-SOCKET HEAD (M12X1.75X20-MM)
59.	225-4516	[1]	PLATE
60.	249-6670	[1]	SEAL-O-RING
61.	247-8720	[2]	SPACER (95X110X3.2-MM THK)
62.	247-8717	[2]	SPACER (65X90X1-MM THK)
63.	095-0929	[2]	RING-RETAINING
64.	247-8726	[1]	COVER
65.	259-0831	[1]	SHAFT-DRIVE
66.	206-9291	[2]	SEAL-O-RING
68.	225-4518 Y	[1]	VALVE GP-SOLENOID (PUMP CONTROL)
69.	259-0830 Y	[2]	HEAD GP-PUMP
70.	274-2490	[1]	PUMP GP-GEAR
	246-9867	[1]	SEAL-O-RING
	247-8841 M	[2]	BOLT (M10X1.5X30-MM)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
