ZX450-3 ZX500-3 PISTON PUMP 4633472 ZX500-3 MAIN PUMP

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	ZX450-3 ZX500-3 MAIN PUMP
Equipment	Apply to HITACHI EXCAVATOR
Part no.	4633472
Frame holes	20
Sprocket holes	24
Item condition	New
Logo	LB
Gross weight	460KG
MOQ	1 pc

Product Description

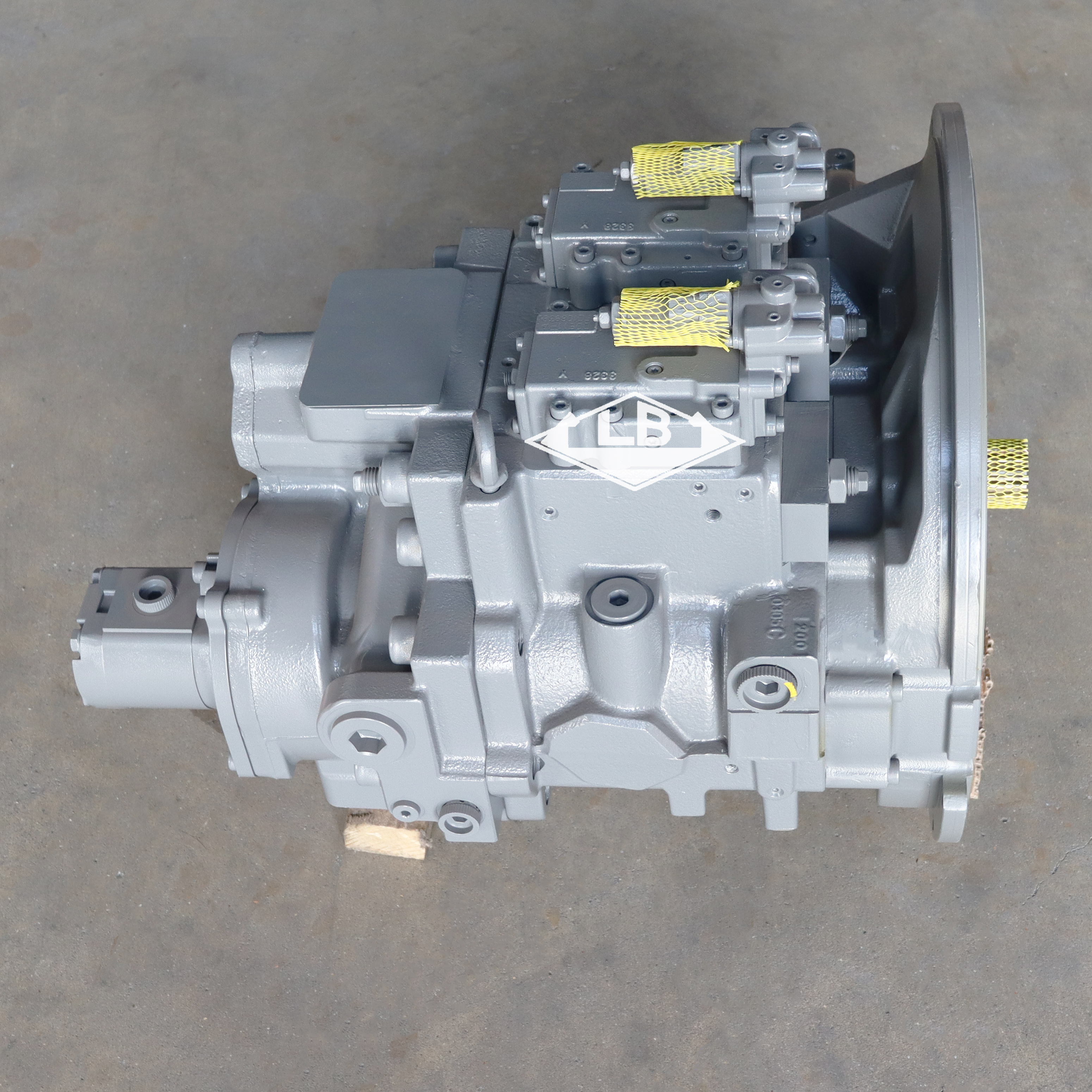

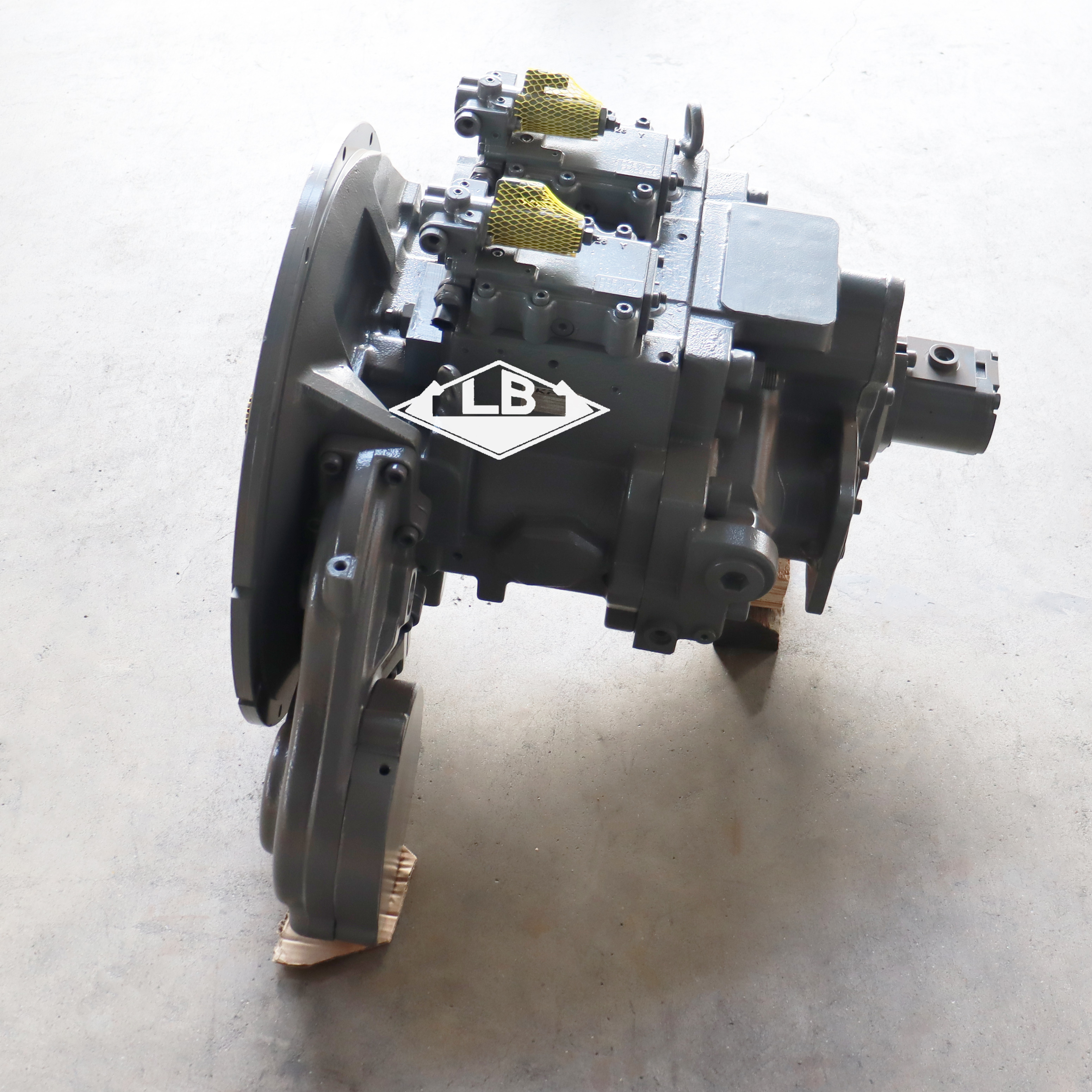

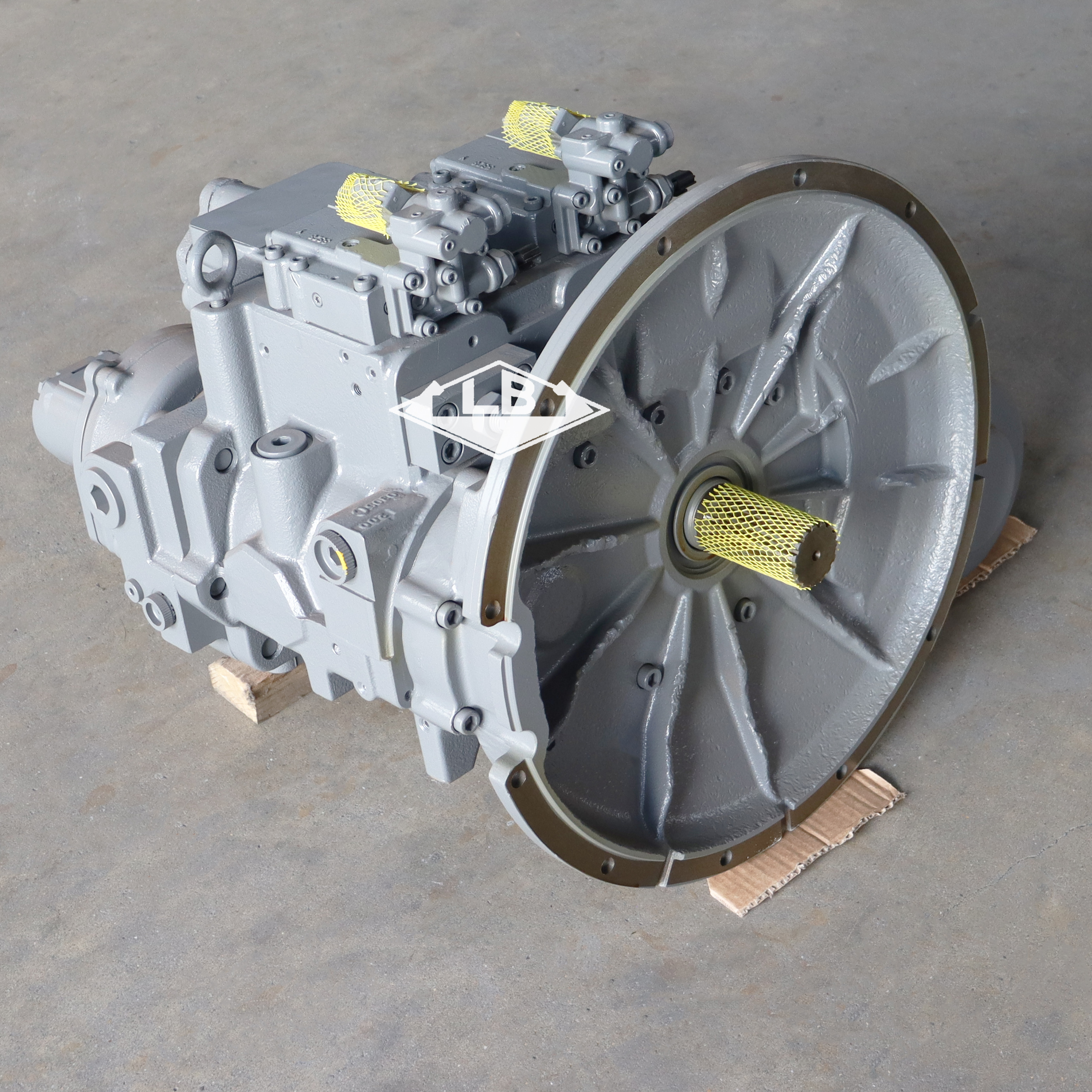

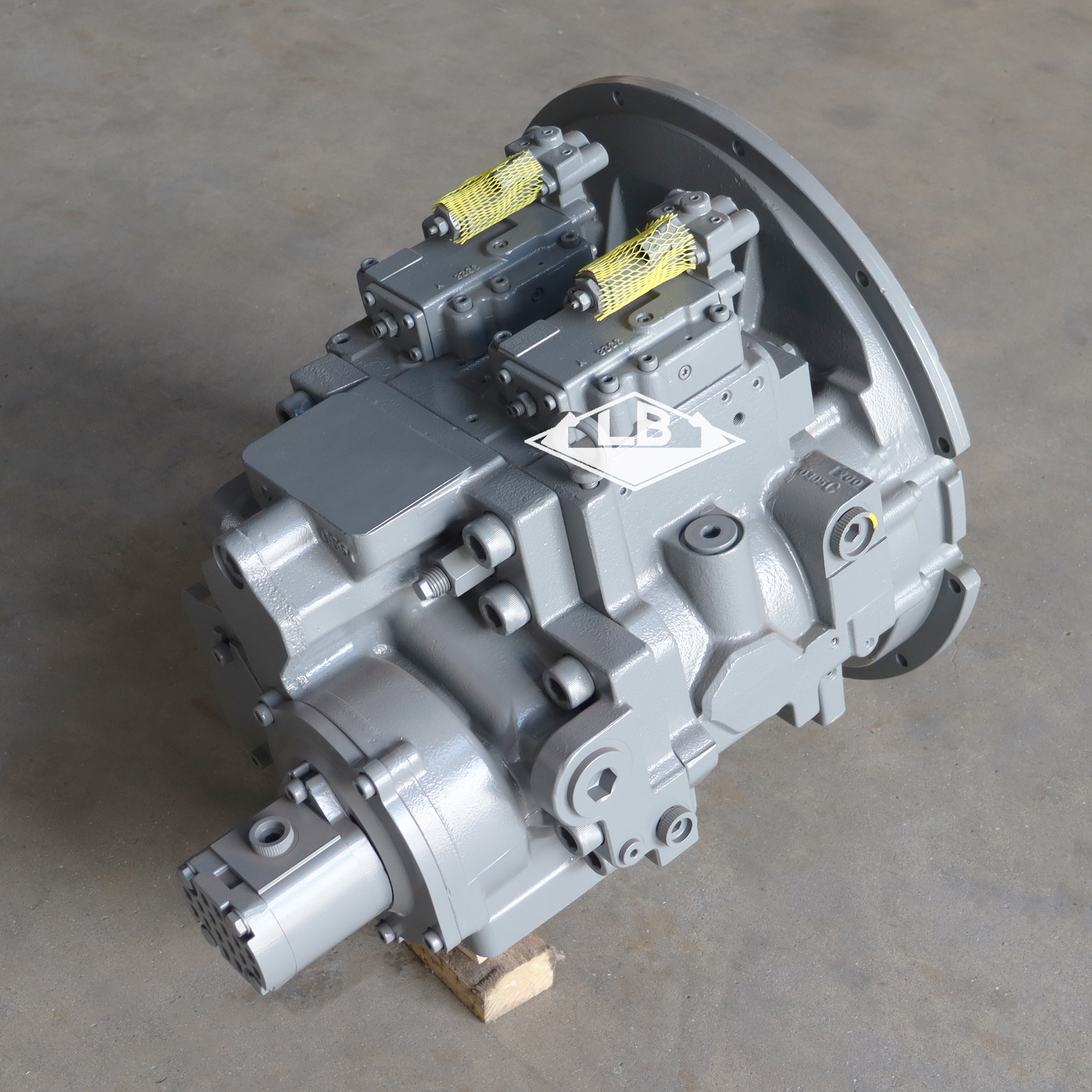

ZX500-3 液压泵(6) ZX500-3 液压泵(4) ZX500-3 液压泵(8) ZX500-3 液压泵(2)

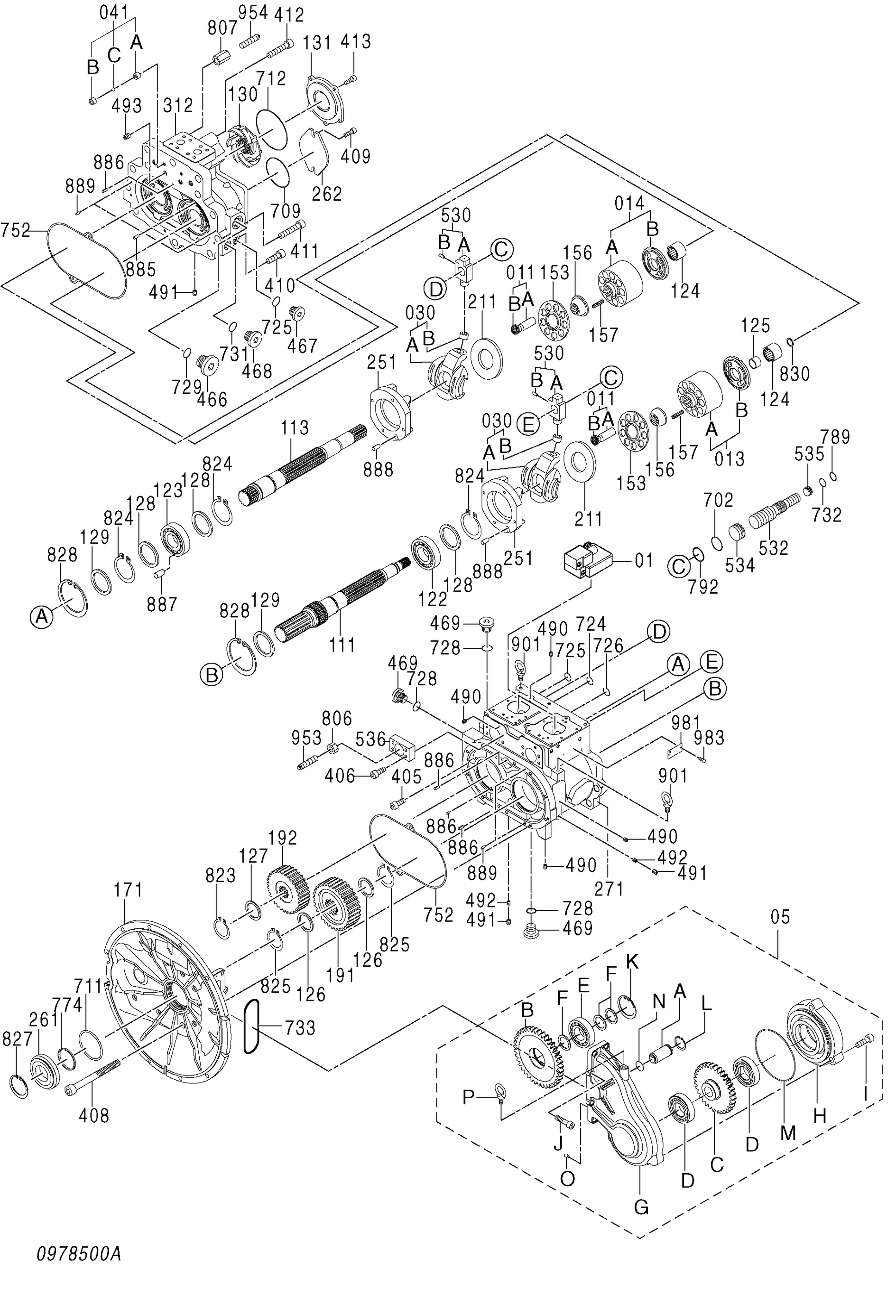

Parts on group PUMP;PISTON:

Pos.	Part No	Qty	Parts name	Comments
	4633472	[1]	PUMP;PISTON
01.	4658831	[2]	REGULATOR;PUMP
05.	4654554	[1]	UNIT
05A.	+++++++	[1]	SHAFT
05B.	+++++++	[1]	GEAR
05C.	+++++++	[1]	GEAR
05D.	0978517	[2]	BRG.;BALL
05E.	0878107	[1]	BRG.;ROL.
05F.	0818508	[3]	SPACER
05G.	+++++++	[1]	CASE
05H.	+++++++	[1]	CASE;GEAR
05I.	0195126	[3]	BOLT;SOCKET
05J.	M341236	[8]	BOLT;SOCKET
05K.	988850	[1]	RING;RETAINING
05L.	446751	[1]	RING;RETAINING
05M.	0978512	[1]	O-RING
05N.	0443404	[1]	O-RING
05O.	+++++++	[2]	PIN
05P.	4091248	[1]	BOLT;EYE
011.	0820401	[2]	PISTON ASS'Y
011A.	+++++++	[9]	PISTON
011B.	+++++++	[9]	SHOE
013.	0820402	[1]	CYL. ASS'Y
013A.	+++++++	[1]	BLOCK;CYL.
013B.	+++++++	[1]	PLATE;VALVE
014.	0451003	[1]	CYL. ASS'Y
014A.	+++++++	[1]	BLOCK;CYL.
014B.	+++++++	[1]	PLATE;VALVE
030.	0772701	[2]	PLATE ASS'Y
030A.	+++++++	[1]	PLATE
030B.	+++++++	[1]	BUSHING
041.	0708004	[2]	VALVE;CHECK ASS'Y
041A.	+++++++	[1]	SEAT
041B.	+++++++	[1]	STOPPER
041C.	+++++++	[1]	BALL;STEEL
111.	0978501	[1]	SHAFT
113.	0820406	[1]	SHAFT
122.	0820407	[1]	BRG.;ROL.
123.	0820453	[1]	BRG.;ROL.
124.	0978503	[2]	BRG.;NEEDLE
125.	0978504	[1]	RING;INNER
126.	0820409	[2]	SPACER
127.	0820410	[1]	SPACER
128.	0820411	[3]	SPACER
129.	0820412	[2]	SPACER
130.	0978505	[1]	BOOSTER
131.	0820414	[1]	COVER
153.	0820415	[2]	RETAINER
156.	0820416	[2]	BUSHING
157.	0451016	[18]	SPRING
171.	0978518	[1]	CASING	I 0978519
171.	0978519	[1]	CASING
191.	0820418	[1]	GEAR;DRIVE
192.	0820419	[1]	GEAR
211.	0451018	[2]	PLATE
251.	0820420	[2]	SUPPORT
261.	0978507	[1]	COVER
262.	0820422	[1]	COVER
271.	0978508	[1]	CASING
312.	0978509	[1]	COVER
405.	0978510	[8]	BOLT;SOCKET
406.	M341236	[8]	BOLT;SOCKET
408.	0131103	[11]	BOLT;SOCKET
409.	0820425	[2]	BOLT;SOCKET
410.	0820426	[9]	BOLT;SOCKET
411.	0820427	[2]	BOLT;SOCKET
412.	0820428	[1]	BOLT;SOCKET
413.	M341025	[5]	BOLT;SOCKET
466.	0978511	[2]	PLUG
467.	0629404	[2]	PLUG
468.	0626901	[2]	PLUG
469.	0697911	[3]	PLUG
490.	0263019	[20]	PLUG
491.	0451028	[12]	PLUG
492.	0451027	[4]	SCREW
493.	0102440	[2]	PLUG
530.	0820438	[2]	PIN ASS'Y
530A.	+++++++	[2]	PIN
530B.	+++++++	[2]	PIN
532.	0820429	[2]	PISTON;SERVO
534.	0451031	[2]	STOPPER
535.	0820430	[2]	STOPPER
536.	0820431	[2]	COVER
702.	0451033	[2]	O-RING
709.	0694604	[2]	O-RING
711.	0820432	[1]	O-RING
712.	0820433	[1]	O-RING
724.	0443801	[9]	O-RING
725.	4297379	[2]	O-RING
726.	0443405	[2]	O-RING
728.	0443408	[5]	O-RING
729.	0719402	[2]	O-RING
731.	0443407	[2]	O-RING
732.	0451035	[2]	O-RING
733.	0978512	[1]	O-RING
752.	0820439	[2]	PACKING
774.	0820443	[1]	SEAL;OIL	I 0978520
774.	0978520	[1]	SEAL;OIL
789.	0451036	[2]	RING;BACK-UP
792.	0451037	[2]	RING;BACK-UP
806.	0451038	[2]	NUT
807.	0820434	[2]	NUT
823.	959499	[1]	RING;RETAINING
824.	991345	[3]	RING;RETAINING
825.	488075	[2]	RING;RETAINING
827.	991728	[1]	RING;RETAINING
828.	0820435	[2]	RING;RETAINING
830.	0978513	[1]	RING;RETAINING
885.	0313404	[2]	PIN
886.	0244604	[4]	PIN;SPRING
887.	0175240	[1]	PIN
888.	0978514	[2]	PIN
889.	0978515	[4]	PIN
901.	0134458	[2]	BOLT;EYE
953.	0978516	[2]	SCREW;SET
954.	0682328	[2]	SCREW;SET
981.	+++++++	[1]	PLATE
983.	0625509	[2]	PIN
