| Quantity: | |
|---|---|

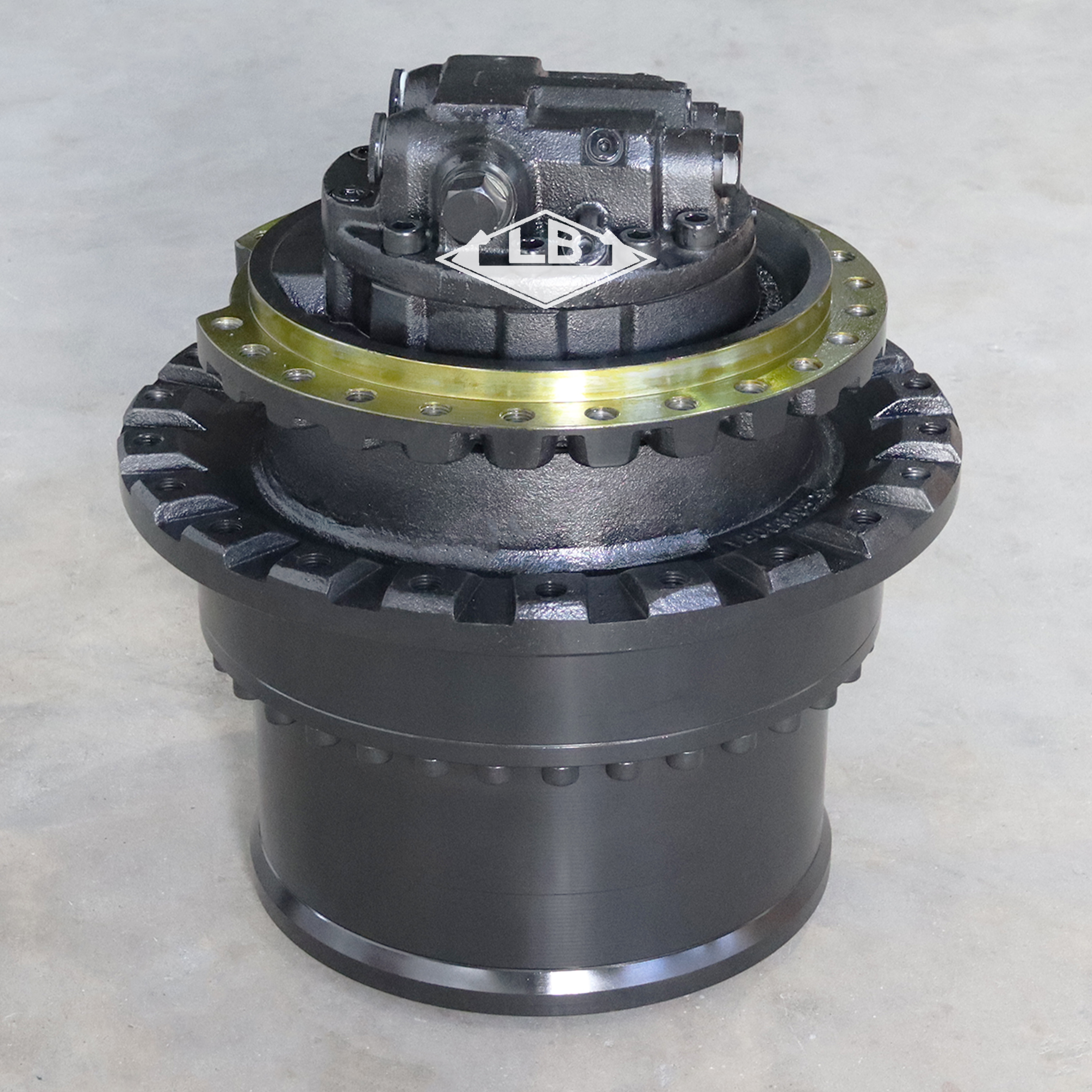

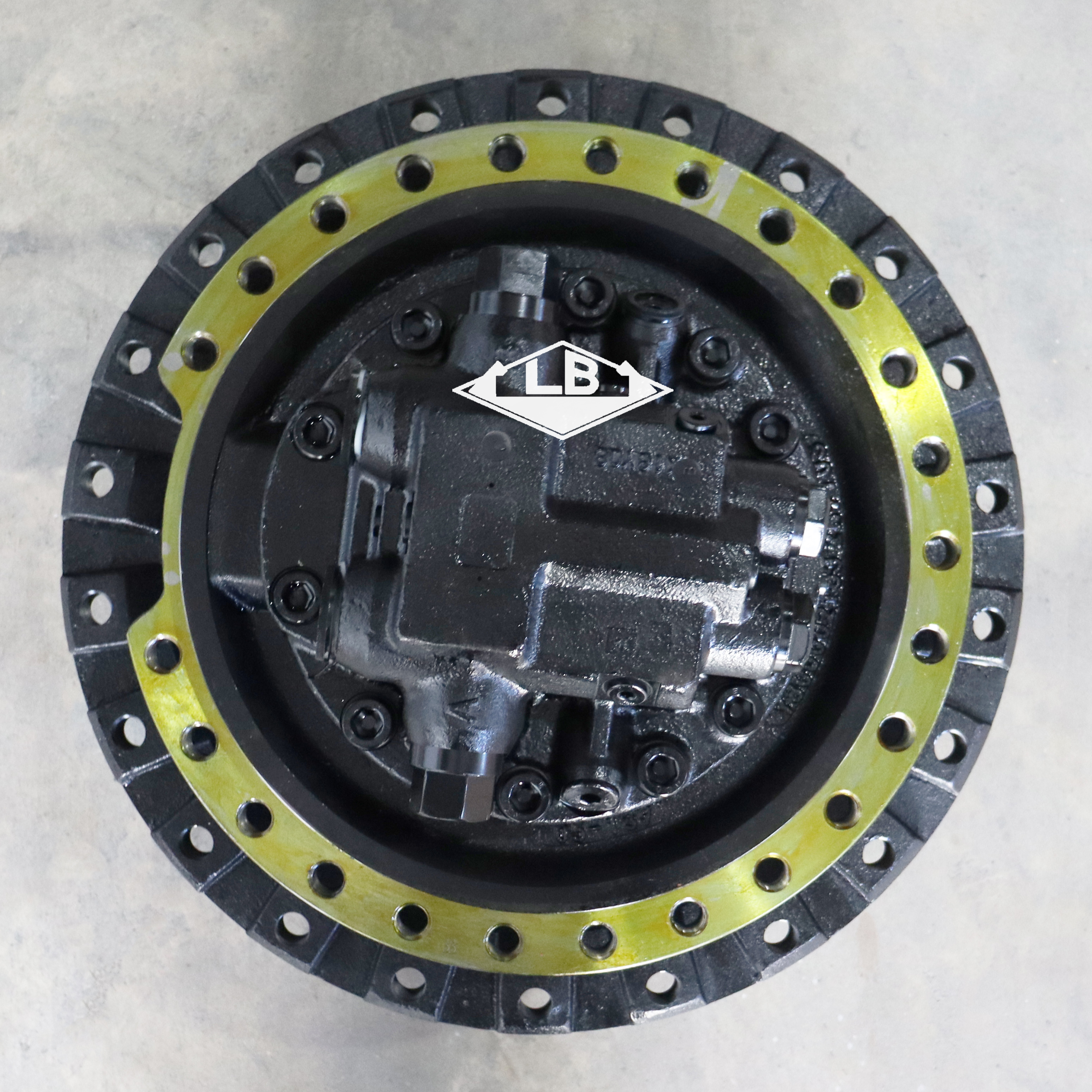

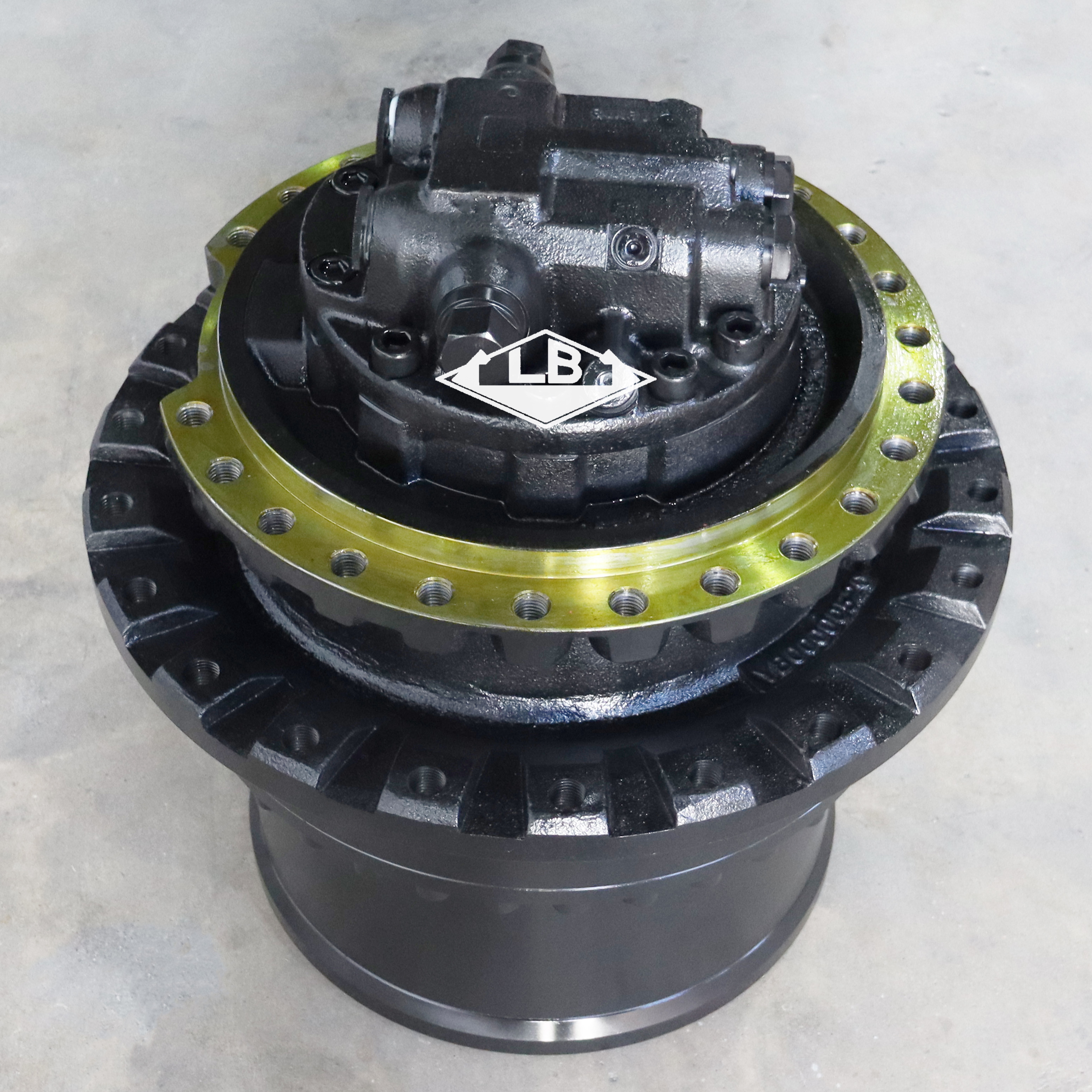

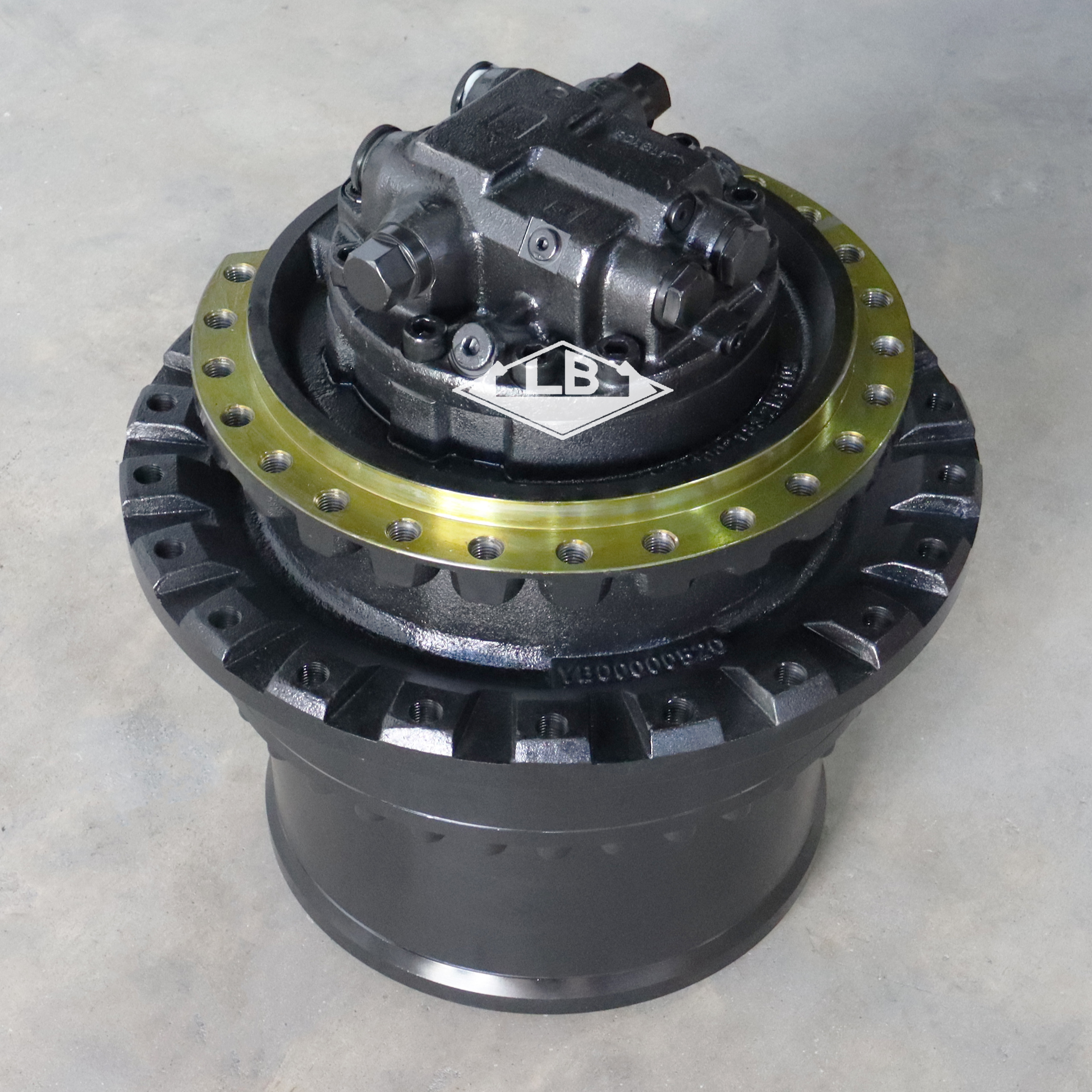

| Part name | ZX350-5G ZX350-5A FINAL DRIVE | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | YB60002115 YB60002116 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 460KG | |||||
| MOQ | 1 pc | |||||
| DCEYB60002115 | |||||||||||
| CODE:DCEYB60002115_DDKCO-1 | PDDKCO-E1-2 | ||||||||||
| 027A | |||||||||||

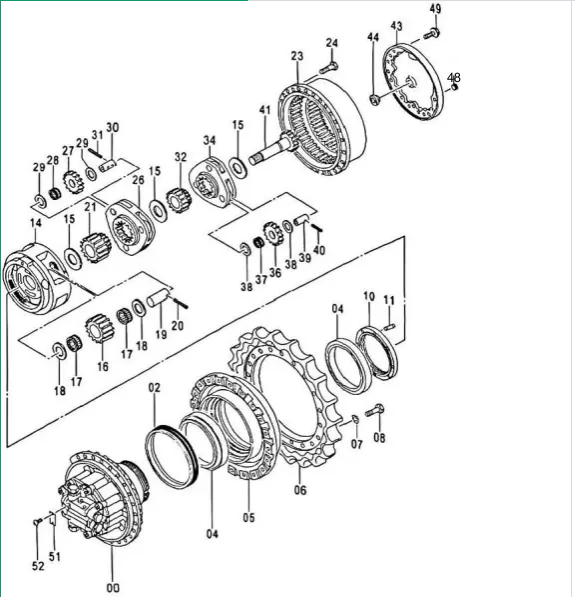

| ITEM 符号 | PART NO. 部品番号 | PART NAME | CODE コ 一 ド | Q'TY 数量 | S.C サ-ス ]-下 | SERIAL NO. 適用号機 | 互换性 | rLrLnVLWLL IruI 代替部品 | |||
| PART NO. 部品番号 | 0'TY 数量 | ||||||||||
| YB60002115 YB60002116 | TRAVEL DEVICE (for assembly of machine (本体組付用) TRAVEL DEVICE (for transportation) | DCEYB60002115_DDKCO) | 1 1 | D S | I | YB60002116 | 1 | ||||
00 00 | YB60000650 YB60001203 | (翰送用) *MOTOR:OIL (for assembly of machine (本体組付用) *MOTOR:OIL | DCEYB60000650) | 1 1 | D S | I | YB60001203 | 1 | |||
02 04 05 | 4664392 YB00002495 YBO0000520 | (for transportation) (翰送用) *SEAL:GROUP *BRG.:TAPERED *DRUM |  12 | ||||||||
| 06 07 08 10 11 | 1033163 A590922 J932265 YBO0004085 YB00004084 | SPROCKET *WASHER:SPRING *BOLT NUT:BRG. *PIN:KNOCK | 22 22 1 1 | ||||||||
| 14 15 16 17 18 | YB00004087 4621530 3103555 YBO0002494 4269470 | *CARRIER:PLANETARY *SPACER GEAR:PLANETARY BRG.:NEEDLE *PLATE:THRUST | 1 3 4 8 8 | ||||||||
| 19 20 21 23 24 | 4269452 4207947 3103554 YB00001431 J931640 | *PIN *PIN:SPRING *GEAR:SUN *GEAR:RING *BOLT | 4 4 1 1 34 | ||||||||
| 26 27 28 29 30 | 1032598 3103553 4445531 4284521 4269451 | *CARRIER *GEAR:PLANETARY *BRG.:NEEDLE *PLATE:THRUST ·PIN | 1 3 3 6 3 | ||||||||
| 31 32 34 36 37 | 4197763 3103552 1032597 3103551 YBO0001367 | PIN:SPRING *GEAR:SUN *CARRIER GEAR:PLANETARY *BRG.:NEEDLE | 3 1 3 3 | ||||||||
| 38 39 40 41 43 | 4642993 YB00001382 4192020 YBO0000498 YB00002991 | *PLATE:THRUST *PIN *PIN:SPRING *SHAFT:PROPELLER *(COVER:TRANSMISSION | 6 3 3 | ||||||||
| CNDE:DCEYB60002115 DDKCO-1 PDDKCO-F1-2 | |||||||||||

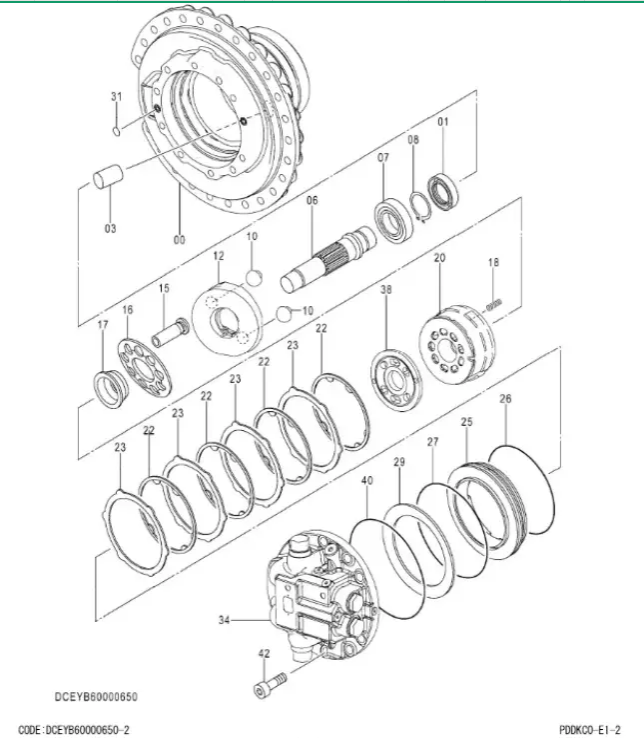

| ITEM 符号 | PART NO. 郎品需号 | PART MAHE | CODE =- ド | 0'TY 数量 | S.C - 比ス 2-1 | SERIALNO. 迤用号极 | CA 互 埃 性 | REPLACEABLE PART 代替部品 | ||||
| PART NO. 部品需号 | 0TY 数量 | |||||||||||
| YB60000650 YB60001203 | MOTOR:OIL (for asscnbly of machinc (本体相付用) MOTOR:0IL (for transportation) | DCEYB60000650) | 1 1 | D S | 1 | YB60001203 | 1 | |||||
00 01 03 06 | YB00002183 4396696 YBO0003035 YB00002306 | (翰送用) HOUSIHG SEAL:OIL PISTON SHAFT | 1 1 1 1 | |||||||||
| 07 08 10 12 15 | 4396755 2991345 4684363 YB00002048 YB40000186 | BRC.:ROL. RIHB:RETAINING PIN PLATE:SHASH ASSY:PISTON | 1 1 2 1 9 | |||||||||
| 16 17 18 20 22 | YB00001460 YB00001463 4396747 YB00001464 YB00002604 | RETAINER BUSHIHG SPRING:COMPRES. ROTOR PLATE:FRICTION | 1 1 9 1 4 | |||||||||
| 23 25 26 27 29 | 3094376 YB00001465 4468248 4468249 4468250 | PLATE PISTON 0-RING 0-RING SPRIMG:DISC | 4 1 1 1 1 | |||||||||
| 31 34 34 | 4506415 YB60000741 YB60001205 | 0-RING VALVE:BRAKE (for assonbly of machine (本体相付用) VALVE:BRAKE | DCEYB60000741 )<for details see VAL | VE:BR 1 | D AKE"> S | 1 | YB60001205 | 1 | ||||
38 40 42 | YB00001490 4468244 M341850 | (for trensportation) (榆送用) PLATE:VALVE 0-RING BOLT:SOCKET | 1 1 10 | |||||||||
| CODE:DCEYB60000650-2 PDDKCO-E1-2 | ||||||||||||
| Part name | ZX350-5G ZX350-5A FINAL DRIVE | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | YB60002115 YB60002116 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 24 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 460KG | |||||
| MOQ | 1 pc | |||||
| DCEYB60002115 | |||||||||||
| CODE:DCEYB60002115_DDKCO-1 | PDDKCO-E1-2 | ||||||||||
| 027A | |||||||||||
| ITEM 符号 | PART NO. 部品番号 | PART NAME | CODE コ 一 ド | Q'TY 数量 | S.C サ-ス ]-下 | SERIAL NO. 適用号機 | 互换性 | rLrLnVLWLL IruI 代替部品 | |||
| PART NO. 部品番号 | 0'TY 数量 | ||||||||||
| YB60002115 YB60002116 | TRAVEL DEVICE (for assembly of machine (本体組付用) TRAVEL DEVICE (for transportation) | DCEYB60002115_DDKCO) | 1 1 | D S | I | YB60002116 | 1 | ||||
00 00 | YB60000650 YB60001203 | (翰送用) *MOTOR:OIL (for assembly of machine (本体組付用) *MOTOR:OIL | DCEYB60000650) | 1 1 | D S | I | YB60001203 | 1 | |||
02 04 05 | 4664392 YB00002495 YBO0000520 | (for transportation) (翰送用) *SEAL:GROUP *BRG.:TAPERED *DRUM | 12 | ||||||||
| 06 07 08 10 11 | 1033163 A590922 J932265 YBO0004085 YB00004084 | SPROCKET *WASHER:SPRING *BOLT NUT:BRG. *PIN:KNOCK | 22 22 1 1 | ||||||||
| 14 15 16 17 18 | YB00004087 4621530 3103555 YBO0002494 4269470 | *CARRIER:PLANETARY *SPACER GEAR:PLANETARY BRG.:NEEDLE *PLATE:THRUST | 1 3 4 8 8 | ||||||||
| 19 20 21 23 24 | 4269452 4207947 3103554 YB00001431 J931640 | *PIN *PIN:SPRING *GEAR:SUN *GEAR:RING *BOLT | 4 4 1 1 34 | ||||||||
| 26 27 28 29 30 | 1032598 3103553 4445531 4284521 4269451 | *CARRIER *GEAR:PLANETARY *BRG.:NEEDLE *PLATE:THRUST ·PIN | 1 3 3 6 3 | ||||||||
| 31 32 34 36 37 | 4197763 3103552 1032597 3103551 YBO0001367 | PIN:SPRING *GEAR:SUN *CARRIER GEAR:PLANETARY *BRG.:NEEDLE | 3 1 3 3 | ||||||||
| 38 39 40 41 43 | 4642993 YB00001382 4192020 YBO0000498 YB00002991 | *PLATE:THRUST *PIN *PIN:SPRING *SHAFT:PROPELLER *(COVER:TRANSMISSION | 6 3 3 | ||||||||
| CNDE:DCEYB60002115 DDKCO-1 PDDKCO-F1-2 | |||||||||||
| ITEM 符号 | PART NO. 郎品需号 | PART MAHE | CODE =- ド | 0'TY 数量 | S.C - 比ス 2-1 | SERIALNO. 迤用号极 | CA 互 埃 性 | REPLACEABLE PART 代替部品 | ||||
| PART NO. 部品需号 | 0TY 数量 | |||||||||||
| YB60000650 YB60001203 | MOTOR:OIL (for asscnbly of machinc (本体相付用) MOTOR:0IL (for transportation) | DCEYB60000650) | 1 1 | D S | 1 | YB60001203 | 1 | |||||
00 01 03 06 | YB00002183 4396696 YBO0003035 YB00002306 | (翰送用) HOUSIHG SEAL:OIL PISTON SHAFT | 1 1 1 1 | |||||||||
| 07 08 10 12 15 | 4396755 2991345 4684363 YB00002048 YB40000186 | BRC.:ROL. RIHB:RETAINING PIN PLATE:SHASH ASSY:PISTON | 1 1 2 1 9 | |||||||||
| 16 17 18 20 22 | YB00001460 YB00001463 4396747 YB00001464 YB00002604 | RETAINER BUSHIHG SPRING:COMPRES. ROTOR PLATE:FRICTION | 1 1 9 1 4 | |||||||||
| 23 25 26 27 29 | 3094376 YB00001465 4468248 4468249 4468250 | PLATE PISTON 0-RING 0-RING SPRIMG:DISC | 4 1 1 1 1 | |||||||||
| 31 34 34 | 4506415 YB60000741 YB60001205 | 0-RING VALVE:BRAKE (for assonbly of machine (本体相付用) VALVE:BRAKE | DCEYB60000741 )<for details see VAL | VE:BR 1 | D AKE"> S | 1 | YB60001205 | 1 | ||||
38 40 42 | YB00001490 4468244 M341850 | (for trensportation) (榆送用) PLATE:VALVE 0-RING BOLT:SOCKET | 1 1 10 | |||||||||
| CODE:DCEYB60000650-2 PDDKCO-E1-2 | ||||||||||||
