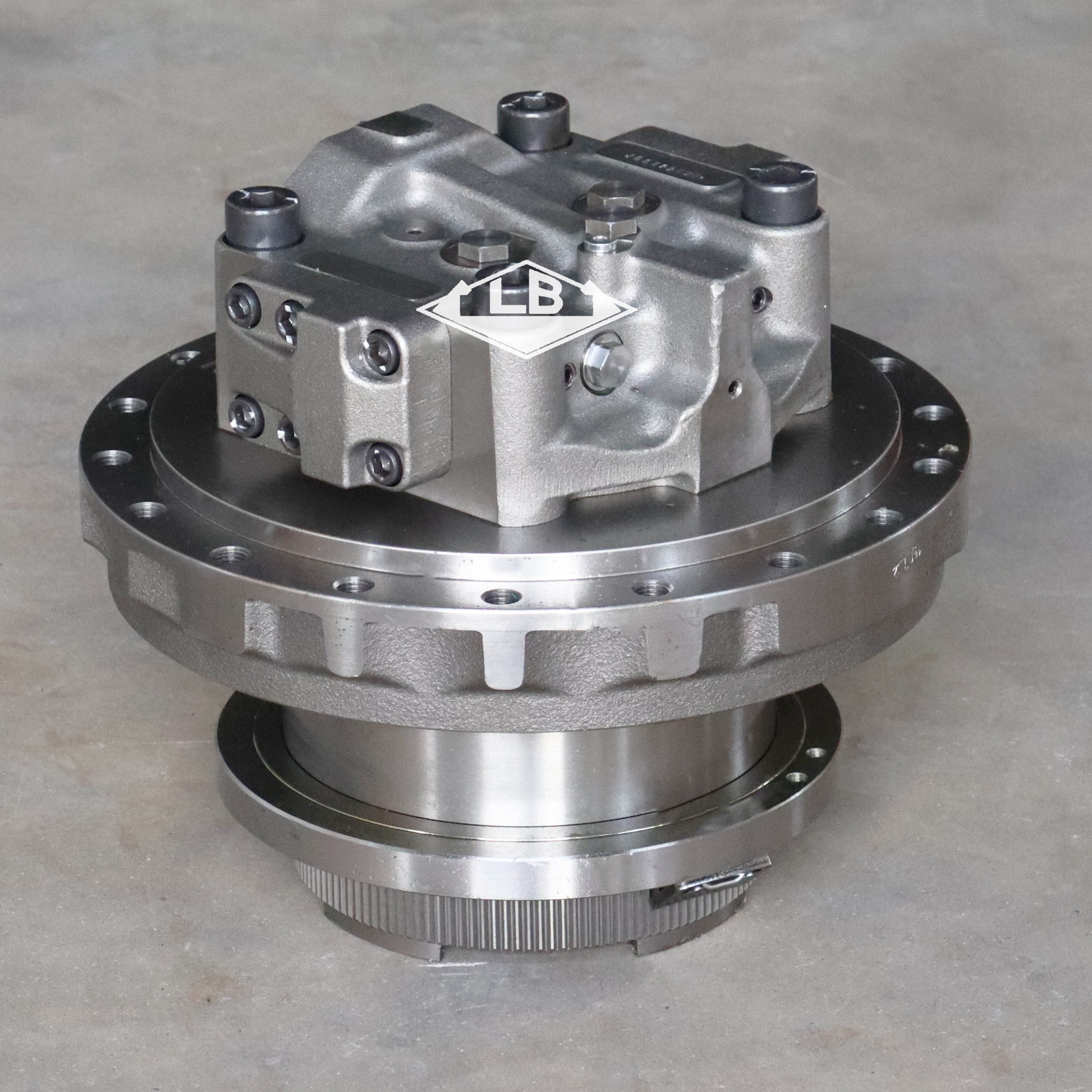

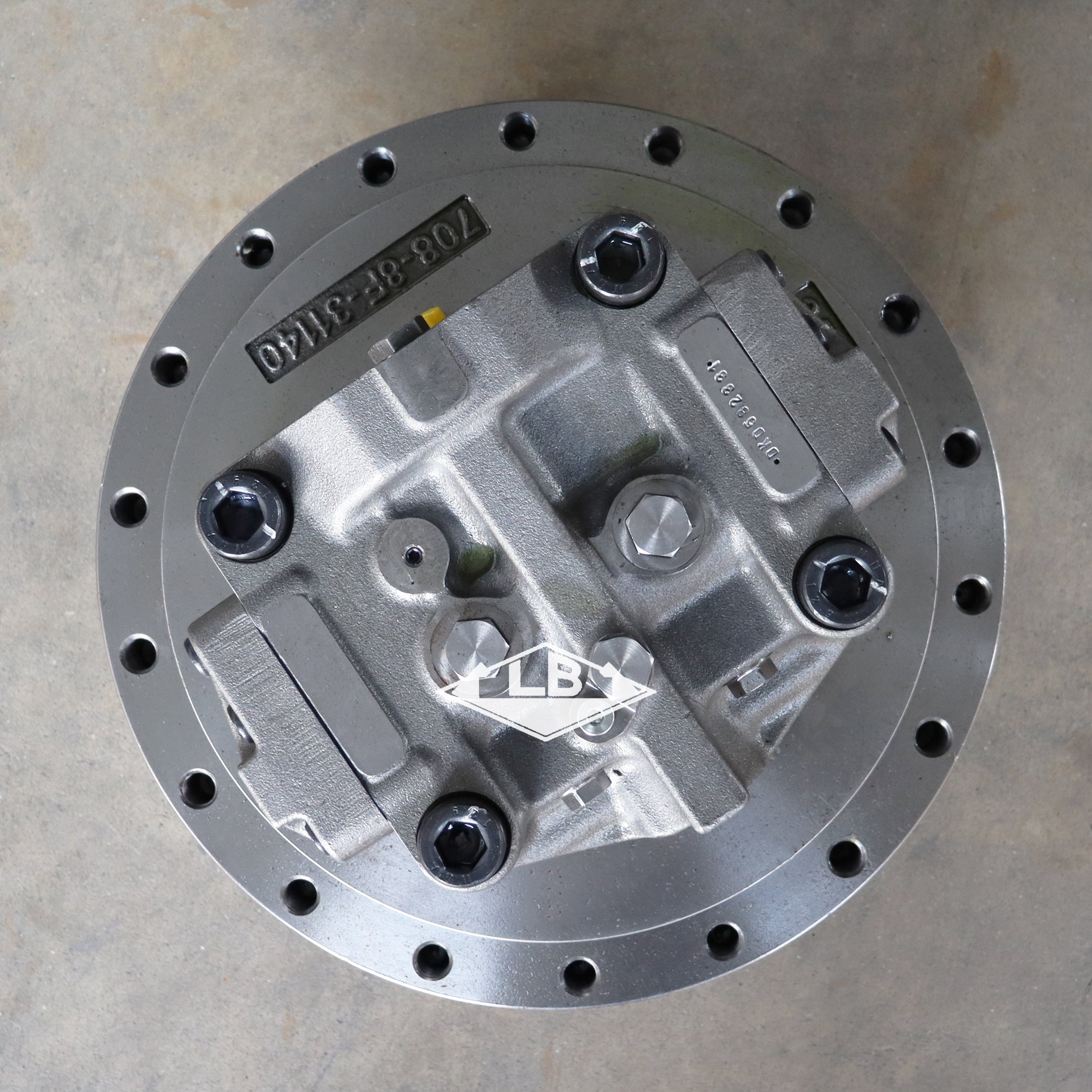

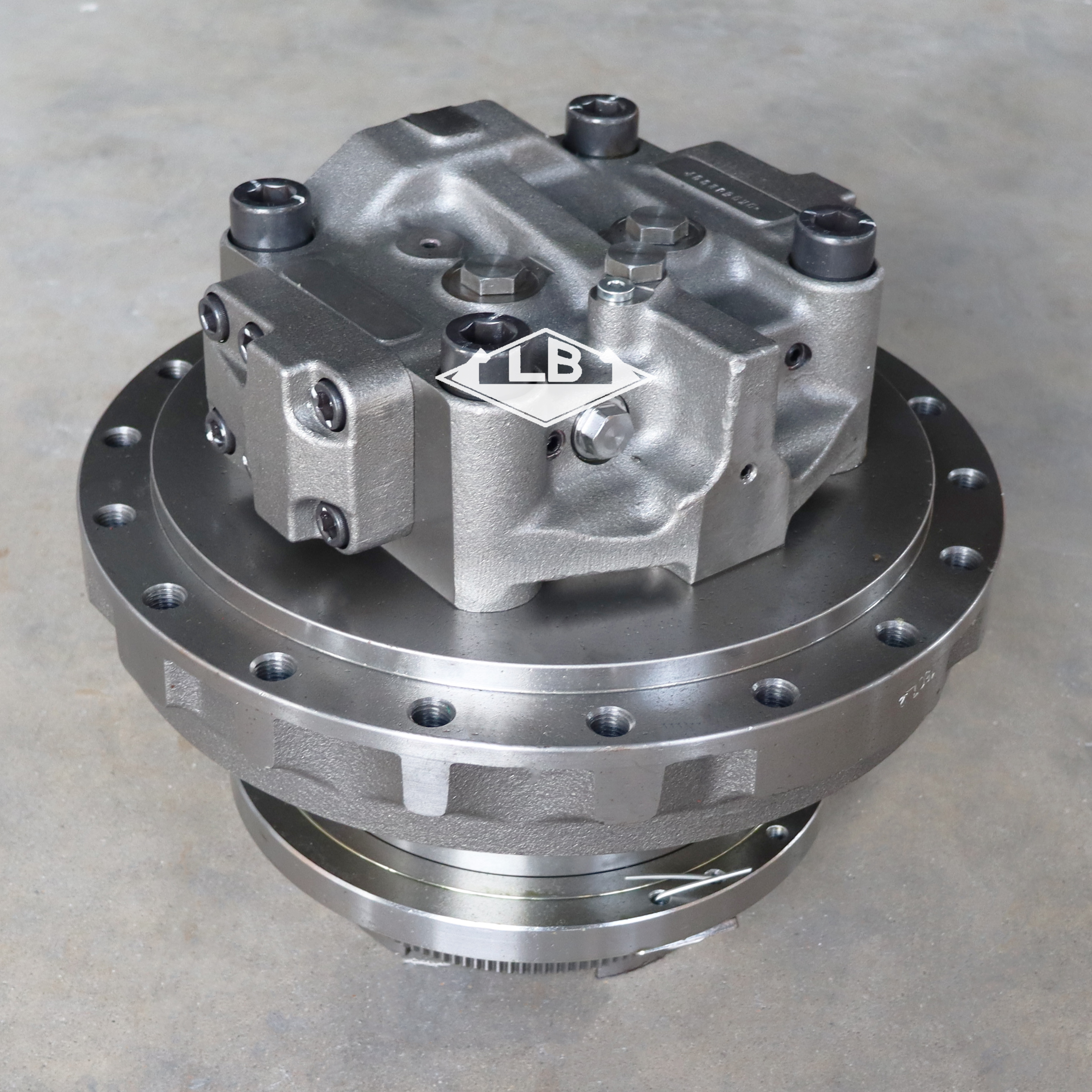

PC200-7 FINAL DRIVE PARTS 708-8F-00170 708-8F-00171 PC200-7 TRAVEL MOTOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	PC200-7 FINAL DRIVE PARTS
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	708-8F-00170 708-8F-00171
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13T
Item condition	New
Logo	LB
Gross weight	420 KG
MOQ	1 pc

Product Description

PC200-7 行走马达(6) PC200-7 行走马达(2) PC200-7 行走马达（8） PC200-7 行走马达(4)

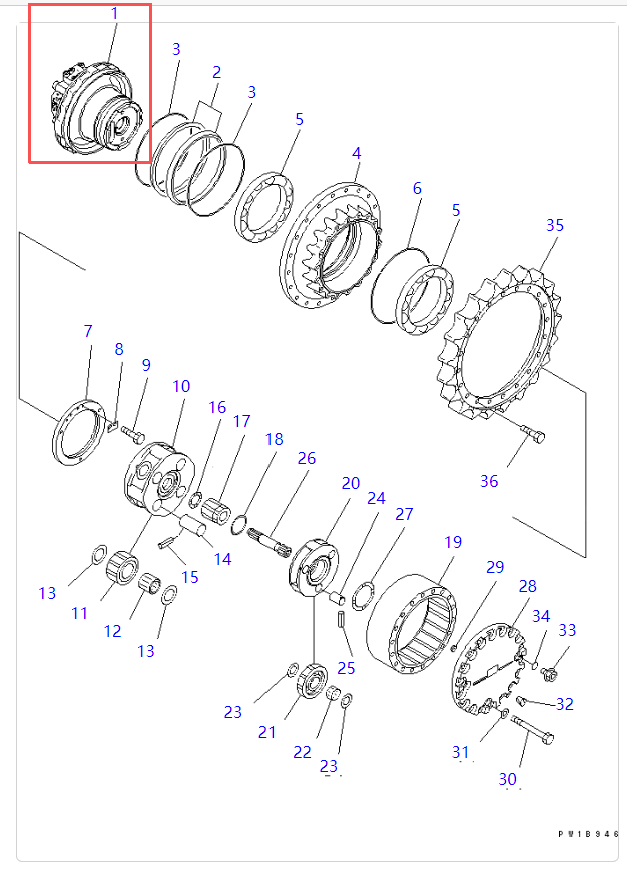

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	20Y-27-00301	[2]	FINAL DRIVE ASS'Y Komatsu	394 kg.
			["SN: 202656-203012"] analogs:["2062700300", "2062700421", "2062700301", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700300", "20Y2700440", "20Y2700441", "2062700302", "2062700422", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] \|$1.
	20Y-27-00300	[2]	FINAL DRIVE ASS'Y Komatsu	394 kg.
			["SN: 200001-202655"] analogs:["2062700300", "2062700421", "2062700301", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700440", "20Y2700301", "20Y2700441", "2062700302", "2062700422", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] \|$2.
1.	708-8F-00171	[1]	MOTOR ASS'Y Komatsu OEM	107.801 kg.
			["SN: 202656-203012"] analogs:["7088F00170"]
1.	708-8F-00170	[1]	MOTOR ASS'Y Komatsu OEM	107.801 kg.
			["SN: 200001-202655"] analogs:["7088F00171"]
	150-27-00330	[1]	FLOATING SEAL ASS'Y Komatsu China	2.99 kg.
			["SN: 200001-@"] analogs:["1502700029", "1502700410"] \|$7.
2.		[2]	RING Komatsu China
			["SN: 200001-@"]
4.	20Y-27-31220	[1]	HUB Komatsu	80 kg.
			["SN: 200001-203012"]
5.	20Y-27-22230	[2]	BEARING Komatsu	4.6 kg.
			["SN: 200001-203012"]
6.	20Y-27-22280	[1]	O-RING Komatsu China	0.02 kg.
			["SN: 200001-203012"]
7.	20Y-27-22261	[1]	LOCK Komatsu	5.22 kg.
			["SN: 200001-@"]
8.	20Y-27-22270	[1]	LOCK Komatsu	0.07 kg.
			["SN: 200001-203012"]
9.	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["SN: 200001-@"] analogs:["801014093", "0101051020", "801015108"]
10.	20Y-27-22170	[1]	CARRIER Komatsu China	20.4 kg.
			["SN: 200001-@"]
11.	20Y-27-22140	[4]	GEAR Komatsu China	3.72 kg.
			["SN: 200001-@"]
12.	20Y-27-22220	[4]	BEARING Komatsu China	0.3 kg.
			["SN: 200001-@"] analogs:["20Y2721270"]
13.	20Y-27-21250	[8]	WASHER Komatsu China	0.03 kg.
			["SN: 200001-@"]
14.	20Y-27-21230	[4]	PIN Komatsu	1.54 kg.
			["SN: 200001-203012"]
15.	20Y-27-21290	[4]	PIN Komatsu OEM	0.03 kg.
			["SN: 200001-@"]
16.	20Y-27-13310	[1]	WASHER Komatsu China	0.08 kg.
			["SN: 200001-@"]
17.	20Y-27-22130	[1]	GEAR Komatsu China	1.75 kg.
			["SN: 200001-@"]
18.	20Y-27-22240	[1]	WASHER Komatsu China	0.03 kg.
			["SN: 200001-@"]
19.	20Y-27-22150	[1]	GEAR Komatsu	43.7 kg.
			["SN: 200001-203012"] analogs:["20Y2722151"]
20.	20Y-27-22160	[1]	CARRIER Komatsu OEM	6 kg.
			["SN: 200001-203012"]
21.	20Y-27-22120	[3]	GEAR Komatsu China	2.5 kg.
			["SN: 200001-@"]
22.	20Y-27-22210	[3]	BEARING Komatsu China	0.12 kg.
			["SN: 200001-@"] analogs:["20Y2721260"]
23.	20Y-27-21240	[6]	WASHER Komatsu China	0.02 kg.
			["SN: 200001-@"]
24.	20Y-27-21220	[3]	PIN Komatsu China	0.411 kg.
			["SN: 200001-@"]
25.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["SN: 200001-@"]
26.	20Y-27-31210	[1]	SHAFT Komatsu China	1.5 kg.
			["SN: 200001-203012"]
27.	20Y-27-21310	[1]	WASHER Komatsu China	0.17 kg.
			["SN: 200001-@"]
28.	20Y-27-31230	[1]	COVER Komatsu	18 kg.
			["SN: 200001-203012"]
29.	20Y-27-22250	[1]	BUTTON Komatsu China	0.05 kg.
			["SN: 200001-@"]
30.	20Y-27-13281	[18]	BOLT Komatsu	0.31 kg.
			["SN: 200001-203012"]
31.	01643-31645	[18]	WASHER Komatsu	0.072 kg.
			["SN: 200001-203012"] analogs:["802170005", "0164301645"]
32.	07049-01012	[2]	PLUG Komatsu	0.001 kg.
			["SN: 200001-@"]
33.	07044-12412	[3]	PLUG Komatsu	0.09 kg.
			["SN: 200001-203012"] analogs:["0704402412", "R0704412412"]
34.	07002-12434	[3]	O-RING Komatsu China	0.01 kg.
			["SN: 200001-@"] analogs:["0700202434", "0700213434"]
35.	20Y-27-11582	[1]	SPROCKET Komatsu China	36.2 kg.
			["SN: 200001-@"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
36.	20Y-27-11561	[20]	BOLT Komatsu China	0.14 kg.
			["SN: 200001-@"]
