| Quantity: | |
|---|---|

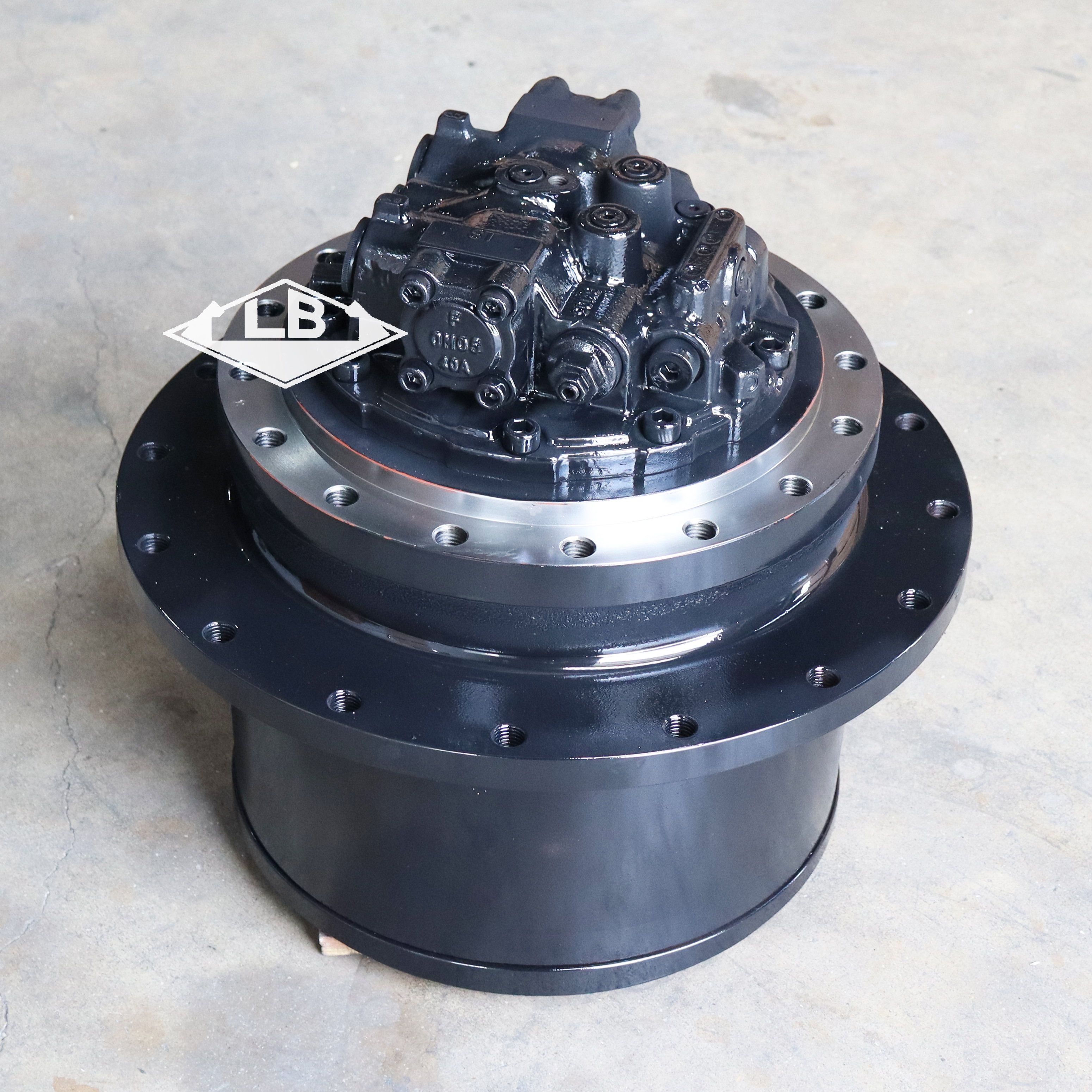

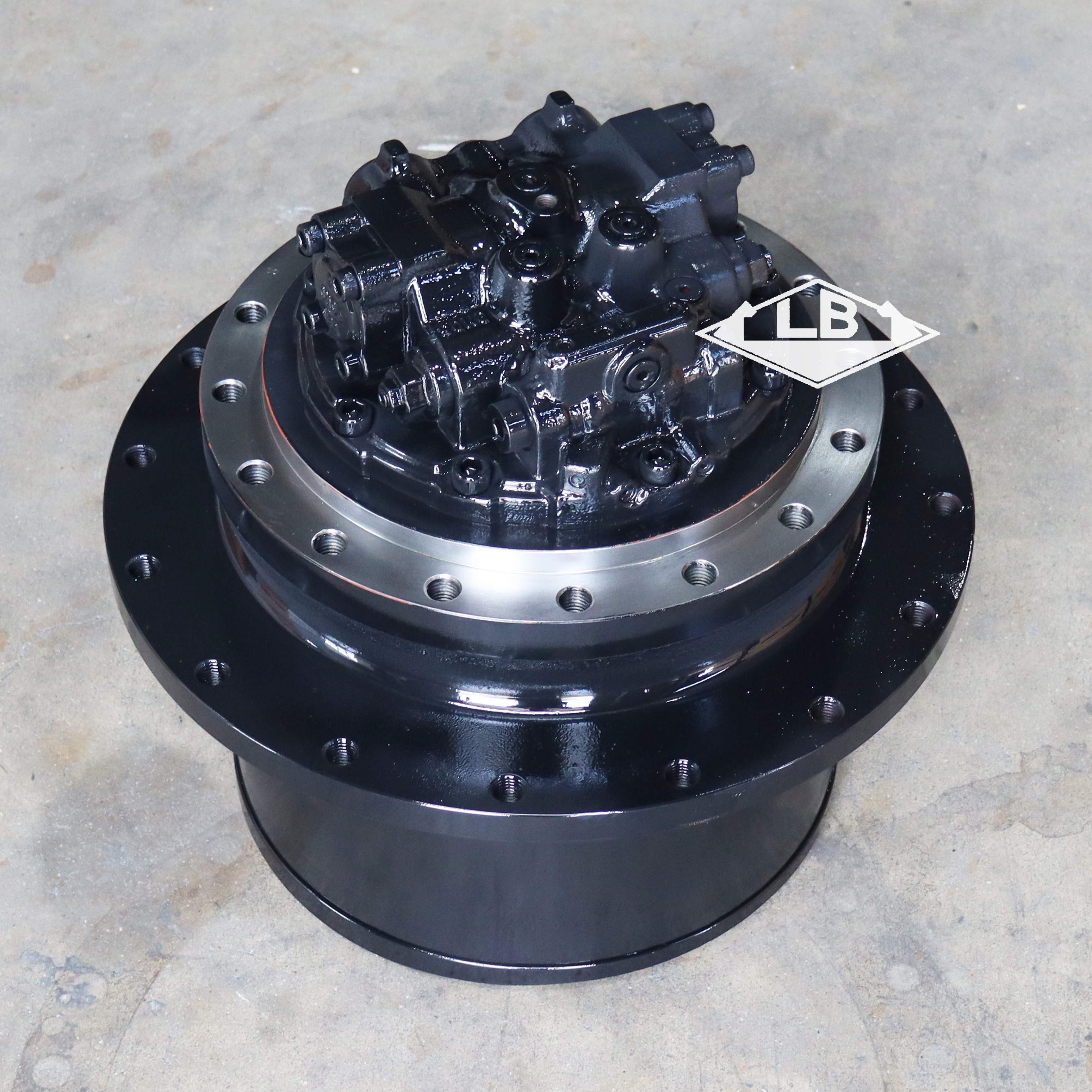

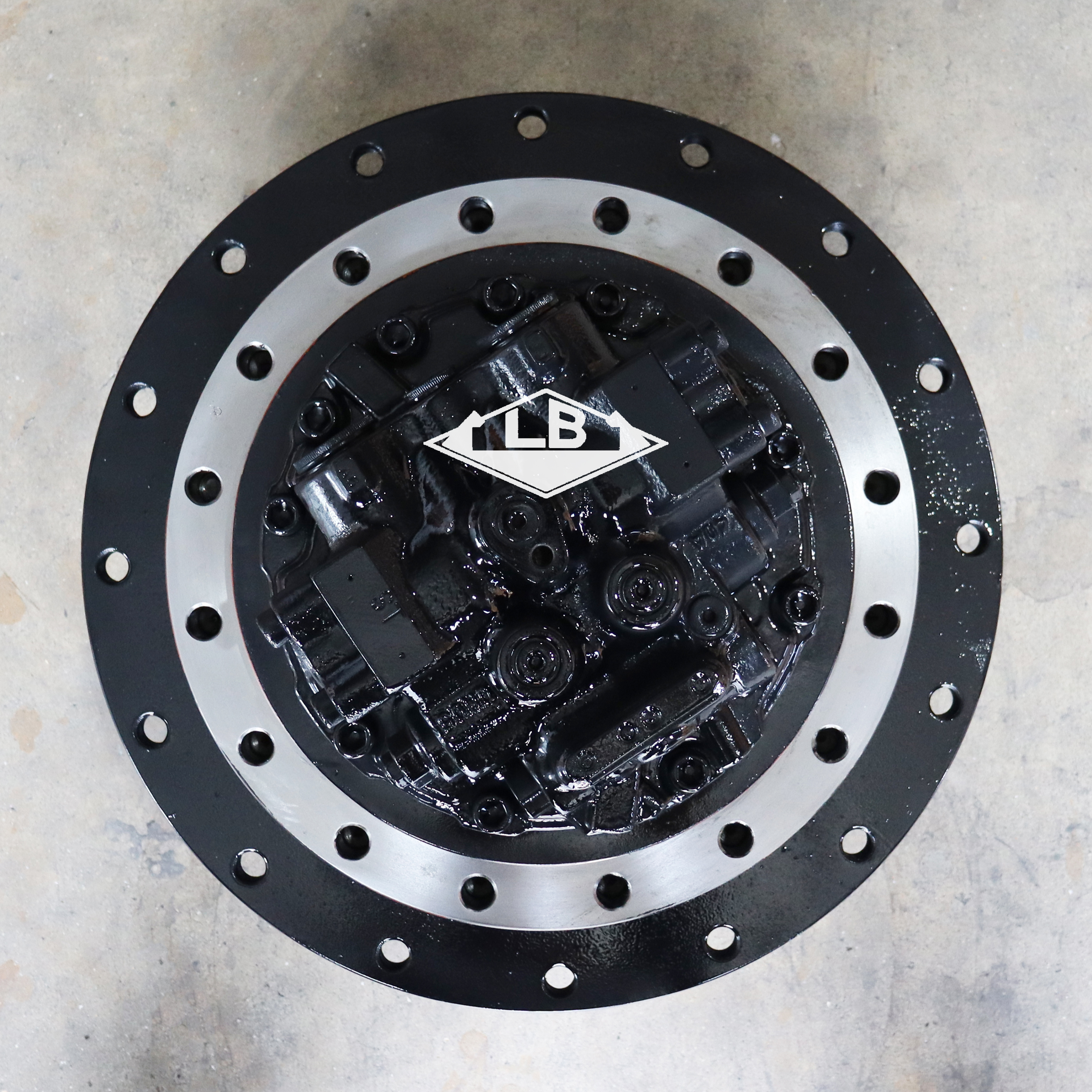

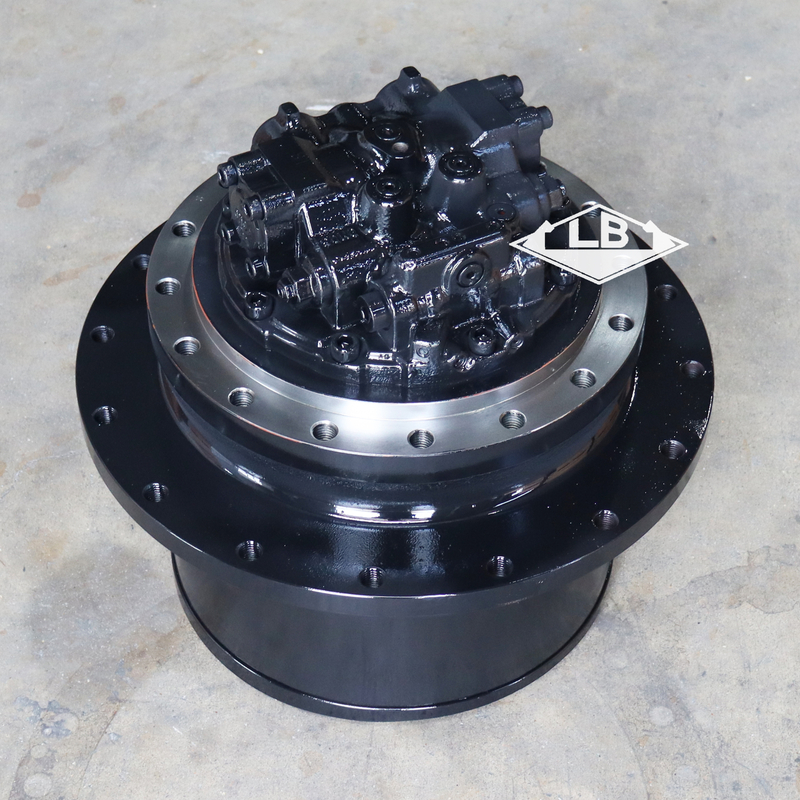

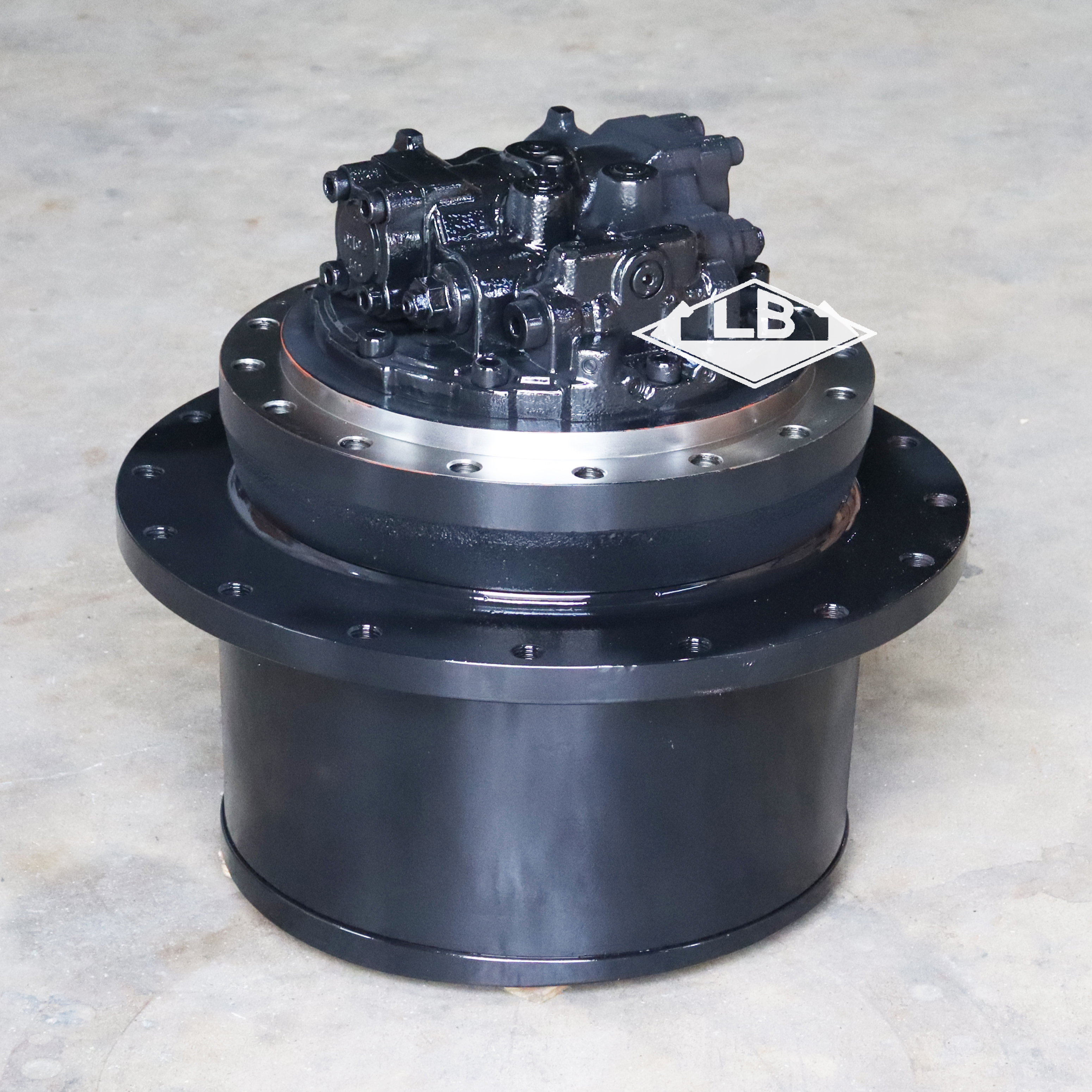

| Part name | E323D3 FINAL DRIVE | |||||
| Equipment | Apply to CAT EXCAVATOR | |||||
| Part no. | 525-3672 543-1001 | |||||
| Frame holes | / | |||||
| Sprocket holes | / | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description

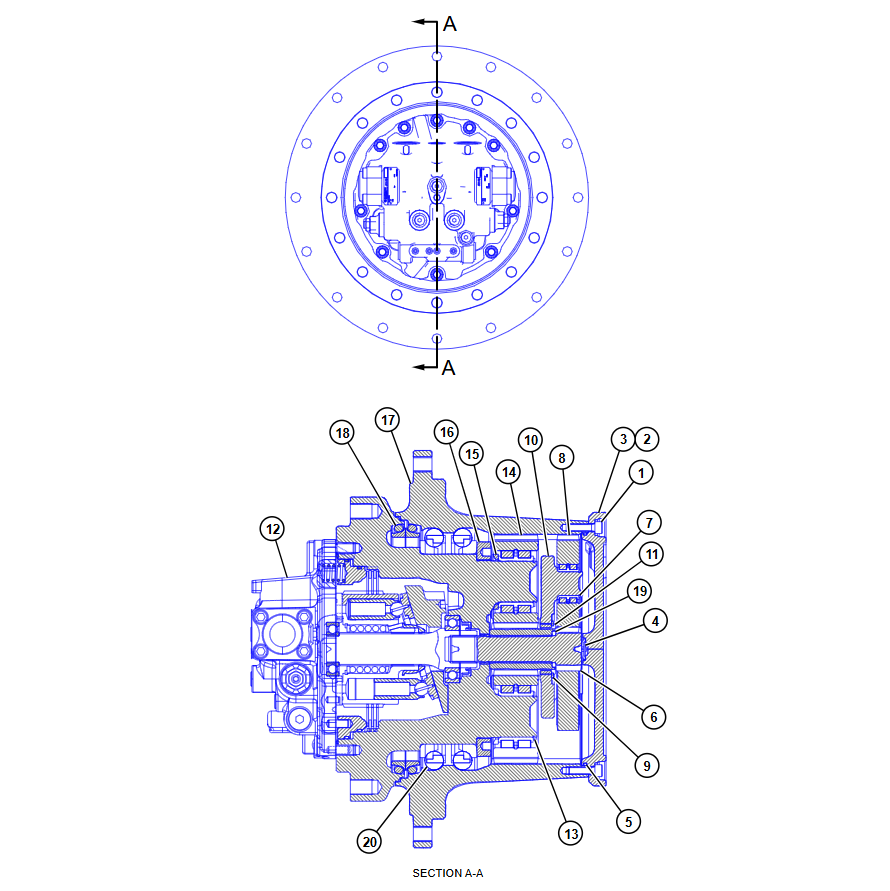

| Item | Part Number | Part Name | Quantity |
| 1 | 418-6789 | Bolt-Socket Head (M10X1.5X35-MM) | 10 |
| 2 | 658-7436 | Plug | 2 |
| 3 | 550-5754 | Cover | 1 |
| 4 | 550-5755 | Pad | 1 |
| 5 | 550-5756 | Seal-O-Ring | 1 |
| 6 | 550-5757 | Gear-Sun (14-TEETH) | 1 |
| 7 | 550-5758 | Ring-Retaining | 3 |
| 8 | 550-5759 | Gear-Planetary (35-TEETH) | 3 |
| 9 | 550-5760 | Ring-Retaining | 1 |
| 10 | 550-5761 | Carrier-Planetary | 1 |
| 11 | 550-5762 | Gear-Sun (17-TEETH) | 1 |
| 12 | 550-5771 | Motor & Mtg GP-Travel | 1 |
| 13 | 550-5764 | Ring-Retaining | 4 |
| 14 | 550-5765 | Gear-Planetary (33-TEETH) | 4 |
| 15 | 550-5766 | Spacer (60X74X7-MM Thk) | 4 |
| 16 | 550-5767 | Nut-Ring | 1 |
| 17 | 550-5768 | Housing | 1 |
| 18 | 550-5769 | Seal-O-Ring | 1 |
| 19 | 550-5770 | Spacer | 1 |
| 20 | 634-6701 | Bearing AS | 1 |
