PC200-7 PC220-7 PC200-8 PC210-8 TRAVEL MOTOR ASSY 20Y-27-00300 20Y-27-00301 206-27-00422 20-24-00423 20Y-27-00560 20Y-27-00590 20Y-72-00550 PC200-7 FINAL DRIVE

Share to:

PC200-7 PC220-7 PC200-8 PC210-8 TRAVEL MOTOR ASSY 20Y-27-00300 20Y-27-00301 206-27-00422 20-24-00423 20Y-27-00560 20Y-27-00590 20Y-72-00550 PC200-7 FINAL DRIVE

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	PC200-7 PC220-7 PC200-8 PC210-8 TRAVEL MOTOR ASSY
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	20Y-27-00300 20Y-27-00301 206-27-00422 20-24-00423 20Y-27-00560 20Y-27-00590 20Y-72-00550
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13T
Item condition	New
Logo	LB
Gross weight	420 KG
MOQ	1 pc

Product Description

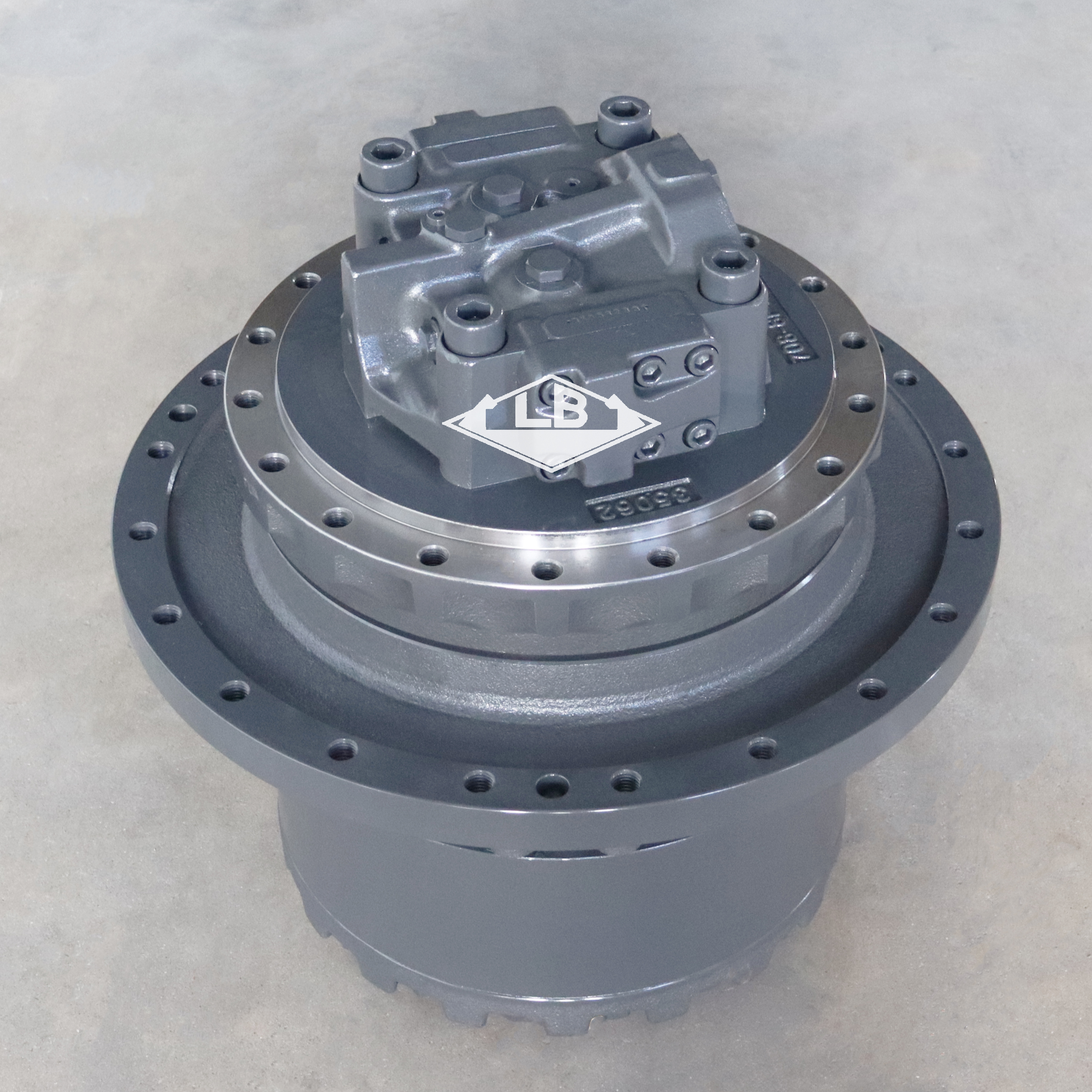

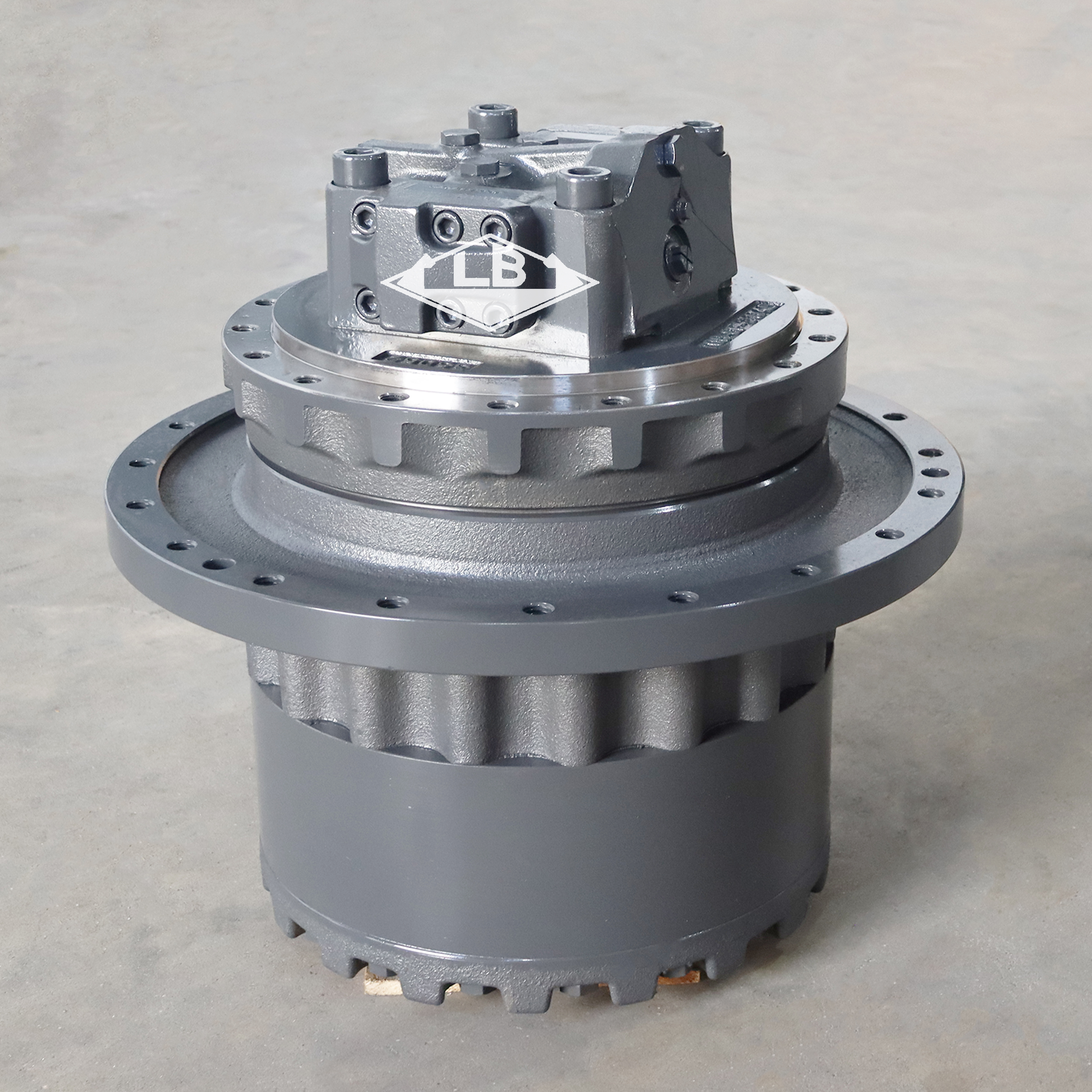

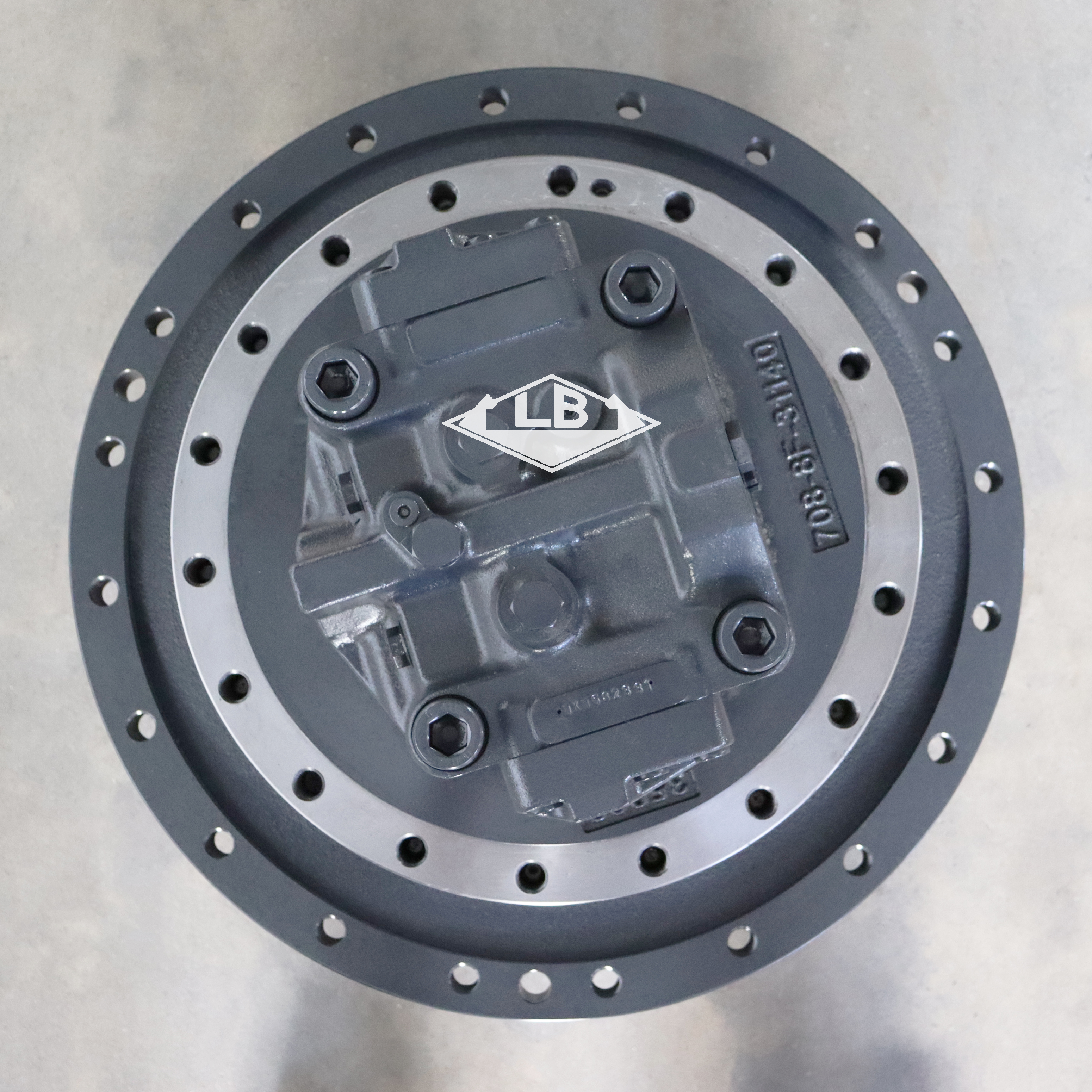

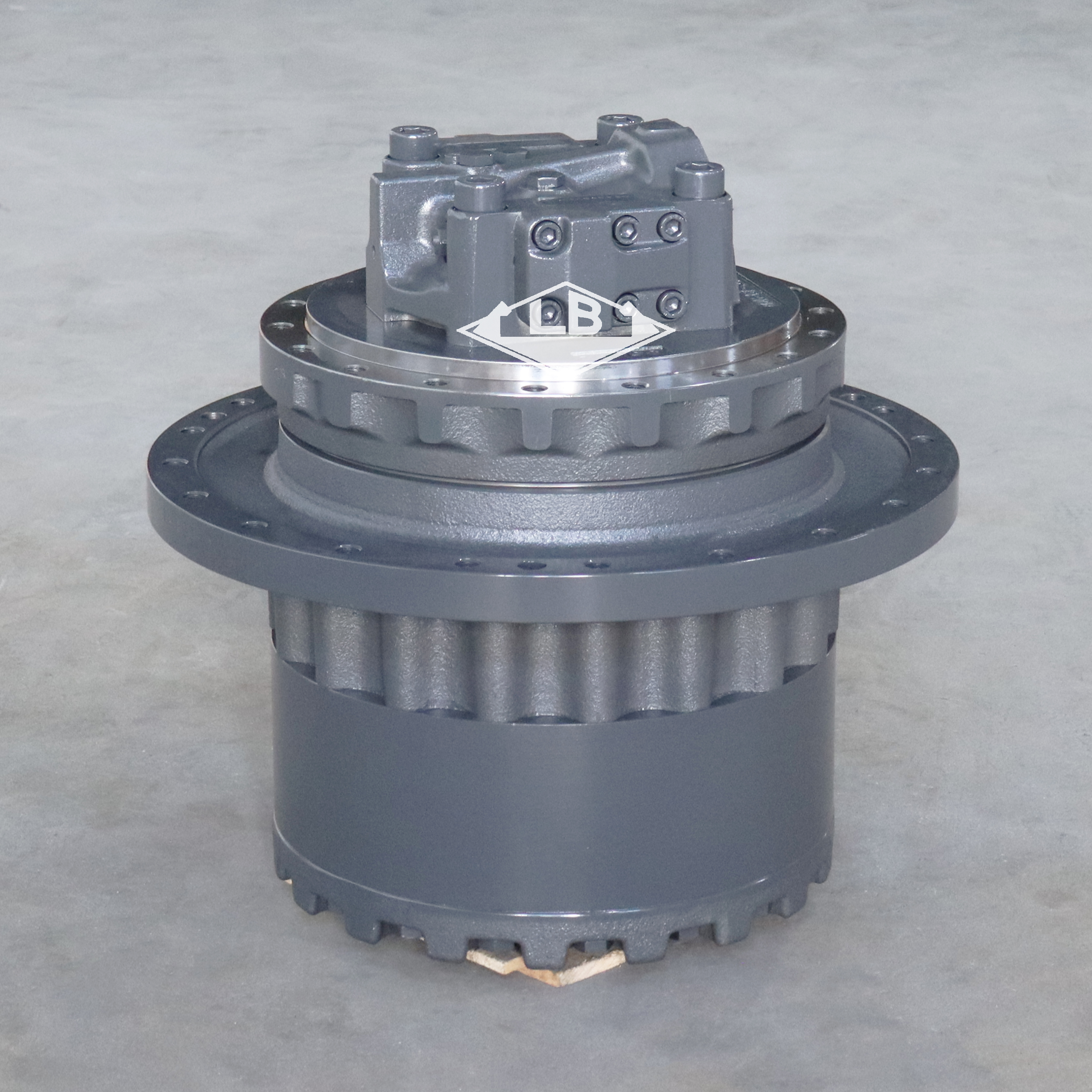

PC200-8 PC200-7 行走总成(4) PC200-8 PC200-7 行走总成(6) PC200-8 PC200-7 行走总成(8) PC200-8 PC200-7 行走总成(2)

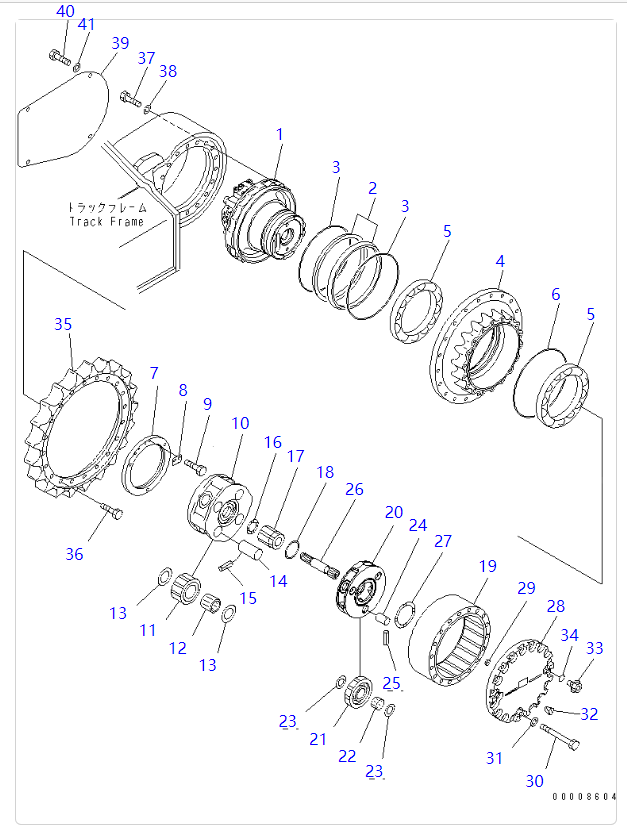

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	206-27-00300	[2]	FINAL DRIVE ASS'Y Komatsu	394 kg.
			["SN: K40001-UP"] analogs:["2062700421", "2062700301", "20Y2700360", "20Y2700352", "20Y2700361", "20Y2700351", "20Y2700432", "20Y2700300", "20Y2700440", "20Y2700301", "20Y2700441", "2062700302", "2062700422", "2062700310", "2062700311", "20Y2700430", "2062700423", "2062700312"] \|1.
1.	708-8F-00191	[1]	MOTOR ASS'Y,(SEE FIG.Y1641-01A0) Komatsu OEM	99.77 kg.
			["SN: K40001-UP"] analogs:["7088F00190", "7088F00192"]
	150-27-00330	[1]	FLOATING SEAL ASS'Y Komatsu China	2.99 kg.
			["SN: K40001-UP"] analogs:["1502700029", "1502700410"] \|2.
4.	22U-27-21182	[1]	HUB Komatsu	79.81 kg.
			["SN: K40001-UP"]
5.	20Y-27-22230	[2]	BEARING Komatsu	4.6 kg.
			["SN: K40001-UP"]
6.	22U-27-21220	[1]	O-RING Komatsu	0.015 kg.
			["SN: K40001-UP"]
7.	20Y-27-22261	[1]	LOCK Komatsu	5.22 kg.
			["SN: K40001-UP"]
8.	20Y-27-22270	[1]	LOCK Komatsu	0.07 kg.
			["SN: K40001-UP"]
9.	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["SN: K40001-UP"] analogs:["801014093", "0101051020", "801015108"]
10.	22U-27-21170	[1]	CARRIER Komatsu OEM	20.65 kg.
			["SN: K40001-UP"] analogs:["22U2721171"]
11.	22U-27-21140	[4]	GEAR Komatsu OEM	9.28 kg.
			["SN: K40001-UP"]
12.	20Y-27-22220	[4]	BEARING Komatsu China	0.3 kg.
			["SN: K40001-UP"] analogs:["20Y2721270"]
13.	20Y-27-21250	[8]	WASHER Komatsu China	0.03 kg.
			["SN: K40001-UP"]
14.	22U-27-21230	[4]	PIN Komatsu OEM	1.543 kg.
			["SN: K40001-UP"]
15.	20Y-27-21290	[4]	PIN Komatsu OEM	0.03 kg.
			["SN: K40001-UP"]
16.	20Y-27-13310	[1]	WASHER Komatsu China	0.08 kg.
			["SN: K40001-UP"]
17.	22U-27-21130	[1]	GEAR Komatsu OEM	2.01 kg.
			["SN: K40001-UP"]
18.	22U-27-21210	[1]	THRUST WASHER Komatsu	0.03 kg.
			["SN: K40001-UP"]
19.	22U-27-21152	[1]	GEAR Komatsu	37.23 kg.
			["SN: K40001-UP"] analogs:["22U2721153"]
20.	22U-27-21161	[1]	CARRIER Komatsu OEM	7.43 kg.
			["SN: K40001-UP"]
21.	22U-27-21120	[3]	GEAR Komatsu China	5.34 kg.
			["SN: K40001-UP"]
22.	20Y-27-22210	[3]	BEARING Komatsu China	0.12 kg.
			["SN: K40001-UP"] analogs:["20Y2721260"]
23.	22U-27-21240	[6]	THRUST WASHER Komatsu	0.02 kg.
			["SN: K40001-UP"]
24.	20Y-27-21220	[3]	PIN Komatsu China	0.411 kg.
			["SN: K40001-UP"]
25.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["SN: K40001-UP"]
26.	22U-27-21110	[1]	SHAFT Komatsu OEM	1.5 kg.
			["SN: K40001-UP"]
27.	20Y-27-21310	[1]	WASHER Komatsu China	0.17 kg.
			["SN: K40001-UP"]
28.	22U-27-21192	[1]	COVER Komatsu	18.75 kg.
			["SN: K40001-UP"]
29.	20Y-27-22250	[1]	BUTTON Komatsu China	0.05 kg.
			["SN: K40001-UP"]
30.	20Y-27-13281	[20]	BOLT Komatsu	0.31 kg.
			["SN: K40001-UP"]
31.	01643-31645	[20]	WASHER Komatsu	0.072 kg.
			["SN: K40001-UP"] analogs:["802170005", "0164301645"]
32.	07049-01012	[2]	PLUG Komatsu	0.001 kg.
			["SN: K40001-UP"]
33.	07044-12412	[3]	PLUG Komatsu	0.09 kg.
			["SN: K40001-UP"] analogs:["0704402412", "R0704412412"]
34.	07002-02434	[3]	O-RING Komatsu China	0.01 kg.
			["SN: K40001-UP"] analogs:["0700212434", "0700213434"]
35.	20Y-27-11582	[1]	SPROCKET Komatsu China	36.2 kg.
			["SN: K40001-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
36.	20Y-27-11561	[20]	BOLT Komatsu China	0.14 kg.
			["SN: K40001-UP"]
37.	01010-B1660	[36]	BOLT Komatsu	0.127 kg.
			["SN: K40001-UP"] analogs:["0101061660", "0101031660", "0101081660"]
39.	20Y-30-21191	[2]	COVER Komatsu	12.25 kg.
			["SN: K40001-UP"]
40.	01010-81230	[8]	BOLT Komatsu	0.043 kg.
			["SN: K40001-UP"] analogs:["0101051230", "01010B1230"]
41.	01643-31232	[8]	WASHER Komatsu	0.027 kg.
			["SN: K40001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
