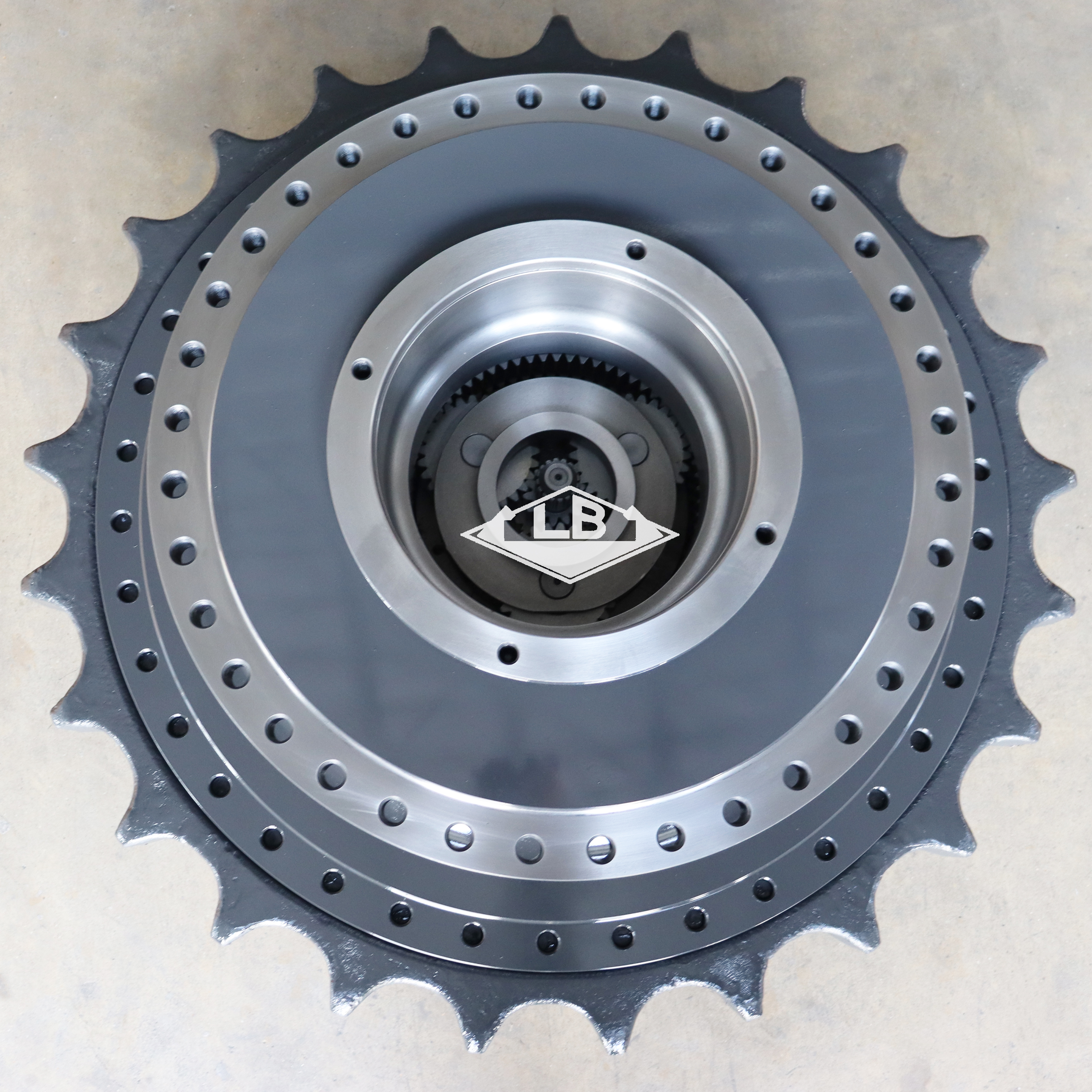

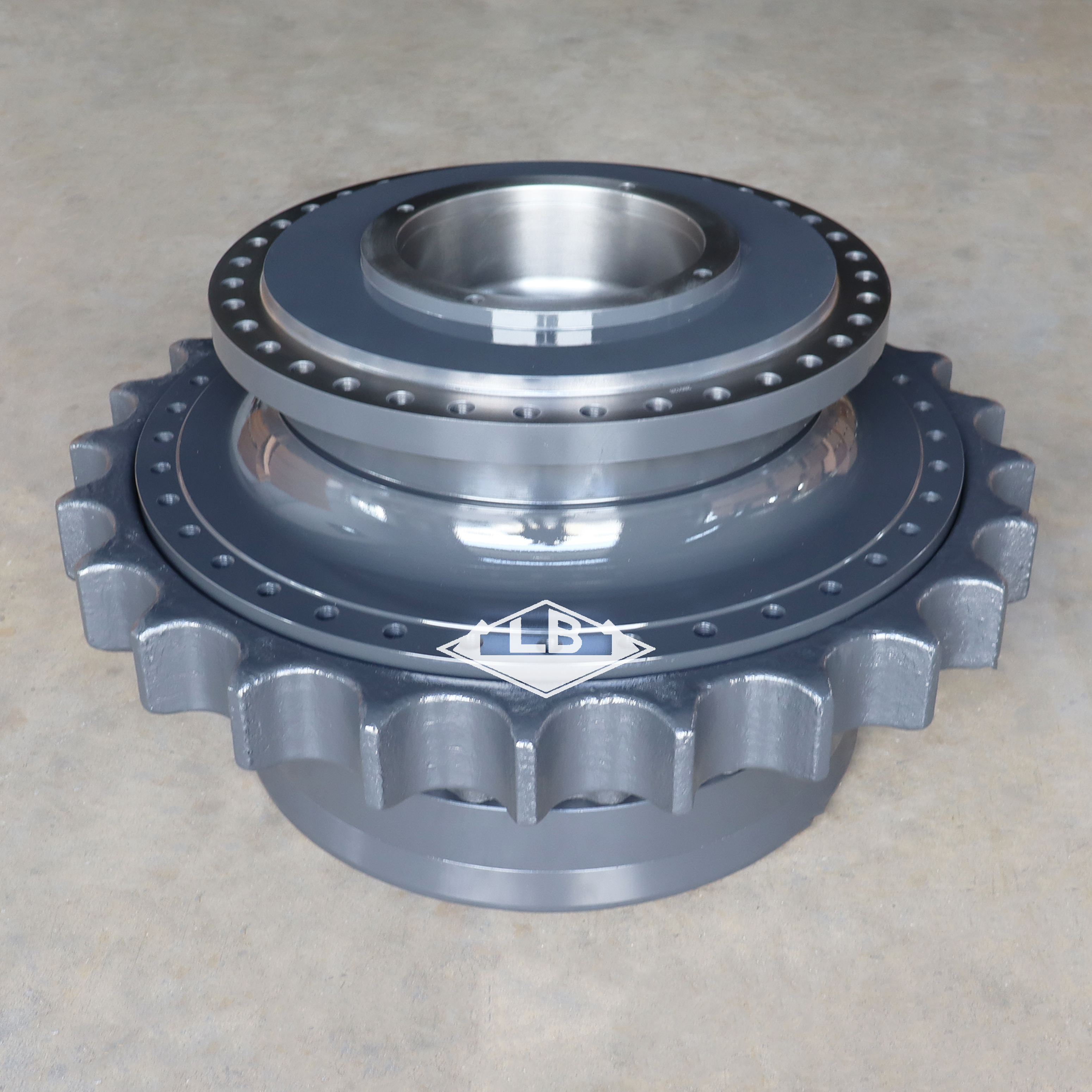

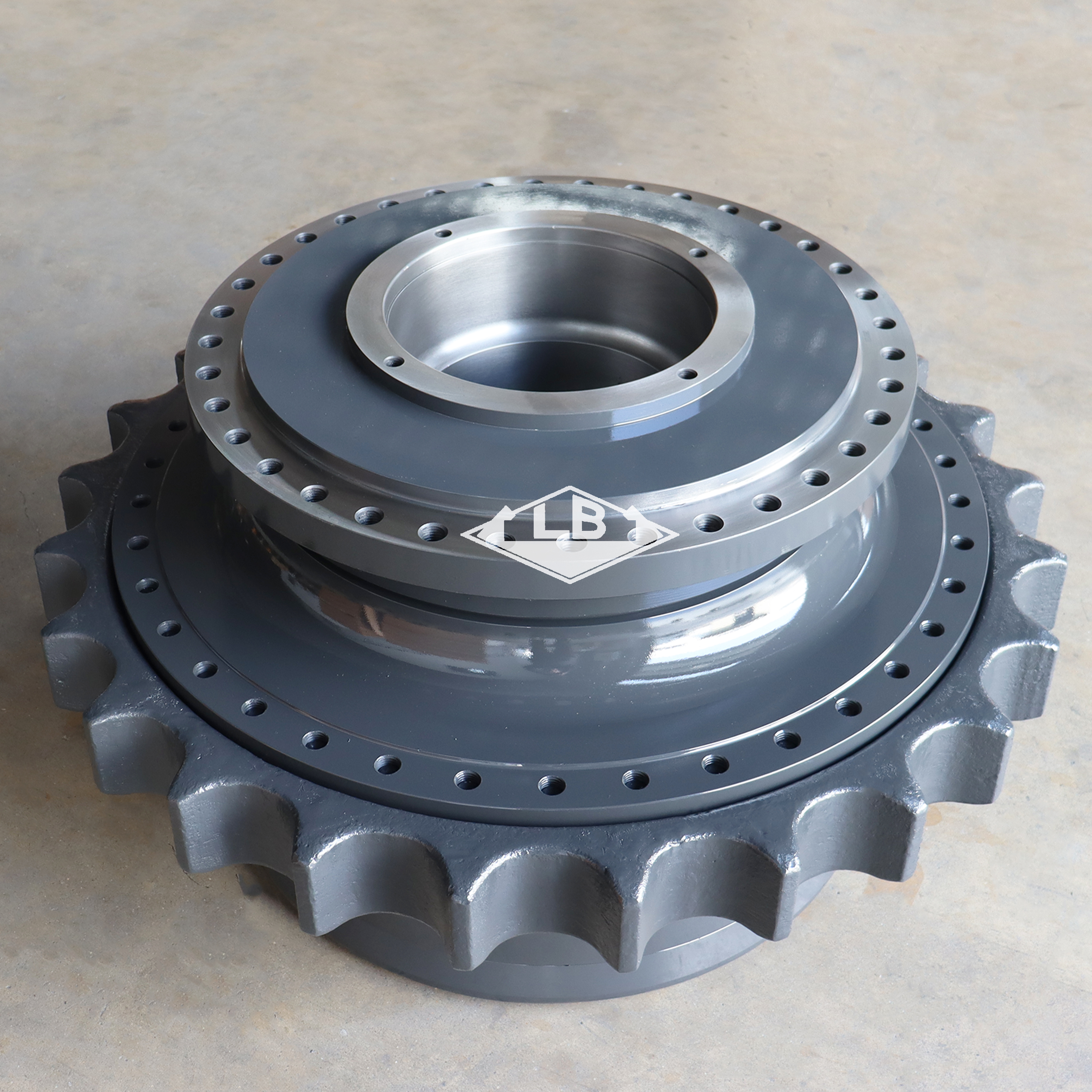

PC1250-7 PC1250-8 PC1250-11 TRAVEL GEARBOX WITH SPROCKET 21N-27-00130 21N-27-00140 21N-27-00190 PC1250 FINAL DRIVE

PRODUCT PARAMETERS

Product Description

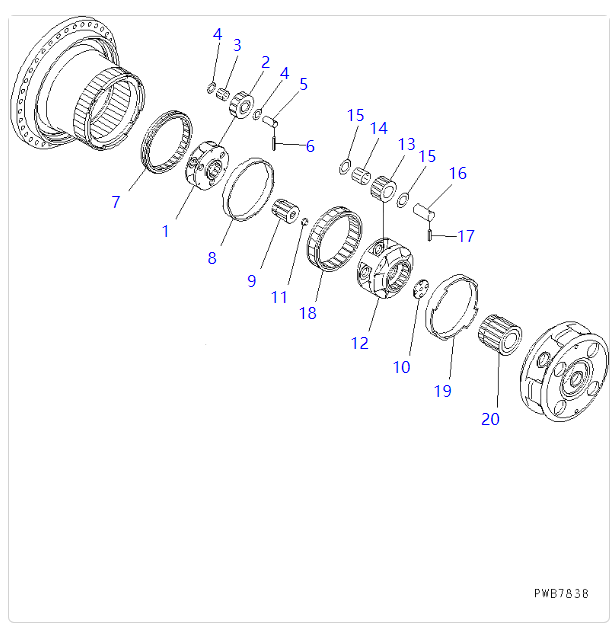

PC1250-7 PC1250-8 PC1250-11 行走牙箱带驱动齿(2)

Pos.	Part No	Qty	Parts name	Comments
	21N-27-00130	[2]	FINAL DRIVE ASS'Y Komatsu	1700 kg.
			["SN: 20001-UP"] \|1.
	21N-27-00140	[1]	FINAL DRIVE ASS'Y Komatsu	1700 kg.
			["SN: 20001-UP"] \|1.
1.	209-27-71190	[1]	CARRIER Komatsu	9.95 kg.
			["SN: 20001-UP"]
2.	21N-27-31250	[3]	GEAR Komatsu	3.56 kg.
			["SN: 20001-UP"]
3.	20G-26-11240	[3]	BEARING Komatsu China	0.24 kg.
			["SN: 20001-UP"] analogs:["20G2611241", "20G2611410"]
4.	20Y-27-21240	[6]	WASHER Komatsu China	0.02 kg.
			["SN: 20001-UP"]
5.	209-27-71310	[3]	PIN Komatsu	0.55 kg.
			["SN: 20001-UP"]
6.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["SN: 20001-UP"]
7.	21N-27-31260	[1]	GEAR¤ 68 TEETH Komatsu	6.97 kg.
			["SN: 20001-UP"]
8.	209-27-71410	[1]	SPACER Komatsu	4.2 kg.
			["SN: 20001-UP"]
9.	209-27-71141	[1]	GEAR Komatsu	4.8 kg.
			["SN: 20001-UP"]
10.	209-27-71350	[1]	PLATE Komatsu	0.5 kg.
			["SN: 20001-UP"]
11.	208-27-61350	[1]	BUTTON Komatsu	0.5 kg.
			["SN: 20002-UP"] analogs:["2072761280"]
	207-27-61280	[1]	BUTTON Komatsu	0.5 kg.
			["SN: 20001-20001"] analogs:["2082761350"] \|11.
12.	21N-27-31143	[1]	CARRIER Komatsu	32.5 kg.
			["SN: 20001-UP"]
13.	209-27-71261	[4]	GEAR Komatsu	3.16 kg.
			["SN: 20001-UP"]
14.	207-27-61230	[4]	BEARING Komatsu	0.65 kg.
			["SN: 20001-UP"]
15.	20Y-27-21250	[8]	WASHER Komatsu China	0.03 kg.
			["SN: 20001-UP"]
16.	209-27-71480	[4]	PIN Komatsu	1.87 kg.
			["SN: 20001-UP"]
17.	20Y-27-21290	[4]	PIN Komatsu OEM	0.03 kg.
			["SN: 20001-UP"]
18.	209-27-71390	[1]	GEAR Komatsu	11.64 kg.
			["SN: 20001-UP"]
19.	209-27-71330	[1]	SPACER Komatsu	4.4 kg.
			["SN: 20001-UP"]
20.	21N-27-31110	[1]	GEAR¤ 13 TEETH Komatsu	15.2 kg.
			["SN: 20001-UP"]

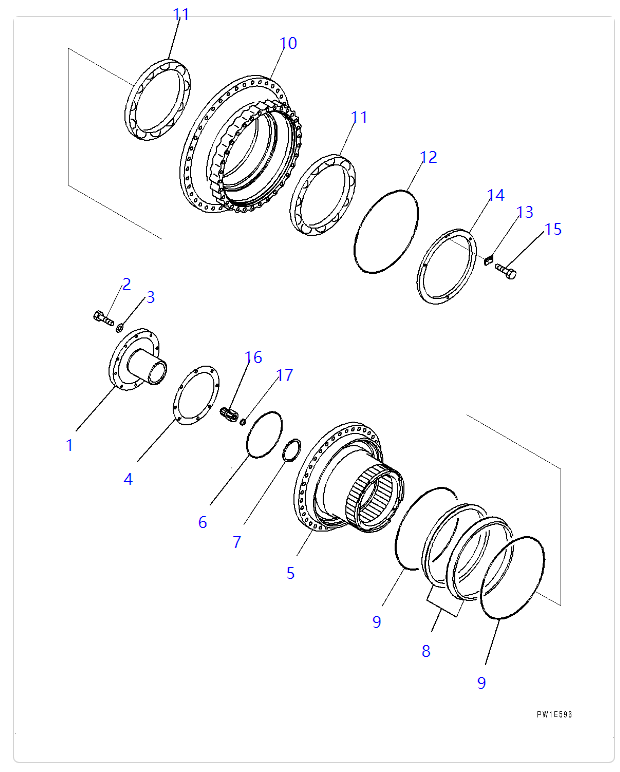

PC1250-7 PC1250-8 PC1250-11 行走牙箱带驱动齿(2)

Pos.	Part No	Qty	Parts name	Comments
	21N-27-00130	[1]	Final Drive Assembly Komatsu	1700 kg.
			["SN: 30158-UP"] \|$0.
	21N-27-00140	[1]	Final Drive Assembly Komatsu	1700 kg.
			["SN: 30158-UP"] \|$1.
1.	21N-27-31321	[1]	Cover Komatsu China
			["SN: 30158-UP"]
2.	01010-81845	[4]	Bolt Komatsu	0.14 kg.
			["SN: 30158-UP"] analogs:["0101061845", "0101031845", "0101051845", "R0101081845"]
3.	01643-31845	[4]	Washer Komatsu China	0.02 kg.
			["SN: 30158-UP"] analogs:["0164321845", "R0164331845"]
4.	21N-27-31330	[1]	Gasket Komatsu	0.5 kg.
			["SN: 30158-UP"]
5.	21N-27-31340	[1]	Shaft Komatsu	415 kg.
			["SN: 30158-UP"]
6.	209-27-71370	[1]	O-ring Komatsu	0.02 kg.
			["SN: 30158-UP"]
7.	209-27-71521	[1]	Spacer Komatsu	0.22 kg.
			["SN: 30158-UP"]
7.	209-27-00160	[1]	Floating Seal Assembly Komatsu	10.5 kg.
			["SN: 30158-UP"]
10.	21N-27-31171	[1]	Hub Komatsu	470 kg.
			["SN: 30158-UP"] analogs:["21N2731170"]
11.	209-27-61360	[2]	Bearing Komatsu	31.5 kg.
			["SN: 30158-UP"]
12.	198-09-31630	[1]	O-ring Komatsu	0.068 kg.
			["SN: 30158-UP"]
13.	209-27-71291	[1]	Lock Komatsu	0.07 kg.
			["SN: 30158-UP"]
14.	21N-27-31271	[1]	Nut, Lock Komatsu	16 kg.
			["SN: 30158-UP"]
15.	01010-81025	[2]	Bolt Komatsu	0.36 kg.
			["SN: 30158-UP"] analogs:["0101051025", "0101651025", "801015109"]
16.	21N-27-31310	[1]	Shaft Komatsu	2.01 kg.
			["SN: 30158-UP"]
17.	208-27-61350	[1]	Button Komatsu	0.5 kg.
			["SN: 30158-UP"] analogs:["2072761280"]

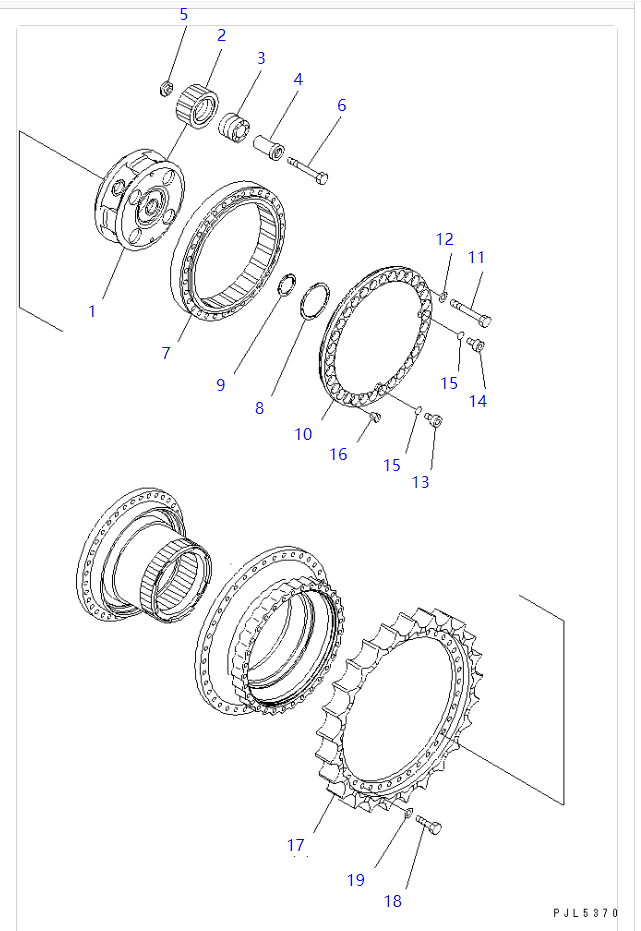

PC1250-7 PC1250-8 PC1250-11 行走牙箱带驱动齿(3)

Pos.	Part No	Qty	Parts name	Comments
	21N-27-00130	[2]	FINAL DRIVE ASS'Y Komatsu	1700 kg.
			["SN: 20001-UP"] \|$1.
	21N-27-00140	[1]	FINAL DRIVE ASS'Y Komatsu	1700 kg.
			["SN: 20001-UP"] \|$2.
1.	21N-27-31150	[1]	CARRIER Komatsu	106 kg.
			["SN: 20001-UP"]
2.	21N-27-31120	[4]	GEAR Komatsu	21 kg.
			["SN: 20001-UP"]
3.	21N-27-31210	[4]	BEARING Komatsu	9.58 kg.
			["SN: 20001-UP"]
4.	21N-27-31221	[4]	PIN Komatsu	4.95 kg.
			["SN: 20001-UP"]
5.	21N-27-31231	[4]	HOLDER Komatsu	0.98 kg.
			["SN: 20001-UP"]
6.	01011-82450	[4]	BOLT Komatsu	0.635 kg.
			["SN: 20001-UP"] analogs:["801015695", "0101152450", "0101162450"]
7.	21N-27-31130	[1]	GEAR Komatsu	119.8 kg.
			["SN: 20001-UP"]
8.	209-27-71360	[1]	THRUST WASHER Komatsu	0.34 kg.
			["SN: 20001-UP"]
9.	207-27-52270	[1]	SPACER Komatsu OEM	0.089 kg.
			["SN: 20001-UP"]
10.	21N-27-31161	[1]	COVER Komatsu	104.4 kg.
			["SN: 20001-UP"]
11.	01011-82465	[32]	BOLT Komatsu	9.808 kg.
			["SN: 20001-UP"] analogs:["0101132465", "0101152465", "0101162465"]
12.	01643-32460	[32]	WASHER Komatsu China	0.063 kg.
			["SN: 20001-UP"] analogs:["R0164332460"]
13.	209-27-61510	[1]	PLUG Komatsu	0.17 kg.
			["SN: 20001-UP"]
14.	07040-13016	[1]	PLUG Komatsu	0.171 kg.
			["SN: 20001-UP"]
15.	07002-13034	[2]	O-RING Komatsu China	0.005 kg.
			["SN: 20001-UP"] analogs:["0700203034"]
16.	07049-01215	[2]	PLUG Komatsu	0.001 kg.
			["SN: 20001-UP"]
17.	21N-27-31191	[1]	TEETH Komatsu	357.2 kg.
			["SN: 20001-UP"]
18.	01010-82475	[38]	BOLT Komatsu	0.376 kg.
			["SN: 20001-UP"] analogs:["0101062475", "0101052475", "0101032475"]
