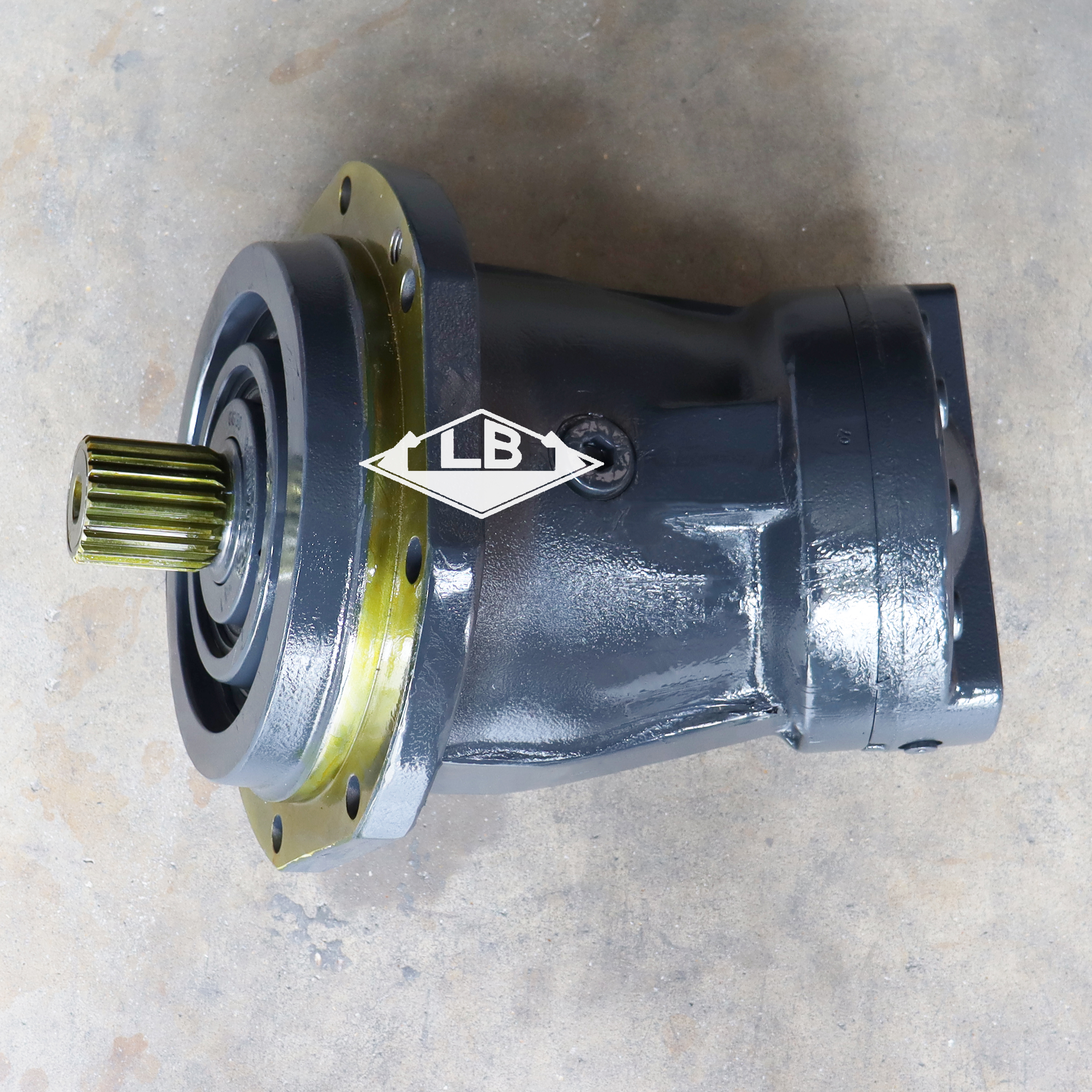

PC3000-6 PC4000-6 TRAVEL MOTOR 65489140 FOR KOMATSU EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 PC3000 PC4000 TRAVEL MOTOR
Equipment Apply to KOMATSU  EXCAVATOR
Part no. 65489140
motor shaft teeth --
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

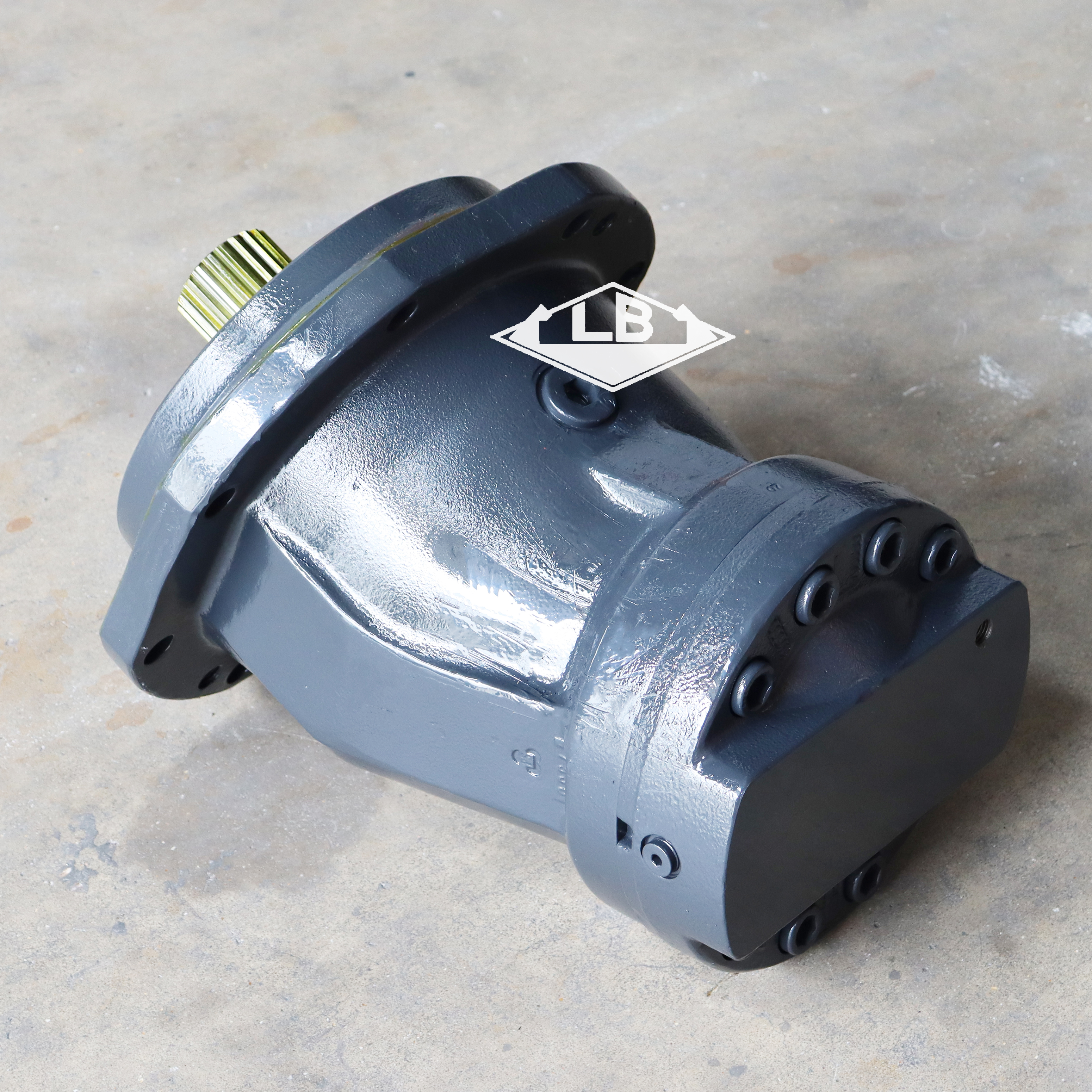

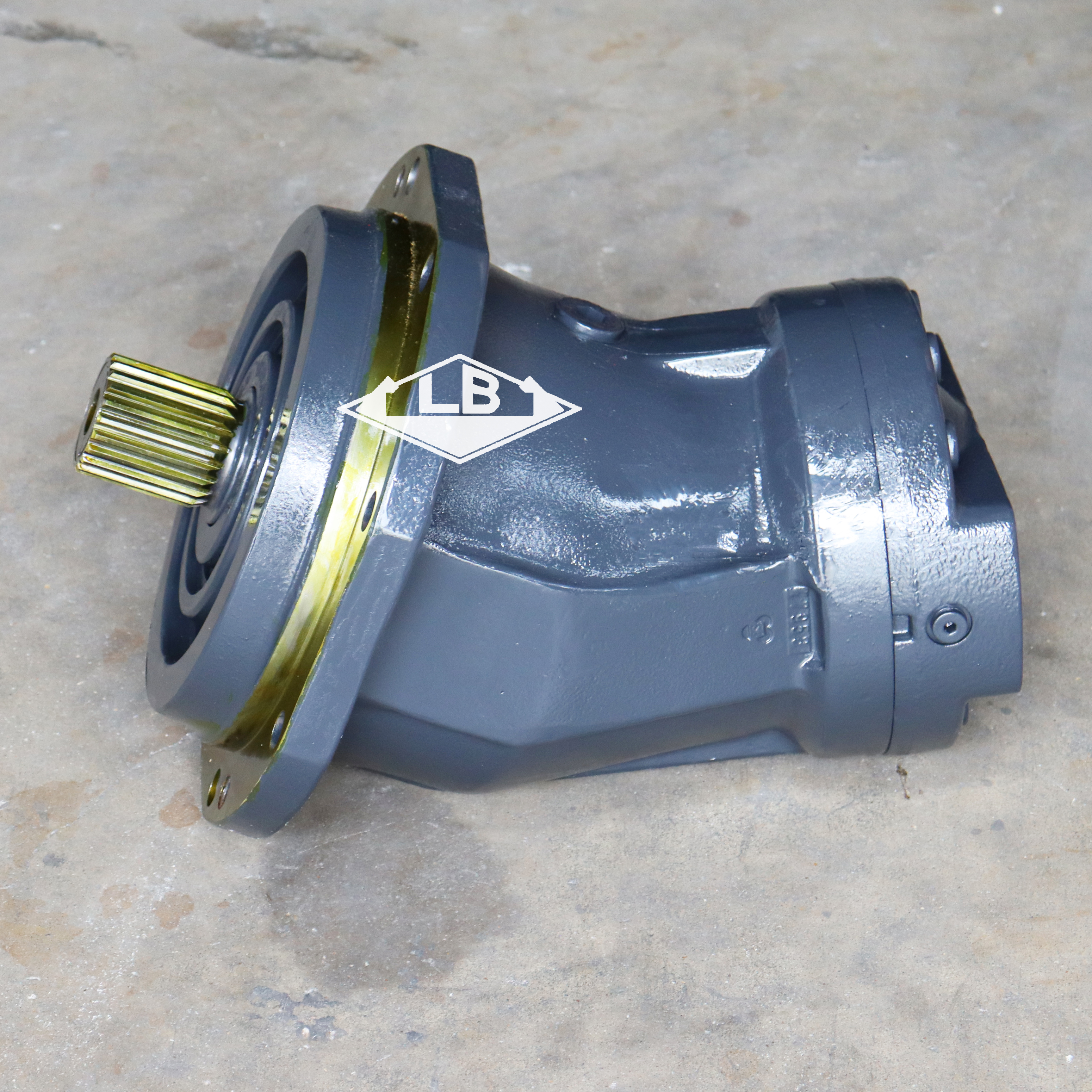

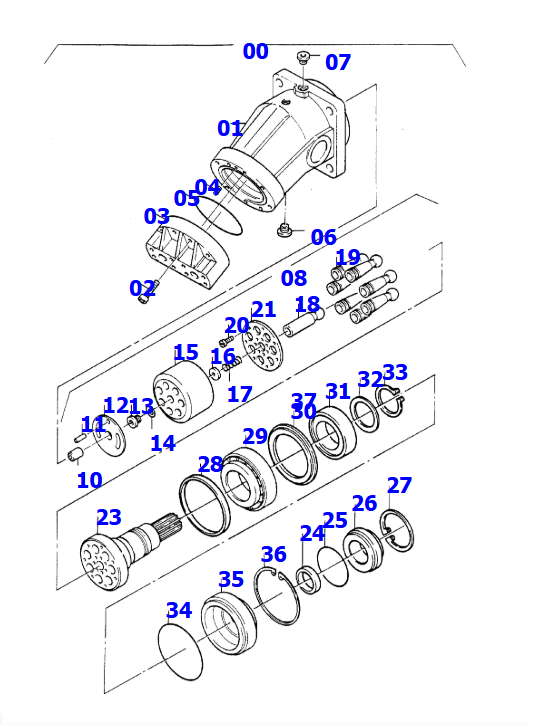

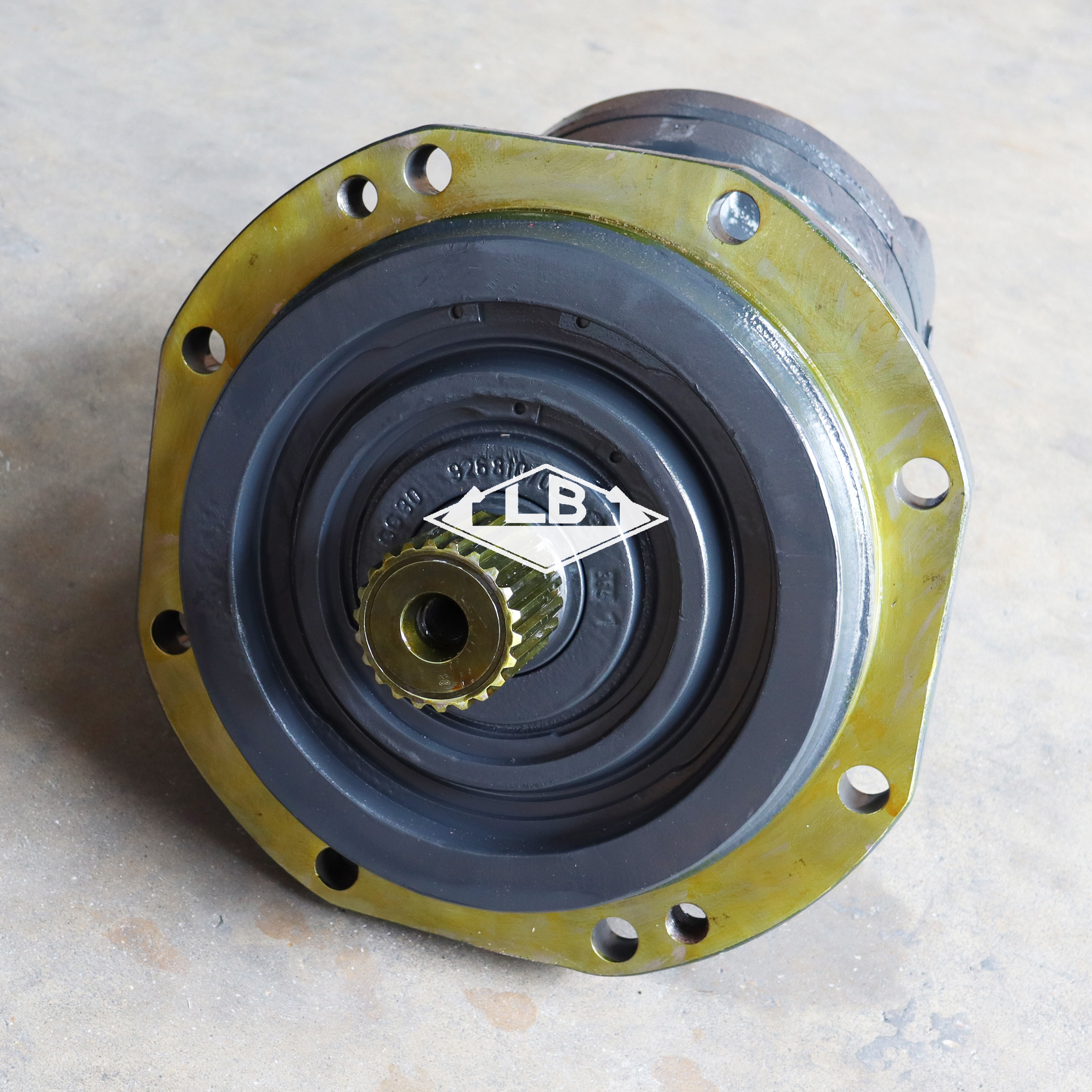

PC3000 行走马达(3)PC3000 行走马达(2)PC3000 行走马达PC3000

00
654 891 40
Hydr. motor assy.
1
01

Housing
1
02
513 375 98
Screw
8
03
767 347 73
Connection plate
1
04
345 632 99
Pin
2
05
504 747 98
O-ring
1
06
173 494 40
Plug
1
07
173 493 40
Plug
1
08
766 389 73
Transmission, assy. fig-nos: 10-37
1
10
753 246
Centering pin
1
11
345 648 99
Pin
1
12
767 349 73
Distribution
1
13
767 350 73
Spacer screw
1
14
767 351 73
Adjusting ring
1
15
767 352 73
Cylinder
1
16
767 353 73
Disk
1
17
767 354 73
Spring
1
18
767 355 73
Pivot
1
19
767 356 73
Piston with piston ring
7
20
319 241 99
Screw
14
21
754 374
Withdrawal plate
1
23
767 665 73
Drive shaft
1
24
502 246 98
Shaft seal
1
25
504 098 98
O-ring
1
26
767 359 73
Sealing flange
1
27
342 682 99
Circlip
1
28
767 669 73
Spacer
1
29
767 700 73
Roller bearing
1
30
767 668 73
Adjusting disc
1
31
504 621 98
Roller bearing
1
32
998 625
Shim ring
1
33
342 572 99
Circlip
1
34
504 748 98
O-ring
1
35
767 667 73
Race
1
36
754 496
Circlip
1
37
767 733 73
Adjusting disc
1

766 390 73
Seal kit fig-nos: 05-07,24,25,34


083 374
Adhesive set to fig-nos: 13, 20 50 ml
