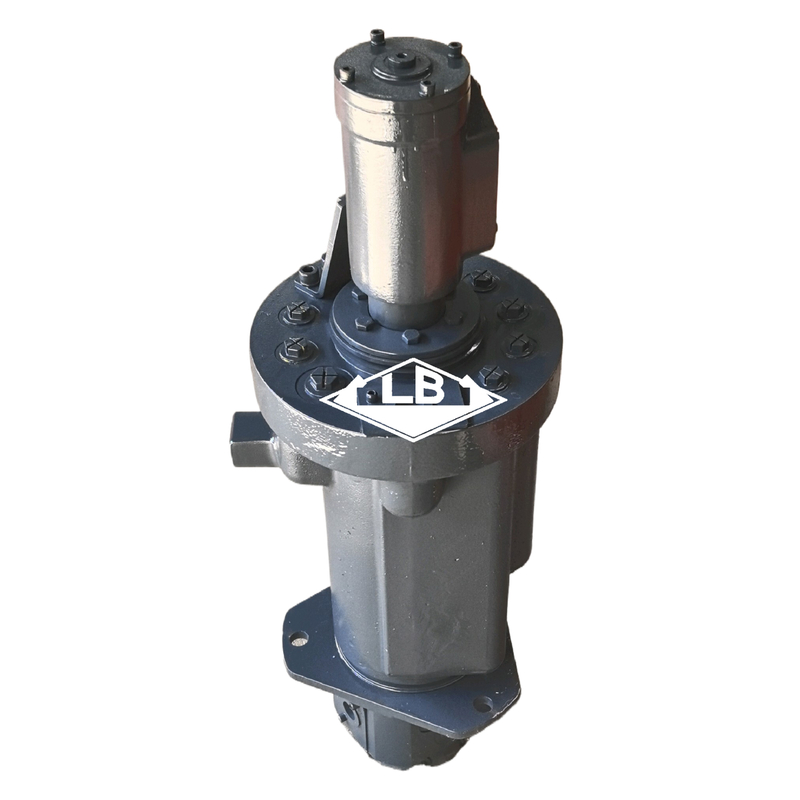

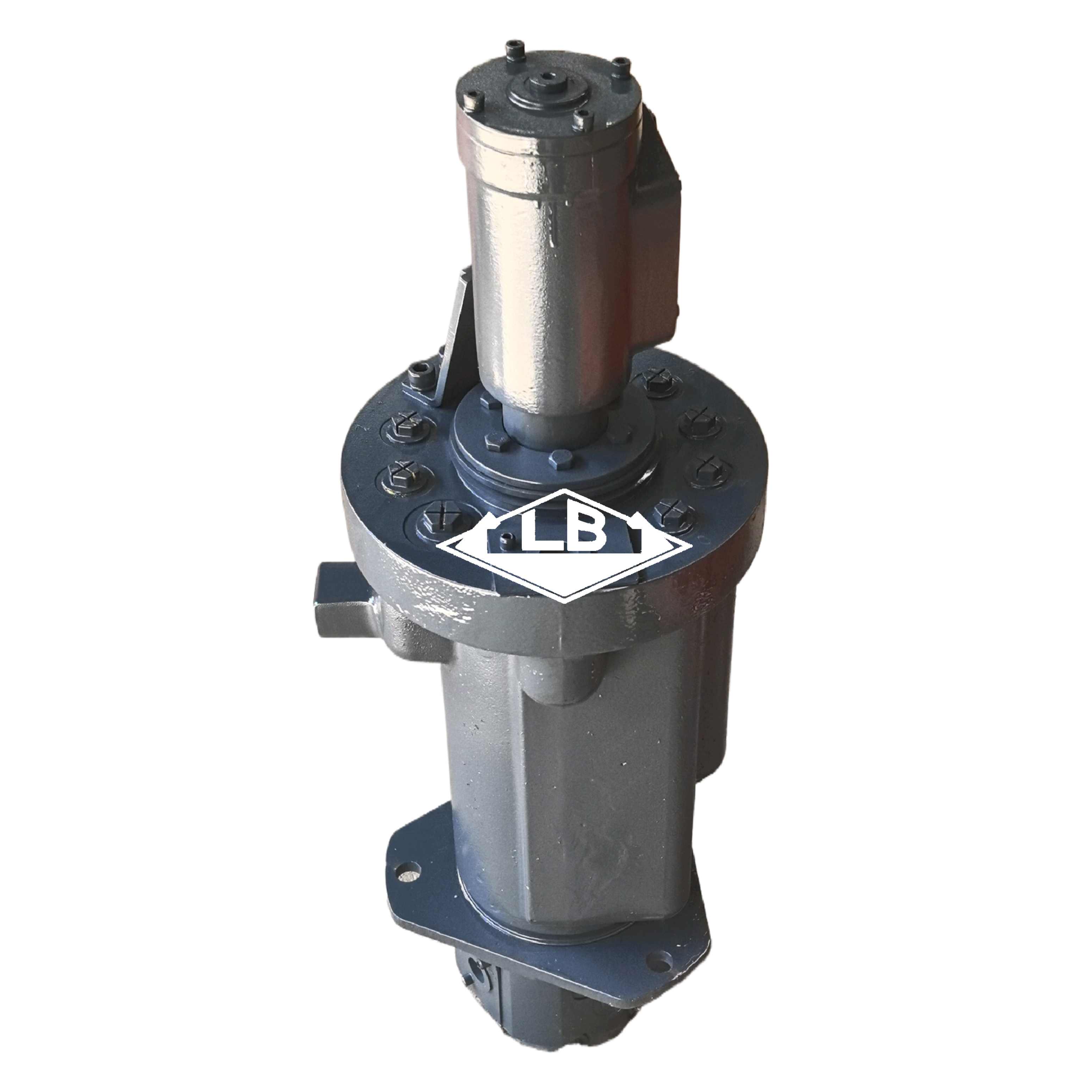

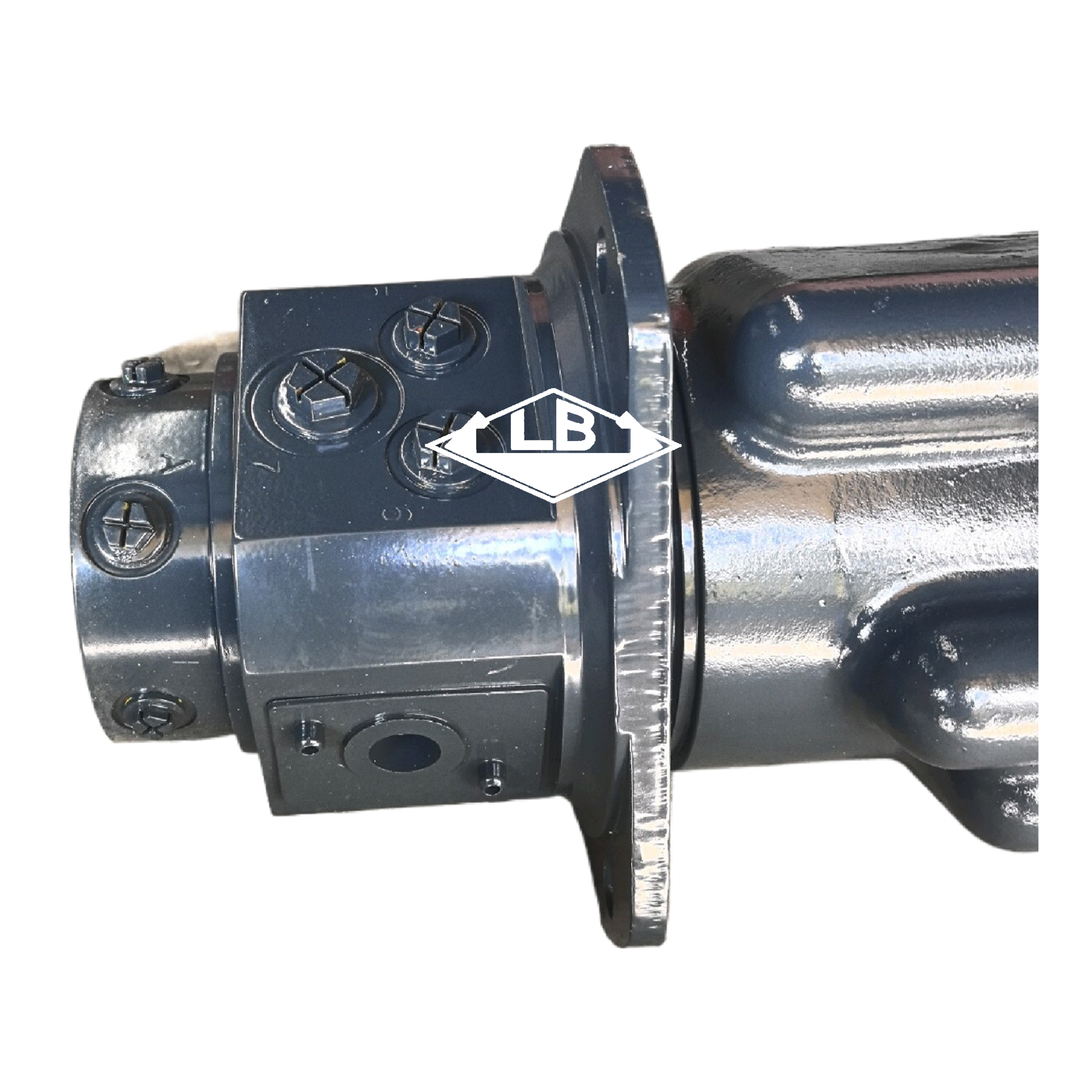

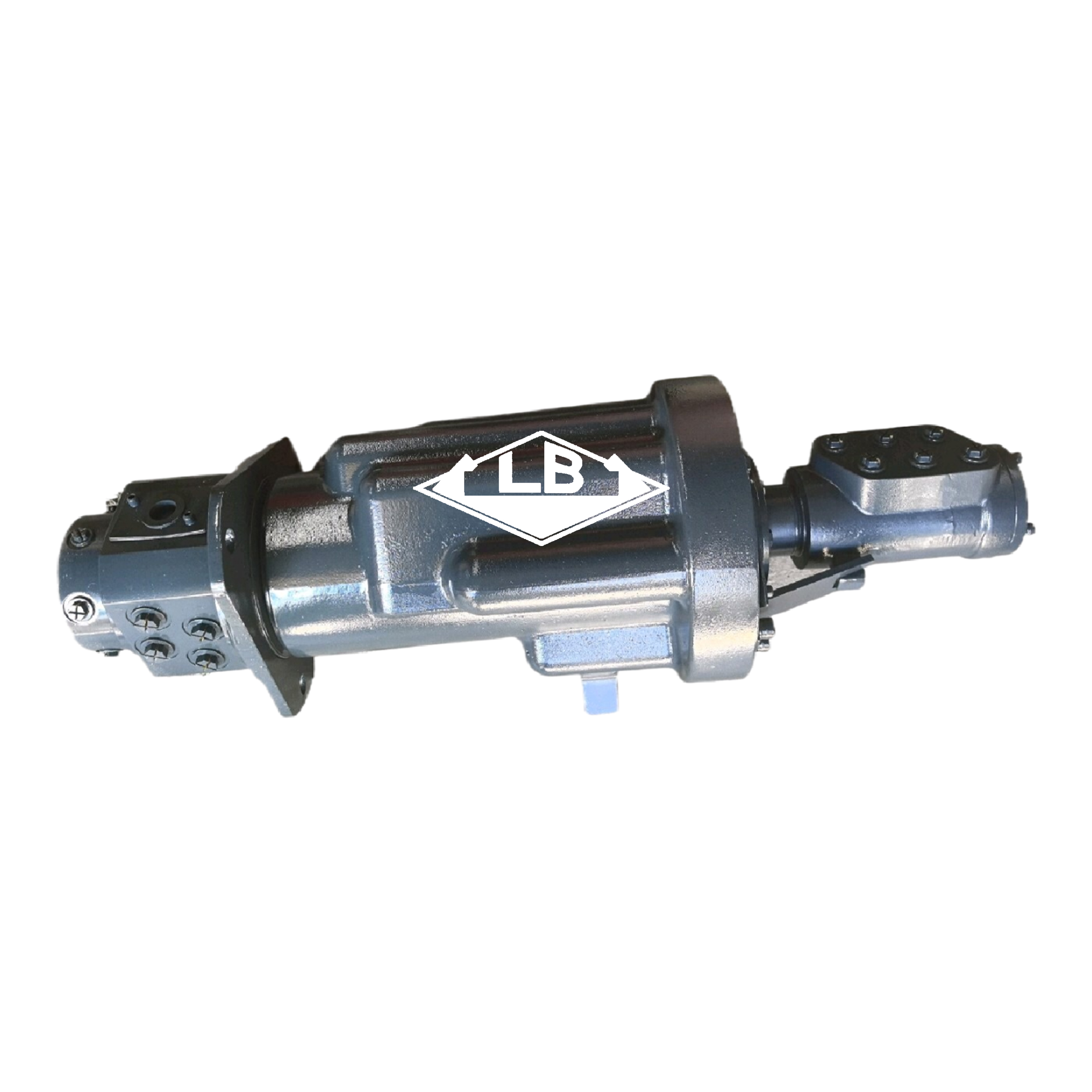

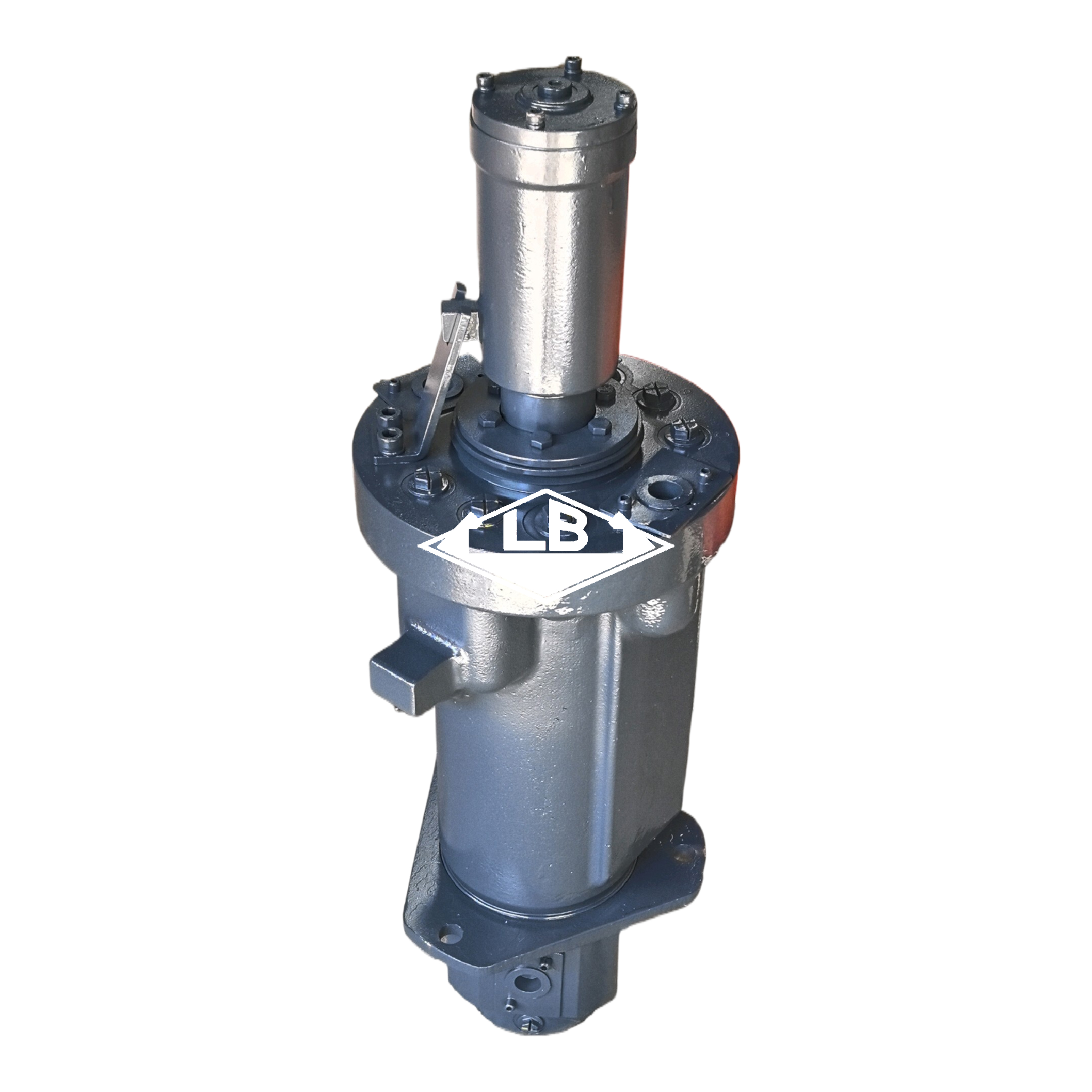

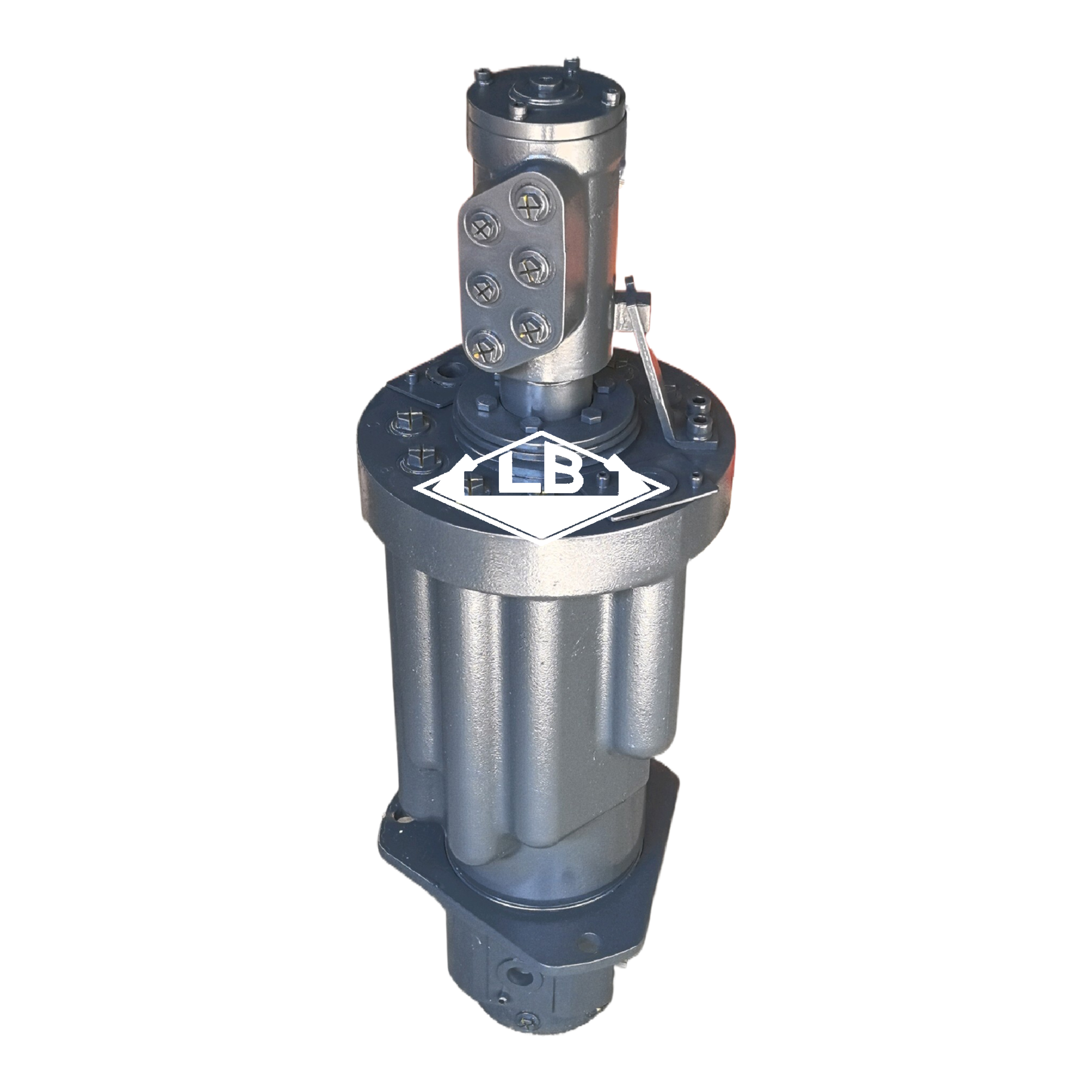

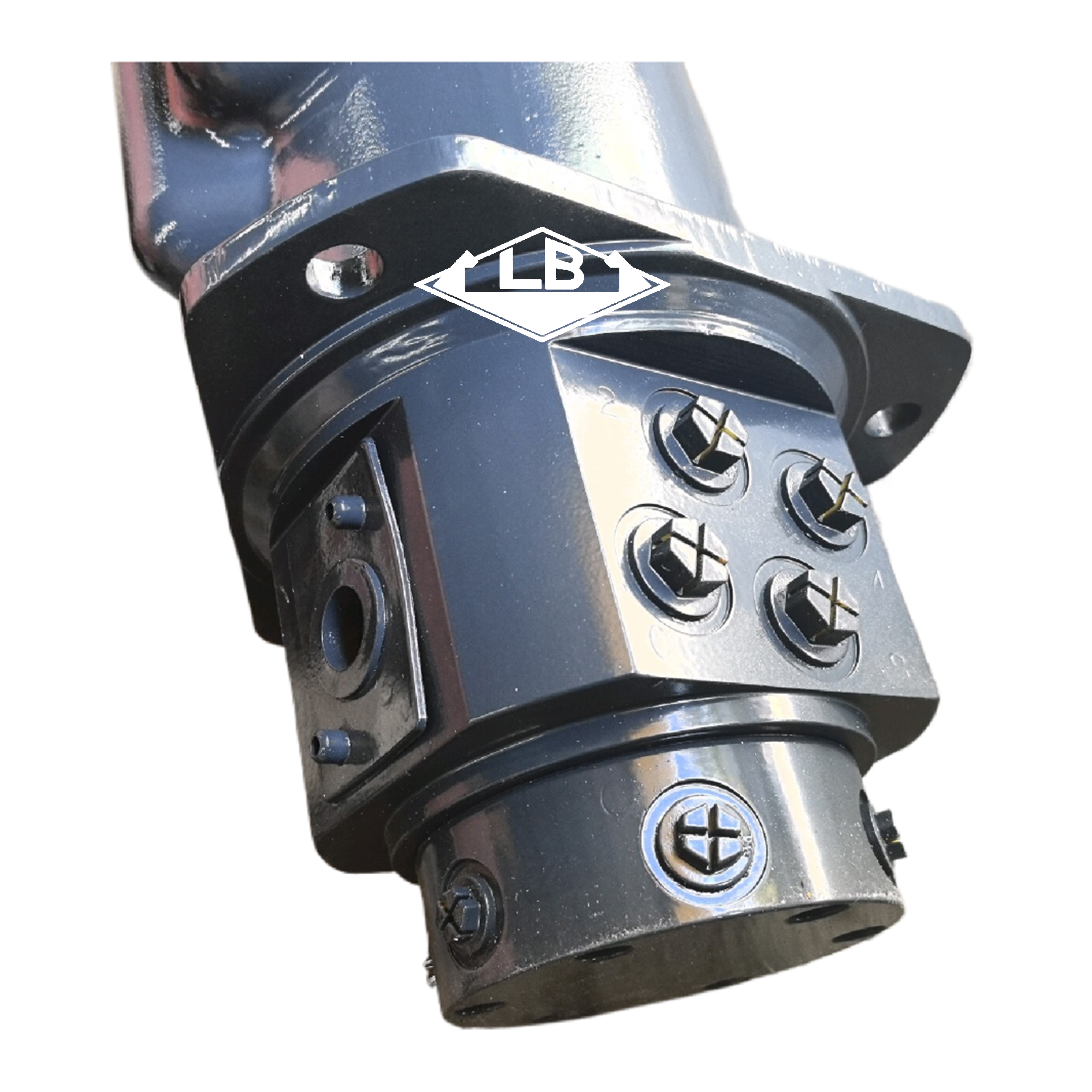

SOLAR150W-7 SOLARW160 CENTER JOINT 2480-9022AKT FOR DOOSAN EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SOLAR150W-7 SOLARW160 SWING GEARBOX
Equipment	Apply to DOOSAN EXCAVATOR
Part no.	2480-9022AKT
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

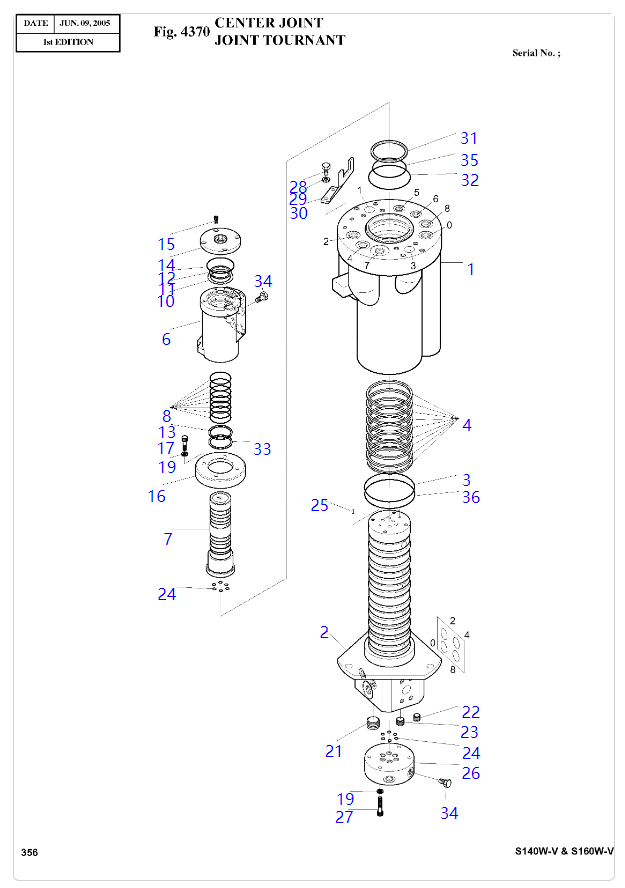

Parts on group :

Pos.	Part No	Qty	Parts name
-.	2480-9022B	[1]	CENTER JOINT Komatsu China
			["desc: JOINT CENTRAL"]
1.	TJ13-3010-E	[1]	HUB(MAIN) Komatsu China
			["desc: CARTER"]
2.	TJ13-3020-J	[1]	SHAFT ASS'Y Komatsu China
			["desc: ARBRE"]
3.	-	[1]	O-RING 1BP-120 Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
4.	SJD-100-70	[9]	SEAL;SLIPPER Komatsu China
			["SC: K", "desc: JOINT"]
6.	TJ13-3040-D	[1]	HUB(TOP) Komatsu China
			["desc: CARTER"]
7.	TJ13-3050-F	[1]	SHAFT(TOP) Komatsu China
			["desc: ARBRE"]
10.	TJ13-3060	[1]	SPACER Komatsu China
			["desc: ENTRETOISE"]
11.	S6500480	[1]	RING;RETAINING Komatsu China
			["desc: RONDELLE DE RETENUE"]
12.	S8010650	[1]	O-RING 1AG-65 Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
14.	TJ13-3070-A	[1]	COVER(TOP) Komatsu China
			["desc: COUVERCLE"]
15.	S2204463	[4]	BOLT;WRENCH M6X12 Komatsu China
			["desc: BOULON A 6 PANS"]
16.	TJ13-3080-A	[1]	COVER(MAIN) Komatsu China
			["desc: COUVERCLE"]
17.	S2209063	[4]	BOLT;SOCKET M8X25 Komatsu China
			["desc: BOULON A 6 PANS CREUX"]
19.	S5100503	[8]	WASHER;SPRING M8 Komatsu China
			["desc: RONDELLE ELASTIQUE"]
21.	2181-1116D5	[3]	PLUG PT3/4 Komatsu China
			["desc: BOUCHON"]
22.	2181-1116D2	[2]	PLUG PT1/4 Komatsu China
			["desc: BOUCHON"]
23.	2181-1116D3	[4]	PLUG PT3/8 Komatsu China
			["desc: BOUCHON"]
24.	S8000101	[12]	O-RING 1AP-10 Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
25.	123-00236	[2]	PIN Komatsu China
			["desc: BROUCHE"]
26.	TJ13-3090	[1]	ADAPTER Komatsu China
			["desc: ADAPTEUR"]
27.	S2209463	[4]	BOLT;WRENCH M8X45 Komatsu China
			["desc: BOULON A 6 PANS"]
28.	S0511853	[2]	BOLT;HEX M10X20 Komatsu China
			["desc: BOULON A 6 PANS"]
29.	S5100603	[2]	WASHER;SPRING M10 Komatsu China
			["desc: RONDELLE ELASTIQUE"]
30.	TJ13-3100	[1]	PLATE Komatsu China
			["desc: PLAQUE"]
31.	TJ13-3110	[1]	SHIM Komatsu China
			["desc: CALE"]
32.	S8011100	[1]	O-RING 1AG-110 Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
33.	TJ13-3120	[1]	RING;WEAR Komatsu China
			["SC: K", "desc: BAGUE"]
34.	2181-1950D1	[2]	PLUG Komatsu China
			["desc: BOUCHON"]
36.	S8001401	[1]	O-RING Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
*.	2480-9022AKT	[1]	SEAL KIT;CENTER JOINT Komatsu China
			["desc: KIT D'ETANCHEITE"]
