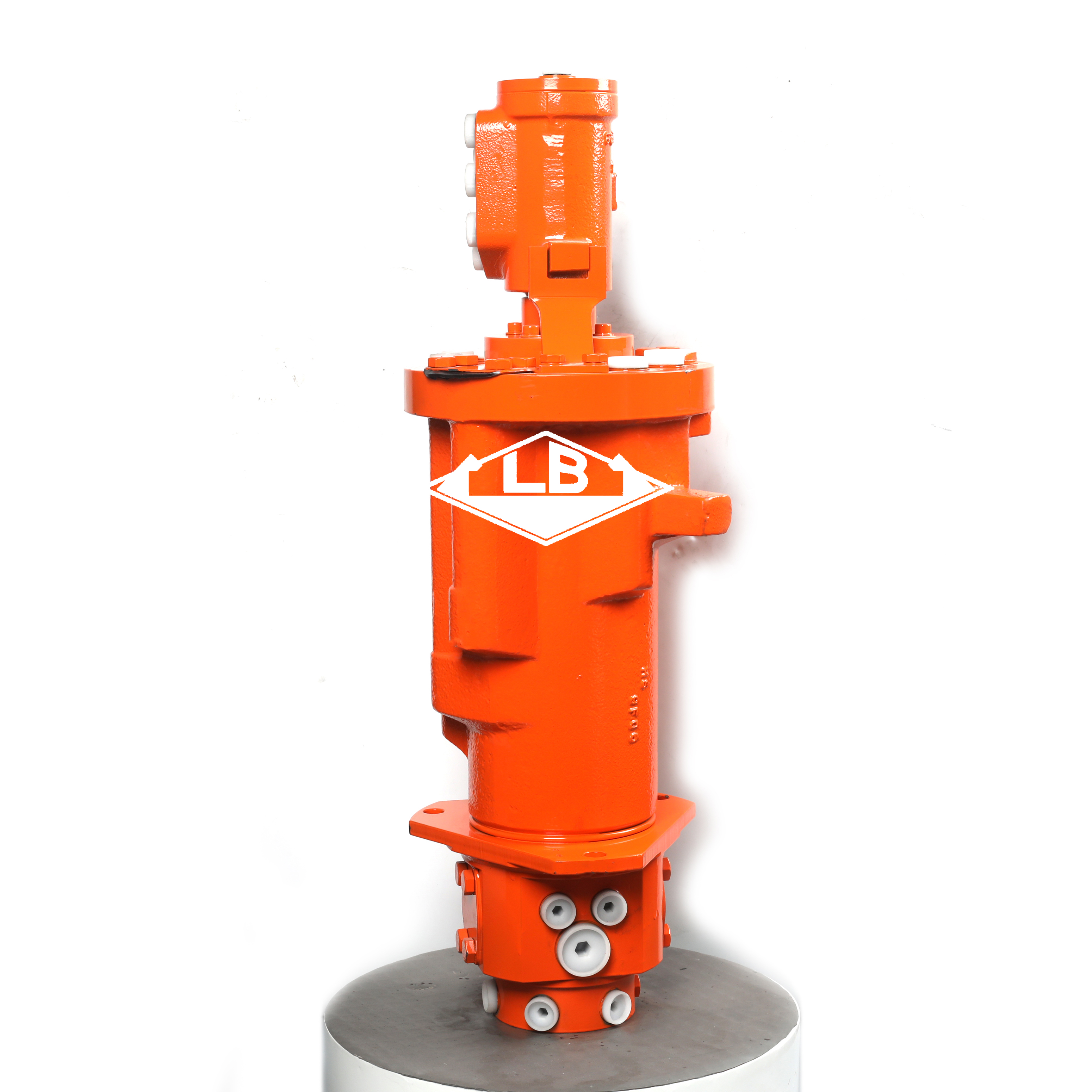

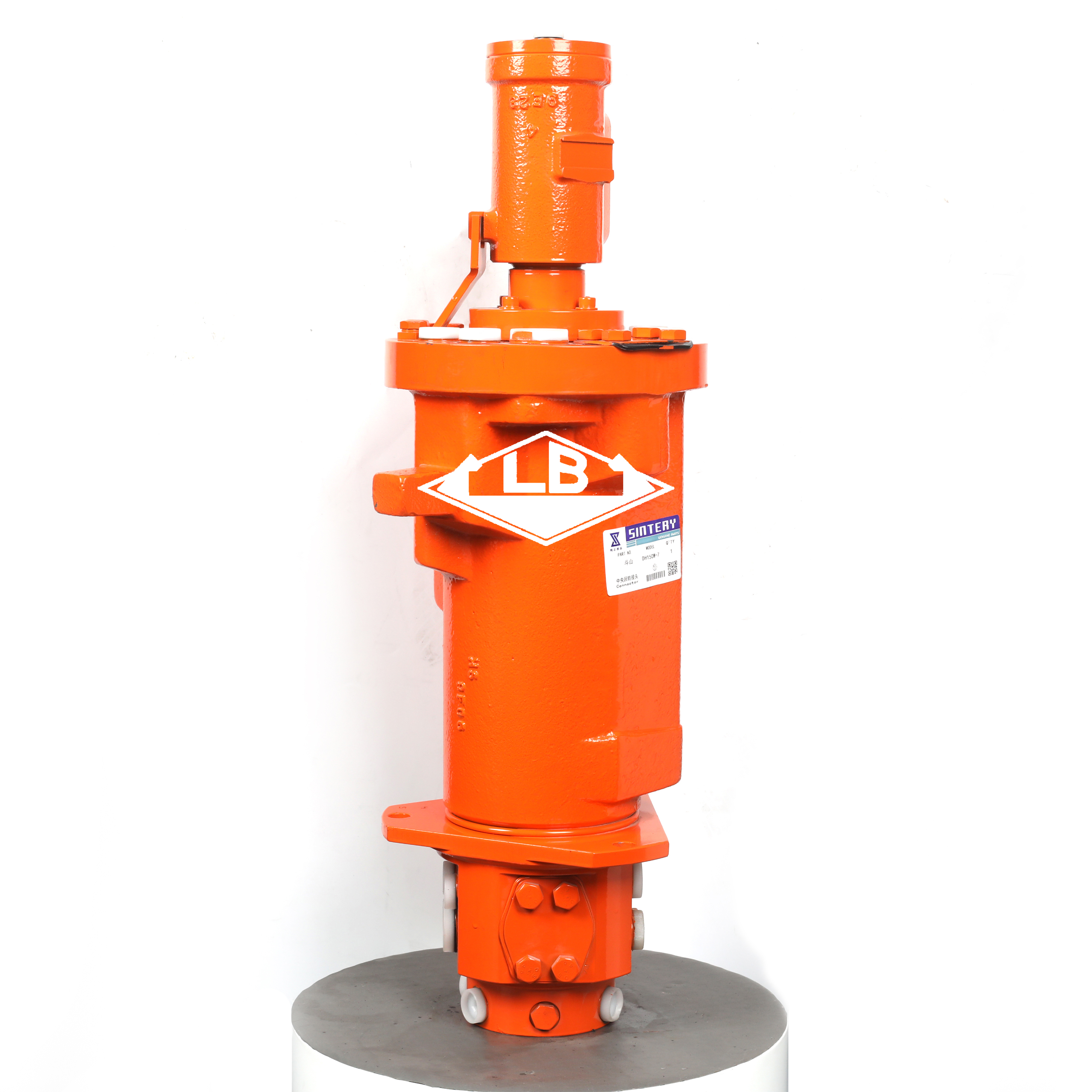

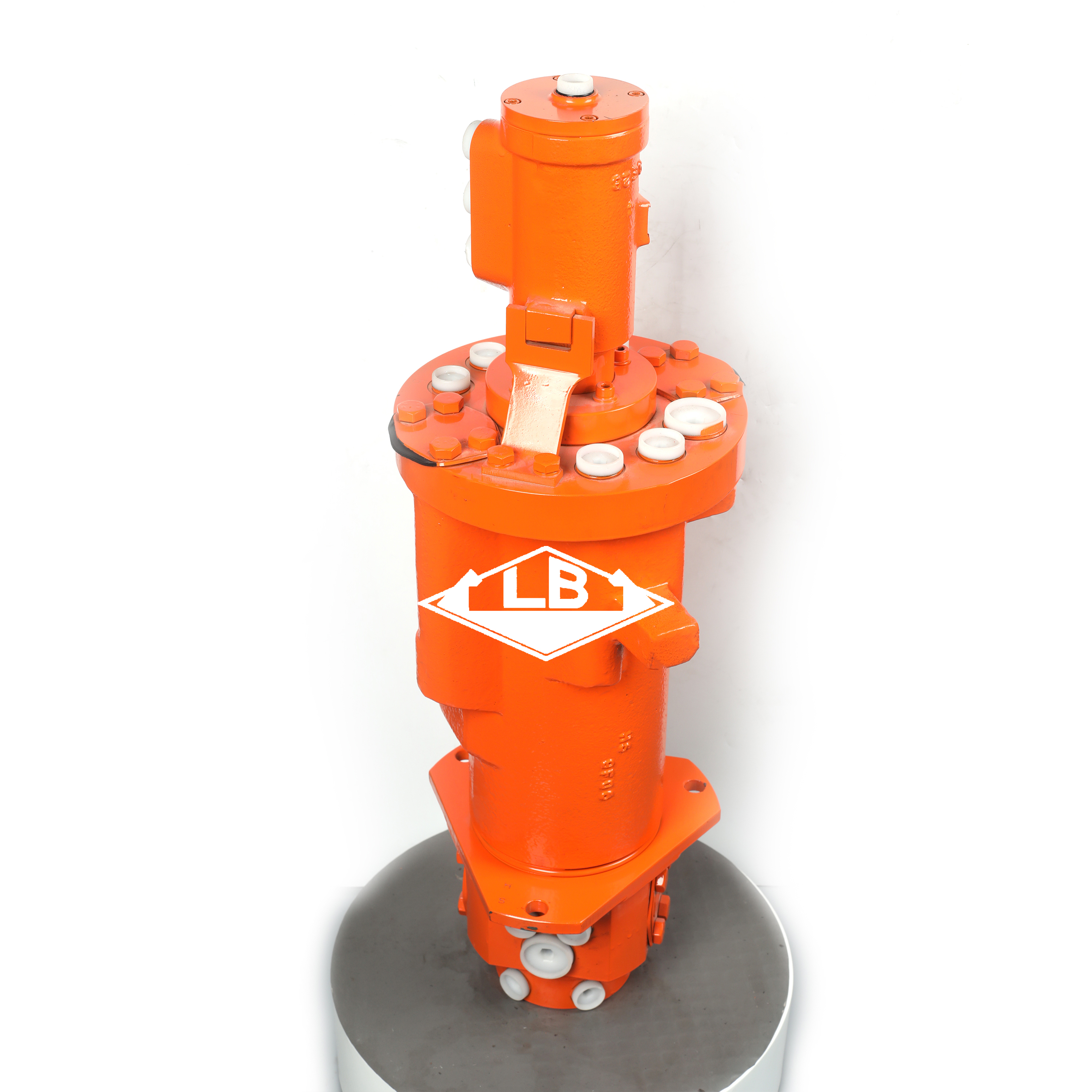

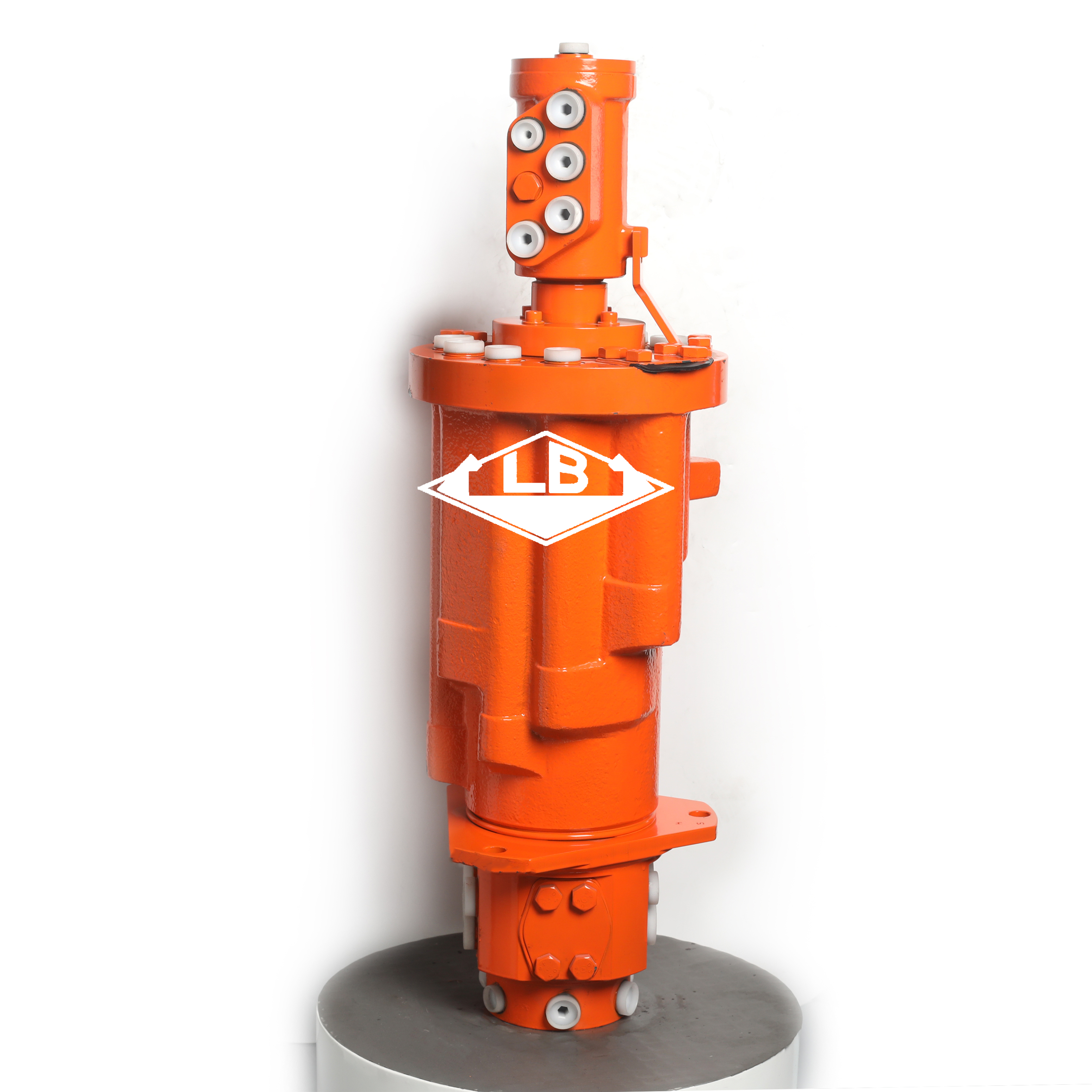

SOLAR140W SOLAR150W CENTER JOINT 480-00006B 2480-9022B FOR DOOSAN EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SOLAR140W SOLAR150W SWING GEARBOX
Equipment	Apply to DOOSAN EXCAVATOR
Part no.	480-00006B 2480-9022B
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

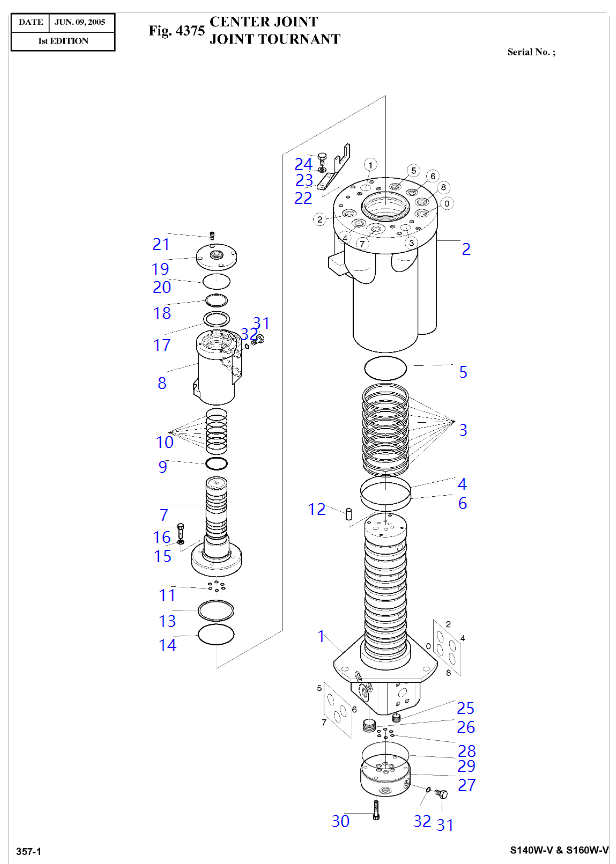

Parts on group :

Pos.	Part No	Qty	Parts name
-.	480-00006B	[1]	CENTER JOINT Komatsu China
			["desc: JOINT CENTRAL"]
1.	K9001012	[1]	SPINDLE Komatsu China
			["desc: SPINDLE"]
2.	K9001013	[1]	BODY;MAIN Komatsu China
			["desc: CARTER"]
3.	K9001016	[9]	SEAL;MAIN ROTARY Komatsu China
			["SC: K", "desc: JOINT"]
4.	S8001201	[1]	O-RING Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
5.	S8001001	[1]	O-RING Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
6.	S8001401	[1]	O-RING Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
7.	K9001014	[1]	ROTOR Komatsu China
			["desc: ROTOR"]
8.	K9001015	[1]	BODY;TOP Komatsu China
			["desc: CARTER"]
9.	S8000601	[1]	O-RING Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
10.	K9001017	[7]	SEAL;TOP ROTARY Komatsu China
			["SC: K", "desc: JOINT"]
11.	K9001018	[6]	SEAL;U Komatsu China
			["SC: K", "desc: JOINT"]
12.	K9001019	[1]	PIN Komatsu China
			["desc: GOUPILLE"]
13.	K9001020	[1]	SHIM Komatsu China
			["desc: CALE"]
14.	2180-1216D133	[1]	O-RING Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
15.	K9001021	[4]	SEAL;U Komatsu China
			["SC: K", "desc: JONT"]
16.	S0512063	[4]	BOLT;HEX Komatsu China
			["desc: BOULON"]
17.	1.412-00153	[1]	PLATE;THRUST Komatsu China
			["desc: PLAQUE"]
18.	1.115-00002	[1]	RING;RETAINING Komatsu China
			["desc: ANNEAU DE SOUTIEN"]
19.	K9001022	[1]	COVER Komatsu China
			["desc: COUVERCLE"]
20.	S8010751	[1]	O-RING Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
21.	S2208561	[4]	BOLT;SOCKET Komatsu China
			["desc: BOULON"]
22.	K9001023	[1]	BRACKET Komatsu China
			["desc: SUPPORT"]
23.	S5100603	[2]	WASHER;SPRING Komatsu China
			["desc: RONDELLE ELASTIQUE"]
24.	S0511863	[2]	BOLT;HEX Komatsu China
			["desc: BOULON"]
25.	2181-1116D3	[6]	PLUG Komatsu China
			["desc: BOUCHON"]
26.	2181-1116D5	[3]	PLUG Komatsu China
			["desc: BOUCHON"]
27.	K9001024	[1]	JOINTER Komatsu China
			["desc: JOINTER"]
29.	S8011001	[1]	O-RING Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
30.	S2209461	[4]	BOLT;SOCKET Komatsu China
			["desc: BOULON"]
31.	2181-1950D1	[2]	PLUG Komatsu China
			["desc: BOUCHON"]
32.	S8000111	[2]	O-RING Komatsu China
			["SC: K", "desc: JOINT TORIQUE"]
33.	K9001025	[1]	SEAL KIT;CENTER JOINT Komatsu China
			["desc: KIT DE JOINT"]
