| Quantity: | |
|---|---|

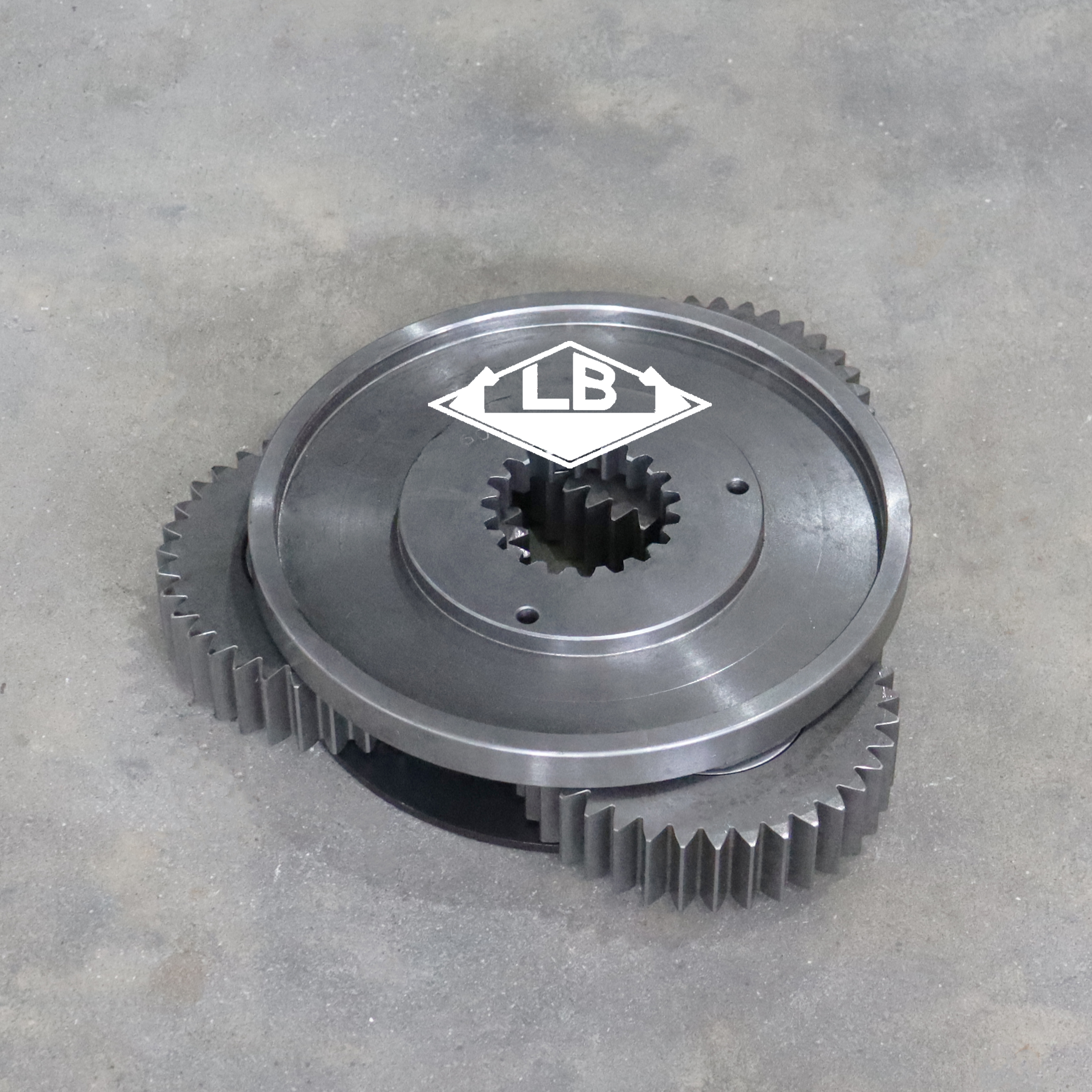

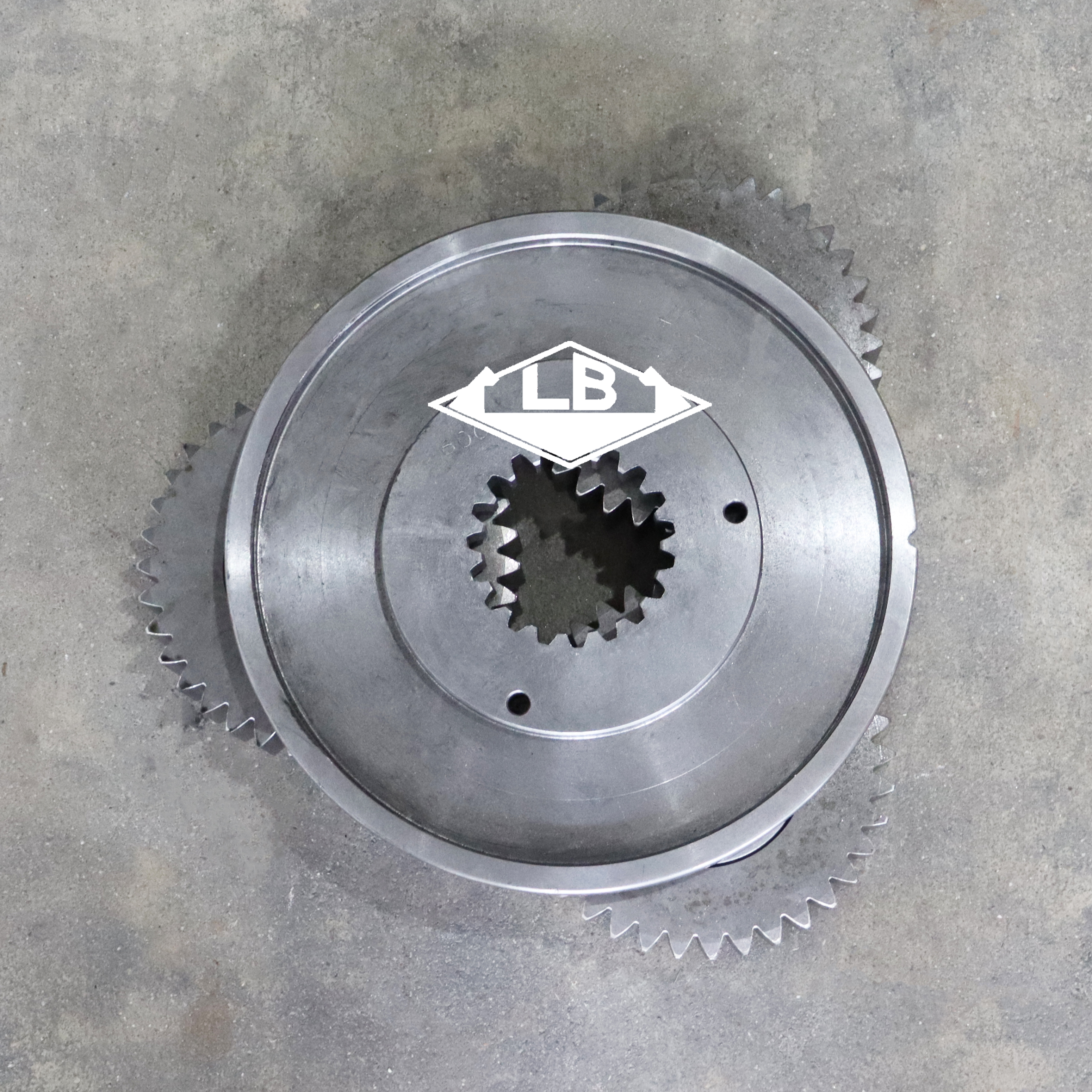

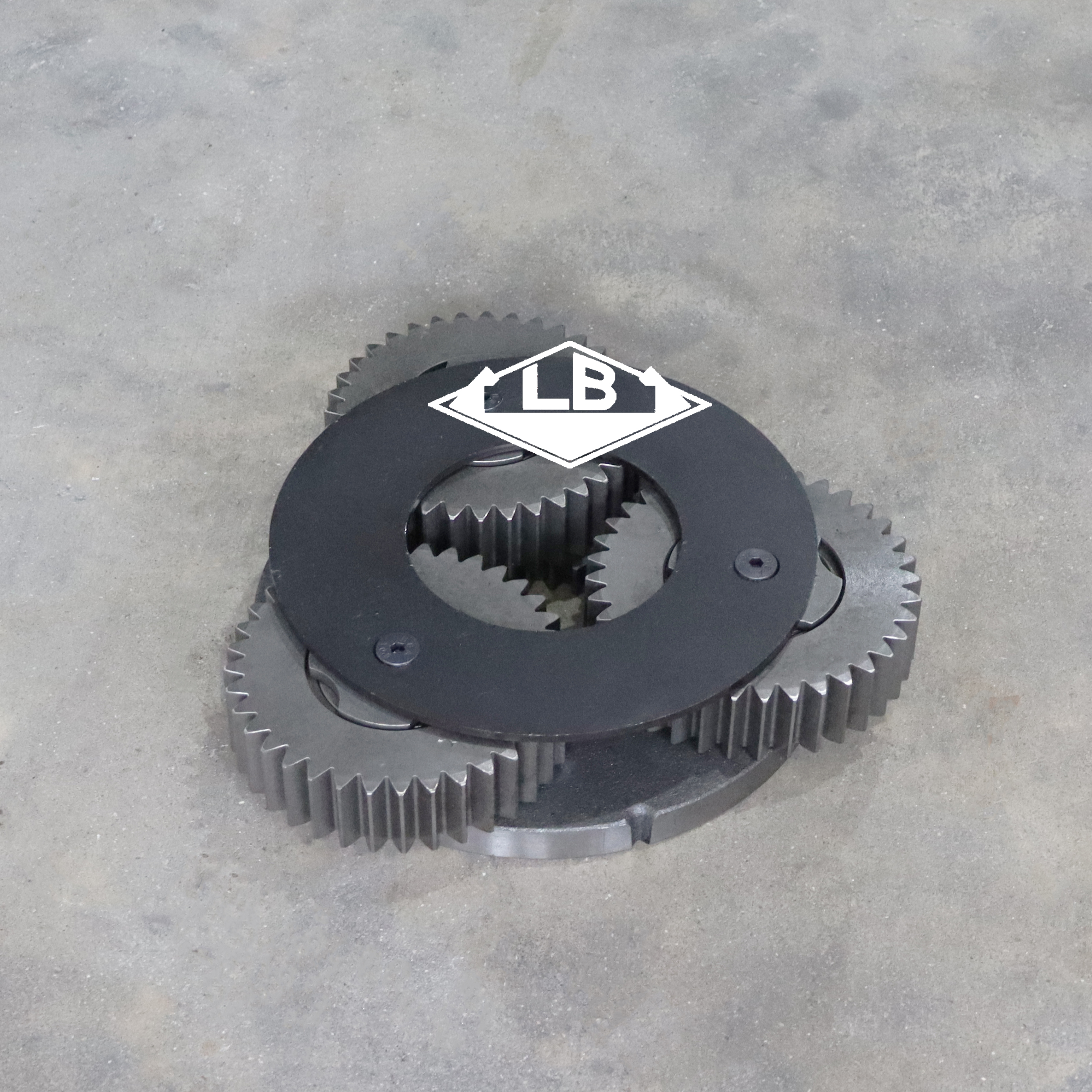

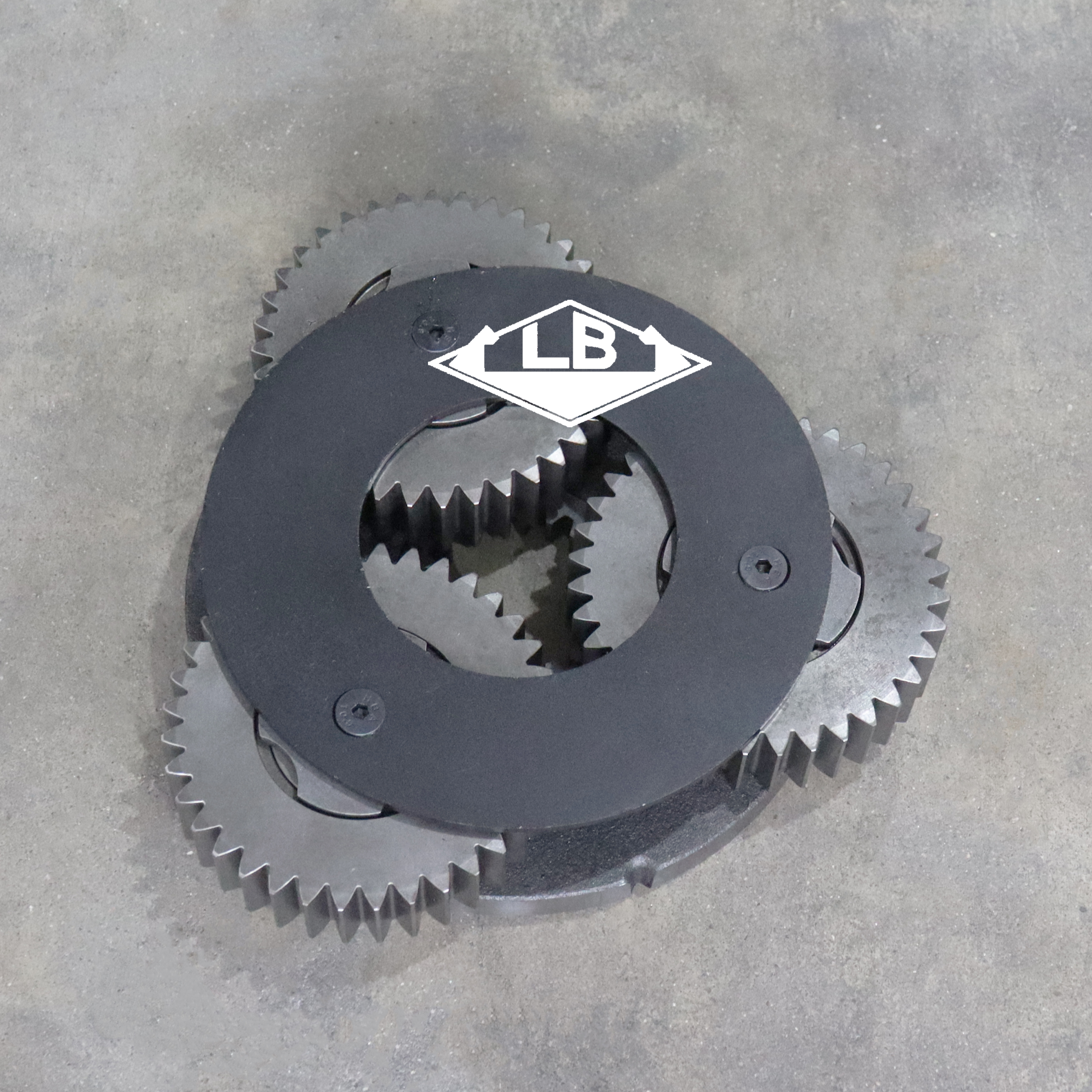

| Part name | SK250-8 SK260-9 Swing gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | LQ15V00020S082 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

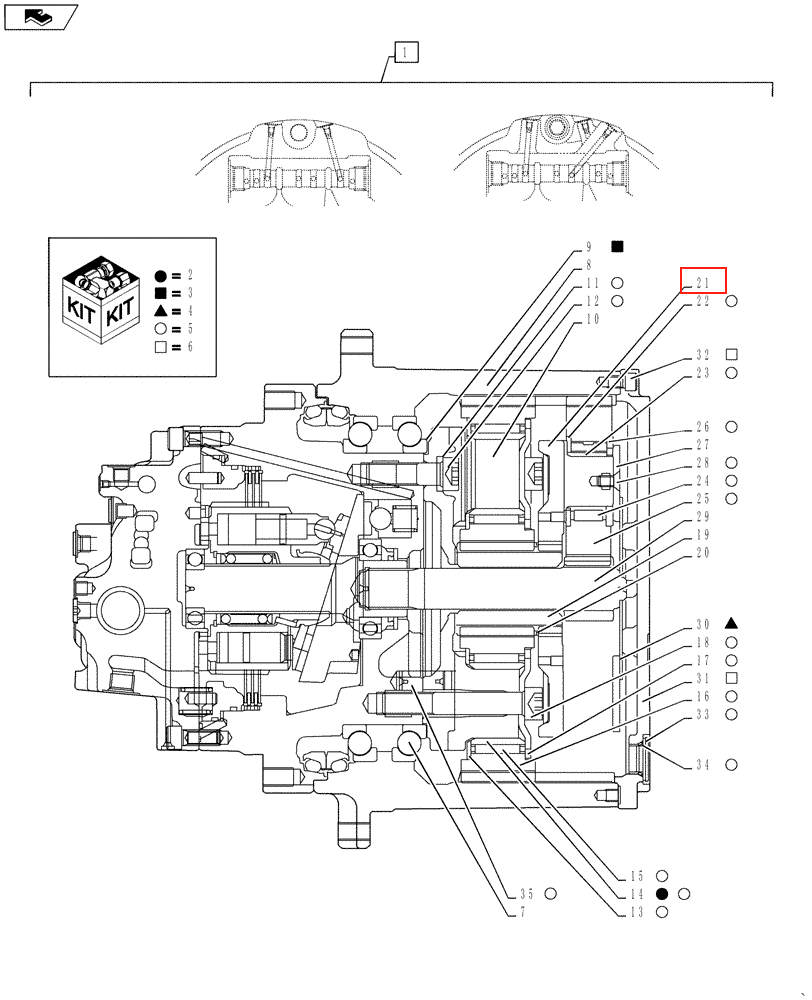

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | LQ15V00031F1 | [2] | HYDRAULIC MOTOR | KOB Propel, Incl 2 - 35 Superseded by part number: LQ15V00031F3 |
| 2. | LQ15V00031R200 | [1] | REPAIR KIT | KOB Incl 14 (3) |
| 3. | 72962412 | [1] | REPAIR KIT | KOB Incl 9 Superseded by part number: LQ15V00007R700 |
| 4. | 72962413 | [1] | REPAIR KIT | KOB Incl 30 Superseded by part number: LQ15V00007R800 |
| 5. | LQ15V00020R910 | [1] | KIT | SM Incl 11, 12, 13, 14, 15, 16, 17, 18, 22, 23, 24, 25, 26, 28, 33, 34, 35 |
| 6. | LQ15V00020R920 | [1] | KIT | SM Incl 31 (16), 32 |
| 7. | LQ15V00007S077 | [2] | BEARING | KOB Bearing |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CON Housing, Incl in 1 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CON Shim, Incl in 3 |
| 10. | LQ15V00020S071 | [1] | RUBBER RING | SM Holder |
| 11. | LQ15V00007S081 | [8] | FRICTION WASHER | KOB |
| 12. | LQ15V00007S082 | [8] | SCREW | KOB Cap |
| 13. | 72962432 | [4] | THRUST PLATE | KOB Superseded by part number: LQ15V00007S083 |
| 14. | LQ15V00007S084 | [4] | RACE | KOB Inner |
| 15. | LQ15V00020S076 | [4] | NEEDLE BEARING | SM Needle |
| 16. | LQ15V00007S086 | [4] | DRIVEN GEAR | KOB |
| 17. | LQ15V00020S078 | [4] | PLATE | SM |
| 18. | LQ15V00007S088 | [4] | SCREW | KOB Cap |
| 19. | LQ15V00020S080 | [1] | GEAR | SM Sun |
| 20. | LQ15V00007S090 | [1] | RING | KOB |
| 21. | LQ15V00020S082 | [1] | CARRIER | SM Holder |
| 22. | LQ15V00007S092 | [3] | PLATE | KOB |
| 23. | LQ15V00020S084 | [3] | RACE | SM Inner |
| 24. | LQ15V00020S085 | [3] | NEEDLE BEARING | SM Needle |
| 25. | LQ15V00020S086 | [3] | GEAR | SM |
| 26. | LQ15V00007S096 | [3] | PLATE | KOB |
| 27. | LQ15V00020S088 | [1] | PLATE | SM |
| 28. | LQ15V00007S098 | [3] | SCREW | KOB Cap |
| 29. | LQ15V00020S090 | [1] | GEAR | SM |
| 30. | NSS | [1] | NOT SOLD SEPARAT | CON Plate, Incl in 4 |
| 31. | NSS | [1] | NOT SOLD SEPARAT | CON Cover, Incl in 6 |
| 32. | NSS | [16] | NOT SOLD SEPARAT | CON Capscrew, Incl in 6 |
| 33. | LQ15V00007S103 | [3] | PLUG | KOB |
| 34. | ZD12P02400 | [3] | O-RING | KOB |
| 35. | LQ15V00007S105 | [4] | PIN | KOB |
| Part name | SK250-8 SK260-9 Swing gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | LQ15V00020S082 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | LQ15V00031F1 | [2] | HYDRAULIC MOTOR | KOB Propel, Incl 2 - 35 Superseded by part number: LQ15V00031F3 |
| 2. | LQ15V00031R200 | [1] | REPAIR KIT | KOB Incl 14 (3) |
| 3. | 72962412 | [1] | REPAIR KIT | KOB Incl 9 Superseded by part number: LQ15V00007R700 |
| 4. | 72962413 | [1] | REPAIR KIT | KOB Incl 30 Superseded by part number: LQ15V00007R800 |
| 5. | LQ15V00020R910 | [1] | KIT | SM Incl 11, 12, 13, 14, 15, 16, 17, 18, 22, 23, 24, 25, 26, 28, 33, 34, 35 |
| 6. | LQ15V00020R920 | [1] | KIT | SM Incl 31 (16), 32 |
| 7. | LQ15V00007S077 | [2] | BEARING | KOB Bearing |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CON Housing, Incl in 1 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CON Shim, Incl in 3 |
| 10. | LQ15V00020S071 | [1] | RUBBER RING | SM Holder |
| 11. | LQ15V00007S081 | [8] | FRICTION WASHER | KOB |
| 12. | LQ15V00007S082 | [8] | SCREW | KOB Cap |
| 13. | 72962432 | [4] | THRUST PLATE | KOB Superseded by part number: LQ15V00007S083 |
| 14. | LQ15V00007S084 | [4] | RACE | KOB Inner |
| 15. | LQ15V00020S076 | [4] | NEEDLE BEARING | SM Needle |
| 16. | LQ15V00007S086 | [4] | DRIVEN GEAR | KOB |
| 17. | LQ15V00020S078 | [4] | PLATE | SM |
| 18. | LQ15V00007S088 | [4] | SCREW | KOB Cap |
| 19. | LQ15V00020S080 | [1] | GEAR | SM Sun |
| 20. | LQ15V00007S090 | [1] | RING | KOB |
| 21. | LQ15V00020S082 | [1] | CARRIER | SM Holder |
| 22. | LQ15V00007S092 | [3] | PLATE | KOB |
| 23. | LQ15V00020S084 | [3] | RACE | SM Inner |
| 24. | LQ15V00020S085 | [3] | NEEDLE BEARING | SM Needle |
| 25. | LQ15V00020S086 | [3] | GEAR | SM |
| 26. | LQ15V00007S096 | [3] | PLATE | KOB |
| 27. | LQ15V00020S088 | [1] | PLATE | SM |
| 28. | LQ15V00007S098 | [3] | SCREW | KOB Cap |
| 29. | LQ15V00020S090 | [1] | GEAR | SM |
| 30. | NSS | [1] | NOT SOLD SEPARAT | CON Plate, Incl in 4 |
| 31. | NSS | [1] | NOT SOLD SEPARAT | CON Cover, Incl in 6 |
| 32. | NSS | [16] | NOT SOLD SEPARAT | CON Capscrew, Incl in 6 |
| 33. | LQ15V00007S103 | [3] | PLUG | KOB |
| 34. | ZD12P02400 | [3] | O-RING | KOB |
| 35. | LQ15V00007S105 | [4] | PIN | KOB |
