| Quantity: | |
|---|---|

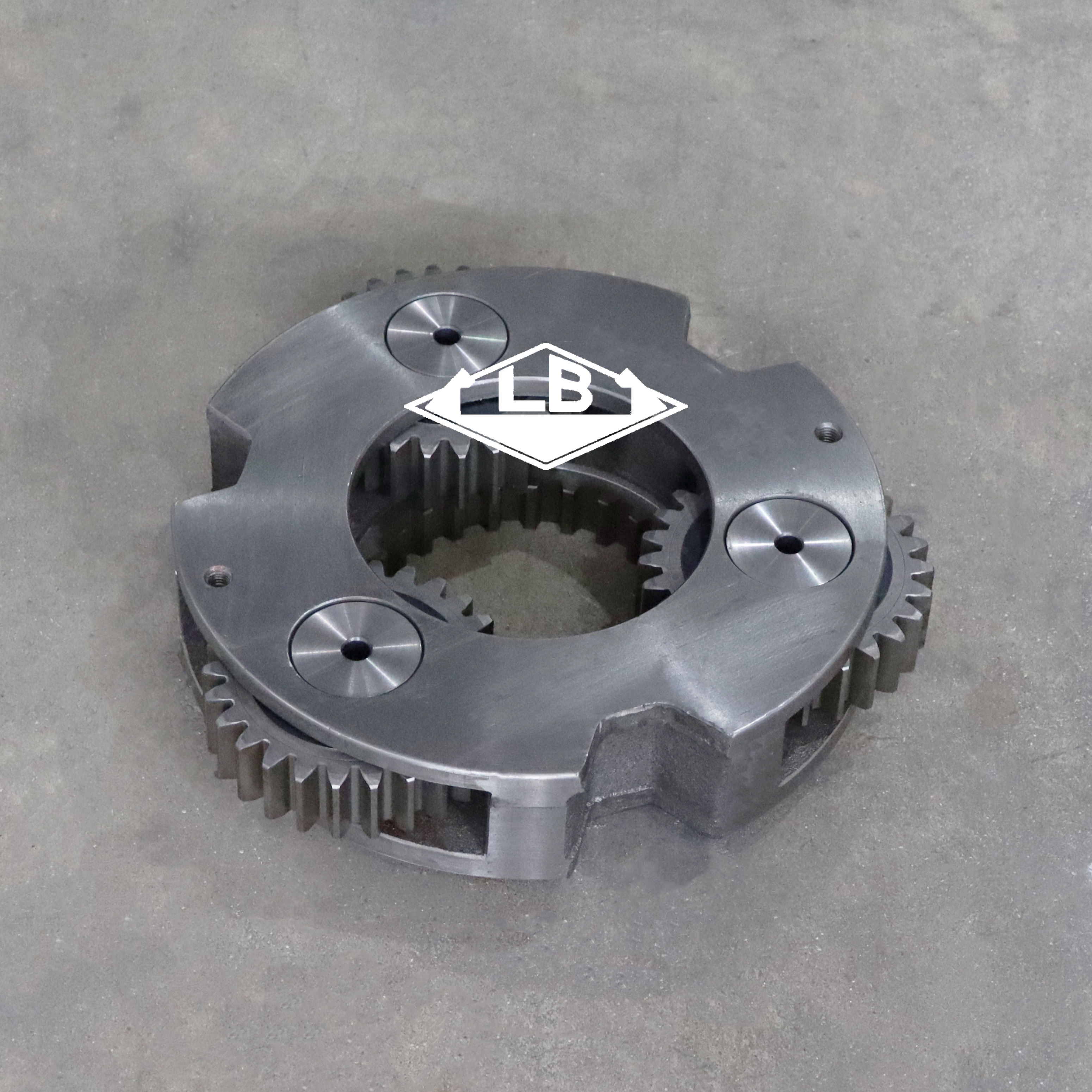

| Part name | R360-7 Swing gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | XKAH-00991 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *-2. | XKAH-01061 | [1] | T/REDUCTION GEAR | SEE 4120 |
| 001. | XKAH-00987 | [1] | GEAR-RING | |
| 002. | XKAH-00988 | [1] | HOUSING | |
| 004. | XKAH-00989 | [1] | COVER-SIDE | |
| S005. | XKAH-00990 | [1] | CARRIER NO.1 | |
| S006. | XKAH-00991 | [1] | CARRIER NO.2,B | |
| 009. | XKAH-00992 | [1] | SUN GEAR NO.1 | |
| 010. | XKAH-00993 | [1] | SUN GEAR NO.2 | |
| 011. | XKAH-00994 | [1] | SUN GEAR NO.3 | |
| S012. | XKAH-00995 | [3] | GEAR 1-PLANETARY | |
| S013. | XKAH-00996 | [3] | GEAR 2-PLANETARY | |
| S014. | XKAH-00997 | [4] | GEAR 3-PLANETARY | |
| S016. | XKAH-00998 | [3] | PIN 2 | |
| S017. | XKAH-00999 | [4] | PIN 3 | |
| S018. | XKAH-01000 | [3] | PLATE E-SIDE | |
| S019. | XKAH-01001 | [6] | PLATE A-SIDE | |
| S020. | XKAH-01002 | [8] | PLATE F-SIDE | |
| S021. | XKAH-01003 | [3] | CAGE-NEEDLE | |
| S022. | XKAH-01004 | [3] | CAGE-NEEDLE | |
| S023. | XKAH-01005 | [4] | CAGE-NEEDLE | |
| 024. | XKAH-01006 | [3] | RING-INNER | |
| 025. | XKAH-01007 | [4] | BUSHING-FLOATING | |
| 026. | XKAH-01008 | [2] | RING-THRUST 60 | |
| S027. | XKAH-01009 | [1] | RING-THRUST | |
| 029. | XKAH-01010 | [28] | BOLT-SOCKET | |
| 030. | XKAH-00210 | [12] | BOLT-SOCKET | |
| 032. | XKAH-00032 | [3] | PLUG-RO | |
| 033. | XKAH-01011 | [2] | BEARING-ANGULAR | |
| K034. | XKAH-01012 | [1] | SEAL-FLOATING | |
| 035. | XKAH-01013 | [1] | SHIM | |
| S036. | XKAH-01014 | [3] | PIN-SPRING | |
| S037. | XKAH-01015 | [4] | RING-SNAP | |
| S044. | XKAH-01016 | [3] | RING-SNAP | |
| 045. | XKAH-01017 | [1] | CLIP | |
| 046. | XKAH-01018 | [1] | CLIP-W | |
| 047. | XKAH-01019 | [1] | RING-NUT | |
| N051. | XKAH-00985 | [1] | NAME PLATE | |
| N052. | XKAH-00986 | [2] | SCREW-RIVET | |
| K081. | XKAH-01020 | [1] | O-RING | |
| K082. | XKAH-01021 | [1] | O-RING | |
| K083. | XKAH-00035 | [3] | O-RING | |
| 053. | XKAH-01022 | [1] | WASHER | |
| 054. | XKAH-01023 | [6] | SCREW-SET | |
| 011. | XKAH-01024 | [1] | SUB ASSY 1-CARRIER | SEE ILLUST |
| 012. | XKAH-01025 | [1] | SUB ASSY 2-CARRIER | SEE ILLUST |
| 013. | XKAH-01026 | [1] | SUB ASSY-SEAL KIT | SEE ILLUST |
