R320-9 R380-9 MAIN PUMP K3V180DTP-9N-17Т 31Q9-10010 R330-9 MAIN PUMP

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	R320-9 R380-9 swing motor
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	K3V180DTP-9N-17Т 31Q9-10010
motor shaft teeth
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

R320-9液压泵(8) R320-9液压泵(6) R320-9液压泵(2) R320-9液压泵(4) R320-9液压泵(10) R320-9

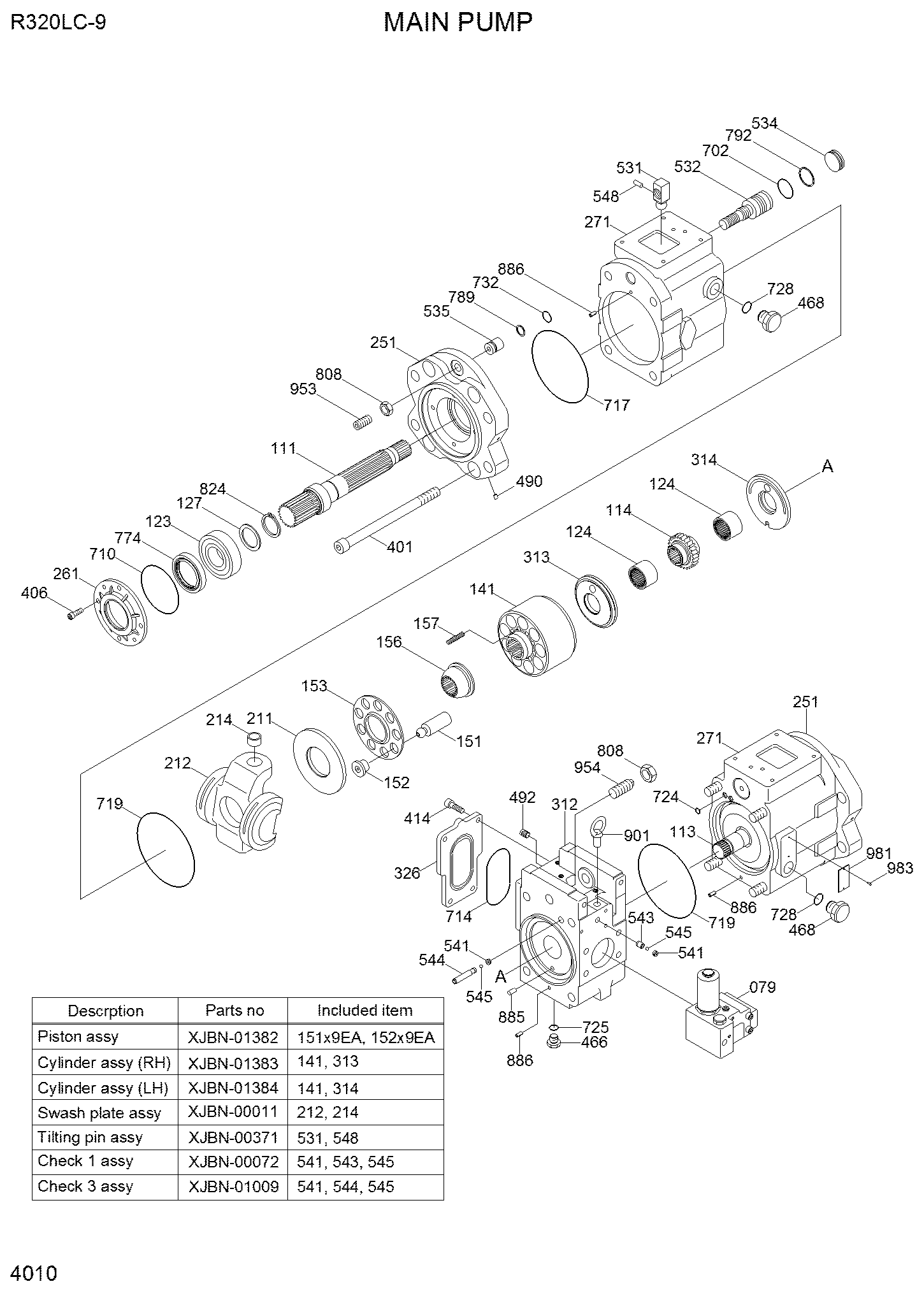

Parts on group MAIN PUMP:

Pos.	Part No	Qty	Parts name	Comments
*.	31Q9-10010	[1]	MAIN PUMP
*-1.	@	[1]	MAIN PUMP UNIT
111.	XJBN-00998	[1]	SHAFT(F)-DRIVE
113.	XJBN-00999	[1]	SHAFT(R)-DRIVE
114.	XJBN-01000	[1]	GEAR(1)
123.	XJBN-00571	[2]	BEARING-ROLLER
124.	XJBN-00978	[2]	BEARING-NEEDLE
127.	XJBN-00569	[3]	SPACER-BEARING
S141.	XJBN-00680	[2]	BLOCK-CYLINDER
NS151.	XJBN-00681	[18]	PISTON
NS152.	XJBN-01385	[18]	SHOE
153.	XJBN-00020	[2]	PLATE-SET
156.	XJBN-00564	[2]	BUSHING-SPHERICAL
157.	XJBN-00541	[18]	SPRING-CYLINDER
211.	XJBN-00023	[2]	PLATE-SHOE
S212.	XJBN-00012	[2]	PLATE-SWASH
S214.	XJBN-00013	[2]	BUSHING-TILTING
251.	XJBN-00560	[2]	SUPPORT-S.P.
261.	XJBN-00025	[1]	COVER(FR)-SEAL
271.	XJBN-01386	[2]	CASING-PUMP
312.	XJBN-01001	[1]	BLOCK-VALVE
NS313.	XJBN-01387	[1]	PLATE(R)-VALVE
NS314.	XJBN-01388	[1]	PLATE(L)-VALVE
326.	XJBN-01389	[1]	COVER
401.	XJBN-00028	[8]	SCREW
406.	XJBN-00029	[4]	SCREW-HEX
414.	XJBN-01007	[4]	SCREW-HEX
466.	XJBN-00030	[2]	PLUG
468.	XJBN-00031	[4]	PLUG
490.	XJBN-00032	[27]	PLUG
492.	XJBN-00234	[12]	PLUG
NS531.	XJBN-00369	[2]	PIN-TILTING
532.	XJBN-00033	[2]	PISTON-SERVO
534.	XJBN-00034	[2]	STOPPER(L)
535.	XJBN-00035	[2]	STOPPER(S)
NS541.	XJBN-00859	[4]	SEAT
NS543.	XJBN-00860	[2]	STOPPER
NS544.	XJBN-01002	[2]	STOPPER(2)
S545.	XJBN-00038	[4]	BALL-STEEL
NS548.	XJBN-00360	[2]	PIN-FEED BACK
702.	XJBN-00040	[2]	O-RING
710.	XJBN-00041	[2]	O-RING
714.	XJBN-01003	[1]	O-RING
717.	XJBN-00042	[2]	O-RING
719.	XJBN-00043	[2]	O-RING
724.	XJBN-00044	[16]	O-RING
725.	XJBN-00045	[6]	O-RING
728.	XJBN-00046	[4]	O-RING
732.	XJBN-00047	[2]	O-RING
774.	XJBN-01585	[1]	SEAL-OIL
789.	XJBN-00049	[2]	RING-BACK UP
792.	XJBN-00050	[2]	RING-BACK UP
808.	XJBN-00364	[4]	NUT
824.	XJBN-00052	[2]	RING-SNAP
885.	XJBN-00053	[2]	PIN-2
886.	XJBN-00054	[4]	PIN-SPRING
901.	XJBN-00055	[2]	BOLT-EYE
953.	XJBN-00056	[2]	SCREW-SET
954.	XJBN-00057	[2]	SCREW-SET
981.	XJBN-00156	[1]	NAME PLATE
983.	XJBN-00341	[2]	PIN
*-2.	XJBN-01380	[1]	REGULATOR ASSY	SEE 4020
*-3.	XJBN-00847	[1]	GEAR PUMP	SEE 4030
079.	XJBN-00014	[1]	EPPR VALVE ASSY
S011.	XJBN-01382	[2]	PISTON ASSY	SEE ILLUST
S013.	XJBN-01383	[1]	CYLINDER ASSY-RH	SEE ILLUST
S014.	XJBN-01384	[1]	CYLINDER ASSY-LH	SEE ILLUST
S030.	XJBN-00011	[2]	SWASH PLATE ASSY	SEE ILLUST
S041.	XJBN-00072	[2]	CHECK VALVE ASSY 1	SEE ILLUST
S042.	XJBN-01009	[2]	CHECK VALVE ASSY 3	SEE ILLUST
S530.	XJBN-00371	[2]	TILTING PIN SUB ASSY	SEE ILLUST
N.	@	[AR]	NOT SUPPLIED PARTS
