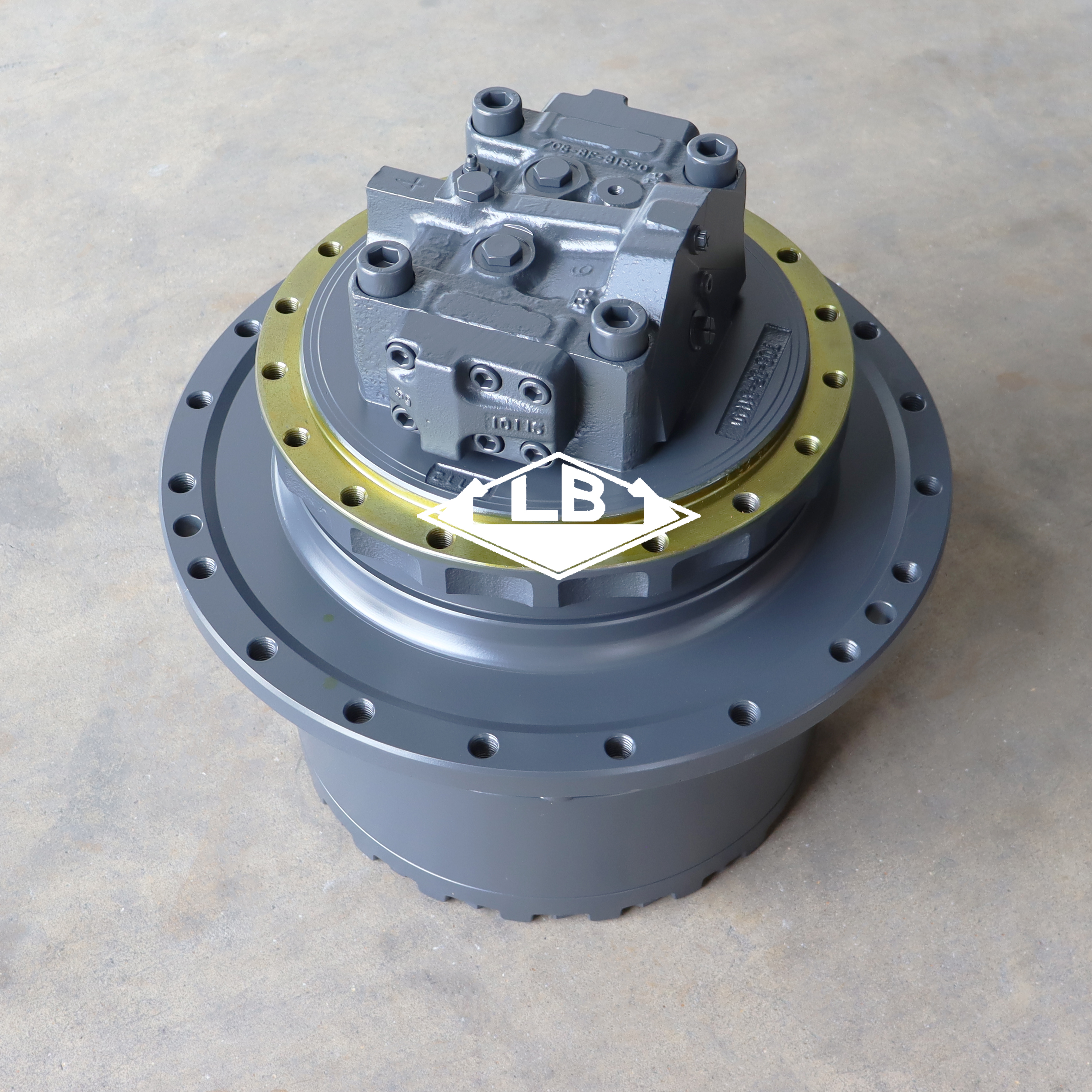

R140-9 R160-9 R210-9 R215-9 FINAL DRIVE 31Q6-40010 FOR HYUNDAI EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	R140-9 R160-9 R210-9 R215-9 FINAL DRIVE
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	31Q6-40010
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

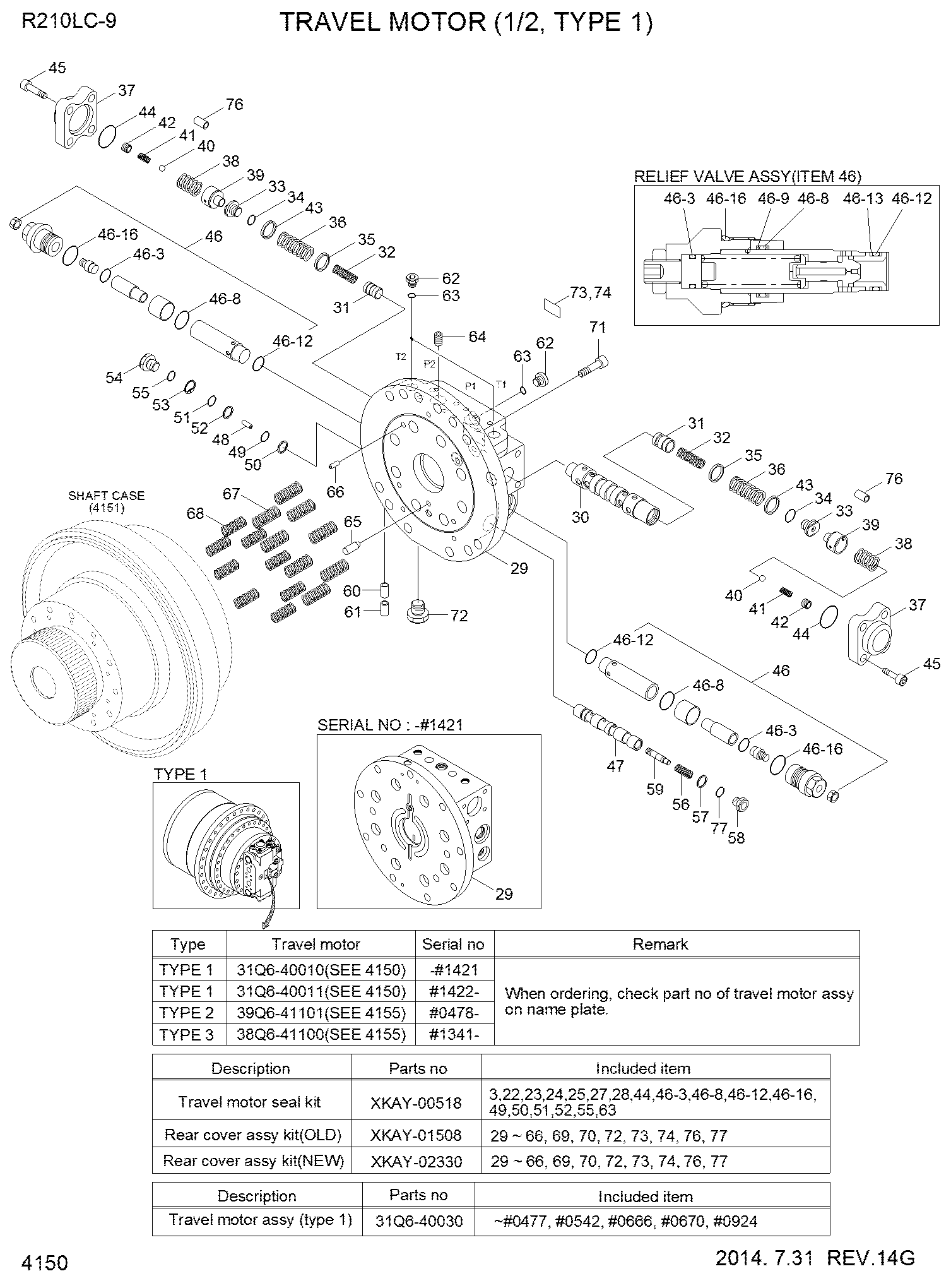

Parts on group TRAVEL MOTOR (1/2, TYPE 1):

Pos.	Part No	Qty	Parts name	Comments
*.	31Q6-40030	[1]	TRAVEL MOTOR ASSY	-1,-2SEE 4155
*.	31Q6-40031	[1]	TRAVEL MOTOR ASSY	-1,-2SEE 4155
*.	31Q6-40032	[1]	TRAVEL MOTOR ASSY	-1,-2SEE 4155
*-1.	31Q6-40010	[1]	TRAVEL MOTOR UNIT
*-1.	31Q6-40011	[1]	TRAVEL MOTOR UNIT
29.	XKAY-00475	[1]	COVER-REAR	OLD
29.	XKAY-02334	[1]	COVER-REAR	NEW
C.	XKAY-00476	[1]	SPOOL KIT	INCL 30-34
N30.	XKAY-00477	[1]	SPOOL
N31.	XKAY-00478	[2]	CHECK
N32.	XKAY-00479	[2]	SPRING
N33.	XKAY-00480	[2]	PLUG
K34.	XKAY-00481	[2]	O-RING
35.	XKAY-00482	[2]	SEAT-SPRING
36.	XKAY-00483	[2]	SPRING
37.	XKAY-00484	[2]	COVER
38.	XKAY-00485	[2]	SPRING
39.	XKAY-00486	[2]	SPOOL
40.	XKAY-00487	[2]	BALL-STEEL
41.	XKAY-00488	[2]	SPRING
42.	XKAY-00489	[2]	PLUG
43.	XKAY-00490	[2]	SEAT-SPRING
K44.	XKAY-00825	[2]	O-RING
45.	XKAY-00492	[8]	BOLT-WRENCH
46.	XKAY-02254	[2]	RELIEF VALVE ASSY
K46-3.	XKAY-00670	[1]	O-RING
K46-8.	XKAY-00669	[1]	O-RING
46-9.	XKAY-00684	[2]	RING-BACK UP
K46-12.	XKAY-00671	[1]	O-RING
46-13.	XKAY-00687	[2]	RING-BACK UP
K46-16.	XKAY-01972	[1]	O-RING
47.	XKAY-00494	[1]	SPOOL
48.	XKAY-00826	[1]	GUIDE
K49.	XKAY-00827	[1]	O-RING
K50.	XKAY-00497	[1]	RING-BACK UP
K51.	XKAY-00828	[1]	O-RING
K52.	XKAY-00499	[1]	RING-BACK UP
53.	XKAY-00500	[1]	RING-SNAP
54.	XKAY-00501	[3]	PLUG
K55.	XKAY-00247	[4]	O-RING
56.	XKAY-00502	[1]	SPRING
57.	XKAY-00503	[1]	SEAT-SPRING
58.	XKAY-00504	[1]	PLUG
59.	XKAY-00505	[1]	SPOOL
60.	XKAY-00506	[2]	ORIFICE
61.	XKAY-00507	[2]	ORIFICE
62.	XKAY-00508	[3]	PLUG
K63.	XKAY-00256	[3]	O-RING
64.	XKAY-00032	[1]	PLUG
65.	XKAY-00509	[4]	PIN
66.	XKAY-00510	[1]	PIN
67.	XKAY-00511	[8]	SPRING
68.	XKAY-00512	[8]	SPRING
71.	XKAY-00385	[16]	BOLT-WRENCH
72.	XKAY-00515	[1]	PLUG
73.	XKAY-02077	[1]	NAME PLATE
74.	XKAY-00517	[2]	RIVET
76.	XKAY-00519	[2]	ORIFICE
77.	XKAY-01097	[AR]	SHIM
*-2.	@	[1]	T/REDUCTION GEAR	SEE 4152
K.	XKAY-00518	[1]	SEAL KIT	SEE ILLUST
K.	XKAY-01508	[1]	REAR COVER ASSY KIT	SEE ILLUST
K.	XKAY-02330	[1]	COVER ASSY-REAR	SEE ILLUST
N.	@	[AR]	NOT SUPPLIED PARTS

Parts on group TRAVEL REDUCTION GEAR (TYPE 1):

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	TRAVEL MOTOR ASSY	SEE 4150
*.	@	[1]	TRAVEL MOTOR ASSY	SEE 4150
*-2.	31Q6-40020	[1]	TRAVEL REDUCTION GEAR
*-2.	31Q6-40021	[1]	TRAVEL REDUCTION GEAR
*-2.	31Q6-40022	[1]	T/REDUCTION GEAR
N1.	XKAQ-00217	[1]	HOUSING
2.	XKAQ-00218	[2]	BEARING-MAIN
2.	XKAQ-00986	[2]	BEARING-MAIN
3.	XKAQ-00219	[1]	SEAL-FLOATING
4.	XKAQ-00220	[1]	SHIM
5.	XKAQ-00221	[1]	RETAINER
6.	XKAQ-00222	[12]	BOLT-HEX
7.	XKAQ-00223	[2]	PIN-PARALLEL
8.	XKAQ-00224	[1]	GEAR-RING
9.	XKAQ-00225	[1]	COUPLING
9.	39Q6-42170	[1]	COUPLING
10.	XKAQ-00226	[1]	CARRIER 2 ASSY
10-1.	XKAQ-00227	[1]	CARRIER 2
10-2.	XKAQ-00228	[4]	GEAR-PLANET 2
10-3.	XKAQ-00229	[8]	BEARING-NEEDLE 2
10-4.	XKAQ-00230	[8]	WASHER-THRUST
10-5.	XKAQ-00231	[4]	PIN 2
10-6.	XKAQ-00232	[4]	PIN-SPRING
10-7.	XKAQ-00208	[2]	RING-THRUST
11.	XKAQ-00653	[1]	CARRIER ASSY 1
11-1.	XKAQ-00234	[1]	CARRIER 1
11-2.	XKAQ-00235	[1]	GEAR-SUN 2
11-3.	XKAQ-00236	[1]	RING-RETAINING
11-4.	XKAQ-00237	[3]	GEAR-PLANET 1
11-5.	XKAQ-00238	[3]	BEARNG-NEEDLE 1
11-6.	XKAQ-00657	[6]	WASHER-THRUST
11-7.	XKAQ-00240	[3]	PIN 1
11-8.	XKAQ-00241	[3]	PIN-SPRING
11-9.	XKAQ-00655	[1]	PIN-SPRING
12.	XKAQ-00402	[1]	GEAR-SUN 1
12.	XKAQ-00795	[1]	GEAR-SUN 1
13.	XKAQ-00243	[1]	COVER
14.	XKAQ-00214	[1]	PAD
15.	XKAQ-00244	[20]	BOLT-SOCKET
16.	XKAQ-00245	[2]	SCREW-HEX SOCKET
17.	XKAQ-00246	[3]	PLUG-HYDRAULIC
18.	XKAQ-00247	[3]	O-RING
19.	XKAQ-00248	[1]	NAME PLATE
19.	XKAQ-00990	[1]	NAME PLATE
N.	@	[AR]	NOT SUPPLIED PARTS
