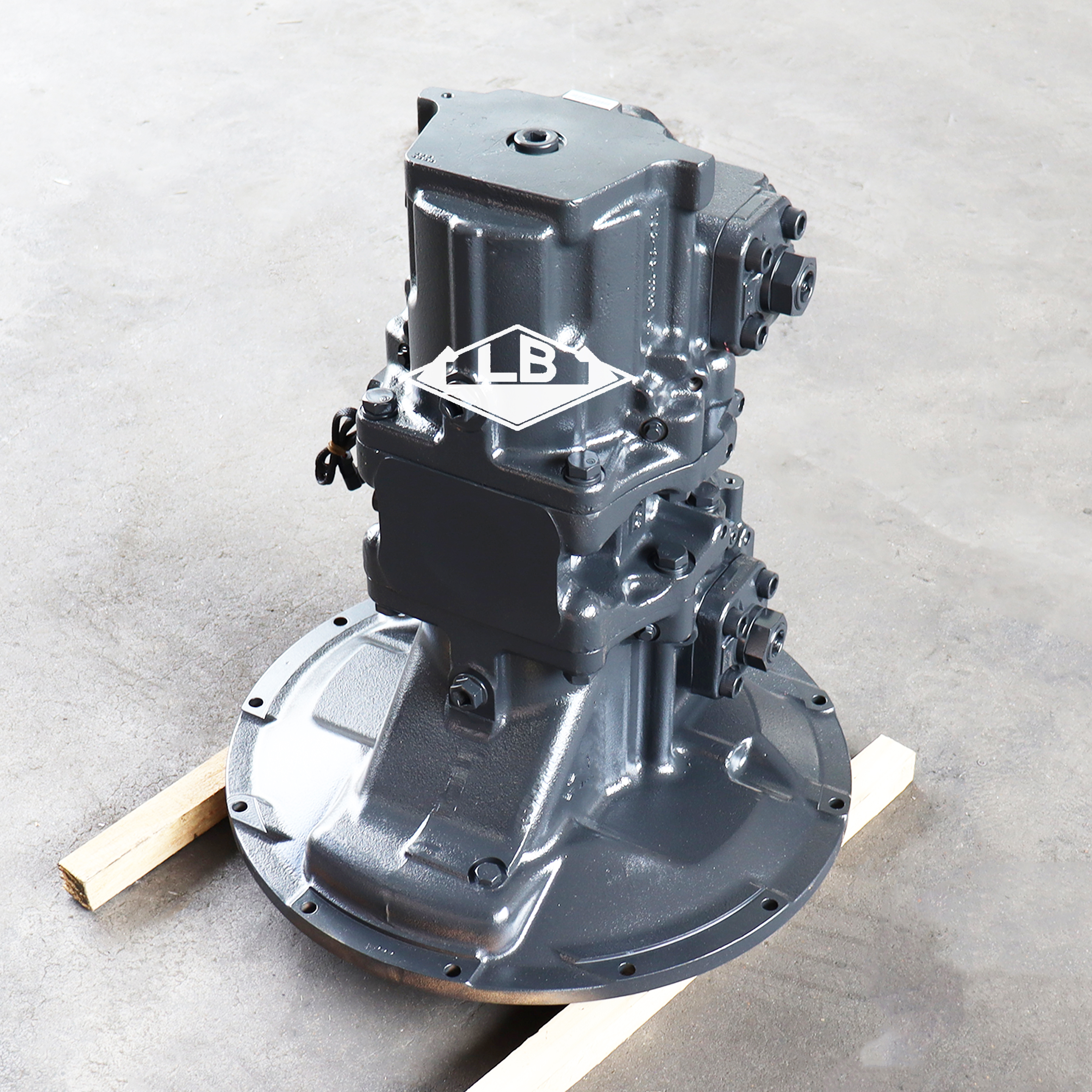

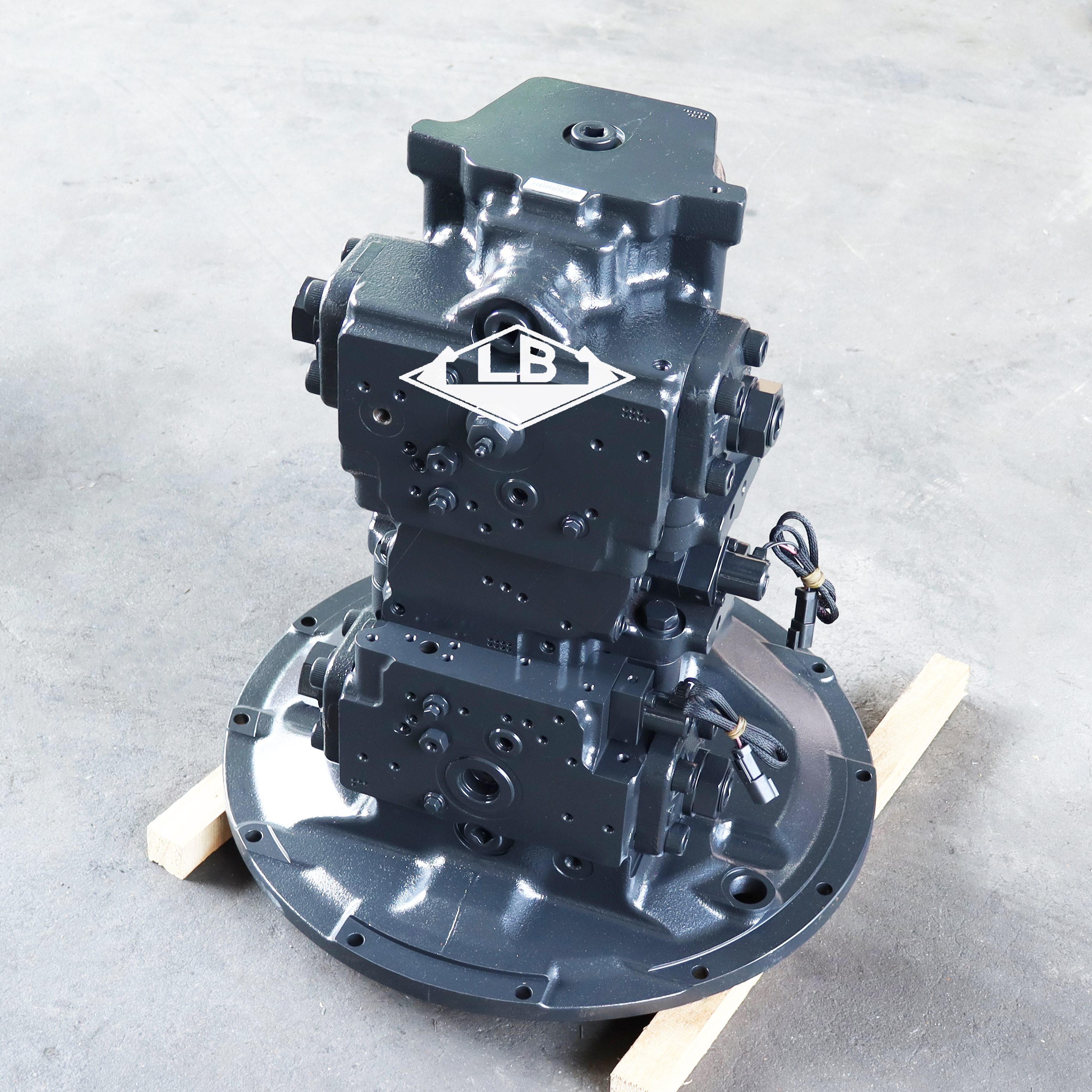

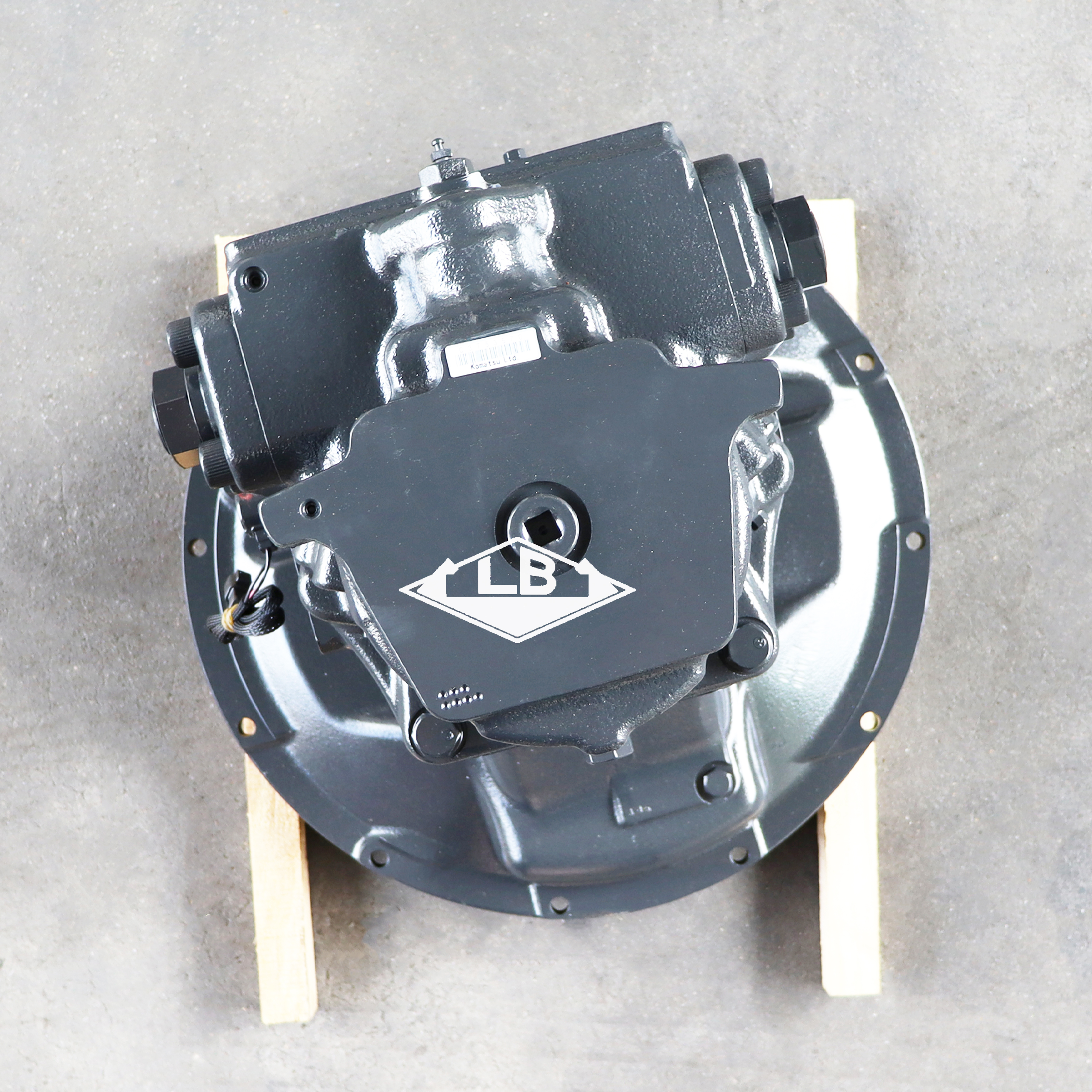

PC300-8 PC350-8 MAIN PUMP 708-2G-00150 PC350-8 hydraulic pump for Komatsu excavator

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

PC300-8 PC350-8 MAIN PUMP
Equipment Apply to KOMATSU EXCAVATOR
Part no. 708-2G-00150
motor shaft teeth
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

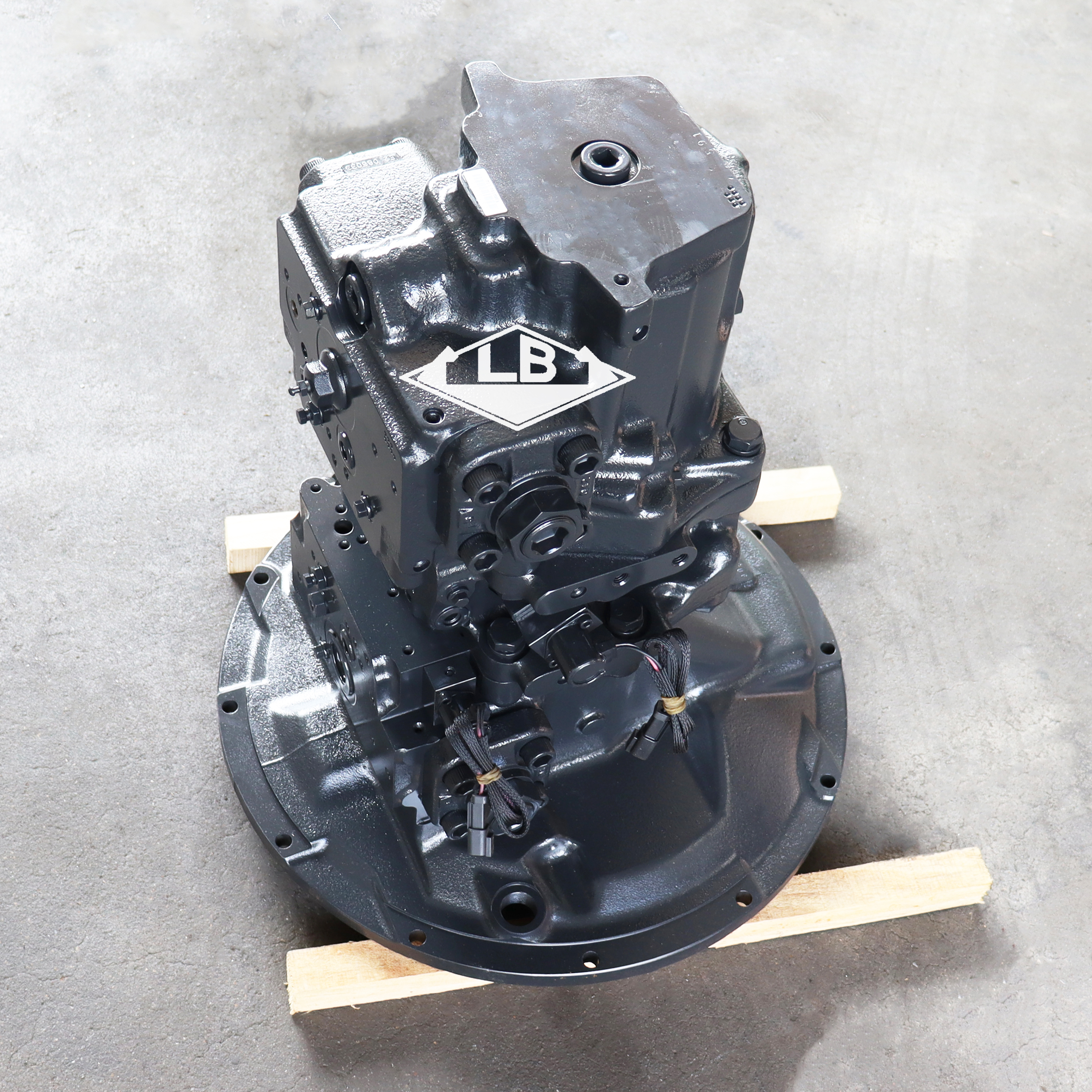

708-2G-00150 PC350-8 液压泵（6）708-2G-00150 PC350-8 液压泵（4）708-2G-00150 PC350-8 液压泵（2）708-2G-00150 PC350-8 液压泵（8）PC350-8(1)

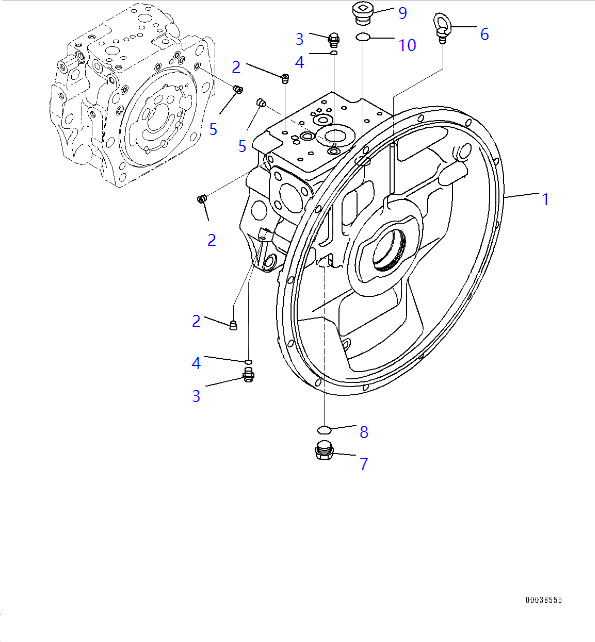

Parts on group :


Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.

708-2G-04241 [1] Case Assembly Komatsu 66.5 kg.

["SN: 62677-UP", "SCC: C2"] |$2.
3. 708-8E-16150 [2] Plug Komatsu 0.02 kg.

["SN: 62677-UP"]
4. 07002-61023 [2] O-ring Komatsu 0.22 kg.

["SN: 62677-UP"] analogs:["7082L23920"]
5. 708-1L-29340 [2] Orifice Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
6. 04530-01222 [1] Bolt, Eye Komatsu China

["SN: 62677-UP"] analogs:["N291222", "1306091340"]
7. 07044-12412 [1] Plug Komatsu 0.09 kg.

["SN: 62677-UP"] analogs:["0704402412", "R0704412412"]
8. 07002-62434 [1] O-ring Komatsu 0.001 kg.

["SN: 62677-UP"] analogs:["7081W28910"]
9. 07040-12414 [1] Plug Komatsu 0.092 kg.

["SN: 62677-UP"] analogs:["0704002412", "0704012412"]

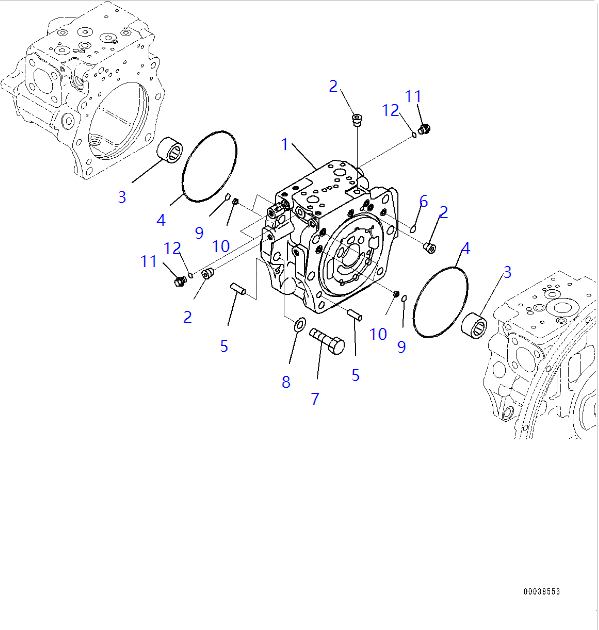

PC350-8(2)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.

708-2G-04680 [1] Cap Assembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$2.
3. 708-2G-12151 [2] Bearing Komatsu 0.21 kg.

["SN: 62677-UP", "SCC: C2"]
4. 07000-A5185 [2] O-ring Komatsu OEM 0.02 kg.

["SN: 62677-UP", "SCC: C2"]
5. 04020-01434 [2] Pin, Dowel Komatsu 0.044 kg.

["SN: 62677-UP", "SCC: C2"]
6. 07000-B2012 [7] O-ring Komatsu China 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
7. 01010-61655 [12] Bolt Komatsu 0.119 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["801015613", "0101031655", "0101051655", "0101081655"]
8. 01643-51645 [12] Washer Komatsu 0.021 kg.

["SN: 62677-UP", "SCC: C2"]
9. 07000-B2014 [4] O-ring Komatsu China 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
10. 708-2L-25480 [4] Filter Komatsu OEM 0.5 kg.

["SN: 62677-UP", "SCC: C2"]
11. 708-8E-16150 [3] Plug Komatsu 0.02 kg.

["SN: 62677-UP"]
12. 07002-61023 [3] O-ring Komatsu 0.22 kg.

["SN: 62677-UP"] analogs:["7082L23920"]

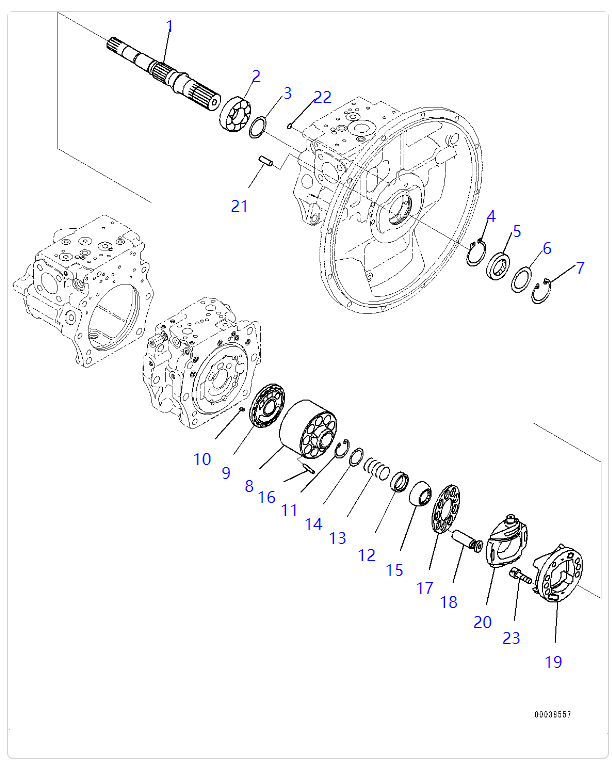

PC350-8(3)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.
1. 708-2G-12640 [1] Shaft Komatsu China

["SN: 62677-UP", "SCC: C2"]
2. 708-2G-12251 [1] Bearing Komatsu China 0.875 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["7082G12252"]
3. 708-2G-05010 [1] Washer Kit Komatsu 0.75 kg.

["SN: 62677-UP", "SCC: C2"]
4. 708-1F-12270 [1] Ring, Snap Komatsu 0.014 kg.

["SN: 62677-UP", "SCC: C2"]
5. 708-2G-12230 [1] Seal, Oil Komatsu 0.000 kg.

["SN: 62677-UP"]
6. 708-8H-32160 [1] Spacer Komatsu 0.05 kg.

["SN: 62677-UP"]
7. 04065-07825 [1] Ring, Snap Komatsu 0.022 kg.

["SN: 62677-UP"]

708-2G-04710 [1] Cylinder Block Assembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$12.
10. 708-18-13230 [1] Pin Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
11. 04065-05520 [1] Ring, Snap Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
12. 708-2G-13131 [1] Seat Komatsu 0.1 kg.

["SN: 62677-UP", "SCC: C2"]
13. 708-2G-13152 [1] Spring Komatsu 0.2 kg.

["SN: 62677-UP", "SCC: C2"]
14. 708-2G-13141 [1] Seat Komatsu 0.02 kg.

["SN: 62677-UP", "SCC: C2"]
15. 708-2G-13510 [1] Guide, Retainer Komatsu OEM 0.21 kg.

["SN: 62677-UP", "SCC: C2"]
16. 708-2H-23360 [3] Pin Komatsu 0.006 kg.

["SN: 62677-UP", "SCC: C2"]
17. 708-2G-13341 [1] Retainer, Shoe Komatsu OEM 0.39 kg.

["SN: 62677-UP", "SCC: C2"]
18. 708-2G-13810 [9] Piston Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"]

708-2G-04670 [1] Cradle Subassembly Komatsu 0.000 kg.

["SN: 62677-UP", "SCC: C2"] |$24.
21. 04020-01434 [1] Pin, Dowel Komatsu 0.044 kg.

["SN: 62677-UP", "SCC: C2"]
22. 07000-B1009 [1] O-ring Komatsu China 0.001 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["7082L23910"]
23. 01252-61230 [6] Bolt, Hexagon Socket Head Komatsu 0.044 kg.

["SN: 62677-UP", "SCC: C2"]

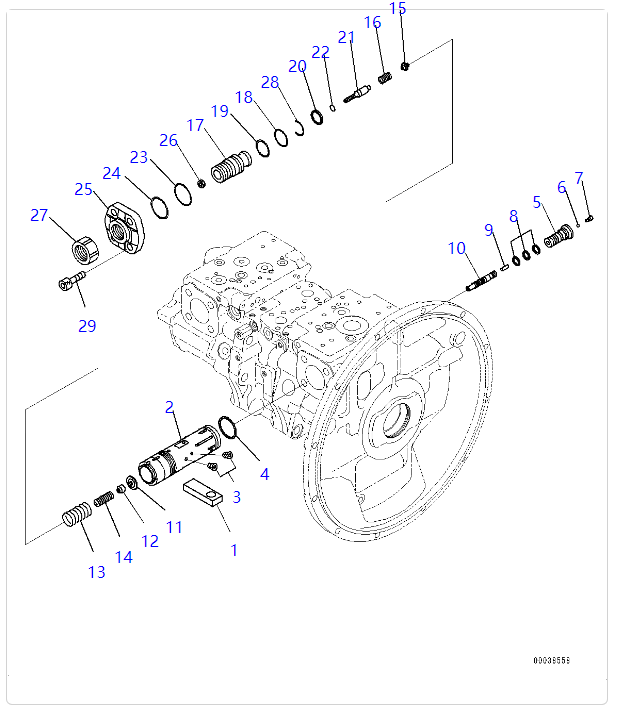

PC350-8(4)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.
1. 708-2G-14120 [1] Slider Komatsu 0.365 kg.

["SN: 62677-UP", "SCC: C2"]
1. 708-2G-03640 [1] Valve Assembly Komatsu China

["SN: 62677-UP", "SCC: C2"]
1. 708-2G-03650 [1] Piston Assembly Komatsu China

["SN: 62677-UP", "SCC: C2"]
6. 708-2L-35760 [1] Ball Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
7. 708-2L-35770 [1] Plug Komatsu 0.005 kg.

["SN: 62677-UP", "SCC: C2"]
9. 708-2L-35170 [1] Pin Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
10. 708-2G-15211 [1] Spool Komatsu 0.03 kg.

["SN: 62677-UP", "SCC: C2"]
11. 708-2G-15290 [1] Retainer Komatsu 0.05 kg.

["SN: 62677-UP", "SCC: C2"]
12. 708-2G-15140 [1] Seat Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
13. 708-2G-15270 [1] Spring Komatsu 2.1 kg.

["SN: 62677-UP", "SCC: C2"]
14. 708-2G-15280 [1] Spring Komatsu China

["SN: 62677-UP", "SCC: C2"]
15. 708-2G-15151 [1] Seat Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
16. 708-2G-15250 [1] Spring Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
17. 708-2G-14340 [1] Screw Komatsu 0.622 kg.

["SN: 62677-UP", "SCC: C2"]
18. 07000-B3038 [1] O-ring Komatsu 0.002 kg.

["SN: 62677-UP", "SCC: C2"]
19. 708-2G-15230 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
21. 708-2G-15240 [1] Plug Komatsu 0.08 kg.

["SN: 62677-UP", "SCC: C2"]
22. 07000-B2012 [1] O-ring Komatsu China 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
23. 07000-B2050 [1] O-ring Komatsu 0.002 kg.

["SN: 62677-UP", "SCC: C2"]
24. 708-2G-15310 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
25. 708-2G-14190 [1] Cover Komatsu China

["SN: 62677-UP", "SCC: C2"]
26. 01580-10806 [1] Nut Komatsu 0.005 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["801920104"]
27. 708-2L-35290 [1] Nut Komatsu 0.12 kg.

["SN: 62677-UP", "SCC: C2"]
28. 708-2G-15330 [1] Ring, Wear Komatsu 0.005 kg.

["SN: 62677-UP", "SCC: C2"]
29. 01252-61645 [4] Bolt, Hexagon Socket Head Komatsu 0.119 kg.

["SN: 62677-UP", "SCC: C2"]

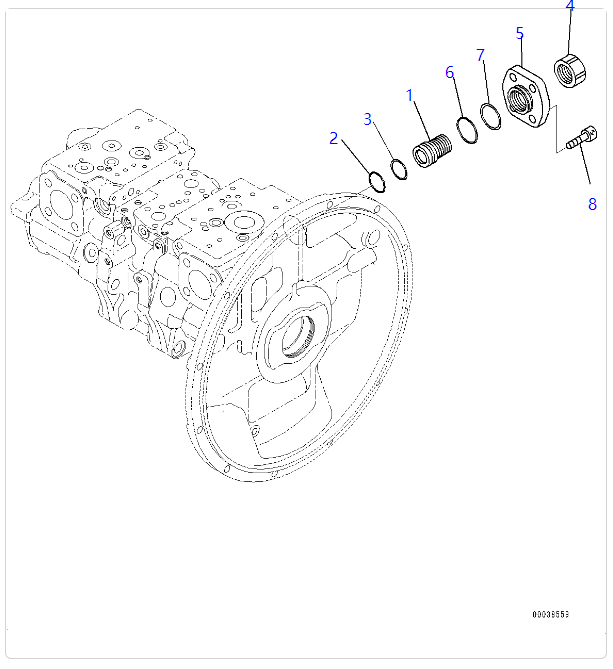

PC350-8(5)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.

708-2G-03480 [1] Cover Assembly Komatsu 2.01 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["7082G03430"] |$2.
1. 708-2G-14310 [1] Screw Komatsu 0.54 kg.

["SN: 62677-UP", "SCC: C2"]
2. 07000-B3038 [1] O-ring Komatsu 0.002 kg.

["SN: 62677-UP", "SCC: C2"]
3. 708-2G-15230 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
4. 708-2L-35290 [1] Nut Komatsu 0.12 kg.

["SN: 62677-UP", "SCC: C2"]
5. 708-2G-14170 [1] Cover Komatsu 1.5 kg.

["SN: 62677-UP", "SCC: C2"]
6. 07000-B2050 [1] O-ring Komatsu 0.002 kg.

["SN: 62677-UP", "SCC: C2"]
7. 708-2G-15310 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
8. 01252-61645 [4] Bolt, Hexagon Socket Head Komatsu 0.119 kg.

["SN: 62677-UP", "SCC: C2"]

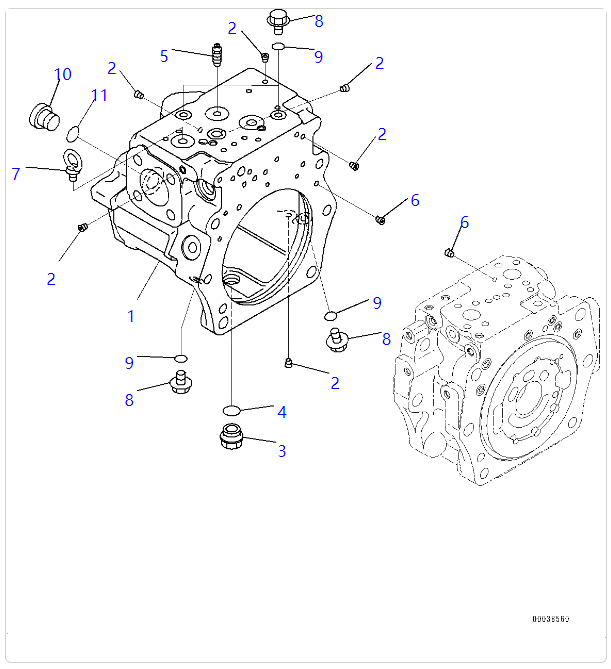

PC350-8(6)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.

708-2G-04252 [1] Case Assembly Komatsu 39.4 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["7082G04251", "7082G04250"] |$2.
3. 07044-12412 [1] Plug Komatsu 0.09 kg.

["SN: 62677-UP"] analogs:["0704402412", "R0704412412"]
4. 07002-62434 [1] O-ring Komatsu 0.001 kg.

["SN: 62677-UP"] analogs:["7081W28910"]
5. 20B-27-11210 [1] Bleeder Komatsu 0.02 kg.

["SN: 62677-UP"]
6. 708-1L-29340 [2] Orifice Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
7. 04530-01222 [1] Bolt, Eye Komatsu China

["SN: 62677-UP"] analogs:["N291222", "1306091340"]
8. 708-8E-16150 [4] Plug Komatsu 0.02 kg.

["SN: 62677-UP"]
9. 07002-61023 [4] O-ring Komatsu 0.22 kg.

["SN: 62677-UP"] analogs:["7082L23920"]
10. 07040-12414 [1] Plug Komatsu 0.092 kg.

["SN: 62677-UP"] analogs:["0704002412", "0704012412"]

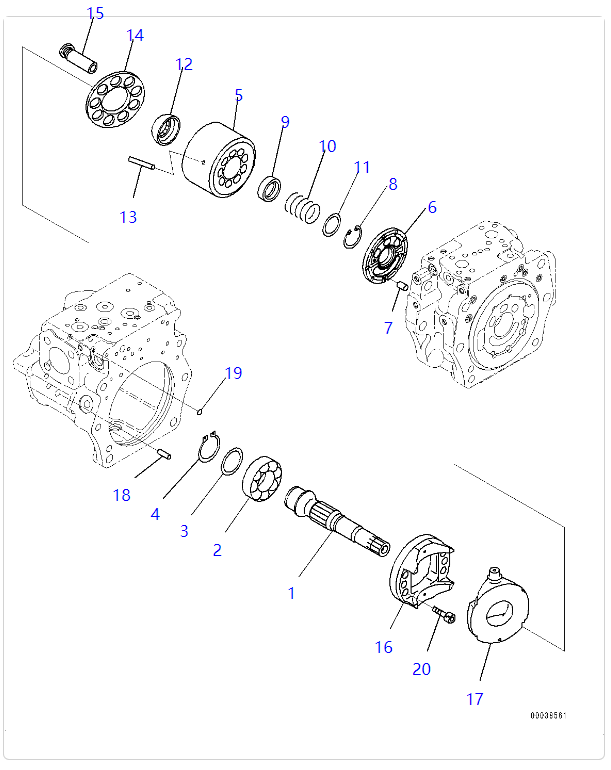

PC350-8(7)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.
1. 708-2G-12650 [1] Shaft Komatsu China

["SN: 62677-UP", "SCC: C2"]
2. 708-2G-12251 [1] Bearing Komatsu China 0.875 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["7082G12252"]
3. 708-2G-05010 [1] Washer Kit Komatsu 0.75 kg.

["SN: 62677-UP", "SCC: C2"]
4. 708-1F-12270 [1] Ring, Snap Komatsu 0.014 kg.

["SN: 62677-UP", "SCC: C2"]

708-2G-04720 [1] Block Assembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$9.
7. 708-18-13230 [1] Pin Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
8. 04065-05520 [1] Ring, Snap Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
9. 708-2G-13131 [1] Seat Komatsu 0.1 kg.

["SN: 62677-UP", "SCC: C2"]
10. 708-2G-13152 [1] Spring Komatsu 0.2 kg.

["SN: 62677-UP", "SCC: C2"]
11. 708-2G-13141 [1] Seat Komatsu 0.02 kg.

["SN: 62677-UP", "SCC: C2"]
12. 708-2G-13510 [1] Guide, Retainer Komatsu OEM 0.21 kg.

["SN: 62677-UP", "SCC: C2"]
13. 708-2H-23360 [3] Pin Komatsu 0.006 kg.

["SN: 62677-UP", "SCC: C2"]
14. 708-2G-13341 [1] Retainer, Shoe Komatsu OEM 0.39 kg.

["SN: 62677-UP", "SCC: C2"]
15. 708-2G-13810 [9] Piston Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"]

708-2G-04670 [1] Cradle Subassembly Komatsu 0.000 kg.

["SN: 62677-UP", "SCC: C2"] |$21.
18. 04020-01434 [1] Pin, Dowel Komatsu 0.044 kg.

["SN: 62677-UP", "SCC: C2"]
19. 07000-B1009 [1] O-ring Komatsu China 0.001 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["7082L23910"]
20. 01252-61230 [6] Bolt, Hexagon Socket Head Komatsu 0.044 kg.

["SN: 62677-UP", "SCC: C2"]

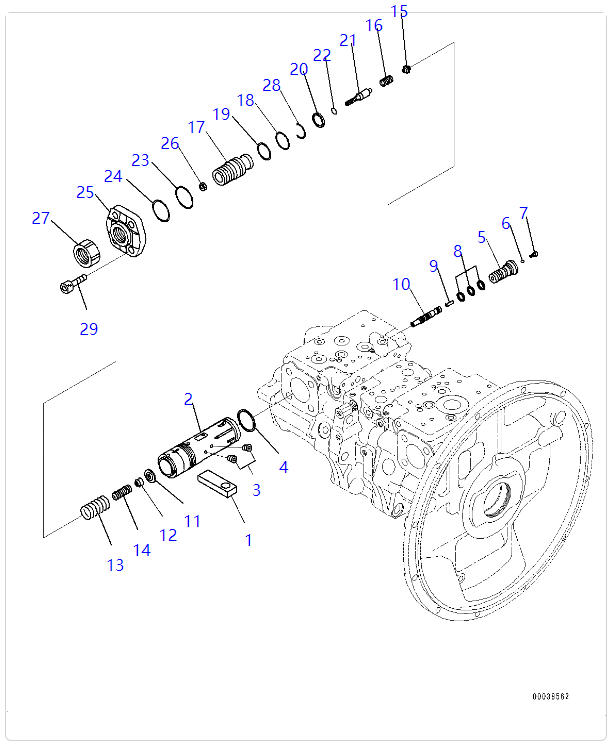

PC350-8(8)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.
1. 708-2G-14120 [1] Slider Komatsu 0.365 kg.

["SN: 62677-UP", "SCC: C2"]
1. 708-2G-03640 [1] Valve Assembly Komatsu China

["SN: 62677-UP", "SCC: C2"]
1. 708-2G-03650 [1] Piston Assembly Komatsu China

["SN: 62677-UP", "SCC: C2"]
6. 708-2L-35760 [1] Ball Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
7. 708-2L-35770 [1] Plug Komatsu 0.005 kg.

["SN: 62677-UP", "SCC: C2"]
9. 708-2L-35170 [1] Pin Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
10. 708-2G-15211 [1] Spool Komatsu 0.03 kg.

["SN: 62677-UP", "SCC: C2"]
11. 708-2G-15290 [1] Retainer Komatsu 0.05 kg.

["SN: 62677-UP", "SCC: C2"]
12. 708-2G-15140 [1] Seat Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
13. 708-2G-15270 [1] Spring Komatsu 2.1 kg.

["SN: 62677-UP", "SCC: C2"]
14. 708-2G-15280 [1] Spring Komatsu China

["SN: 62677-UP", "SCC: C2"]
15. 708-2G-15151 [1] Seat Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
16. 708-2G-15250 [1] Spring Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
17. 708-2G-14340 [1] Screw Komatsu 0.622 kg.

["SN: 62677-UP", "SCC: C2"]
18. 07000-B3038 [1] O-ring Komatsu 0.002 kg.

["SN: 62677-UP", "SCC: C2"]
19. 708-2G-15230 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
21. 708-2G-15240 [1] Plug Komatsu 0.08 kg.

["SN: 62677-UP", "SCC: C2"]
22. 07000-B2012 [1] O-ring Komatsu China 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
23. 07000-B2050 [1] O-ring Komatsu 0.002 kg.

["SN: 62677-UP", "SCC: C2"]
24. 708-2G-15310 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
25. 708-2G-14190 [1] Cover Komatsu China

["SN: 62677-UP", "SCC: C2"]
26. 01580-10806 [1] Nut Komatsu 0.005 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["801920104"]
27. 708-2L-35290 [1] Nut Komatsu 0.12 kg.

["SN: 62677-UP", "SCC: C2"]
28. 708-2G-15330 [1] Ring, Wear Komatsu 0.005 kg.

["SN: 62677-UP", "SCC: C2"]
29. 01252-61645 [4] Bolt, Hexagon Socket Head Komatsu 0.119 kg.

["SN: 62677-UP", "SCC: C2"]

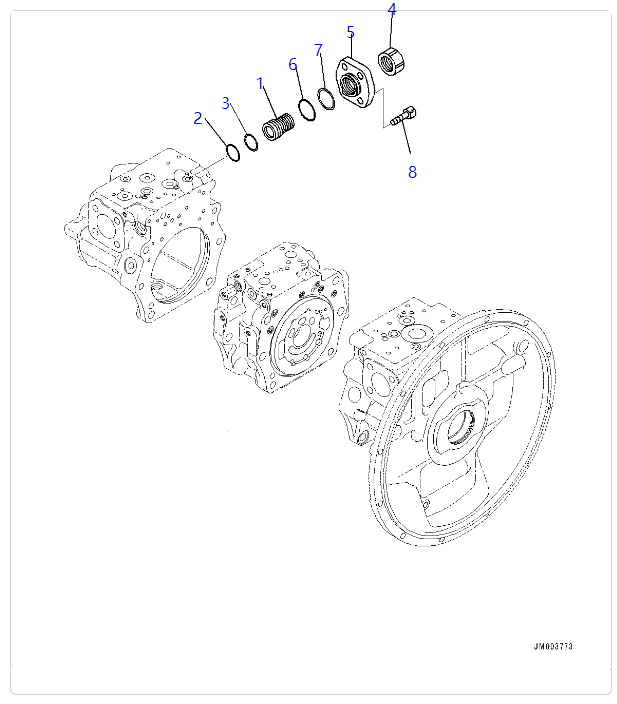

PC350-8(9)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.

708-2G-03480 [1] Cover Assembly Komatsu 2.01 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["7082G03430"] |$2.
1. 708-2G-14310 [1] Screw Komatsu 0.54 kg.

["SN: 62677-UP", "SCC: C2"]
2. 07000-B3038 [1] O-ring Komatsu 0.002 kg.

["SN: 62677-UP", "SCC: C2"]
3. 708-2G-15230 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
4. 708-2L-35290 [1] Nut Komatsu 0.12 kg.

["SN: 62677-UP", "SCC: C2"]
5. 708-2G-14170 [1] Cover Komatsu 1.5 kg.

["SN: 62677-UP", "SCC: C2"]
6. 07000-B2050 [1] O-ring Komatsu 0.002 kg.

["SN: 62677-UP", "SCC: C2"]
7. 708-2G-15310 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
8. 01252-61645 [4] Bolt, Hexagon Socket Head Komatsu 0.119 kg.

["SN: 62677-UP", "SCC: C2"]

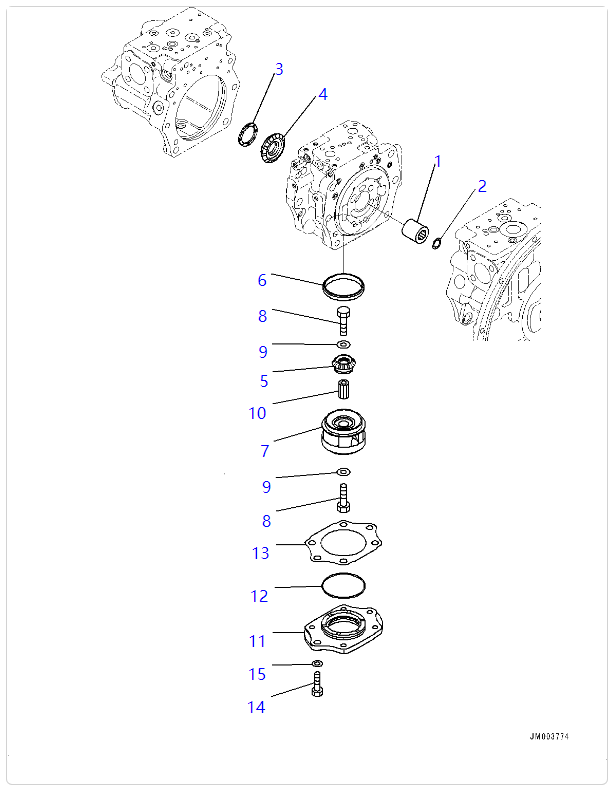

PC350-8(10)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-01150 [1] Pump Subassembly Komatsu China

["SN: 62677-UP", "SCC: C2"] |$1.
1. 708-2G-12340 [1] Coupling Komatsu 0.37 kg.

["SN: 62677-UP", "SCC: C2"]
2. 708-2F-12420 [1] Ring Komatsu 0.005 kg.

["SN: 62677-UP", "SCC: C2"]
3. 708-2H-21860 [1] Plate Komatsu 0.04 kg.

["SN: 62677-UP", "SCC: C2"]

708-2G-04730 [1] Gear Kit Komatsu China

["SN: 62677-UP", "SCC: C2"] |$5.
6. 708-2H-32320 [1] Bushing Komatsu 0.000 kg.

["SN: 62677-UP", "SCC: C2"]
7. 708-2H-32330 [1] Impeller Komatsu 0.000 kg.

["SN: 62677-UP", "SCC: C2"]
8. 01010-61220 [2] Bolt Komatsu 0.035 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["0101031220", "01010E1220"]
9. 708-2H-32350 [2] Washer Komatsu 0.000 kg.

["SN: 62677-UP", "SCC: C2"]
10. 708-2H-32360 [1] Shaft Komatsu 0.000 kg.

["SN: 62677-UP", "SCC: C2"]
11. 708-2G-11910 [1] Cover Komatsu China

["SN: 62677-UP", "SCC: C2"]
12. 07000-A2105 [1] O-ring Komatsu 0.003 kg.

["SN: 62677-UP", "SCC: C2"]
13. 708-2G-05020 [1] Shim Kit Komatsu China

["SN: 62677-UP", "SCC: C2"]
14. 01010-81235 [2] Bolt Komatsu 0.048 kg.

["SN: 62677-UP"] analogs:["0101051235", "01010E1235", "801015136"]
15. 01643-31232 [2] Washer Komatsu 0.027 kg.

["SN: 62677-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]

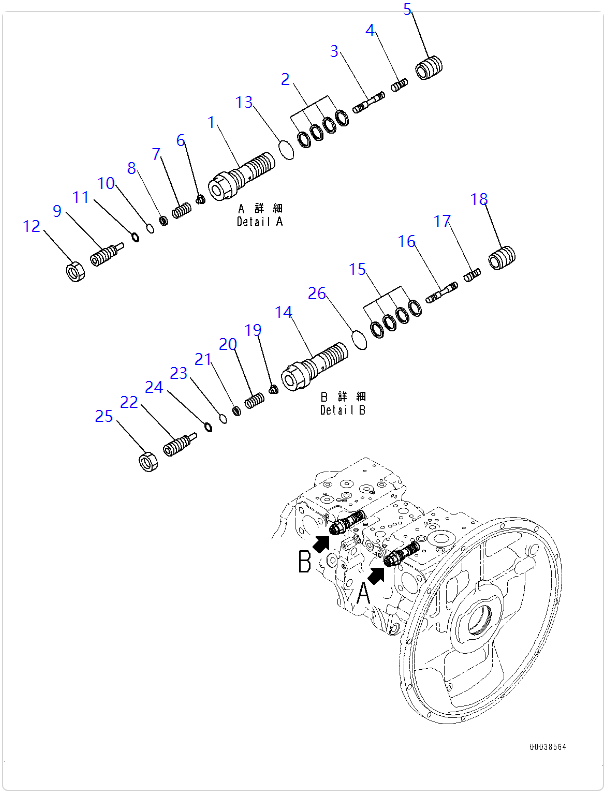

PC350-8(11)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.

708-2G-03720 [1] Valve Assembly Komatsu China

["SN: 62677-UP"] |$1.
3. 708-2J-15310 [1] Spool Komatsu China

["SN: 62677-UP", "SCC: C2"]
4. 708-2L-28540 [1] Piston Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
5. 708-2L-35360 [1] Sleeve Komatsu 0.04 kg.

["SN: 62677-UP", "SCC: C2"]
6. 708-2L-35331 [1] Seat Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
7. 708-2L-35410 [1] Spring Komatsu 0.01 kg.

["SN: 62677-UP", "SCC: C2"]
8. 708-2L-35341 [1] Seat Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
9. 708-2L-35351 [1] Plug Komatsu 0.04 kg.

["SN: 62677-UP", "SCC: C2"]
10. 07000-B1009 [1] O-ring Komatsu China 0.001 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["7082L23910"]
11. 07001-01009 [1] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP", "SCC: C2"]
12. 01583-11408 [1] Nut Komatsu 0.4 kg.

["SN: 62677-UP", "SCC: C2"] analogs:["801713411"]
13. 07002-62434 [1] O-ring Komatsu 0.001 kg.

["SN: 62677-UP"] analogs:["7081W28910"]
13. 708-2G-03920 [1] Valve Assembly Komatsu China

["SN: 62677-UP"]
19. 708-2G-15420 [1] Seat Komatsu China

["SN: 62677-UP", "SCC: C2"]

PC350-8(12)

Parts on group :

Pos. Part No Qty Parts name Comments

708-2G-00150 [1] Pump Assembly Komatsu China

["SN: 62677-UP"] |$0.
1. 702-21-57400 [1] Valve, Pilot Komatsu OEM 0.442 kg.

["SN: 62677-UP"] analogs:["7022155901"]
2. 723-11-19960 [1] O-ring Komatsu 0.001 kg.

["SN: 62677-UP"]
3. 702-21-54910 [2] O-ring Komatsu 0.001 kg.

["SN: 62677-UP"]
4. 01252-60635 [2] Bolt, Hexagon Socket Head Komatsu 0.011 kg.

["SN: 62677-UP"]
5. 20Y-62-22790 [1] Band, Red Komatsu 0.001 kg.

["SN: 62677-UP"]
6. 702-21-57500 [1] Valve, Pilot Komatsu OEM 0.5 kg.

["SN: 62677-UP"] analogs:["7022155701", "7022155700"]
9. 702-16-55260 [2] Bolt Komatsu 0.02 kg.

["SN: 62677-UP"]
10. 20Y-62-22830 [1] Band, White Komatsu 0.001 kg.

["SN: 62677-UP"]
10. 702-21-56600 [1] Valve Assembly Komatsu 0.552 kg.

["SN: 62677-UP"]
11. 702-21-55920 [1] Plug Komatsu China

["SN: 62677-UP"]
12. 702-21-55930 [1] Piston Komatsu China

["SN: 62677-UP"]
13. 702-21-56610 [1] Spring Komatsu China

["SN: 62677-UP"]
14. 702-21-55951 [1] Block Komatsu China

["SN: 62677-UP"] analogs:["7022155950"]
15. 07002-12034 [1] O-ring Komatsu China 0.94 kg.

["SN: 62677-UP"] analogs:["0700002034", "0700202034", "0700012034"]
16. 07000-11008 [2] O-ring Komatsu China 0.01 kg.

["SN: 62677-UP"] analogs:["0700001008", "2016018950"]
17. 722-12-18240 [1] O-ring Komatsu 0.001 kg.

["SN: 62677-UP"]
18. 01252-60530 [1] Bolt, Hexagon Socket Head Komatsu 0.006 kg.

["SN: 62677-UP"]
19. 708-2G-15680 [2] Plug Komatsu China

["SN: 62677-UP"]
20. 07000-B1008 [2] O-ring Komatsu 0.001 kg.

["SN: 62677-UP"]
21. 07001-01008 [4] Ring, Back-up Komatsu 0.001 kg.

["SN: 62677-UP"]
22. 07002-61423 [2] O-ring Komatsu 0.001 kg.

["SN: 62677-UP"] analogs:["7082L23950"]
23. 01643-31232 [3] Washer Komatsu 0.027 kg.

["SN: 62677-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
24. 01010-81220 [2] Bolt Komatsu 0.032 kg.

["SN: 62677-UP"] analogs:["0101051220"]
25. 08193-21012 [2] Clip Komatsu 0.011 kg.

["SN: 62677-UP"]
26. 708-2G-19130 [1] Spacer Komatsu China

["SN: 62677-UP"]
27. 01010-81235 [1] Bolt Komatsu 0.048 kg.

["SN: 62677-UP"] analogs:["0101051235", "01010E1235", "801015136"]
28. 04434-50612 [1] Clip Komatsu 0.01 kg.

["SN: 62677-UP"]



Company Informatio


1 (2)
Previous:
Next:
PC300-8 PC350-8 MAIN PUMP 708-2G-00150 PC350-8 hydraulic pump

Product Category

Related Products

JCB220 JS200 JS210 JS220 20/925309 HYDRAULIC PUMP JCB220 MAIN PUMP FOR JCB EXCAVATOR
JCB220 JS200 JS210 JS220 20/925309 HYDRAULIC PUMP JCB220 MAIN PUMP FOR JCB EXCAVATOR
ZX160 Hydraulic Pump Assy 4441981 A8V080 ZX160 MAIN PUMP FOR HITACHI EXCAVATOR
ZX160 Hydraulic Pump Assy 4441981 A8V080 ZX160 MAIN PUMP FOR HITACHI EXCAVATOR
PC220-8 Hydraulic Pump Assy 708-2L-00790 PC220-8 MAIN PUMP FOR KOMATSU EXCAVATOR
PC220-8 Hydraulic Pump Assy 708-2L-00790 PC220-8 MAIN PUMP FOR KOMATSU EXCAVATOR
E374F E390F MAIN PUMP 369-9655 576-3072 Hydraulic Main Pump FOR CAT EXCAVATOR
E374F E390F MAIN PUMP 369-9655 576-3072 Hydraulic Main Pump FOR CAT EXCAVATOR
E336D2 Main Pump 504-5477 K5V160DP E336D2 Hydraulic PUMP APPLY FOR CAT EXCAVATOR
E336D2 Main Pump 504-5477 K5V160DP E336D2 Hydraulic PUMP APPLY FOR CAT EXCAVATOR
E330D Hydraulic Main Pump 283-6116 K5v160dp E330 MAIN PUMP FOR CAT EXCAVATOR
E330D Hydraulic Main Pump 283-6116 K5v160dp E330 MAIN PUMP FOR CAT EXCAVATOR
E320C 320D MAIN PUMP 173-3381 272-6955 SBS120 320C Hydraulic Pump for CAT EXCAVATOR
E320C 320D MAIN PUMP 173-3381 272-6955 SBS120 320C Hydraulic Pump for CAT EXCAVATOR
DX420 Hydraulic Main Pump K1003280b K1000288B 401-00255 DX420 MAIN PUMP FOR Doosan EXCAVATOR
DX420 Hydraulic Main Pump K1003280b K1000288B 401-00255 DX420 MAIN PUMP FOR Doosan EXCAVATOR
PC1250-8 MAIN PUMP 708-2L-00680 708-2L-00681 PC1250-8 Hydraulic Main Pump Apply for Komatsu Excavator
PC1250-8 MAIN PUMP 708-2L-00680 708-2L-00681 PC1250-8 Hydraulic Main Pump Apply for Komatsu Excavator
R320-9 R380-9 MAIN PUMP K3V180DTP-9N-17Т 31Q9-10010 R330-9 MAIN PUMP
R320-9 R380-9 MAIN PUMP K3V180DTP-9N-17Т 31Q9-10010 R330-9 MAIN PUMP

Call Us Now

Landline: +86-750-6688281
Phone: +86 18127522581
Phone: +86-13302589039

Send a Message


Main Office

Specialized in product
7*24 hours at your service
LB is a leading manufacturer and supplier of earth-moving machinery components: travel reducers and swing reducers.

Useful Links

Subscribe Now

Incorrect Postcode Submit
Copyright © 2022 LB All rights reserved.   Sitemap   Support By Leadong                             粤ICP备2022033046号
