EC180 EC200D EC210D PLANET CARRIER ASSY VOE14528727 SA7117-30270 EC210 FINAL DRIVE SPARE PARTS FOR VOLVO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

EC180 EC200D EC210D Swing gearbox
Equipment Apply to VOLVO EXCAVATOR
Part no. VOE14528727 SA7117-30270
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

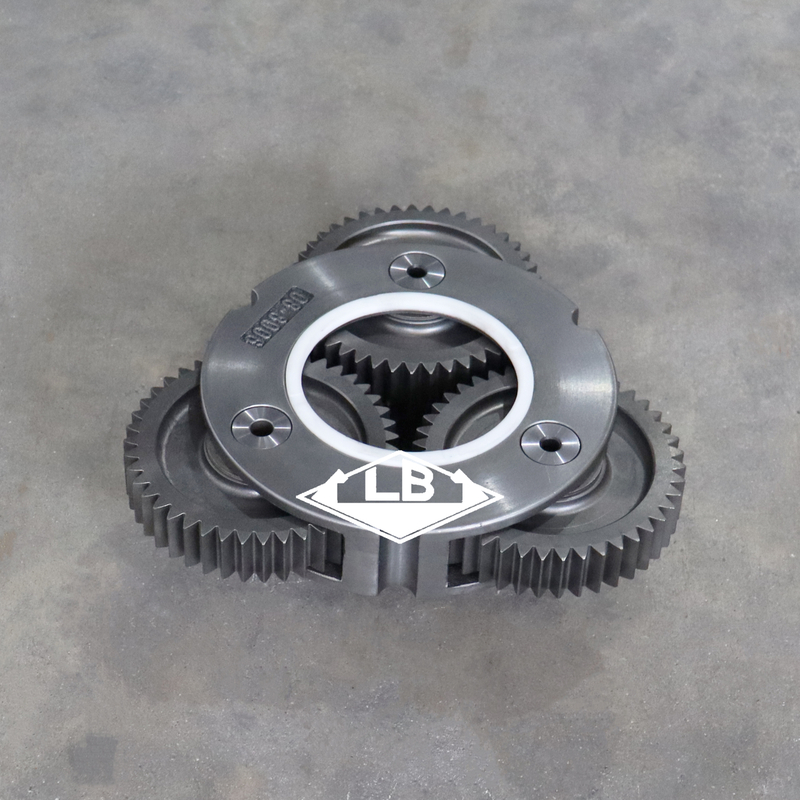

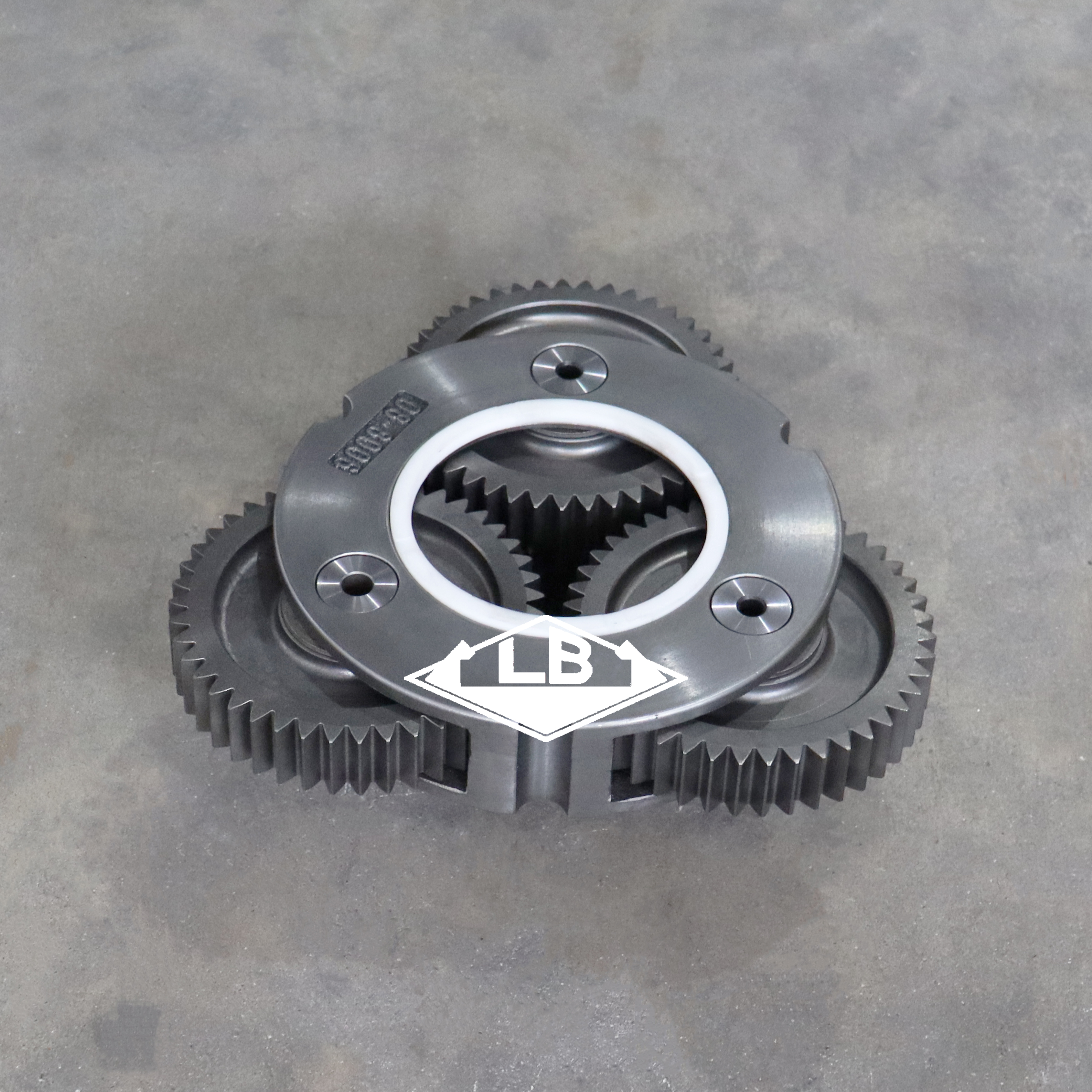

SY300 行走一级架总成(2)SY300 行走一级架总成(4)SY300 行走一级架总成(6)SY300 行走一级架总成

Parts on group Travel gearbox:

Pos. Part No Qty Parts name Comments

VOE14528733 [1] Travel gearbox
1. VOE14522475 [1] Housing
2. SA7117-30110 [2] Ball bearing
3. VOE14729840 [1] Seal
4. SA7117-30140 [1] Shim T=0.1

SA7117-30150 [1] Shim T=0.9

SA7117-30160 [1] Shim T=1.0

SA7117-30170 [1] Shim T=1.2
5. SA7117-30130 [1] Retainer
6. VOE997446 [12] Hexagon screw
7. SA9324-21212 [2] Pin
8. SA7117-30190 [1] Ring gear
9. SA7117-30180 [1] Flexible coupling
10. VOE14528723 [1] Planet carrier No 2
11. SA7117-30210 [1] Planet carrier
12. SA7117-30240 [4] Planetary Gear
13. SA7117-30230 [8] Needle bearing
14. SA7117-30220 [8] Thrust washer
15. VOE14528724 [4] Pin
16. SA9325-06012 [4] Spring pin
17. SA7117-30260 [1] Thrust ring
18. VOE14528727 [1] Planet carrier No 1
19. VOE14528728 [1] Planet carrier
20. SA7117-30290 [1] Sun gear
21. SA7117-30300 [1] Ring
22. SA7117-30340 [3] Planetary gear
23. SA7117-30320 [3] Needle bearing
24. SA7117-30310 [6] Thrust washer
25. SA7117-30360 [3] Pin
26. VOE951955 [3] Spring pin
27. SA7117-30260 [1] Thrust ring
28. VOE14602566 [1] Cover
29. SA7117-15230 [1] Pad
30. SA7117-30370 [20] Hexagon screw
31. SA9023-11004 [2] Set screw
32. VOE14883848 [0002] Plug
33. SA7117-30330 [1] Sun gear
34. VOE983524 [0002] O-ring
