| Quantity: | |
|---|---|

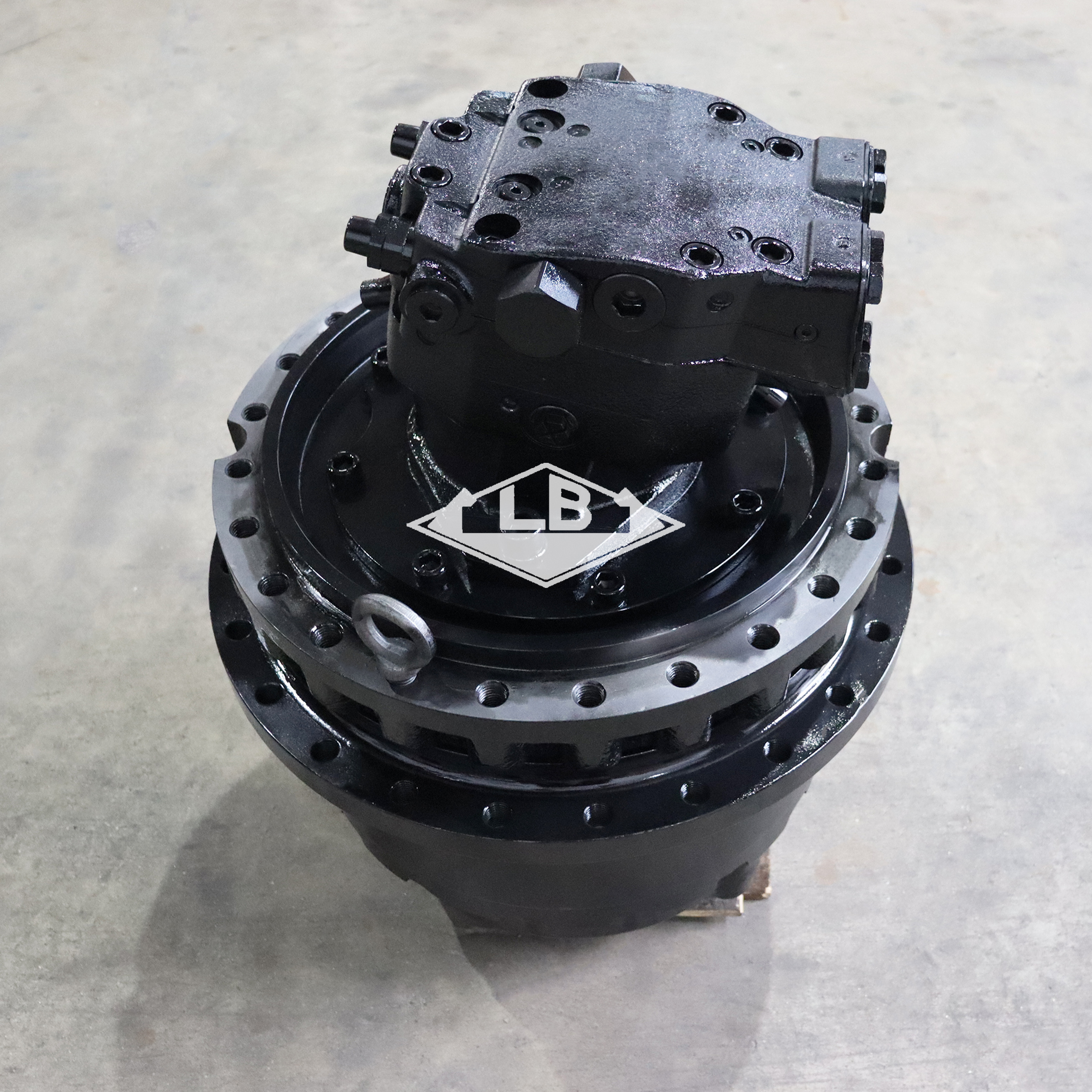

| Part name | DX480 DX500 SOLAR500 FINAL DRIVE | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | 2401-9229A | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

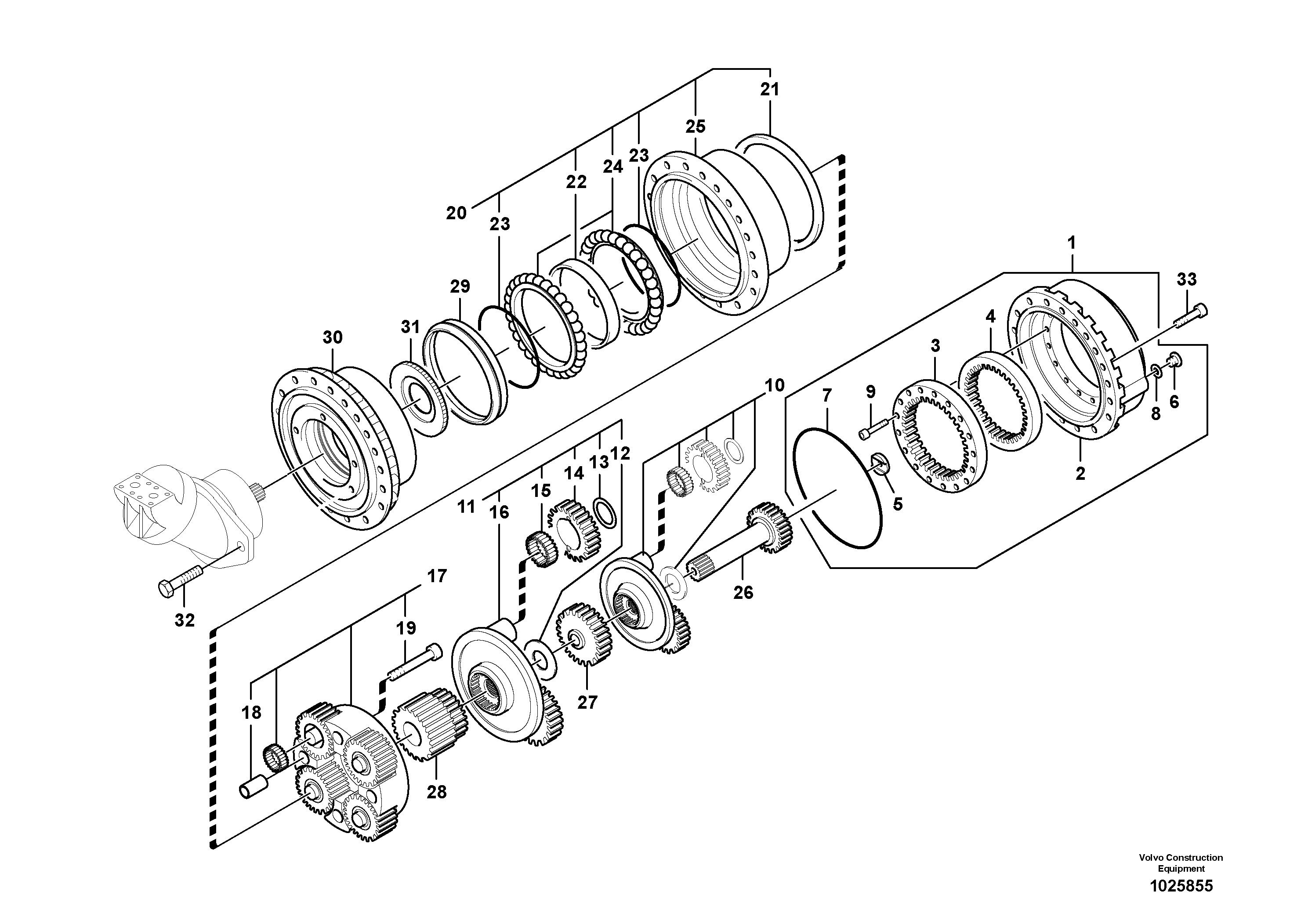

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14557192 | [1] | Travel gearbox | ||
| 1. | SA8230-09980 | [1] | Cover | |
| 2. | [1] | Cover | ||
| 3. | [1] | Ring | ||
| 4. | VOE14541737 | [1] | Ring | |
| 5. | VOE11701193 | [1] | Friction washer | |
| 6. | VOE14262071 | [2] | Plug | |
| 7. | VOE11701192 | [1] | O-ring | |
| 8. | VOE14262070 | [2] | Washer | |
| 9. | VOE14541740 | [16] | Screw | |
| 10. | VOE14608961 | [1] | Planet carrier | |
| 11. | SA8230-35760 | [1] | Reduction gear | |
| 12. | SA8230-21310 | [1] | Ring | |
| 13. | VOE14541743 | [4] | Clip | |
| 14. | SA8230-21170 | [4] | Planetary gear | |
| 15. | SA8230-22080 | [4] | Roller bearing | |
| 16. | VOE14541742 | [1] | Case | |
| 17. | VOE14608963 | [1] | Planet carrier | |
| 18. | SA8230-35600 | [4] | Bushing | |
| 19. | VOE14608962 | [4] | Screw | |
| 20. | SA8230-35780 | [1] | Housing | |
| 21. | VOE14541746 | [1] | Bushing | |
| 22. | VOE14541747 | [1] | Spacer | |
| 23. | VOE14541748 | [2] | O-ring | |
| 24. | [1] | Bearing | ||
| 25. | VOE14541745 | [1] | Case | |
| 26. | VOE14608960 | [1] | Gear | |
| 27. | SA8230-35550 | [1] | Sun gear | |
| 28. | SA8230-35560 | [1] | Sun gear | |
| 29. | VOE15175856 | [1] | Ring | |
| 30. | VOE14608964 | [1] | Hub | |
| 31. | VOE14604801 | [1] | Retainer | |
| 32. | VOE14535334 | [4] | Screw | |
| 33. | SA8230-35430 | [16] | Screw |
| Part name | DX480 DX500 SOLAR500 FINAL DRIVE | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | 2401-9229A | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14557192 | [1] | Travel gearbox | ||
| 1. | SA8230-09980 | [1] | Cover | |
| 2. | [1] | Cover | ||
| 3. | [1] | Ring | ||
| 4. | VOE14541737 | [1] | Ring | |
| 5. | VOE11701193 | [1] | Friction washer | |
| 6. | VOE14262071 | [2] | Plug | |
| 7. | VOE11701192 | [1] | O-ring | |
| 8. | VOE14262070 | [2] | Washer | |
| 9. | VOE14541740 | [16] | Screw | |
| 10. | VOE14608961 | [1] | Planet carrier | |
| 11. | SA8230-35760 | [1] | Reduction gear | |
| 12. | SA8230-21310 | [1] | Ring | |
| 13. | VOE14541743 | [4] | Clip | |
| 14. | SA8230-21170 | [4] | Planetary gear | |
| 15. | SA8230-22080 | [4] | Roller bearing | |
| 16. | VOE14541742 | [1] | Case | |
| 17. | VOE14608963 | [1] | Planet carrier | |
| 18. | SA8230-35600 | [4] | Bushing | |
| 19. | VOE14608962 | [4] | Screw | |
| 20. | SA8230-35780 | [1] | Housing | |
| 21. | VOE14541746 | [1] | Bushing | |
| 22. | VOE14541747 | [1] | Spacer | |
| 23. | VOE14541748 | [2] | O-ring | |
| 24. | [1] | Bearing | ||
| 25. | VOE14541745 | [1] | Case | |
| 26. | VOE14608960 | [1] | Gear | |
| 27. | SA8230-35550 | [1] | Sun gear | |
| 28. | SA8230-35560 | [1] | Sun gear | |
| 29. | VOE15175856 | [1] | Ring | |
| 30. | VOE14608964 | [1] | Hub | |
| 31. | VOE14604801 | [1] | Retainer | |
| 32. | VOE14535334 | [4] | Screw | |
| 33. | SA8230-35430 | [16] | Screw |
