| Quantity: | |
|---|---|

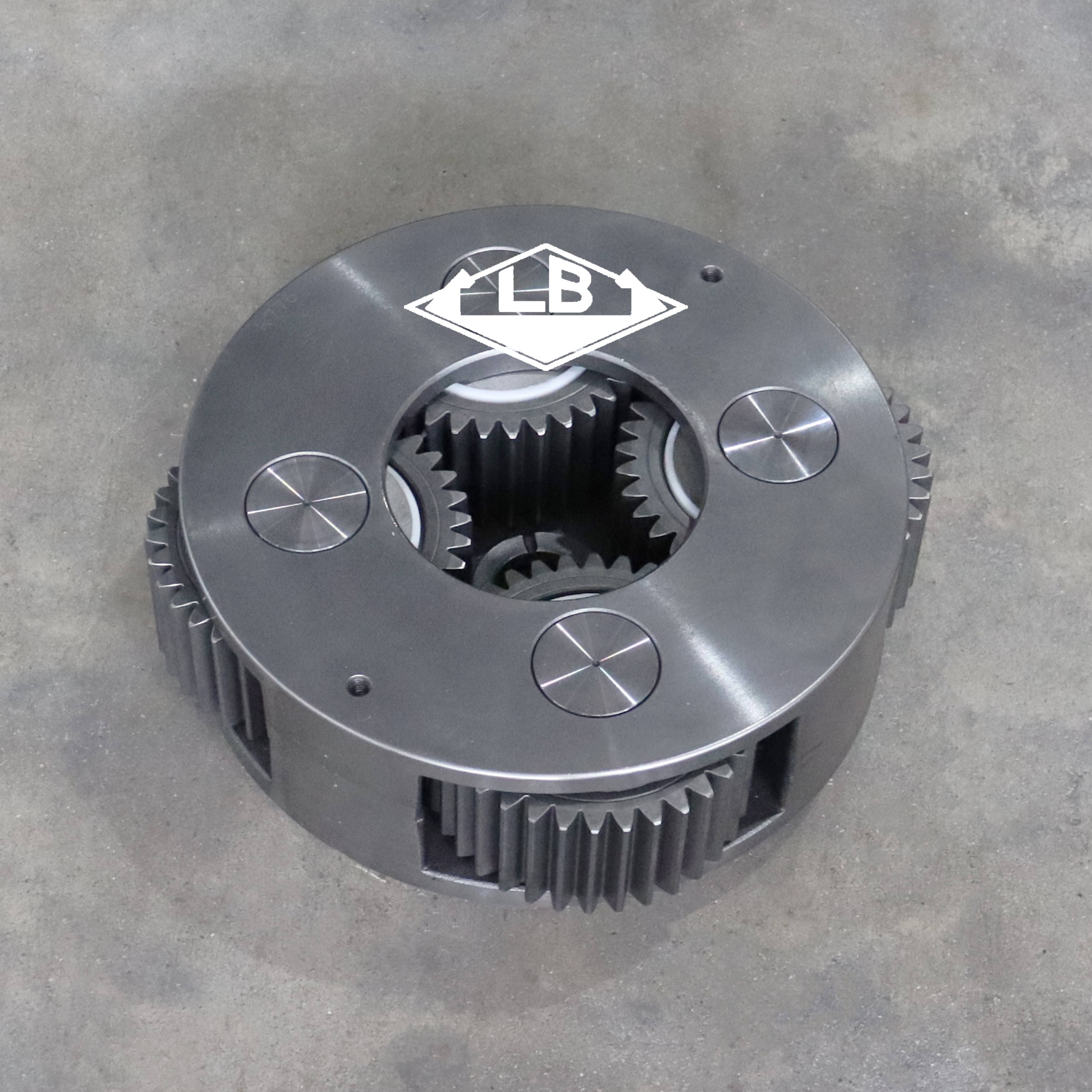

| Part name | DX225 Swing gearbox | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | K9007412 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K9007404 | [1] | REDUCTION GEAR | 170402-00028 |
| -. | 170402-00028 | [1] | ||
| 101. | K9007383 | [1] | SPINDLE | K9007383A |
| 101. | K9007383A | [1] | ||
| 102. | 1.180-00512 | [1] | SEAL;FLOATING | |
| 103. | *NA00325 | [1] | ||
| 104. | K9007412 | [1] | CARRIER NO 2 ASSY | |
| 105. | K9007384 | [1] | HUB | |
| 105. | 900122-00079 | [1] | ||
| 106. | 1.540-00003 | [1] | PIECE;DISTANCE | |
| 107. | K9007388 | [3] | BEARING;SHAFT | |
| 108. | K9007393 | [4] | GEAR;PLANETARY | |
| 109. | K9007394 | [8] | WASHER;THRUST | |
| 110. | S5740960 | [4] | PIN;SPRING | |
| 111. | K9007402 | [4] | BEARING;NEEDLE | |
| 112. | K9007396 | [4] | BUSH;FLOATING | |
| 113. | K9007392 | [4] | SHAFT | |
| 114. | K9007391 | [1] | GEAR;SUN | |
| 115. | S6500750 | [1] | RING;RETAINING | |
| 116. | K9007411 | [1] | CARRIER NO 1 ASSY | |
| 117. | K9007387 | [3] | GEAR;PLANETARY | |
| 118. | 1.216-00017 | [3] | CAGE,NEEDLE | |
| 121. | K9007390 | [1] | GEAR;DRIVE | |
| 122. | S5740770 | [3] | PIN;SPRING | |
| 123. | K9007385 | [1] | COVER | |
| 123. | 110508-09675 | [1] | ||
| 124. | S2212266 | [16] | BOLT | |
| 125. | K9007403 | [2] | BEARING;ANGULAR BALL | |
| 126. | S8012300 | [1] | O-RING | |
| 128. | 2181-1890D4 | [3] | PLUG | |
| 129. | K9007386 | [1] | RING;SEAL | K9007386A |
| 129. | K9007386A | [1] | ||
| 130. | 1.180-00144 | [1] | O-RING | |
| 131. | K9007389 | [6] | WASHER;THRUST | |
| 132. | K9004304 | [1] | WASHER;THRUST | |
| 133. | 1.412-00157 | [1] | PLATE;THRUST | |
| 134. | *NA00324 | [1] | ||
| 136. | K9007395 | [2] | PLATE;SHIM | K9007395A |
| 136. | K9007395A | [2] | ||
| 137. | 401002-00739 | [1] | ||
| 38. | S8000181 | [3] | O-RING |
| Part name | DX225 Swing gearbox | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | K9007412 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K9007404 | [1] | REDUCTION GEAR | 170402-00028 |
| -. | 170402-00028 | [1] | ||
| 101. | K9007383 | [1] | SPINDLE | K9007383A |
| 101. | K9007383A | [1] | ||
| 102. | 1.180-00512 | [1] | SEAL;FLOATING | |
| 103. | *NA00325 | [1] | ||
| 104. | K9007412 | [1] | CARRIER NO 2 ASSY | |
| 105. | K9007384 | [1] | HUB | |
| 105. | 900122-00079 | [1] | ||
| 106. | 1.540-00003 | [1] | PIECE;DISTANCE | |
| 107. | K9007388 | [3] | BEARING;SHAFT | |
| 108. | K9007393 | [4] | GEAR;PLANETARY | |
| 109. | K9007394 | [8] | WASHER;THRUST | |
| 110. | S5740960 | [4] | PIN;SPRING | |
| 111. | K9007402 | [4] | BEARING;NEEDLE | |
| 112. | K9007396 | [4] | BUSH;FLOATING | |
| 113. | K9007392 | [4] | SHAFT | |
| 114. | K9007391 | [1] | GEAR;SUN | |
| 115. | S6500750 | [1] | RING;RETAINING | |
| 116. | K9007411 | [1] | CARRIER NO 1 ASSY | |
| 117. | K9007387 | [3] | GEAR;PLANETARY | |
| 118. | 1.216-00017 | [3] | CAGE,NEEDLE | |
| 121. | K9007390 | [1] | GEAR;DRIVE | |
| 122. | S5740770 | [3] | PIN;SPRING | |
| 123. | K9007385 | [1] | COVER | |
| 123. | 110508-09675 | [1] | ||
| 124. | S2212266 | [16] | BOLT | |
| 125. | K9007403 | [2] | BEARING;ANGULAR BALL | |
| 126. | S8012300 | [1] | O-RING | |
| 128. | 2181-1890D4 | [3] | PLUG | |
| 129. | K9007386 | [1] | RING;SEAL | K9007386A |
| 129. | K9007386A | [1] | ||
| 130. | 1.180-00144 | [1] | O-RING | |
| 131. | K9007389 | [6] | WASHER;THRUST | |
| 132. | K9004304 | [1] | WASHER;THRUST | |
| 133. | 1.412-00157 | [1] | PLATE;THRUST | |
| 134. | *NA00324 | [1] | ||
| 136. | K9007395 | [2] | PLATE;SHIM | K9007395A |
| 136. | K9007395A | [2] | ||
| 137. | 401002-00739 | [1] | ||
| 38. | S8000181 | [3] | O-RING |
