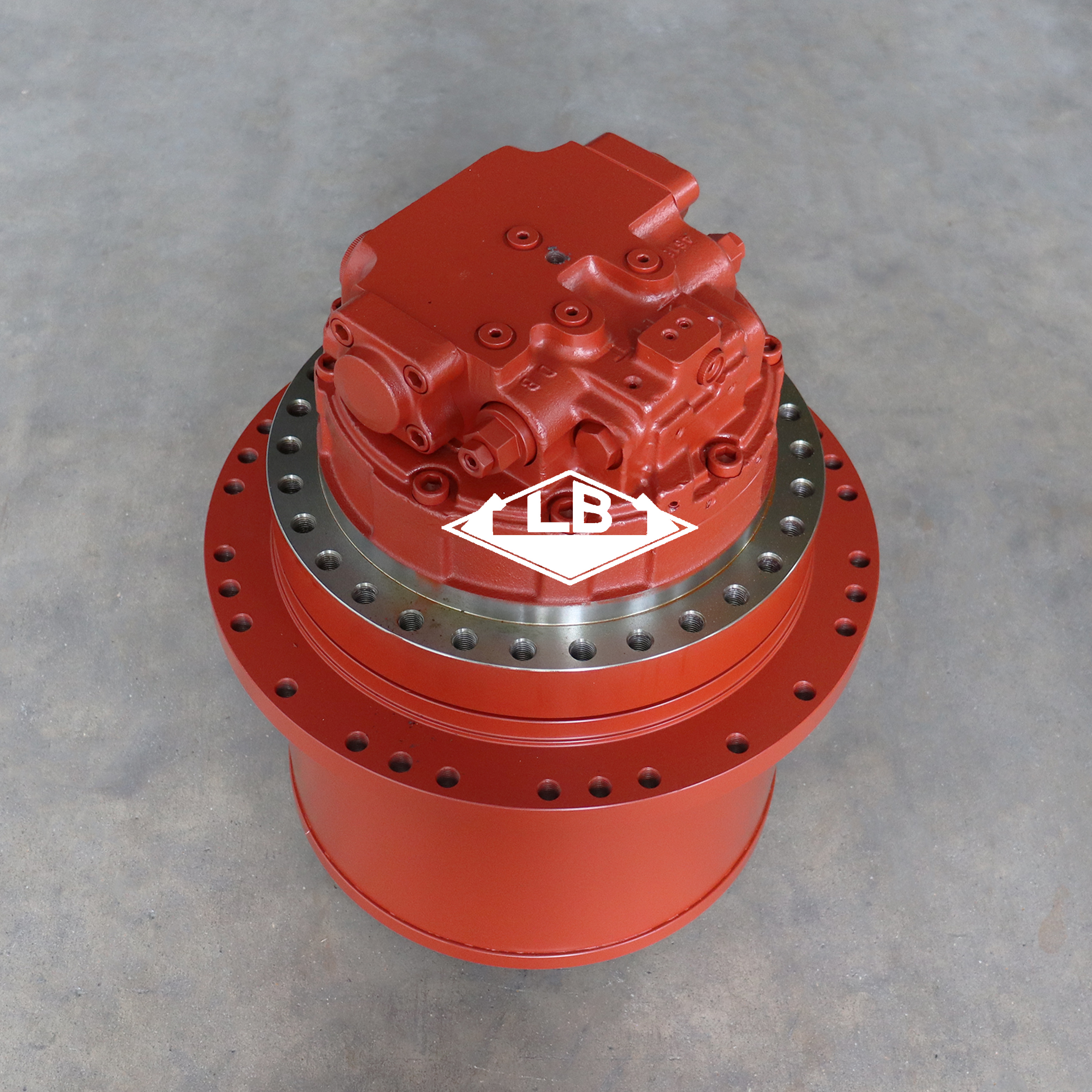

CX210 CX225 FINAL DRIVE KRA10150 KRA15440 KRA12910 TRAVEL MOTOR ASSY FOR CASE EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	CX210 CX225 FINAL DRIVE
Equipment	Apply to Sumitomo, Case EXCAVATOR
Part no.	KRA10150 KRA15440 KRA12910
NO.1 sun gear spline teeth	20 splines
Swing pinion shaft teeth	16T
Item condition	New
Logo	LB
Gross weight	474 KG
MOQ	1 pc

Product Description

SH200A3 行走马达总成(4) SH200A3 行走马达总成(2) SH200A3 行走马达总成(8) SH200A3 行走马达总成(6)

Parts on group (SK260) - ACERA MARK 8 EXCAVATOR - TIER 3 ASN LL10U (NA) (6/07-12/10):

Pos.	Part No	Qty	Parts name	Comments
. .	LQ15V00020F1	[1]	HYDRAULIC MOTOR	SM ASSY, PROPEL Superseded by part number: LQ15V00020F5
1.	NA	[1]	NOT SERVICED	FOR FLANGE
2.	NA	[1]	NOT SERVICED	FOR PLATE
3.	NA	[1]	NOT SERVICED	FOR SPOOL
4.	NA	[2]	NOT SERVICED	FOR VALVE,CHECK
5.	NA	[2]	NOT SERVICED	FOR SPRING
6.	NA	[2]	NOT SERVICED	FOR PLUG
7.	ZD12P02100	[2]	O-RING,2.4mm Thk x 20.8mm ID, 90 Duro	KOB O-Ring -- ID 20.80 ± 0.23 x OD 25mm
8.	2436U1027S203	[2]	SEAT/SLOT	KOB
9.	LQ15V00020S009	[2]	SPRING	SM
10.	2436U1027S205	[2]	SEAT/SLOT	KOB
11.	NA	[2]	NOT SERVICED	FOR CAP
12.	ZD12G04500	[2]	O-RING,44.40mm ID x 50.60mm OD x 3.10mm	KOB ID 44.40 ± 0.41 x OD 50mm
13.	ZS23C12040	[8]	SCREW,Hex Socket Head, M12 x 40mm	KOB M12x1.75x40mm
14.	2436U281S37	[2]	BALL	KOB
15.	2441U792S18	[2]	SPRING	SM
16.	2441U792S19	[2]	PLUG	SM
17.	ZD12P00800	[2]	O-RING,1.9mm Thk x 7.8mm ID, 90 Duro	KOB ID 7.8mm x OD 9.7mm
18.	YN23V00003F1	[2]	VALVE PRESSURE RELIE	KOB SEE (HC38)
19.	NA	[8]	NOT SERVICED	FOR PLUG
20.	NA	[1]	NOT SERVICED	FOR SPOOL
21.	NA	[1]	NOT SERVICED	FOR SPOOL
22.	LQ15V00007S027	[1]	SPRING	KOB
23.	2441U792S141	[1]	PLUG	KOB
24.	ZD12P01800	[2]	O-RING	KOB ID 17.8mm x OD 20.2mm
25.	LQ15V00007S030	[1]	GUIDE PIN	KOB
26.	LQ15V00007S031	[1]	PLUG	KOB
27.	2441U983S27	[1]	WASHER	KOB
28.	NA	[2]	NOT SERVICED	FOR ORIFICE
29.	NA	[4]	NOT SERVICED	FOR PLUG
30.	ZD12P01100	[4]	O-RING	KOB ID 10.8mm x OD 13.2mm
31.	NA	[3]	NOT SERVICED	FOR ORIFICE
32.	NA	[1]	NOT SERVICED	FOR ORIFICE
33.	LQ15V00007S042	[1]	SHAFT	KOB
34.	NA	[1]	NOT SERVICED	FOR BLOCK,CYLINDER
35.	NA	[9]	NOT SERVICED	FOR PISTON ASSY
36.	NA	[1]	NOT SERVICED	FOR PLATE,RETAINER
37.	NA	[1]	NOT SERVICED	FOR HOLDER,RETAINER
38.	YN15V00005S114	[1]	SNAP RING	KOB
39.	YN15V00005S115	[1]	SPRING SEAT	KOB
40.	YN15V00005S116	[1]	SPRING	KOB
41.	YN15V00005S117	[1]	RING	KOB
42.	2441U792S119	[3]	PIN	KOB
43.	LQ15V00020S043	[1]	PLATE	SM
44.	2441U792S110	[2]	BALL	KOB
45.	NA	[2]	NOT SERVICED	FOR PISTON ASSY
46.	LQ15V00007S055	[1]	BALL BEARING	KOB
47.	LQ15V00007S056	[1]	BALL BEARING	KOB
48.	LQ15V00020S048	[1]	PIN	SM
49.	ZS23C14035	[10]	SCREW,Hex Socket Head, M14 x 35mm	KOB M14x2.0x35mm
50.	LQ15V00020S050	[1]	SEAL	SM OIL SEAL
51.	LQ15V00020S051	[3]	PLATE	SM DISK Superseded by part number: LQ15V00031R940
52.	2441U983S126	[2]	PLATE	KOB
53.	LQ15V00020S053	[1]	PISTON	SM BRAKE
54.	2441U984S42	[1]	O-RING	KOB
55.	2441U983S130	[1]	O-RING	KOB
56.	2441U792S130	[6]	SPRING	KOB
57.	YN15V00005S128	[4]	PIN	KOB
58.	YN15V00005S139	[2]	SPRING	KOB
59.	LQ15V00020S059	[1]	PLATE	SM VALVE
60.	ZD12P01000	[4]	O-RING	KOB ID 09.80 ± 0.17 x OD 13mm
61.	2441U802S30	[1]	O-RING	KOB
62.	NA	[1]	NOT SERVICED	FOR NAME PLATE
63.	NA	[2]	NOT SERVICED	FOR SCREW,DRIVE
64.	NA	[2]	NOT SERVICED	FOR PLUG
65.	NA	[1]	NOT SERVICED	FOR PLUG
66.	NA	[1]	NOT SERVICED	FOR PLUG
67.	LQ15V00020S067	[2]	SEAL	SM SEAL, FLOATING
68.	LQ15V00007S077	[2]	BEARING	KOB
69.	NA	[1]	NOT SERVICED	FOR
70.	NA	[1]	NOT SERVICED	FOR SHIM (0.05)
71.	LQ15V00020S071	[1]	RUBBER RING	SM HOLDER
72.	LQ15V00007S081	[8]	FRICTION WASHER	KOB
73.	LQ15V00007S082	[8]	SCREW	KOB
74.	LQ15V00020S074	[4]	PLATE	SM THRUST
75.	LQ15V00007S084	[4]	RACE	KOB
76.	LQ15V00020S076	[4]	NEEDLE BEARING	SM NEEDLE
77.	LQ15V00007S086	[4]	DRIVEN GEAR	KOB
78.	LQ15V00020S078	[4]	PLATE	SM THRUST
79.	LQ15V00007S088	[4]	SCREW	KOB
80.	LQ15V00020S080	[1]	GEAR	SM SUN
81.	LQ15V00007S090	[1]	RING	KOB
82.	LQ15V00020S082	[1]	CARRIER	SM HOLDER
83.	LQ15V00007S092	[3]	PLATE	KOB
84.	LQ15V00020S084	[3]	RACE	SM INNER
85.	LQ15V00020S085	[3]	NEEDLE BEARING	SM NEEDLE
86.	LQ15V00020S086	[3]	GEAR	SM
87.	LQ15V00007S096	[3]	PLATE	KOB
88.	LQ15V00020S088	[1]	PLATE	SM THRUST
89.	LQ15V00007S098	[3]	SCREW	KOB
90.	LQ15V00020S090	[1]	GEAR	SM DRIVE
91.	NA	[1]	NOT SERVICED	FOR PLATE,THRUST
92.	LQ15V00007S101	[1]	COVER	KOB
93.	ZS28C10016	[16]	SCREW,Hex Socket Head, M10 x 16mm	KOB M10x1.50x16mm
94.	LQ15V00007S103	[3]	PLUG	KOB
95.	ZD12P02400	[3]	O-RING	KOB ID 23.70 ± 0.24 x OD 30mm
96.	LQ15V00007S105	[4]	PIN	KOB
K.	LQ15V00020R100	[1]	KIT	SM REPAIR, CONSISTS OF ITEM 7X2, 12X2, 17X2, 24X2, 30X4, 50X1 54X1, 55X1, 60X4, 61X1
K.	LQ15V00020R200	[1]	KIT	SM REPAIR, CONSISTS OF ITEM 67X2, 95X3 Superseded by part number: LQ15V00031R200
K.	LQ15V00020R300	[1]	KIT	SM REPAIR, CONSISTS OF ITEM 1X1, 45X2
K.	LQ15V00020R400	[1]	KIT	SM REPAIR, CONSISTS OF ITEM 2X1, 3X1, 4X2, 5X2, 6X2, 7X2, 19X8, 20X1, 21X1, 28X2, 29X4, 30X4, 31X3, 32X1
K.	2441U792S13	[1]	CAP	KOB REPAIR KIT, CONSISTS OF ITEM 11X2, 12X2, 13X8, 14X2, 15X2, 16X2 17X2
K.	LQ15V00020R600	[1]	BLOCK	KOB REPAIR KIT, CONSISTS OF ITEM 34X1, 35X9, 36X1, 37X1, 38X1, 39X1, 40X1, 41X1, 42X3
K.	LQ15V00007R700	[1]	REPAIR KIT	KOB CONSISTS OF ITEM 70X1
K.	LQ15V00007R800	[1]	REPAIR KIT	KOB CONSISTS OF ITEM 91X1
K.	LQ15V00020R900	[1]	REDUCER	KOB REPAIR KIT, CONSISTS OF ITEM 67X2, 68X2, 69X1, 70X1, 71X1, 72X8, 73X8, 74X4, 75X4, 76X4, 77X4, 78X4
