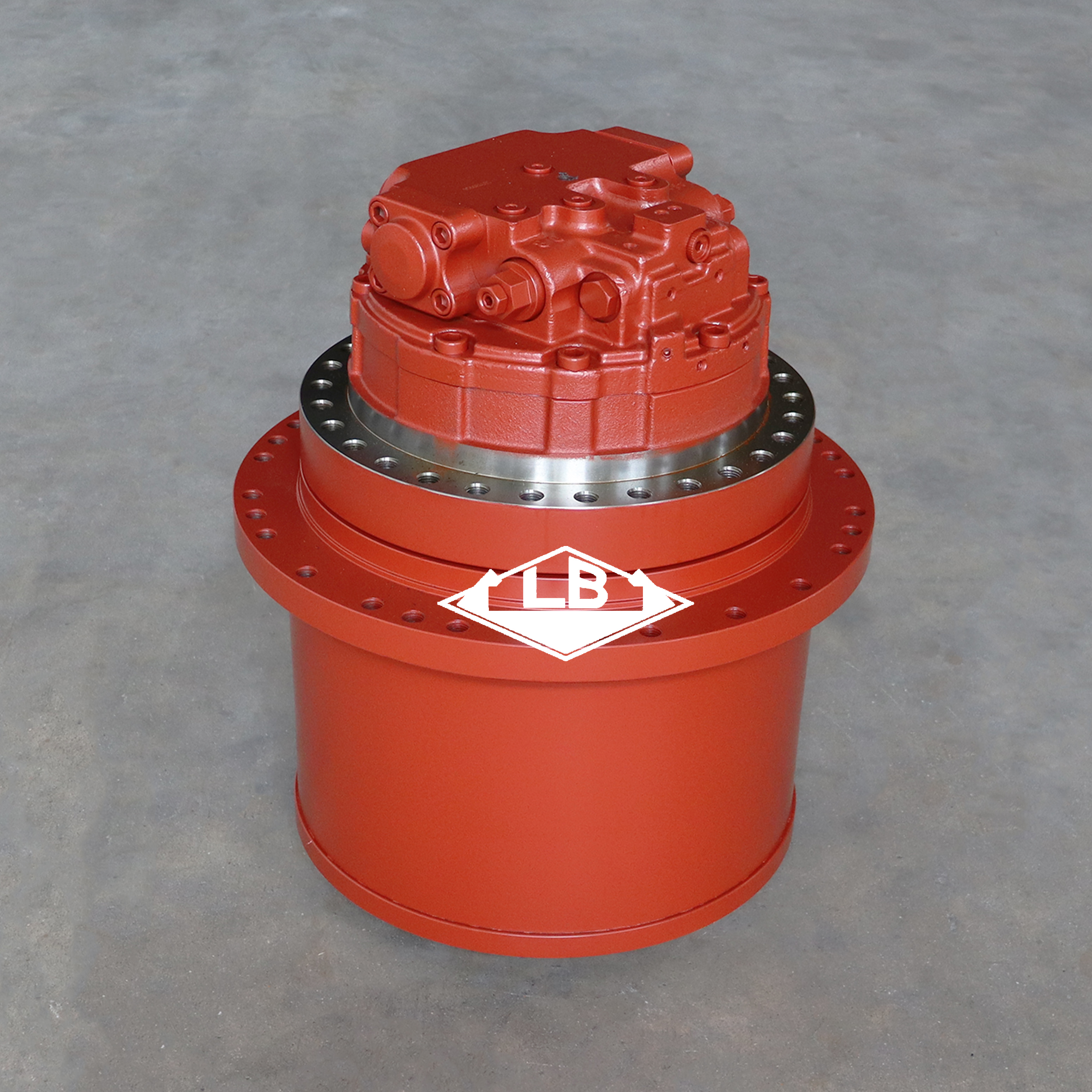

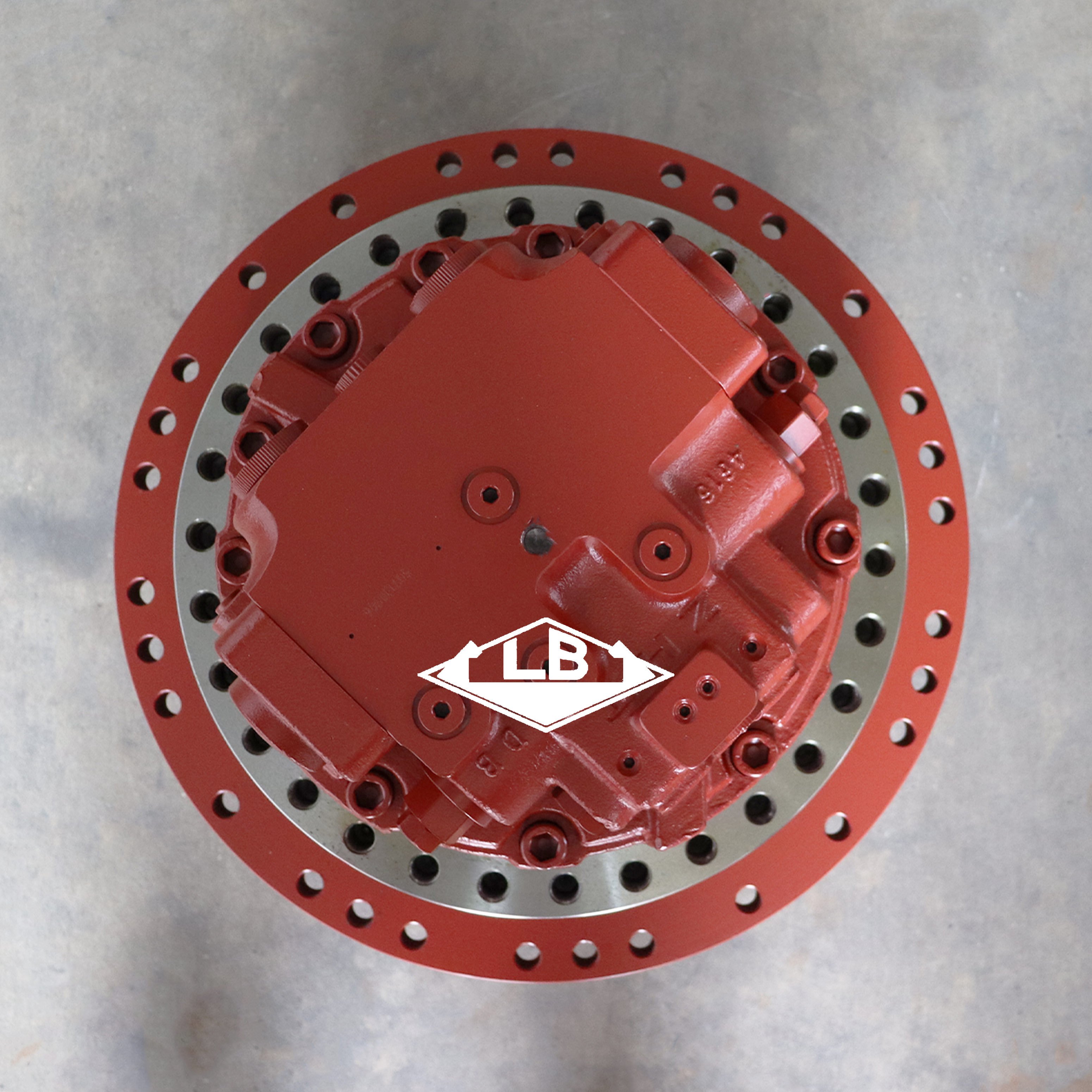

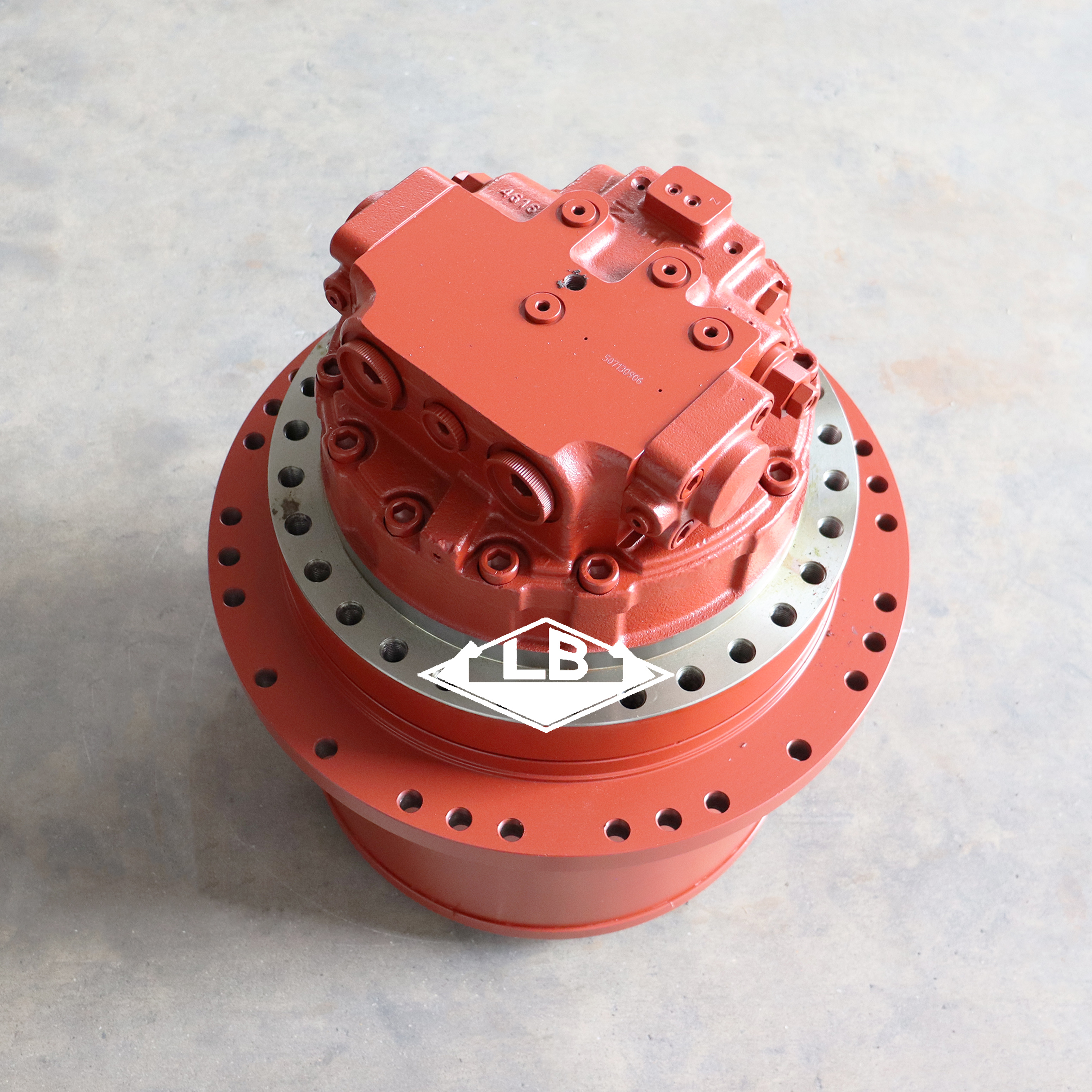

SK250-8 SK260 FINAL DRIVE LQ15V00020F1 TRAVEL MOTOR ASSY FOR KOBLECO EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SK250-8 SK260 Swing gearbox
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	LQ15V00020F1
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

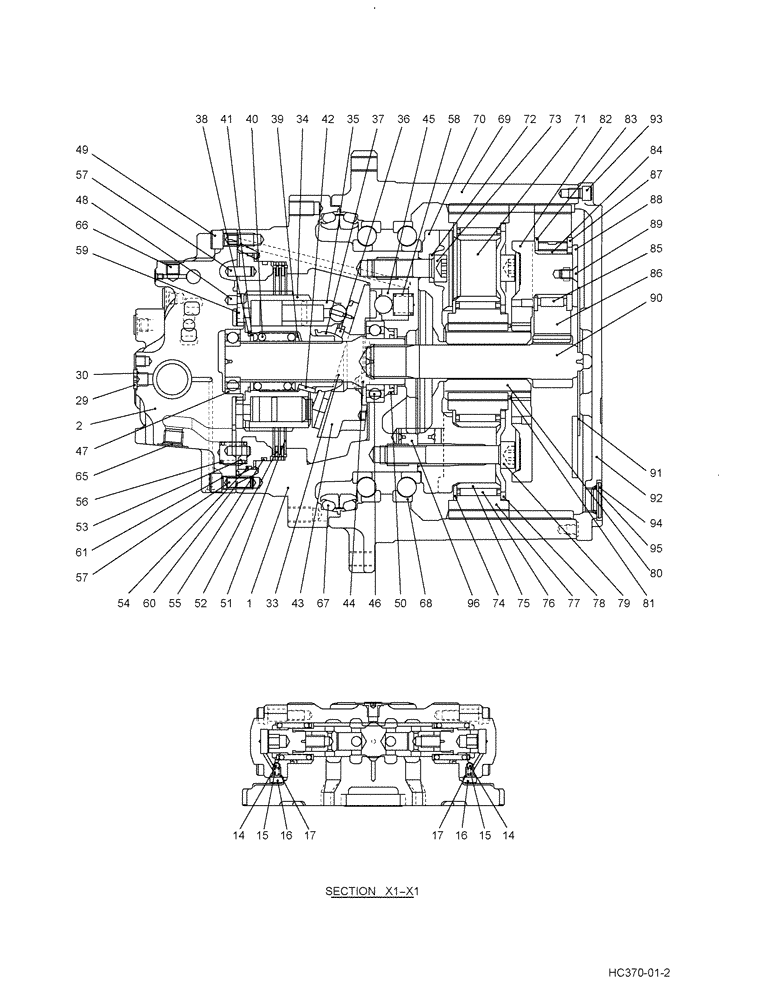

Parts on group (SK260) - ACERA MARK 8 EXCAVATOR - TIER 3 ASN LL10U (NA) (6/07-12/10):

Pos.	Part No	Qty	Parts name	Comments
. .	LQ15V00020F1	[1]	HYDRAULIC MOTOR	SM ASSY, PROPEL Superseded by part number: LQ15V00020F5
1.	NA	[1]	NOT SERVICED	FOR FLANGE
2.	NA	[1]	NOT SERVICED	FOR PLATE
3.	NA	[1]	NOT SERVICED	FOR SPOOL
4.	NA	[2]	NOT SERVICED	FOR VALVE,CHECK
5.	NA	[2]	NOT SERVICED	FOR SPRING
6.	NA	[2]	NOT SERVICED	FOR PLUG
7.	ZD12P02100	[2]	O-RING,2.4mm Thk x 20.8mm ID, 90 Duro	KOB O-Ring -- ID 20.80 ± 0.23 x OD 25mm
8.	2436U1027S203	[2]	SEAT/SLOT	KOB
9.	LQ15V00020S009	[2]	SPRING	SM
10.	2436U1027S205	[2]	SEAT/SLOT	KOB
11.	NA	[2]	NOT SERVICED	FOR CAP
12.	ZD12G04500	[2]	O-RING,44.40mm ID x 50.60mm OD x 3.10mm	KOB ID 44.40 ± 0.41 x OD 50mm
13.	ZS23C12040	[8]	SCREW,Hex Socket Head, M12 x 40mm	KOB M12x1.75x40mm
14.	2436U281S37	[2]	BALL	KOB
15.	2441U792S18	[2]	SPRING	SM
16.	2441U792S19	[2]	PLUG	SM
17.	ZD12P00800	[2]	O-RING,1.9mm Thk x 7.8mm ID, 90 Duro	KOB ID 7.8mm x OD 9.7mm
18.	YN23V00003F1	[2]	VALVE PRESSURE RELIE	KOB SEE (HC38)
19.	NA	[8]	NOT SERVICED	FOR PLUG
20.	NA	[1]	NOT SERVICED	FOR SPOOL
21.	NA	[1]	NOT SERVICED	FOR SPOOL
22.	LQ15V00007S027	[1]	SPRING	KOB
23.	2441U792S141	[1]	PLUG	KOB
24.	ZD12P01800	[2]	O-RING	KOB ID 17.8mm x OD 20.2mm
25.	LQ15V00007S030	[1]	GUIDE PIN	KOB
26.	LQ15V00007S031	[1]	PLUG	KOB
27.	2441U983S27	[1]	WASHER	KOB
28.	NA	[2]	NOT SERVICED	FOR ORIFICE
29.	NA	[4]	NOT SERVICED	FOR PLUG
30.	ZD12P01100	[4]	O-RING	KOB ID 10.8mm x OD 13.2mm
31.	NA	[3]	NOT SERVICED	FOR ORIFICE
32.	NA	[1]	NOT SERVICED	FOR ORIFICE
33.	LQ15V00007S042	[1]	SHAFT	KOB
34.	NA	[1]	NOT SERVICED	FOR BLOCK,CYLINDER
35.	NA	[9]	NOT SERVICED	FOR PISTON ASSY
36.	NA	[1]	NOT SERVICED	FOR PLATE,RETAINER
37.	NA	[1]	NOT SERVICED	FOR HOLDER,RETAINER
38.	YN15V00005S114	[1]	SNAP RING	KOB
39.	YN15V00005S115	[1]	SPRING SEAT	KOB
40.	YN15V00005S116	[1]	SPRING	KOB
41.	YN15V00005S117	[1]	RING	KOB
42.	2441U792S119	[3]	PIN	KOB
43.	LQ15V00020S043	[1]	PLATE	SM
44.	2441U792S110	[2]	BALL	KOB
45.	NA	[2]	NOT SERVICED	FOR PISTON ASSY
46.	LQ15V00007S055	[1]	BALL BEARING	KOB
47.	LQ15V00007S056	[1]	BALL BEARING	KOB
48.	LQ15V00020S048	[1]	PIN	SM
49.	ZS23C14035	[10]	SCREW,Hex Socket Head, M14 x 35mm	KOB M14x2.0x35mm
50.	LQ15V00020S050	[1]	SEAL	SM OIL SEAL
51.	LQ15V00020S051	[3]	PLATE	SM DISK Superseded by part number: LQ15V00031R940
52.	2441U983S126	[2]	PLATE	KOB
53.	LQ15V00020S053	[1]	PISTON	SM BRAKE
54.	2441U984S42	[1]	O-RING	KOB
55.	2441U983S130	[1]	O-RING	KOB
56.	2441U792S130	[6]	SPRING	KOB
57.	YN15V00005S128	[4]	PIN	KOB
58.	YN15V00005S139	[2]	SPRING	KOB
59.	LQ15V00020S059	[1]	PLATE	SM VALVE
60.	ZD12P01000	[4]	O-RING	KOB ID 09.80 ± 0.17 x OD 13mm
61.	2441U802S30	[1]	O-RING	KOB
62.	NA	[1]	NOT SERVICED	FOR NAME PLATE
63.	NA	[2]	NOT SERVICED	FOR SCREW,DRIVE
64.	NA	[2]	NOT SERVICED	FOR PLUG
65.	NA	[1]	NOT SERVICED	FOR PLUG
66.	NA	[1]	NOT SERVICED	FOR PLUG
67.	LQ15V00020S067	[2]	SEAL	SM SEAL, FLOATING
68.	LQ15V00007S077	[2]	BEARING	KOB
69.	NA	[1]	NOT SERVICED	FOR
70.	NA	[1]	NOT SERVICED	FOR SHIM (0.05)
71.	LQ15V00020S071	[1]	RUBBER RING	SM HOLDER
72.	LQ15V00007S081	[8]	FRICTION WASHER	KOB
73.	LQ15V00007S082	[8]	SCREW	KOB
74.	LQ15V00020S074	[4]	PLATE	SM THRUST
75.	LQ15V00007S084	[4]	RACE	KOB
76.	LQ15V00020S076	[4]	NEEDLE BEARING	SM NEEDLE
77.	LQ15V00007S086	[4]	DRIVEN GEAR	KOB
78.	LQ15V00020S078	[4]	PLATE	SM THRUST
79.	LQ15V00007S088	[4]	SCREW	KOB
80.	LQ15V00020S080	[1]	GEAR	SM SUN
81.	LQ15V00007S090	[1]	RING	KOB
82.	LQ15V00020S082	[1]	CARRIER	SM HOLDER
83.	LQ15V00007S092	[3]	PLATE	KOB
84.	LQ15V00020S084	[3]	RACE	SM INNER
85.	LQ15V00020S085	[3]	NEEDLE BEARING	SM NEEDLE
86.	LQ15V00020S086	[3]	GEAR	SM
87.	LQ15V00007S096	[3]	PLATE	KOB
88.	LQ15V00020S088	[1]	PLATE	SM THRUST
89.	LQ15V00007S098	[3]	SCREW	KOB
90.	LQ15V00020S090	[1]	GEAR	SM DRIVE
91.	NA	[1]	NOT SERVICED	FOR PLATE,THRUST
92.	LQ15V00007S101	[1]	COVER	KOB
93.	ZS28C10016	[16]	SCREW,Hex Socket Head, M10 x 16mm	KOB M10x1.50x16mm
94.	LQ15V00007S103	[3]	PLUG	KOB
95.	ZD12P02400	[3]	O-RING	KOB ID 23.70 ± 0.24 x OD 30mm
96.	LQ15V00007S105	[4]	PIN	KOB
K.	LQ15V00020R100	[1]	KIT	SM REPAIR, CONSISTS OF ITEM 7X2, 12X2, 17X2, 24X2, 30X4, 50X1 54X1, 55X1, 60X4, 61X1
K.	LQ15V00020R200	[1]	KIT	SM REPAIR, CONSISTS OF ITEM 67X2, 95X3 Superseded by part number: LQ15V00031R200
K.	LQ15V00020R300	[1]	KIT	SM REPAIR, CONSISTS OF ITEM 1X1, 45X2
K.	LQ15V00020R400	[1]	KIT	SM REPAIR, CONSISTS OF ITEM 2X1, 3X1, 4X2, 5X2, 6X2, 7X2, 19X8, 20X1, 21X1, 28X2, 29X4, 30X4, 31X3, 32X1
K.	2441U792S13	[1]	CAP	KOB REPAIR KIT, CONSISTS OF ITEM 11X2, 12X2, 13X8, 14X2, 15X2, 16X2 17X2
K.	LQ15V00020R600	[1]	BLOCK	KOB REPAIR KIT, CONSISTS OF ITEM 34X1, 35X9, 36X1, 37X1, 38X1, 39X1, 40X1, 41X1, 42X3
K.	LQ15V00007R700	[1]	REPAIR KIT	KOB CONSISTS OF ITEM 70X1
K.	LQ15V00007R800	[1]	REPAIR KIT	KOB CONSISTS OF ITEM 91X1
K.	LQ15V00020R900	[1]	REDUCER	KOB REPAIR KIT, CONSISTS OF ITEM 67X2, 68X2, 69X1, 70X1, 71X1, 72X8, 73X8, 74X4, 75X4, 76X4, 77X4, 78X4
