| Quantity: | |
|---|---|

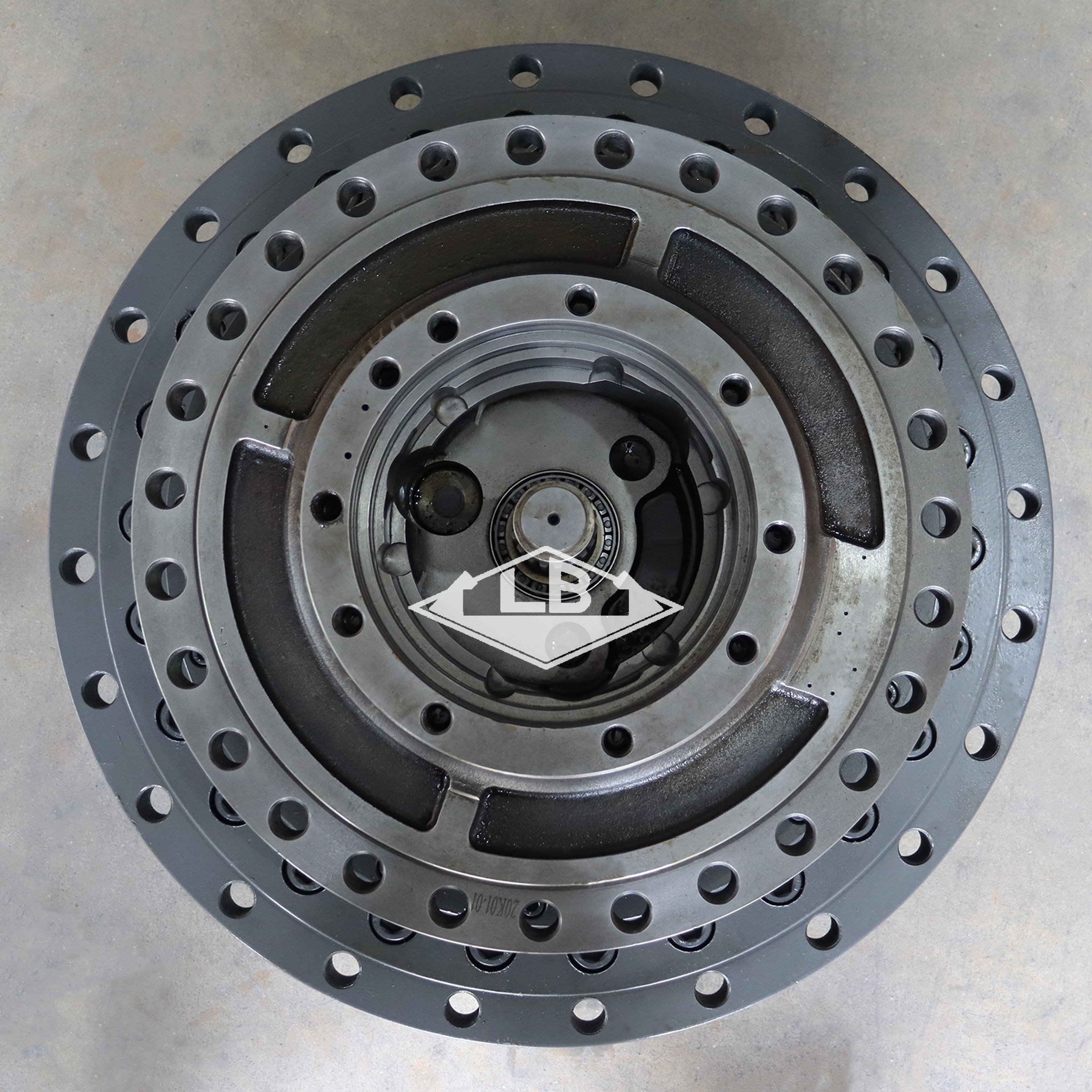

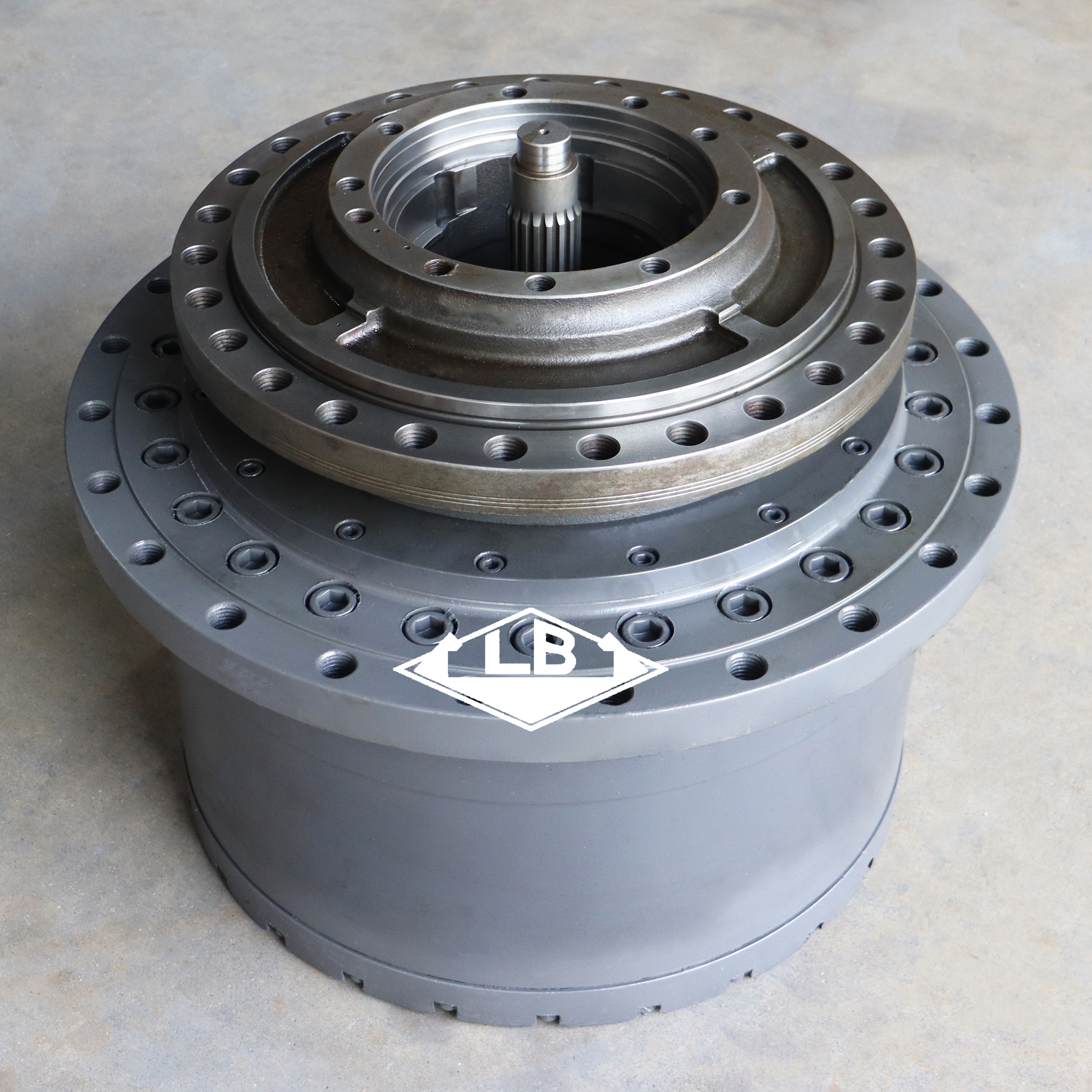

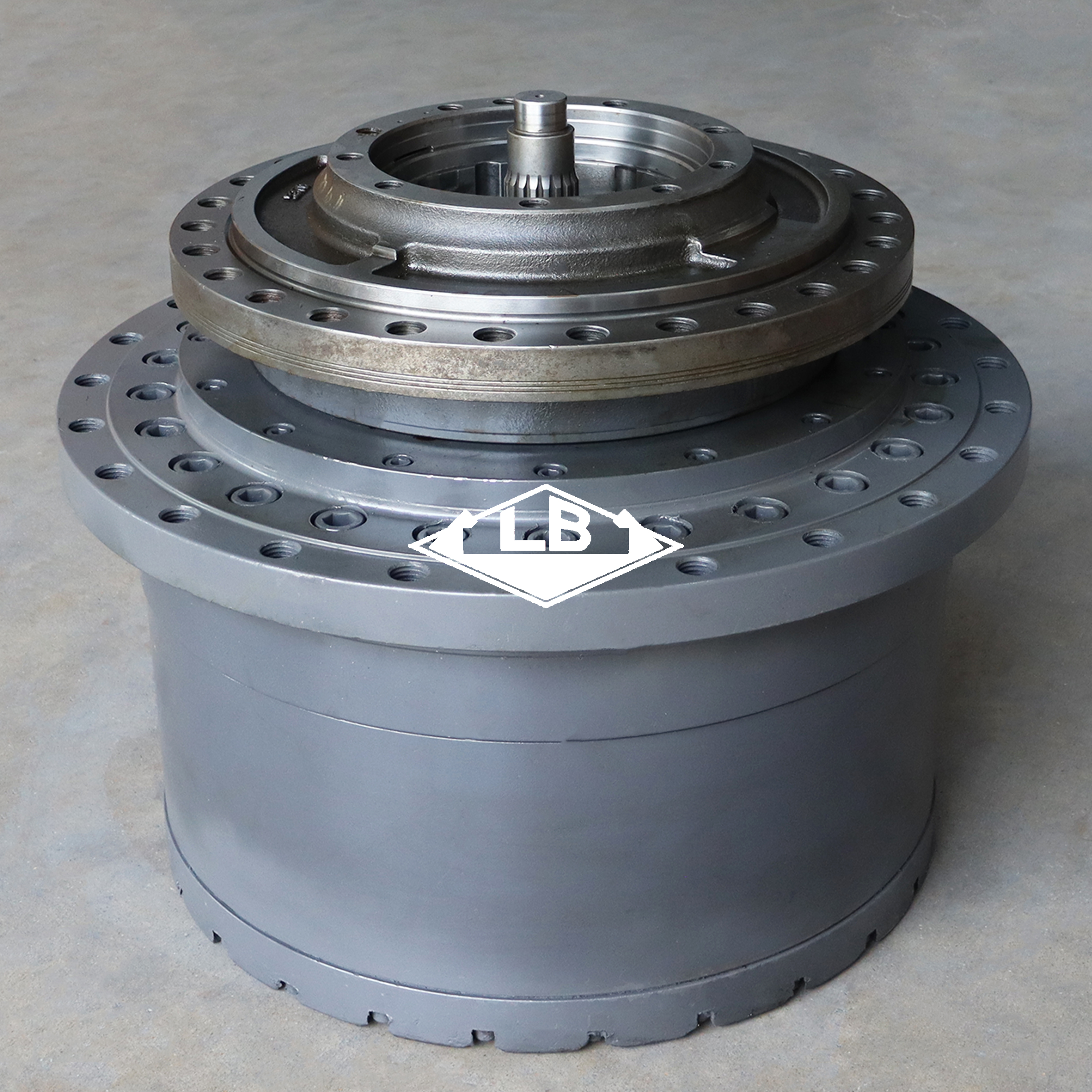

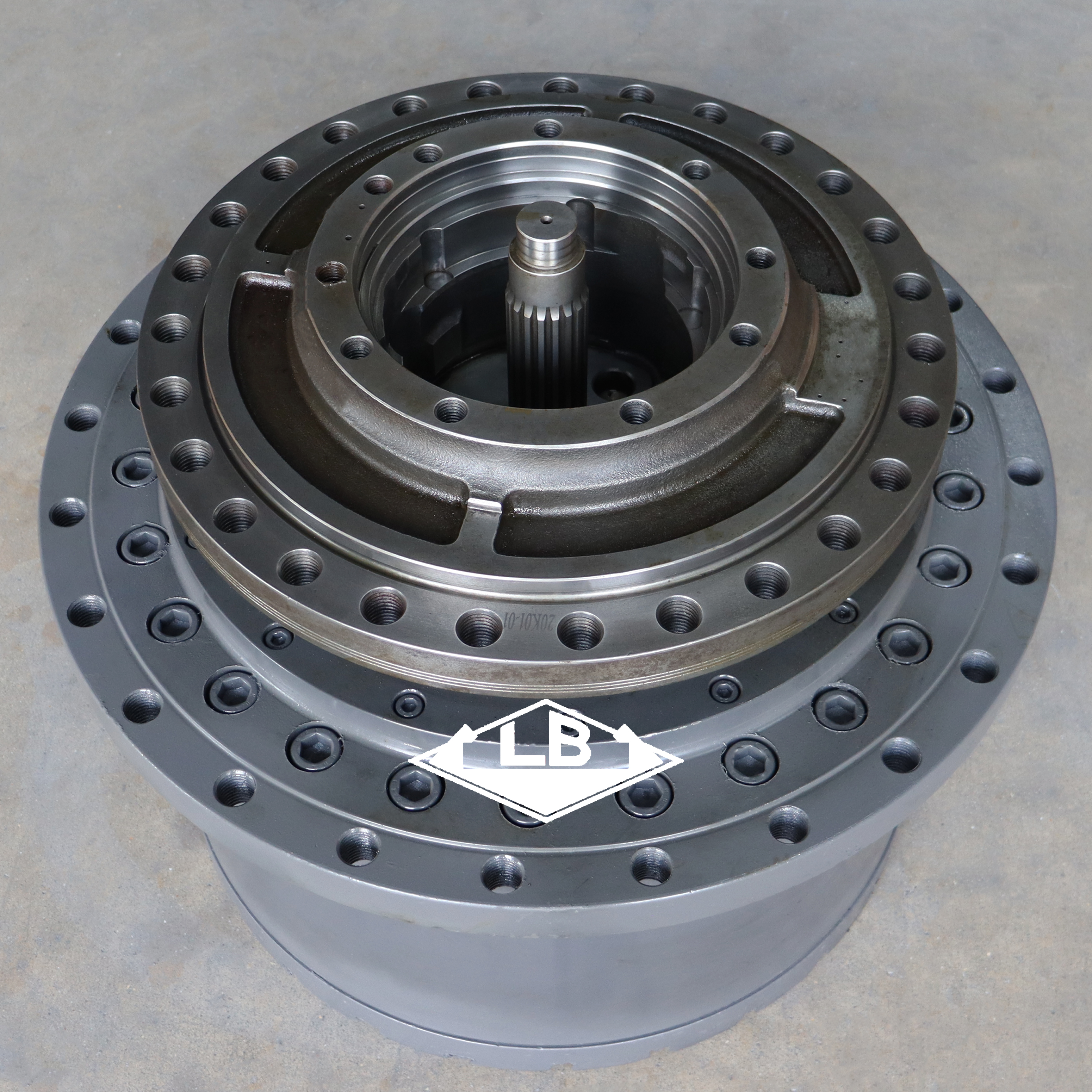

| Part name | CX460 CX470 FINAL DRIVE | |||||
| Equipment | Apply to CASE EXCAVATOR | |||||
| Part no. | LN00102 | |||||
| Frame holes | 24 | |||||
| Sprocket holes | 30 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 938KG | |||||
| MOQ | 1 pc | |||||

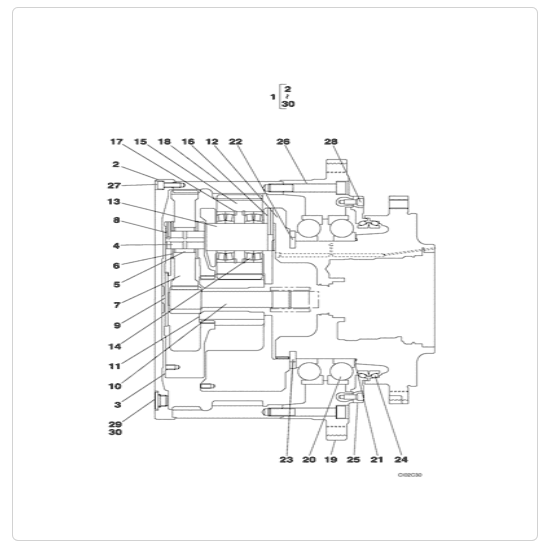

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | LN00102 | [1] | GEAR REDUCTION UNIT | SUM Incl. 2 - 30 Superseded by part number: LN003790 |
| 2. | LW00390 | [1] | COVER | SUM |
| 3. | LX00045 | [1] | PINION CARRIER | SUM GEAR CARRIER |
| 4. | LA00844 | [3] | PIN | SUM |
| 5. | LB00789 | [3] | NEEDLE BEARING | SUM |
| 6. | LA00845 | [6] | WASHER | SUM |
| 7. | LC00209 | [3] | PLANETARY GEAR | SUM |
| 8. | 338W060Z036N | [3] | PIN | SUM Superseded by part number: 338W060Z036B |
| 9. | LR00857 | [1] | PLATE | SUM |
| 10. | LC00210 | [1] | SUN GEAR | SUM |
| 11. | LC00211 | [1] | SUN GEAR | SUM |
| 12. | LN00103 | [1] | SHAFT, PLANETARY CAR | SUM |
| 13. | LA00846 | [3] | PIN | SUM |
| 14. | LB011020 | [6] | ROLLER BEARING | SUM Replaces LB00831 |
| 15. | LC00212 | [3] | PLANETARY GEAR | SUM |
| 16. | 338W100Z063Z | [3] | DOWEL | SUM Superseded by part number: 338W100Z063B |
| 17. | 380A1200Z | [6] | SNAP RING | SUM |
| 18. | LT00128 | [1] | HOUSING | SUM |
| 19. | LC00213 | [1] | RING GEAR | SUM |
| 20. | LB00832 | [2] | BALL BEARING | SUM |
| 21. | LH00390 | [1] | KIT | SUM |
| 21. | LH00434 | [1] | SHIM,2.0mm Thk | SUM If used Superseded by part number: LH00390 |
| 22. | LA00847 | [2] | LOCK WASHER | SUM |
| 23. | LS00212 | [1] | HOLDER | SUM |
| 24. | LE00993 | [1] | SEAL | SUM |
| 25. | LW00391 | [1] | COVER | SUM |
| 26. | 108R020Y120B | [26] | BOLT | SUM |
| 27. | 863-12030 | [25] | HEX SOC SCREW,M12 x 30mm, Cl 12.9 | CAS |
| 28. | 863-10025 | [16] | HEX SOC SCREW,M10 x 25mm, Cl 12.9 | CAS Superseded by part number: 86625209 |
| 29. | LK00383 | [2] | PLUG | SUM |
| 30. | 154503A1 | [2] | O-RING | SUM |
| Part name | CX460 CX470 FINAL DRIVE | |||||
| Equipment | Apply to CASE EXCAVATOR | |||||
| Part no. | LN00102 | |||||
| Frame holes | 24 | |||||
| Sprocket holes | 30 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 938KG | |||||
| MOQ | 1 pc | |||||
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | LN00102 | [1] | GEAR REDUCTION UNIT | SUM Incl. 2 - 30 Superseded by part number: LN003790 |
| 2. | LW00390 | [1] | COVER | SUM |
| 3. | LX00045 | [1] | PINION CARRIER | SUM GEAR CARRIER |
| 4. | LA00844 | [3] | PIN | SUM |
| 5. | LB00789 | [3] | NEEDLE BEARING | SUM |
| 6. | LA00845 | [6] | WASHER | SUM |
| 7. | LC00209 | [3] | PLANETARY GEAR | SUM |
| 8. | 338W060Z036N | [3] | PIN | SUM Superseded by part number: 338W060Z036B |
| 9. | LR00857 | [1] | PLATE | SUM |
| 10. | LC00210 | [1] | SUN GEAR | SUM |
| 11. | LC00211 | [1] | SUN GEAR | SUM |
| 12. | LN00103 | [1] | SHAFT, PLANETARY CAR | SUM |
| 13. | LA00846 | [3] | PIN | SUM |
| 14. | LB011020 | [6] | ROLLER BEARING | SUM Replaces LB00831 |
| 15. | LC00212 | [3] | PLANETARY GEAR | SUM |
| 16. | 338W100Z063Z | [3] | DOWEL | SUM Superseded by part number: 338W100Z063B |
| 17. | 380A1200Z | [6] | SNAP RING | SUM |
| 18. | LT00128 | [1] | HOUSING | SUM |
| 19. | LC00213 | [1] | RING GEAR | SUM |
| 20. | LB00832 | [2] | BALL BEARING | SUM |
| 21. | LH00390 | [1] | KIT | SUM |
| 21. | LH00434 | [1] | SHIM,2.0mm Thk | SUM If used Superseded by part number: LH00390 |
| 22. | LA00847 | [2] | LOCK WASHER | SUM |
| 23. | LS00212 | [1] | HOLDER | SUM |
| 24. | LE00993 | [1] | SEAL | SUM |
| 25. | LW00391 | [1] | COVER | SUM |
| 26. | 108R020Y120B | [26] | BOLT | SUM |
| 27. | 863-12030 | [25] | HEX SOC SCREW,M12 x 30mm, Cl 12.9 | CAS |
| 28. | 863-10025 | [16] | HEX SOC SCREW,M10 x 25mm, Cl 12.9 | CAS Superseded by part number: 86625209 |
| 29. | LK00383 | [2] | PLUG | SUM |
| 30. | 154503A1 | [2] | O-RING | SUM |
