Home / Products / Travel Gearbox / PC490LC-10 PC500LC-8 FINAL DRIVE WITHOUT MOTOR 208-27-00451 208-27-00461 PC490-10 TRAVEL GEARBOX

Share to:

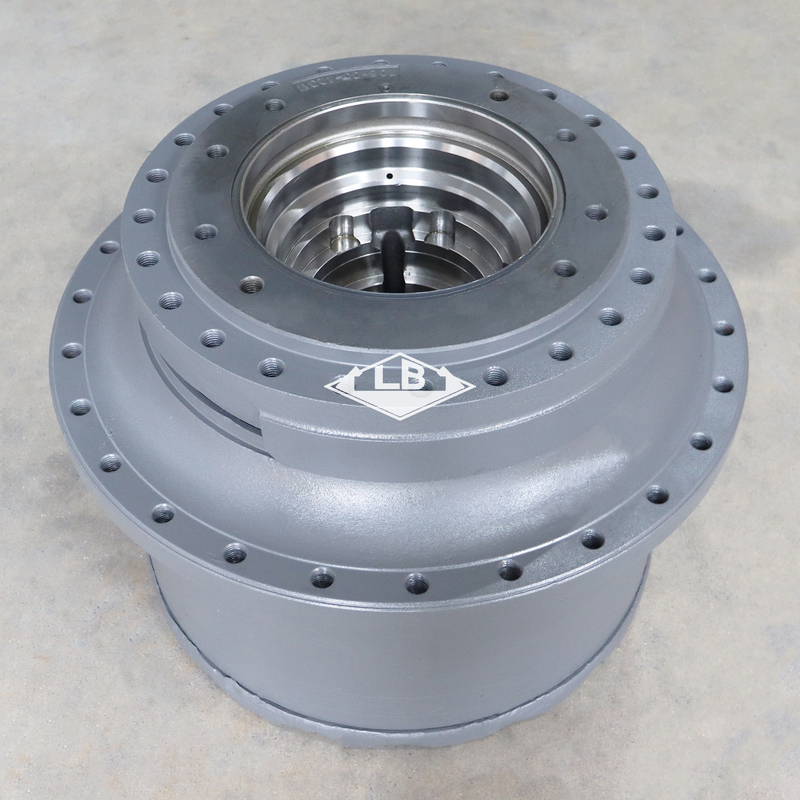

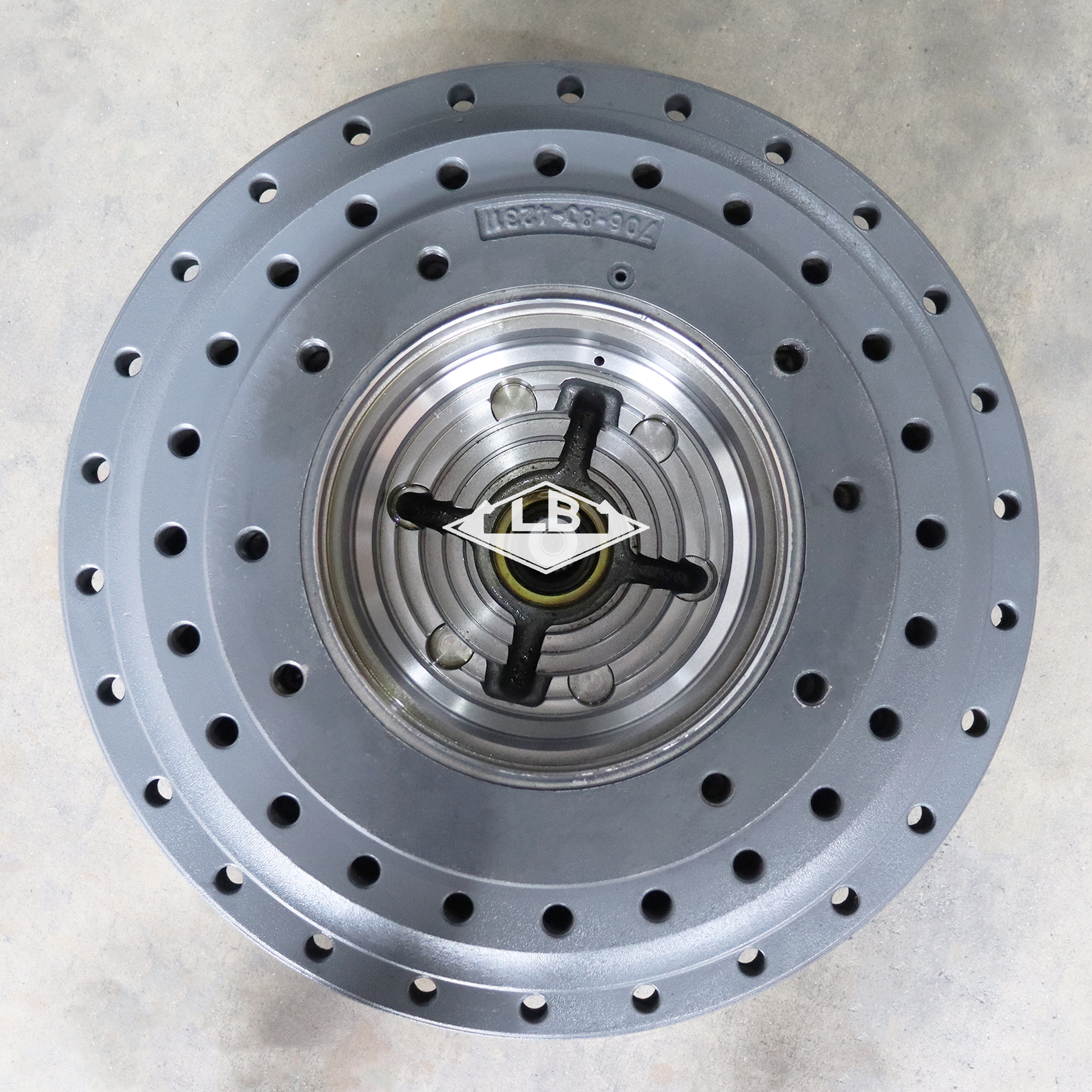

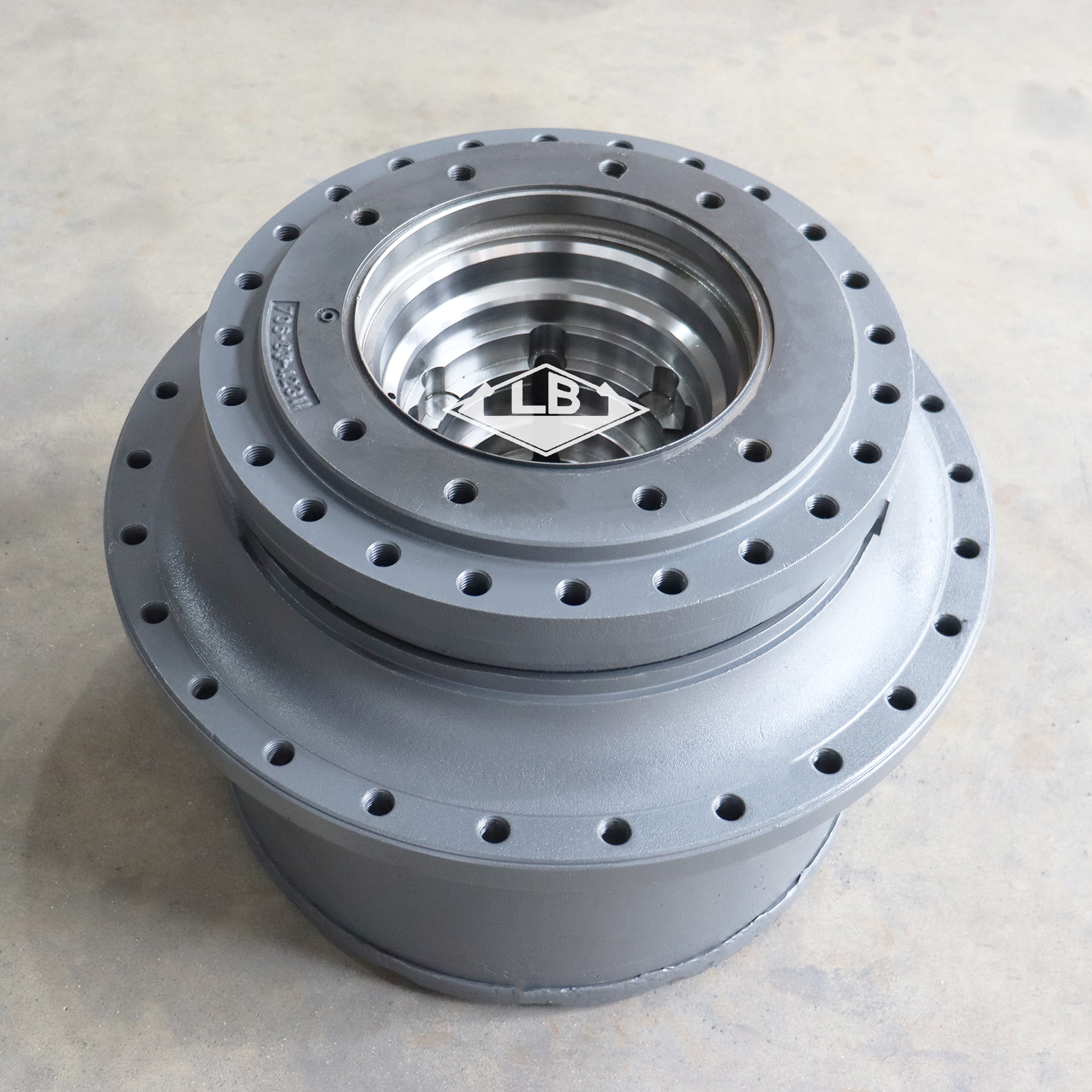

PC490LC-10 PC500LC-8 FINAL DRIVE WITHOUT MOTOR 208-27-00451 208-27-00461 PC490-10 TRAVEL GEARBOX

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	PC490LC-10 PC500LC-8 PC490-10 TRAVEL GEARBOX
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	208-27-00451 208-27-00461
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13T
Item condition	New
Logo	LB
Gross weight	420 KG
MOQ	1 pc

Product Description

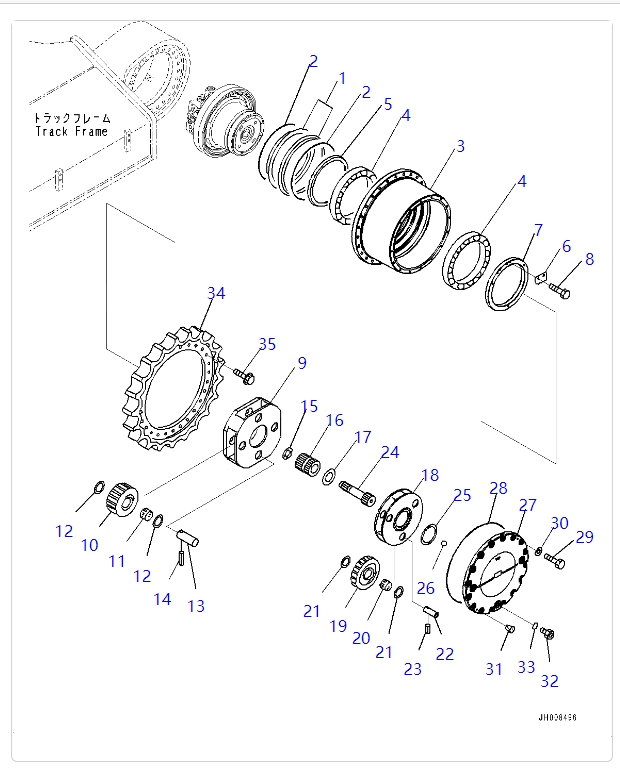

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	208-27-00451	[1]	Final Drive Assembly,L.H. Komatsu China
			["SN: 80052-UP"] \|$0.
	208-27-00450	[1]	Final Drive Assembly Komatsu China
			["SN: 80046-80051"] \|$1.
	208-27-00210	[1]	Seal Ring Assembly Komatsu OEM	3.46 kg.
			["SN: 80046-UP"] \|$2.
3.	208-27-41121	[1]	Gear Komatsu China
			["SN: 80046-UP"]
4.	208-27-71210	[2]	Bearing Komatsu OEM	9.44 kg.
			["SN: 80046-UP"]
5.	208-27-71310	[1]	Collar Komatsu	2.26 kg.
			["SN: 80046-UP"]
6.	208-27-71270	[1]	Lock Komatsu	0.05 kg.
			["SN: 80046-UP"]
7.	208-27-71260	[1]	Lock Komatsu	7.17 kg.
			["SN: 80046-UP"]
8.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 80046-UP"] analogs:["801014093", "0101051020", "801015108"]
9.	208-27-71170	[1]	Carrier Komatsu OEM	55 kg.
			["SN: 80046-UP"]
10.	208-27-71140	[4]	Gear Komatsu OEM	11.85 kg.
			["SN: 80046-UP"]
11.	208-27-71230	[4]	Bearing Komatsu OEM	0.64 kg.
			["SN: 80046-UP"]
12.	21M-27-11260	[8]	Washer, Thrust Komatsu OEM	0.24 kg.
			["SN: 80046-UP"]
13.	208-27-71250	[4]	Pin Komatsu OEM	2.16 kg.
			["SN: 80046-UP"]
14.	20Y-27-21290	[4]	Pin Komatsu OEM	0.03 kg.
			["SN: 80046-UP"]
15.	207-27-52270	[1]	Spacer Komatsu OEM	0.089 kg.
			["SN: 80046-UP"]
16.	208-27-71130	[1]	Gear Komatsu OEM	4.1 kg.
			["SN: 80046-UP"]
17.	208-27-71290	[1]	Spacer Komatsu OEM	0.4 kg.
			["SN: 80046-UP"]
18.	208-27-71160	[1]	Carrier Komatsu OEM	15.4 kg.
			["SN: 80046-UP"]
19.	208-27-71120	[3]	Gear Komatsu OEM	15.3 kg.
			["SN: 80046-UP"]
20.	208-27-71220	[3]	Bearing Komatsu OEM	0.22 kg.
			["SN: 80046-UP"]
21.	20Y-27-21250	[6]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 80046-UP"]
22.	21M-27-11240	[3]	Pin Komatsu OEM	1.17 kg.
			["SN: 80046-UP"]
23.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 80046-UP"]
24.	208-27-71112	[1]	Shaft Komatsu OEM	2.7 kg.
			["SN: 80046-UP"] analogs:["2082771111"]
25.	20Y-27-11250	[1]	Spacer Komatsu OEM	0.044 kg.
			["SN: 80046-UP"] analogs:["2052771570"]
26.	04260-01905	[1]	Ball Komatsu OEM	0.029 kg.
			["SN: 80046-UP"]
27.	208-27-71651	[1]	Cover Komatsu	0.000 kg.
			["SN: 80046-UP"]
28.	208-27-71660	[1]	O-ring Komatsu	0.000 kg.
			["SN: 80046-UP"]
29.	01010-81235	[16]	Bolt Komatsu	0.048 kg.
			["SN: 80046-UP"] analogs:["0101051235", "01010E1235", "801015136"]
30.	01643-31232	[16]	Washer Komatsu	0.027 kg.
			["SN: 80046-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
31.	07049-01215	[2]	Plug Komatsu	0.001 kg.
			["SN: 80046-UP"]
32.	20Y-27-31190	[3]	Plug Komatsu	0.07 kg.
			["SN: 80046-UP"]
33.	07002-12434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 80046-UP"] analogs:["0700202434", "0700213434"]
34.	208-27-41110	[1]	Sprocket Komatsu China
			["SN: 80046-UP"]
35.	207-27-51311	[26]	Bolt Komatsu China	0.222 kg.
			["SN: 80046-UP"] analogs:["2072751310", "20727K1120", "20727K1130"]
