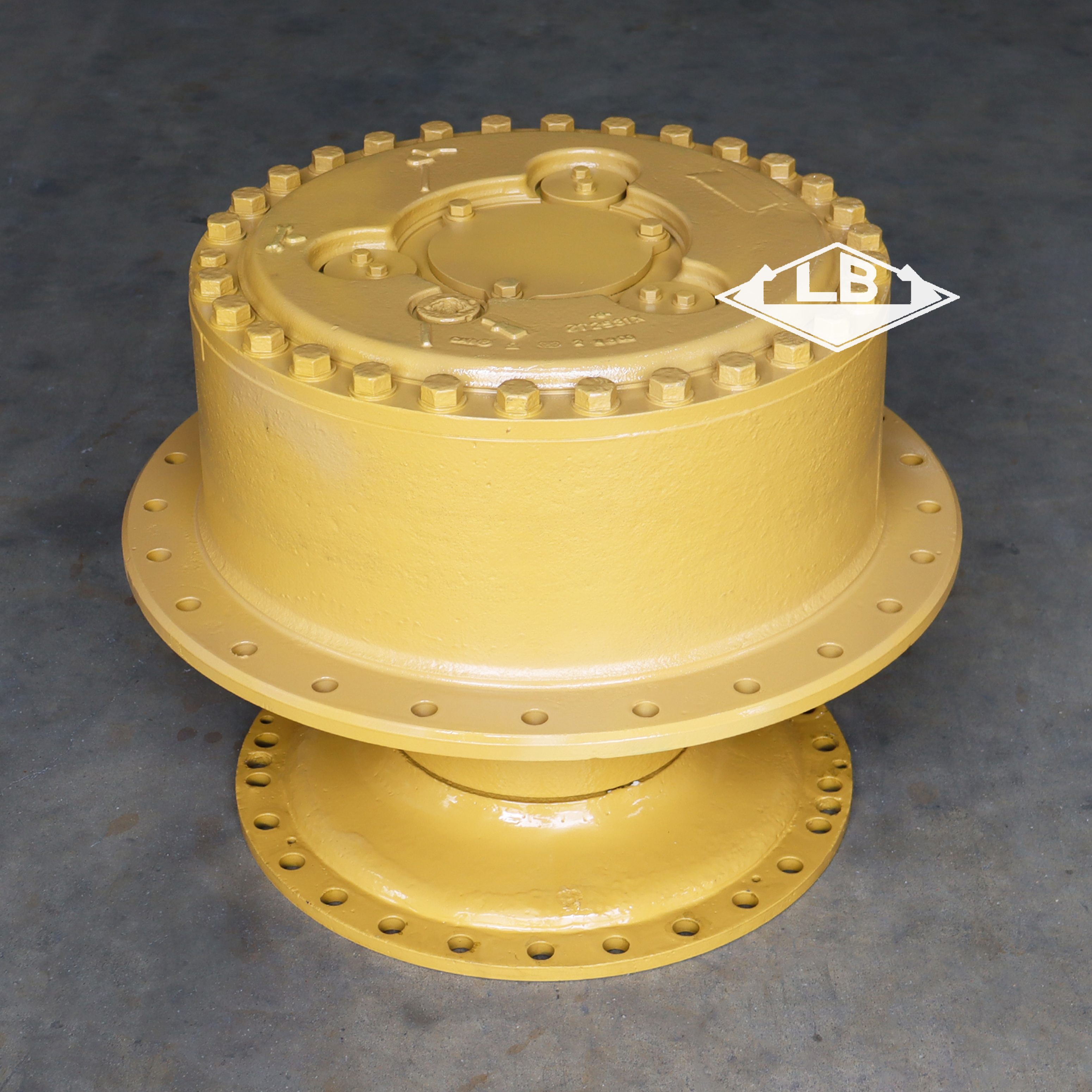

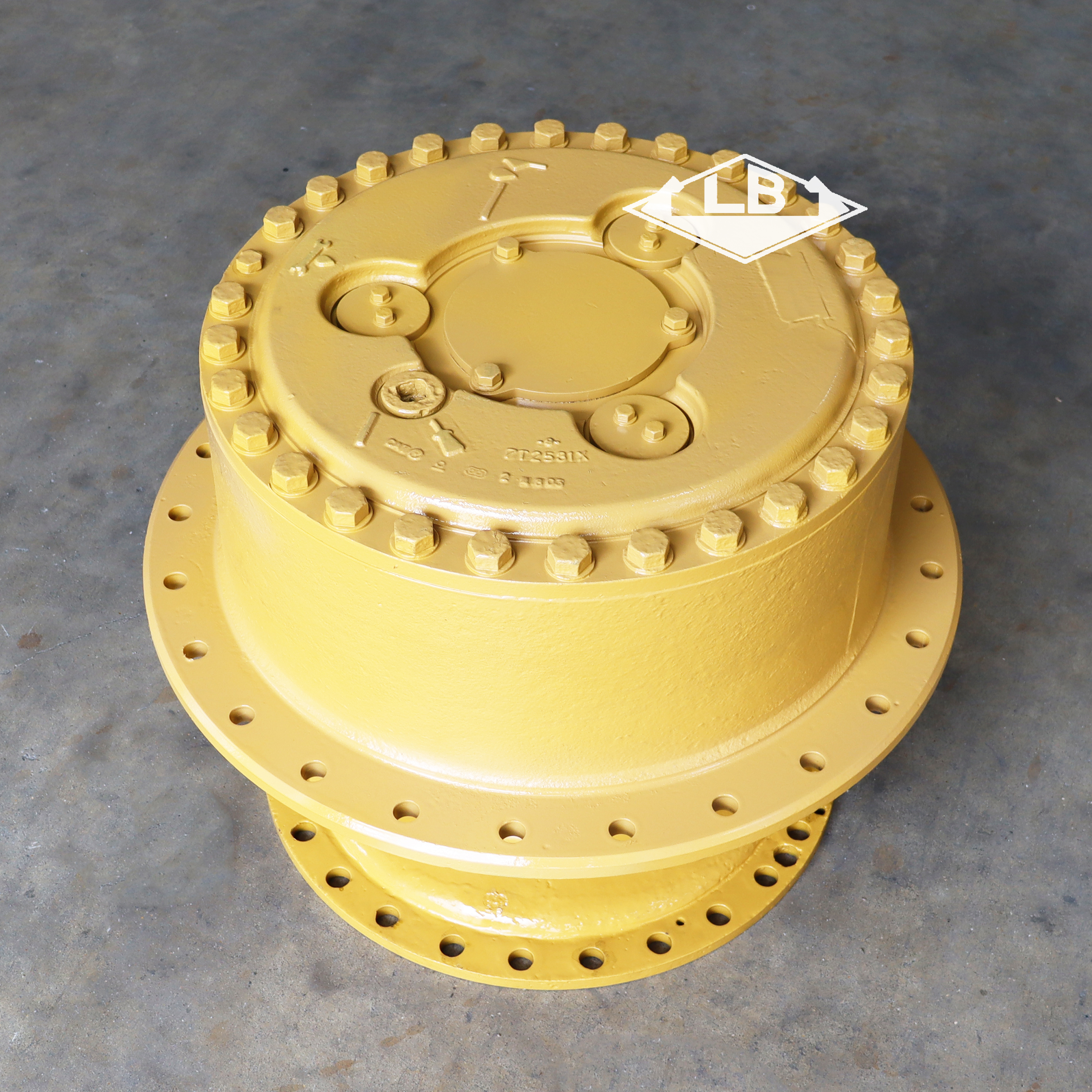

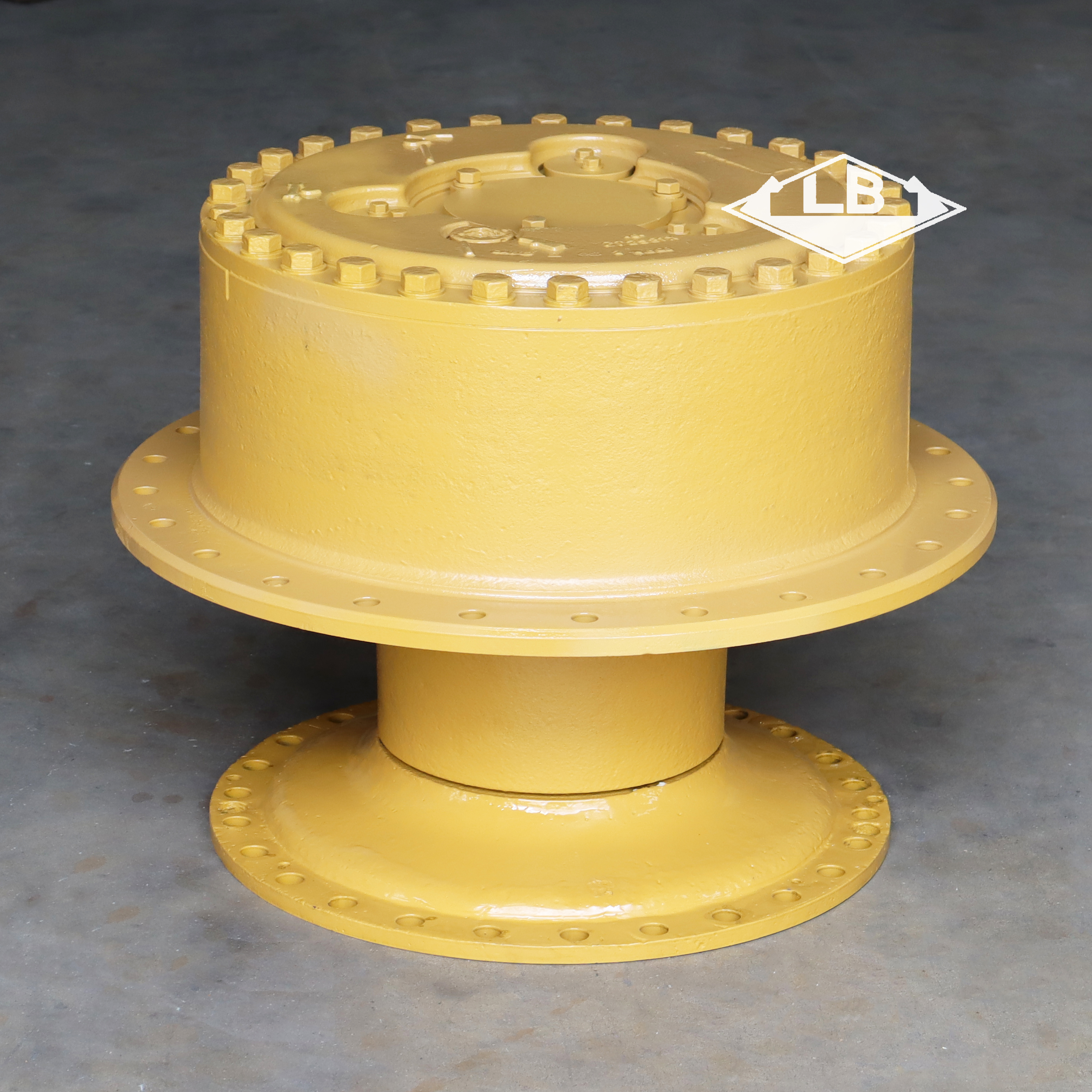

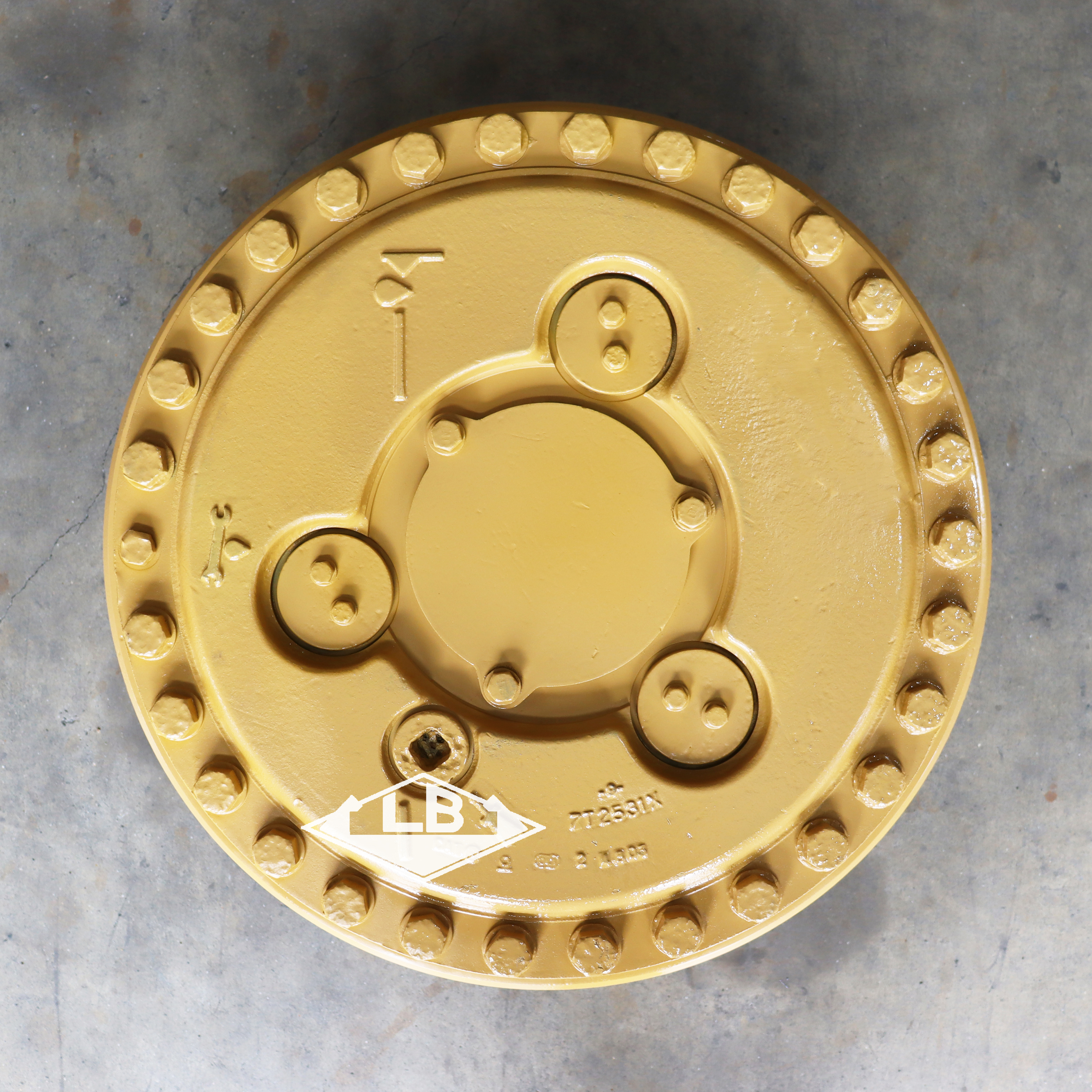

| Part name | CAT D7 FINAL DRIVE | |||||
| Equipment | Apply to CAT DOZER | |||||
| Part no. | 9W-0593 141-4942 559-4792 | |||||
| Frame holes | / | |||||
| Sprocket holes | / | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description

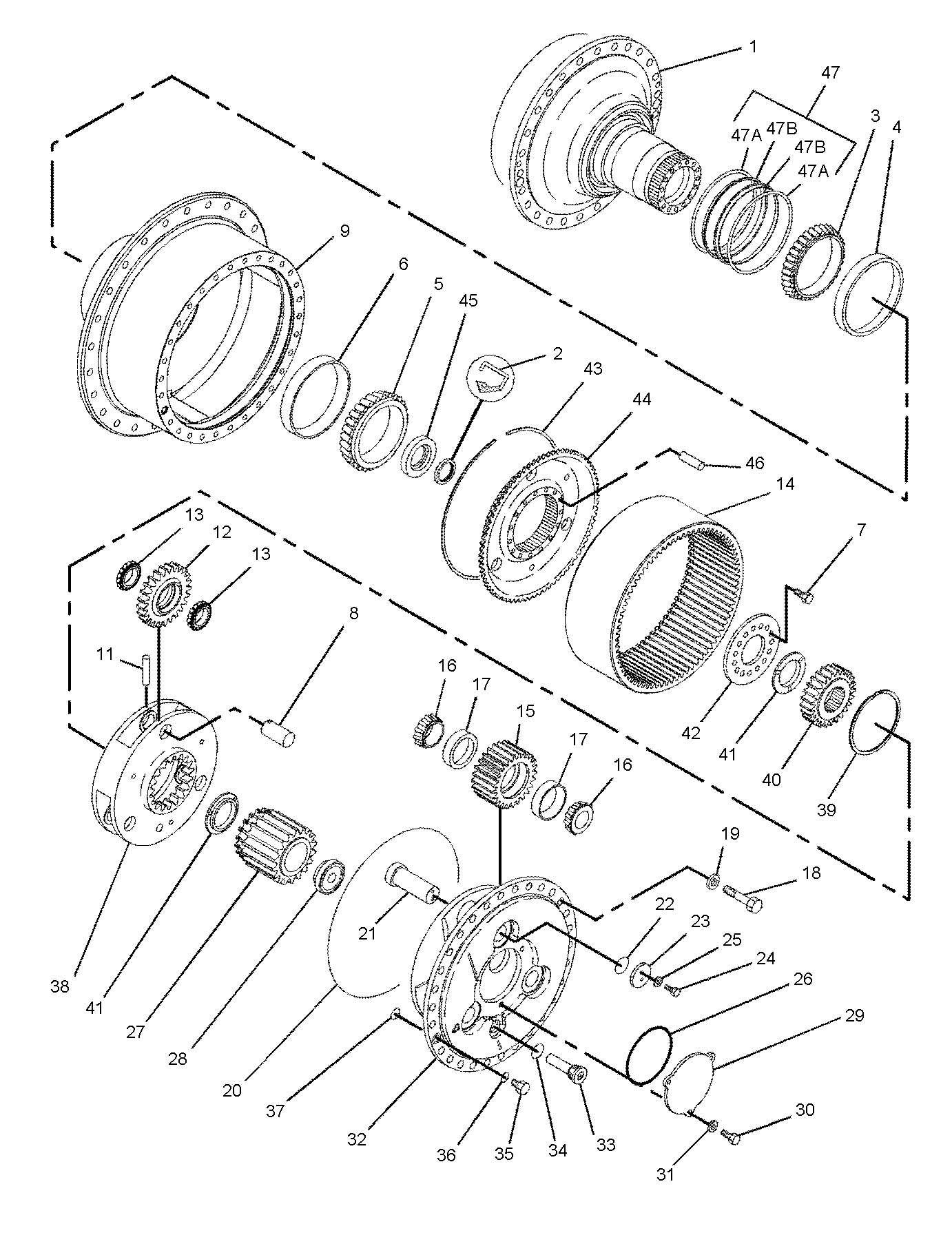

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6T-2394 | [1] | HUB-SPINDLE | |
| 2. | 9X-7363 | [1] | SEAL-LIP TYPE | |
| 3. | 6V-0663 | [1] | CONE-BEARING | |
| 4. | 6V-0662 | [1] | CUP-BEARING | |
| 5. | 6V-0664 | [1] | CONE-BEARING | |
| 6. | 5F-2465 | [1] | CUP-BEARING | |
| 7. | 5K-8454 | [15] | BOLT (1/2-13X1.12-IN) | |
| 8. | 7G-5776 | [3] | SHAFT-PLANETARY | |
| 9. | 7G-5837 | [1] | HUB-SPROCKET | |
| 11. | 5H-3193 | [3] | PIN-SPRING | |
| 12. | 7G-5783 | [3] | GEAR (18-TEETH) | |
| 13. | 4B-3693 | [6] | RACE & ROLLER AS-INNER | |
| 14. | 7G-5833 | [1] | GEAR (63-TEETH) | |
| 15. | 7G-5784 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 16. | 6V-0661 | [6] | CONE-BEARING | |
| 17. | 2P-1370 | [6] | CUP-BEARING | |
| 18. | 7X-0366 | [29] | BOLT (3/4-10X2-IN) | |
| 19. | 8T-4994 | [29] | WASHER-HARD (20X36.5X3.5-MM THK) | |
| 20. | 9H-0846 | [1] | SEAL-O-RING | |
| 21. | 7G-5780 | [3] | SHAFT-PLANETARY | |
| 22. | 090-3093 | [3] | SEAL-QUAD RING | |
| 23. | 7G-5777 | [3] | COVER | |
| 24. | 034-3557 | [6] | BOLT-LOCKING (3/8-16X1.125-IN) | |
| 25. | 8T-4896 | [6] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 26. | 8J-1665 | [1] | SEAL-O-RING | |
| 27. | 3T-5929 | [1] | GEAR (18-TEETH) | |
| 28. | 9W-3232 | [1] | RETAINER | |
| 29. | 3T-5926 | [1] | COVER | |
| 30. | 8T-8917 | [3] | BOLT (1/2-13X1.25-IN) | |
| 31. | 8T-4223 | [3] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 32. | 7T-2531 | [1] | CARRIER-PLANETARY | |
| 33. | 6V-3298 | [1] | PLUG-MAGNETIC (FINAL DRIVE, OIL FILL, CHECK) | |
| 34. | 2S-4078 | [1] | SEAL-O-RING | |
| 35. | 9S-4185 | [1] | PLUG (3/4-16-THD)(FINAL DRIVE, OIL DRAIN) | |
| 36. | 3K-0360 | [1] | SEAL-O-RING | |
| 37. | 5F-7054 | [1] | SEAL-O-RING | |
| 38. | 7G-5684 | [1] | CARRIER-PLANETARY | |
| 39. | 5P-8472 | [1] | RING-RETAINING | |
| 40. | 3T-5928 | [1] | GEAR (24-TEETH) | |
| 41. | 7T-2530 | [2] | RING-THRUST | |
| 42. | 7G-5832 | [1] | RETAINER | |
| 43. | 7G-5831 | [1] | RING-RETAINING | |
| 44. | 6T-1746 | [1] | HUB-REACTION | |
| 45. | 3T-5923 | [1] | RETAINER | |
| 46. | 6T-2173 | [15] | PIN | |
| 47. | 6Y-6277 | [1] | SEAL GP-DUO-CONE | |
| 47A. | 5P-1606 | [2] | RING-TORIC | |
| 47B. | Z | [2] | SEAL-RING | |
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Z | NOT SERVICED SEPARATELY | |||
