| Frame holes: | |
|---|---|
| Sprocket holes: | |
| Quantity: | |

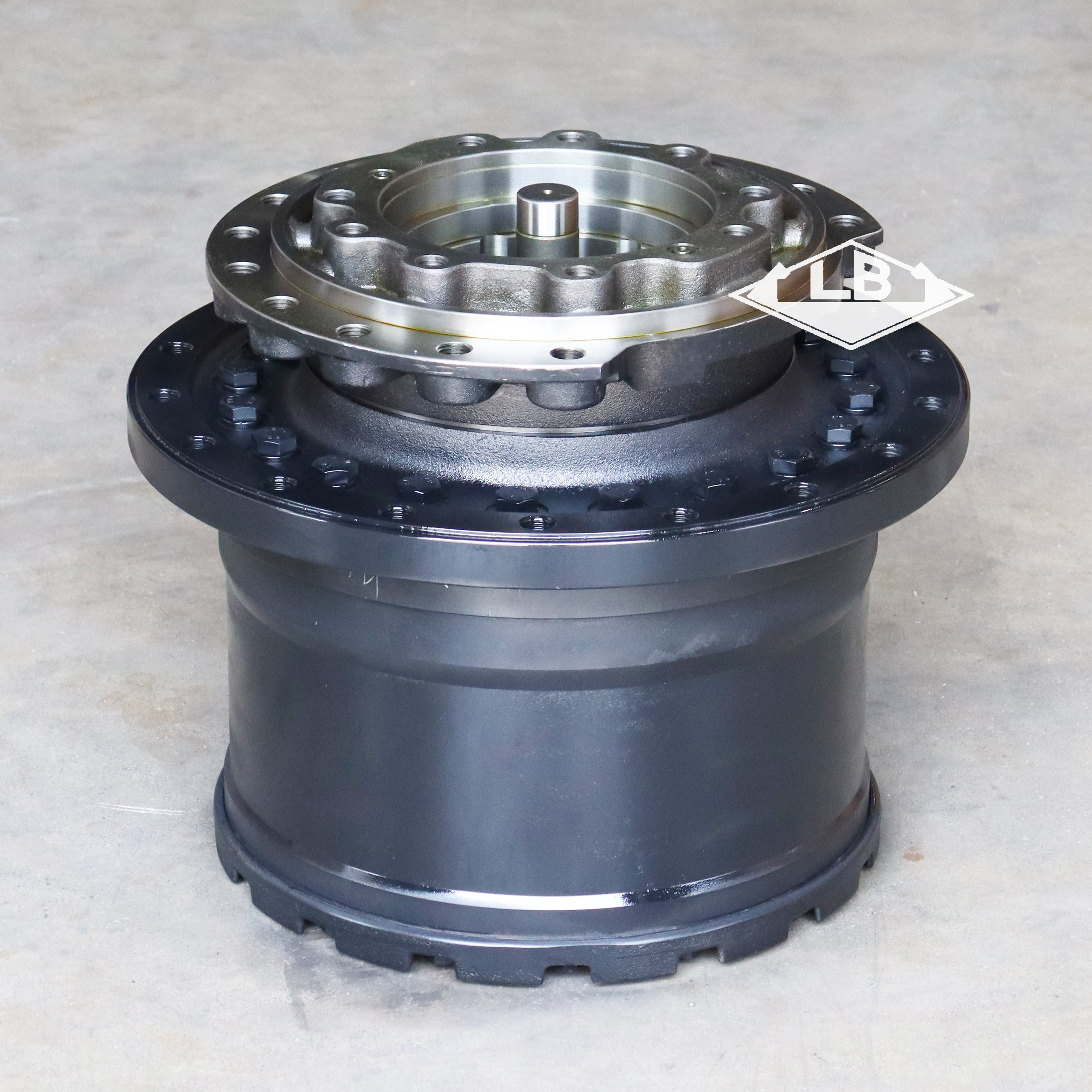

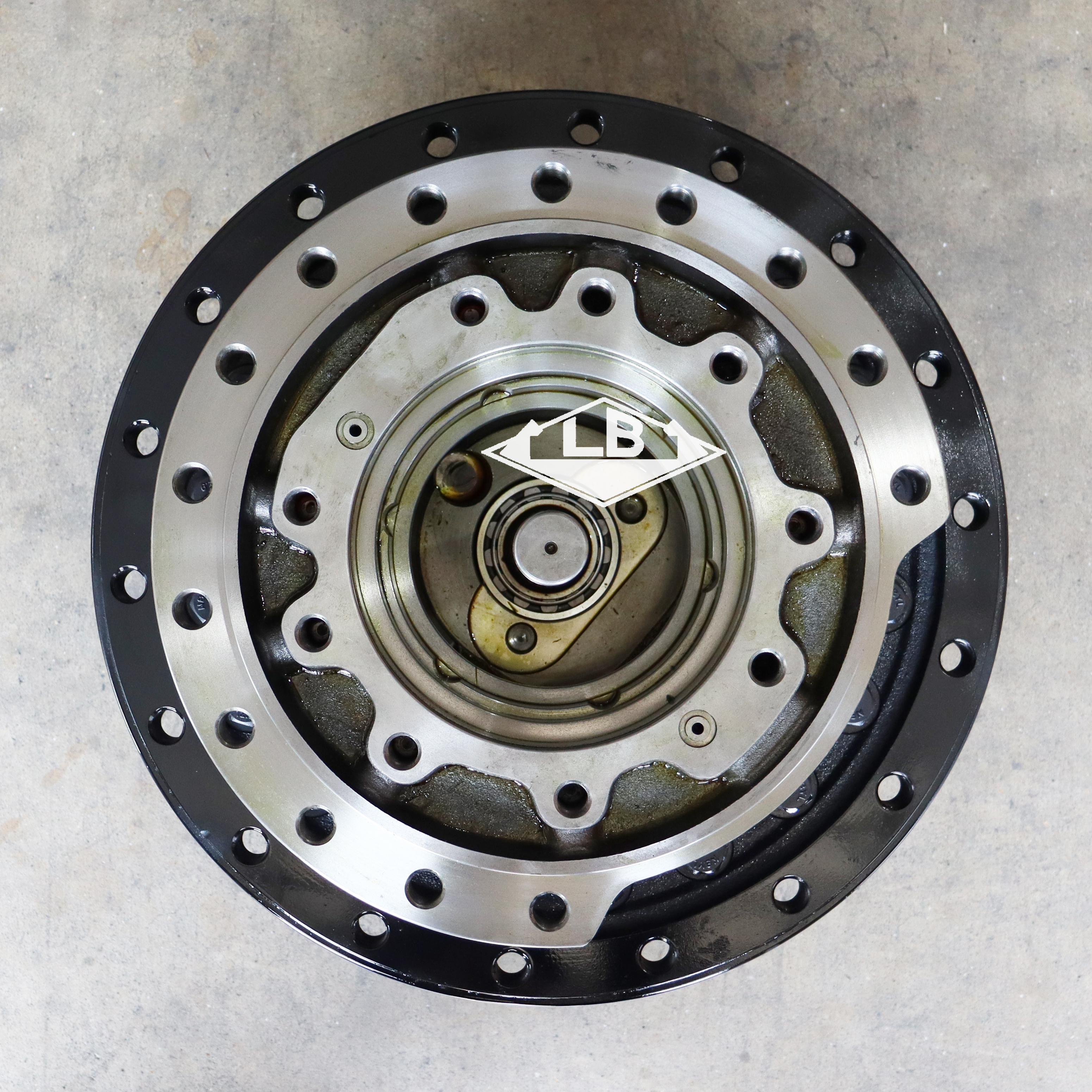

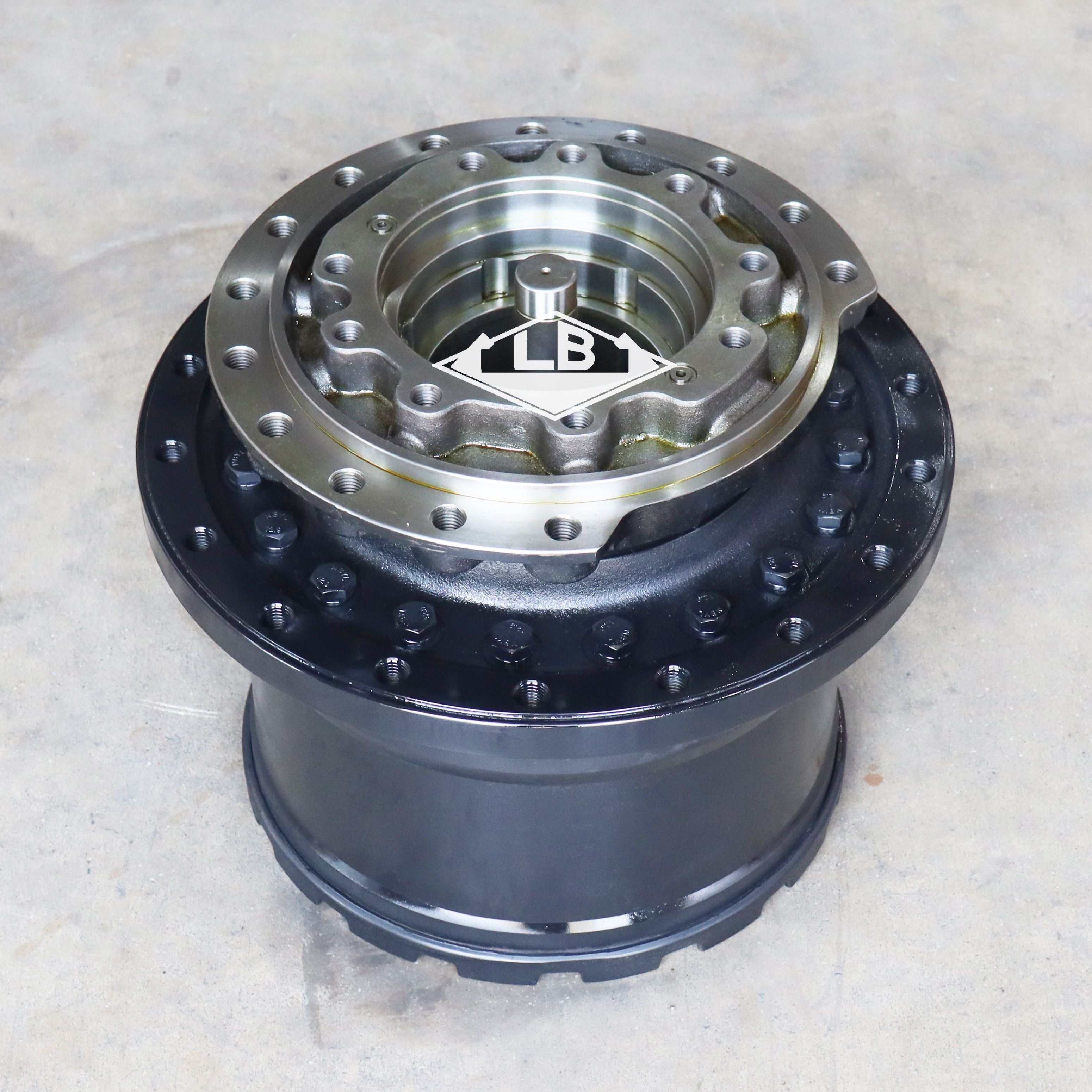

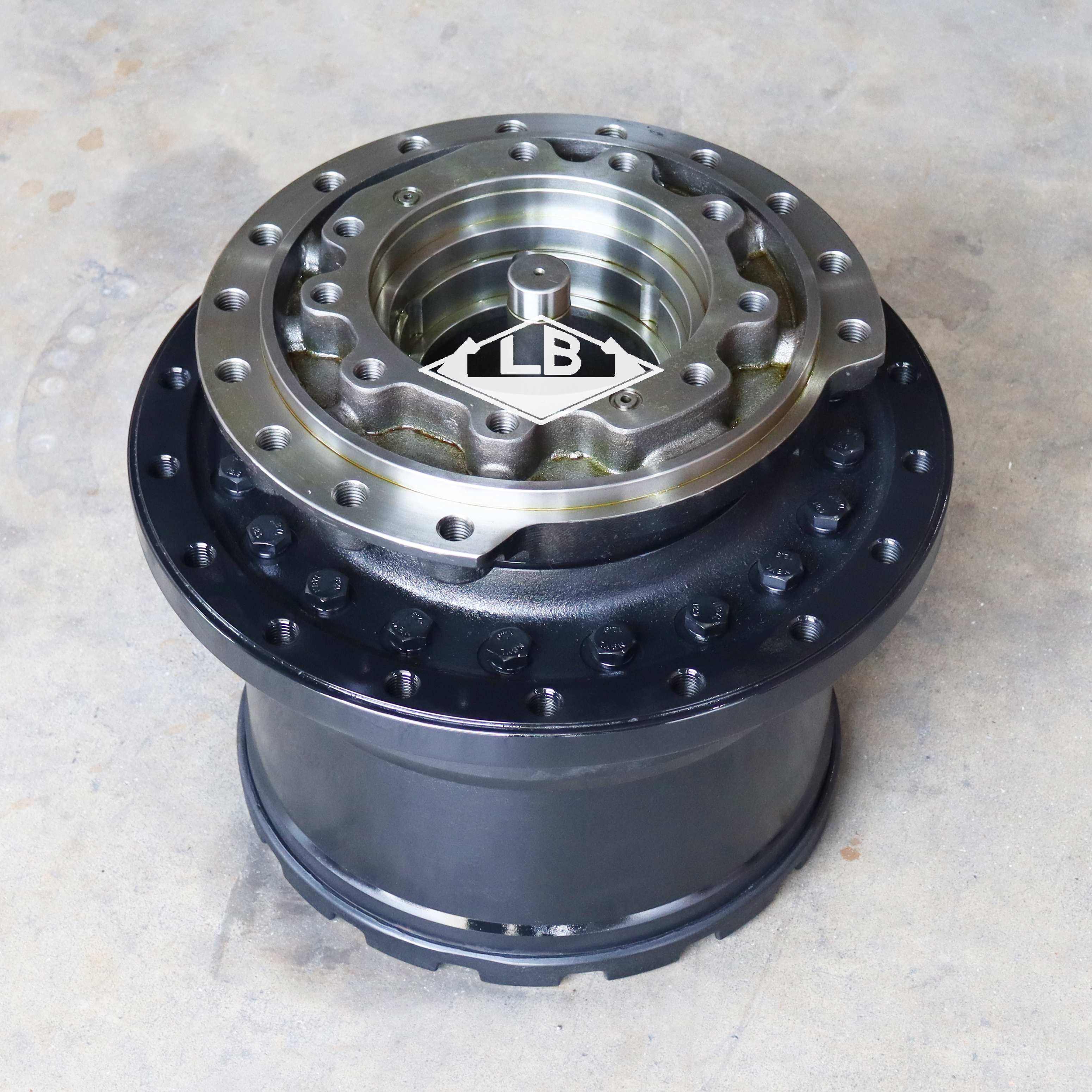

ZX180-5G
LB
| Part name | ZX180-5G Travel gearbox | |||||
| Equipment | Apply to Hitachi EXCAVATOR | |||||
| Part no. | 9283952 9283953 | |||||
| Frame holes | 14 | |||||
| Sprocket holes | 18 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

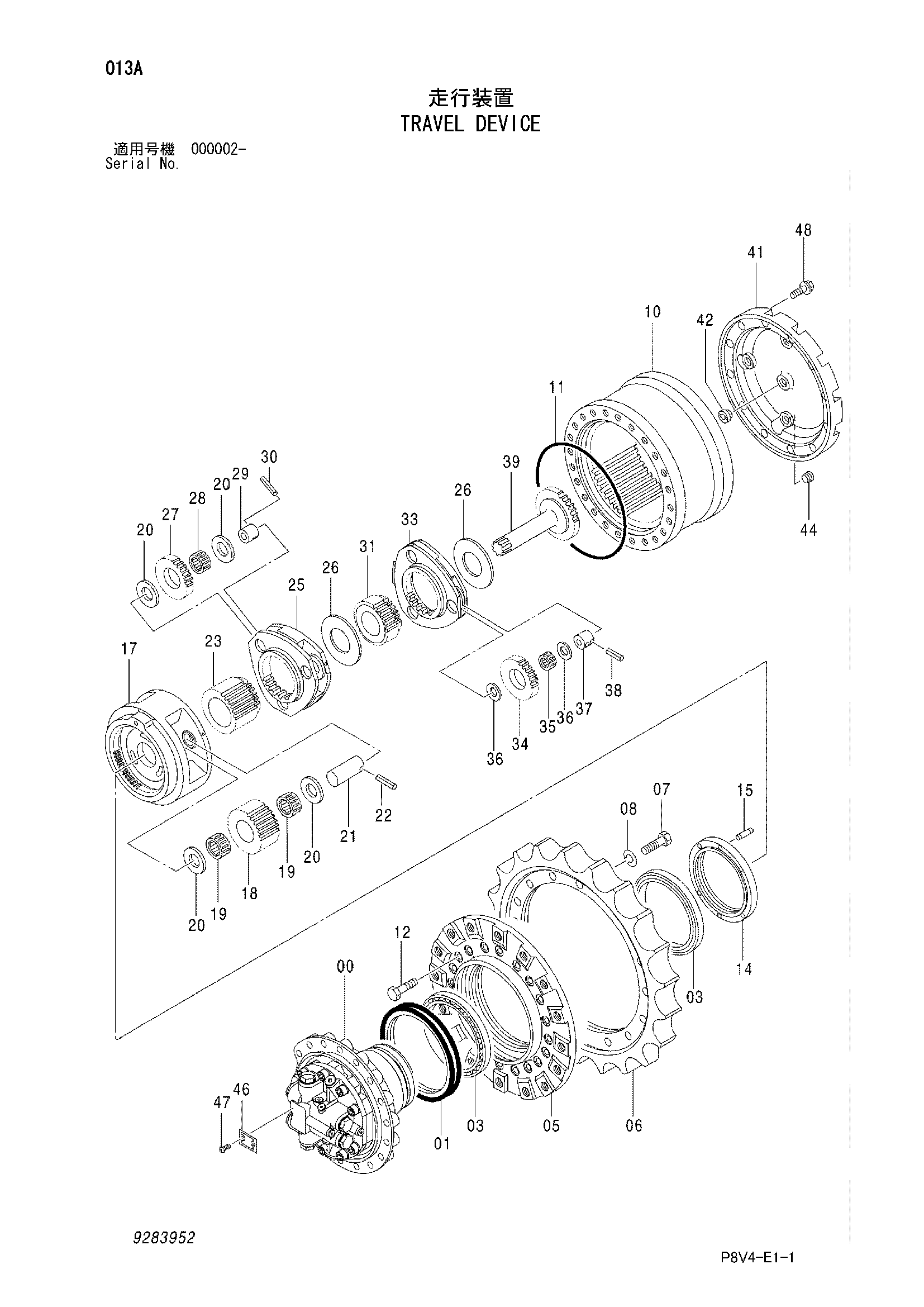

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9283952 | [1] | TRAVEL DEVICE | I 9283953 <for assembly of machine> | |
| 9283953 | [1] | TRAVEL DEVICE | <for transportation> | |
| 00. | 9250406 | [1] | MOTOR;OIL | |
| 01. | 4634693 | [1] | SEAL;GROUP | |
| 03. | 4246793 | [2] | BRG.;ROL. | |
| 05. | 1033196 | [1] | DRUM | |
| 06. | 1033091 | [1] | SPROCKET | |
| 07. | J932055 | [18] | BOLT | |
| 08. | A590920 | [18] | WASHER;SPRING | |
| 10. | 1030343 | [1] | GEAR;RING | |
| 11. | 4246792 | [1] | O-RING | |
| 12. | J931660 | [20] | BOLT | |
| 14. | 3086531 | [1] | NUT | |
| 15. | 4436242 | [1] | PIN;KNOCK | |
| 17. | 1030221 | [1] | CARRIER | |
| 18. | 3094536 | [3] | GEAR;PLANETARY | |
| 19. | 4445529 | [6] | BRG.;NEEDLE | |
| 20. | 4269295 | [12] | PLATE;THRUST | |
| 21. | 4246790 | [3] | PIN | |
| 22. | 4116309 | [3] | PIN;SPRING | |
| 23. | 3094515 | [1] | GEAR;SUN | |
| 25. | 1030230 | [1] | CARRIER | |
| 26. | 4246785 | [2] | SPACER | |
| 27. | 3094496 | [3] | GEAR;PLANETARY | |
| 28. | 4452480 | [3] | BRG.;NEEDLE | |
| 29. | 4246789 | [3] | PIN | |
| 30. | 4246358 | [3] | PIN;SPRING | |
| 31. | 3094513 | [1] | GEAR;SUN | |
| 33. | 2047920 | [1] | CARRIER | |
| 34. | 3094506 | [3] | GEAR;PLANETARY | |
| 35. | 4387383 | [3] | BRG.;NEEDLE | |
| 36. | 4192910 | [6] | PLATE;THRUST | |
| 37. | 4469309 | [3] | PIN | |
| 38. | 4173093 | [3] | PIN;SPRING | |
| 39. | 2054777 | [1] | SHAFT;PROP. | |
| 41. | 2028212 | [1] | COVER | |
| 42. | 4478346 | [1] | PIN;STOPPER | |
| 44. | 4245797 | [3] | PLUG | |
| 46. | +++++++ | [1] | NAME-PLATE | |
| 47. | M492564 | [2] | SCREW;DRIVE | |
| 48. | 4699148 | [16] | BOLT;SEMS |
