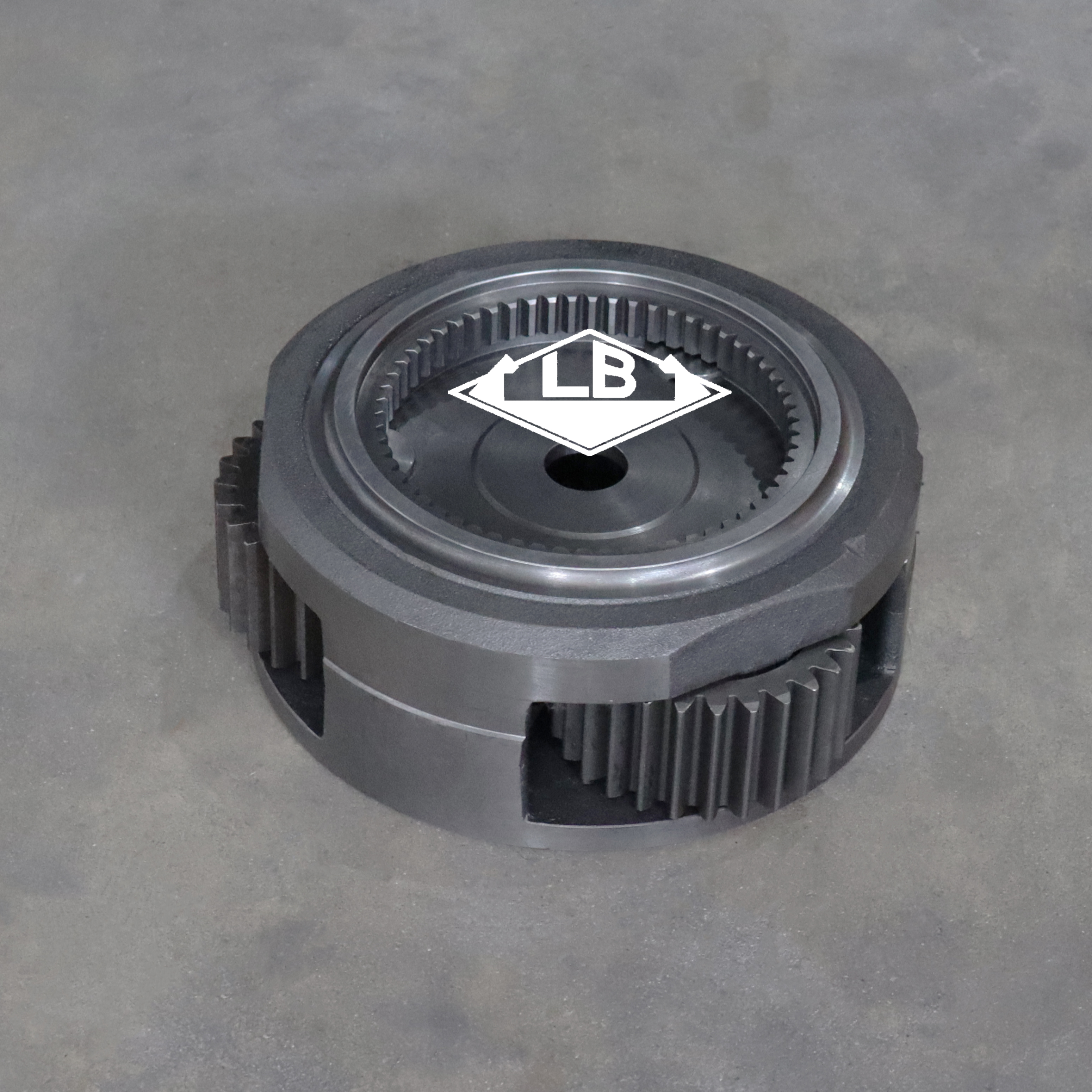

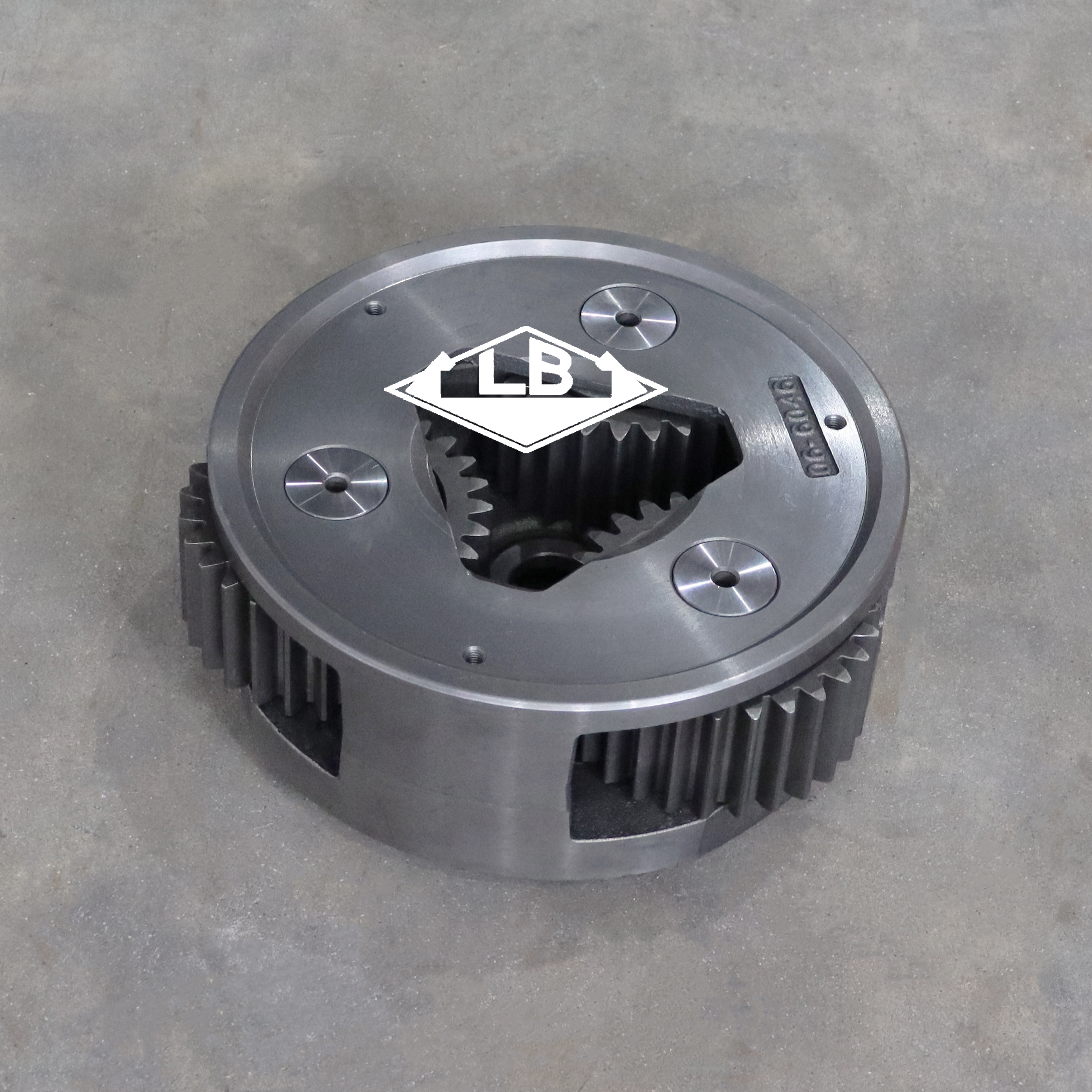

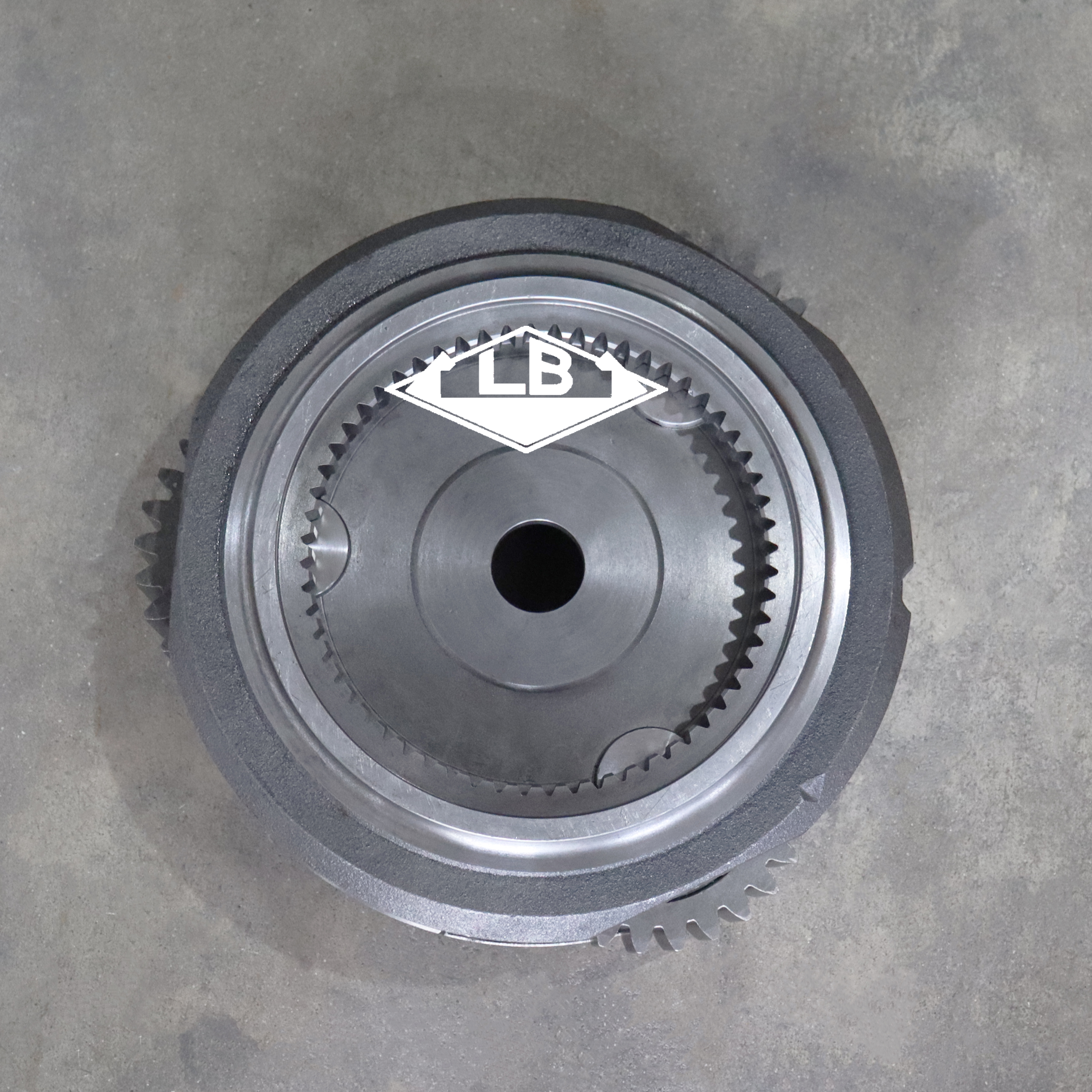

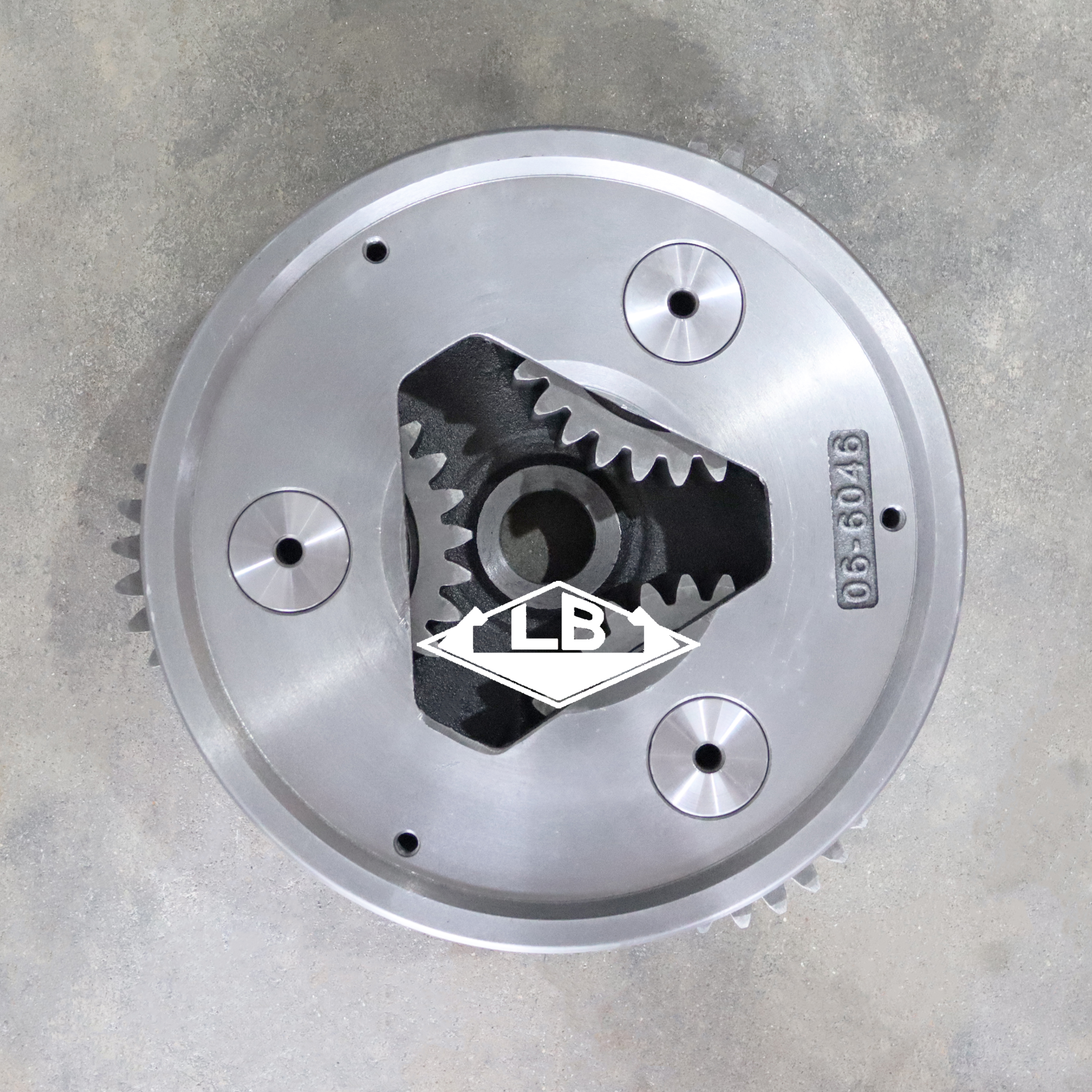

SK210-8 SK200-8 NO2 TRAVEL CARRIER ASSY YN15V00037S007 TRAVEL REDUCTION GEAR FOR KOBELCO EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SK210-8 SK200-8 Swing gearbox
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	YN15V00037S007
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

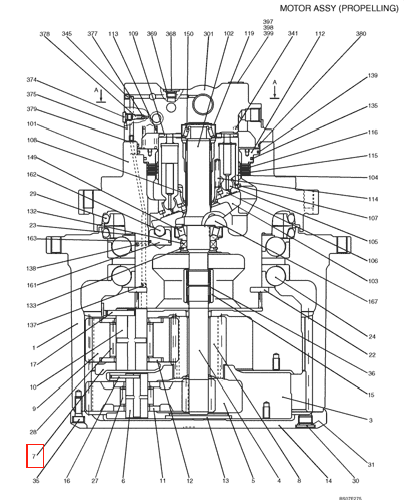

Parts on group (E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-):

Pos.	Part No	Qty	Parts name	Comments
. .	YN15V00037F1	[1]	HYDRAULIC MOTOR	SM Propelling -- Used from date 03/31/2006 - 02/22/2008, Figure 1 of 2 Superseded by part number: YN15V00037F2
. .	YN15V00037F2R	[1]	REMAN-HYD MOTOR	KOB E215B TIER 3 (1/07-), Reman For New P/N YN15V00037F1
. .	YN15V00037F2C	[1]	CORE-MOTOR HYDRAULIC	KOB Return Number
1.	YN15V00037S001	[1]	HUB	KOB Hub
3.	YN15V00037S003	[1]	FLANGE	KOB Carrier
4.	YN15V00037S004	[1]	GEAR	KOB Sun
5.	YN15V00037S005	[3]	GEAR	KOB Planetary
6.	YN15V00037S006	[3]	PIN	KOB Carrier
7.	YN15V00037S007	[1]	GEAR	KOB Carrier
8.	YN15V00037S008	[1]	GEAR	KOB Sun
9.	YN15V00037S009	[3]	GEAR	KOB Planetary
10.	YN15V00037S010	[3]	PIN	KOB Carrier
11.	YN15V00037S011	[6]	WASHER	KOB Thrust
12.	YN15V00037S012	[6]	WASHER	KOB Thrust
13.	YN15V00037S013	[1]	PLATE	KOB Thrust
14.	YN15V00037S014	[1]	COVER	KOB
15.	YN15V00037S015	[1]	COUPLING	KOB
16.	YN15V00037S016	[3]	PIN	KOB Parallel
17.	YN15V00037S017	[3]	PIN	KOB Parallel
22.	YN15V00037S022	[2]	LOCK WASHER	KOB
23.	YN15V00037S023	[1]	SHIM	KOB
24.	YN15V00037S024	[2]	BALL BEARING	KOB Ball
27.	YN15V00037S027	[3]	ROLLER BEARING	KOB Needle
28.	YN15V00037S028	[3]	ROLLER BEARING	KOB Needle
29.	YN15V00037S029	[1]	SEAL	KOB Floating
30.	2441U995S121	[3]	PLUG	KOB
31.	ZD12P01800	[3]	O-RING	KOB ID 17.80 ± 0.21 x OD 22mm
35.	ZS23C10035	[18]	SCREW,Hex Socket Head, M10 x 35mm	KOB
36.	ZR26X03200	[1]	SNAP RING	KOB
101.	YN15V00037S101	[1]	MANDREL	KOB
102.	YN15V00037S102	[1]	SHAFT	KOB
103.	NSS	[1]	NOT SERVICED SEPARATELY	CON Plate, Shoe
104.	YN15V00037S104	[1]	CYLINDER	KOB Block
107.	YN15V00037S107	[1]	PLATE	KOB Retainer
108.	YN15V00037S108	[1]	BALL	KOB Joint
109.	YN15V00037S109	[1]	PLATE	KOB
112.	YN15V00037S112	[1]	PISTON	KOB
113.	YN15V00037S113	[8]	SPRING	KOB
114.	YN15V00037S114	[9]	SPRING	KOB
115.	YN15V00037S115	[3]	PLATE	KOB Friction
116.	YN15V00037S116	[4]	PLATE	KOB Separator
119.	YN15V00037S119	[1]	SHIM	KOB
132.	YN15V00009S027	[1]	OIL SEAL	KOB
133.	YN15V00009S019	[1]	RING	KOB Retaining
135.	YN15V00037S135	[1]	RING	KOB
137.	2436U279S3	[1]	PLUG	KOB 1/16" Socket
138.	2436U1749S17	[1]	PLUG	KOB
139.	YN15V00037S139	[1]	RING	KOB O-Ring
149.	YN15V00037S149	[1]	ROLLER BEARING	KOB Roller Superseded by part number: YN15V00009S031
150.	YN15V00037S150	[1]	ROLLER BEARING	KOB Roller Superseded by part number: YN15V00009S032
162.	YN15V00037S162	[1]	BALL	KOB
301.	YN15V00037S301	[1]	FLANGE	KOB
341.	YN15V00017S033	[1]	PIN	KOB
345.	2436U1427S25	[15]	PLUG	KOB
368.	2436U1317S13	[2]	PLUG	KOB
369.	ZD12P01100	[2]	O-RING	KOB ID 10.80 ± 0.18 x OD 15mm
374.	YN15V00017S038	[5]	PLUG	KOB
375.	ZD12P00800	[6]	O-RING,1.9mm Thk x 7.8mm ID, 90 Duro	KOB ID 07.80 ± 0.16 x OD 11mm
377.	YN15V00017S017	[3]	CHECK VALVE	KOB
378.	YN15V00017S026	[3]	SPRING	KOB
379.	ZD12P01600	[1]	O-RING	KOB ID 15.80 ± 0.20 x OD 20mm
380.	YN15V00037S380	[1]	O-RING	KOB
397.	2483U254S19	[1]	Name Plate
398.	YN15V00037S398	[4]	Rivet
399.	YN15V00037S399	[1]	Name Plate
K.	YN15V00037R400	[1]	PISTON	KOB Kit, Repair -- Contains Items 105 & 106
K.	YN15V00037R410	[1]	PISTON	KOB Kit, Repair -- Contains Items 161 & 163
K.	YN15V00037R420	[1]	PLATE	KOB Kit, Repair -- Contains Items 103 & 167
K.	YN15V00037R430	[1]	VALVE	KOB Kit, Repair -- Contains Items 301, 323, 341, 343, 345 & 363-380
K.	YN15V00037R440	[1]	VALVE	KOB Kit, Repair -- Contains Items 323, 326-328 & 331
K.	YN15V00037R450	[1]	SEAL KIT	KOB Contains Items 31, 132, 135, 139, 329, 369, 371, 375, 379 & 380
