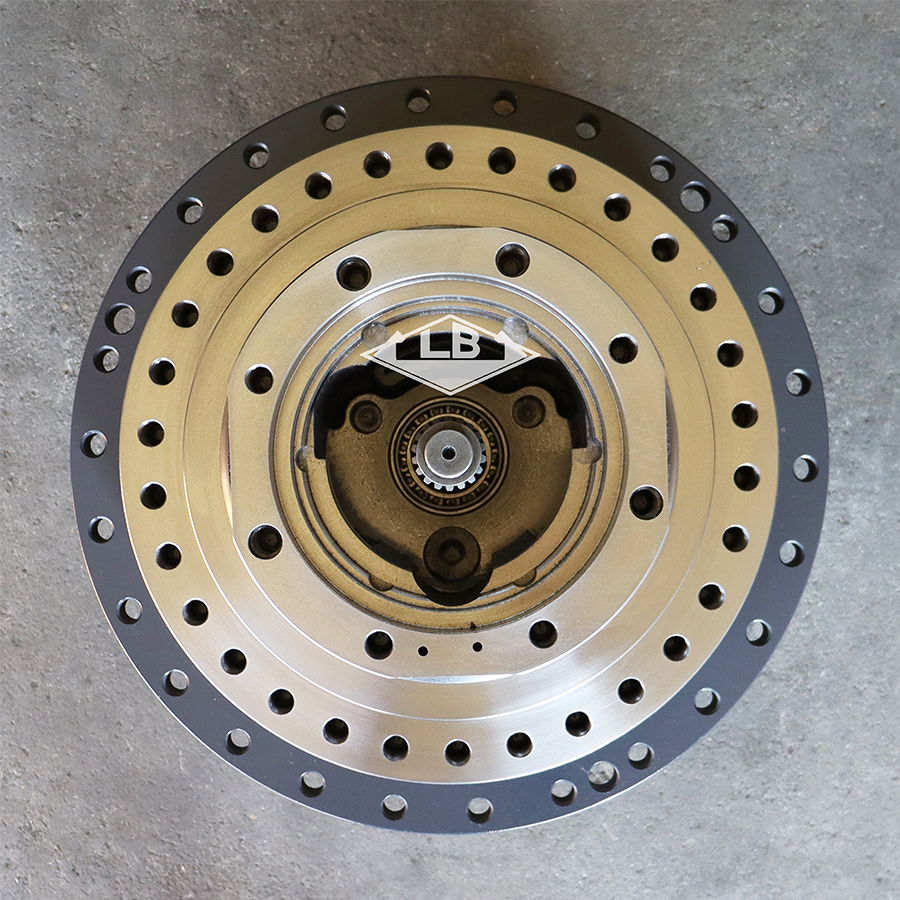

SK200-8 Final drive without motor YN15V00037F1 YN15V00037F2 SK200-8 Travel gearbox

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	SK200-8 Travel gearbox
Equipment	Apply to Kobelco EXCAVATOR
Part no.	YN15V00037F1 YN15V00037F2
Frame holes	30
Sprocket holes	26
Item condition	New
Logo	LB
Gross weight	270 KG
MOQ	1 pc

Product Description

SK200-8 SK200-8(4) SK200-8 行

Pos.	Part No	Qty	Parts name	Comments
. .	YN15V00037F1	[1]	HYDRAULIC MOTOR	SM (propelling) Superseded by part number: YN15V00037F2
. .	YN15V00037F2R	[1]	REMAN-HYD MOTOR	KOB 200-8, SK210D-8, Both S/N YN11-45001 -, SK210DLC-8, SK210LC-8, Both S/N YQ11-06001 -, Reman For New P/N YN15V00037F1
. .	YN15V00037F2C	[1]	CORE-MOTOR HYDRAULIC	KOB Return Number
. .	YN15V00037F2	[1]	HYDRAULIC MOTOR	KOB Assy (propelling)
1.	YN15V00037S001	[1]	HUB	KOB
3.	YN15V00037S003	[1]	FLANGE	KOB Carrier
4.	YN15V00037S004	[1]	GEAR	KOB Sun
5.	YN15V00037S005	[3]	GEAR	KOB Planetary
6.	YN15V00037S006	[3]	PIN	KOB
7.	YN15V00037S007	[1]	GEAR	KOB Carrier
8.	YN15V00037S008	[1]	GEAR	KOB Sun
9.	YN15V00037S009	[3]	GEAR	KOB Planetary
10.	YN15V00037S010	[3]	PIN	KOB
11.	YN15V00037S011	[6]	WASHER	KOB Thrust
12.	YN15V00037S012	[6]	WASHER	KOB Thrust
13.	YN15V00037S013	[1]	PLATE	KOB
14.	YN15V00037S014	[1]	COVER	KOB
15.	YN15V00037S015	[1]	COUPLING	KOB
16.	YN15V00037S016	[3]	PIN	KOB
17.	YN15V00037S017	[3]	PIN	KOB
22.	YN15V00037S022	[2]	LOCK WASHER	KOB Lock Washer
23.	YN15V00037S023	[1]	SHIM	KOB
24.	YN15V00037S024	[2]	BALL BEARING	KOB Ball
27.	YN15V00037S027	[3]	ROLLER BEARING	KOB Needle
28.	YN15V00037S028	[3]	ROLLER BEARING	KOB Needle
29.	YN15V00037S029	[1]	SEAL	KOB Floating
30.	2441U995S121	[3]	PLUG	KOB
31.	ZD12P01800	[3]	O-RING	KOB ID 17.8mm x OD 20.2mm
35.	ZS23C10035	[18]	SCREW,Hex Socket Head, M10 x 35mm	KOB Cap
36.	ZR26X03200	[1]	SNAP RING	KOB Retaining
101.	YN15V00037S101	[1]	MANDREL	KOB Spindle
102.	YN15V00037S102	[1]	SHAFT	KOB
103.	NSS	[1]	NOT SOLD SEPARAT	CON Plate, Shoe
104.	YN15V00037S104	[1]	CYLINDER	KOB Block
105.	NSS	[9]	NOT SOLD SEPARAT	CON Piston
106.	NSS	[9]	NOT SOLD SEPARAT	CON Shoe
107.	YN15V00037S107	[1]	PLATE	KOB Retainer (For F1 ONLY)
. .	YN15V00037S098	[1]	PLATE	KOB Retainer (For F2 ONLY)
108.	YN15V00037S108	[1]	BALL	KOB Joint (For F1 ONLY)
. .	YN15V00037S099	[1]	BALL	KOB Ball[ (For F2 ONLY)
109.	YN15V00037S109	[1]	PLATE	KOB
112.	YN15V00037S112	[1]	PISTON	KOB
113.	YN15V00037S113	[8]	SPRING	KOB
114.	YN15V00037S114	[9]	SPRING	KOB
115.	YN15V00037S115	[3]	PLATE	KOB Friction
116.	YN15V00037S116	[4]	PLATE	KOB Separator
119.	YN15V00037S119	[1]	SHIM	KOB
132.	YN15V00009S027	[1]	OIL SEAL	KOB
133.	YN15V00009S019	[1]	RING	KOB Retaining
135.	YN15V00037S135	[1]	RING	KOB
137.	2436U279S3	[1]	PLUG	KOB
138.	2436U1749S17	[1]	PLUG	KOB
139.	YN15V00037S139	[1]	RING	KOB
149.	YN15V00037S149	[1]	ROLLER BEARING	KOB Roller Superseded by part number: 26799950
150.	YN15V00037S150	[1]	ROLLER BEARING	KOB Roller Superseded by part number: YN15V00009S032
161.	NSS	[1]	NOT SOLD SEPARAT	CON Piston
162.	YN15V00037S162	[1]	BALL	KOB
163.	NSS	[1]	NOT SOLD SEPARAT	CON Seal
167.	NSS	[2]	NOT SOLD SEPARAT	CON Pivot
200.	YN22V00036F1	[2]	VALVE	KOB Assy, Relief (See HC385)
301.	YN15V00037S301	[1]	FLANGE	KOB
323.	NSS	[1]	NOT SOLD SEPARAT	CON Spool
324.	YN15V00037S324	[2]	PLUG	KOB
325.	YN15V00037S325	[2]	SEAT	KOB Spring
326.	NSS	[2]	NOT SOLD SEPARAT	CON Plug
327.	NSS	[2]	NOT SOLD SEPARAT	CON Valve
328.	NSS	[2]	NOT SOLD SEPARAT	CON Spring
329.	YN15V00037S329	[2]	O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro	KOB Superseded by part number: ZD12P03400
330.	YN15V00037S330	[2]	SPRING	KOB
331.	NSS	[2]	NOT SOLD SEPARAT	CON O-ring
341.	YN15V00017S033	[1]	PIN	KOB
343.	ZS23C16040	[8]	CAPSCREW,Hex Socket Head, M16 x 40mm	KOB SCREW Cap
345.	2436U1427S25	[15]	PLUG	KOB
363.	YN15V00037S363	[1]	SPOOL	KOB
364.	2436R874S3	[1]	FLEXIBLE JOINT	KOB Connector
365.	2436R874S6	[1]	PIN	KOB
366.	2436R874S7	[1]	SPRING	KOB
367.	2436R874S5	[1]	SPRING SEAT	KOB
368.	2436U1317S13	[2]	PLUG	KOB
369.	ZD12P01100	[2]	O-RING	KOB ID 10.8mm x OD 13.2mm
370.	LC15V00023S062	[1]	PLUG	KOB
371.	ZD12P01400	[2]	O-RING	KOB
372.	LC15V00023S067	[2]	RESTRICTOR	KOB
373.	LC15V00023S068	[2]	SPRING	KOB
374.	YN15V00017S038	[5]	PLUG	KOB
375.	ZD12P00800	[6]	O-RING,1.9mm Thk x 7.8mm ID, 90 Duro	KOB ID 7.8mm x OD 9.7mm
376.	GN15V00010S024	[3]	RESTRICTOR	KOB
377.	YN15V00017S017	[3]	CHECK VALVE	KOB
378.	YN15V00017S026	[3]	SPRING	KOB
379.	ZD12P01600	[1]	O-RING	KOB
380.	YN15V00037S380	[1]	O-RING	KOB
397.	2483U254S19	[1]	Name Plate
398.	YN15V00037S398	[4]	Rivet
399.	YN15V00037S399	[1]	Name Plate
. .	YN15V00037R400	[1]	PISTON	KOB Repair Kit Consists Of Ref. 105x9, 106x9
. .	YN15V00037R410	[1]	PISTON	KOB Repair Kit Consists Of Ref. 161x1, 163x1
. .	YN15V00037R420	[1]	PLATE	KOB Repair Kit Consists Of Ref. 103x1, 167x2
. .	YN15V00037R430	[1]	VALVE	KOB Repair Kit Consists Of Ref. 103x1, 323x1, 324x2, 325x2, 326x2, 327x2, 328x2, 329x2, 330x2, 331x2, 341x1, 343x8, 345x15, 363x1, 364x1, 365x1, 366x1, 367x1, 368x2, 369x2, 370x1, 371x2, 372x2, 373x2, 374x5, 375x6, 376x3, 377x3, 378x3, 379x1, 380x1
. .	YN15V00037R440	[1]	VALVE	KOB Repair Kit Consists Of Ref. 323x1, 326x2, 327x2, 328x2, 331x2
. .	YN15V00037R450	[1]	SEAL KIT	KOB Repair Kit Consists Of Ref. 31x3, 132x1, 135x1, 139x1, 329x2, 369x2, 371x2, 375x6, 379x1, 380x1
. .	YN15V00037R460	[1]	REPAIR KIT	KOB Repair Kit Consists Of Ref. 107x1, 108x1 (F2 Only)
