| Quantity: | |
|---|---|

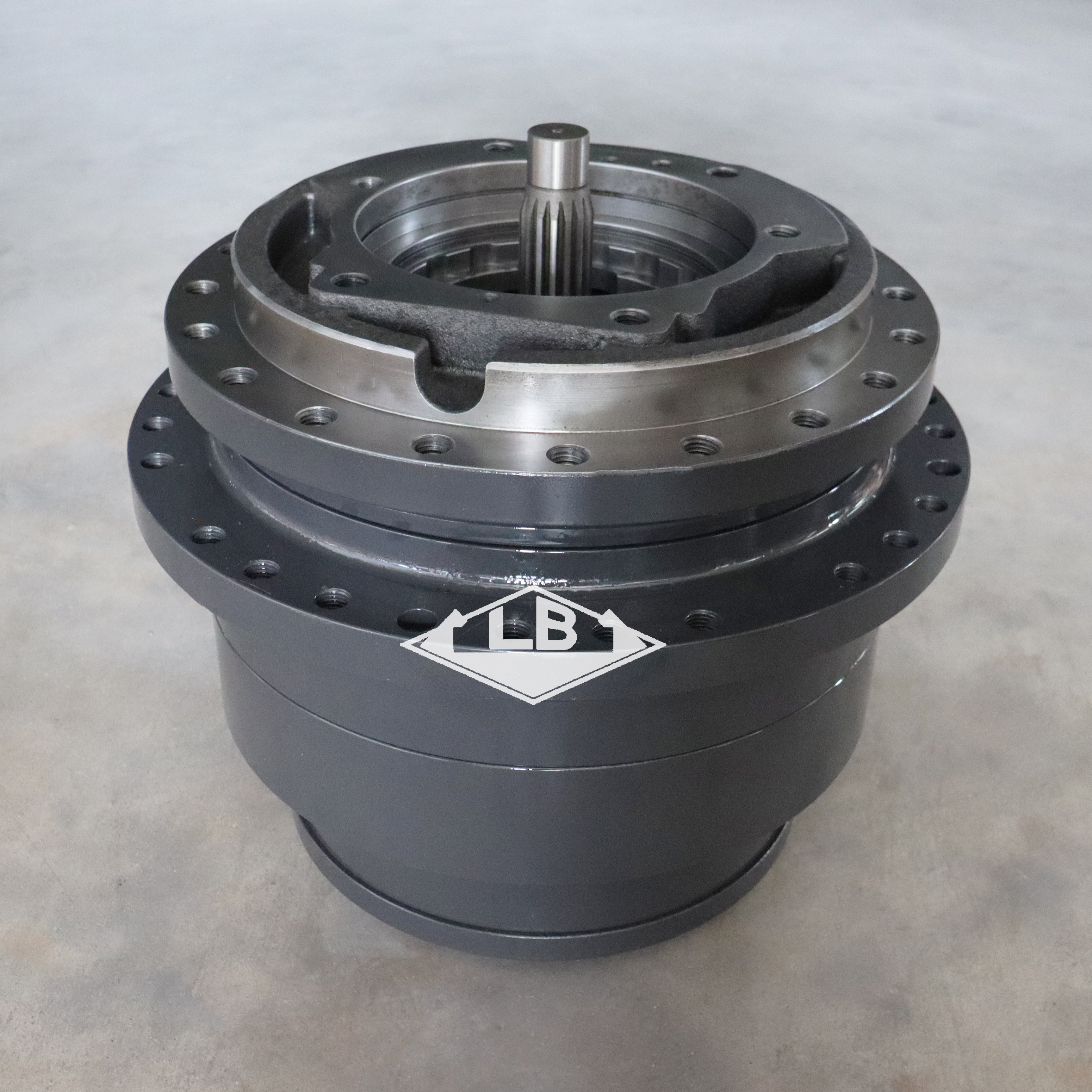

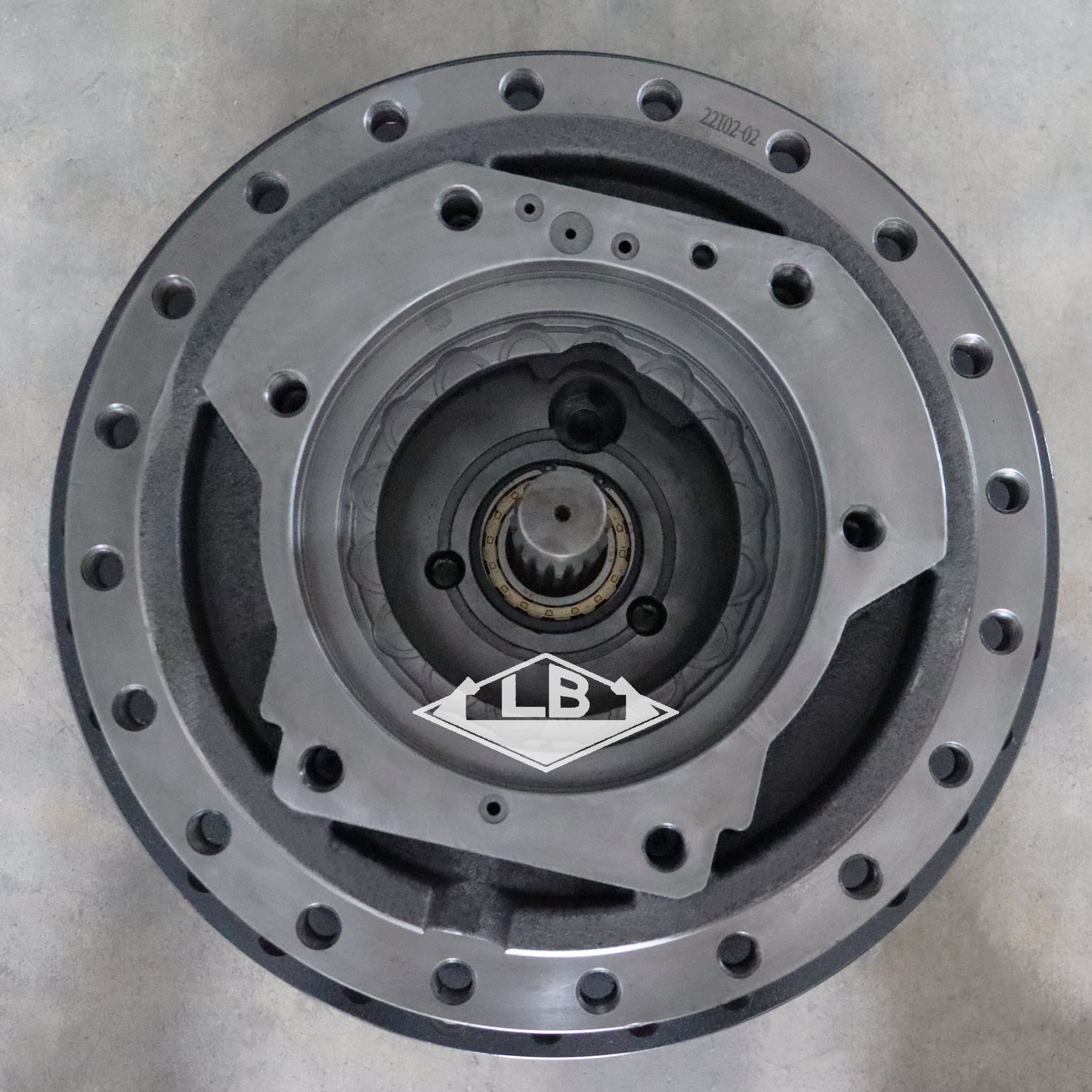

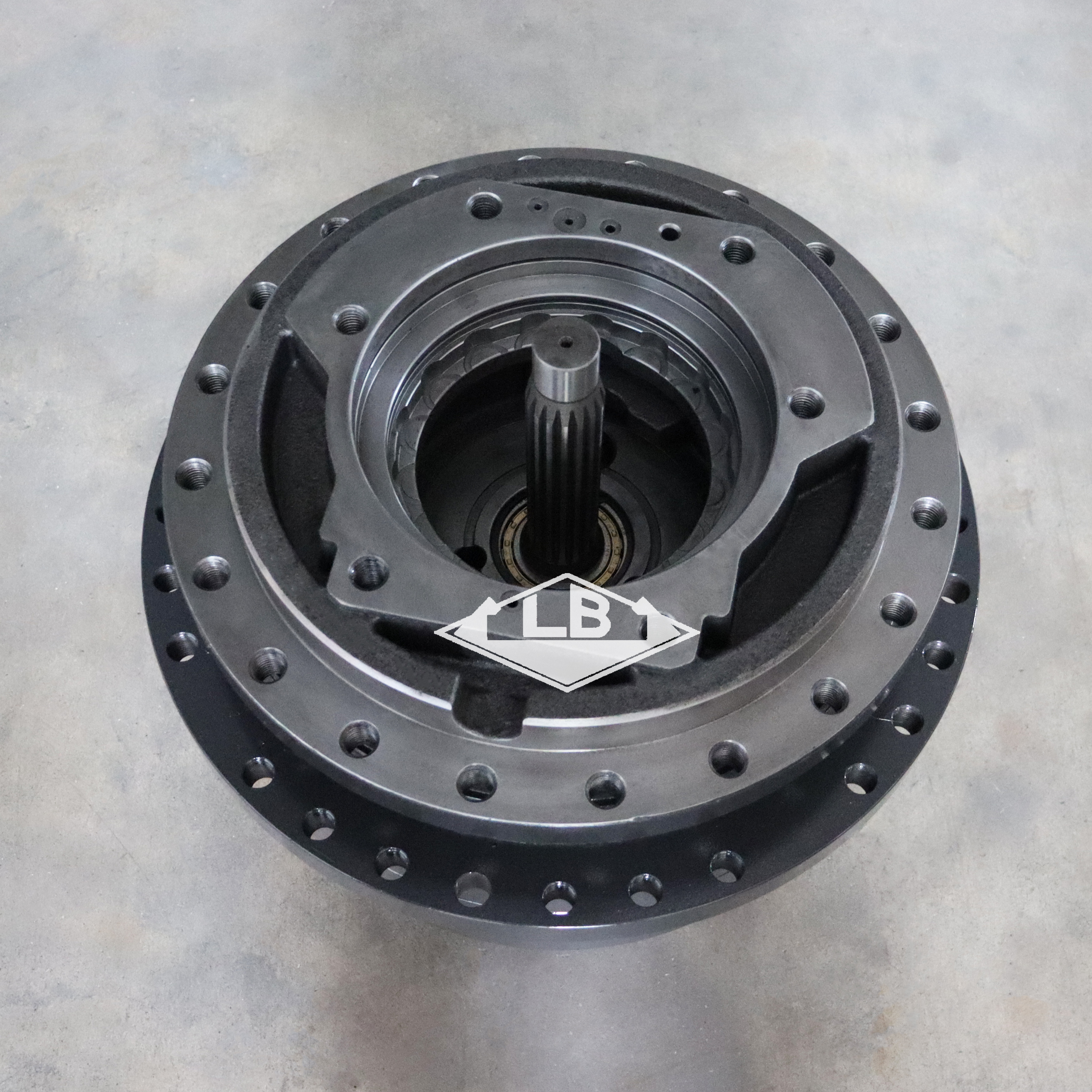

| Part name | R250-3 R290-3 R300-5 TRAVEL GEARBOX | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | 3550D-01A | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

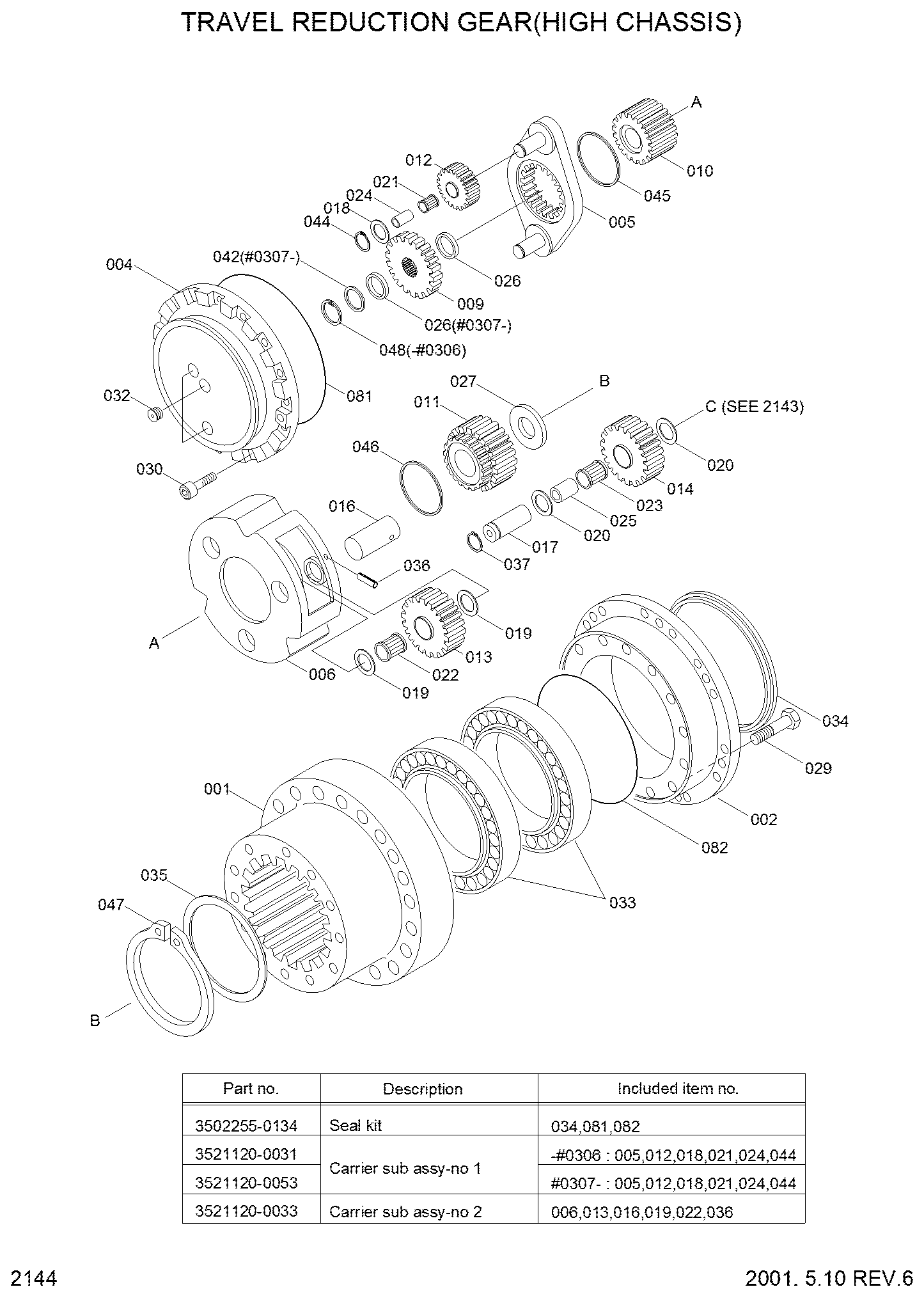

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| N*-2. | 3550D-01A | [1] | T/REDUCTION GEAR | |
| N*-2. | 3550D-01B | [1] | T/REDUCTION GEAR | |
| 001. | 3523170-0045 | [1] | GEAR-RING | |
| 002. | 3523310-0160 | [1] | HOUSING | |
| 004. | 3523150-0334 | [1] | COVER-SIDE | |
| 004. | 3523150-0488 | [1] | COVER-SIDE | |
| 005. | 3524120-0052 | [1] | CARRIER-NO1 | |
| 006. | 3524120-0057 | [1] | CARRIER-NO2 | |
| 009. | 3503190-0109 | [1] | GEAR-SUN,NO1 | |
| 010. | 3503190-0110 | [1] | GEAR-SUN,NO2 | |
| 011. | 3503190-0143 | [1] | GEAR-SUN,NO3 | |
| 012. | 3503190-0117 | [2] | GEAR-PLANE,NO1 | |
| 013. | 3503190-0113 | [3] | GEAR-PLANE,NO2 | |
| 014. | 3503190-0141 | [4] | GEAR-PLANE,NO3 | |
| 016. | 3503540-0126 | [3] | PIN-NO2 | |
| 017. | 3503540-0122 | [4] | PIN-NO3 | |
| 018. | 3524750-0190 | [2] | PLATE-SIDE | |
| 018. | 3524750-0370 | [2] | PLATE-SIDE | |
| 019. | 3524750-0179 | [6] | PLATE-SIDE | |
| 020. | 3524750-0219 | [8] | PLATE-SIDE | |
| 021. | PKT507028 | [2] | CAGE-NEEDLE | |
| 022. | PKT506532X | [3] | CAGE-NEEDLE | |
| 023. | PBN506006HSCX | [4] | CAGE-NEEDLE | |
| 024. | P1R455028 | [2] | RING-INNER | |
| 025. | 3503370-0241 | [4] | BUSHING | |
| 026. | 35050BAA-024 | [1] | RING-THRUST | |
| 026. | 35050BAA-024 | [2] | RING-THRUST | |
| 027. | 3503160-0105 | [1] | RING-THRUST | |
| 029. | OSBM16100 | [28] | SCREW-HEX | |
| 030. | OSBM820 | [12] | SCREW-HEX SOC HD | |
| 032. | OBP12 | [3] | PLUG | |
| 033. | PAC6037 | [2] | BEARING | |
| K034. | P353 | [1] | SEAL | |
| N035. | 3526330F0028 | [1] | SHIM(2.5T) | |
| N035. | 3526330G0028 | [1] | SHIM(2.65T) | |
| N035. | 3526330H0028 | [1] | SHIM(2.7T) | |
| 036. | OSPV425 | [3] | PIN-SPRING | |
| 037. | ORR42 | [4] | RING-SNAP | |
| 042. | 35050BAA-042A | [1] | SHIM(0.5T) | |
| 042. | 35050BAA-042B | [1] | SHIM(1.0T) | |
| 044. | OSR45 | [2] | RING-SNAP | |
| 045. | PWR95 | [1] | CLIP | |
| 046. | PWR130 | [1] | CLIP | |
| 047. | PSR300 | [1] | RING-SNAP | |
| 048. | OSR40 | [1] | RING-SNAP | |
| K081. | PCPP323 | [1] | O-RING | |
| K082. | PCPP378 | [1] | O-RING | |
| S . | 3521120-0031 | [1] | CARRIER SUB-NO1 | SEE ILLUST |
| S. | 3521120-0053 | [1] | CARRIER SUB-NO1 | SEE ILLUST |
| S. | 3521120-0033 | [1] | CARRIER SUB-NO2 | SEE ILLUST |
| K. | 3502255-0134 | [1] | SEAL KIT(034,081,082) | SEE ILLUST |
