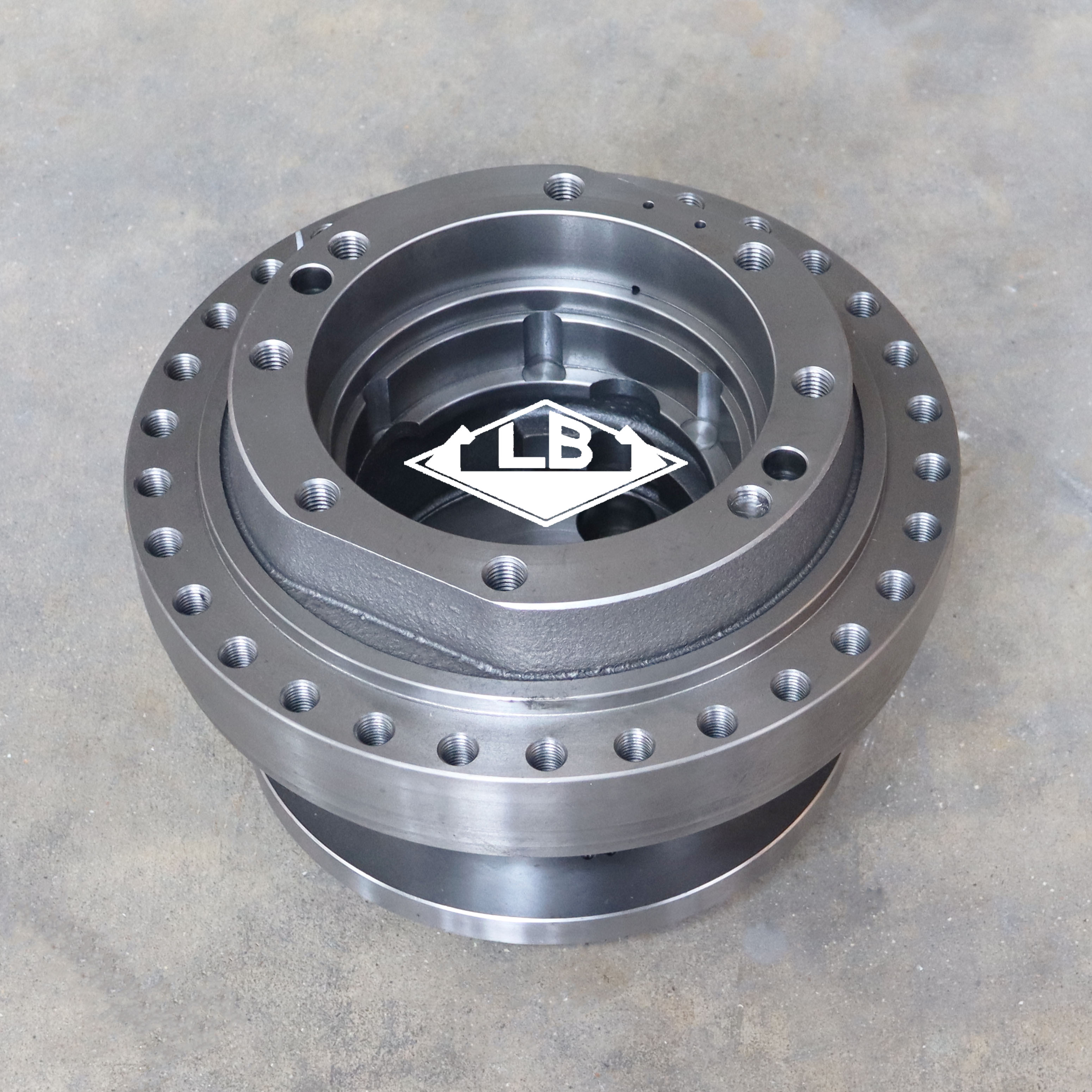

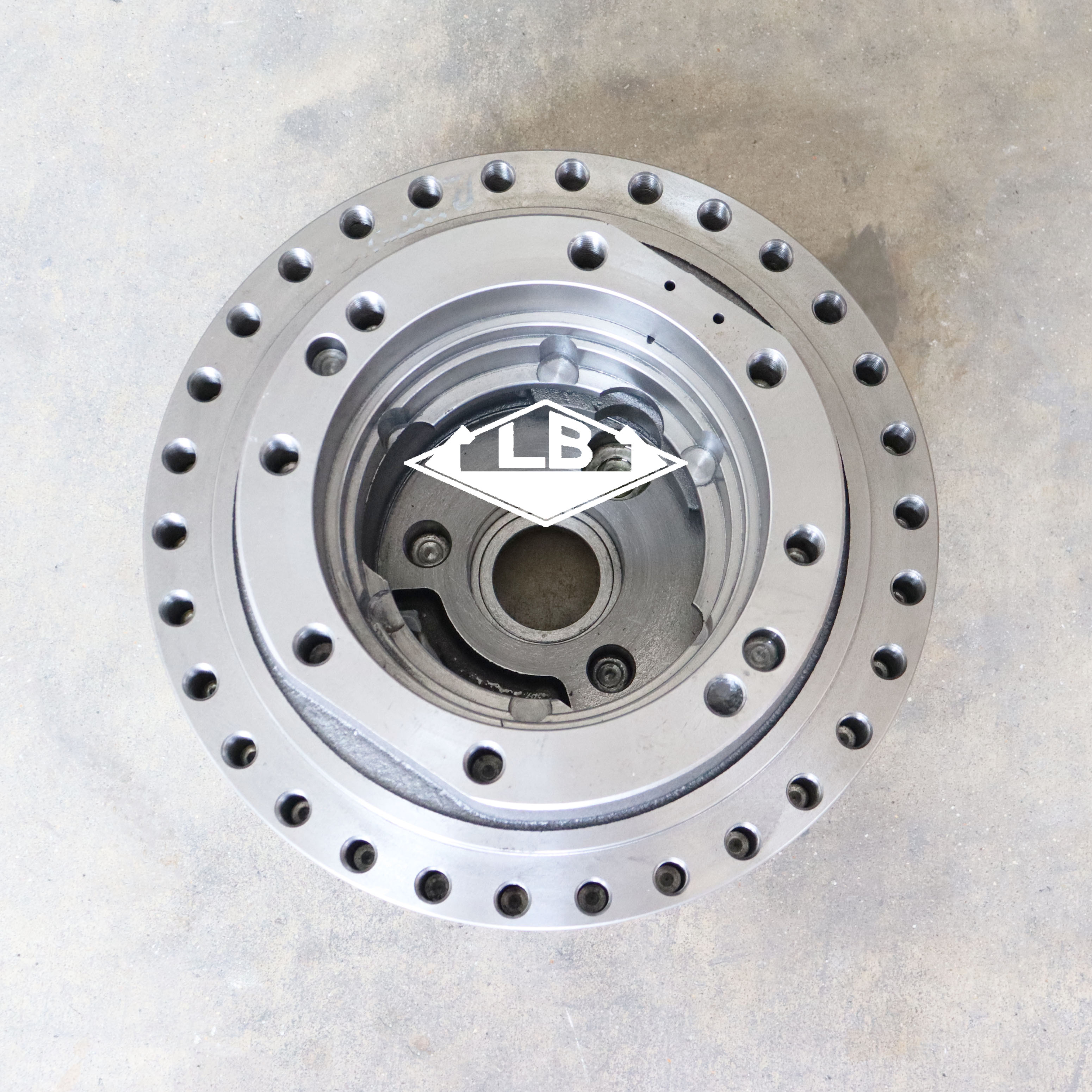

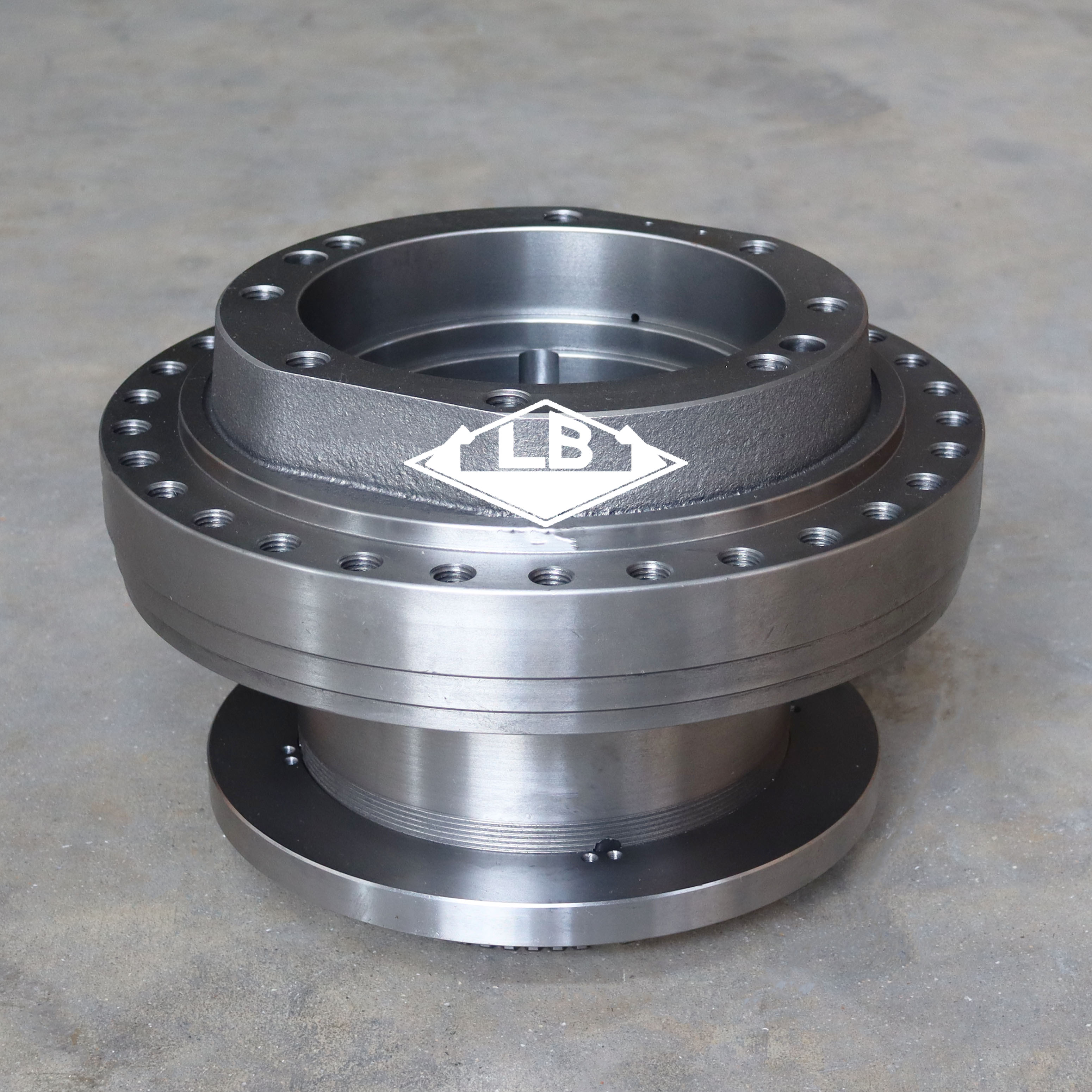

R220-9 HX220 TRAVEL MOTOR CASING 39Q6-41110 TRAVEL MOTOR PARTS FOR HYUNDAI EXCAVATOR R220LC-9 FINAL DRIVE PART

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 R220-9 HX220 Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. 39Q6-41110
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

R220-9 行走马达壳 （4）R220-9 行走马达壳 (6)R220-9 行走马达壳 （2）R220-9 行走马达壳

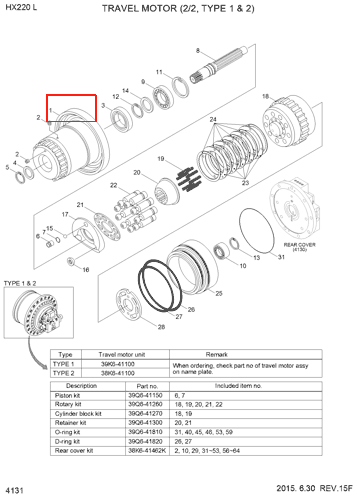

Parts on group TRAVEL MOTOR (2/2, TYPE 1 & 2):

Pos. Part No Qty Parts name Comments
*. 39K6-40100 [1] TRAVEL MOTOR ASSY   TYPE 1
*. 39K6-40101 [1] TRAVEL MOTOR ASSY   TYPE 1
*. 38K6-40100 [1] TRAVEL MOTOR ASSY   TYPE 2
*. 38K6-40101 [1] TRAVEL MOTOR ASSY   TYPE 2
*-1. 39K6-41100 [1] TRAVEL MOTOR UNIT   TYPE 1
*-1. 38K6-41100 [1] TRAVEL MOTOR UNIT   TYPE 2
1. 39Q6-41110 [1] CASING
K2. 39Q6-41120 [1] PLUG
3. 39Q6-41130 [1] SEAL-OIL
4. 39Q6-41140 [1] PLATE-THRUST
5. S602-060001 [1] RING-RETAINING
NK6. 39Q6-41160 [1] PISTON
NK7. 39Q6-41170 [1] SEAL-PISTON
8. 39Q6-41180 [1] SHAFT
9. 39Q6-41190 [1] BEARING-ROLLER
K10. 39Q6-41200 [1] BEARING-NEEDLE
11. S602-080001 [1] RING-RETAINING
12. S601-040001 [1] RING-RETAINING
13. 39Q6-41210 [1] RING-SNAP
14. 39Q6-41220 [1] PLATE-THRUST
15. 39Q6-41230 [1] BALL-STEEL
16. 39Q6-41240 [2] PIVOT
17. 39Q6-41250 [1] PLATE-SWASH
NK18. 39Q6-41280 [1] BLOCK-CYLINDER
NK19. 39Q6-41290 [9] SPRING
NK20. 39Q6-41310 [1] GUIDE-BALL
NK21. 39Q6-41320 [1] PLATE-RETAINER
NK22. 39Q6-41330 [9] PISTON ASSY
N22-1. 39Q6-41341 [1] PISTON   NOT SHOWN
N22-2. 39Q6-41350 [1] SHOE   NOT SHOWN
23. 39Q6-41361 [5] PLATE-FRICTION
24. 39Q6-41370 [6] PLATE-SEPARATED
25. 39Q6-41380 [1] PISTON-PARKING
NK26. 39Q6-41390 [1] D-RING
NK27. 39Q6-41400 [1] D-RING
28. 39Q6-43410 [1] PLATE-VALVE
NK31. 39Q6-41440 [1] O-RING
K. 39Q6-41150 [1] PISTON KIT   SEE ILLUST
K. 39Q6-41260 [1] ROTARY KIT   SEE ILLUST
K. 39Q6-41270 [1] CYLINDER BLOCK KIT   SEE ILLUST
K. 39Q6-41300 [1] RETAINER KIT   SEE ILLUST
K. 39Q6-41810 [1] O-RING KIT   SEE ILLUST
K. 39Q6-41820 [1] D-RING KIT   SEE ILLUST
K. 38K6-41462K [1] REAR COVER KIT   SEE ILLUST
N. @ [AR] NOT SUPPLIED PARTS
