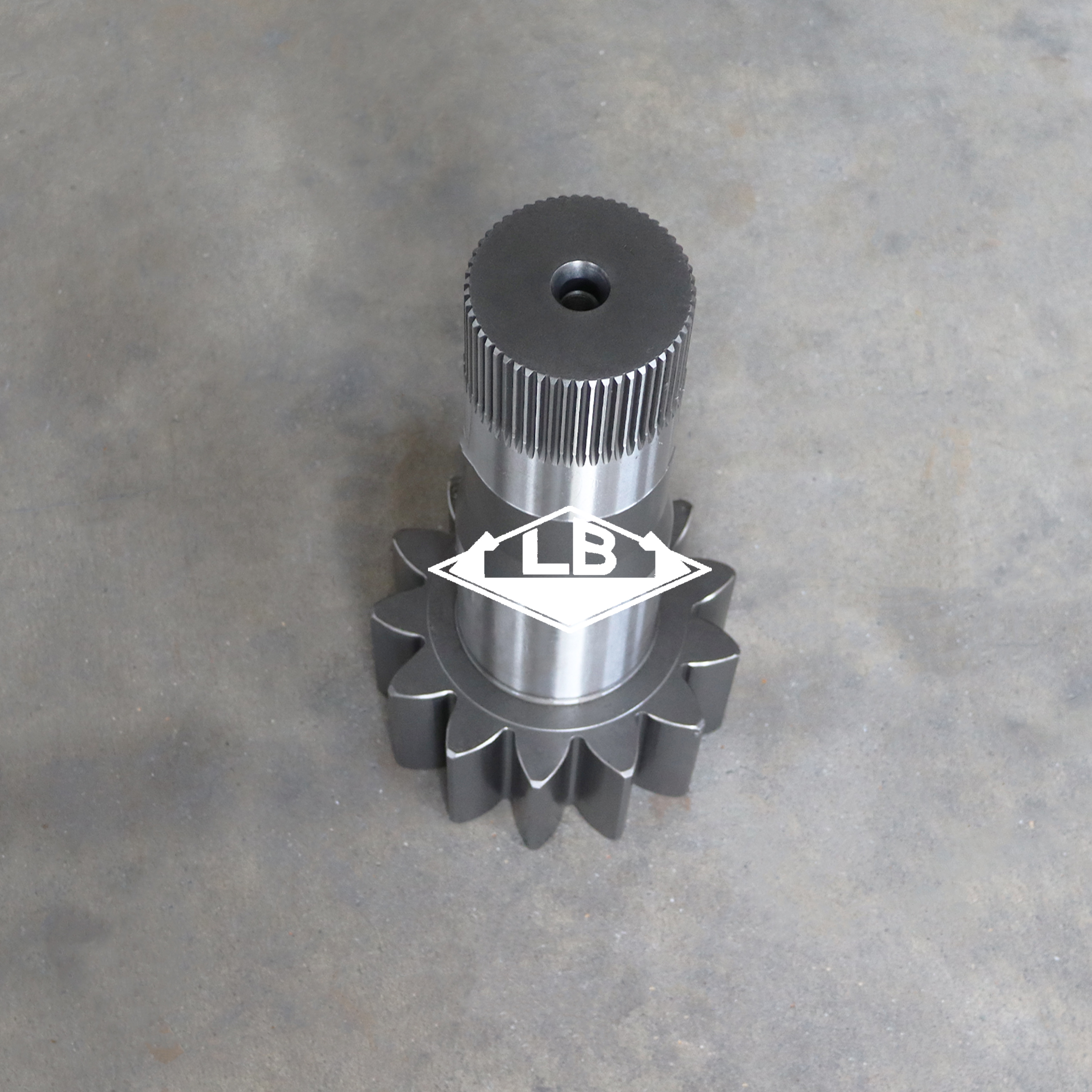

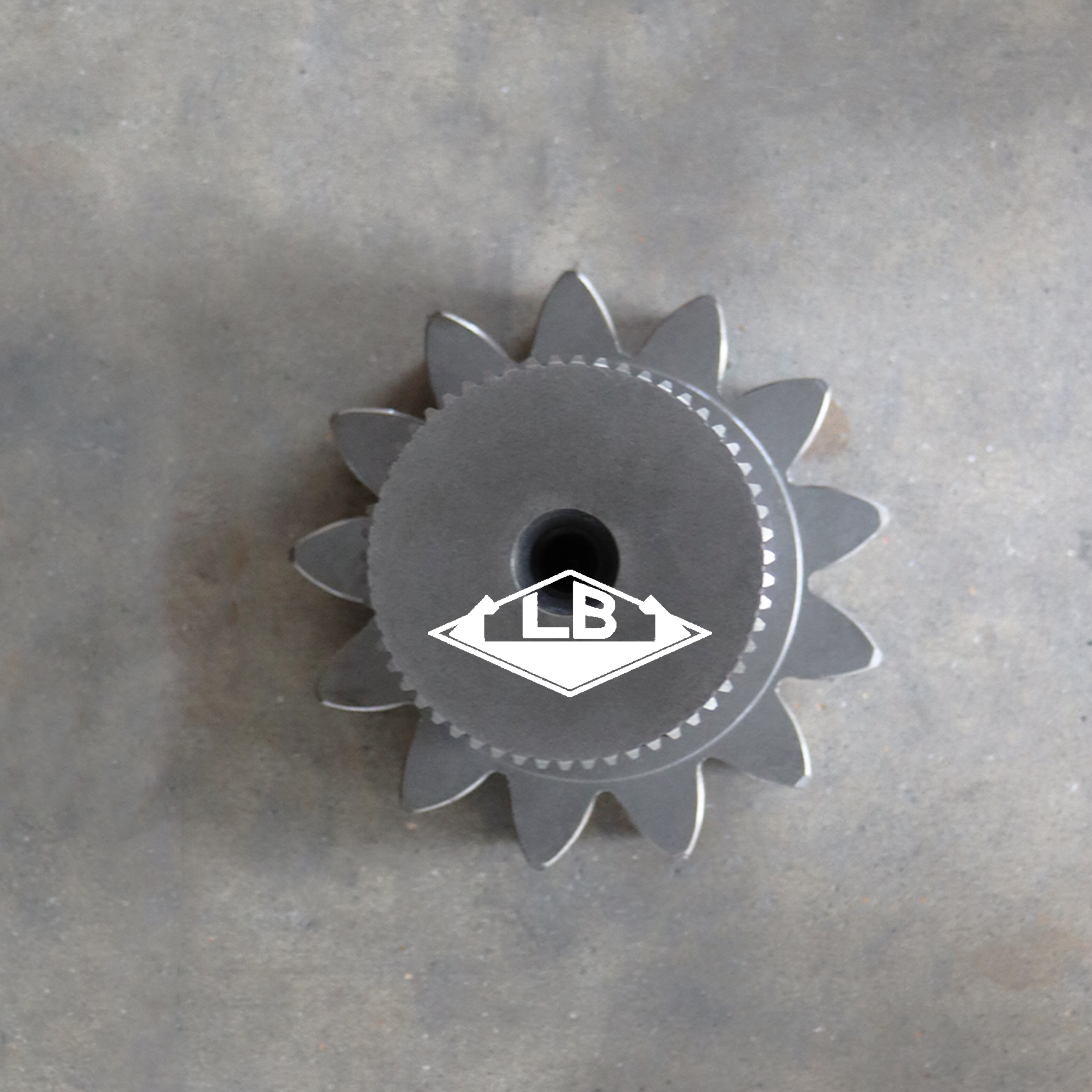

PC220-7 SWING PINION SHAFT 206-26-73130 FOR SWING SHAFT KOMATSU EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	PC220-7 TRAVEL GAREBOX
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	206-26-73130
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

PC220-7 回转大轴（2） PC220-7 回转大轴（4）

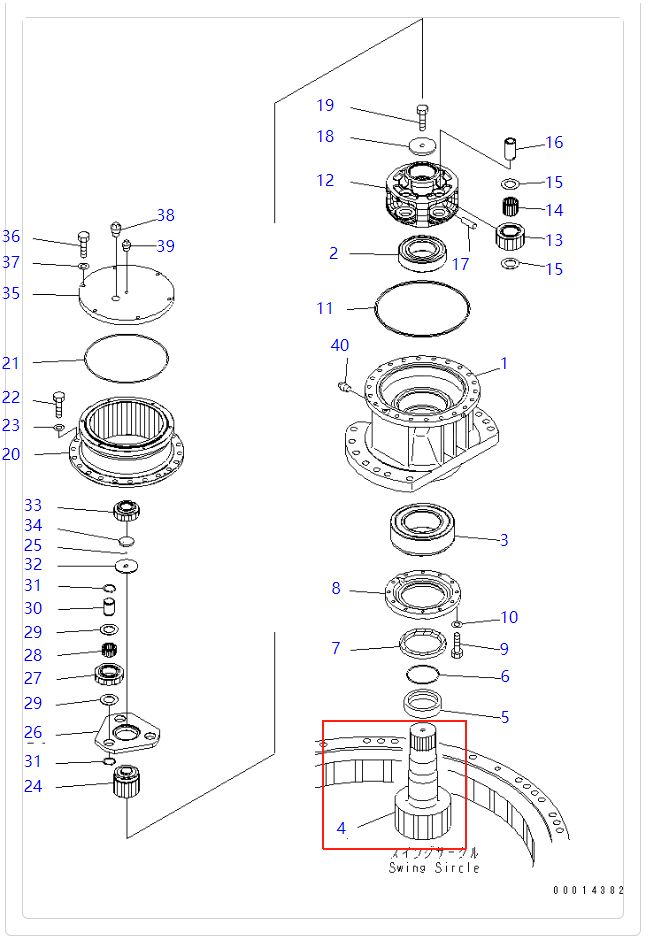

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	206-26-00401	[1]	SWING MACHINERY A. Komatsu	226.1 kg.
			["SN: 60601-UP"] analogs:["2062600400"] \|$1.
1.	206-26-73110	[1]	CASE Komatsu	98 kg.
			["SN: 60601-UP"]
2.	206-26-73150	[1]	BEARING Komatsu	4.64 kg.
			["SN: 60601-UP"]
3.	206-26-73160	[1]	BEARING Komatsu China	12.5 kg.
			["SN: 60601-UP"]
4.	206-26-73130	[1]	SHAFT Komatsu	30.42 kg.
			["SN: 60601-UP"]
5.	206-26-73140	[1]	SPACER Komatsu	0.86 kg.
			["SN: 60601-UP"]
6.	07000-15100	[1]	O-RING Komatsu China	0.01 kg.
			["SN: 60601-UP"] analogs:["YM24311001000", "0700005100"]
7.	20Y-26-22420	[1]	SEAL Komatsu China	0.3 kg.
			["SN: 60601-UP"]
8.	206-26-73120	[1]	COVER Komatsu China	4.4 kg.
			["SN: 60601-UP"]
9.	01010-81040	[12]	BOLT Komatsu	0.288 kg.
			["SN: 60601-UP"] analogs:["0101051040", "R0101081040"]
10.	01643-31032	[12]	WASHER Komatsu	0.054 kg.
			["SN: 60601-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
11.	07000-15310	[1]	O-RING Komatsu China	0.035 kg.
			["SN: 60001-UP"] analogs:["0700005310"]
12.	206-26-71480	[1]	CARRIER Komatsu	10.88 kg.
			["SN: 60001-UP"]
13.	206-26-71440	[4]	GEAR Komatsu	1.91 kg.
			["SN: 60001-UP"]
14.	22U-26-21320	[8]	BEARING Komatsu	1.1 kg.
			["SN: 60036-UP"]
15.	206-26-71520	[8]	THRUST WASHER Komatsu	0.1 kg.
			["SN: 60001-UP"]
16.	206-26-71510	[4]	PIN Komatsu	0.97 kg.
			["SN: 60001-UP"]
17.	20Y-26-21330	[4]	PIN Komatsu China	0.1 kg.
			["SN: 60001-UP"]
18.	20Y-26-21240	[1]	PLATE Komatsu	5.1 kg.
			["SN: 60001-UP"]
19.	112-32-11211	[1]	BOLT Komatsu	0.09 kg.
			["SN: 60001-UP"]
20.	206-26-71452	[1]	GEAR Komatsu	28.79 kg.
			["SN: 60283-UP"]
21.	20K-22-11190	[1]	O-RING Komatsu	0.02 kg.
			["SN: 60001-UP"] analogs:["20G2211190"]
22.	01010-81440	[22]	BOLT Komatsu	0.073 kg.
			["SN: 60001-UP"] analogs:["0101061440", "0101031440", "0101051440", "0104031440"]
23.	01643-31445	[22]	WASHER Komatsu	0.019 kg.
			["SN: 60001-UP"] analogs:["0164301432"]
24.	206-26-71430	[1]	GEAR Komatsu	2.33 kg.
			["SN: 60001-UP"]
25.	04260-01270	[1]	BALL Komatsu OEM	0.009 kg.
			["SN: 60001-UP"]
26.	206-26-71470	[1]	CARRIER Komatsu	3.9 kg.
			["SN: 60001-UP"]
27.	206-26-71420	[3]	GEAR Komatsu	0.83 kg.
			["SN: 60001-UP"]
28.	20Y-27-22210	[3]	BEARING Komatsu China	0.12 kg.
			["SN: 60001-UP"] analogs:["20Y2721260"]
29.	22U-26-21230	[6]	WASHER Komatsu	1 kg.
			["SN: 60001-UP"]
30.	206-26-71210	[3]	PIN Komatsu	0.42 kg.
			["SN: 60001-UP"]
31.	04064-03515	[6]	RING Komatsu	0.005 kg.
			["SN: 60001-UP"]
32.	206-26-71350	[1]	HOLDER Komatsu	0.21 kg.
			["SN: 60001-UP"]
33.	206-26-71410	[1]	GEAR Komatsu	0.83 kg.
			["SN: 60001-UP"]
34.	206-26-71341	[1]	PLATE Komatsu China
			["SN: 60593-UP"]
35.	20Y-26-31510	[1]	COVER Komatsu	7.3 kg.
			["SN: 60001-UP"]
36.	01010-81035	[6]	BOLT Komatsu	0.033 kg.
			["SN: 60001-UP"] analogs:["801015556", "01010D1035", "0101051035"]
37.	01643-51032	[6]	WASHER Komatsu	0.17 kg.
			["SN: 60001-UP"] analogs:["R0164351032"]
38.	07042-30617	[1]	PLUG Komatsu China
			["SN: 60001-UP"]
39.	07042-30108	[1]	PLUG Komatsu	0.008 kg.
			["SN: 60001-UP"] analogs:["0704220108"]
40.	07042-30415	[1]	PLUG Komatsu	0.056 kg.
			["SN: 60001-UP"]
