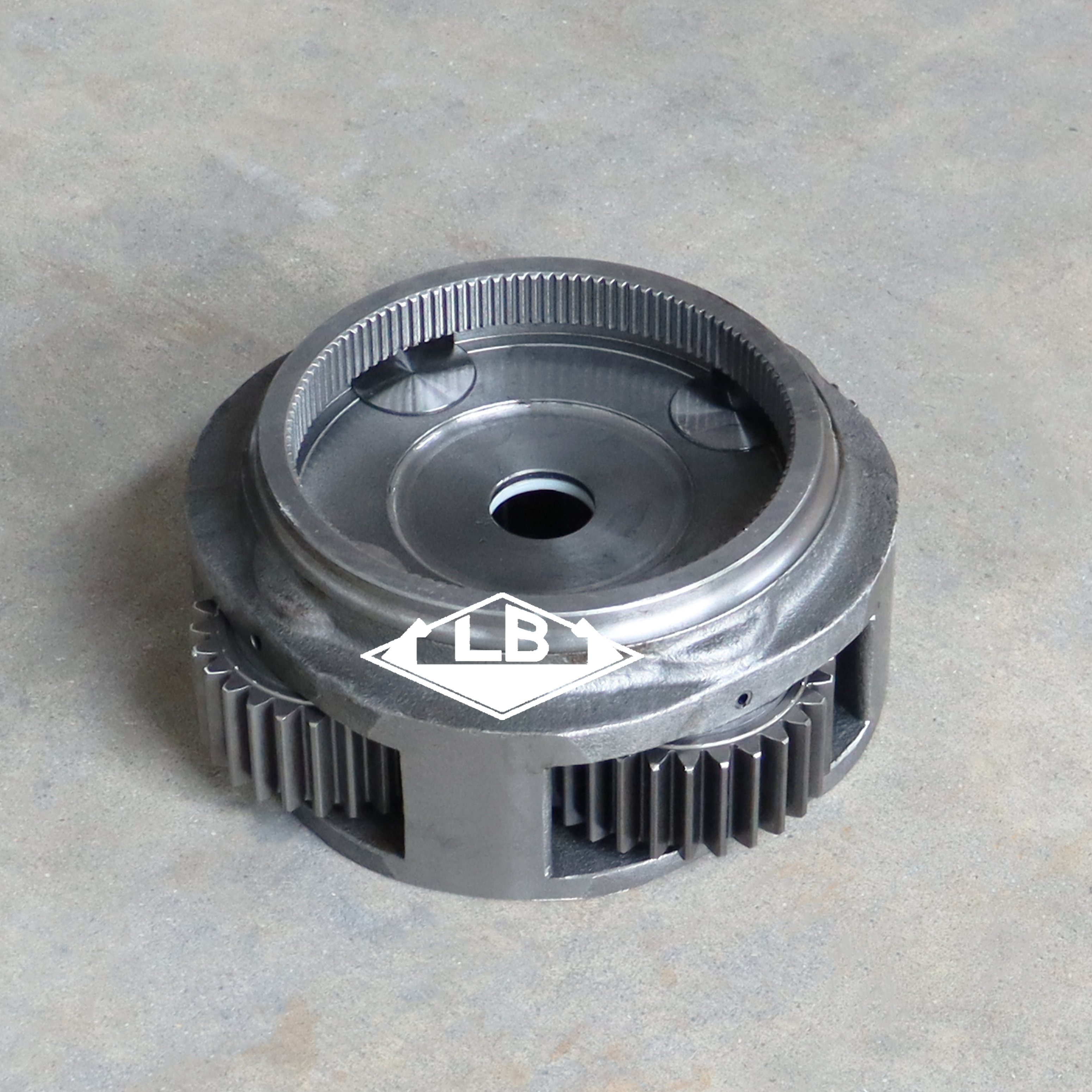

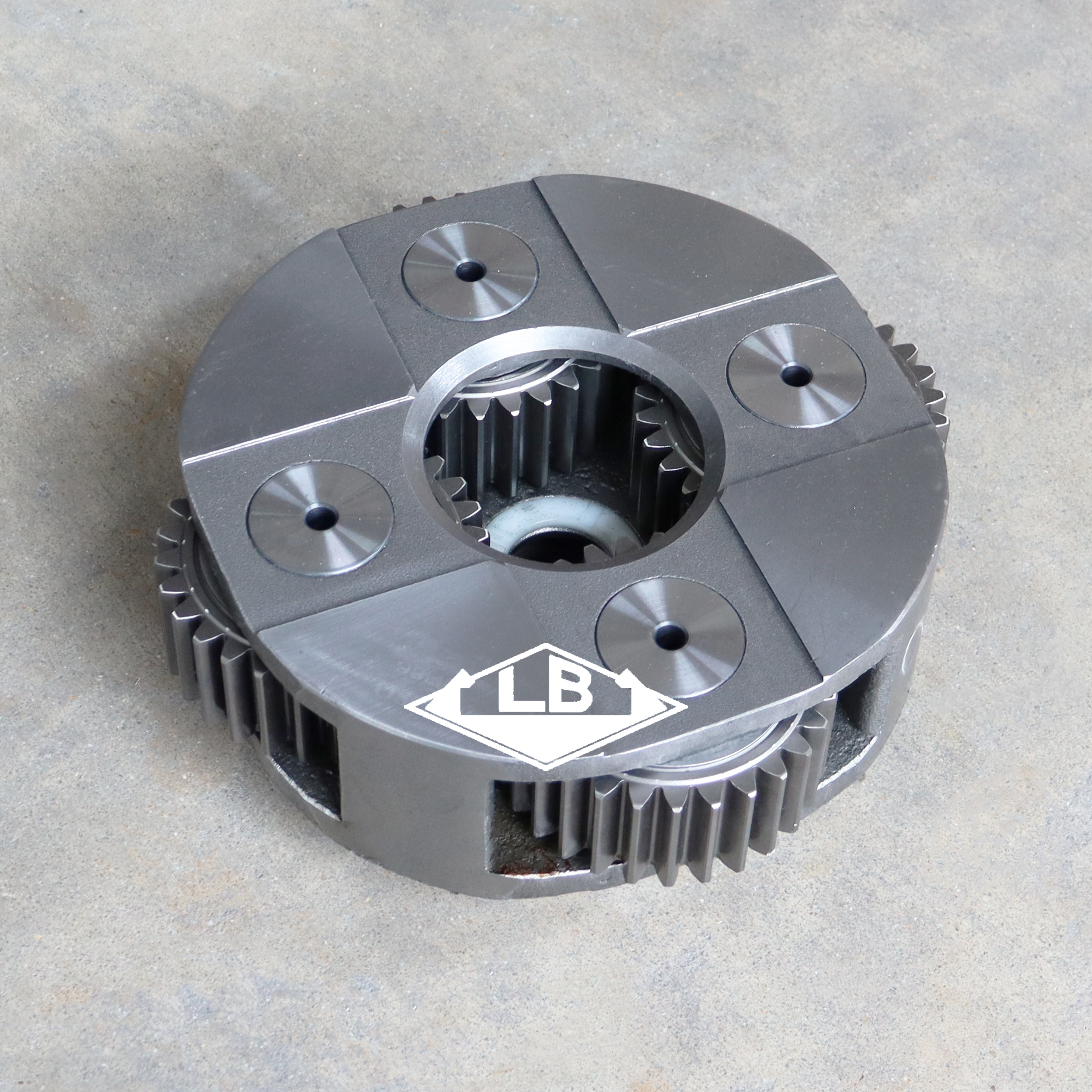

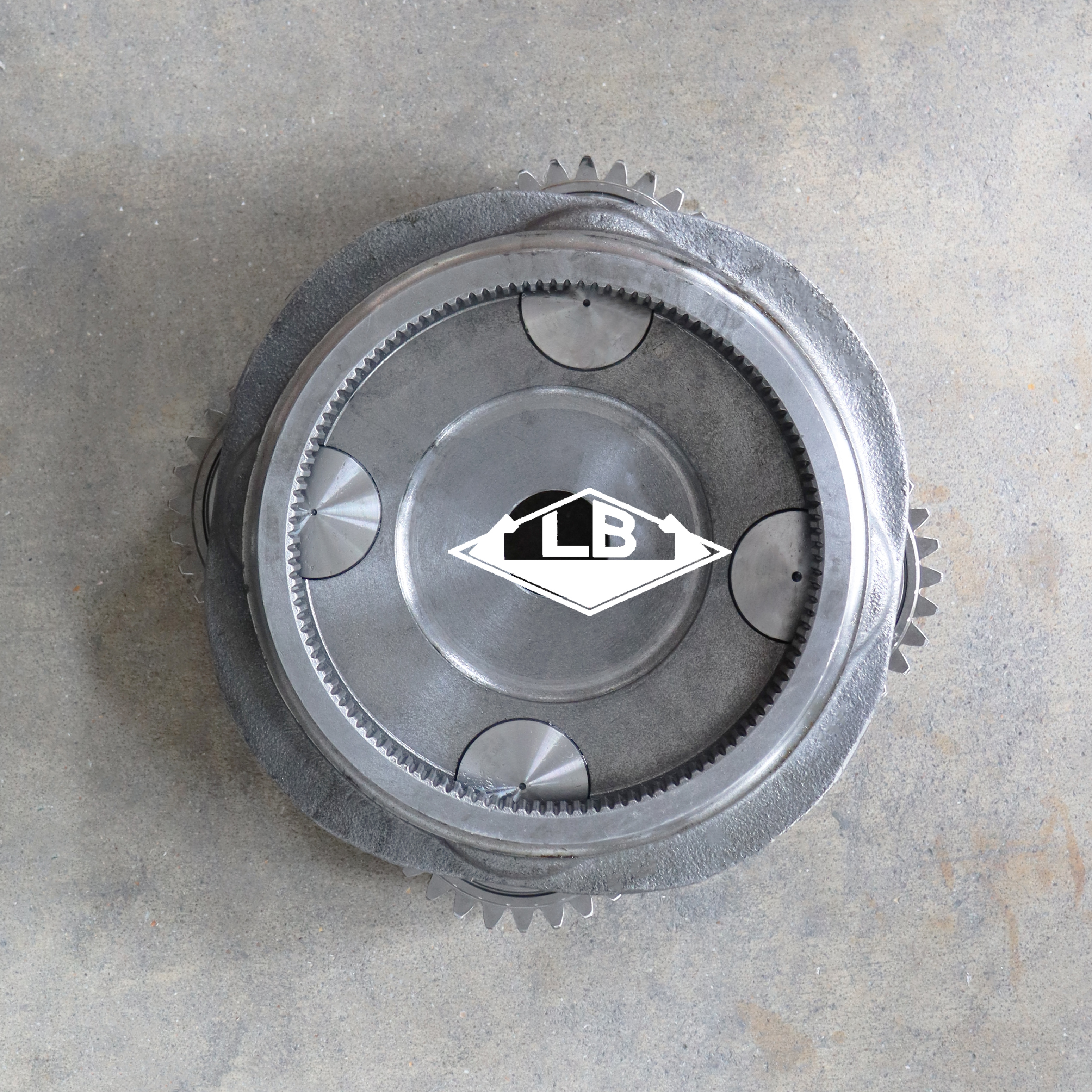

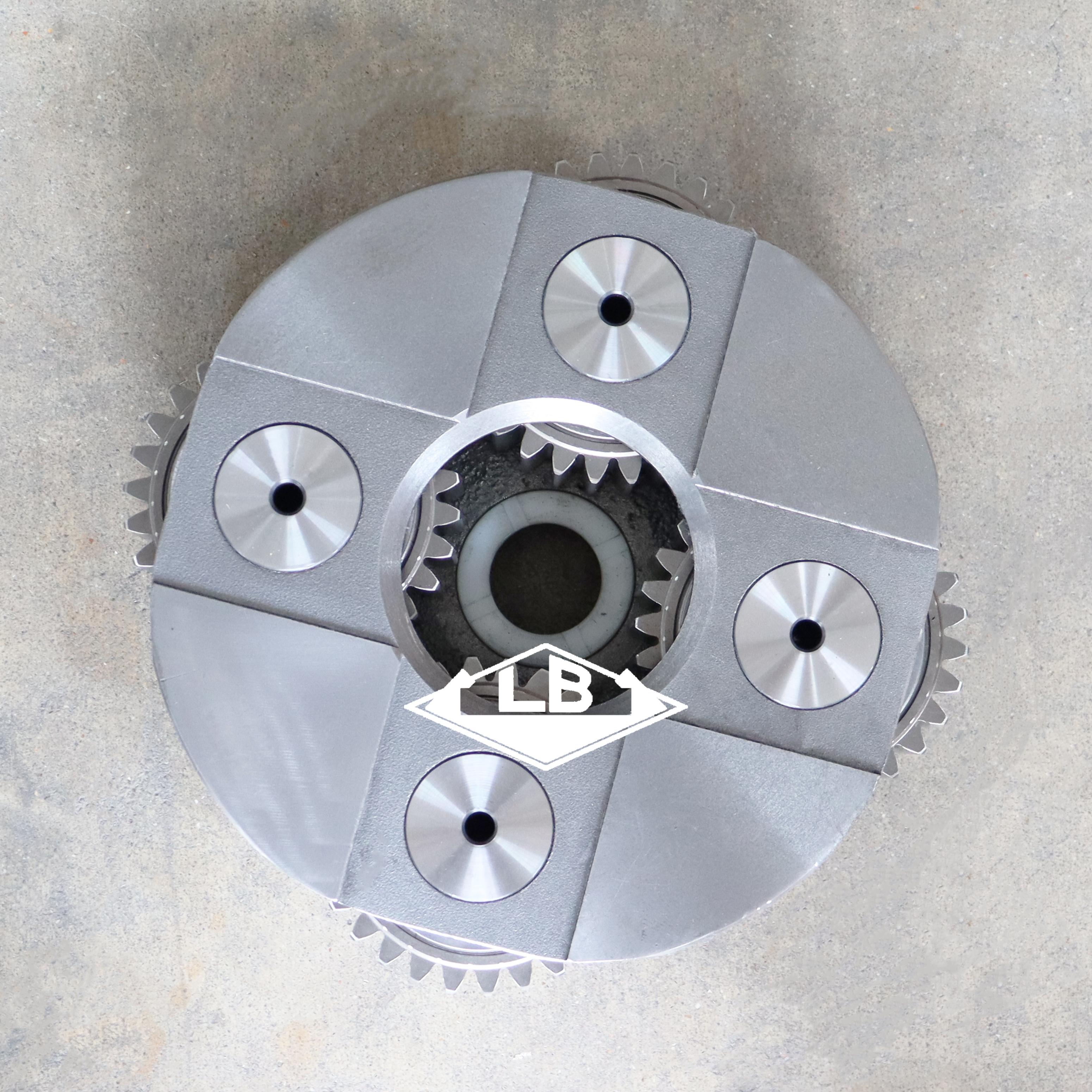

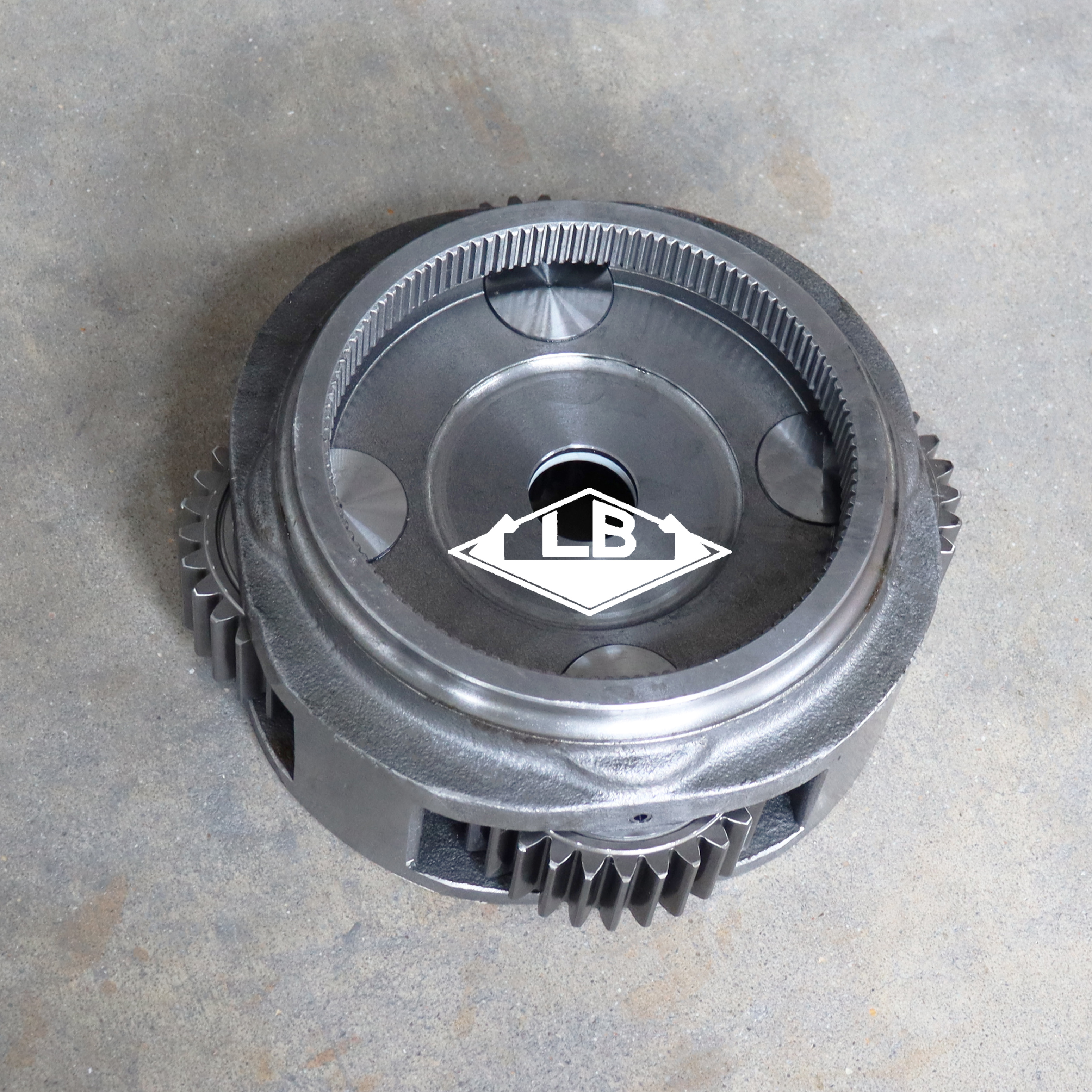

PC210-10 NO2 CARRIER ASSY 20Y-27-42170 TRAVEL GEARBOX PARTS FOR KOMATSU EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	PC210-10 TRAVEL GAREBOX
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	20Y-27-42170
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

PC210-10MO 行走二级架总成（10） PC210-10MO 行走二级架总成(2) PC210-10MO 行走二级架总成(4) PC210-10MO 行走二级架总成(6) PC210-10MO 行走二级架总成(8)

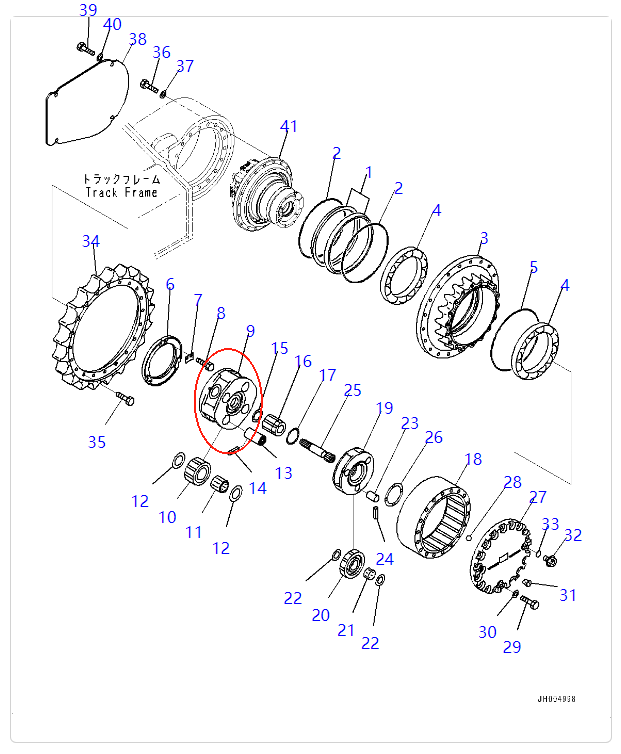

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	20Y-27-00540	[2]	Final Drive Assembly Komatsu China
			["SN: 450001-UP"] \|$0.
	20Y-27-00110	[1]	Floating Seal Assembly Komatsu OEM	2.65 kg.
			["SN: 450001-UP"] \|$1.
3.	20Y-27-42180	[1]	Hub Komatsu China
			["SN: 450001-UP"]
4.	20Y-27-41260	[2]	Bearing Komatsu	4.5 kg.
			["SN: 450001-UP"]
5.	20Y-27-42240	[1]	O-ring Komatsu China
			["SN: 450001-UP"]
6.	20Y-27-41190	[1]	Nut, Lock Komatsu	3 kg.
			["SN: 450001-UP"]
7.	20Y-27-41180	[1]	Lock Komatsu	0.04 kg.
			["SN: 450001-UP"]
8.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 450001-UP"] analogs:["801014093", "0101051020", "801015108"]
9.	20Y-27-42170	[1]	Carrier Komatsu China
			["SN: 450001-UP"]
10.	20Y-27-42140	[4]	Gear Komatsu China
			["SN: 450001-UP"]
11.	20Y-27-42210	[4]	Bearing Komatsu China
			["SN: 450001-UP"]
12.	20Y-27-41270	[8]	Washer, Thrust Komatsu	0.03 kg.
			["SN: 450001-UP"]
13.	20Y-27-42220	[4]	Pin Komatsu China
			["SN: 450001-UP"]
14.	20Y-27-21290	[4]	Pin Komatsu OEM	0.03 kg.
			["SN: 450001-UP"]
15.	20Y-27-13310	[1]	Washer, Thrust Komatsu China	0.08 kg.
			["SN: 450001-UP"]
16.	20Y-27-42130	[1]	Gear Komatsu China
			["SN: 450001-UP"]
17.	20Y-27-42230	[1]	Washer, Thrust Komatsu China
			["SN: 450001-UP"]
18.	20Y-27-42150	[1]	Gear Komatsu China
			["SN: 450001-UP"]
19.	20Y-27-42160	[1]	Carrier Komatsu China
			["SN: 450001-UP"]
20.	20Y-27-42120	[3]	Gear Komatsu China
			["SN: 450001-UP"]
21.	20Y-27-42250	[3]	Bearing Komatsu China
			["SN: 450001-UP"]
22.	22U-27-21240	[6]	Washer, Thrust Komatsu	0.02 kg.
			["SN: 450001-UP"]
23.	20Y-27-42260	[3]	Pin Komatsu China
			["SN: 450001-UP"]
24.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 450001-UP"]
25.	20Y-27-42110	[1]	Shaft Komatsu	0.000 kg.
			["SN: 450001-UP"]
26.	20Y-27-21310	[1]	Washer Komatsu China	0.17 kg.
			["SN: 450001-UP"]
27.	20Y-27-42190	[1]	Cover Komatsu China
			["SN: 450001-UP"]
28.	04260-01587	[1]	Ball, Steel Komatsu	0.018 kg.
			["SN: 450001-UP"]
29.	20Y-27-21360	[20]	Bolt Komatsu	0.28 kg.
			["SN: 450001-UP"]
30.	01643-31645	[20]	Washer Komatsu	0.072 kg.
			["SN: 450001-UP"] analogs:["802170005", "0164301645"]
31.	07049-01012	[2]	Plug Komatsu	0.001 kg.
			["SN: 450001-UP"]
32.	20Y-27-31190	[3]	Plug Komatsu	0.07 kg.
			["SN: 450001-UP"]
33.	07002-12434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 450001-UP"] analogs:["0700202434", "0700213434"]
34.	20Y-27-11582	[1]	Sprocket Komatsu China	36.2 kg.
			["SN: 450001-UP"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
35.	20Y-27-11561	[20]	Bolt Komatsu China	0.14 kg.
			["SN: 450001-UP"]
36.	01010-61660	[36]	Bolt Komatsu	0.127 kg.
			["SN: 450001-UP"] analogs:["0101031660", "0101081660"]
38.	20Y-30-21192	[2]	Cover Komatsu China
			["SN: 450001-UP"]
39.	01010-81230	[8]	Bolt Komatsu	0.043 kg.
			["SN: 450001-UP"] analogs:["0101051230", "01010B1230"]
40.	01643-31232	[8]	Washer Komatsu	0.027 kg.
			["SN: 450001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
41.	708-8F-00340	[-1]	Motor Assembly Komatsu China
			["SN: UP"]
