| Quantity: | |
|---|---|

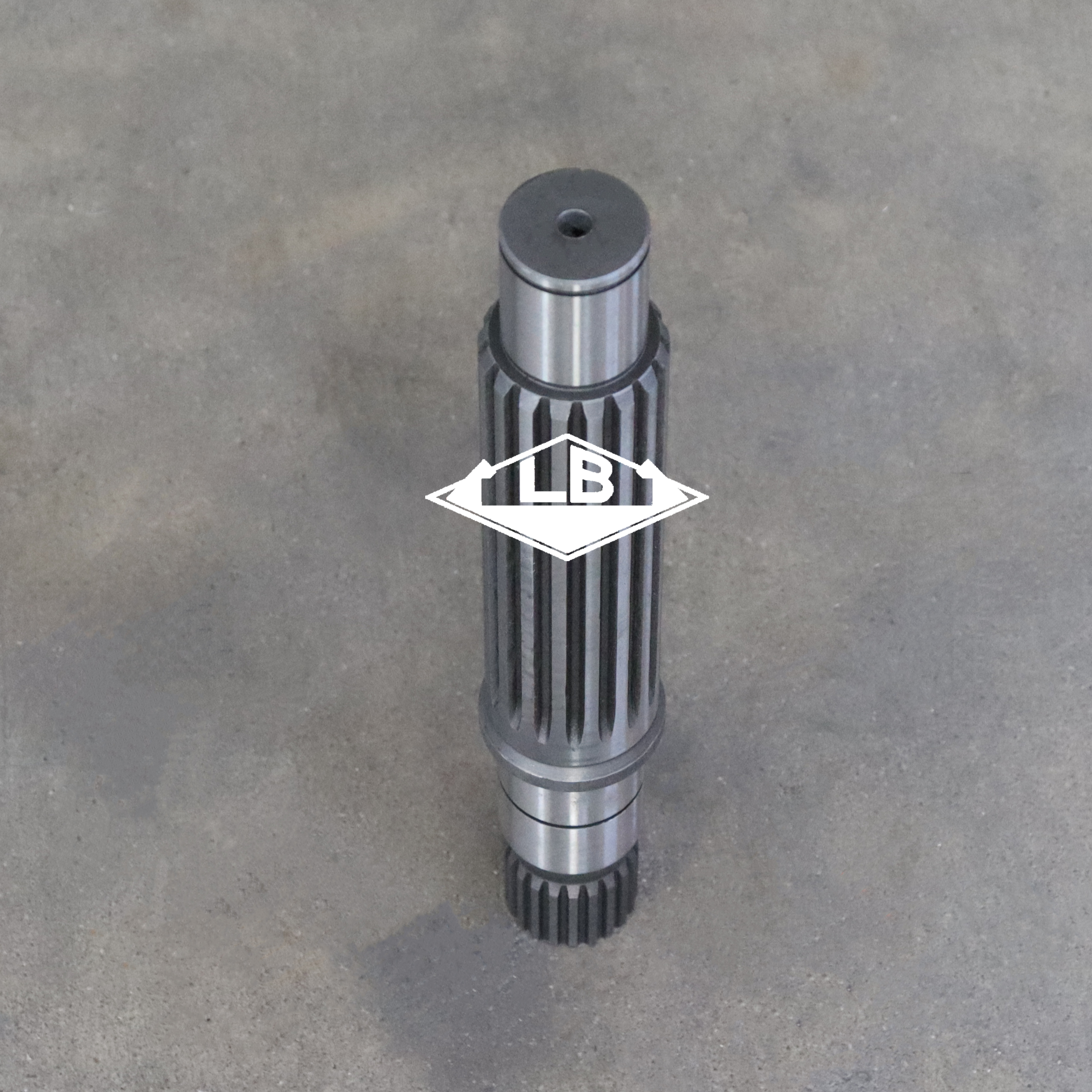

| Part name | HX220 R210-9 R220-9 Swing gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | 39Q6-41180 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

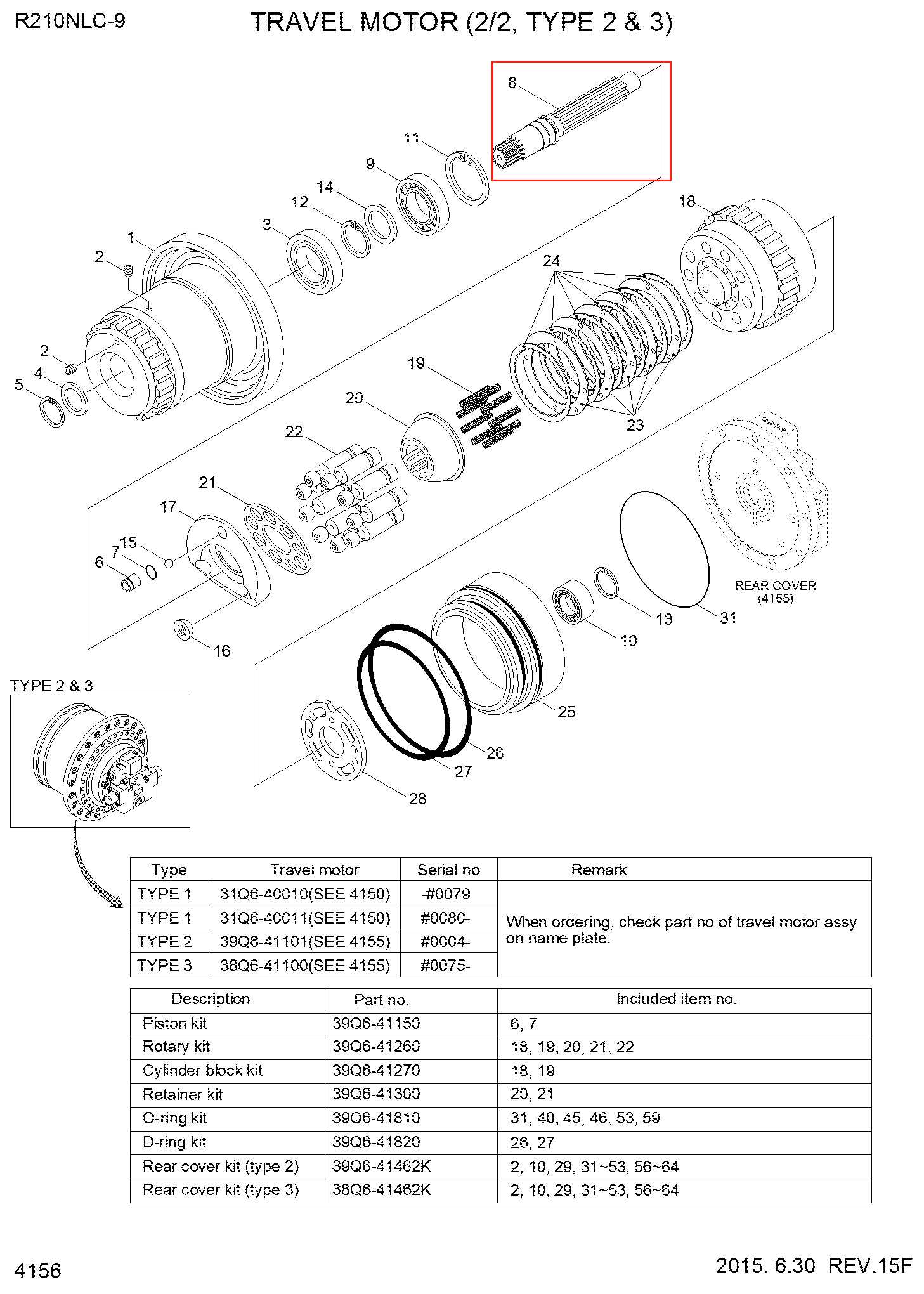

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4155 |
| *-1. | @ | [1] | TRAVEL MOTOR UNIT | SEE 4155 |
| *-1. | @ | [1] | TRAVEL MOTOR UNIT | SEE 4155 |
| *-1. | @ | [1] | TRAVEL MOTOR UNIT | SEE 4155 |
| 2. | 39Q6-41120 | [1] | PLUG | |
| 1. | 39Q6-41110 | [1] | CASING | |
| K2. | 39Q6-41120 | [1] | PLUG | |
| 3. | 39Q6-41130 | [1] | SEAL-OIL | |
| 4. | 39Q6-41140 | [1] | PLATE-THRUST | |
| 5. | S602-060001 | [1] | RING-RETAINING | |
| NK6. | 39Q6-41160 | [1] | PISTON | |
| NK7. | 39Q6-41170 | [1] | SEAL-PISTON | |
| 8. | 39Q6-41180 | [1] | SHAFT | |
| 9. | 39Q6-41190 | [1] | BEARING-ROLLER | |
| K10. | 39Q6-41200 | [1] | BEARING-NEEDLE | |
| 11. | S602-080001 | [1] | RING-RETAINING | |
| 12. | S601-040001 | [1] | RING-RETAINING | |
| 13. | 39Q6-41210 | [1] | RING-SNAP | |
| 14. | 39Q6-41220 | [1] | PLATE-THRUST | |
| 15. | 39Q6-41230 | [1] | BALL-STEEL | |
| 16. | 39Q6-41240 | [2] | PIVOT | |
| 17. | 39Q6-41250 | [1] | PLATE-SWASH | |
| K18. | 39Q6-41280 | [1] | BLOCK-CYLINDER | |
| K19. | 39Q6-41290 | [9] | SPRING | |
| K20. | 39Q6-41310 | [1] | GUIDE-BALL | |
| K21. | 39Q6-41320 | [1] | PLATE-RETAINER | |
| K22. | 39Q6-41330 | [9] | PISTON ASSY | |
| N22-1. | 39Q6-41341 | [1] | PISTON | NOT SHOWN |
| N22-2. | 39Q6-41350 | [1] | SHOE | NOT SHOWN |
| 23. | 39Q6-41361 | [5] | PLATE-FRICTION | |
| 24. | 39Q6-41370 | [6] | PLATE-SEPARATED | |
| 25. | 39Q6-41380 | [1] | PISTON-PARKING | |
| K26. | 39Q6-41390 | [1] | D-RING | |
| K27. | 39Q6-41400 | [1] | D-RING | |
| 28. | 39Q6-41410 | [1] | PLATE-VALVE | |
| K31. | 39Q6-41440 | [1] | O-RING | |
| K. | 39Q6-41150 | [1] | PISTON KIT | SEE ILLUST |
| K. | 39Q6-41260 | [1] | ROTARY KIT | SEE ILLUST |
| K. | 39Q6-41270 | [1] | CYLINDER BLOCK KIT | SEE ILLUST |
| K. | 39Q6-41300 | [1] | RETAINER KIT | SEE ILLUST |
| K. | 39Q6-41810 | [1] | O-RING KIT | SEE ILLUST |
| K. | 39Q6-41820 | [1] | D-RING KIT | SEE ILLUST |
| K. | 39Q6-41462K | [1] | REAR COVER KIT | SEE ILLUST |
| K. | 38Q6-41462K | [1] | REAR COVER KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
