| Quantity: | |
|---|---|

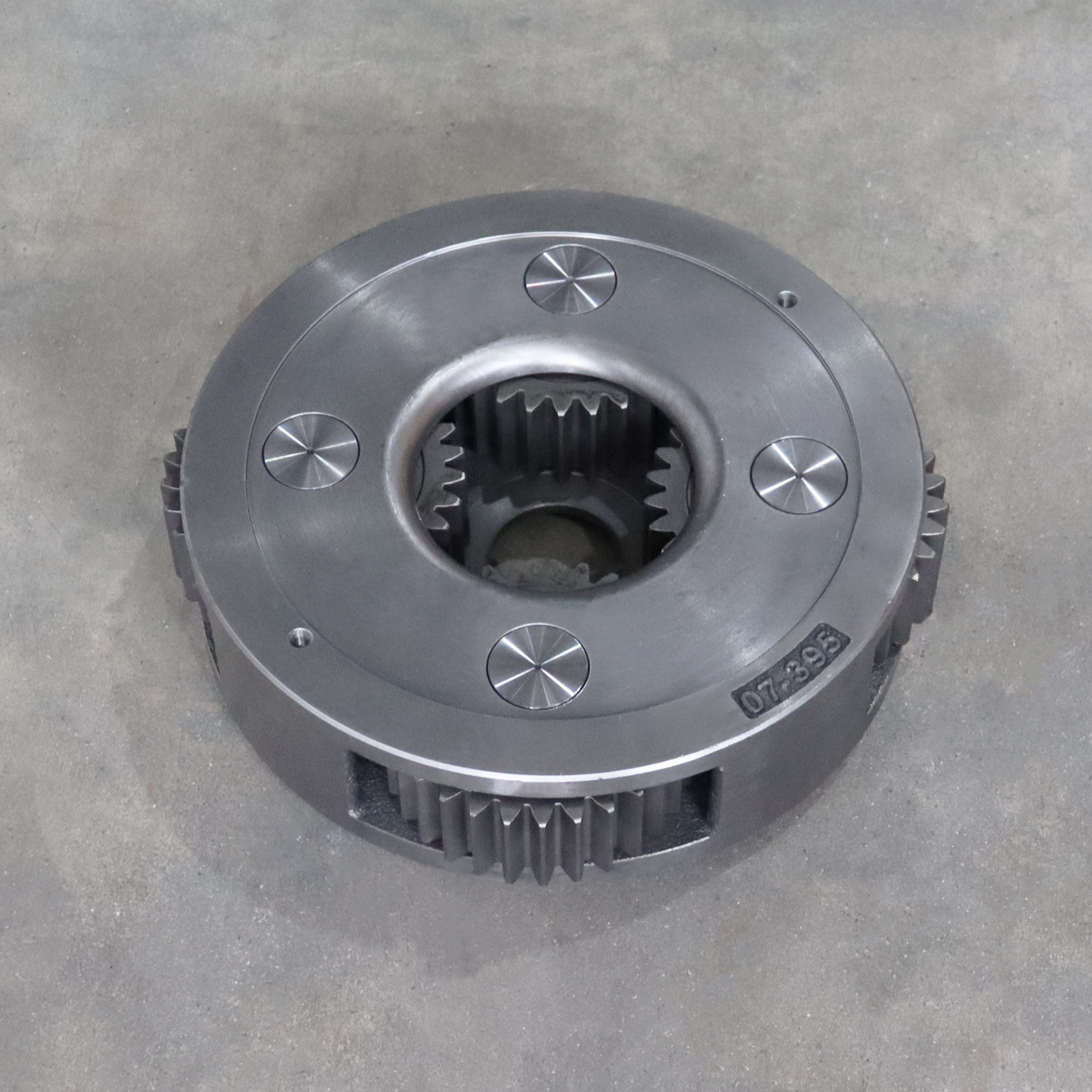

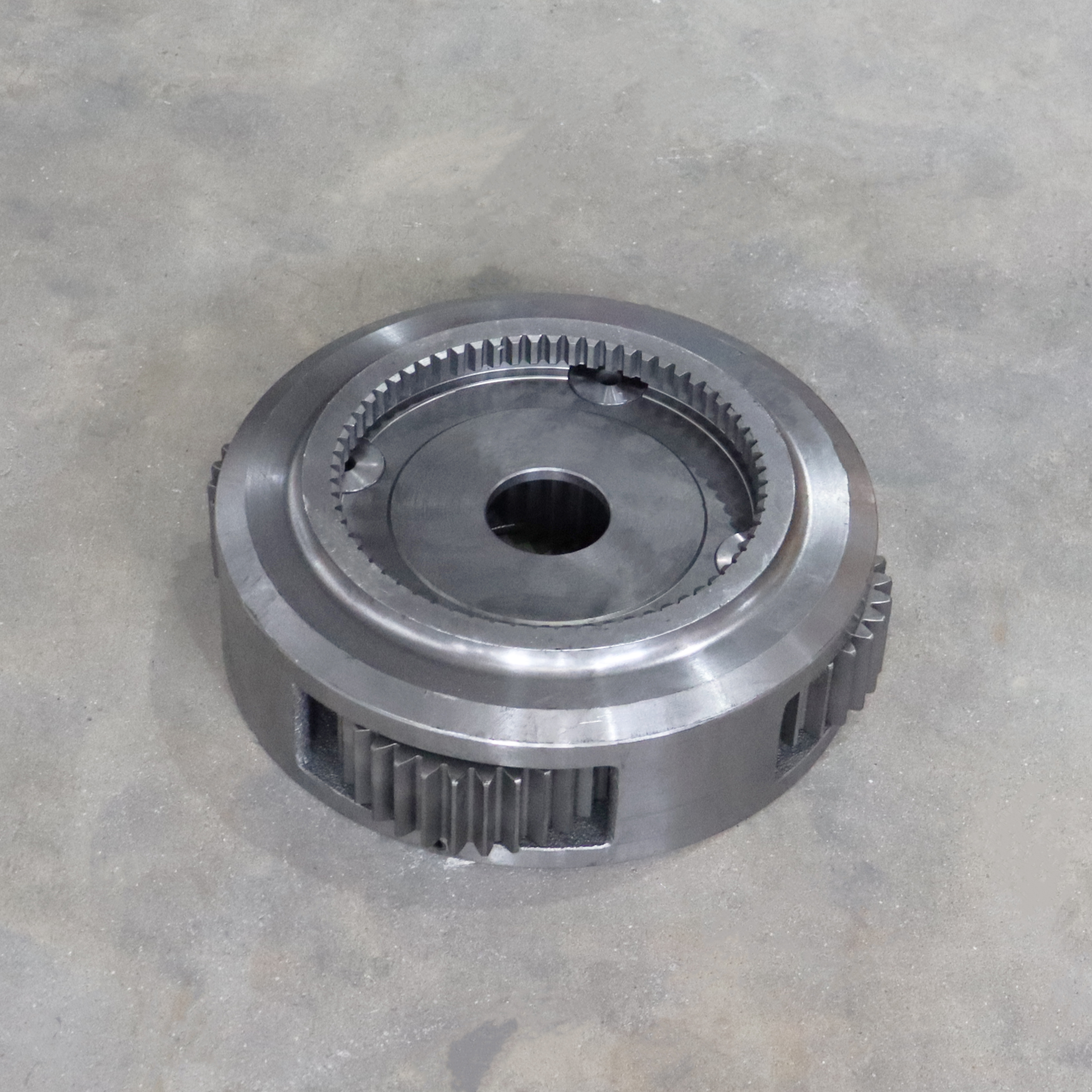

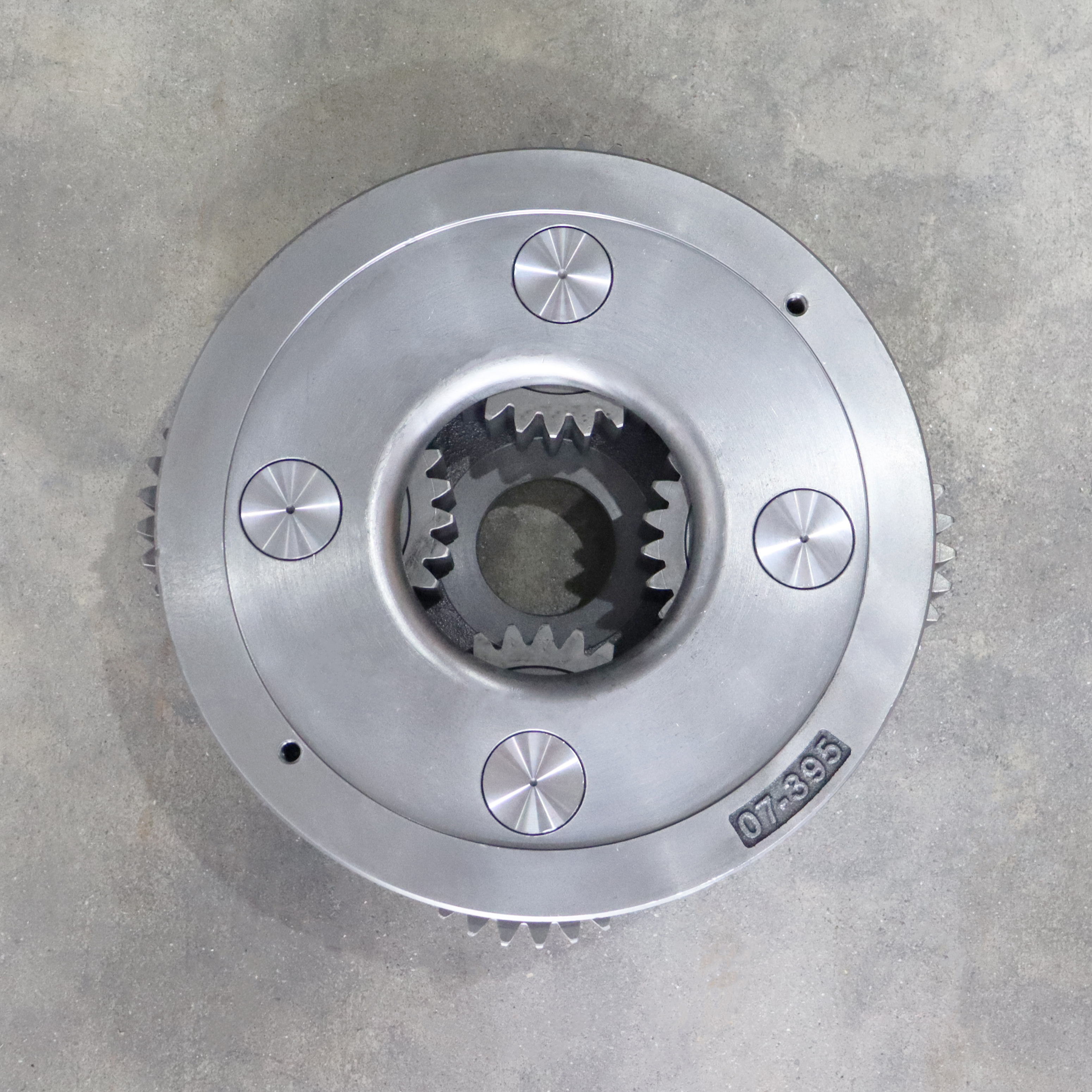

| Part name | HX220 R210-9 R220-9 Swing gearbox | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | 39Q6-42180 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

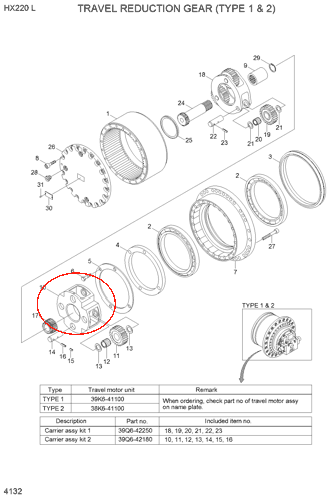

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | 39K6-40100 | [1] | TRAVEL MOTOR ASSY | TYPE 1 |
| *. | 39K6-40101 | [1] | TRAVEL MOTOR ASSY | TYPE 1 |
| *. | 38K6-40100 | [1] | TRAVEL MOTOR ASSY | TYPE 2 |
| *. | 38K6-40101 | [1] | TRAVEL MOTOR ASSY | TYPE 2 |
| *-2. | 39Q6-42100 | [1] | TRAVEL REDUCTION GEAR | |
| *-2. | 39Q6-42101 | [1] | TRAVEL REDUCTION GEAR | |
| 1. | 39Q6-42110 | [1] | GEAR-RING | |
| 2. | 39Q6-42120 | [2] | BEARING-ANG.BALL | |
| 3. | 39Q6-42130 | [2] | SEAL ASSY-FLOATING | |
| 4. | 39Q6-42140 | [1] | RING-NUT | |
| 5. | 39Q6-42150 | [1] | PLATE-LOCK | |
| 6. | S017-120166 | [4] | BOLT-HEX | |
| 7. | 39Q6-42160 | [1] | HOUSING | |
| 8. | S129-070206 | [20] | BOLT-SOCKET,UNIFIED | |
| 9. | 39Q6-42170 | [1] | COUPLING | |
| NK10. | 39Q6-42190 | [1] | CARRIER 2 | |
| NK11. | 39Q6-42200 | [4] | GEAR-PLANATARY 2 | |
| NK12. | 39Q6-42210 | [4] | BEARING-NEEDLE 2 | |
| NK13. | 39Q6-42220 | [8] | WASHER-THRUST 2 | |
| NK14. | 39Q6-42230 | [4] | PIN-CARRIER 2 | |
| NK15. | S472-800164 | [4] | PIN-SPRING | |
| NK16. | 39Q6-42350 | [4] | PIN-SOLID 2 | |
| 17. | 39Q6-42240 | [1] | GEAR-SUN 2 | |
| NK18. | 39Q6-42260 | [1] | CARRIER 1 | |
| NK19. | 39Q6-42270 | [3] | GEAR-PLANETARY 1 | |
| NK20. | 39Q6-42280 | [3] | BEARING-NEEDLE 1 | |
| NK21. | 39Q6-42290 | [6] | WASHER-THRUST 1 | |
| NK22. | 39Q6-42300 | [3] | PIN-CARRIER 1 | |
| NK23. | S472-600364 | [3] | PIN-SPRING | |
| 24. | 39Q6-42310 | [1] | GEAR-SUN 1 | |
| 25. | 39Q6-42320 | [1] | PLATE-THRUST | |
| 26. | 39Q6-42330 | [1] | COVER | |
| 27. | S109-16110D | [24] | BOLT-SOCKET | |
| 28. | P220-110205 | [3] | PLUG-HEX | |
| 29. | S602-035001 | [1] | RING-RETAINING | |
| 30. | 39Q6-42341 | [1] | NAME PLATE | |
| 30. | 39Q6-42342 | [1] | NAME PLATE | |
| 31. | 39Q6-41800 | [2] | RIVET | |
| 32. | S631-024001 | [3] | O-RING | |
| *-1. | 38K6-41100 | [1] | TRAVEL MOTOR UNIT | SEE 4130 |
| K. | 39Q6-42250 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
| K. | 39Q6-42180 | [1] | CARRIER ASSY KIT 2 | SEE ILLUST |
| *-1. | 39K6-41100 | [1] | TRAVEL MOTOR UNIT | SEE 4130 |
| *-1. | 38K6-41100 | [1] | TRAVEL MOTOR UNIT | SEE 4130 |
| K. | 39Q6-42250 | [1] | CARRIER ASSY KIT 1 | SEE ILLUST |
| K. | 39Q6-42180 | [1] | CARRIER ASSY KIT 2 | SEE ILLUST |
