| Quantity: | |
|---|---|

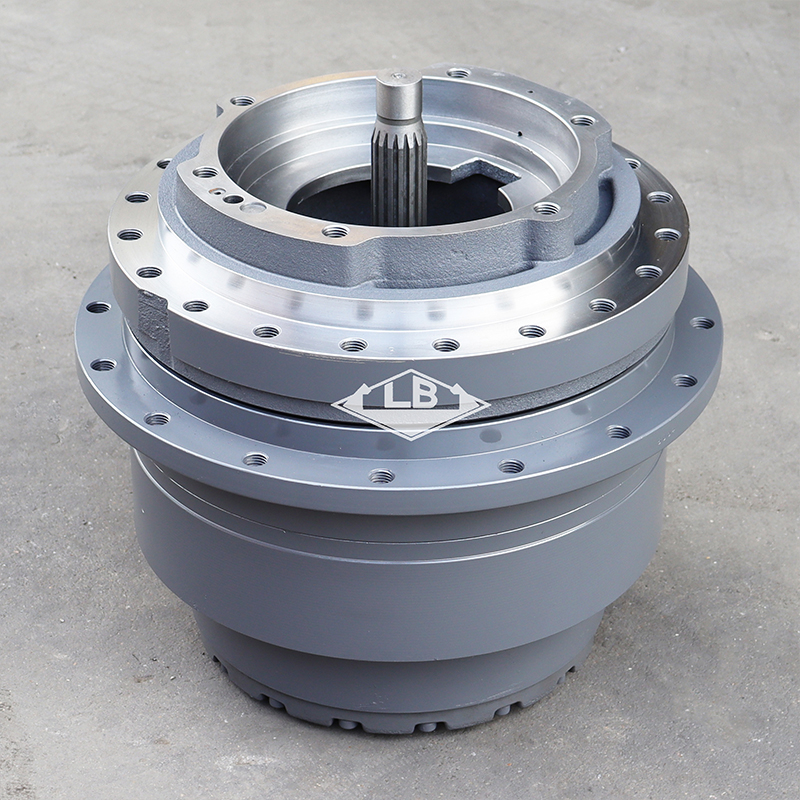

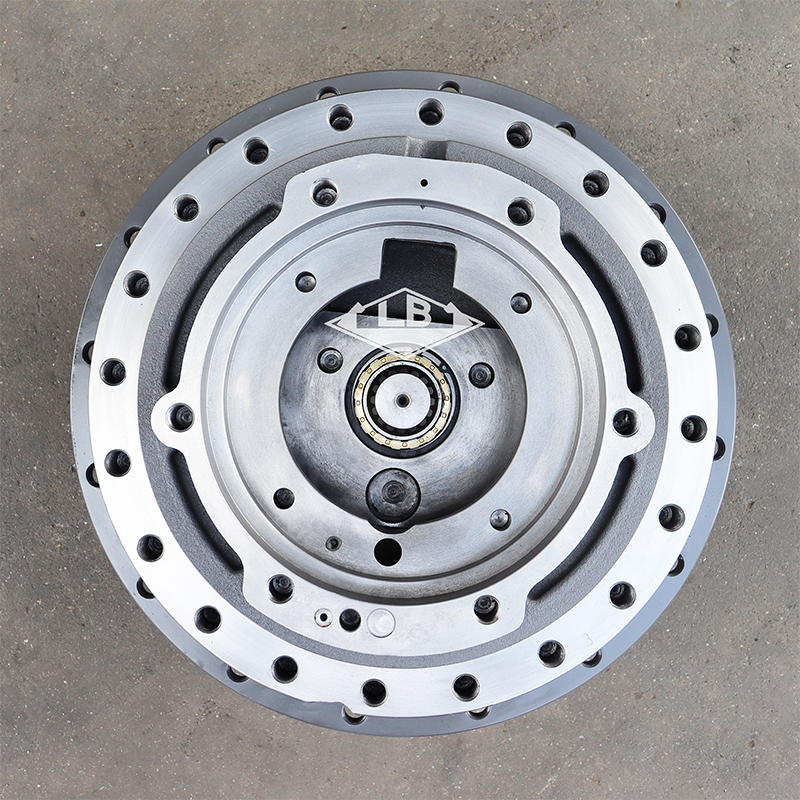

| Part name | EC290 Travel gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14528258 VOE14551155 | |||||
| Frame holes | 20 | |||||
| Sprocket holes | 16 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 376KG | |||||
| MOQ | 1 pc | |||||
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14551155 | [1] | Travel gearbox | ||
| 1. | VOE14522896 | [1] | Housing | |
| 2. | SA7117-38230 | [2] | Bearing | |
| 3. | VOE14579901 | [1] | Seal | |
| 4. | VOE14528319 | [1] | Nut | |
| 5. | VOE14526459 | [0003] | Screw | |
| 6. | VOE14601855 | [1] | Cover | |
| 7. | VOE983524 | [3] | O-ring | |
| 8. | VOE14883848 | [3] | Plug | |
| 9. | VOE14522897 | [1] | Gear | |
| 10. | SA9016-21620 | [20] | Hex. socket screw | |
| 11. | VOE14551153 | [1] | Planet carrier | NO 2 |
| 12. | VOE14556491 | [6] | Washer | |
| 13. | SA7117-38320 | [1] | Planet carrier | |
| 14. | SA7117-38330 | [1] | Gear | |
| 15. | SA7117-38340 | [1] | Ring | |
| 16. | SA7117-38350 | [3] | Planetary Gear | |
| 17. | SA7117-38360 | [3] | Needle bearing | |
| 18. | SA7117-38380 | [3] | Pin | |
| 19. | SA9325-06012 | [3] | Spring pin | |
| 20. | VOE14551156 | [1] | Planet carrier | NO 1 |
| 21. | SA9325-06012 | [3] | Spring pin | |
| 22. | VOE13914468 | [3] | Snap ring | |
| 23. | SA7117-38180 | [3] | Pin | |
| 24. | SA7117-38391 | [1] | Planet carrier | |
| 25. | SA7117-38400 | [1] | Gear | |
| 26. | SA7117-38410 | [1] | Ring | |
| 27. | SA7117-38420 | [3] | Needle Bearing | |
| 28. | SA7117-38431 | [3] | Planetary gear | |
| 29. | VOE14556489 | [3] | Washer | |
| 30. | VOE14556490 | [3] | Washer | |
| 31. | SA1036-00290 | [1] | Thrust ring | |
| 32. | SA7117-38371 | [1] | Gear | |
| 33. | VOE914467 | [1] | Retaining ring | |
| 34. | SA7117-38271 | [4] | Planet gear | |
| 35. | SA7117-38520 | [4] | Needle bearing | |
| 36. | SA7117-38301 | [4] | Pin | |
| 37. | SA7117-38460 | [4] | Inner ring | |
| 38. | VOE14546062 | [8] | Washer | |
| 39. | SA9325-06012 | [4] | Spring pin | |
| 40. | SA8230-21020 | [1] | Thrust ring | |
| 41. | VOE983252 | [16] | Hexagon screw | |
| 42. | VOE955922 | [16] | Spring washer |
