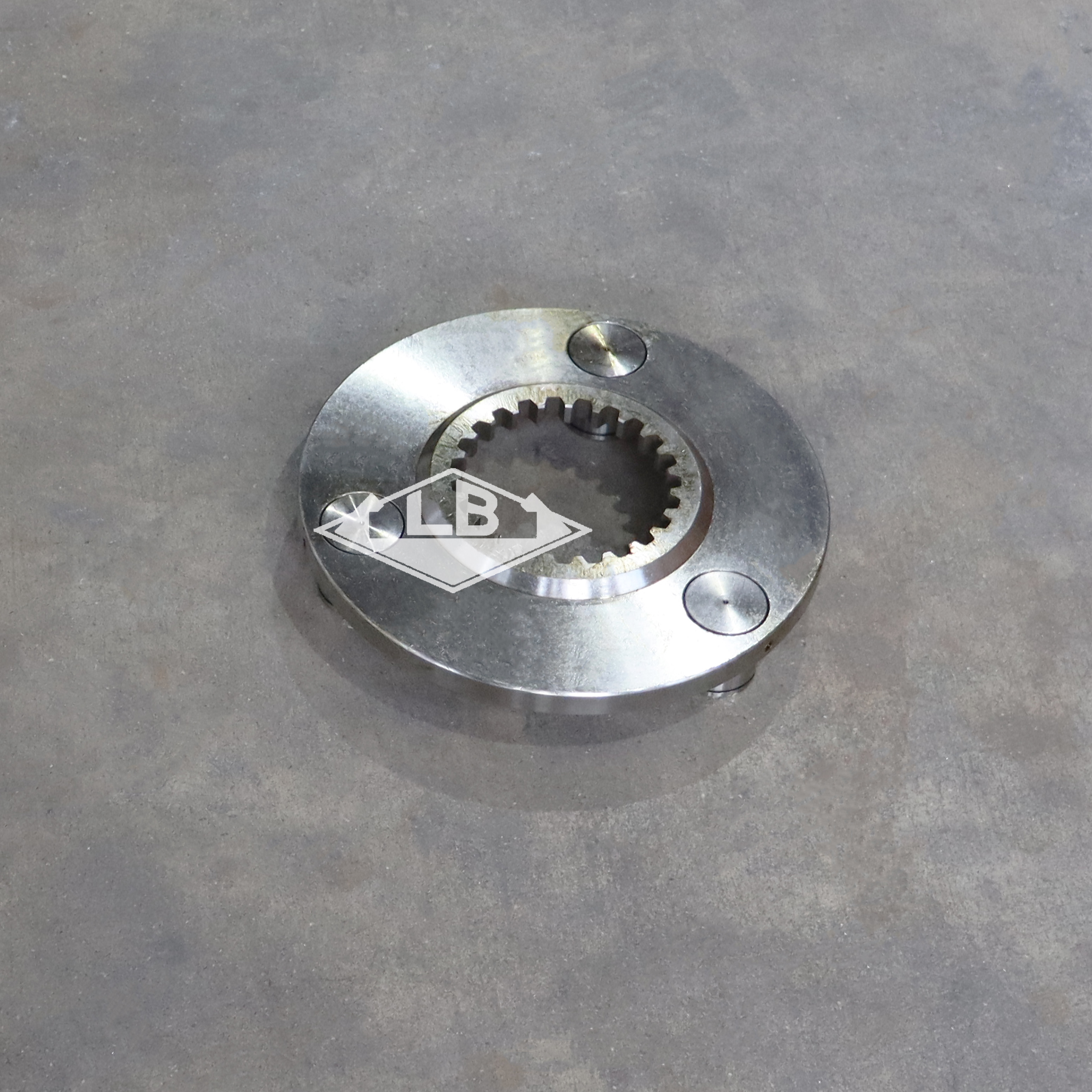

EC290 TRAVEL NO2 CARRIER SA7117-38391 CARRIER FOR VOLVO EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	EC290 TRAVEL GEARBOX
Equipment	Apply to VOLVO EXCAVATOR
Part no.	SA7117-38391
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

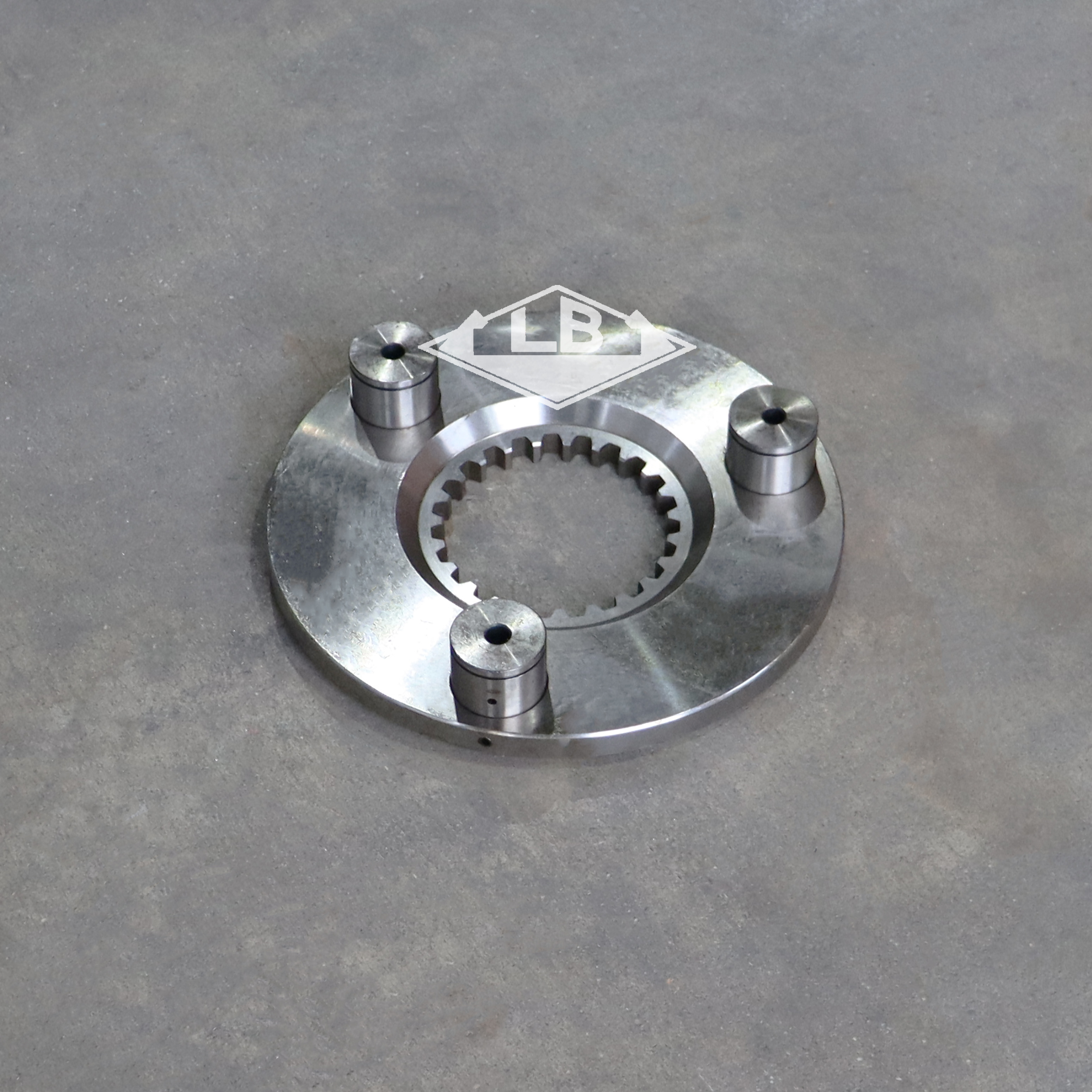

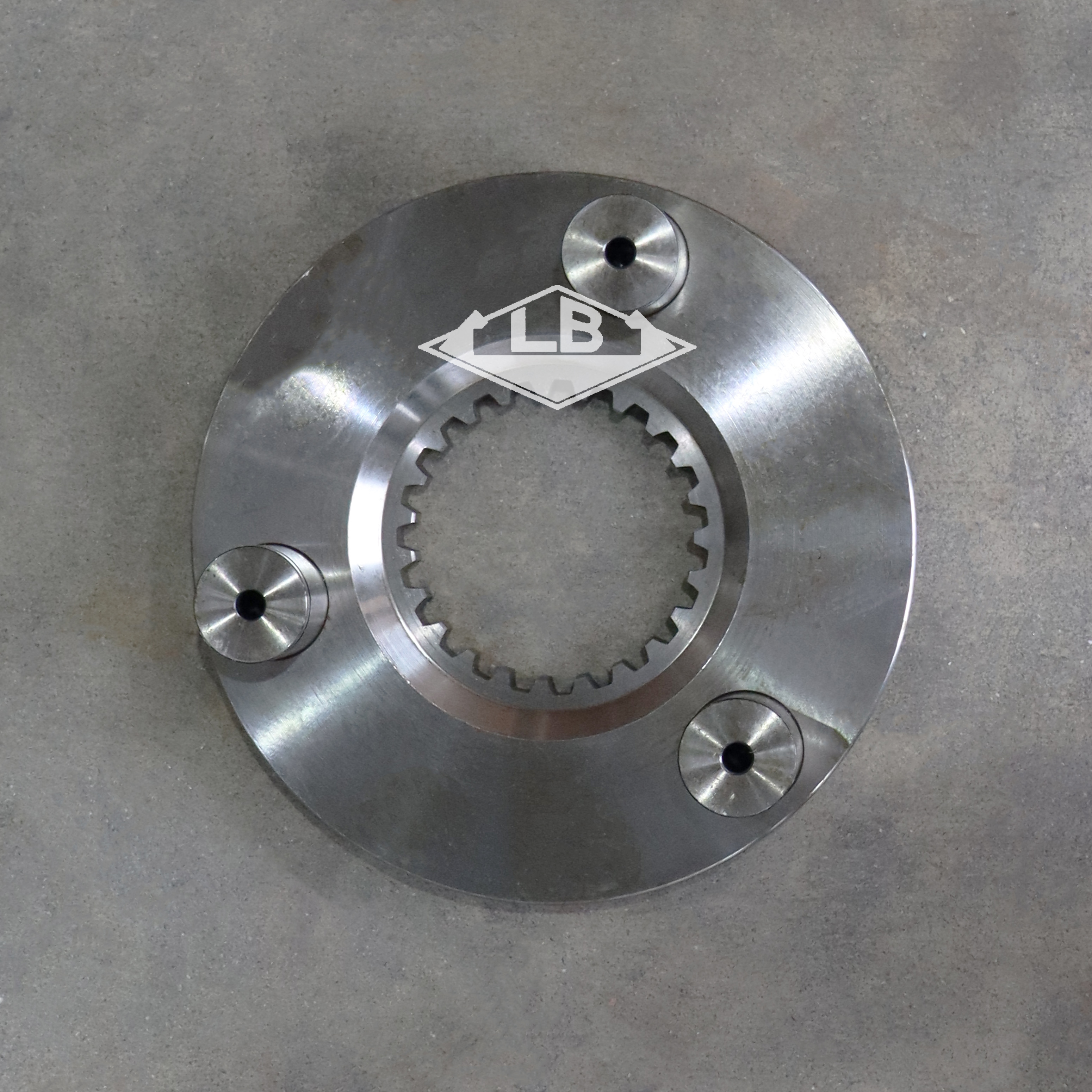

EC290 行走一级架(2) EC290 行走一级架(4) EC290 行走一级架(6) EC290 行走一级架(8) EC290 行走一级架(10)

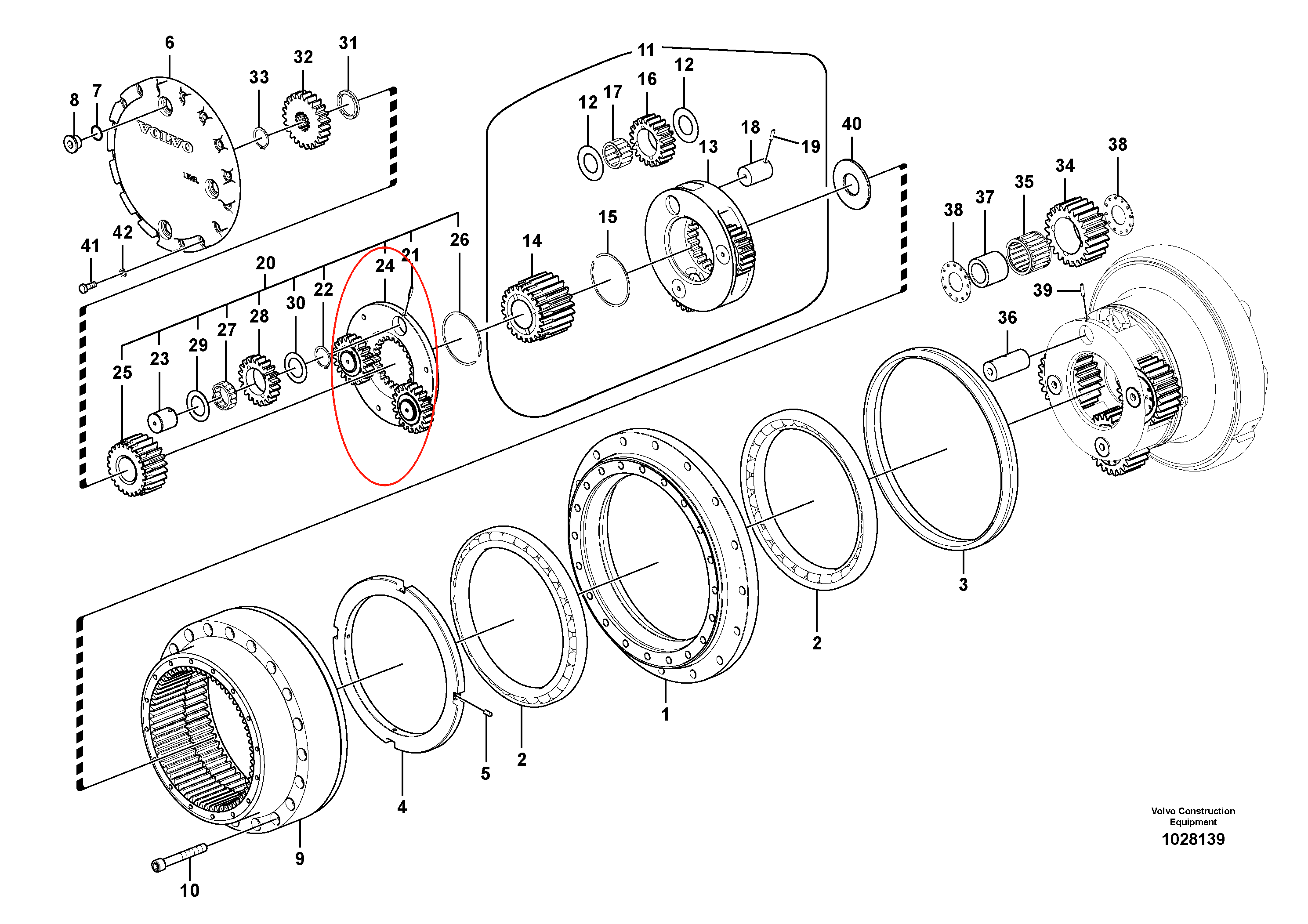

Parts on group Travel gearbox:

Pos.	Part No	Qty	Parts name	Comments
	VOE14528258	[1]	Travel Gearbox
1.	SA7117-38221	[1]	Housing	SER NO 10001-10928
	VOE14521858	[1]	Housing	SER NO 10929-11467
	VOE14522896	[1]	Housing	SER NO 11468-
2.	SA7117-38230	[2]	Bearing
3.	SA7117-38240	[1]	Seal	SER NO 10001-11467
	VOE14579901	[1]	Seal	SER NO 11468-
4.	SA7117-38251	[1]	Nut	SER NO 10001-12345
	VOE14528319	[1]	Nut	SER NO 12346-
5.	SA9023-10803	[2]	Set screw	SER NO 10001-12345
	VOE14526459	[3]	Screw	SER NO 12346-
6.	SA7117-38190	[1]	Cover	SER NO 10001-10255
	VOE14517931	[1]	Cover	SER NO 10256-11311
	VOE14601855	[1]	Cover	SER NO 11312-
7.	VOE983524	[3]	O-ring	SER NO 10256- SER NO 30001-
8.	SA9415-43042	[3]	Plug	SER NO 10001-10255
	VOE14883848	[3]	Plug	SER NO 10256- SER NO 30001-
9.	SA7117-38311	[1]	Gear	SER NO 10001-11311
	VOE14522897	[1]	Gear	SER NO 11312-
10.	SA9016-21620	[20]	Hex. socket screw
11.	VOE14551153	[1]	Planet carrier
12.	VOE14556491	[6]	Washer
13.	SA7117-38320	[1]	Planet carrier
14.	SA7117-38330	[1]	Gear
15.	SA7117-38340	[1]	Ring
16.	SA7117-38350	[3]	Planetary Gear
17.	SA7117-38360	[3]	Needle bearing
18.	SA7117-38380	[1]	Pin
19.	SA9325-06012	[3]	Spring pin
20.	VOE14551156	[1]	Planet carrier
21.	SA9325-06012	[3]	Spring pin
22.	VOE13914468	[3]	Snap ring
23.	SA7117-38180	[1]	Pin
24.	SA7117-38391	[1]	Planet carrier
25.	SA7117-38400	[1]	Gear
26.	SA7117-38410	[1]	Ring
27.	SA7117-38420	[3]	Needle Bearing
28.		[3]	Planetary Gear
29.	VOE14556489	[1]	Washer
30.	VOE14556490	[1]	Washer
31.	SA1036-00290	[1]	Thrust ring
32.	SA7117-38371	[1]	Gear
33.	VOE914467	[1]	Retaining ring
34.	SA7117-38271	[4]	Planet gear
35.	SA7117-38520	[4]	Needle bearing
36.	SA7117-38301	[4]	Pin
37.	SA7117-38460	[4]	Inner ring
38.	VOE14546062	[8]	Washer
39.	SA9325-06012	[4]	Spring pin
40.	SA8230-21020	[1]	Thrust ring
41.	VOE967631	[16]	Hex. socket screw	SER NO 10001-11311
	VOE983252	[16]	Hexagon screw	SER NO 11312-
42.	VOE955922	[16]	Spring washer	SER NO 11312-
