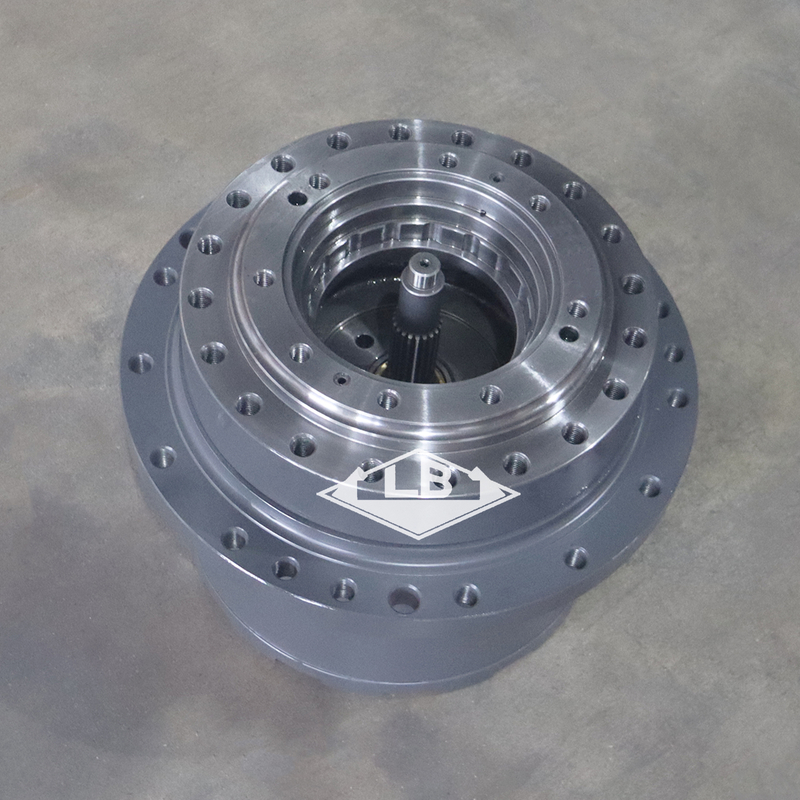

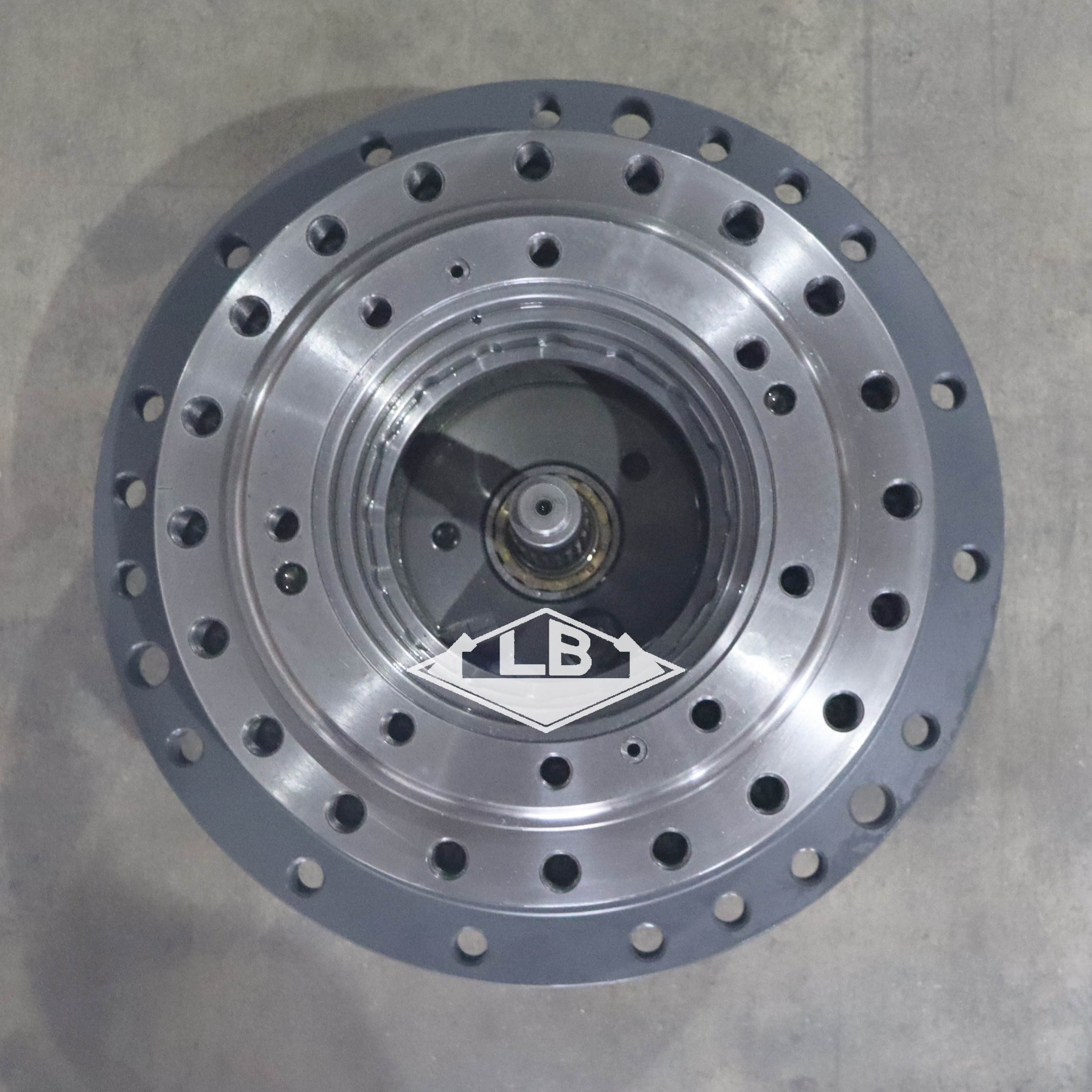

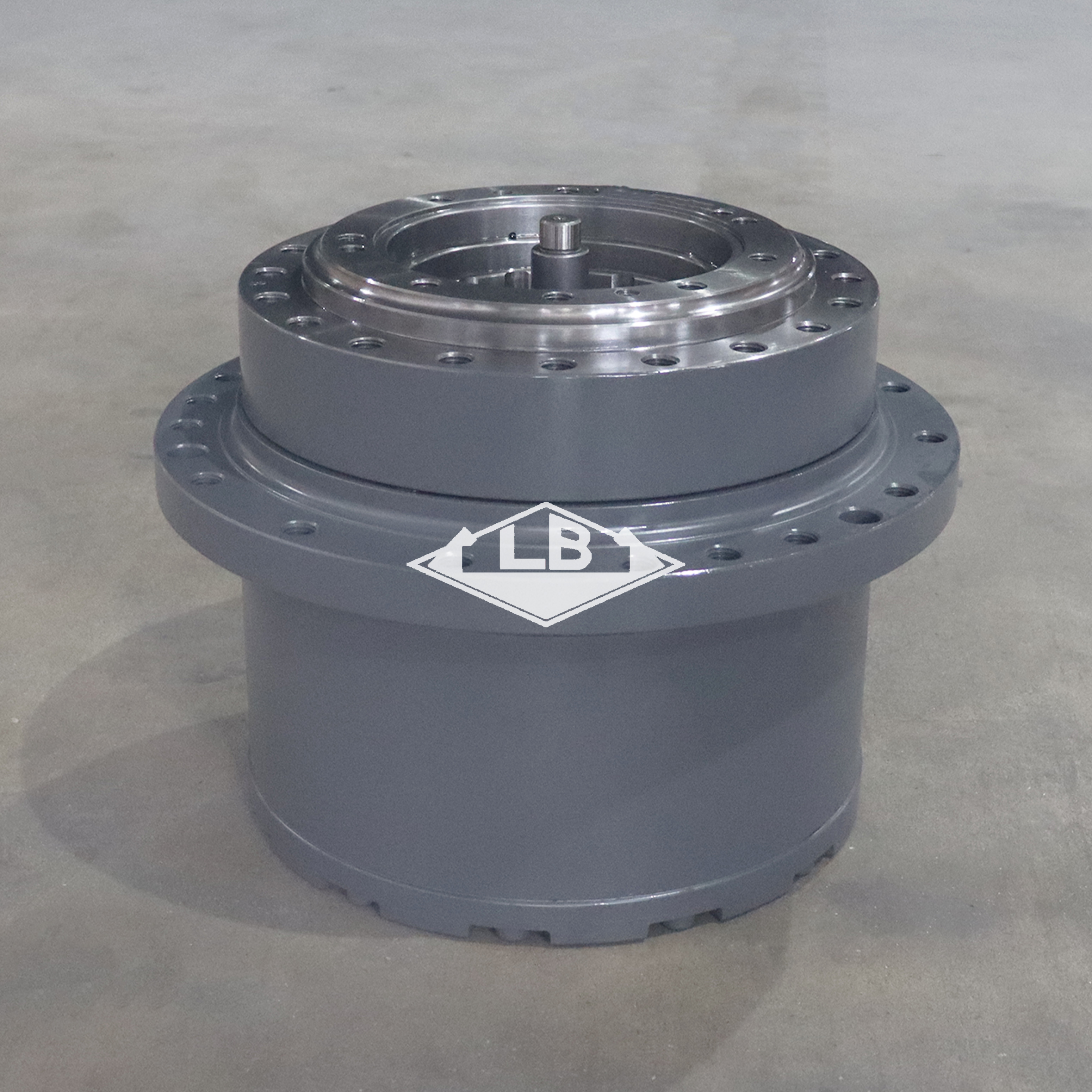

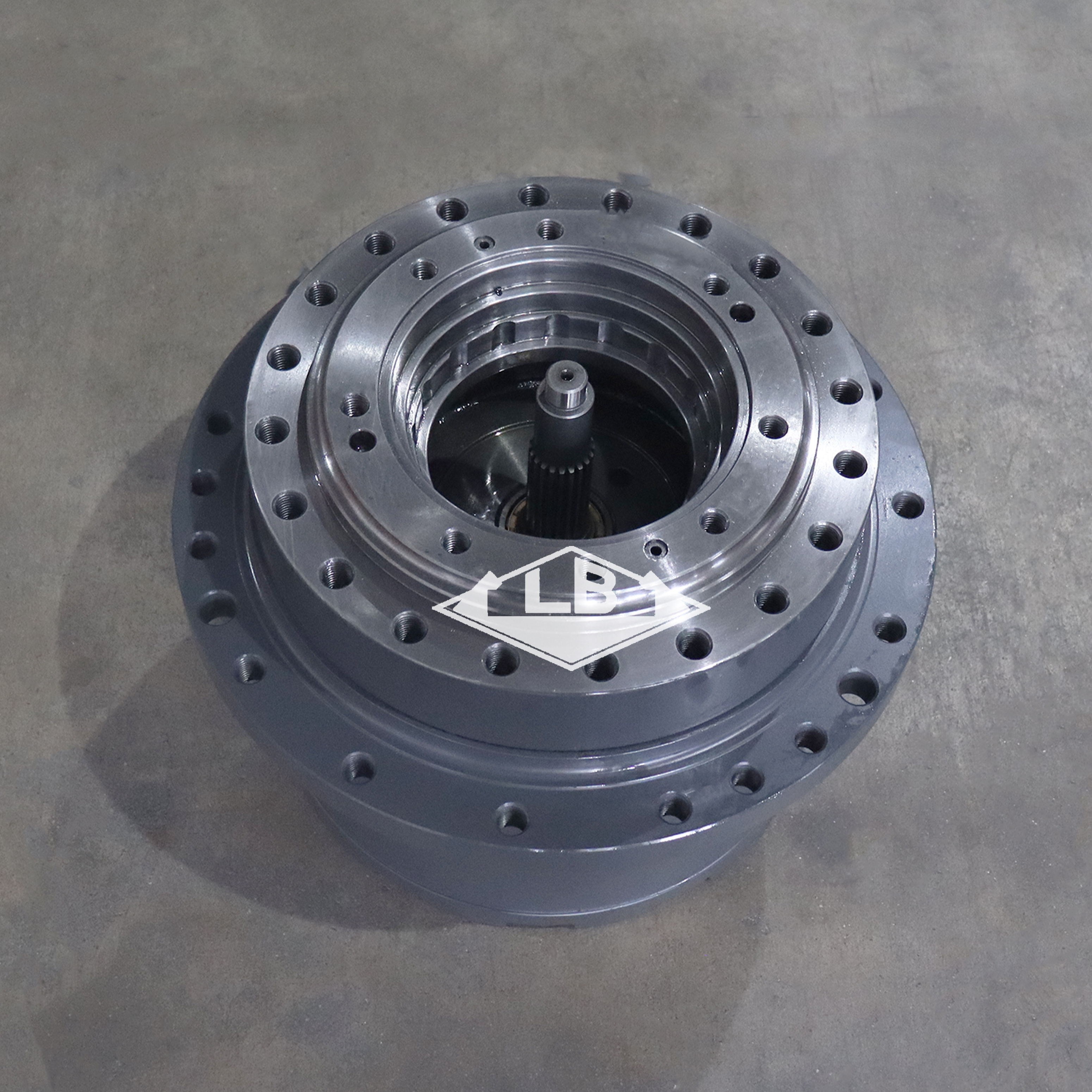

| Part name | EC140 TRAVEL GEARBOX | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14573820 | |||||
| NO.1 sun gear spline teeth | 18 splines | |||||
| Swing pinion shaft teeth | 13 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

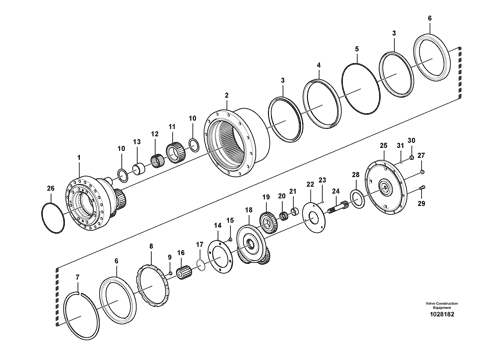

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14573820 | [1] | Reduction | ||
| 1. | VOE14616916 | [1] | Spindle | |
| 2. | VOE14616917 | [1] | Hub | |
| 3. | VOE14619871 | [2] | Sealing kit | |
| 4. | VOE14573760 | [1] | Seal | |
| 5. | VOE14573761 | [1] | O-ring | |
| 6. | VOE14573762 | [2] | Bearing | |
| 7. | VOE14573763 | [1] | Ring | |
| 8. | VOE14573764 | [1] | Ring | |
| 9. | VOE14573765 | [4] | Plug | |
| 10. | VOE14616918 | [8] | Washer | |
| 11. | VOE14573767 | [4] | Planetary gear | |
| 12. | VOE14573768 | [4] | Needle bearing | |
| 13. | VOE14573769 | [4] | Collar | |
| 14. | VOE14616919 | [1] | Plate | |
| 15. | VOE14573771 | [4] | Screw | |
| 16. | VOE14573772 | [1] | Gear | |
| 17. | VOE14573773 | [1] | Ring | |
| 18. | VOE14573774 | [1] | Retainer | |
| 19. | VOE14573775 | [3] | Planetary gear | |
| 20. | VOE14573776 | [3] | Needle bearing | |
| 21. | VOE14573777 | [3] | Bearing race | |
| 22. | VOE14616920 | [1] | Plate | |
| 23. | VOE14573779 | [3] | Pin | |
| 24. | VOE14573780 | [1] | Gear | |
| 25. | VOE14616921 | [1] | Cover | |
| 26. | VOE14573781 | [1] | O-ring | |
| 27. | VOE14573782 | [1] | Washer | |
| 28. | SA8230-02890 | [1] | Bearing_thrust | |
| 29. | VOE984079 | [12] | Hex. socket screw | |
| 30. | VOE14573784 | [3] | Plug | |
| 31. | VOE983505 | [3] | O-ring | |
| 100. | VOE14573819 | [1] | Seal |
