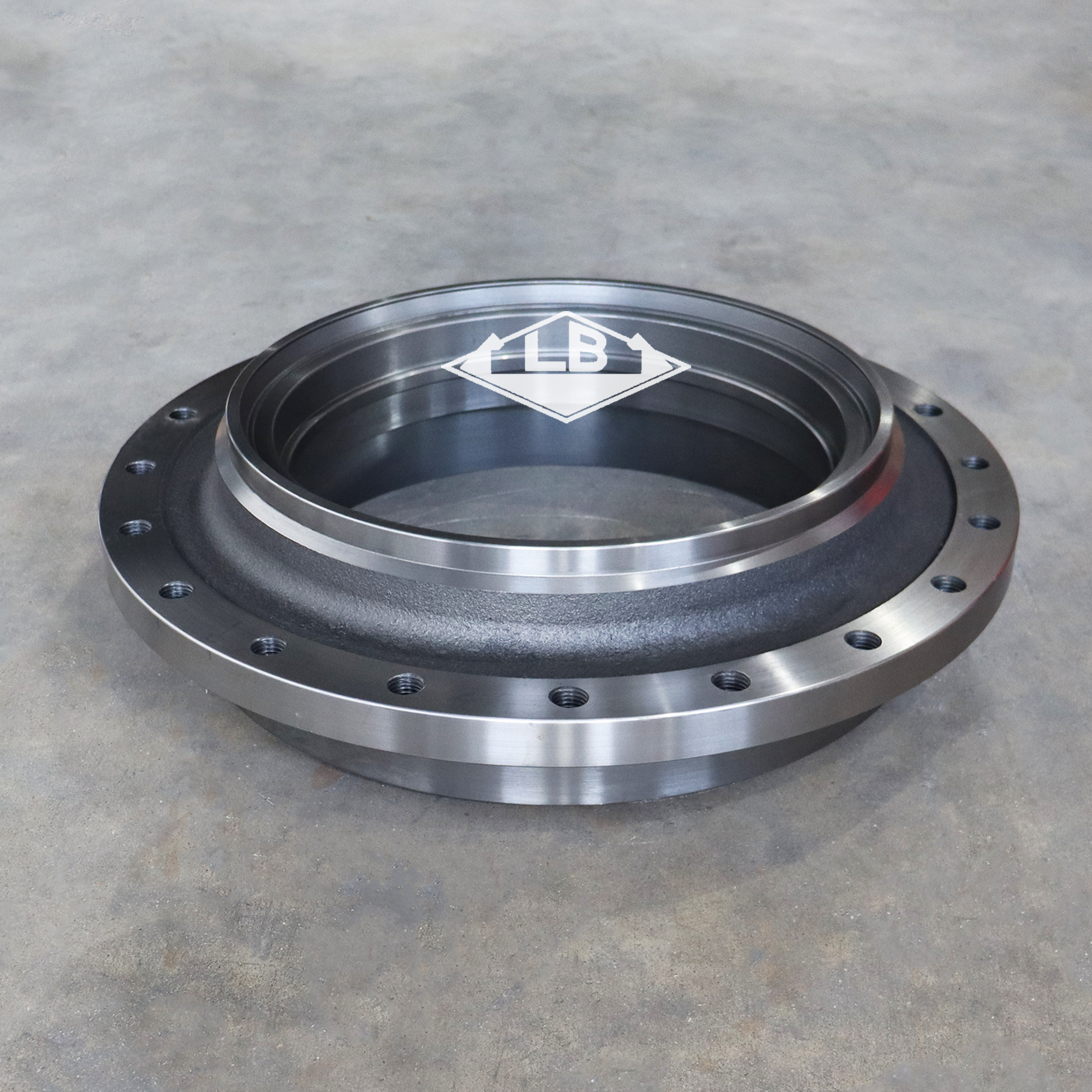

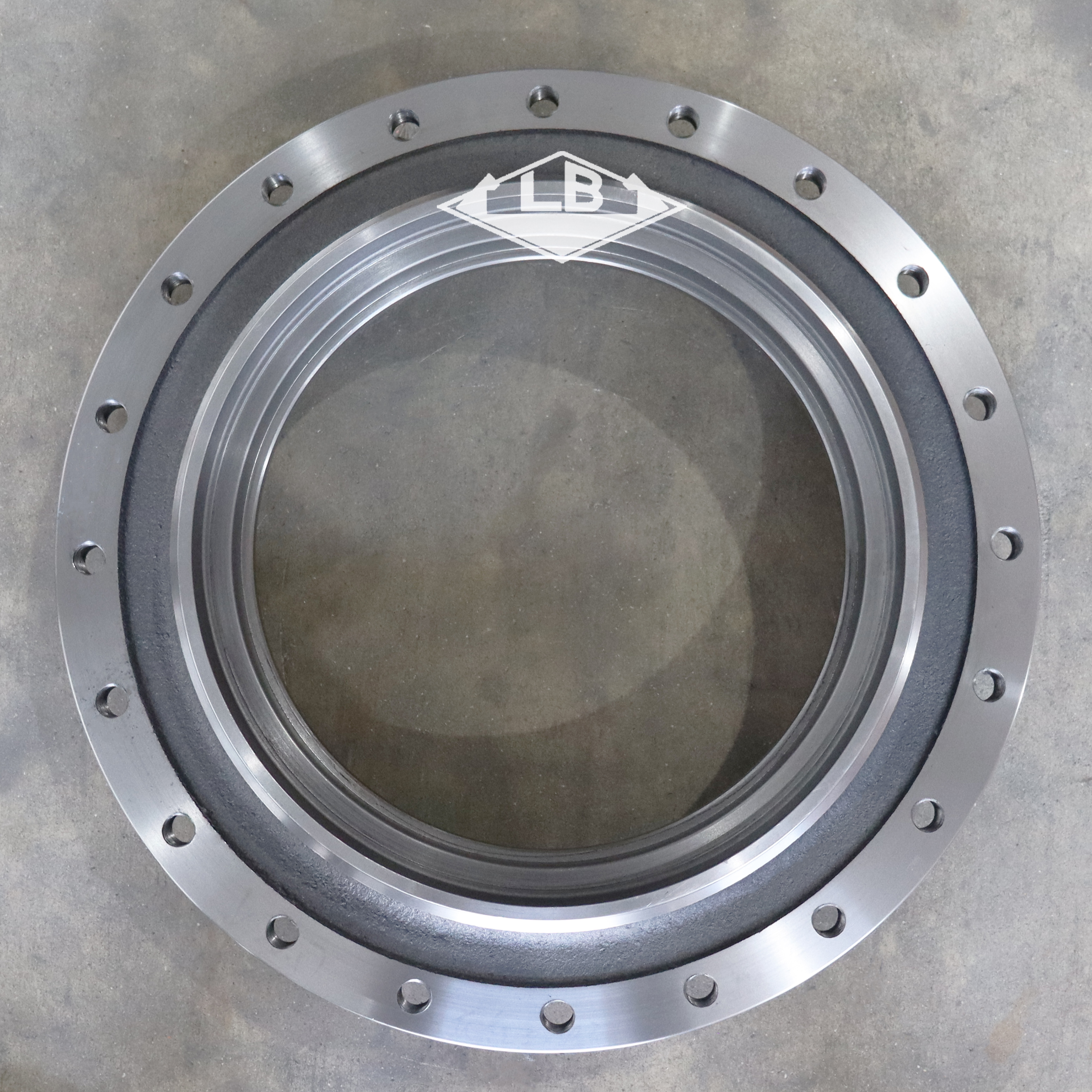

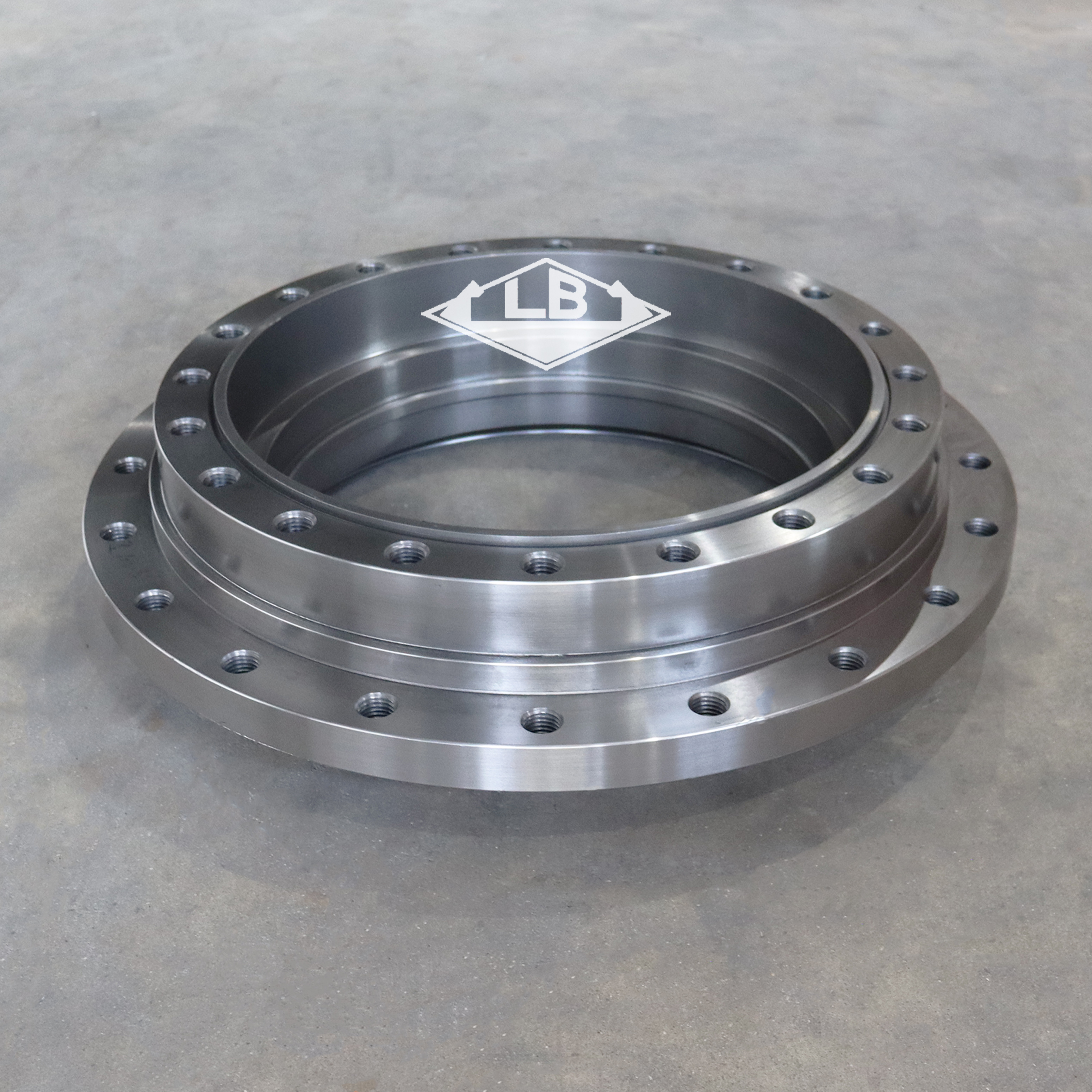

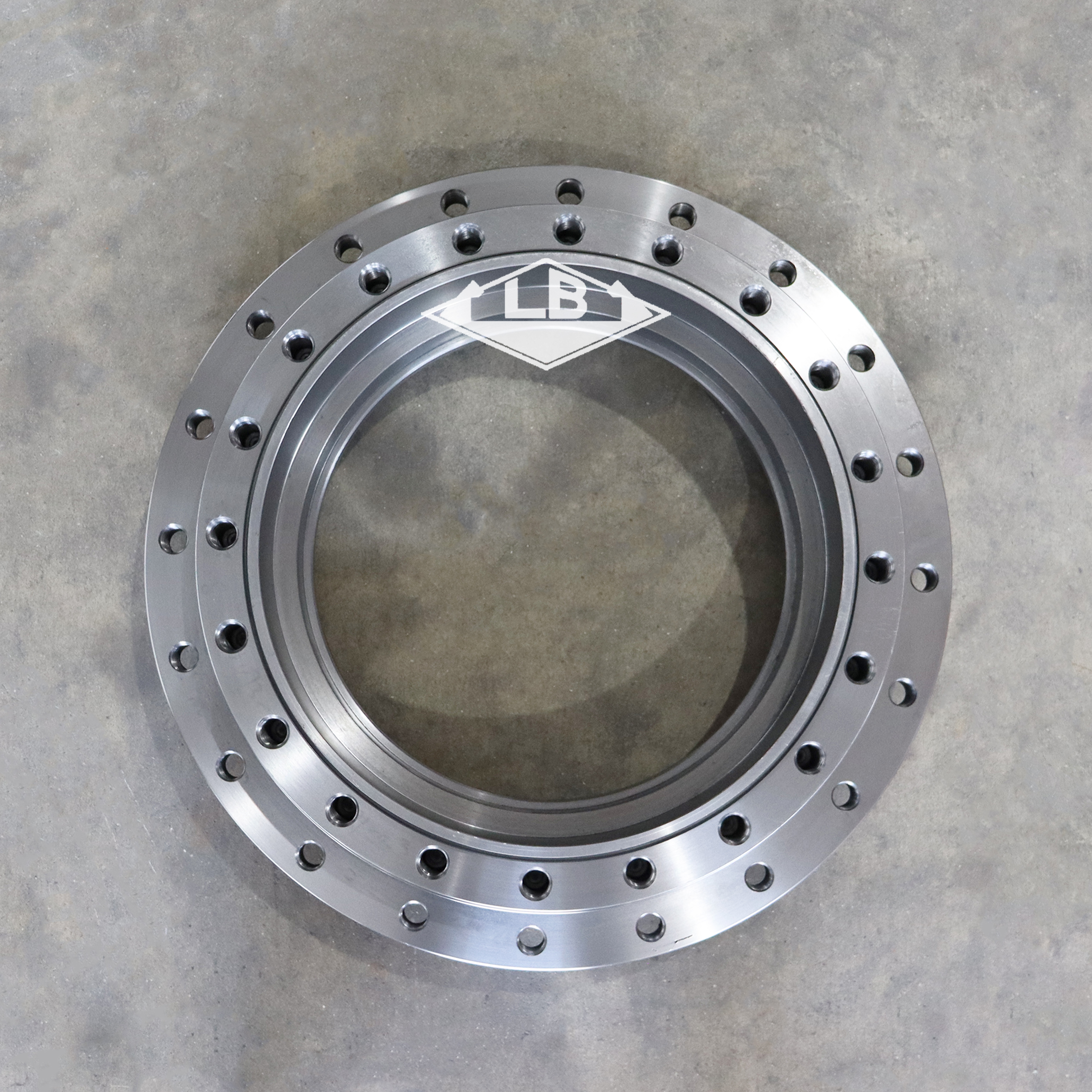

E345D E349D TRAVEL HOUSING 200-3490 2003490 TRAVEL GEARBOX PARTS FOR CAT EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	E345D E349D TRAVEL GEARBOX
Equipment	Apply to CAT EXCAVATOR
Part no.	200-3490 2003490
motor shaft teeth
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

E345D 行走驱动盘（2） E345D 行走驱动盘（6） E345D 行走驱动盘（4） E345D 行走驱动盘（8）

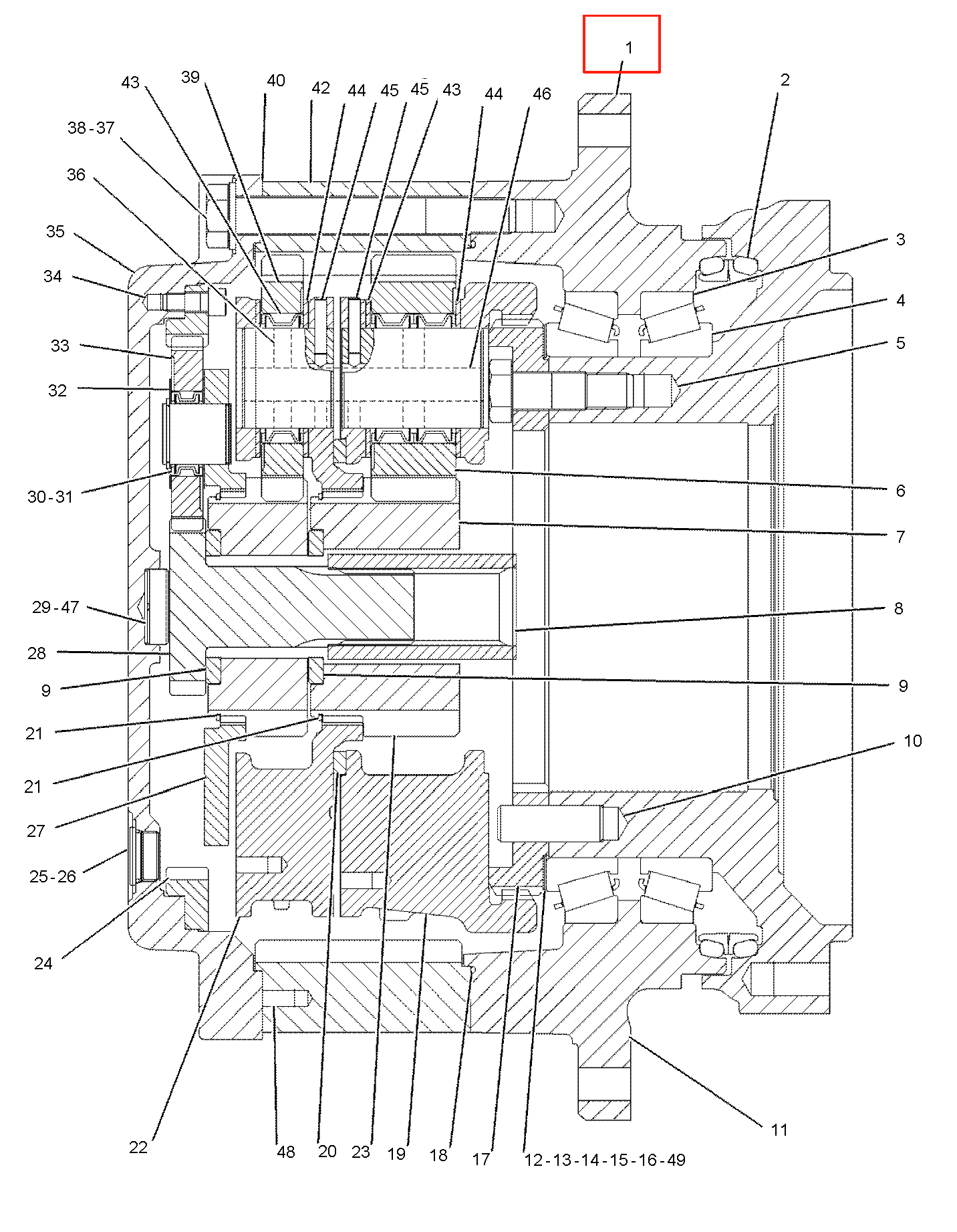

Parts for your 345B L EXCAVATOR:

CATERPILLAR SIS

Pos.	Part No	Qty	Parts name
1.	200-3489	[1]	HOUSING-MOTOR
2.	205-9025	[1]	SEAL GP-DUO-CONE
	205-9024	[2]	RING-TORIC
3.	2R-0525	[2]	CUP-BEARING
4.	2R-0524	[2]	CONE-BEARING
5.	6V-8133 M	[12]	BOLT (M24X3X80-MM)
6.	7Y-1504	[4]	GEAR-PLANETARY (20-TEETH)
7.	7Y-1470	[1]	GEAR-SUN (21-TEETH)
8.	7Y-1469	[1]	COUPLING
9.	7Y-1492	[2]	SPACER (67X101.1X10-MM THK)
10.	114-1541	[6]	PIN-DOWEL
11.	200-3490	[1]	HOUSING-GEAR
12.	7Y-1473 J	[1]	SHIM (0.3-MM THK)
13.	7Y-1476 J	[1]	SHIM (0.6-MM THK)
14.	7Y-1477 J	[1]	SHIM (0.7-MM THK)
15.	7Y-1478 J	[1]	SHIM (0.8-MM THK)
16.	7Y-1479 J	[1]	SHIM (1-MM THK)
17.	169-5560	[1]	GEAR-COUPLING (74-TEETH)
18.	8C-5240	[1]	SEAL-O-RING
19.	7Y-1482	[1]	CARRIER-PLANETARY
20.	7Y-1484	[1]	SPACER (191X221X8.5-MM THK)
21.	110-7217	[2]	RING-RETAINING
22.	7Y-1485	[1]	CARRIER-PLANETARY
23.	7Y-1491	[1]	GEAR-SUN (21-TEETH)
24.	7Y-1487	[1]	GEAR-RING (85-TEETH)
25.	7M-8485	[2]	SEAL-O-RING
26.	3E-2338	[2]	PLUG-PIPE
27.	7Y-1488	[1]	CARRIER AS
	7Y-0656	[3]	SHAFT-PLANETARY
28.	7Y-1494	[1]	GEAR-SUN (26-TEETH)
29.	7Y-1493	[1]	SPACER (8.7X50X14-MM THK)
30.	094-1516	[3]	BEARING-ROLLER
31.	8T-4240	[3]	RING-RETAINING
32.	094-0584	[6]	WASHER (40.3X72X1-MM THK)
33.	7Y-1495	[3]	GEAR-PLANETARY (29-TEETH)
34.	8T-3957 M	[10]	BOLT-SOCKET HEAD (M12X1.75X30-MM)
35.	7Y-1498	[1]	COVER
36.	7Y-0661	[3]	SHAFT-PLANETARY
37.	7Y-5235 M	[20]	BOLT (M24X3X190-MM)
38.	8T-4167	[20]	WASHER-HARD (26X44X4-MM THK)
39.	7Y-1499	[3]	GEAR-PLANETARY (20-TEETH)
40.	1U-8846 B		SEALANT-GASKET
42.	7Y-1483	[1]	GEAR-RING (63-TEETH)
43.	7Y-0664	[11]	BEARING AS-ROLLER
44.	4I-7576	[14]	WASHER (66.3X104X3-MM THK)
45.	095-0891	[7]	PIN-SPRING
46.	7Y-0662	[4]	SHAFT-PLANETARY
47.	7Y-0808	[1]	SHIM (1.6-MM THK)
48.	096-3216 M	[2]	SETSCREW-SOCKET (M12X1.75X12-MM)
49.	7Y-1480 J	[1]	SHIM (1.6-MM THK)

			AVAILABLE REPAIR KIT(S):
	135-8960 J	[1]	KIT-SHIM
	B		USE AS REQUIRED
	J		KIT MARKED J SERVICES PART(S) MARKED J
	M		METRIC PART
