| Quantity: | |
|---|---|

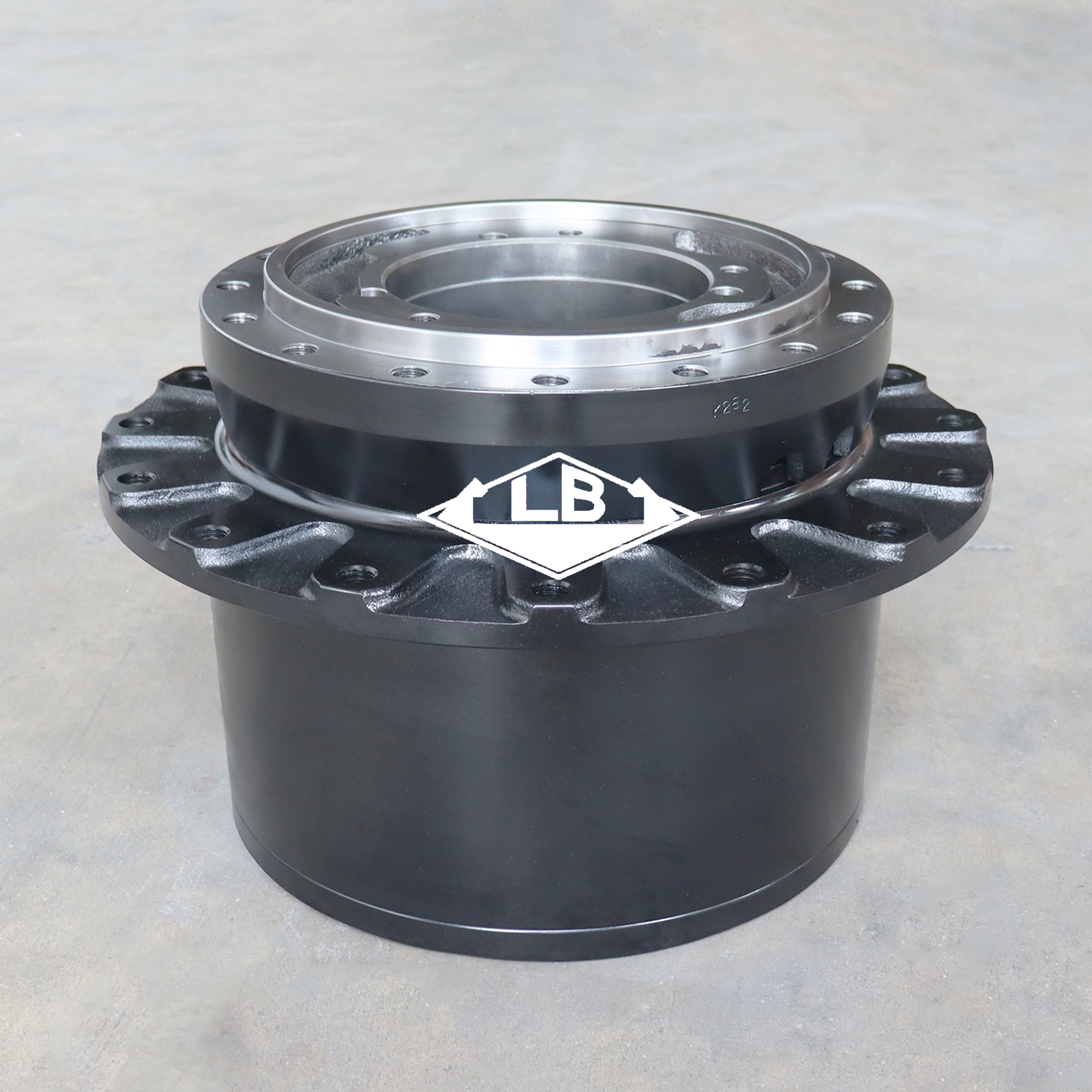

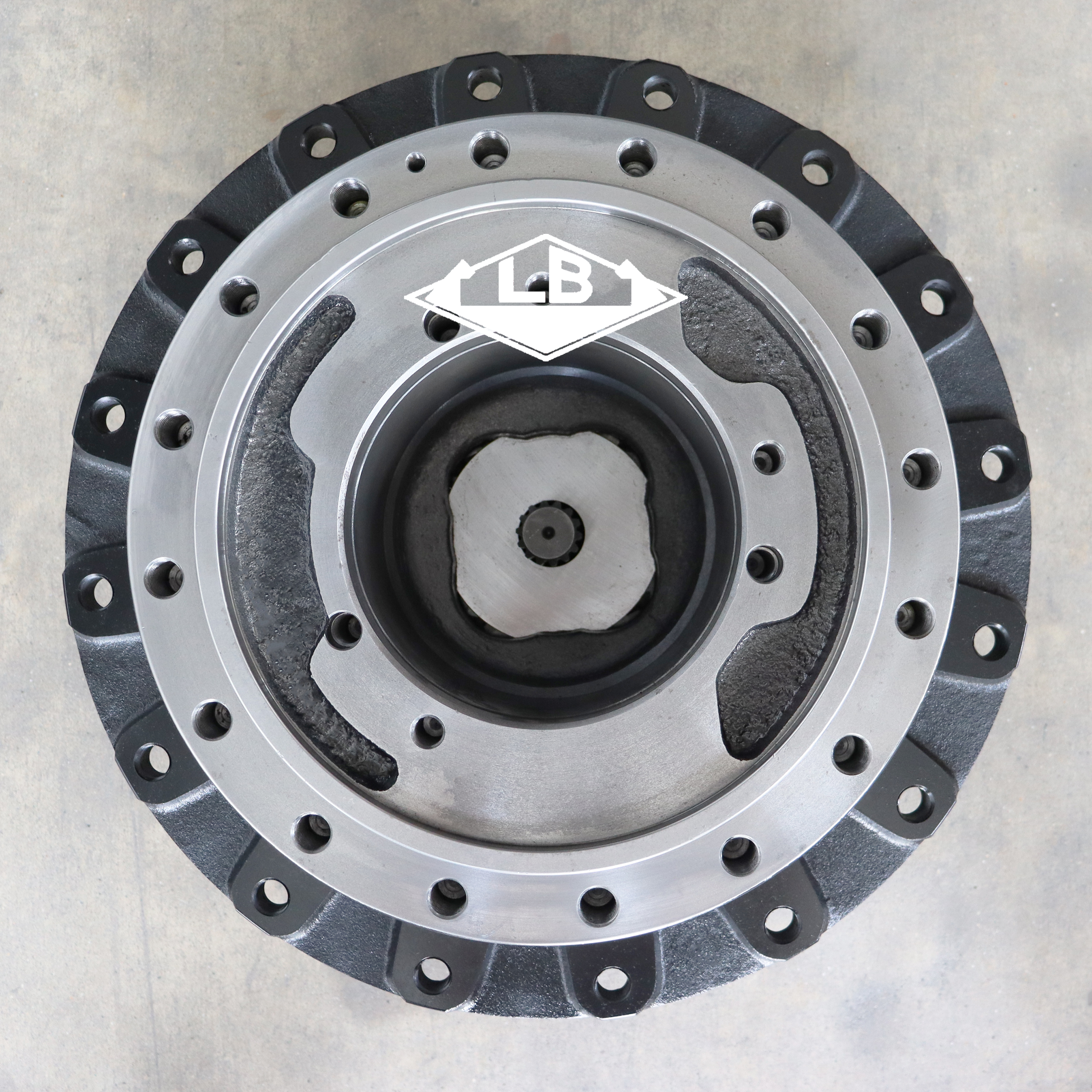

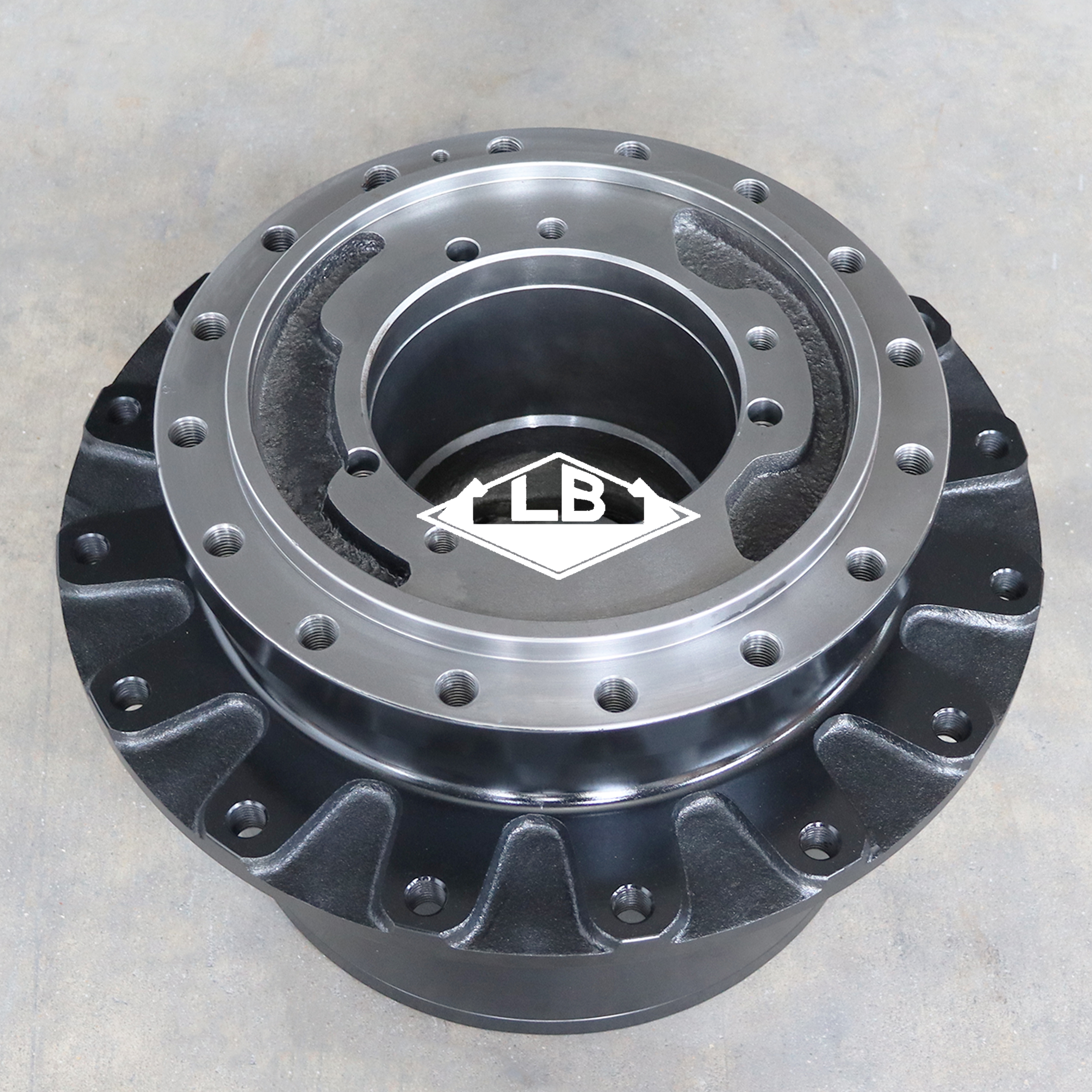

| Part name | E320GC E323 TRVAL GEARBOX | |||||
| Equipment | Apply to CAT EXCAVATOR | |||||
| Part no. | 571-4033 538-5276 584-2564 | |||||
| motor shaft teeth | ||||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

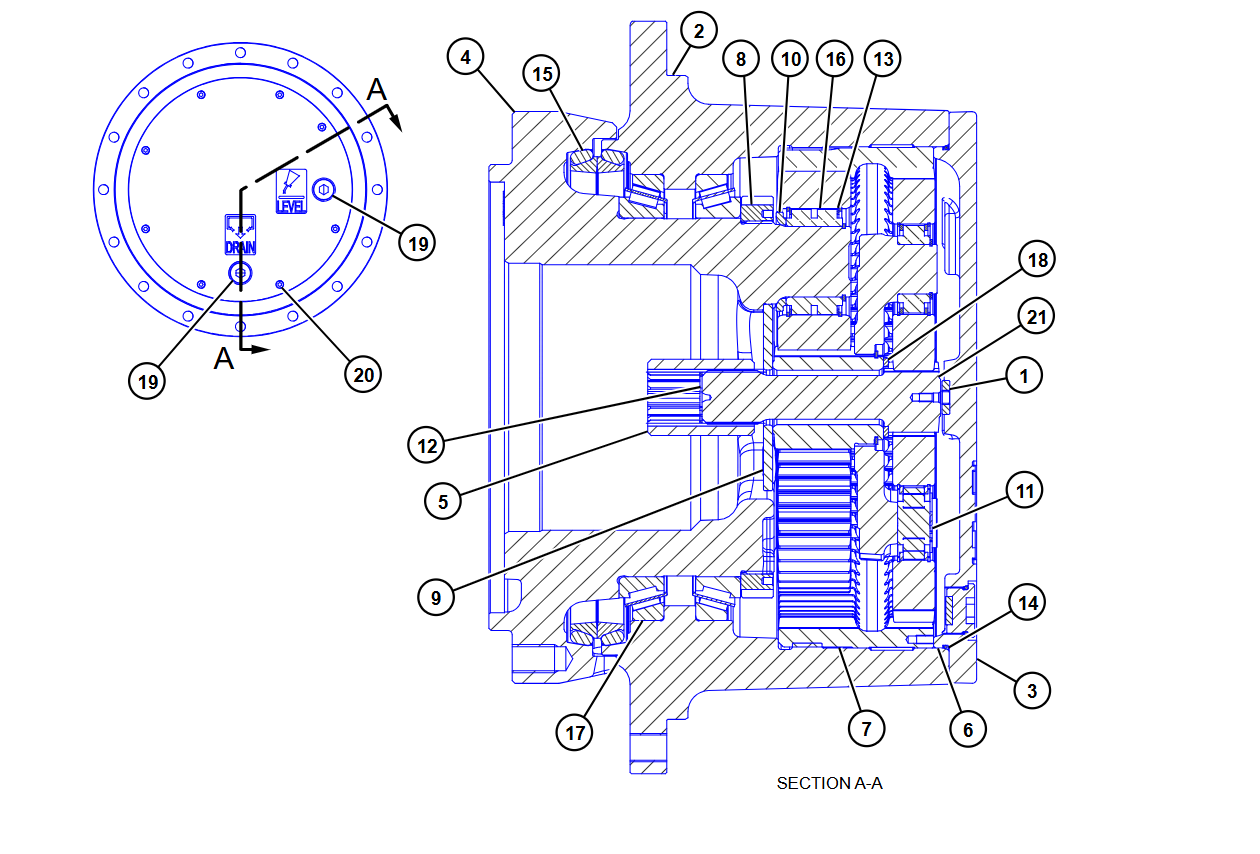

| Item | Part Number | Part Name | Quantity | CCR | Alternate |
| 1 | 566-1452 | Spacer (8.1X24X5.5-MM Thk) | 1 | ||
| 2 | 569-4283 | Housing (Sprocket) | 1 | ||
| 3 | 569-4284 | Cover | 1 | ||
| 4 | 578-9211 | Hub (RH) | 1 | ||
| 5 | 569-4286 | Shaft | 1 | ||
| 6 | 569-4287 | Gear-Planetary (35-TEETH) | 4 | ||
| 7 | 569-4288 | Gear-Ring (90-TEETH) | 1 | ||
| 8 | 569-4289 | Nut | 1 | ||
| 9 | 567-7160 | Spacer (39X132X6.5-MM Thk) | 1 | ||
| 10 | 567-7161 | Spacer (52X70X7-MM Thk) | 4 | ||
| 11 | 593-5616 | Planetary AS | 1 | ||
| 12 | 569-4291 | Ring-Retaining | 1 | ||
| 13 | 465-7842 | Ring | 4 | ||
| 14 | 4D-6695 | Seal-O-Ring | 1 | ||
| 15 | 569-4292 | Seal GP-Duo-Cone | 1 | ||
| 16 | 569-4293 | Bearing | 4 | ||
| 17 | 567-7173 | Bearing | 2 | ||
| 18 | 598-0656 | Plate | 1 | ||
| 19 | 567-7180 | Plug AS-Drain | 2 | ||
| 7M-8485 | Seal-O-Ring | 1 | |||
| 20 | 311-0501 | Bolt (M8X1.25X25-MM) | 8 | ||
| 21 | 593-5615 | Gear-Sun (12-TEETH) | 1 |
| Part name | E320GC E323 TRVAL GEARBOX | |||||
| Equipment | Apply to CAT EXCAVATOR | |||||
| Part no. | 571-4033 538-5276 584-2564 | |||||
| motor shaft teeth | ||||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
| Item | Part Number | Part Name | Quantity | CCR | Alternate |
| 1 | 566-1452 | Spacer (8.1X24X5.5-MM Thk) | 1 | ||
| 2 | 569-4283 | Housing (Sprocket) | 1 | ||
| 3 | 569-4284 | Cover | 1 | ||
| 4 | 578-9211 | Hub (RH) | 1 | ||
| 5 | 569-4286 | Shaft | 1 | ||
| 6 | 569-4287 | Gear-Planetary (35-TEETH) | 4 | ||
| 7 | 569-4288 | Gear-Ring (90-TEETH) | 1 | ||
| 8 | 569-4289 | Nut | 1 | ||
| 9 | 567-7160 | Spacer (39X132X6.5-MM Thk) | 1 | ||
| 10 | 567-7161 | Spacer (52X70X7-MM Thk) | 4 | ||
| 11 | 593-5616 | Planetary AS | 1 | ||
| 12 | 569-4291 | Ring-Retaining | 1 | ||
| 13 | 465-7842 | Ring | 4 | ||
| 14 | 4D-6695 | Seal-O-Ring | 1 | ||
| 15 | 569-4292 | Seal GP-Duo-Cone | 1 | ||
| 16 | 569-4293 | Bearing | 4 | ||
| 17 | 567-7173 | Bearing | 2 | ||
| 18 | 598-0656 | Plate | 1 | ||
| 19 | 567-7180 | Plug AS-Drain | 2 | ||
| 7M-8485 | Seal-O-Ring | 1 | |||
| 20 | 311-0501 | Bolt (M8X1.25X25-MM) | 8 | ||
| 21 | 593-5615 | Gear-Sun (12-TEETH) | 1 |
