| Quantity: | |
|---|---|
| Part name | E313D2GC MAIN PUMP | |||||
| Equipment | Apply to CAT EXCAVATOR | |||||
| Part no. | 507-1117 110-7079 114-8222 127-5830 | |||||
| motor shaft teeth | ||||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

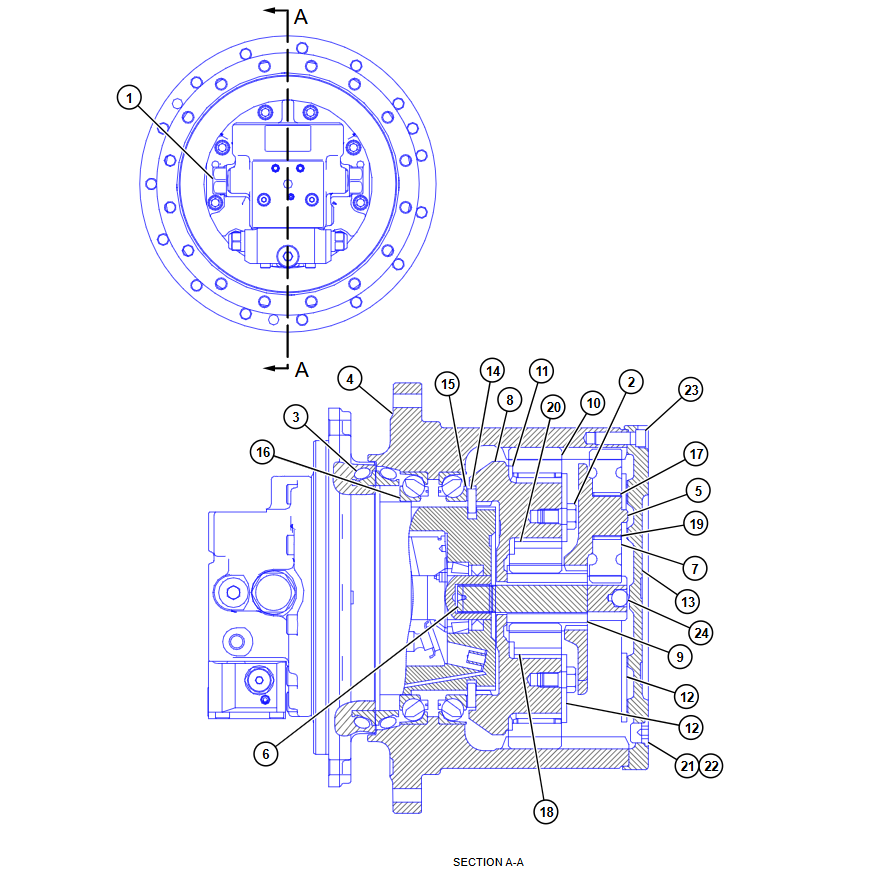

| Item | Part Number | Part Name | Quantity | CCR | Alternate |
| 1 | 509-5929 | Motor GP-Travel | 1 | ||
| 2 | 8T-4179 | Bolt (M12X1.75X20-MM) | 4 | ||
| 3 | 532-9411 | Seal GP-Duo-Cone | 1 | ||
| 4 | 532-9412 | Housing | 1 | ||
| 5 | 532-9415 | Carrier-Planetary | 1 | ||
| 6 | 532-9416 | Gear-Sun | 1 | ||
| 7 | 532-9417 | Gear-Planetary (33-TEETH) | 3 | ||
| 8 | 532-9418 | Carrier-Planetary | 1 | ||
| 9 | 532-9419 | Gear-Sun (16-TEETH) | 1 | ||
| 10 | 532-9420 | Gear-Planetary (29-TEETH) | 4 | ||
| 11 | 532-9421 | Washer (58.5X80X3.8-MM Thk) | 4 | ||
| 12 | 532-9422 | Plate | 2 | ||
| 13 | 532-9423 | Cover | 1 | ||
| 14 | 532-9424 | Plate | 2 | ||
| 15 | 640-8736 | Shim-Pack (Includes 12-SHIMS) | 1 | ||
| 16 | 532-9426 | Bearing | 2 | ||
| 17 | 532-9427 | Race-Inner | 3 | ||
| 18 | 532-9428 | Race-Inner | 4 | ||
| 19 | 532-9429 | Bearing-Needle | 3 | ||
| 20 | 532-9430 | Bearing-Needle | 4 | ||
| 21 | 093-1322 | Plug | 2 | ||
| 22 | 095-1585 | Seal-O-Ring | 2 | ||
| 23 | 105-3478 | Bolt-Socket Head (M10X1.5X35-MM) | 12 | ||
| 24 | 532-9433 | Ball | 1 | ||
| Part name | E313D2GC MAIN PUMP | |||||
| Equipment | Apply to CAT EXCAVATOR | |||||
| Part no. | 507-1117 110-7079 114-8222 127-5830 | |||||
| motor shaft teeth | ||||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
| Item | Part Number | Part Name | Quantity | CCR | Alternate |
| 1 | 509-5929 | Motor GP-Travel | 1 | ||
| 2 | 8T-4179 | Bolt (M12X1.75X20-MM) | 4 | ||
| 3 | 532-9411 | Seal GP-Duo-Cone | 1 | ||
| 4 | 532-9412 | Housing | 1 | ||
| 5 | 532-9415 | Carrier-Planetary | 1 | ||
| 6 | 532-9416 | Gear-Sun | 1 | ||
| 7 | 532-9417 | Gear-Planetary (33-TEETH) | 3 | ||
| 8 | 532-9418 | Carrier-Planetary | 1 | ||
| 9 | 532-9419 | Gear-Sun (16-TEETH) | 1 | ||
| 10 | 532-9420 | Gear-Planetary (29-TEETH) | 4 | ||
| 11 | 532-9421 | Washer (58.5X80X3.8-MM Thk) | 4 | ||
| 12 | 532-9422 | Plate | 2 | ||
| 13 | 532-9423 | Cover | 1 | ||
| 14 | 532-9424 | Plate | 2 | ||
| 15 | 640-8736 | Shim-Pack (Includes 12-SHIMS) | 1 | ||
| 16 | 532-9426 | Bearing | 2 | ||
| 17 | 532-9427 | Race-Inner | 3 | ||
| 18 | 532-9428 | Race-Inner | 4 | ||
| 19 | 532-9429 | Bearing-Needle | 3 | ||
| 20 | 532-9430 | Bearing-Needle | 4 | ||
| 21 | 093-1322 | Plug | 2 | ||
| 22 | 095-1585 | Seal-O-Ring | 2 | ||
| 23 | 105-3478 | Bolt-Socket Head (M10X1.5X35-MM) | 12 | ||
| 24 | 532-9433 | Ball | 1 | ||
