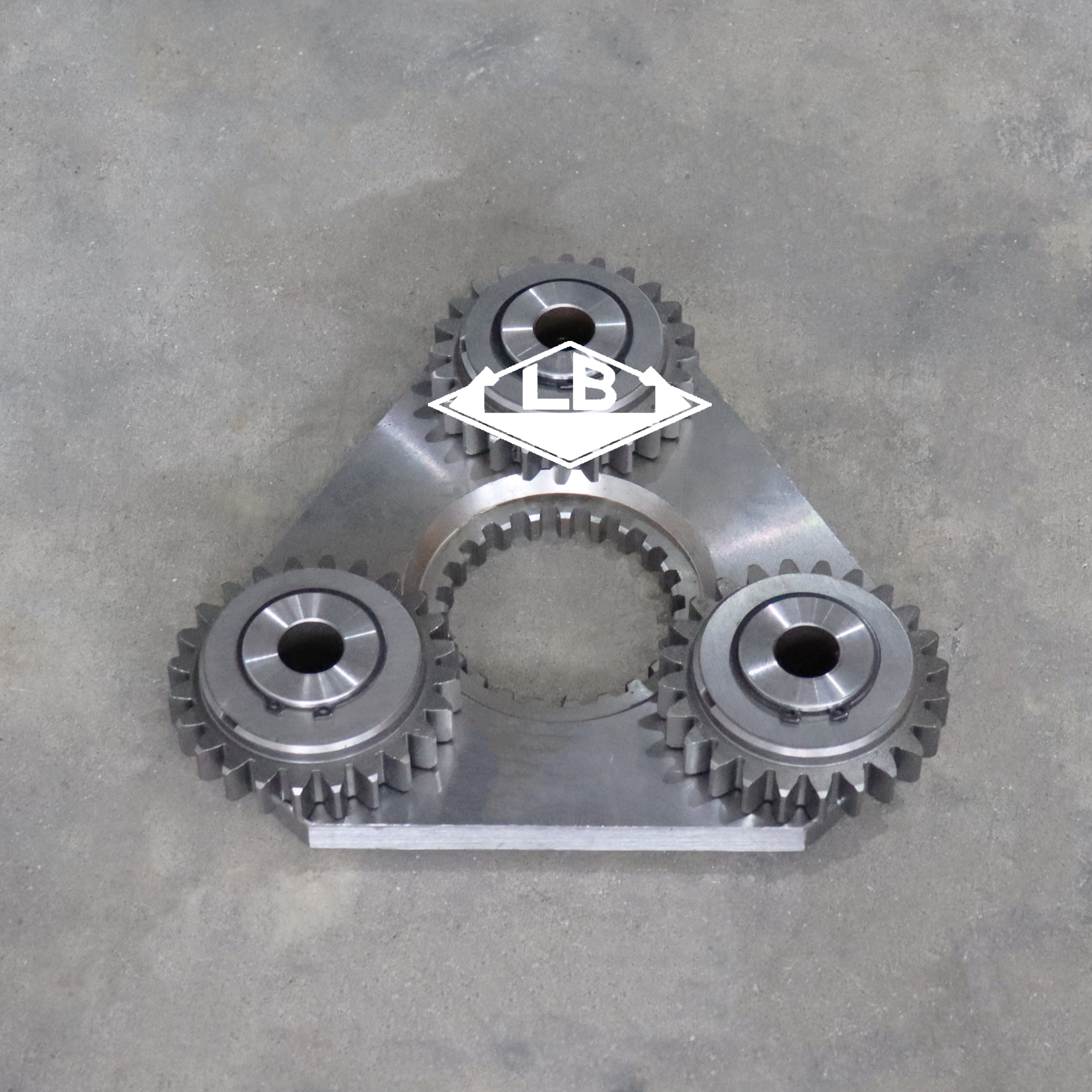

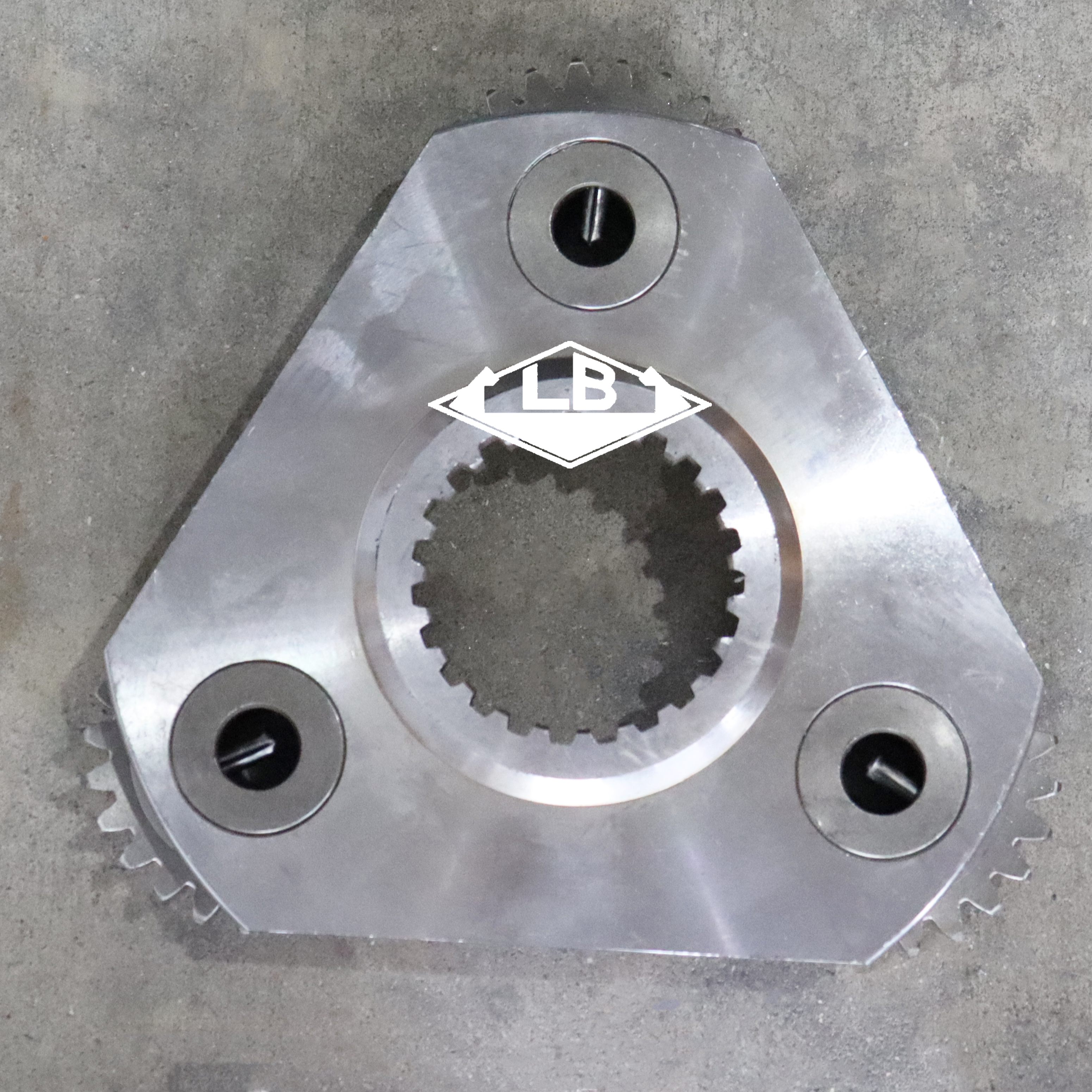

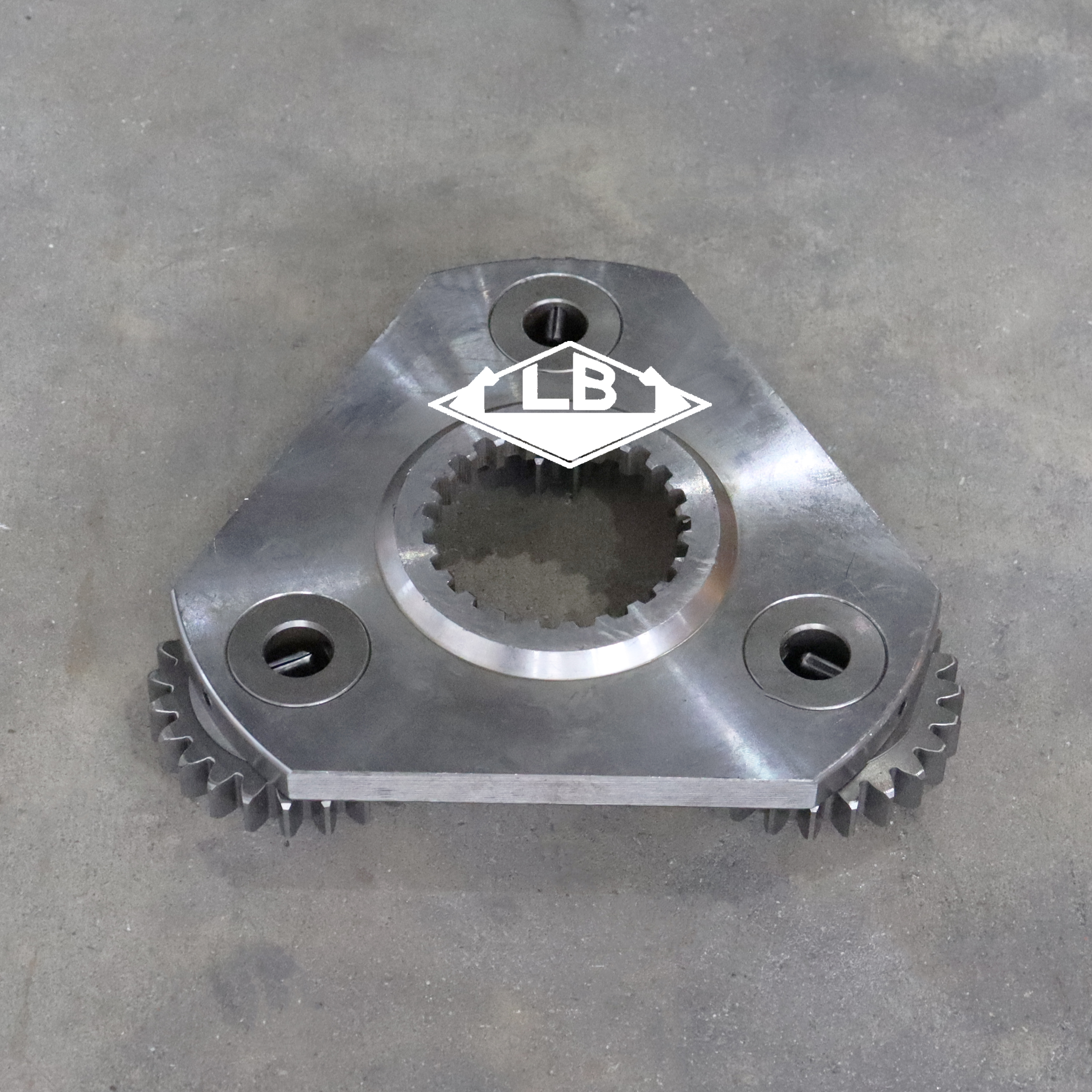

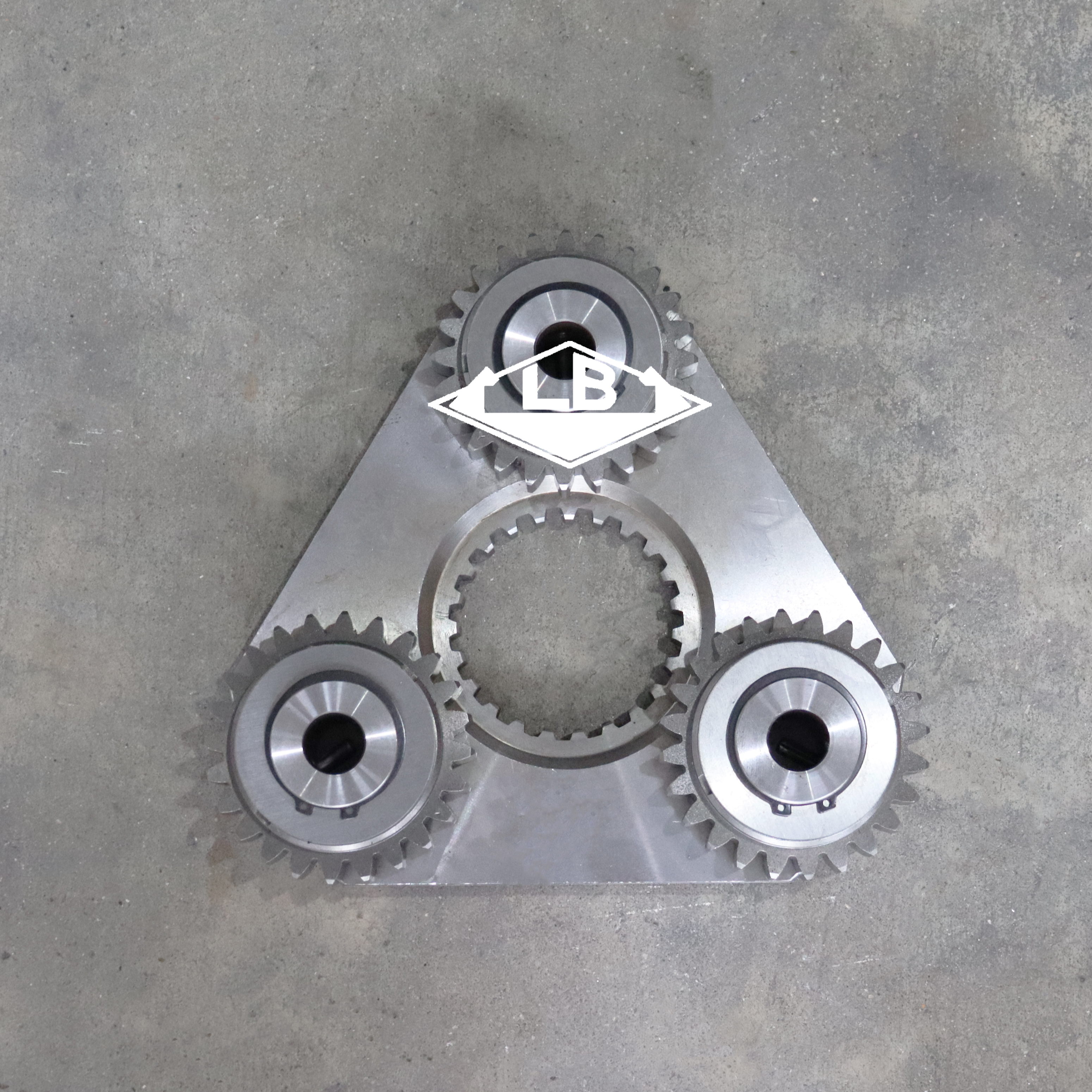

DX340 1ST CARRIER ASSY 1.230-00012 TRAVEL GEARBOX PARTS APPLY FOR DOOSAN EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	DX340 Swing gearbox
Equipment	Apply to DOOSAN EXCAVATOR
Part no.	1.230-00012
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

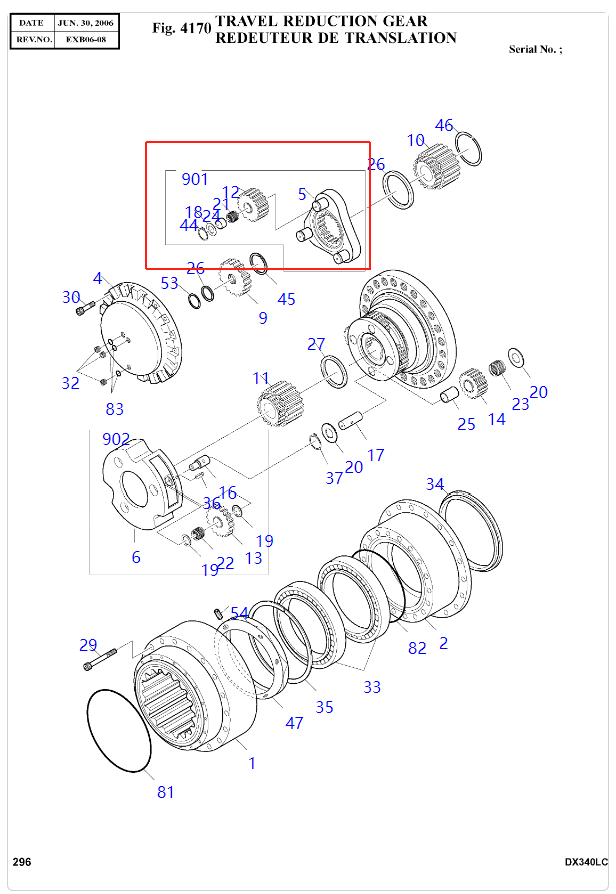

Parts on group :

Pos.	Part No	Qty	Parts name
-.	K1003134	[2]	TRAVEL REDUCTION GEAR Komatsu China
			["desc: BOITE REDUCTEUR"]
1.	104-00035	[1]	GEAR;RING Komatsu China
			["desc: COURONNE DENTEE"]
2.	1.402-00129	[1]	HOUSING Komatsu China
			["desc: BOITIER"]
4.	1.430-00216	[1]	COVER;SIDE Komatsu China
			["desc: COUVERCLE"]
5.	1.230-00009	[1]	CARRIER NO.1 Komatsu China
			["desc: PORTE-SATELLITES N1"]
6.	1.230-00015	[1]	CARRIER NO.2 Komatsu China
			["desc: PORTE-SATELLITES N2"]
9.	404-00080	[1]	GEAR;SUN NO.1 Komatsu China
			["desc: PIGNON PRINCIPAL"]
10.	404-00081	[1]	GEAR;SUN NO.2 Komatsu China
			["desc: PIGNON PRINCIPAL"]
11.	404-00082	[1]	GEAR;SUN NO.3 Komatsu China
			["desc: PIGNON"]
12.	1.403-00061	[3]	GEAR;PLANETARY NO.1 Komatsu China
			["desc: PIGNON"]
13.	1.403-00065	[3]	GEAR;PLANETARY NO.2 Komatsu China
			["desc: PIGNON"]
14.	104-00036	[4]	GEAR;PLANETARY NO.3 Komatsu China
			["desc: PIGNON"]
16.	K9002264	[3]	PIN NO.2 Komatsu China
			["desc: GOUPILLE"]
17.	123-00285	[4]	PIN NO.3 Komatsu China
			["desc: BROUCHE"]
18.	1.412-00121	[3]	PLATE;SIDE E Komatsu China
			["desc: PLAQUE"]
19.	1.412-00117	[6]	PLATE;SIDE A Komatsu China
			["desc: PLAQUE"]
20.	412-00038	[8]	PLATE;SIDE F Komatsu China
			["desc: PLAQUE"]
21.	1.216-00017	[3]	CAGE;NEEDLE Komatsu China
			["desc: ROULEMENT A AIGUILLES"]
22.	1.216-00015	[3]	CAGE;NEEDLE Komatsu China
			["desc: ROULEMENT A AIGUILLES"]
23.	1.216-00018	[4]	CAGE;NEEDLE Komatsu China
			["desc: ROULEMENT A AIGUILLES"]
24.	1.115-00232	[3]	RING;INNER Komatsu China
			["desc: BAGUE D'ARRET"]
25.	110-00126	[4]	BUSH;FLOATING Komatsu China
			["desc: BAGUE"]
26.	114-00347	[2]	RING;THRUST 60 Komatsu China
			["desc: ANNEAU DE BLOCAGE"]
27.	114-00348	[1]	RING;THRUST 90 Komatsu China
			["desc: ANNEAU DE BLOCAGE"]
29.	S2222671	[28]	BOLT;SOCKET M16X100 Komatsu China
			["desc: BOULON A 6 PANS CREUX"]
30.	S2208871	[12]	BOLT;SOCKET M8X20 Komatsu China
			["desc: BOULON A 6 PANS"]
32.	2181-1890D4	[3]	PLUG Komatsu China
			["desc: BOUCHON"]
33.	109-00145	[2]	BEARING;ANGULAR Komatsu China
			["desc: PALIER"]
34.	180-00345	[1]	SEAL;FLOATING Komatsu China
			["desc: JOINT A FACE FROTTANTE"]
35.	1.114-00054	[1]	SHIM 1.0 Komatsu China
			["desc: CALE 1.0"]
36.	1.123-00081	[3]	PIN;SPRING Komatsu China
			["desc: GOUPILLE ELASTIQUE"]
37.	S6510420	[4]	RING;SNAP Komatsu China
			["desc: ROND-TYPE C"]
44.	S6500450	[3]	RING;SNAP Komatsu China
			["desc: BAGUE D'ARRET"]
45.	124-00150	[1]	CLIP Komatsu China
			["desc: BAGUE D'ARRET"]
46.	124-00151	[1]	CLIP Komatsu China
			["desc: BAGUE D'ARRET"]
47.	1.115-00248	[1]	NUT;RING Komatsu China
			["desc: BAGUE-ECROU"]
53.	1.114-00306	[1]	WASHER 1.0t Komatsu China
			["desc: RONDELLE"]
53.	K9002676	[1]	WASHER 1.5t Komatsu China
			["desc: RONDELLE"]
54.	2.121-00226	[6]	SCREW;SET Komatsu China
			["desc: VIS DE REGLAGE"]
81.	1.180-00162	[1]	O-RING Komatsu China
			["desc: JOINT TORIQUE"]
82.	1.180-00163	[1]	O-RING Komatsu China
			["desc: JOINT TORIQUE"]
83.	S8000181	[3]	O-RING Komatsu China
			["desc: JOINT TORIQUE"]
901.	1.230-00012	[1]	CARRIER NO.1 SUB ASS'Y Komatsu China
			["desc: PORTE-SATELLITES N1"]
902.	1.230-00018	[1]	CARRIER NO.2 SUB ASS'Y Komatsu China
			["desc: PORTE-SATELLITES N2"]
