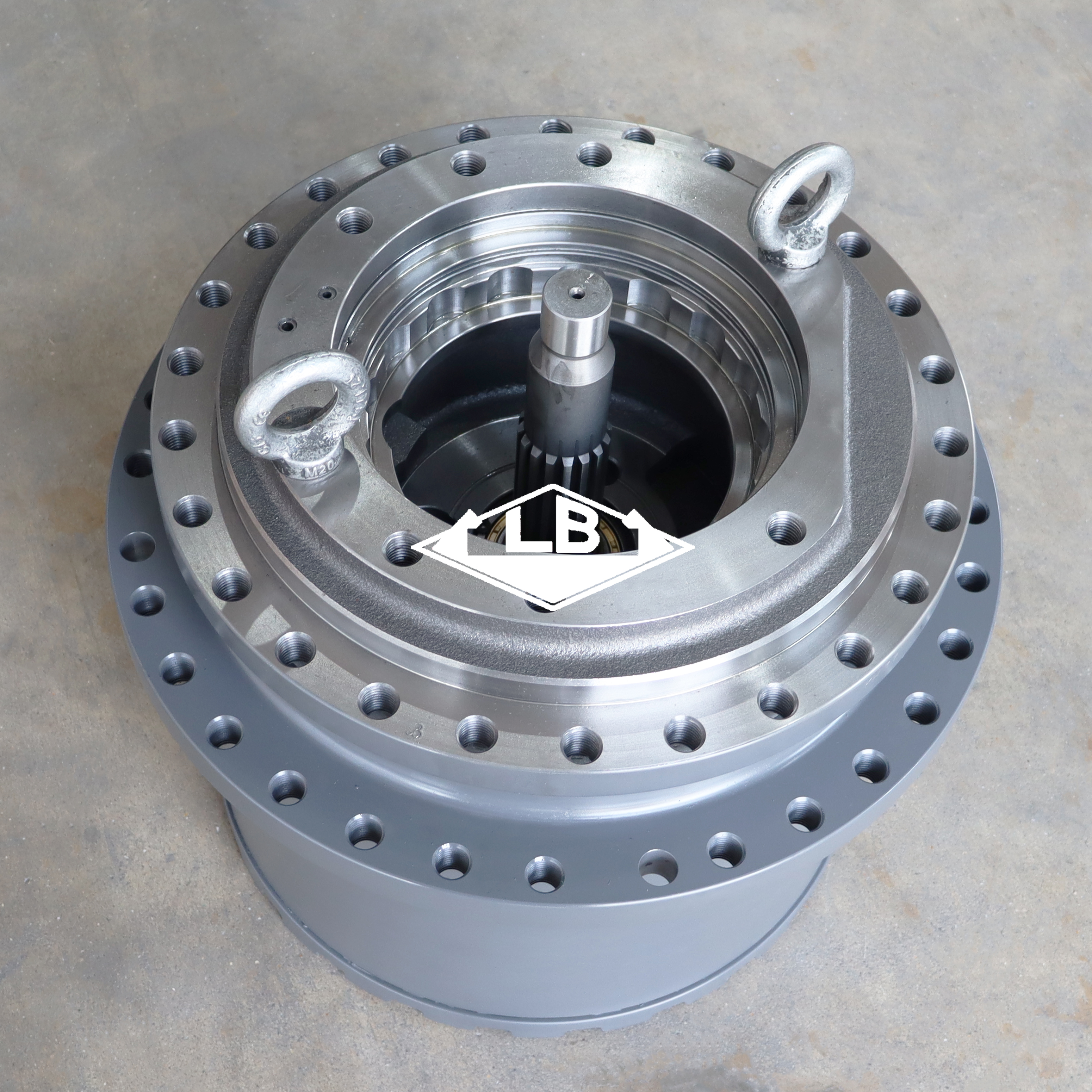

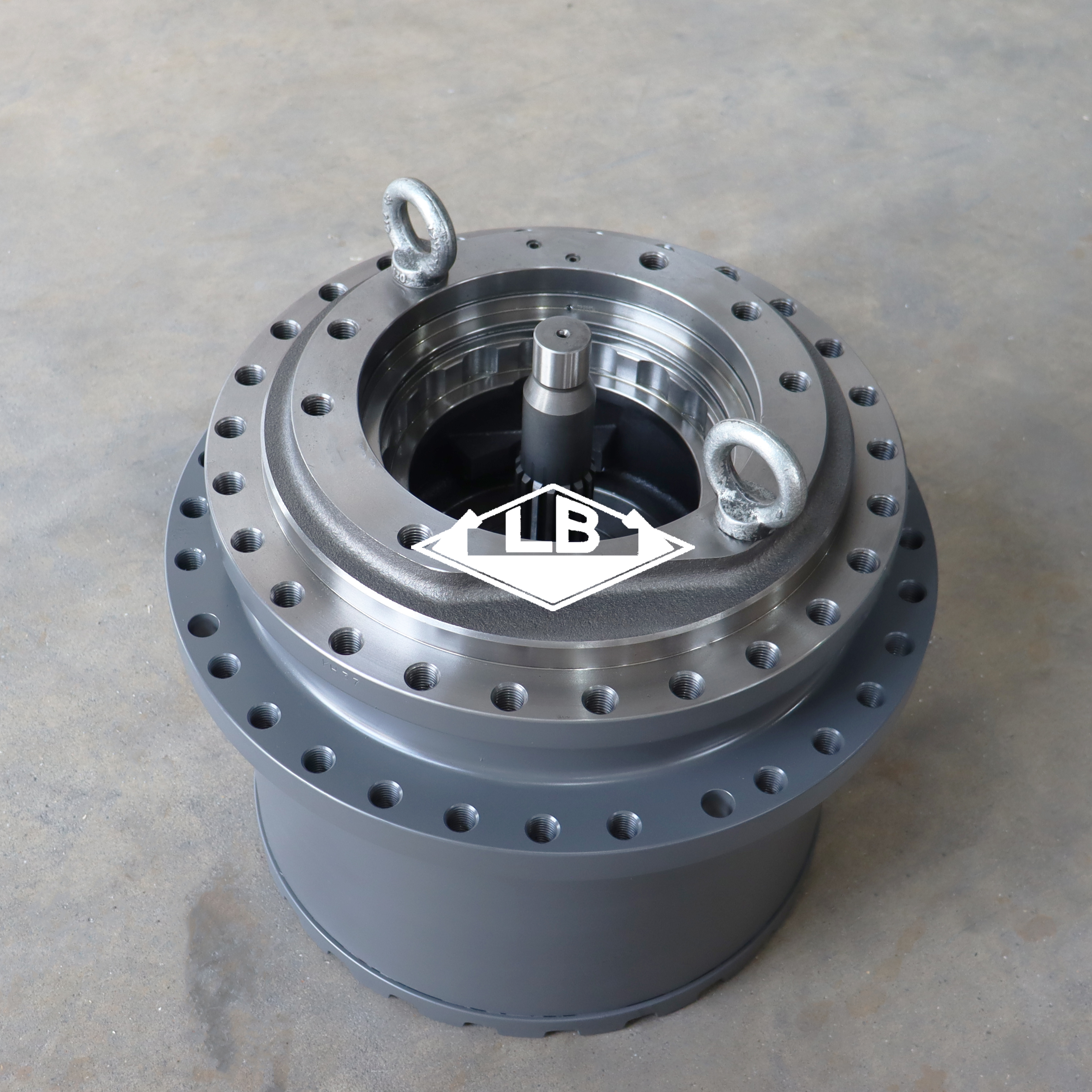

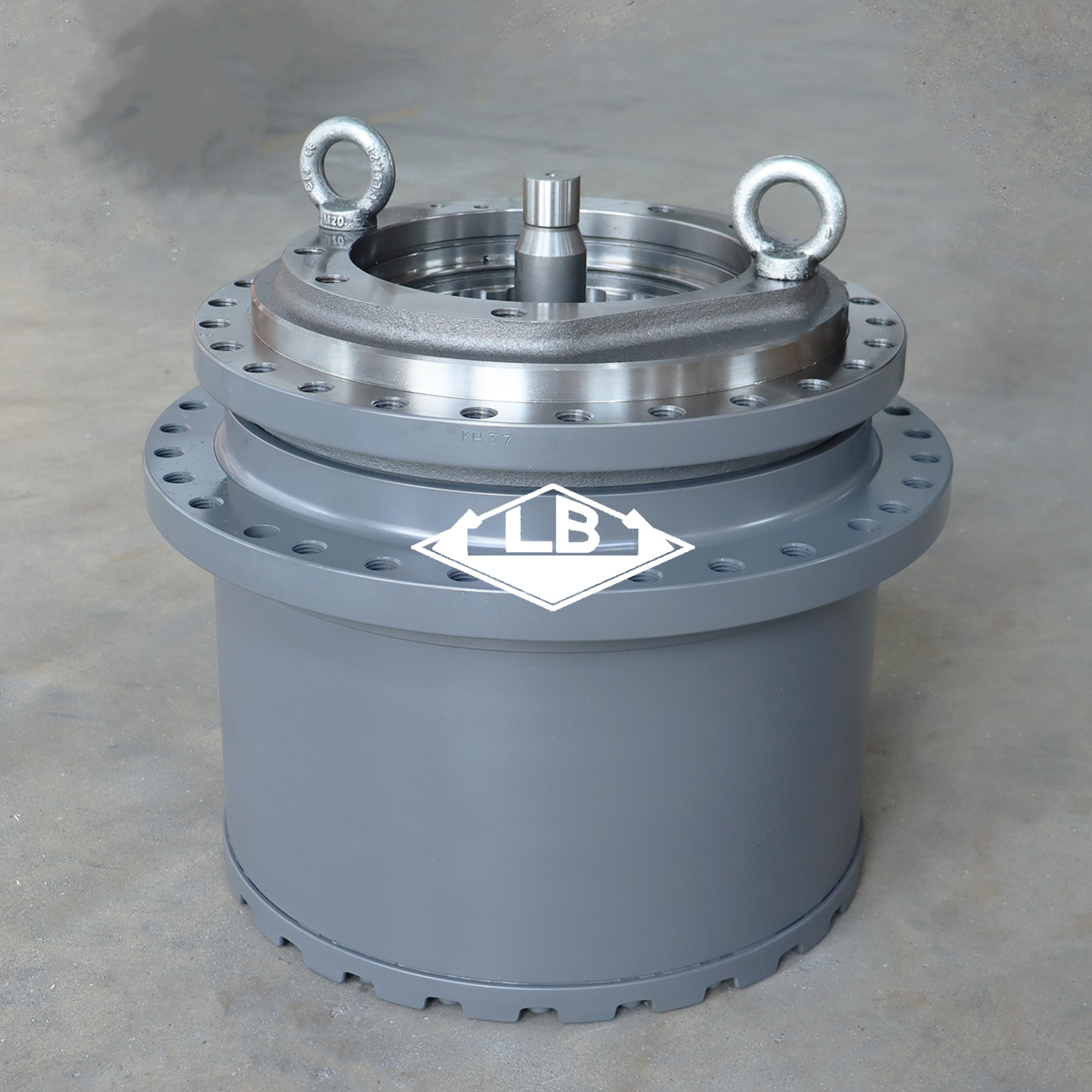

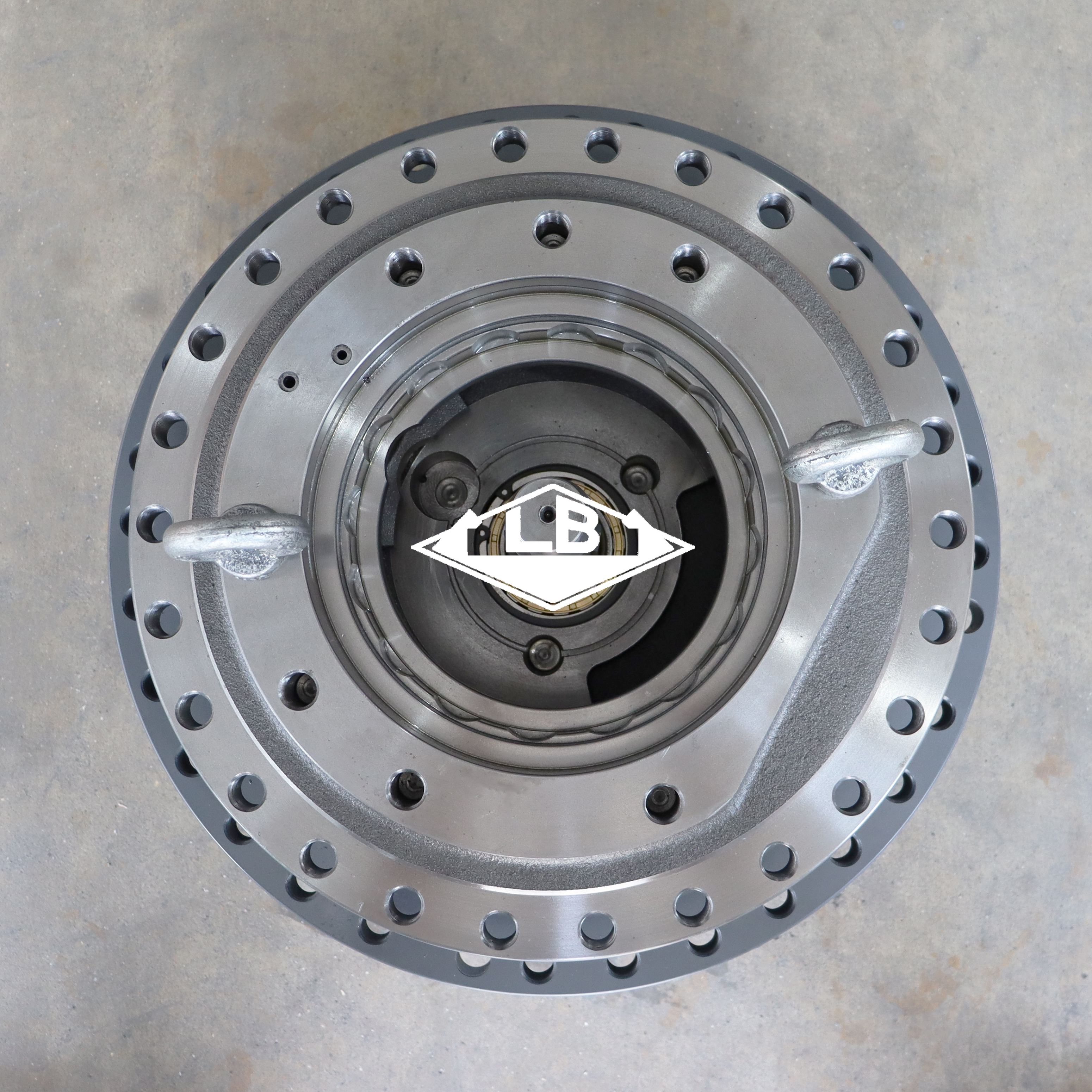

DX300-9 TRAVEL REDUCER GEARBOX 170402-00021 170401-00007G FINAL DRIVE FOR DOOSAN EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

DX300-9 TRAVEL GEARBOX
Equipment Apply to DOOSAN EXCAVATOR
Part no. 170401-00007G   170402-00021
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc

Product Description

DX300-9 行走牙箱(2)DX300-9 行走牙箱(8)DX300-9 行走牙箱(4)DX300-9 行走牙箱(6)DX300-9 行走牙箱

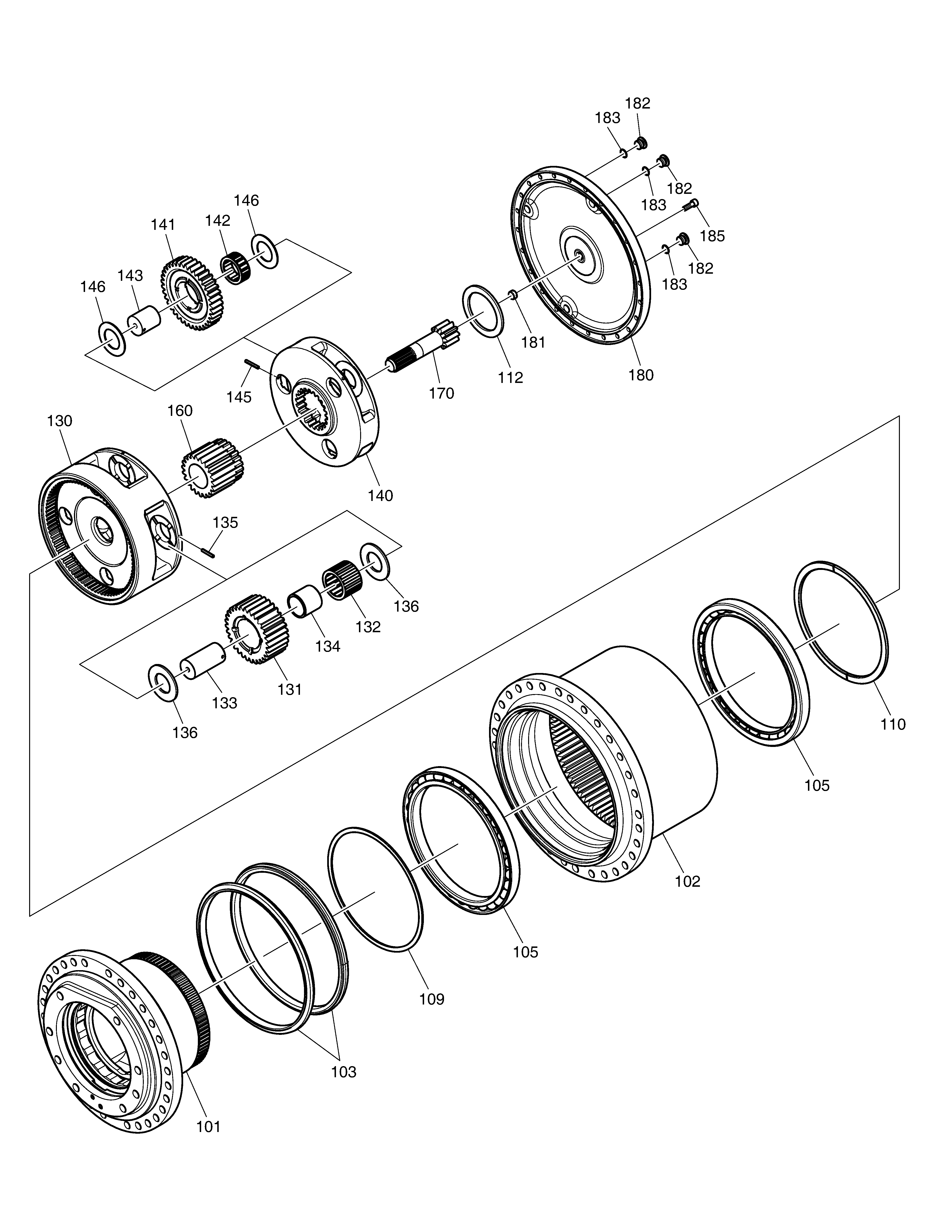

Parts on group DX300LC-5(S/N:1001~1057):

Pos. Part No Qty Parts name Comments
-. 170402-00021A [1]
170402-00021B
-. 170402-00021B [1]

101. 130713-00984B [1]

102. 900122-00072A [1]
900122-00072B
102. 900122-00072B [1]

103. 180-00345A [2] SEAL;FLOATING
105. K9009895 [2] BEARING;ANGULAR
109. 101558-00015 [1]

110. 250121-00056 [2]

112. 1.412-00164 [1] PLATE;THRUST
130. 100502-00146 [1]

131. 130418-00312 [4]

132. 1.216-00018 [4] CAGE;NEEDLE
133. 130712-00652 [4]

134. K9007396 [4] BUSH;FLOATING
135. S5740960 [4] PIN;SPRING
136. K9007394 [8] WASHER;THRUST
140. 100502-00147 [1]

141. 130418-00313 [3]

142. 1.216-00017 [3] CAGE,NEEDLE
143. 130712-00653 [3]

145. S5740960 [3] PIN;SPRING
146. K9007389 [6] WASHER;THRUST
160. 130425-00018 [1]

170. 130412-00102 [1]

180. 110508-07478A [1]

181. K9004304 [1] WASHER;THRUST
182. 2181-1890D4 [3] PLUG
183. S8000181 [3] O-RING
185. S2212371 [24] BOLT
