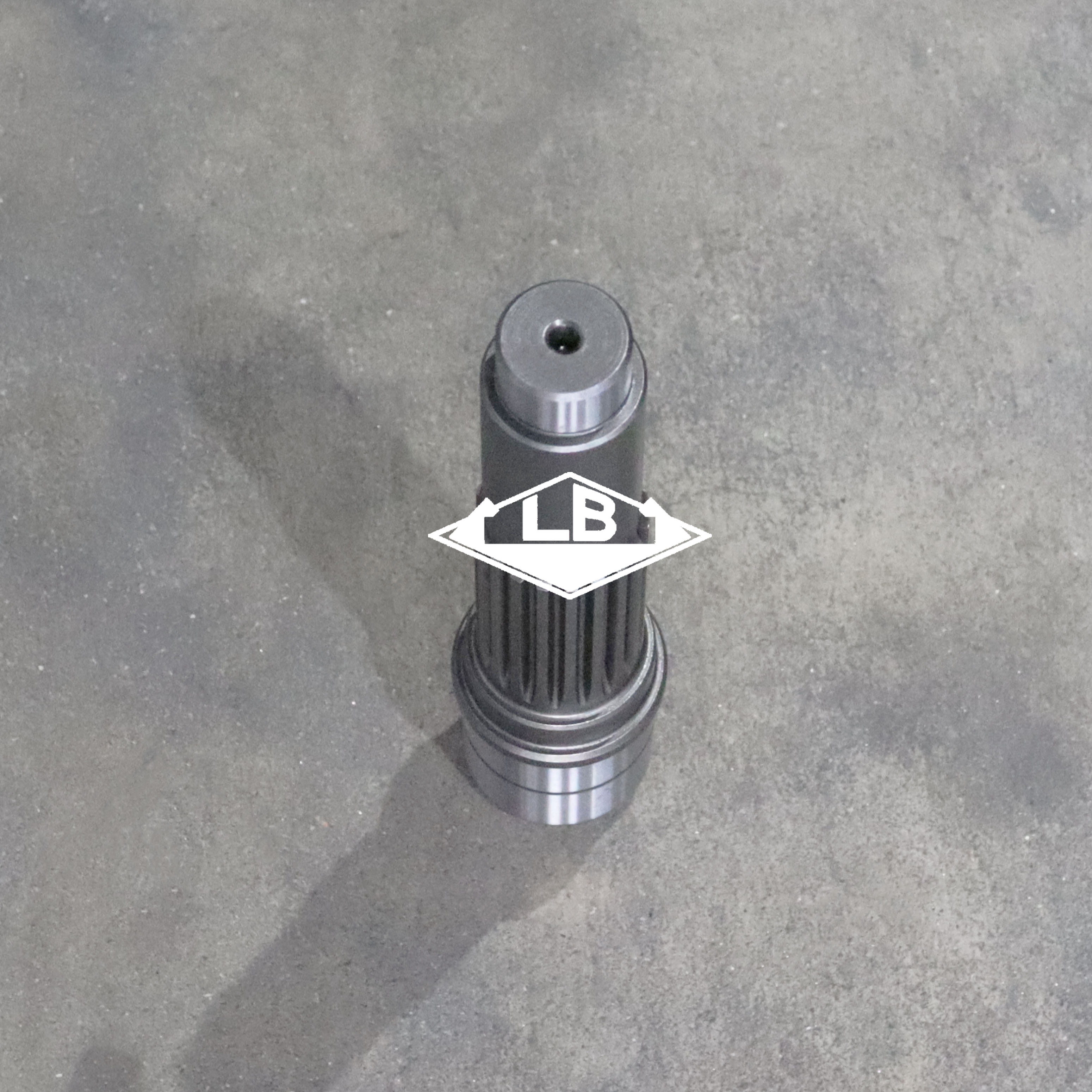

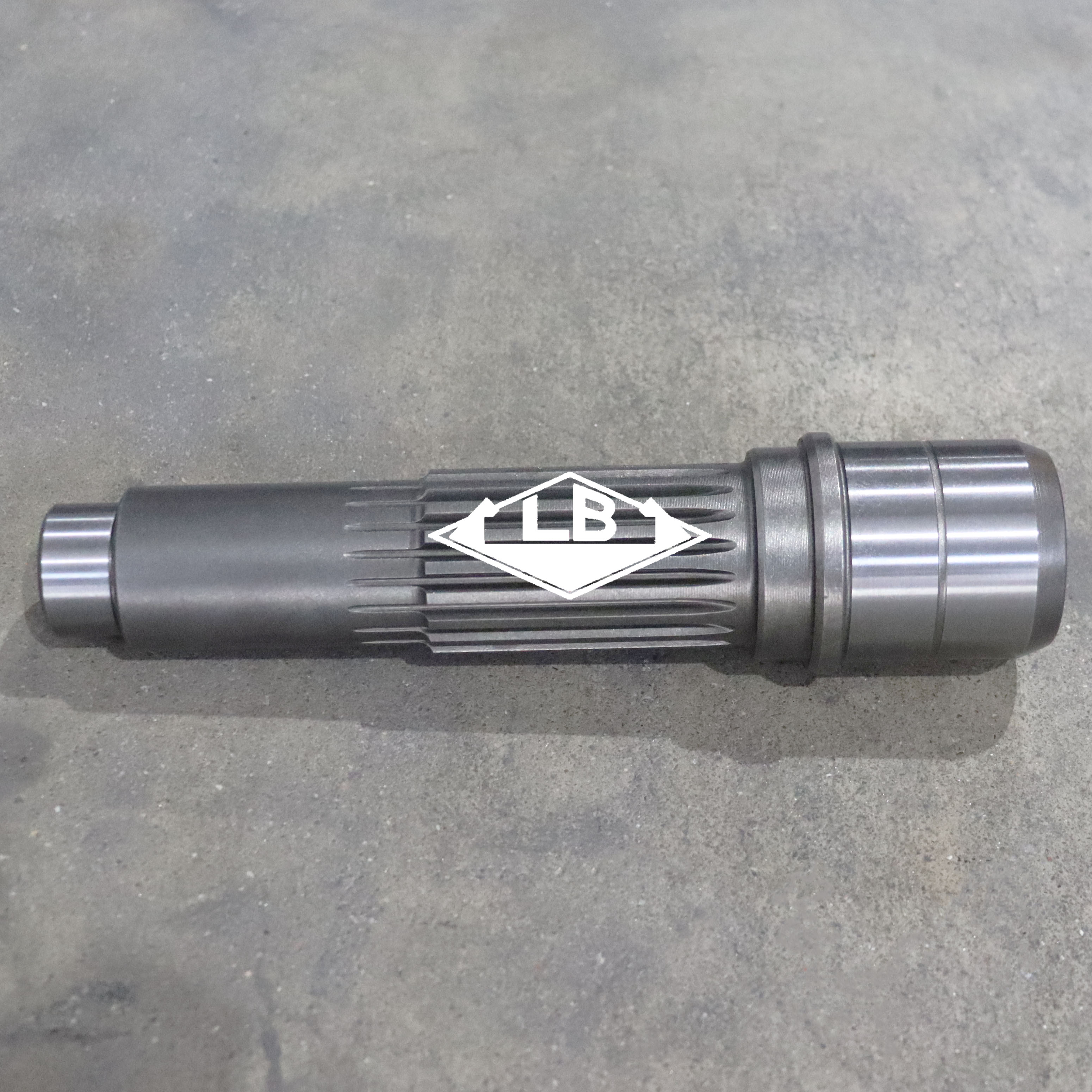

DX220 DX225 TRAVEL MOTOR SHAFT K9007415 TRAVEL REDUCTION GEARBOX SHAFT DRIVE FOR DOOSAN EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	DX220 DX225 Swing gearbox
Equipment	Apply to DOOSAN EXCAVATOR
Part no.	K9007415
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

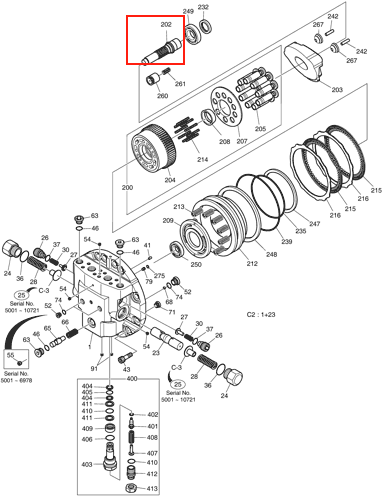

Parts on group DX220A / DX225LCA:

Pos.	Part No	Qty	Parts name	Comments
*.	K9008310	[1]	SEAL KIT;TRAVEL MOTOR
1.	*NA00915	[1]	REAR FLANGE
200.	400701-00004	[1]
200.	K9007407	[1]	CYL BLOCK & PISTON KIT	400701-00004
202.	K9007415A	[1]
202.	K9007415	[1]	SHAFT;DRIVE	K9007415A
203.	K9007382	[1]	PLATE;SWASH
204.	K9007397	[1]	BLOCK;CYLINDER
205.	K9007406A	[1]
205.	K9007406	[1]	PISTON ASS'Y
207.	K9004447	[1]	PLATE;RETAINER
208.	K9004448	[1]	BALL;THRUST
209.	K9007398A	[1]
209.	K9007398	[1]	PLATE;TIMING
212.	K9004453	[1]	PISTON;PARKING
213.	1.131-00049A	[12]	SPRING
213.	1.131-00049	[12]	SPRING
214.	K9004449	[1]	SPRING
215.	412-00013	[2]	PLATE,FRICTION
216.	352-00014	[2]	PLATE,SEPARATION
23.	410207-00163	[1]
23.	410207-00163A	[1]
23.	410207-00307	[1]	SPOOL,MAIN
23.	K9007399	[1]	MAIN SPOOL
232.	K9007401	[1]	SEAL;OIL
235.	S8001801	[1]	O-RING
239.	S8002101	[1]	O-RING
24.	1.181-00059	[2]	PLUG;FOR MAIN
242.	1.123-00053	[4]	PIN,PARALLEL
247.	S8061800	[1]	RING;BACK UP
248.	S8062100	[1]	RING;BACK UP
249.	K9007400	[1]	BEARING;BALL
25.	110956-00071	[2]
250.	1.109-00026	[1]	BEARING;BALL
26.	1.181-00067	[2]	PLUG;CHECK
260.	130602-00200	[1]
260.	1.409-00180	[1]	PISTON KIT;2 SPEED
261.	111601-00117	[1]
261.	1.131-00042	[1]	SPRING
267.	1.540-00006	[2]	PIVOT
27.	1.420-00013	[2]	VALVE;CHECK
275.	S8000081	[2]	O-RING
28.	1.131-00058	[2]	SPRING;FOR MAIN
30.	1.129-00006	[2]	SPRING;CHECK
36.	S8000321	[2]	O-RING
37.	S8002731	[2]	O-RING
400.	410127-00058	[2]
400.	410127-00058A	[2]		410127-00190
400.	410127-00190	[2]	VALVE ASSY,RELIEF
400.	K9007413	[2]	RELIEF VALVE ASS'Y
401.	*NA00890	[1]	. PLUNGER
402.	1.180-00527	[1]	SEAL;PISTON
403.	*NA00079	[1]	BODY
404.	S8060161	[2]	RING;BACK-UP
405.	S8000161	[3]	O-RING
406.	S8010291	[1]	O-RING
407.	*NA00926	[1]
408.	*NA01182	[1]	. SPRING
409.	*NA00796	[1]	PISTON
41.	S5700891	[1]	PIN;PARALLEL
410.	S8000221	[2]	O-RING
411.	S8060221	[3]	RING;BACK UP
412.	*NA00865	[1]	PLUG,ADJUST
413.	*NA00628	[1]	NUT,LOCK
43.	S2221471	[12]	BOLT,SOCKET
46.	S8000181	[2]	O-RING
52.	2181-1890D2	[4]	PLUG
52.	2181-1890D2	[2]	PLUG
54.	181-00318	[5]	BOLT;SOCKER
55.	2181-1116D2	[2]	PLUG
63.	2181-1890D4	[2]	PLUG
65.	1.424-00041	[1]	SPOOL;2 SPEED
66.	111601-00354	[1]	SPRING
66.	1.131-00001	[1]	SPRING	111601-00354
68.	S6250182	[2]	BALL
71.	1.415-00005	[1]	ORIFICE
74.	S8000111	[4]	O-RING
74.	S8000111	[2]	O-RING
79.	1.471-00001A	[1]	FILTER
79.	1.471-00001	[1]	FILTER
91.	2181-1116D1	[2]	PLUG
C.	300609-00069	[1]
C.	K9007410	[1]	CONTROL PART ASS'Y	300609-00069
C-1.	430215-00552	[1]
C-1.	K9007408	[1]	REAR FLANGE ASS'Y
C-1.	K9007408A	[1]		430215-00552
C-2.	K9007409	[1]	REAR FLANGE KIT
C-2.	K9007409A	[1]
C-3.	110956-00060	[2]	STOPPER
