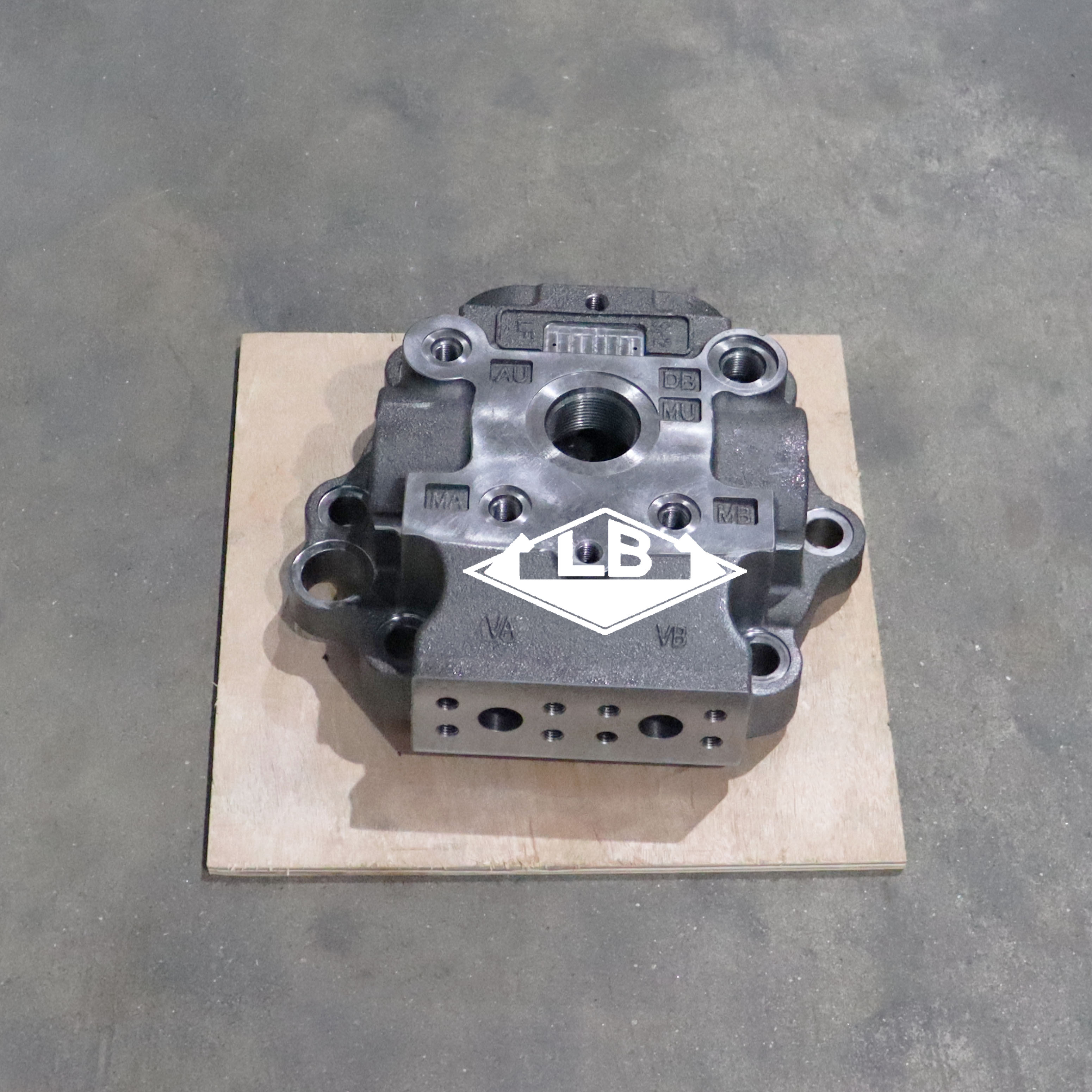

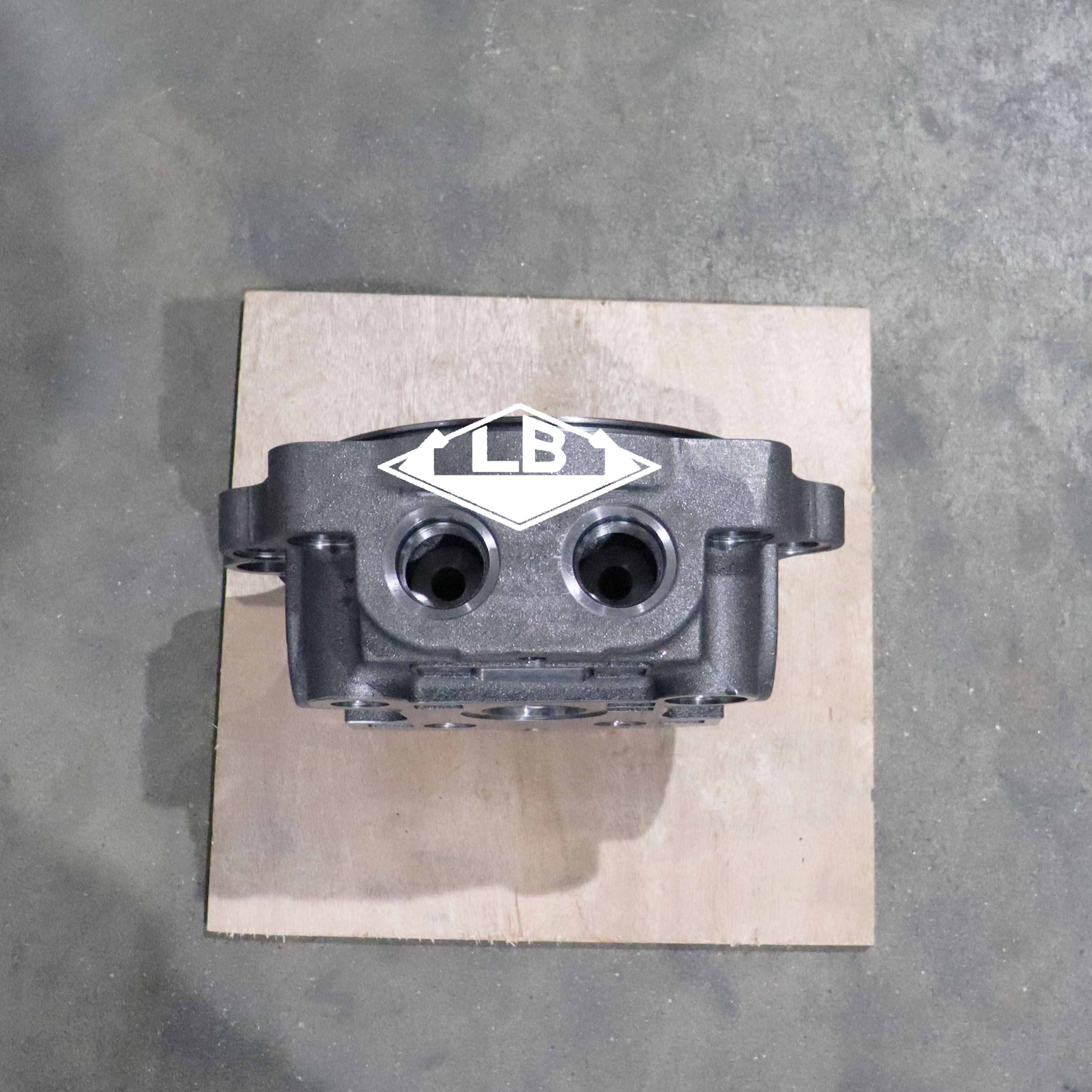

R210-9 R220-9 SWING MOTOR COVER 39Q6-11280 39Q6-11281 SWING MOTOR CASING VALVE APPLY FOR HYUNDAI EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	R210-9 R220-9 Swing gearbox
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	39Q6-11280 39Q6-11281
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

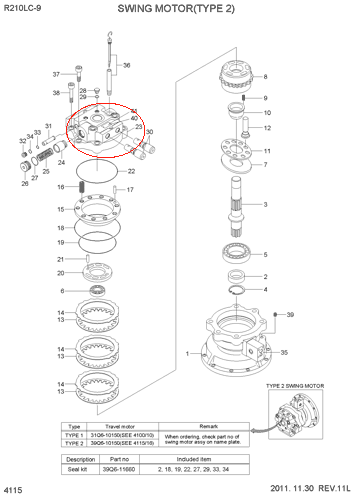

Parts on group SWING MOTOR (TYPE 2 & 3):

Pos.	Part No	Qty	Parts name	Comments
*.	39Q6-10150	[1]	SWING MOTOR ASSY	-1, -2, TYPE 2
*.	39Q6-10151	[1]	SWING MOTOR ASSY	-1, -2, TYPE 2
*.	39Q6-10152	[1]	SWING MOTOR ASSY	-1, -2, TYPE 2
*.	38Q6-10150	[1]	SWING MOTOR ASSY	-1, -2, TYPE 3
*.	38Q6-10151	[1]	SWING MOTOR ASSY	-1, -2, TYPE 3
*.	38Q6-10152	[1]	SWING MOTOR ASSY	-1, -2, TYPE 3
*-1.	39Q6-11100	[1]	SWING MOTOR UNIT	TYPE 2
N*-1.	39Q6-11101	[1]	SWING MOTOR UNIT	TYPE 2
*-1.	38Q6-11100	[1]	SWING MOTOR UNIT	TYPE 3
*-1.	38Q6-11101	[1]	SWING MOTOR UNIT	TYPE 3
1.	39Q6-11110	[1]	CASING
*-A.	39Q6-11160	[1]	ROTARY KIT	INCL -B, -C, 12
*-B.	39Q6-11170	[1]	CYLINDER BLOCK KIT	INCL 8, 9
N8.	39Q6-11180	[1]	BLOCK-CYLINDER
N9.	39Q6-41290	[9]	SPRING
*-C.	39Q6-11190	[1]	RETAINER KIT	INCL 10, 11
N10.	39Q6-11200	[1]	GUIDE-BALL
N11.	39Q6-11210	[1]	PLATE-RETAINER
N12.	39Q6-11220	[9]	PISTON ASSY
K2.	39Q6-11660	[1]	SEAL-OIL
3.	39Q6-11120	[1]	SHAFT
4.	S601-040004	[1]	RING-SNAP
5.	39Q6-11130	[1]	BEARING-ROLLER
6.	39Q6-11140	[1]	BEARING-NEEDLE
7.	39Q6-11150	[1]	PLATE-SWASH
13.	39Q6-41360	[4]	PLATE-FRICTION
13.	39Q6-41361	[4]	PLATE-FRICTION
14.	39Q6-41370	[4]	PLATE-SEPARATED
15.	39Q6-11250	[1]	PISTON-PARKING
16.	39Q6-11260	[26]	SPRING-BRAKE
17.	S471-800454	[1]	PIN-SPRING
K18.	Y172-043004	[1]	O-RING
K19.	Y172-041004	[1]	O-RING
20.	39Q6-11270	[1]	PLATE-VALVE
21.	S471-800254	[2]	PIN-SPRING
K22.	Y172-042004	[1]	O-RING
23.	39Q6-11280	[1]	CASING A-VALVE
23.	39Q6-11281	[1]	CASING A-VALVE
24.	39Q6-11290	[2]	VALVE-CHECK
25.	39Q6-11300	[2]	SPRING-CHECK VALVE
26.	39Q6-11670	[2]	PLUG
26.	39Q6-11671	[2]	PLUG
K27.	S631-038004	[2]	O-RING
28.	39Q6-41750	[3]	PLUG
K29.	S631-011004	[3]	O-RING
30.	39Q6-11310	[2]	VALVE ASSY-RELIFE
30.	39Q6-11311	[2]	VALVE ASSY-RELIFE
31.	39Q6-11420	[2]	REACTIONLESS VLV ASSY	SB-F-2014-007.PDF
32.	39Q6-11500	[2]	PLUG
K33.	S631-012004	[2]	O-RING
K34.	S631-018004	[2]	O-RING
35.	39Q6-11510	[1]	VALVE ASSY-TIME DELAY
36.	39Q6-11600	[1]	GAUGE-LEVEL
36.	39Q6-11601	[1]	GAUGE-LEVEL
37.	S109-180456	[2]	BOLT-SOCKET
38.	S109-180556	[4]	BOLT-SOCKET
39.	P220-430202	[1]	PLUG-HEX
40.	39Q6-11650	[1]	NAME PLATE	TYPE 2
40.	39Q6-11652	[1]	NAME PLATE	TYPE 2
40.	39Q6-11653	[1]	NAME PLATE	TYPE 2
40.	38Q6-11650	[1]	NAME PLATE	TYPE 3
40.	38Q6-11652	[1]	NAME PLATE	TYPE 3
40.	38Q6-11653	[1]	NAME PLATE	TYPE 3
41.	39Q6-41800	[2]	RIVET
*-2.	@	[1]	SWING REDUCTION GEAR	SEE 4116
K.	39Q6-11700	[1]	SEAL KIT	SEE ILLUST
N.	@	[AR]	NOT SUPPLIED PARTS
